Description

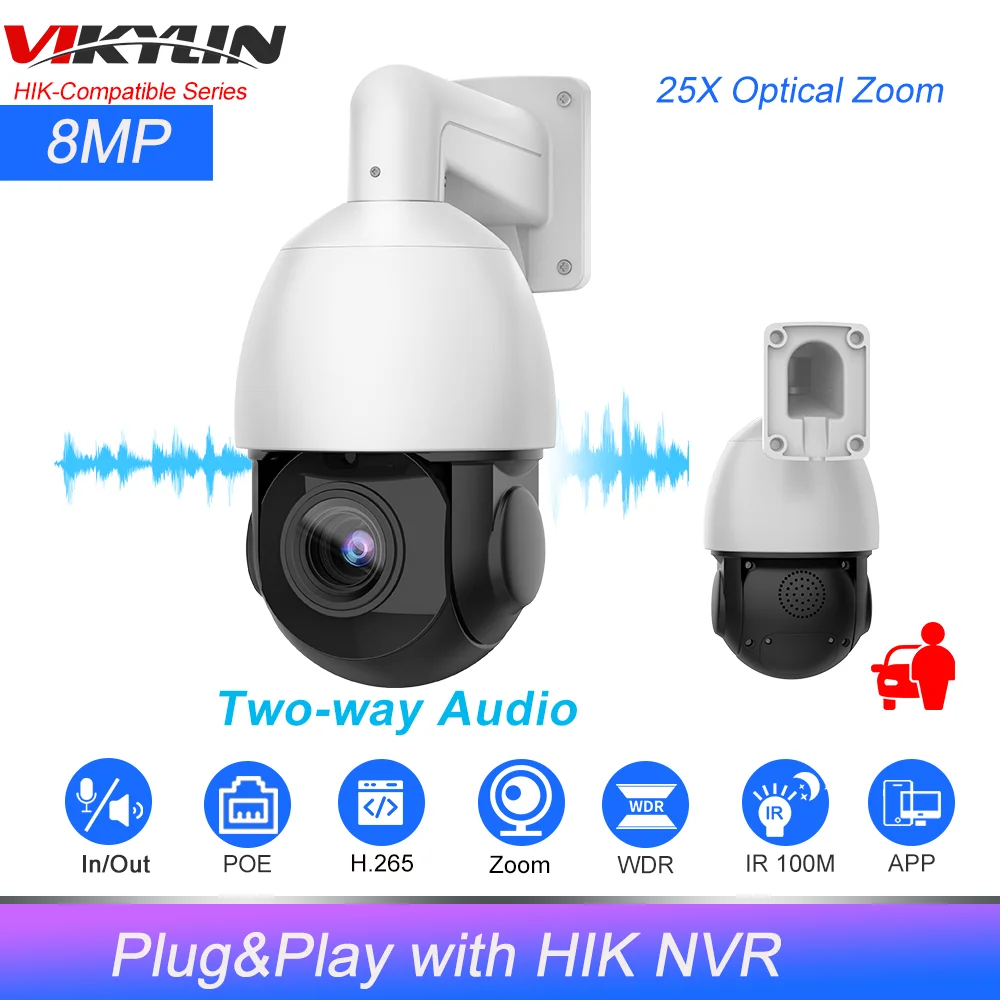

Vikylin 8MP PTZ Camera 25X Zoom & Auto-Tracking
What is “HIK compatible”?
-
- It means this camera supports plug-and-play with HIK NVR (also HIK software). You don’t need to manually set the camera’s IP and password. Just plug it in, and the camera will work!
Software:
8 MP 25X IR PTZ Network Camera
- 1/2.8” Progressive Scan CMOS
- 3840 x (Resolution needs to be completed)
- HD 4.4-110mm Motorized lens
- Color: 0.1 Lux @ (F1.65-3.8)
- Black and White: 0.01 Lux @ (F1.65-3.8), 0 Lux with IR
- H.265+, H.265, H.264
- Supports PoE
- BLC/3D DNR/HLC/WDR
- IP66
Camera:
-
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Minimum Illumination: Color: 0.1 Lux @ (F1.65-3.8); Black and White: 0.01 Lux @ (F1.65-3.8); 0 Lux with IR
- White Balance: Auto/Manual
- Shutter Speed: 1/10 s to 1/10,000 s
- Day and Night: IR Cut Filter
- Digital Noise Reduction: 2D/3D DNR
- Wide Dynamic Range (WDR): Support
- Privacy Mask: 4 programmable privacy masks
Lens:
-
- Focal Length: 4.4-110mm lens, 25× optical zoom
- Field of View: Horizontal field of view: 66.42° to 3.3°; Vertical field of view: 54.26° to 2.664°
PTZ:
-
- Movement Range: Pan: 0° to 360°, Tilt: 0° to 90°
- Pan Speed: Configurable, from 0.5°/s to 20°/s. Preset speed: 20°/s
- Tilt Speed: Configurable, from 0.5°/s to 20°/s. Preset speed: 20°/s
- Preset Points: 220
- Guard Tours: 3 groups
- Guard Points: Maximum 16 points
- Proportional Zoom: Yes
- Power-off Memory: Yes
- Tracking: human auto tracking
Compression Standard:
-
- Video Compression: Main stream: H.265+, H.265, H.264; Sub-stream: H.265+, H.265, H.264
- H.265 Type: Baseline profile/Main profile/High profile
- H.265+: Yes
Event:
-
- Basic Event: Motion Detection
- Intelligent detection: Human Detection / Vehicle Detection
IR:
-
- IR Distance: 100 m
- IR LED: 6 PCS
Image:
-
- Max. Resolution: 3840 x 2160
- Main Stream: 20fps @ 8MP (3840 x 2160), 30fps @ various lower resolutions
- Sub-Stream: 30fps @ various resolutions
- Image Enhancement: BLC/3D DNR/HLC/WDR
Network:
-
- Network Storage: Support Local storage and NFS, NVR, APP Cloud Storage
- Protocols: TCP/IP, IPv4, IPv6, HTTP, RTSP, NFS, DHCP, NTP, SMTP, FTP, SSL
- General Function: Privacy Masks, Horizon/Vertical Flip, Password Reset, Upgrade
- API: ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live View: Up to 20 channels
- User/Host: 3 levels: Administrators, Operators, and Users
- Client: AjDevTool, SADP, Danale App, LMS, iVMS-4200
- Web Browser: IE 8+, Chrome 57.0+, Firefox 52.0+
Interface:
-
- Network Interface: 1 RJ45 10M/100M Ethernet, PoE
- Power: 12V DC
- Audio: 2-way audio
- RS485: Not available
- SD Card slot: Not available
General:
-
- Web Client Language: 7 languages including English, Russian, German, Italian, Turkish, Korean
- Power: 12V DC ≤ 3A, 20W MAX/POE (802.3at)
- Working Environment: Temperature: -20°C to 60°C (-4°F to 140°F), humidity: ≤ 90%
- Protection Level: IP66
- Material: Metal
- Dimension: Package: 185 x 190 x 285 mm (7.3″ x 7.5″ x 11″)
- Weight: With Package: Approx. 1.96 kg (2.7 lb.)
Pan/Tilt: Remote control the camera / Swipe on Mobile to look around more
Two-way Audio, built-in Mic and speaker
Human and Vehicle Detection
WDR, ICR, Ultra DNR(Applicable to various monitoring scenes)
IP66 Waterproof
Easy POE setup, plug and play with Hivision NVR
1. 8MP 25X PTZ IPC*1
2. Waterproof accessories *1
3. Screw*1lot
4. User guide *
5. power adapter *1
6. bracket *1
HIK Tool – SADP
HIK Tool – IVMS-4200
Login on Web
