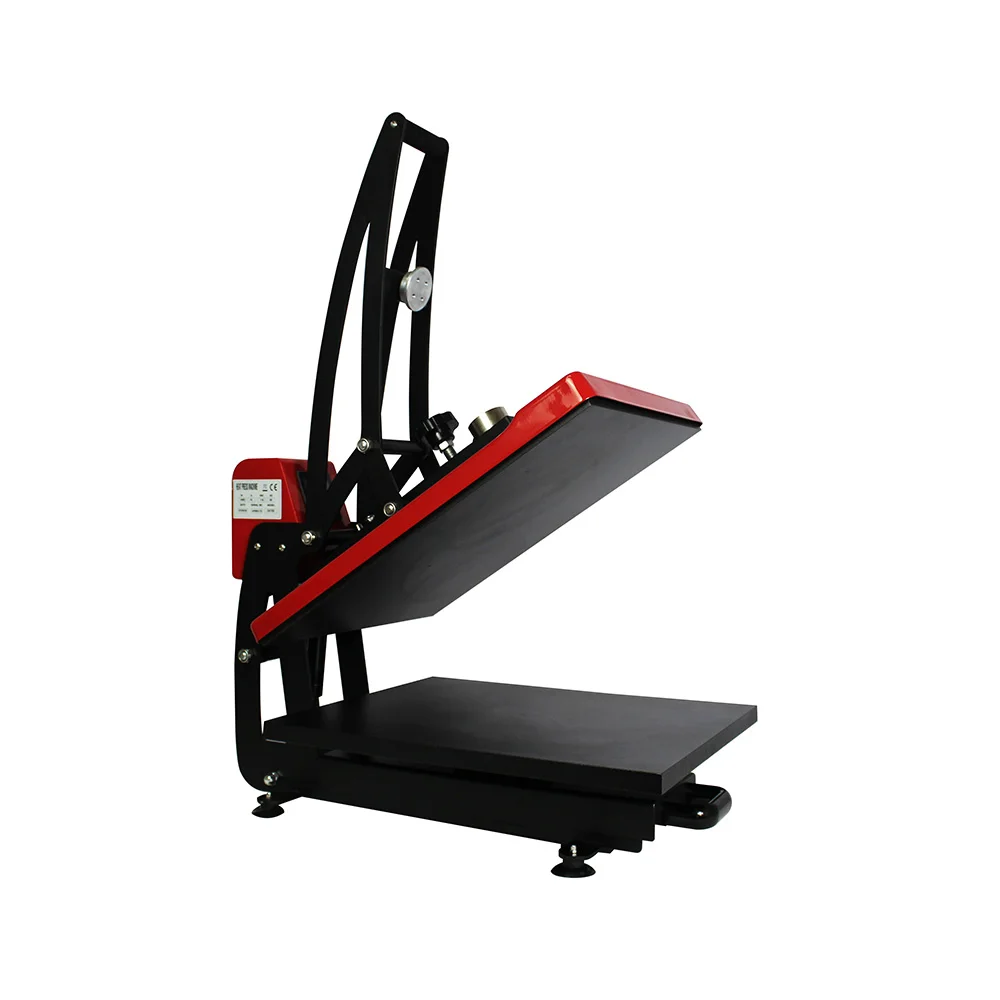

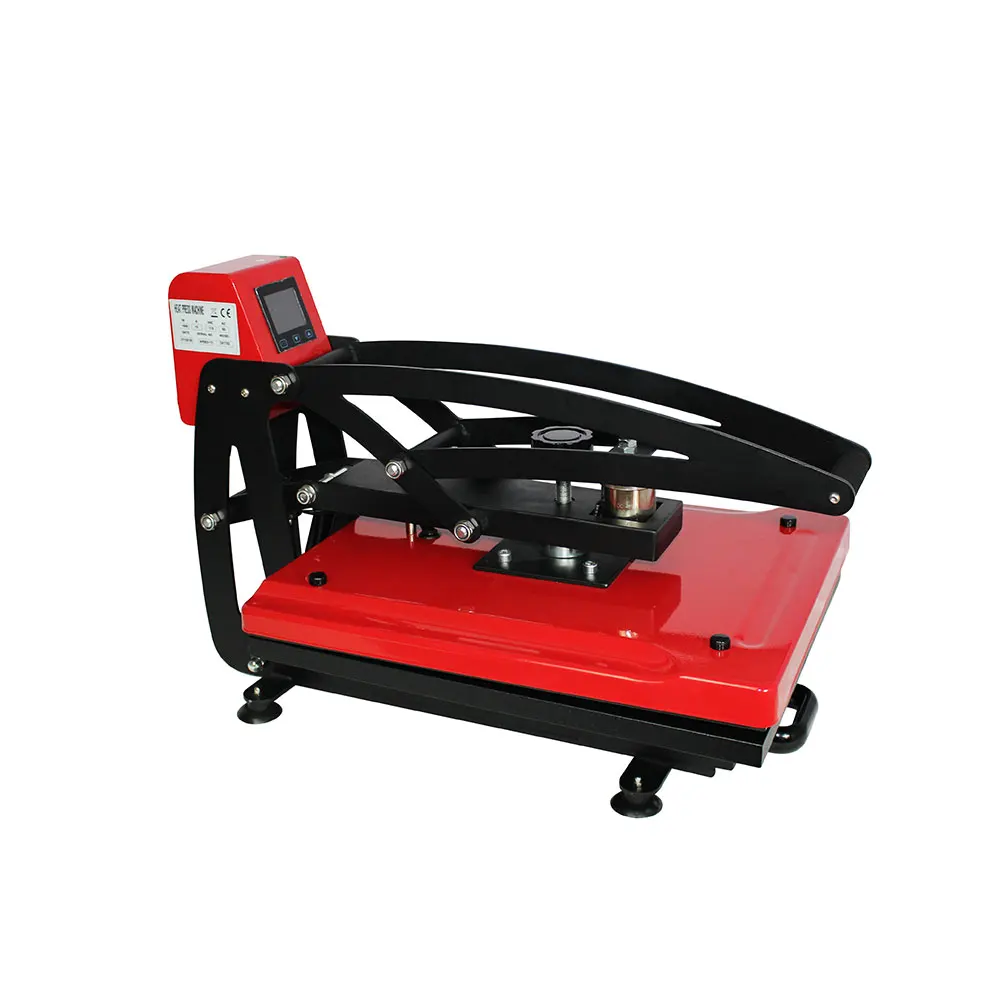

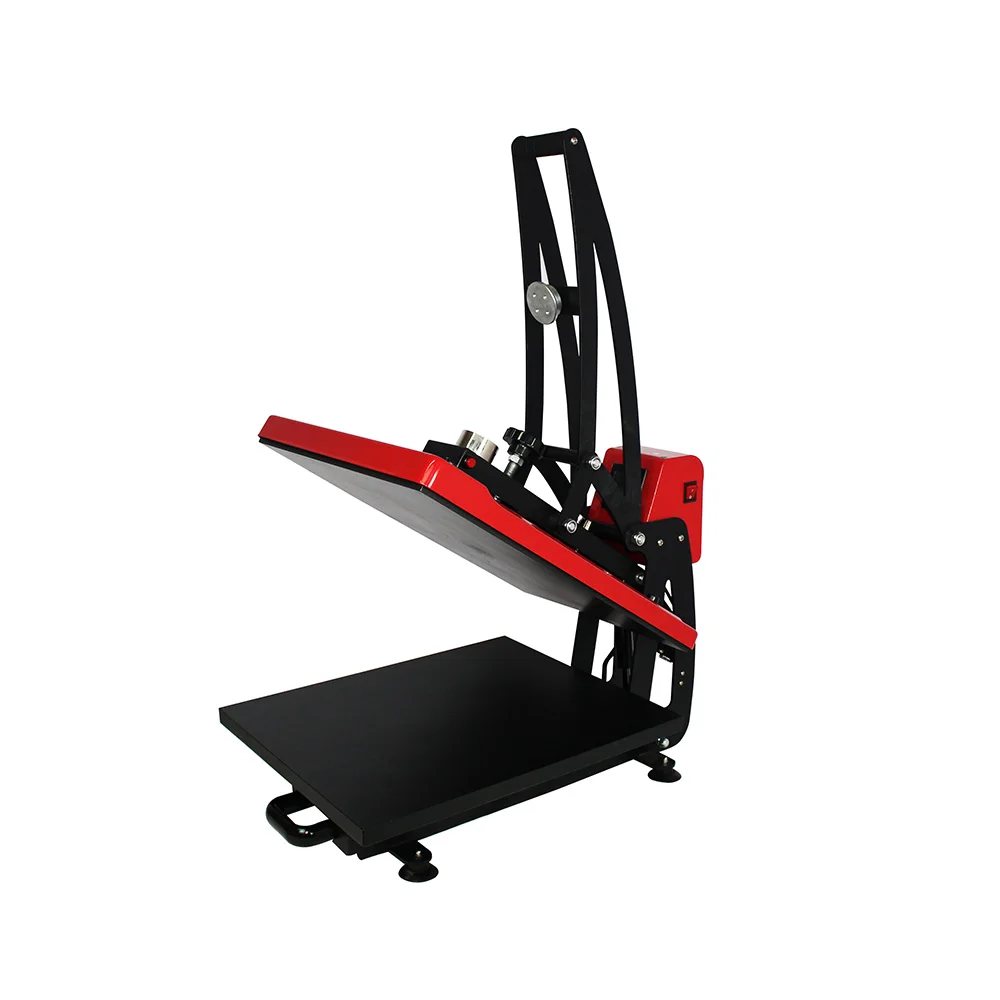

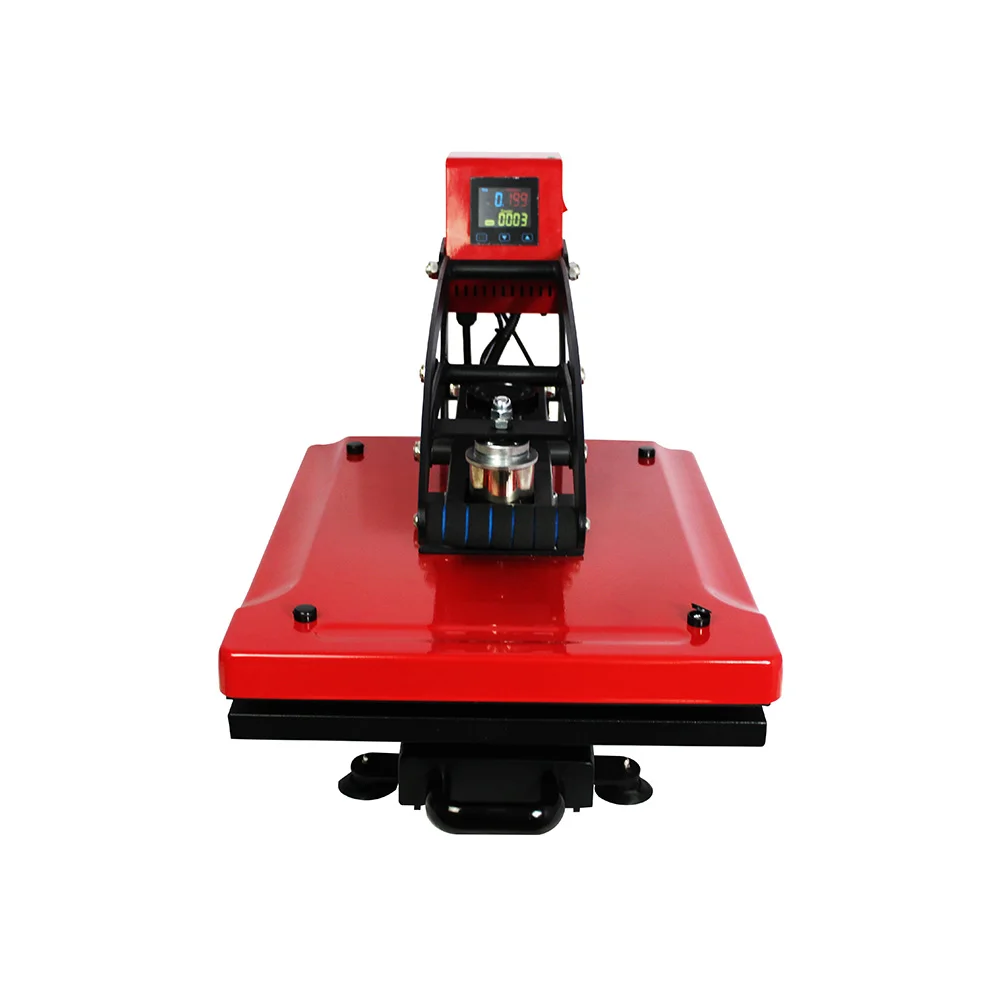

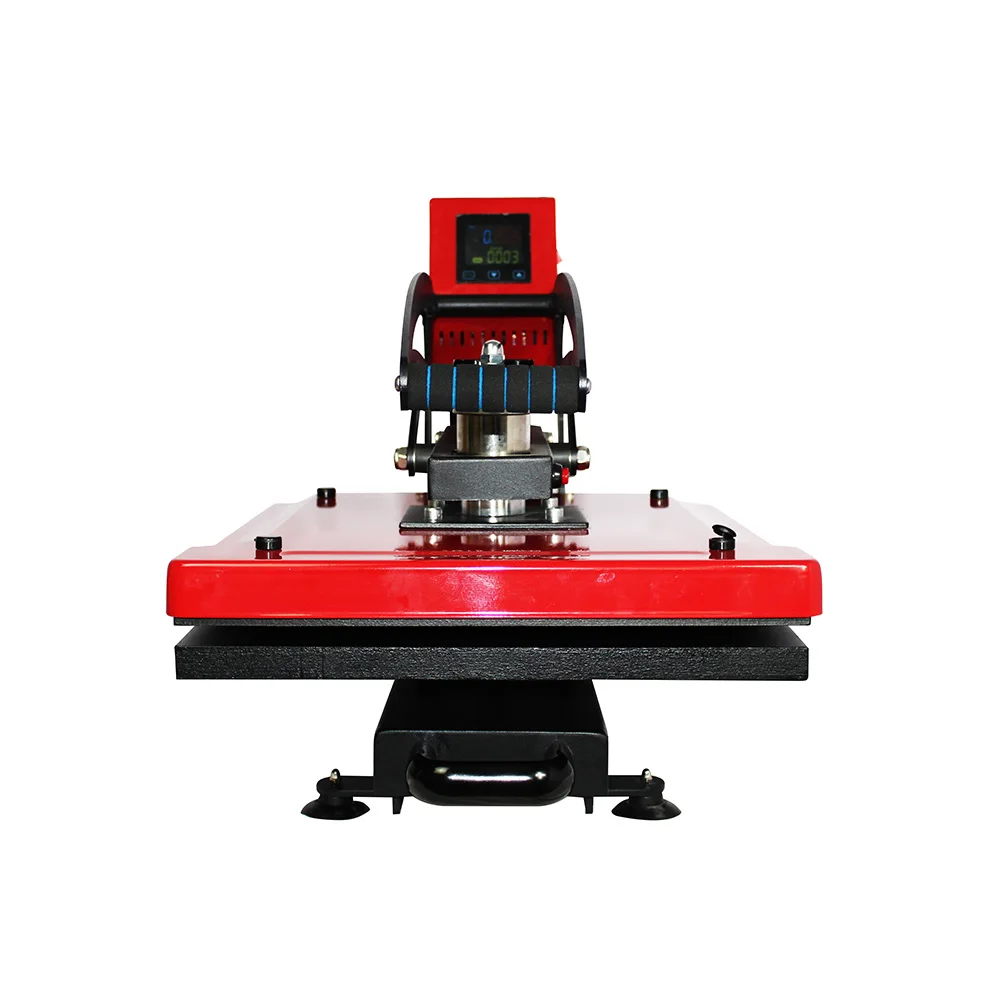

Qomolangma 16×20 Auto Open Heat Press Machine

Description

Qomolangma 16×20 Auto Open Heat Press Machine

Description:

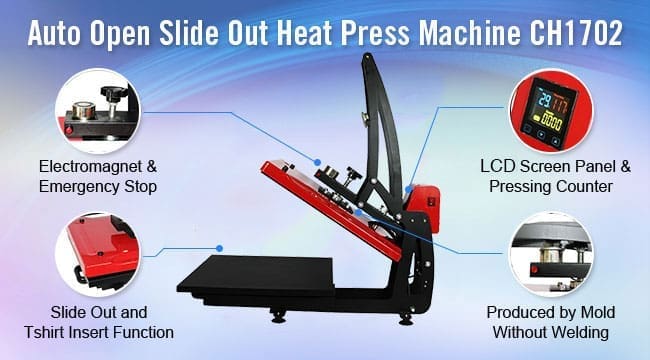

The press is equipped with a manual override, a digital display, and a sound signal at the end of work. Designed for printing textiles and other materials. The machine may be used on t-shirts, mouse pads, puzzles, ceramic tiles, and other flat surface items by using flex, flocking, transfer printing paper, sublimation, etc.

Data Sheet:

• Voltage: 110V, 60Hz, 14A
• Transfer Size: 16 in x 20 in (40 cm x 50 cm)
• Power: 1600W
• Time Range: 0-999 seconds
• Temperature Range: 0-250°C (32-482°F)
• Working Mode: Manual
• Control Mode: LCD Screen

Warm Tips:

• To avoid an automatic pop-up, the magnetic machine’s pressure should be adjusted to a minimum during transportation. The customer must increase the pressure before using it.
• For sublimation on photo slate, ceramic tiles, or glass, ensure the printable surface is inverted to the workbench for better sublimation finishing.

Packing Details:

• Carton Case Package
• Packing Size: 30.7 in x 19 in x 21 in (78 x 48.5 x 54 cm)
• Gross Weight: 92.4 lbs (42 kg)

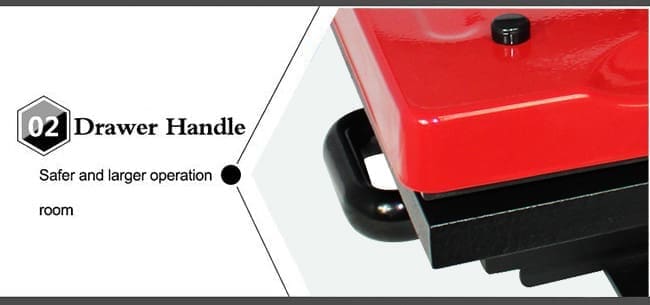

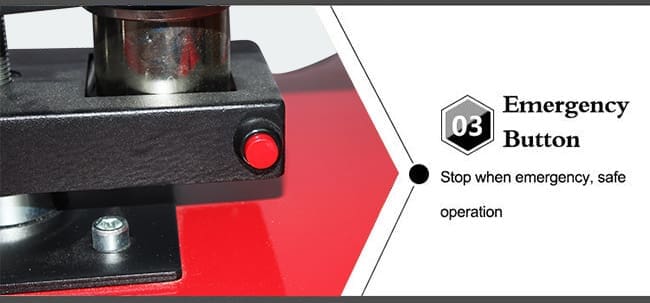

Detail:

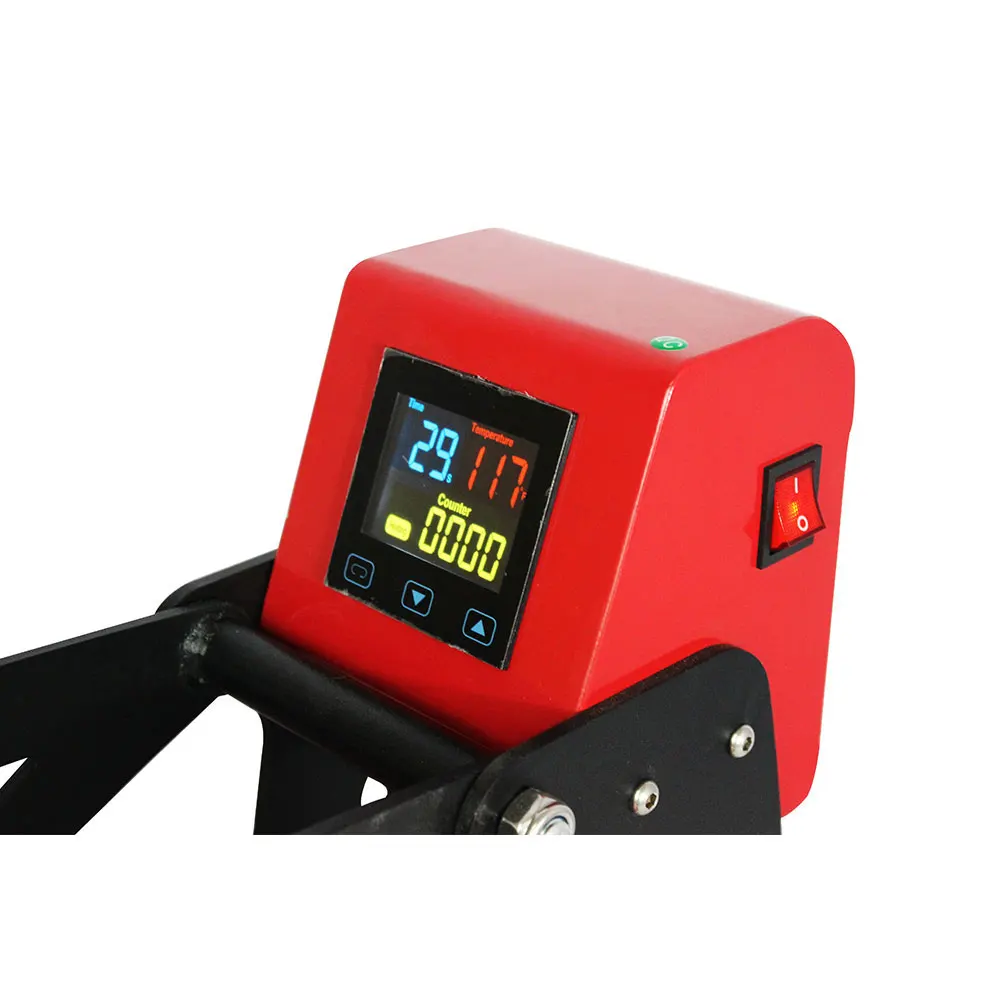

Set Time & Temperature:

• Turn on the switch located on the side of the heat press to energize it.
• Press “SET” once; the screen will show “SP” on the display. Adjust the temperature using “▼” or “▲”.
• Press “SET” again; the screen will show “St” on the display. Adjust the time using “▼” or “▲”.
• Press “SET” for a few seconds to exit the setting mode.
• The “COUNTER” indicates how many times the press has been used. To reset it to zero, press and hold “RESET” and “▼”.
• Place the object when the machine reaches the desired temperature. Close the heating plates and wait.

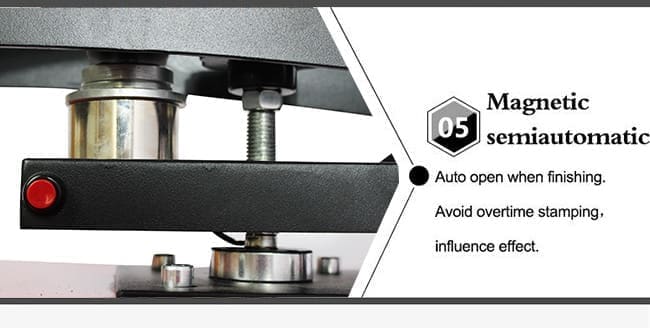

• When the time is up, the machine will open automatically. Remove the printed items.

Application:

The auto-open heat press machine is widely used to transfer images onto T-shirts, clothes, mouse pads, rock photos, tiles, backpacks, school bags, wallet bags, etc.
