Description
Creality Ender 3 Series – Pro DIY 3D Printers

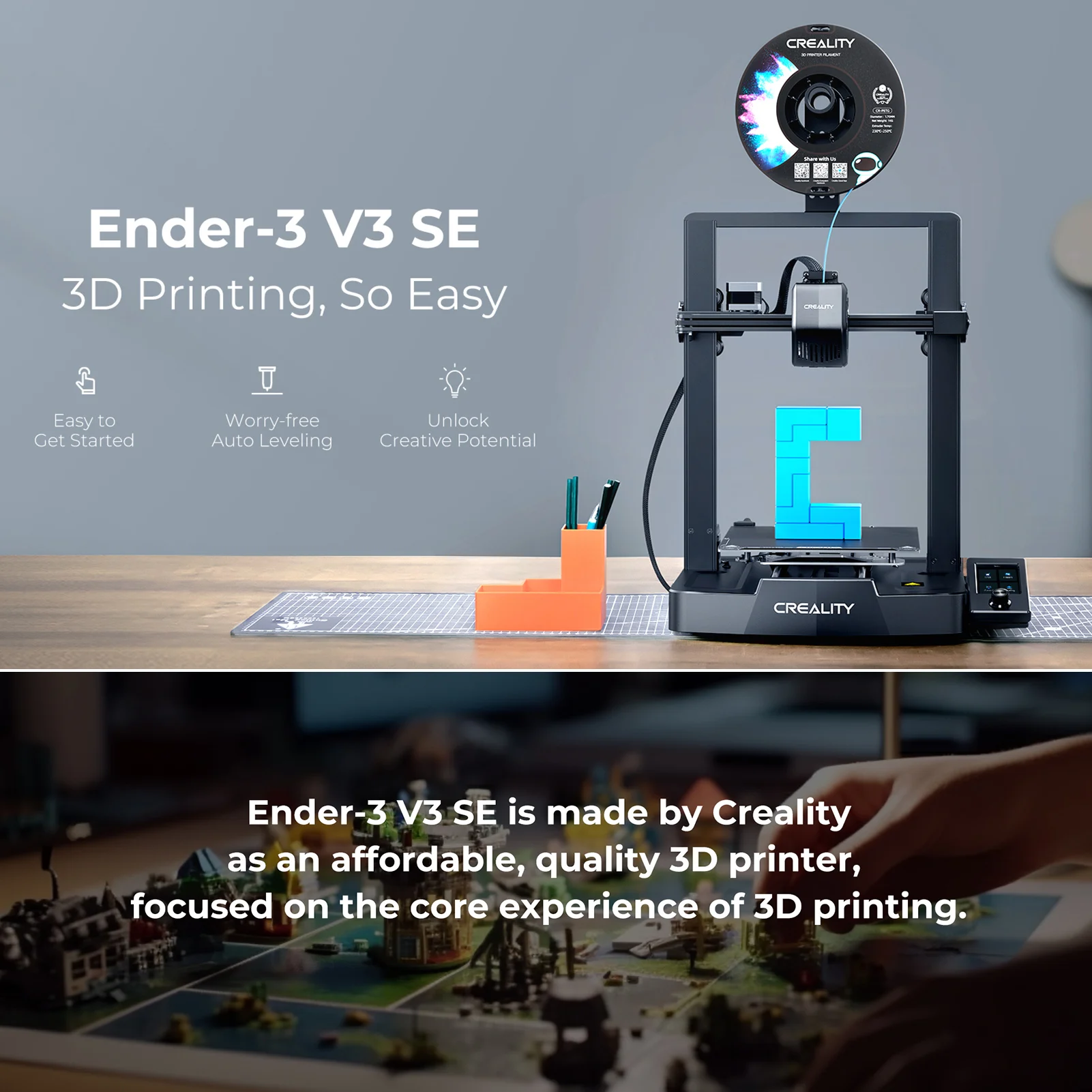

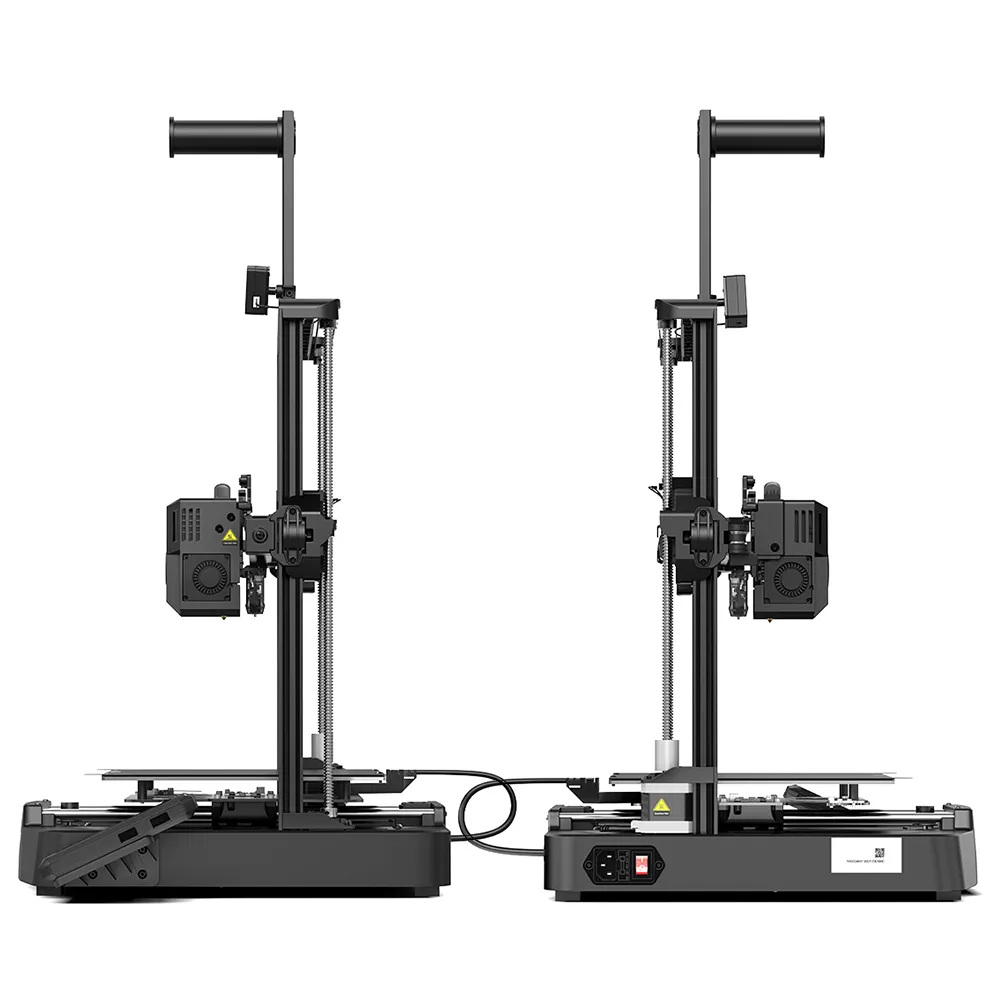

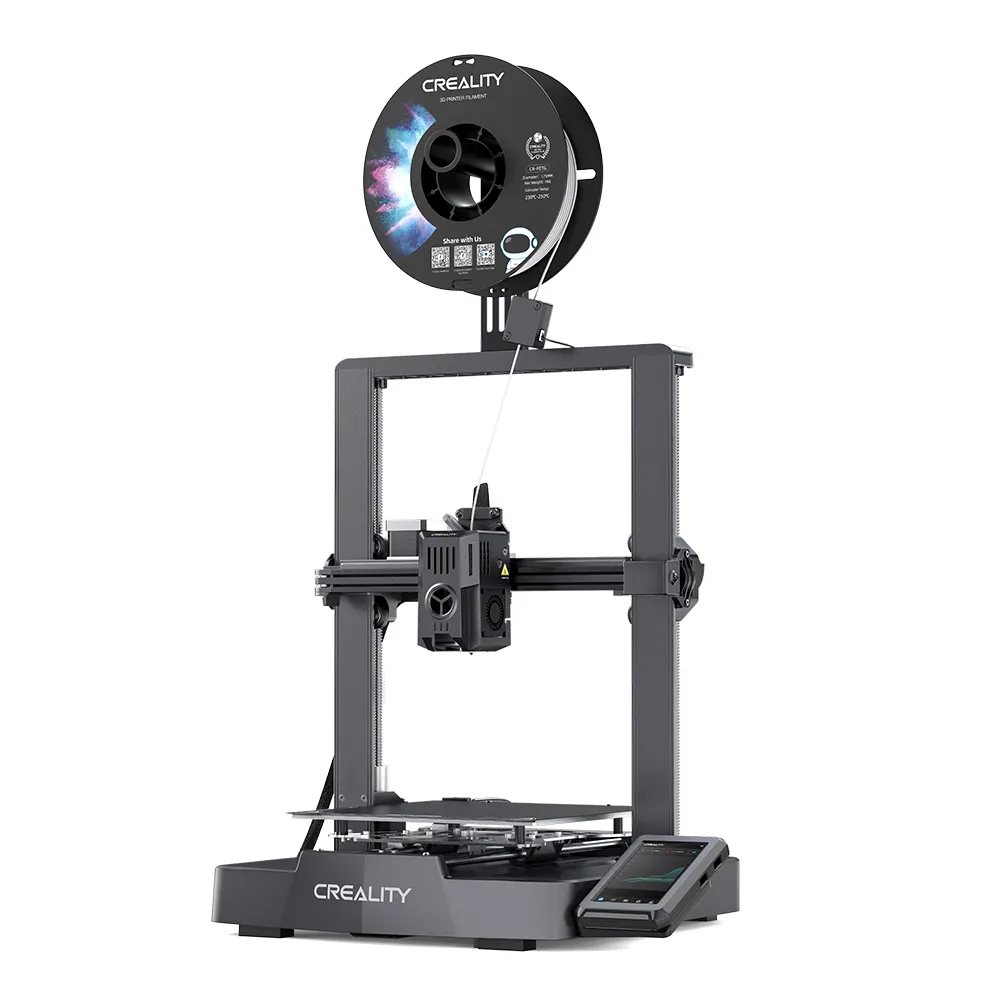

Model: Ender-3 V3 SE
Features:

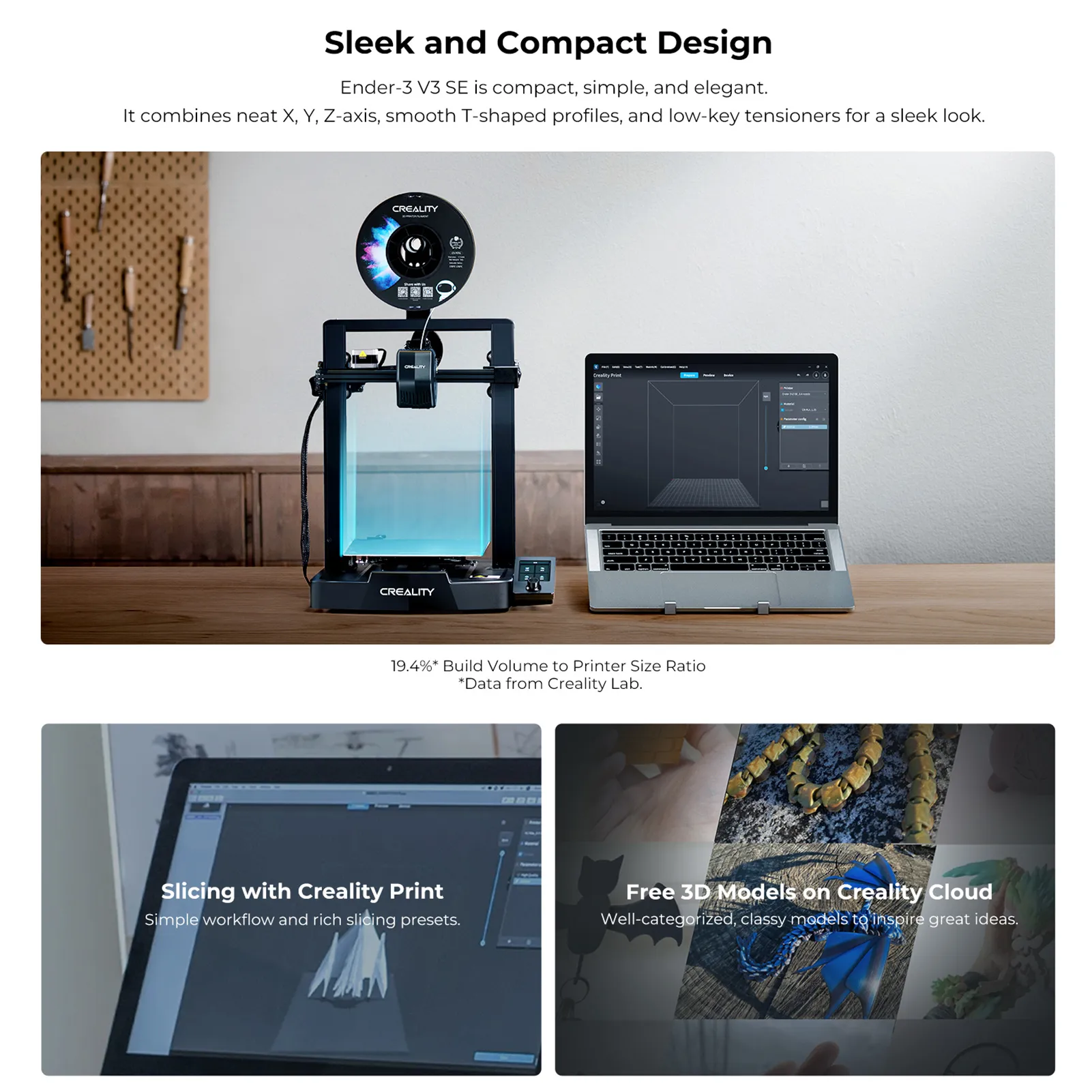

- Compact and Elegant Design: The Ender-3 V3 SE 3D Printer is compact, simple, and elegant. It features neatly arranged X, Y, Z-axis, smooth T-shaped profiles, and low-key tensioners for a sleek appearance. Despite its smaller size, it offers a generous build volume of 220220250mm.
- “Sprite” Direct Extruder: This printer includes a direct extruder that smoothly feeds various filaments, including PLA, PETG, and TPU. It’s designed with a one-tap loading and unloading system for the filament, making filament replacement convenient.

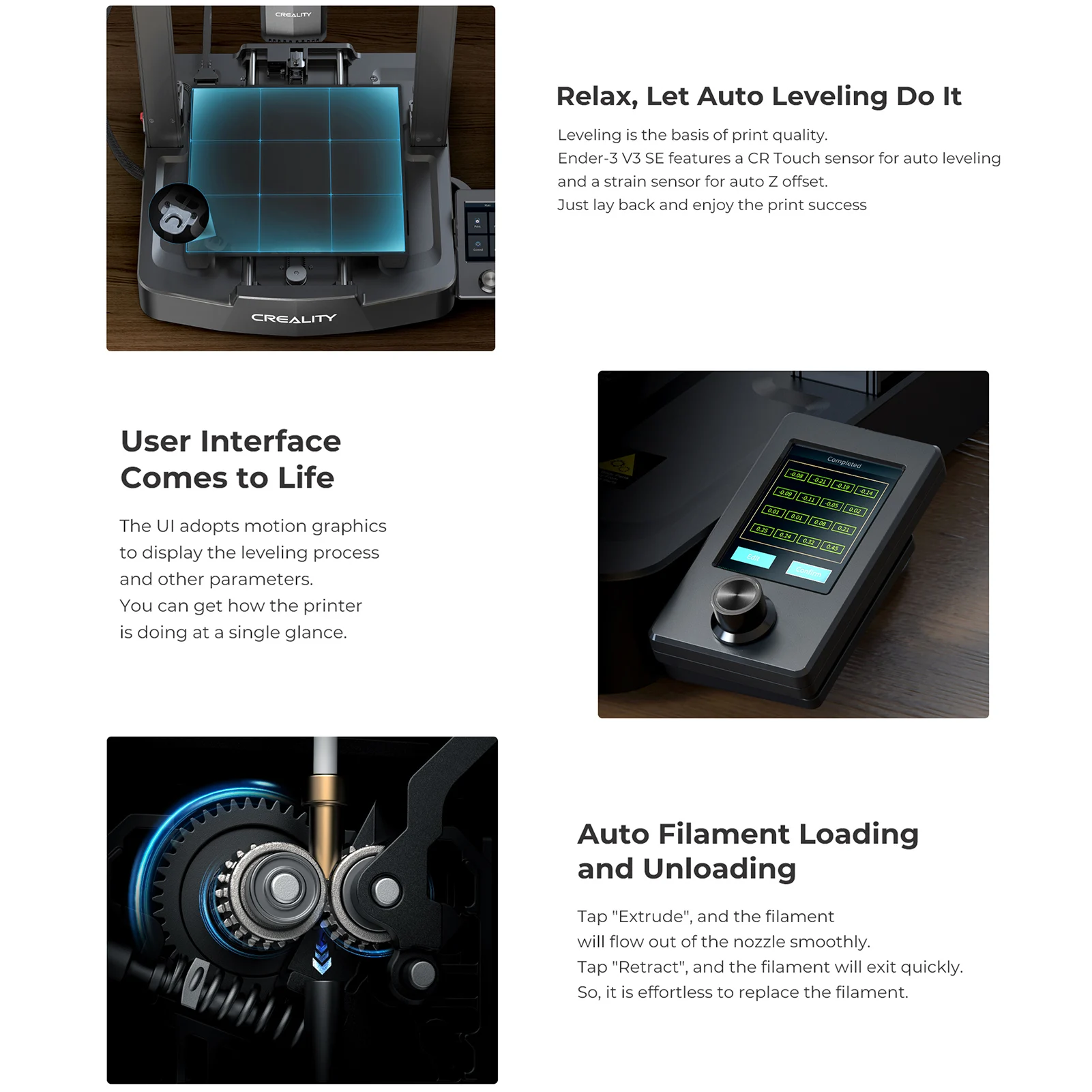

- Auto-Leveling Printing Platform: The Ender-3 V3 SE is equipped with a CR Touch sensor for automatic leveling and a strain sensor for auto Z offset. It also adopts a PC Spring steel heat bed that heats up quickly and makes model removal easy.
- User-Friendly Interface: Compatible with Windows, Mac OS, Linux systems, and various professional software like Creality Print, Cura 5.0 or newer versions, and Simplify3D, this printer is designed for ease of use.
- High-Precision Printing: The printer boasts Y-axis dual linear shafts made of strong, wear-proof steel, ensuring steady motion. Additionally, the dual Z-axis is synchronized by a quality timing belt, contributing to high print quality.
- Resume Printing & Auto Filament Loading/Unloading: It features power interruption detection and resume printing functionality, ensuring continuity and convenience in printing tasks.

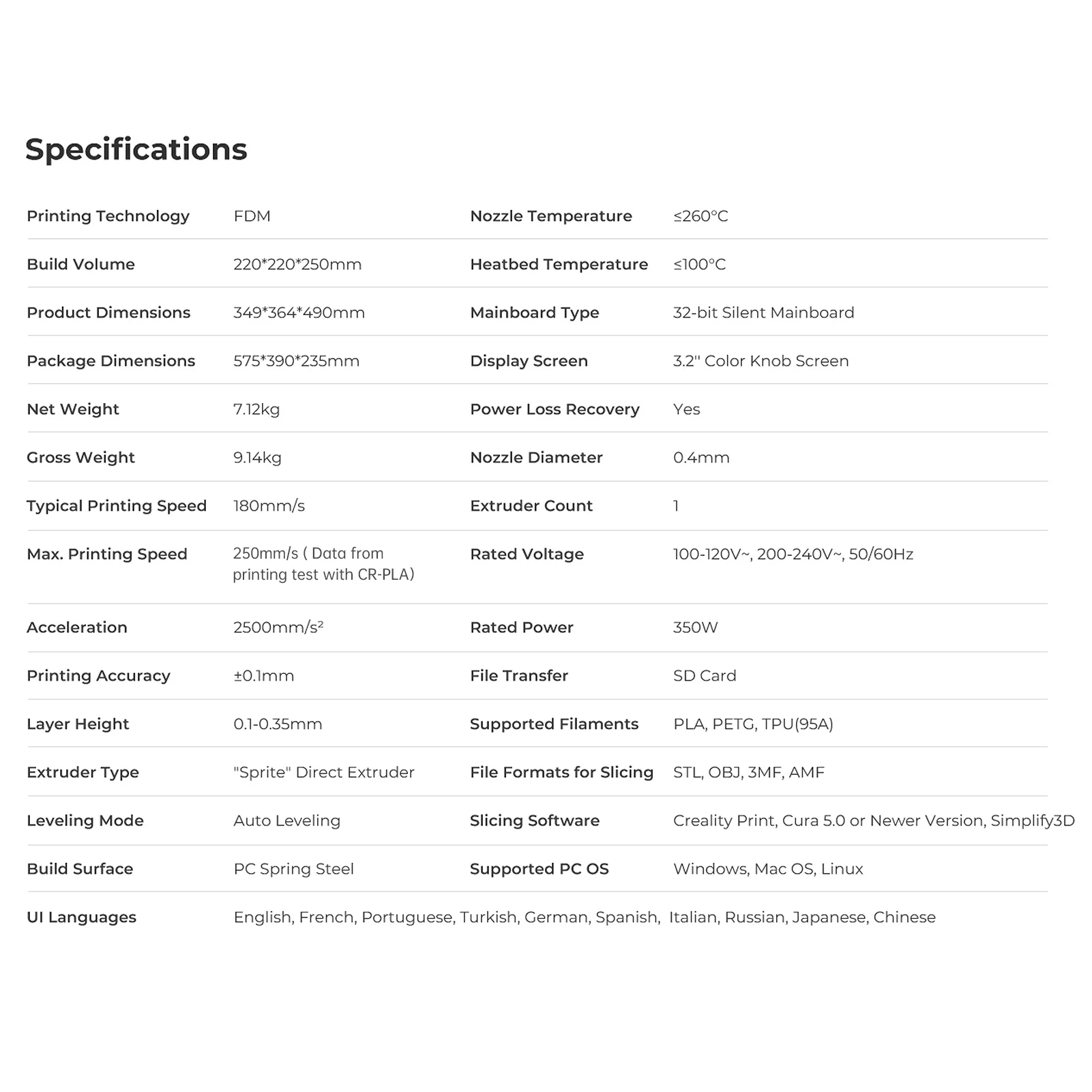

Specifications:
- Model: Ender-3 V3 SE
- Printing Technology: FDM
- Product Dimensions: 349364490mm
- Net Weight: 7.12kg
- Typical Printing Speed: 180mm/s
- Acceleration: 2500mm/s²
- Layer Height: 0.1-0.35mm
- Leveling Mode: Auto Leveling
- Nozzle Temperature: ≤260°C
- Mainboard Type: 32-bit Silent Mainboard
- Power Loss Recovery: Yes
- Extruder Count: 1
- Rated Power: 350W
- Supported Filaments: PLA, PETG, TPU(95A)
- Slicing Software: Creality Print, Cura 5.0 or Newer Version, Simplify3D
- Build Volume: 220220250mm
- Package Dimensions: 575390235mm
- Gross Weight: 9.14kg
- Max. Printing Speed: 250mm/s*
- Printing Accuracy: ±0.1mm
- Extruder Type: “Sprite” Direct Extruder
- Build Surface: PC Spring Steel
- Heatbed Temperature: ≤100°C
- Display Screen: 3.2” Color Knob Screen
- Nozzle Diameter: 0.4mm
- Rated Voltage: 100-120V~, 200-240V~, 50/60Hz
- File Transfer: SD Card
- File Formats for Slicing: STL, OBJ, 3MF, AMF

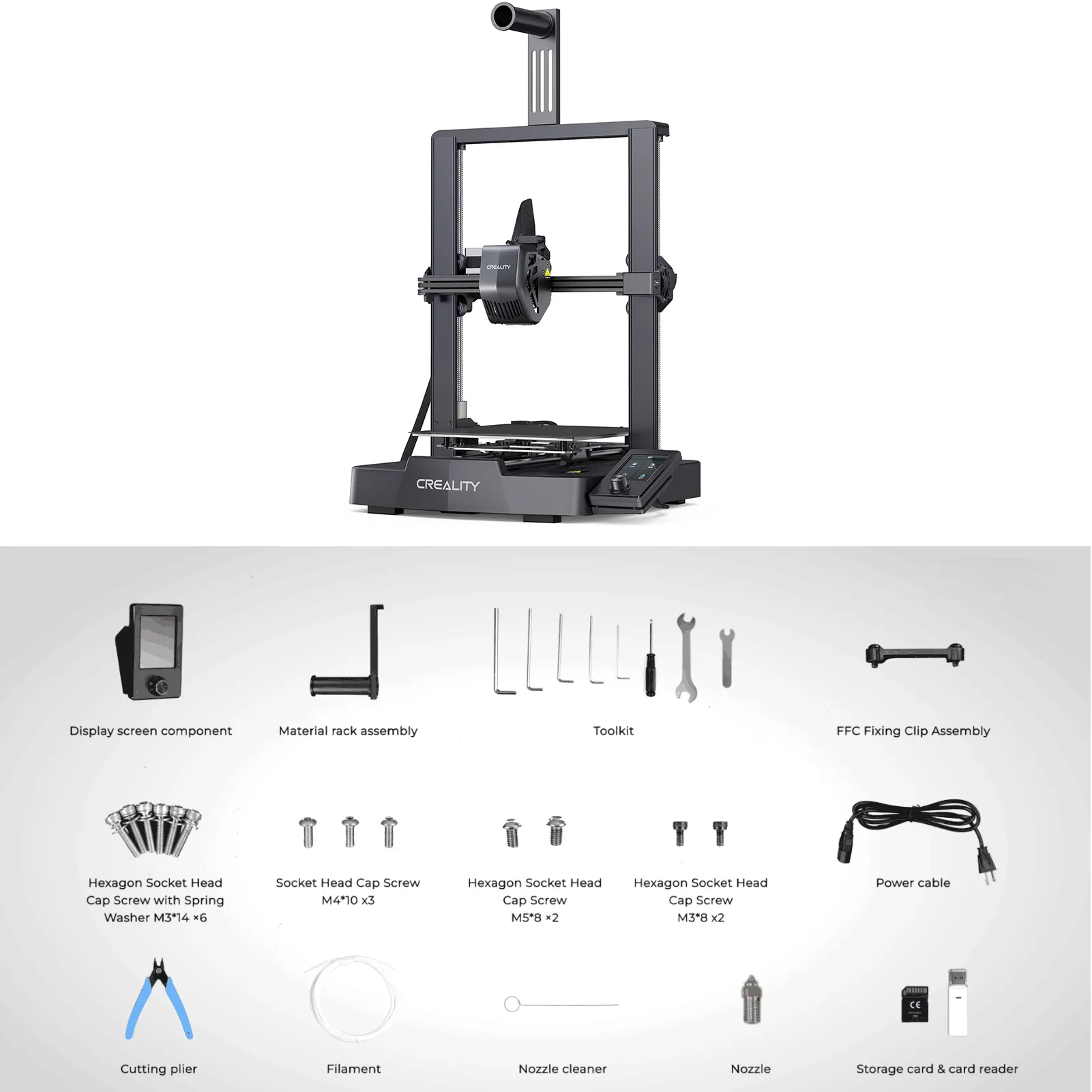

Packing List:
- 3D Printer
- Display screen component
- Material rack assembly
- Tool kit
- FFC Fixing Clip Assembly
- Hexagon Socket Head Cap Screw with Spring Washer M3*14 (6 pieces)
- Socket Head Cap Screw M4*10 (3 pieces)
- Hexagon Socket Head Cap Screw M3*8 (2 pieces)
- Power cable
- Cutting plier
- Filament
- Nozzle cleaner
- Nozzle
- Storage card & card reader

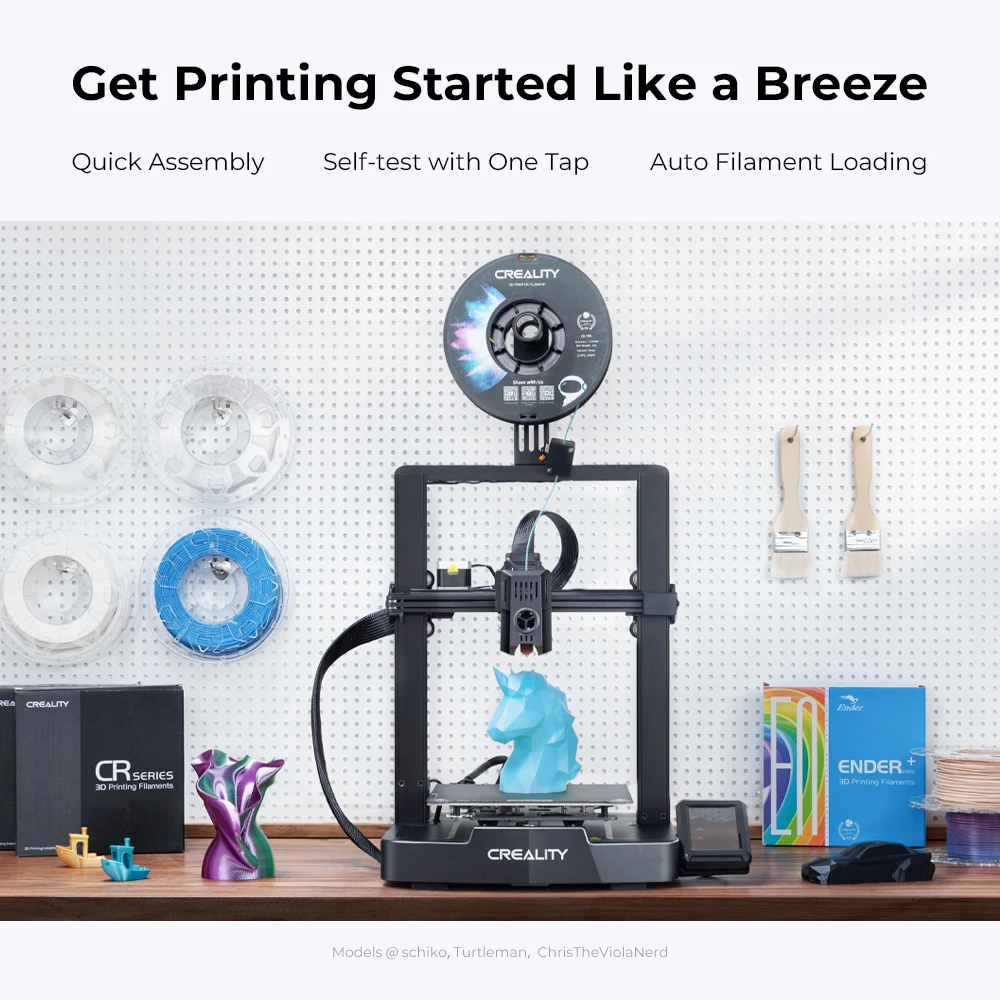

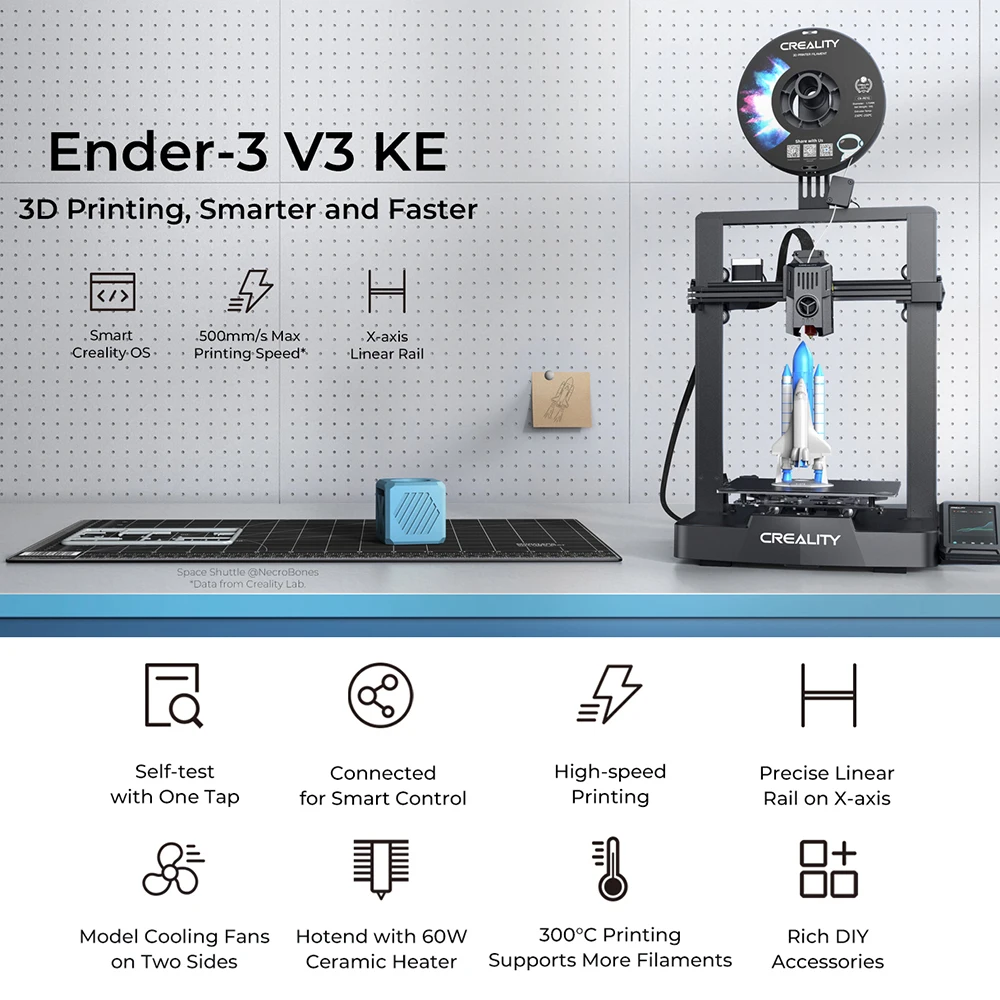

Model: Ender-3 V3 KE
Features:

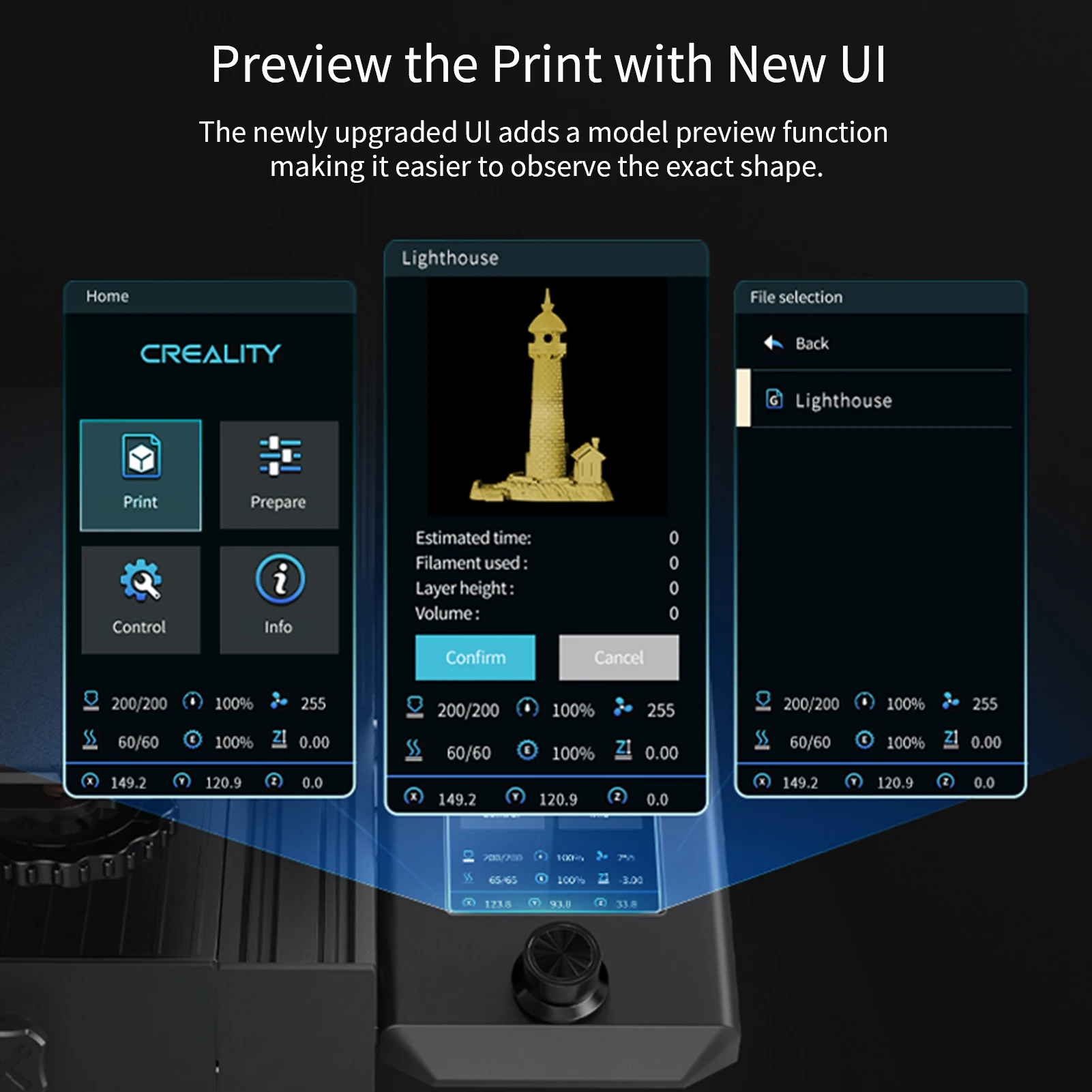

- Upgraded Smart UI: This model features a 4.3″ color touchscreen, offering a responsive and intuitive user interface with a convenient tab bar. It enables smart self-tests for Z offset and auto leveling with just a tap. Additionally, it provides real-time model previews and dynamic motion graphics for printing parameters.

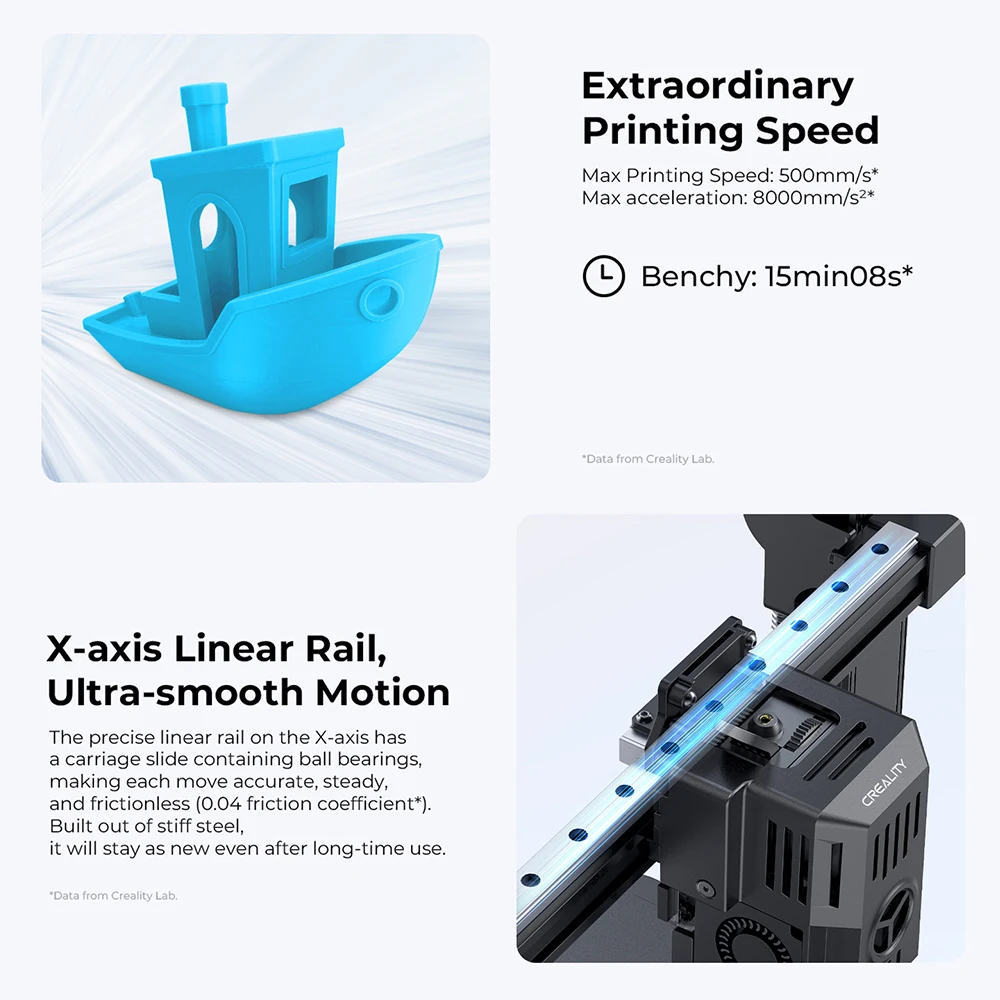

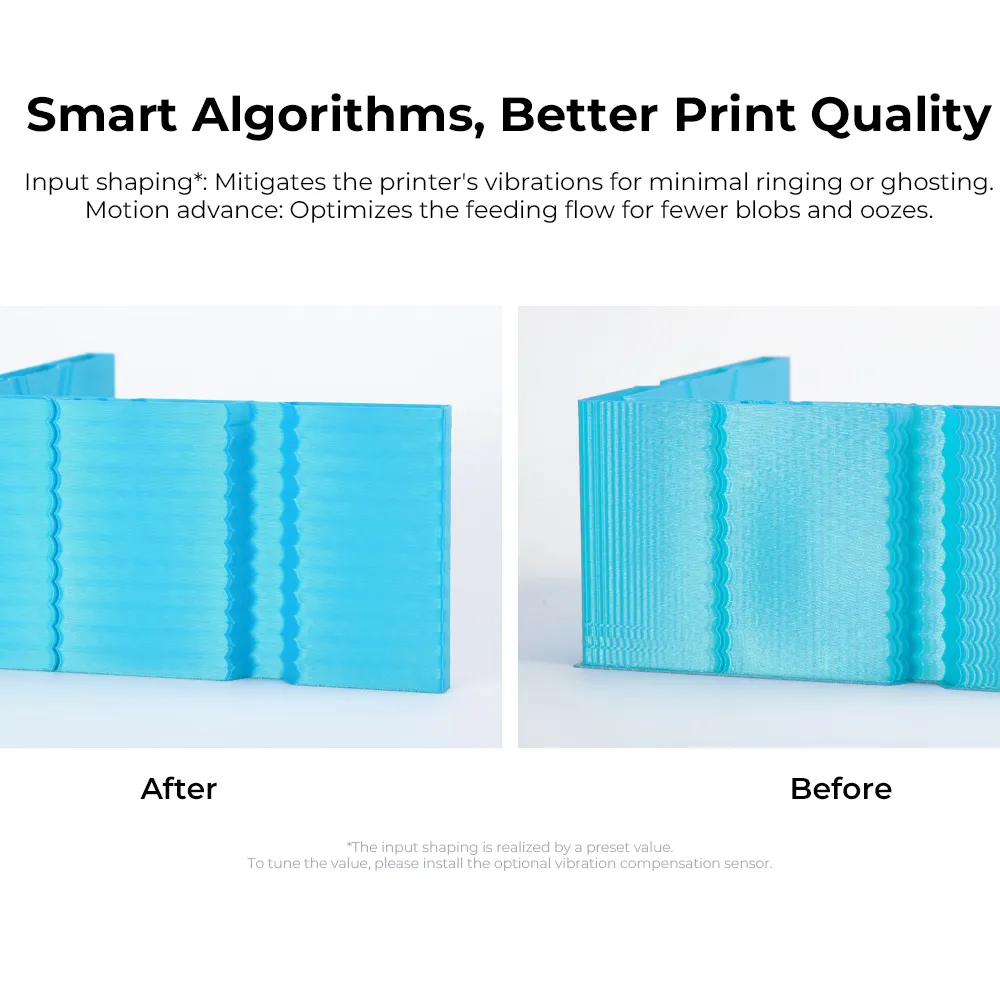

- Extraordinary Printing Performance: The Ender-3 V3 KE boasts a maximum printing speed of up to 500mm/s and an acceleration of 8000mm/s², ensuring efficient model production. The upgraded hotend allows for faster printing at higher temperatures. Double fans rapidly and evenly cool the freshly printed sections, maintaining the quality of your prints.

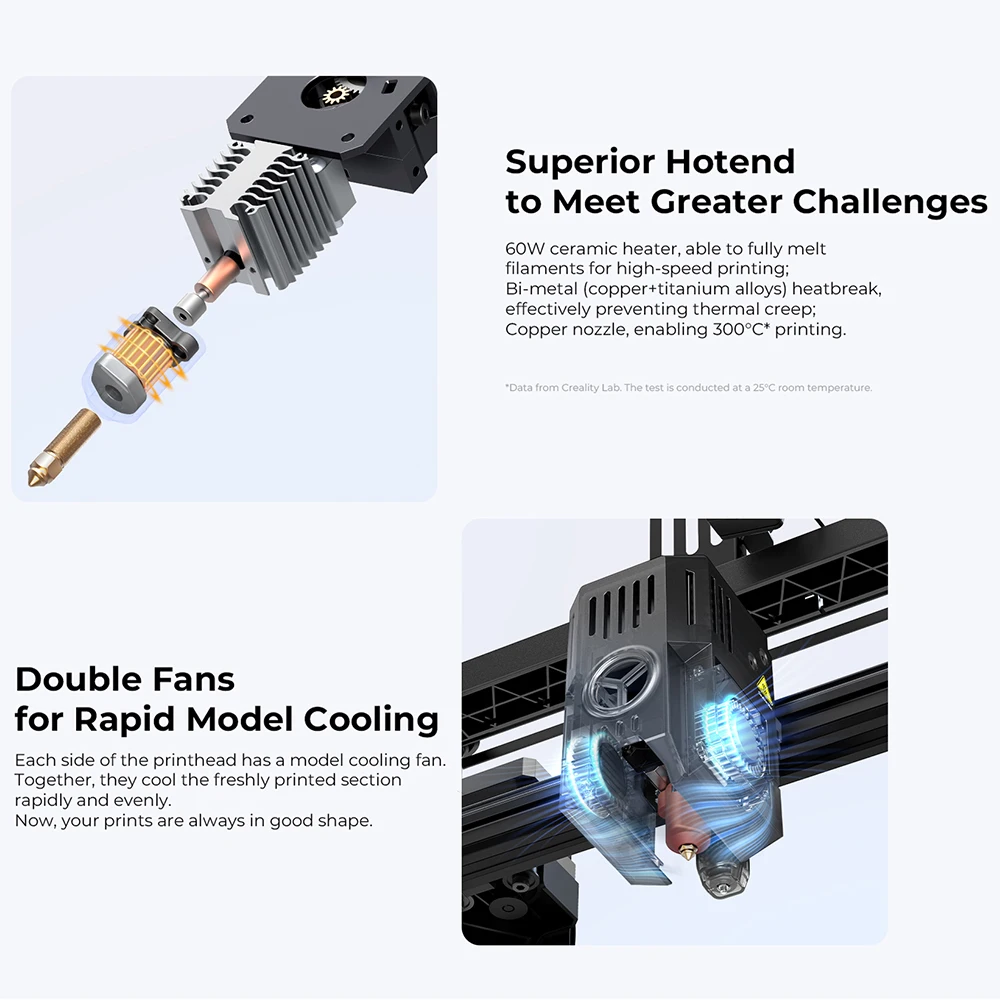

- Sprite Extruder & 32bit Silent Main Board: The “Sprite” direct drive extruder, a market-proven component, ensures smooth and consistent feeding of various materials like PLA, PETG, and flexible TPU(95A). The advanced stepper motor drive on the motherboard precisely controls all axes, reducing operational noise.
- Stable and Sturdy Rail Structure: Constructed from stiff steel, the printer’s structure remains durable even after extensive use. The X-axis features a precise linear rail with a carriage slide containing ball bearings, ensuring accurate, steady, and low-friction (0.04 friction coefficient) movements.

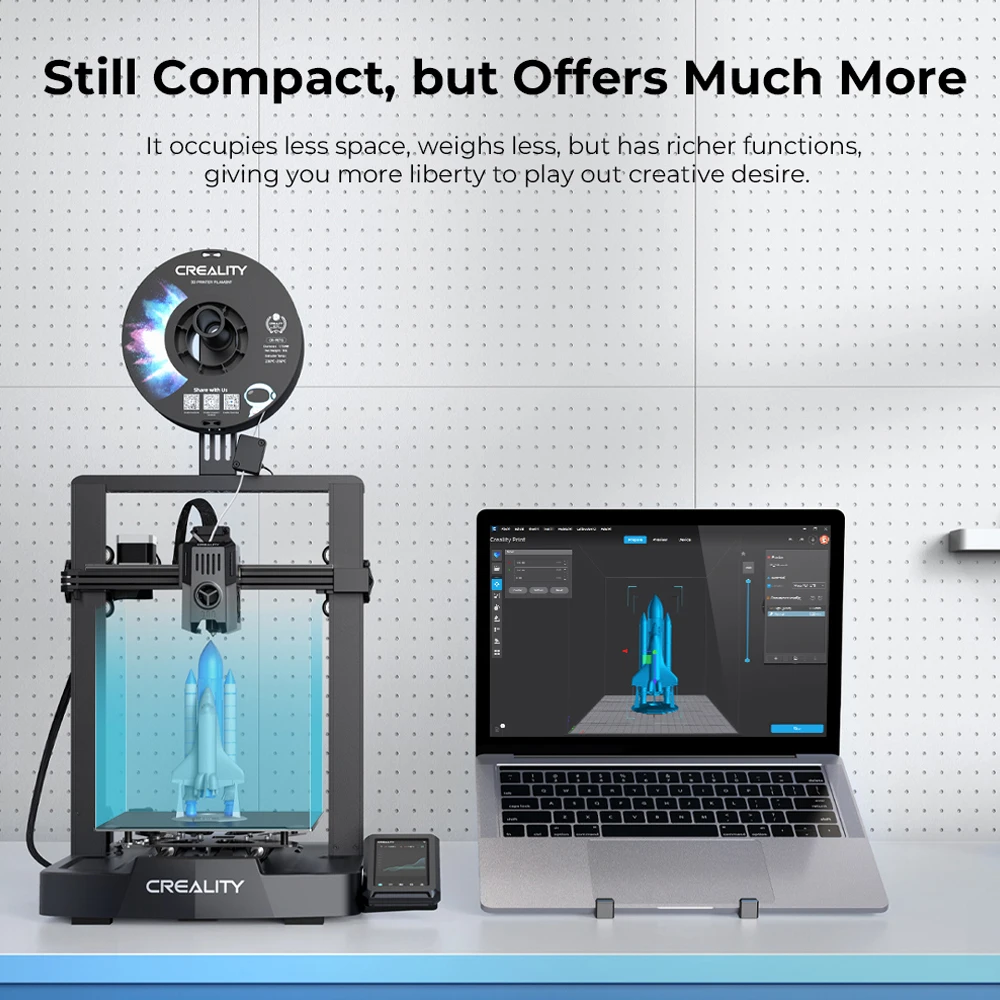

- Compact Yet Capable: Despite its modest dimensions of 433x366x490mm, this printer can produce models up to 220x220x240mm. It’s space-efficient and easy to assemble in just three steps. The Ender-3 V3 KE is compatible with Hyper PLA, PETG, ABS, TPU(95A), and ASA filaments, allowing for a wide range of printing possibilities.

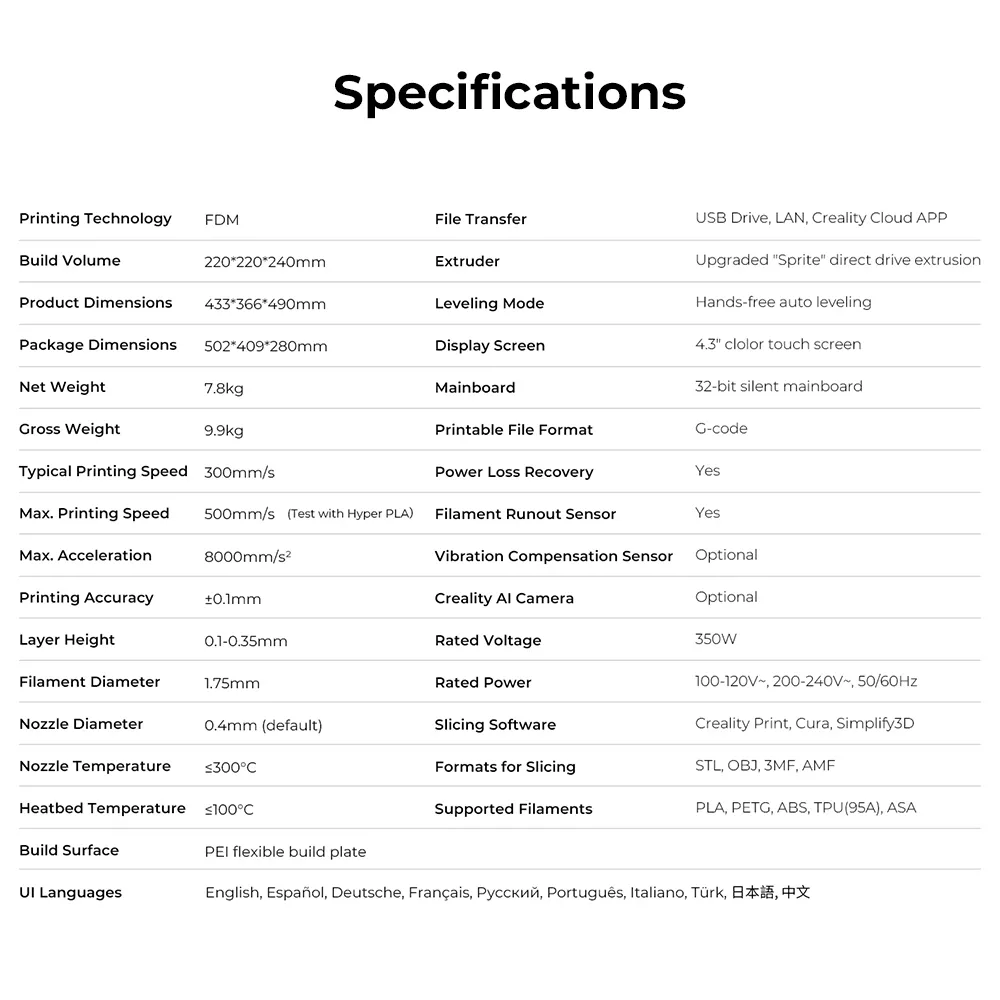

Specifications:
- Model: Ender-3 V3 KE
- Printing Technology: FDM
- Build Volume: 220x220x240mm
- Product Dimensions: 433x366x490mm
- Package Dimensions: 502x409x280mm
- Net Weight: 7.8kg
- Gross Weight: 9.9kg
- Typical Printing Speed: 300mm/s
- Max. Printing Speed: 500mm/s (Tested with Hyper PLA)
- Max. Acceleration: 8000mm/s²
- Printing Accuracy: ±0.1mm
- Layer Height: 0.1-0.35mm
- Filament Diameter: 1.75mm
- Nozzle Diameter: 0.4mm (default)
- Nozzle Temperature: ≤300℃
- Heatbed Temperature: ≤100℃
- Build Surface: PEI flexible build plate
- File Transfer: USB drive, LAN, Creality Cloud APP
- Extruder: Upgraded “Sprite” direct drive
- Leveling Mode: Hands-free auto-leveling
- Display Screen: 4.3″ color touchscreen
- Mainboard: 32-bit silent
- Printable File Format: G-code
- Power Loss Recovery: Yes
- Filament Runout Sensor: Yes
- Rated Voltage: 350W
- Rated Power: 100-120V~, 200-240V~, 50/60Hz
- Slicing Software: Creality Print, Cura, Simplify3D
- Formats for Slicing: STL, OBJ, 3MF, AMF
- Supported Filaments: PLA, PETG, ABS, TPU(95A), ASA
- UI Languages: English, Español, Deutsche, Français, Pусский, Portuguese, Italian, Türk, Japanese, Chinese

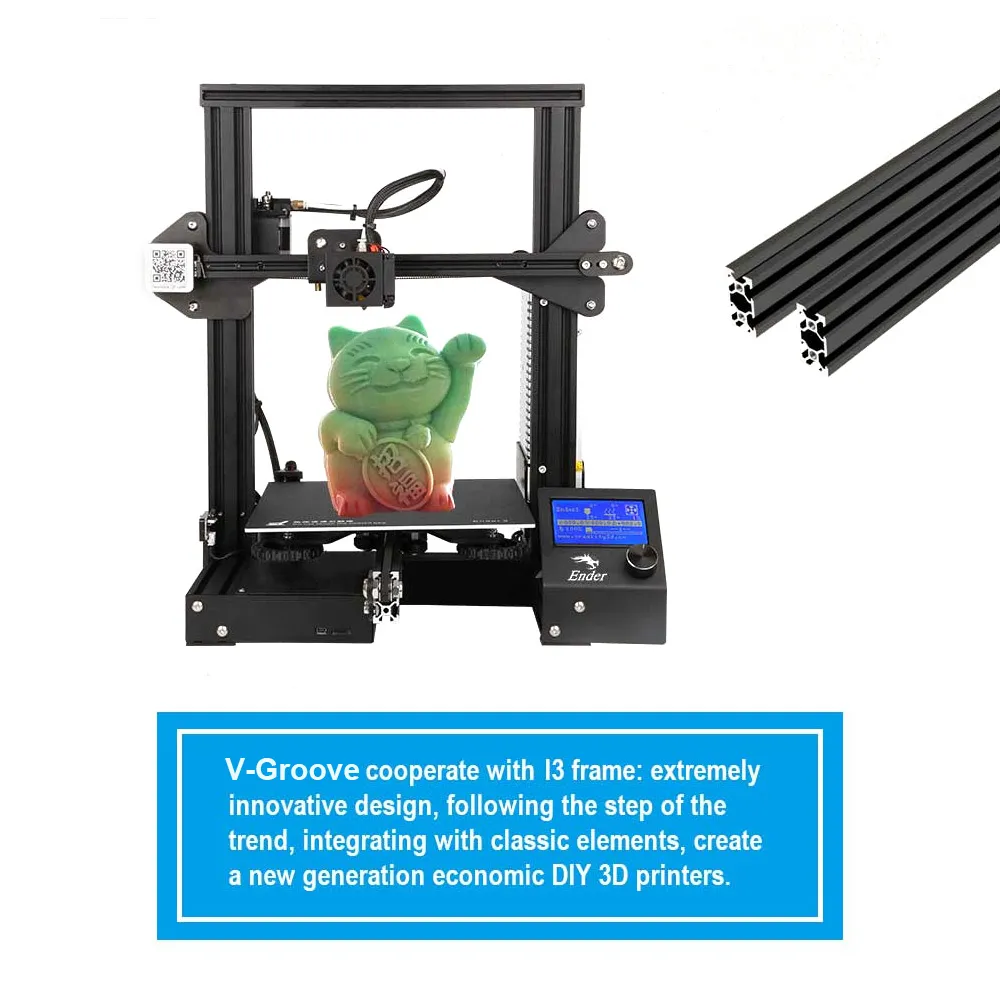

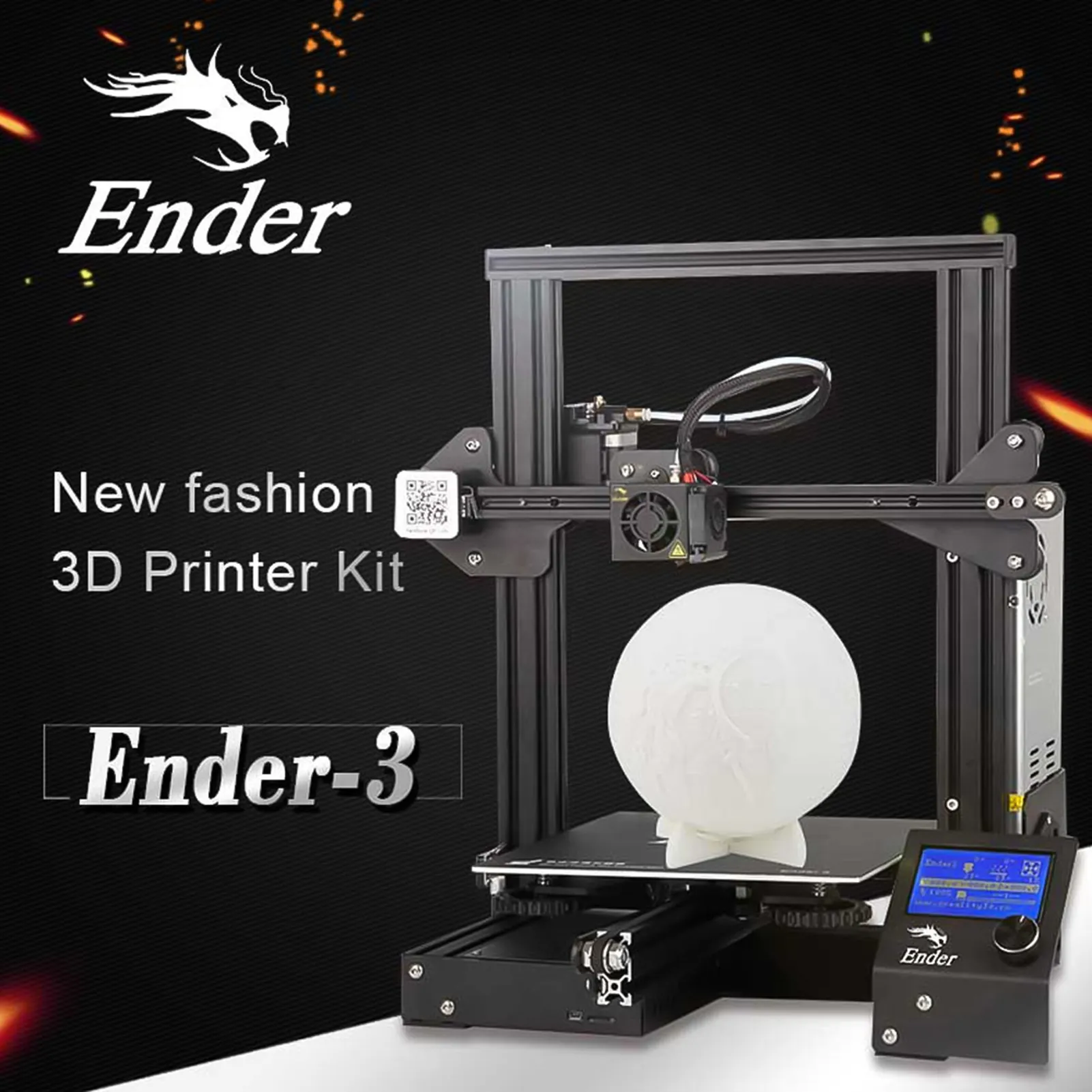

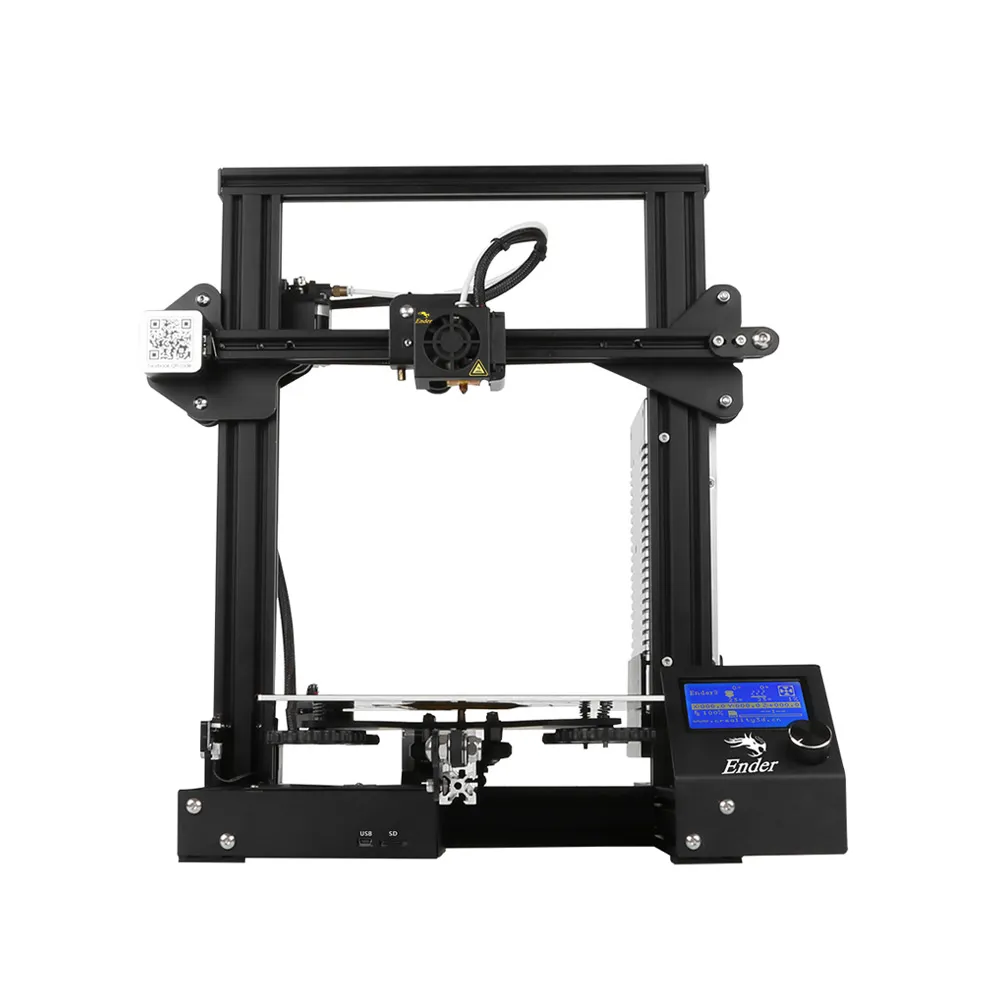

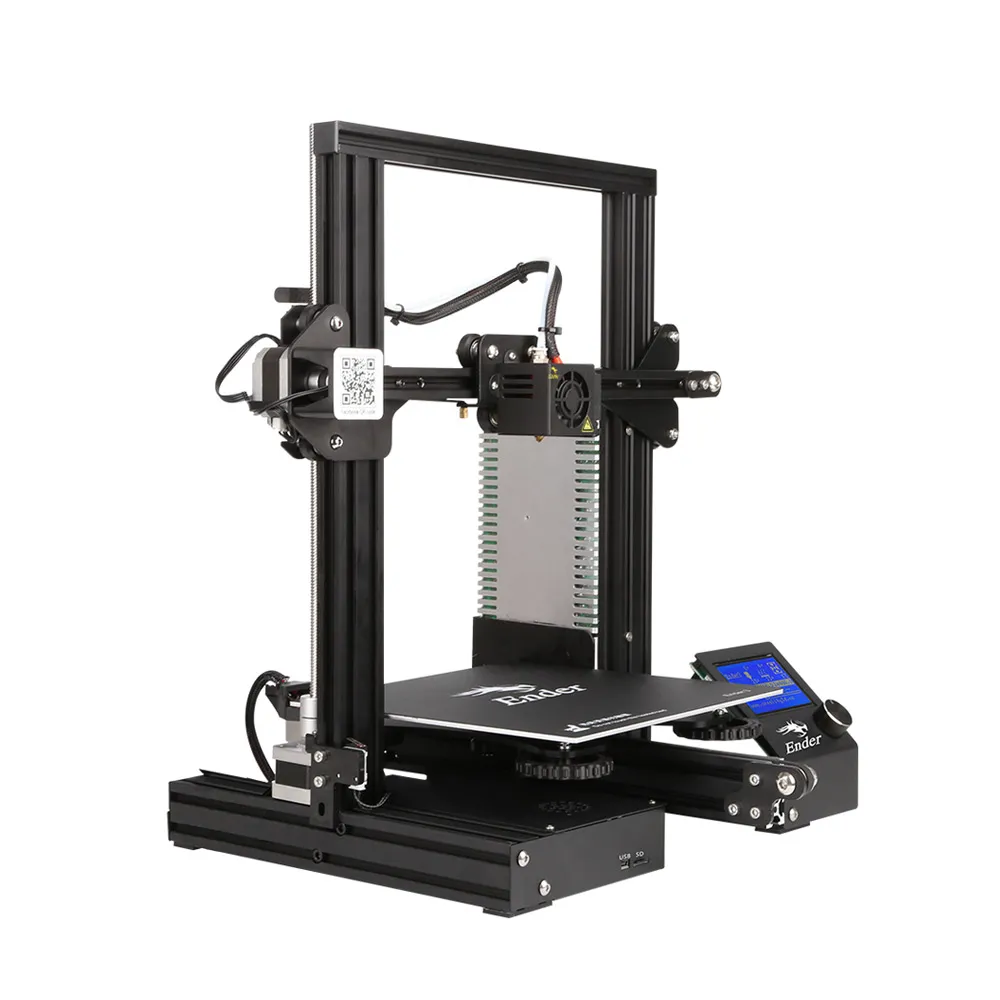

Model: Ender-3
Features:

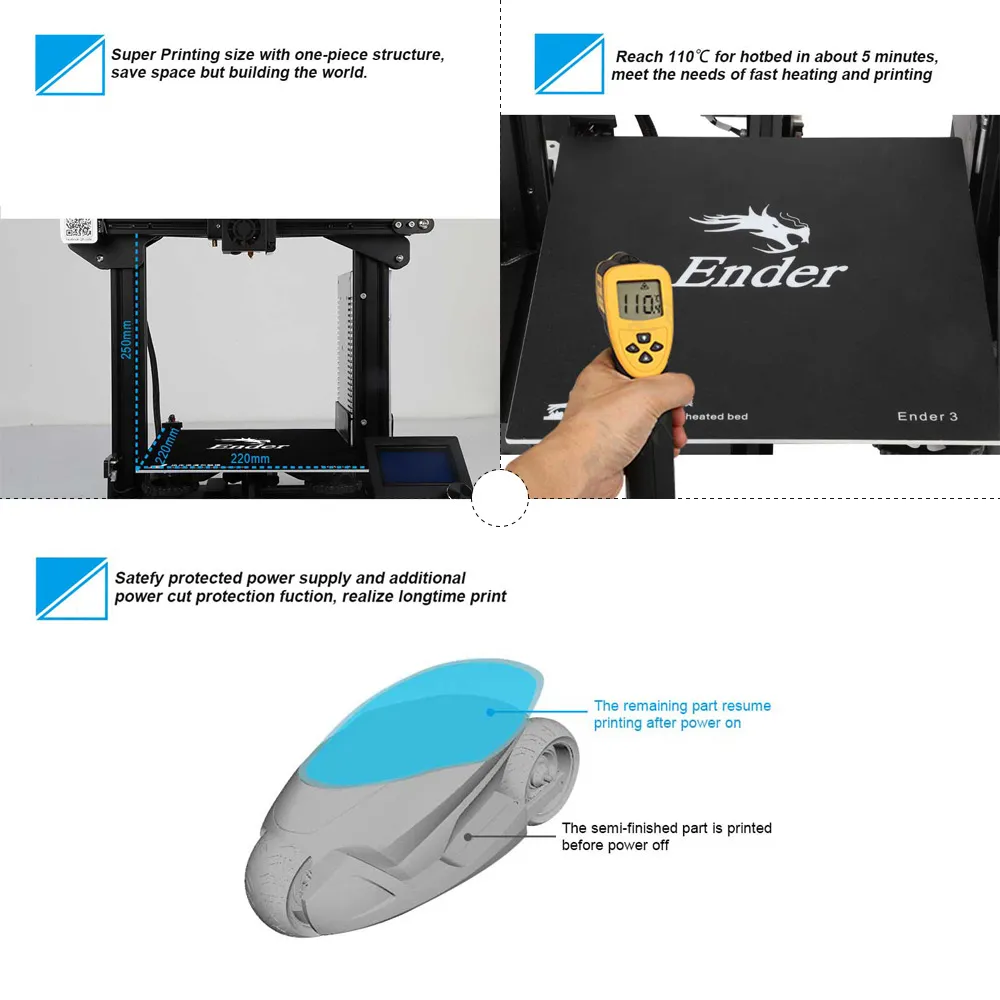

- This high-precision 3D printer boasts a printing accuracy of ±0.1mm. It offers a substantial printing size of 220 x 220 x 250mm within a compact, one-piece structure, optimizing space while enabling large-scale creations.

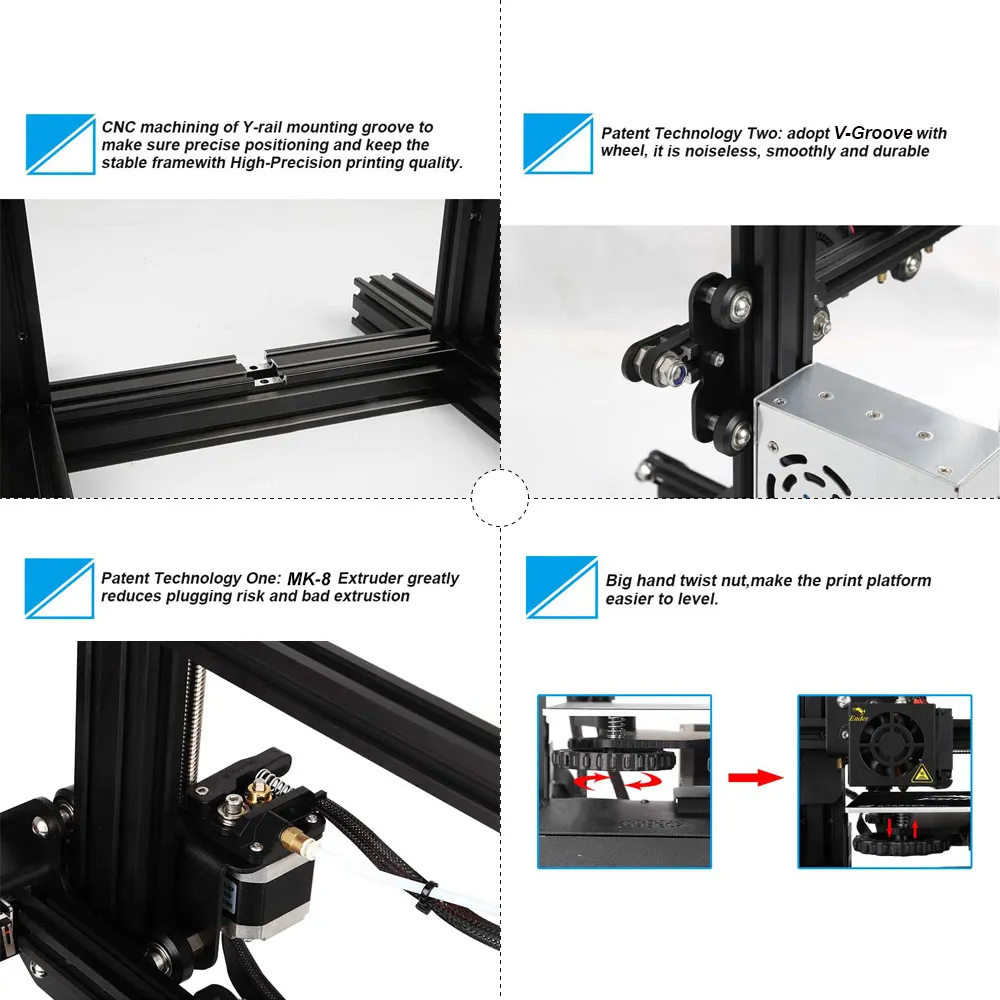

- The MK-8 extruder significantly minimizes the risks of plugging and poor extrusion. Additionally, the hotbed can rapidly reach 110℃ in approximately 5 minutes, catering to the demands of quick heating and printing.
- Precision is further enhanced by CNC machining of the Y-rail mounting groove, ensuring exact positioning and maintaining a stable frame for high-quality printing.
- It features a V-Socket linear bearing system and wheel moving parts for ultra-quiet and smooth printing. The large hand twist nut simplifies the process of leveling the print platform.
- The printer includes a safely protected power supply and a resume printing function. In case of unexpected shutdowns or power failures, it can resume printing from where it left off once power is restored.
- It is compatible with a variety of 1.75mm printing filaments, including PLA, ABS, TPU, etc. This makes it suitable for a wide range of applications such as product structure design, toy modeling, architectural design, and parts manufacturing.
Specifications:
- Plug Options: US, EU, UK, AU (Optional)
- Input: AC 100-265V, 50-60Hz
- Output: DC 24V, 15A, 270W
- Modeling Technology: FDM (Fused Deposition Modeling)
- Printing Size: 220 x 220 x 250mm
- Printing Accuracy: ±0.1mm
- Maximum Traveling Speed: 180mm/s
- Filament Compatibility: 1.75mm PLA, ABS, TPU, etc.
- Layer Thickness: 0.1-0.4mm
- Nozzle Diameter: 0.4mm
- File Formats Supported: STL, OBJ, G-Code
- Working Modes: Online or SD offline
- Maximum Nozzle Temperature: 255℃
- Maximum Hotbed Temperature: 110℃
- Machine Dimensions: 44 x 41 x 46.5cm (17.3 x 16.1 x 18.3 inches)
- Package Dimensions: 51 x 40 x 19cm (20.1 x 15.7 x 7.5 inches)
- Package Weight: 8kg (17.6lbs)

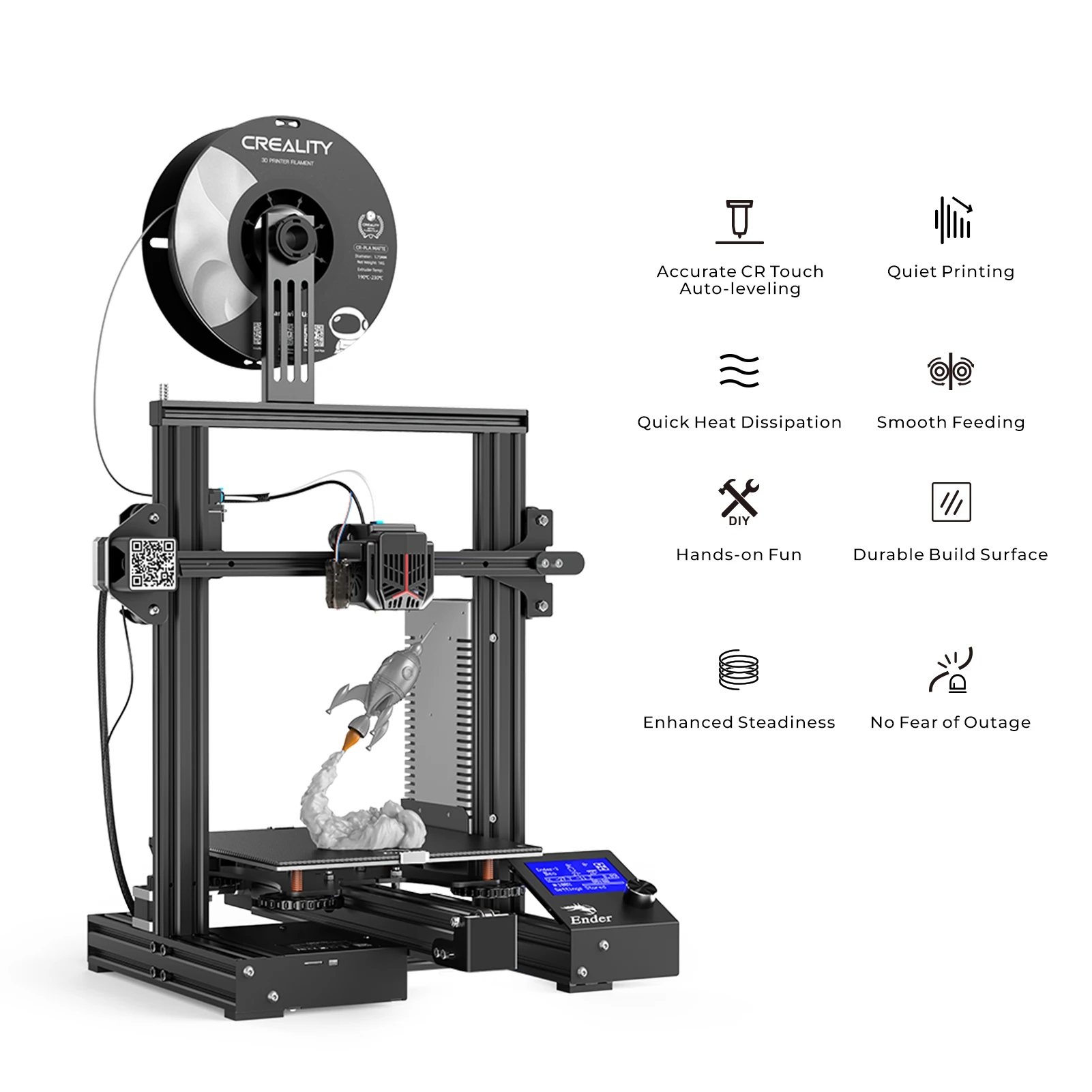

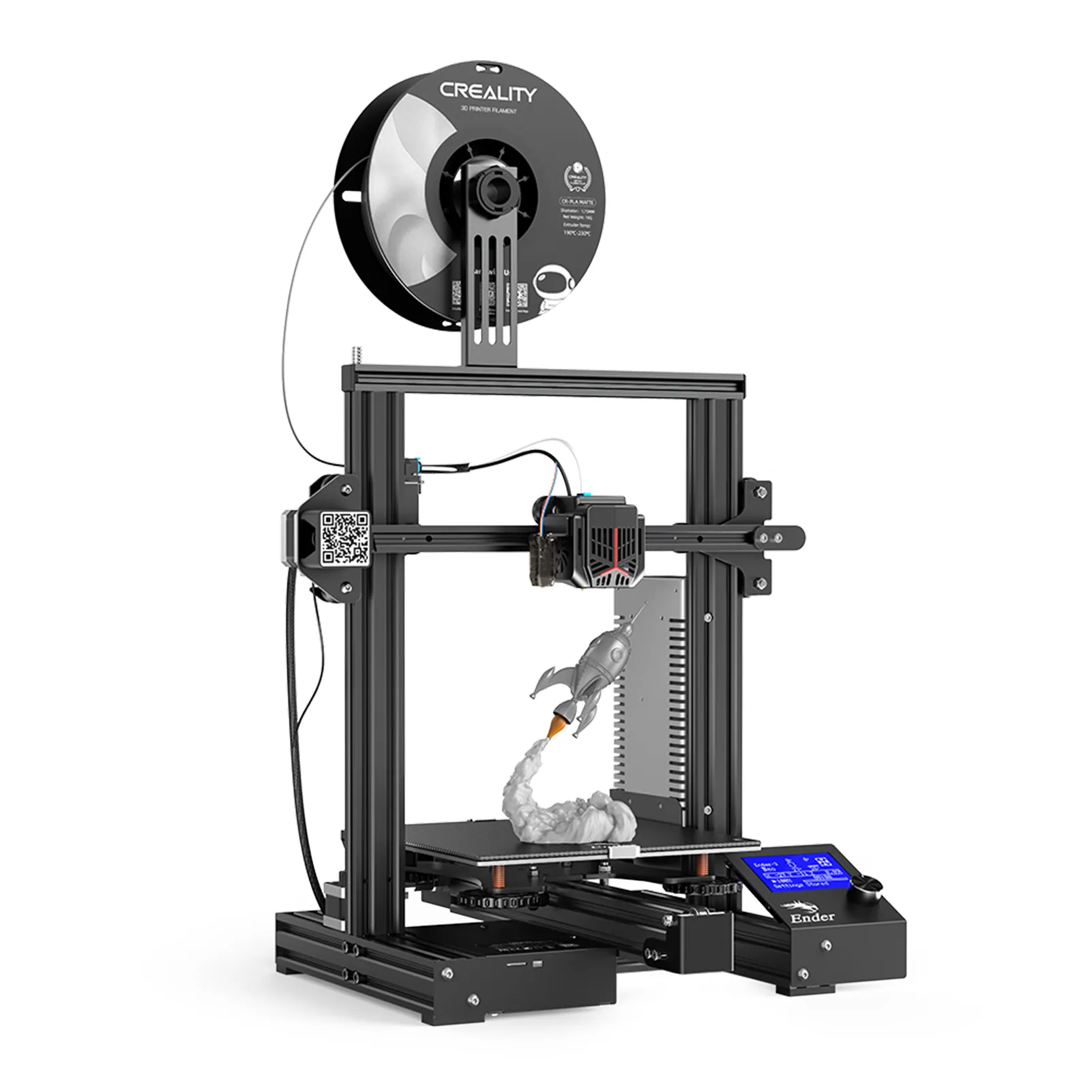

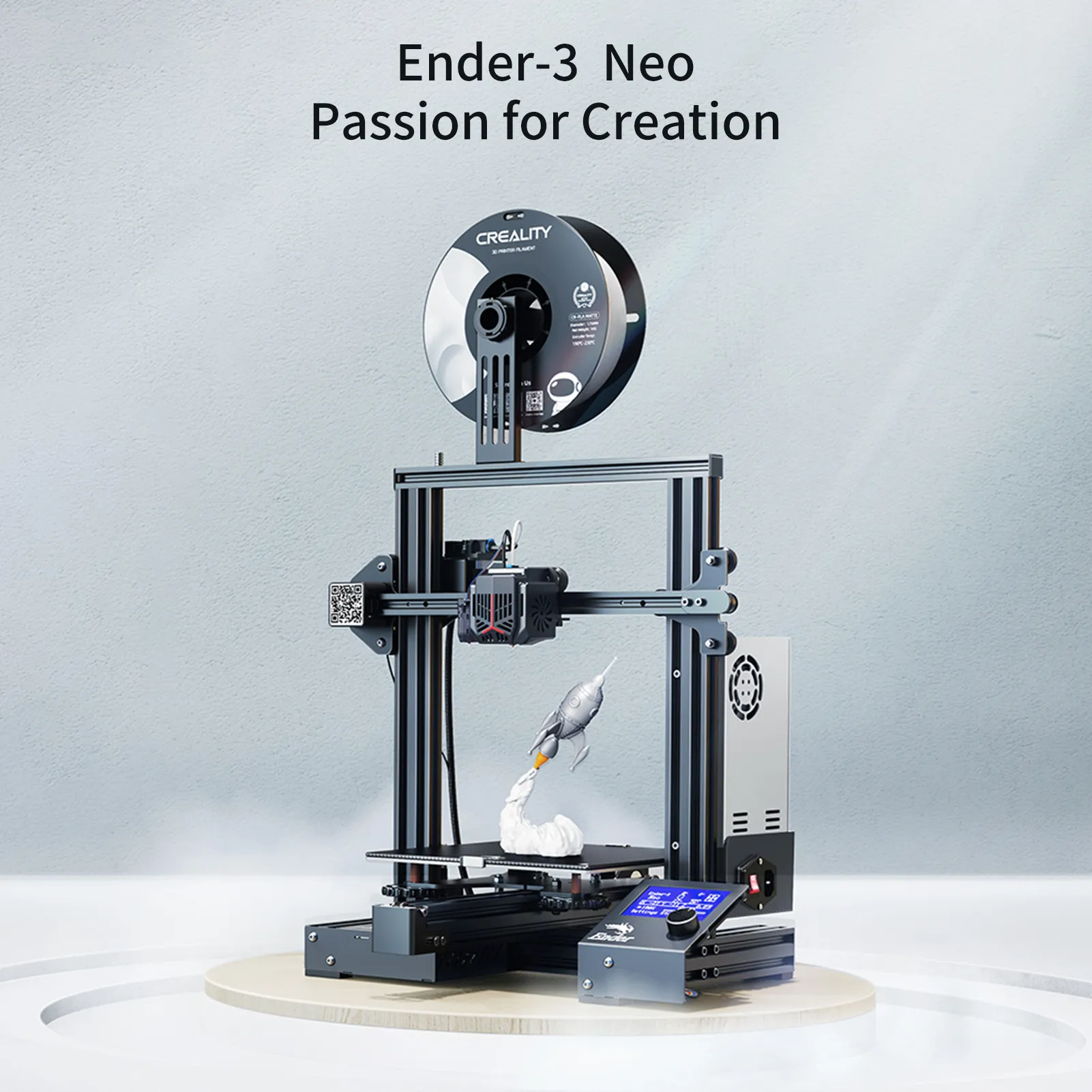

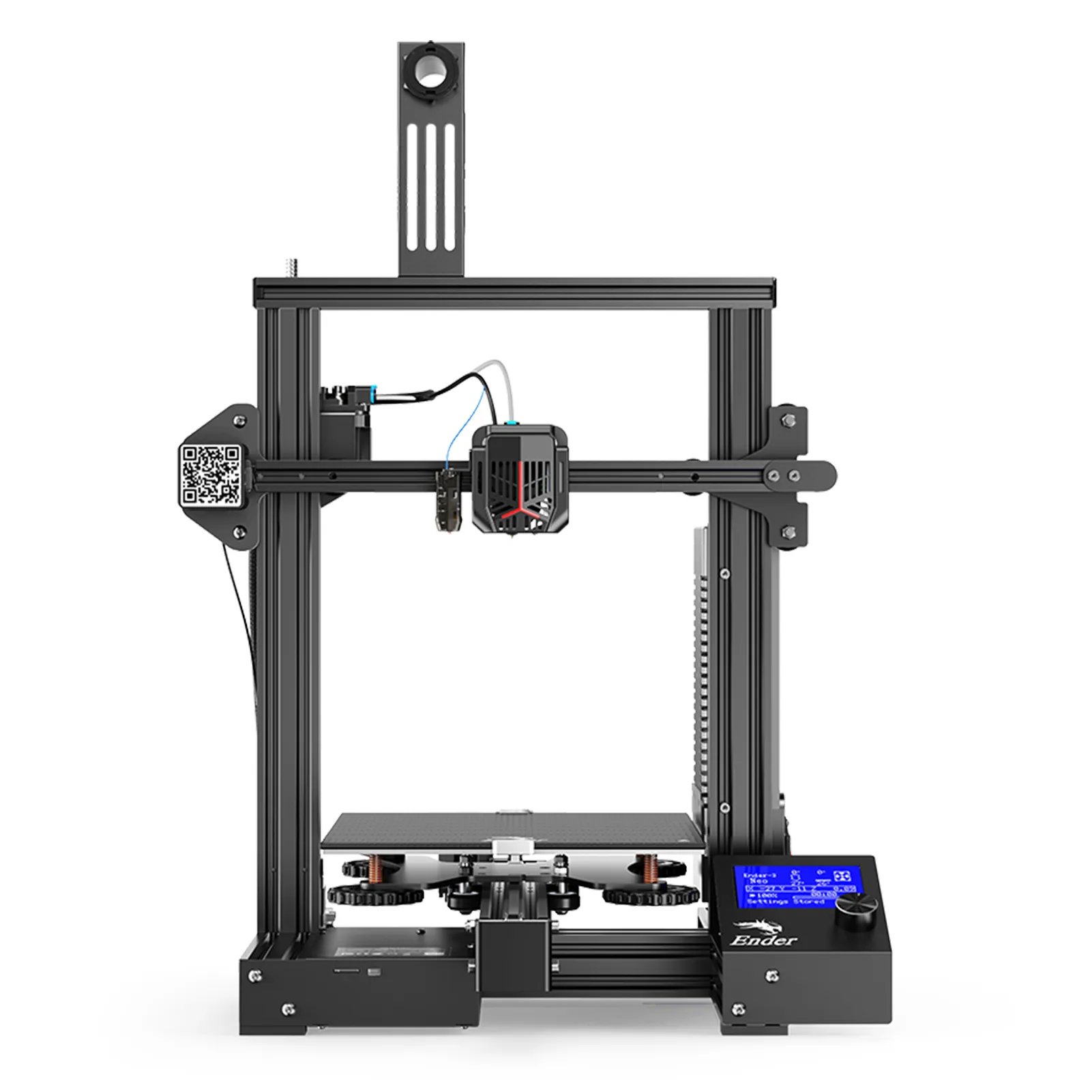

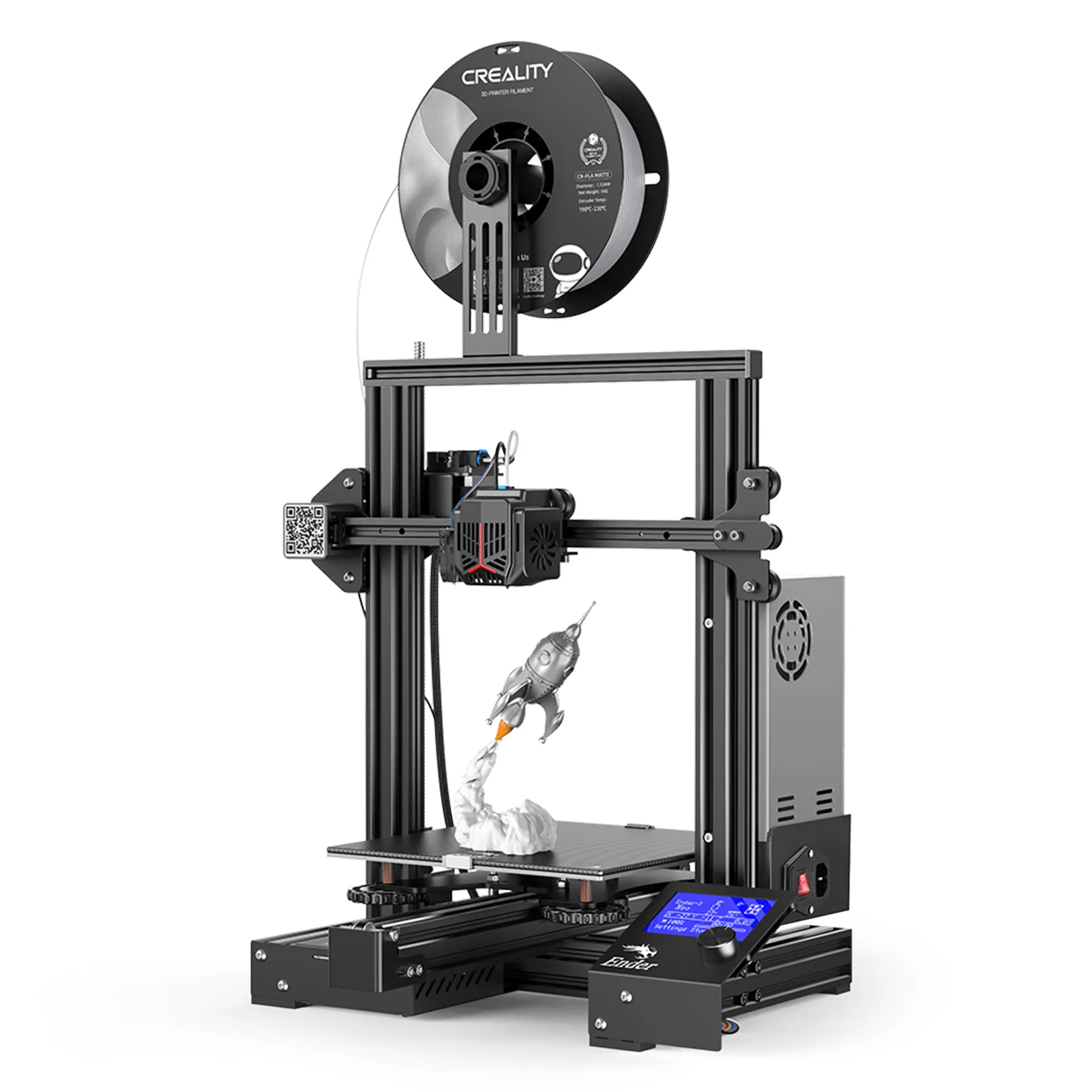

Model: Ender-3 Neo
Features:

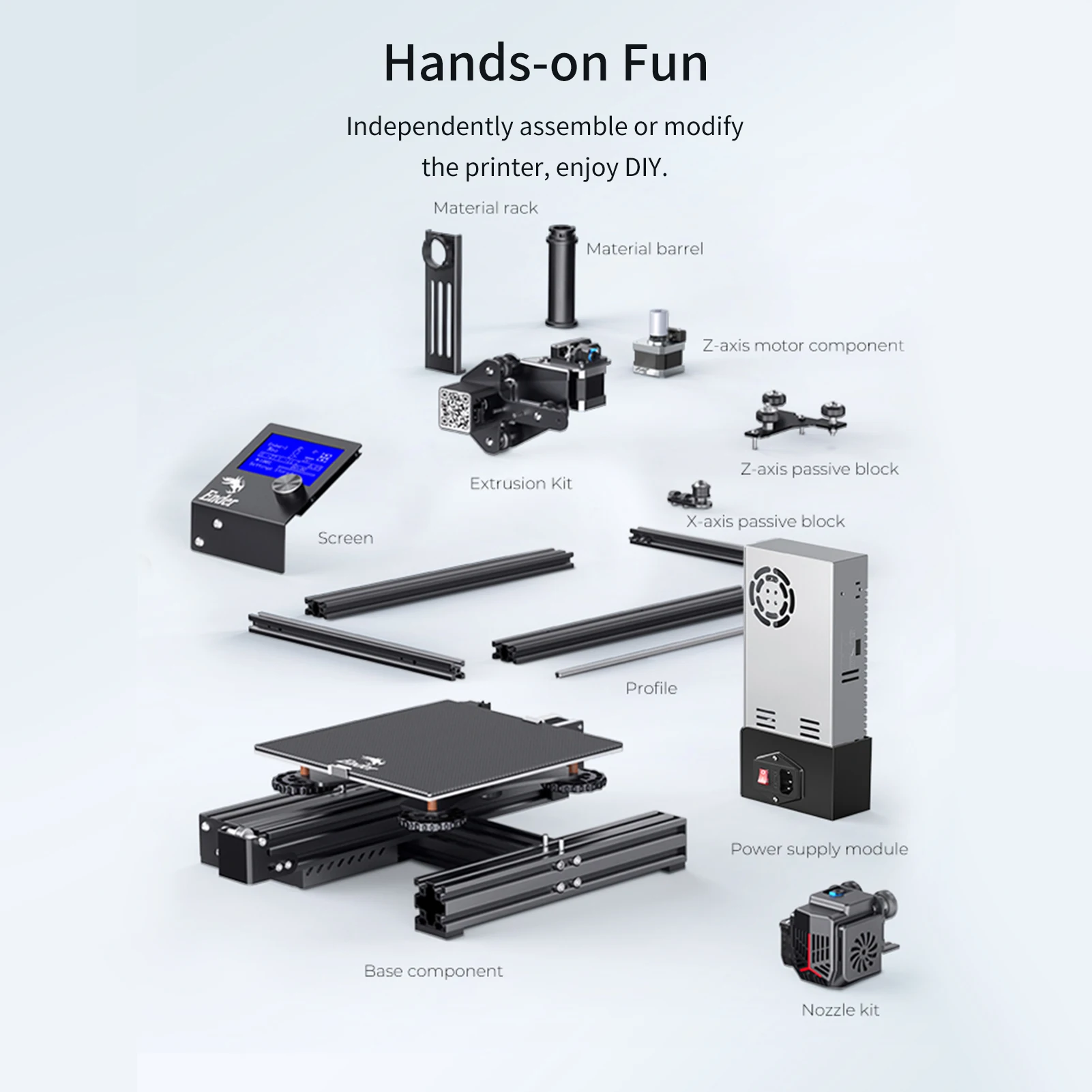

- Ender-3 Neo 3D Printer: This printer features a stable metal body, allowing for DIY or modifications. It has a build volume of 220x220x250mm, ideal for printing various model types like medical, architectural, and movie models. It supports 1.75mm filaments such as PLA, PETG, and ABS.

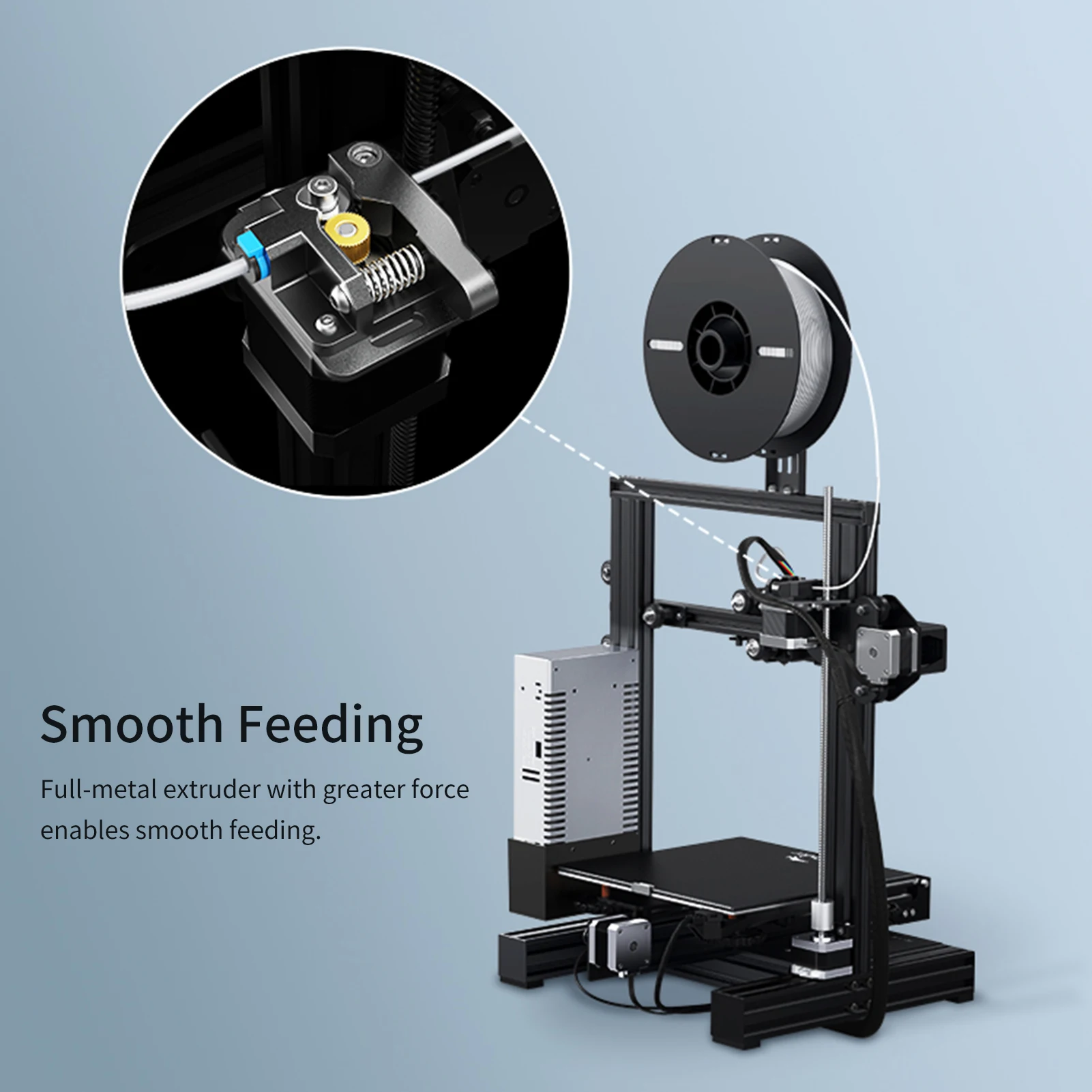

- Full-metal Extruder: The extruder is made entirely of metal, providing greater extrusion force and durability. It ensures smooth feeding and operates quietly, maintaining smooth movement under 50 dB.

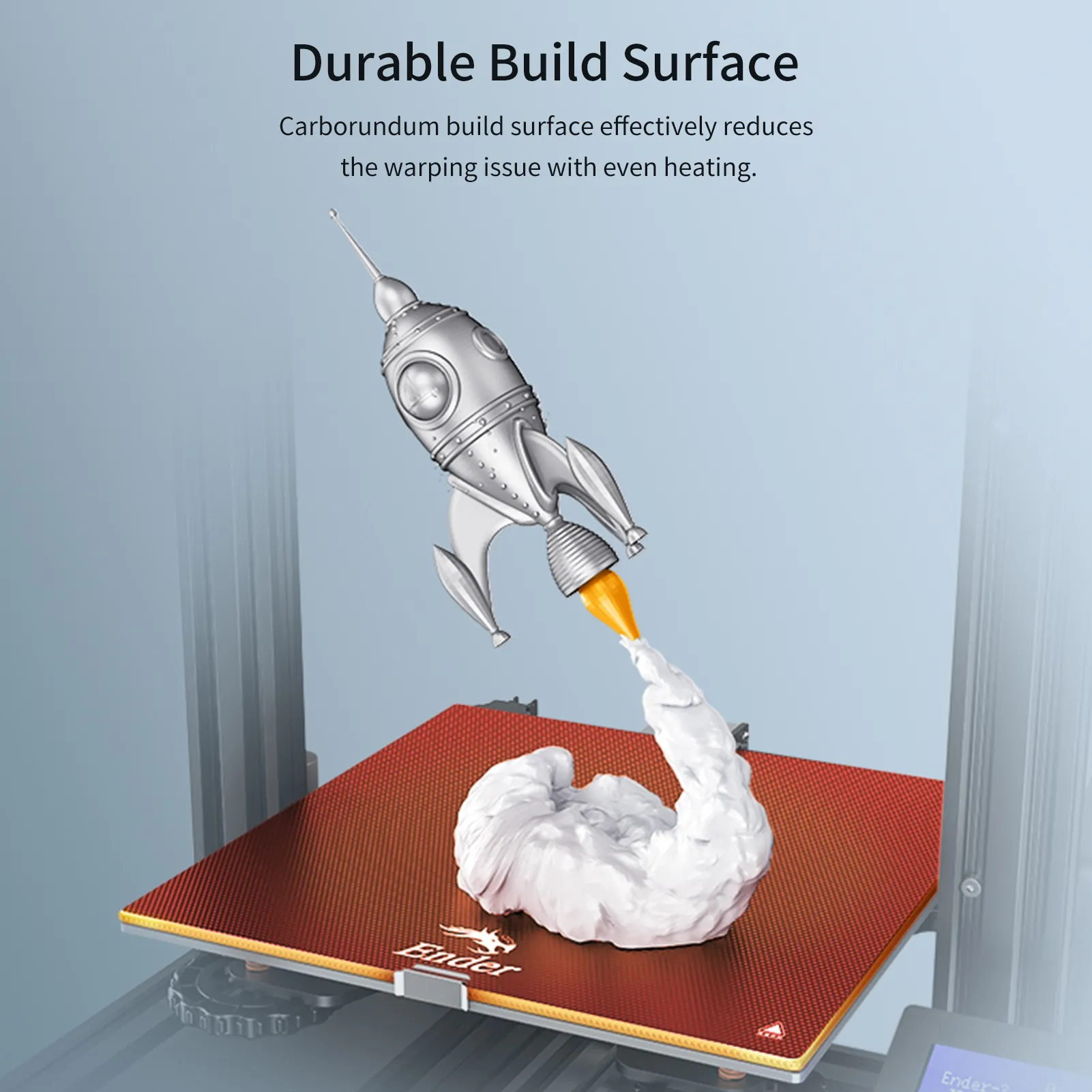

- Excellent Building Platform: The printer comes with a Carborundum Glass build surface, which evenly heats to reduce warping. Alloy steel mold springs ensure steady printing.

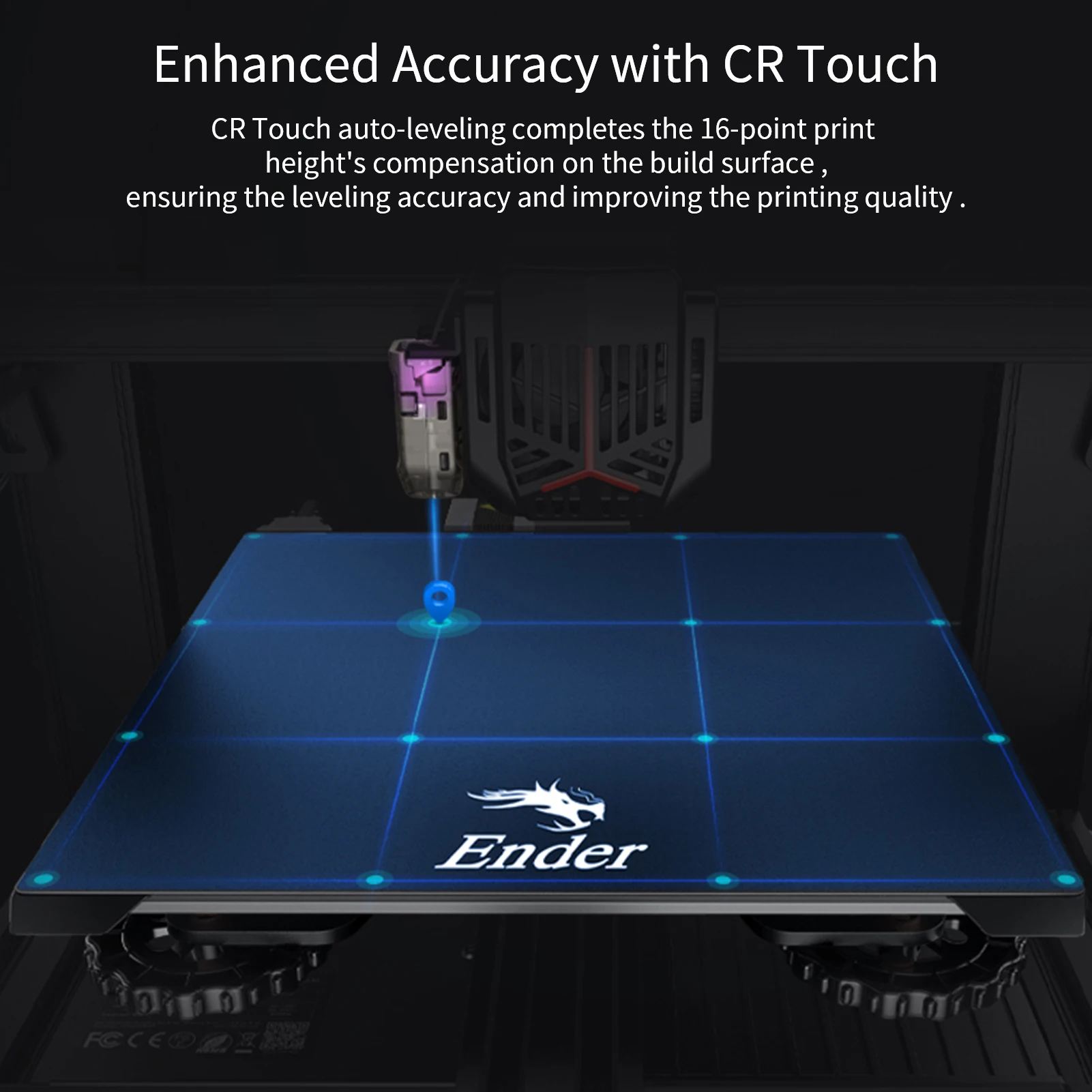

- Efficient Leveling: Featuring CR Touch, this printer can automatically measure and adjust the print height between the nozzle and the build surface, simplifying the leveling process.

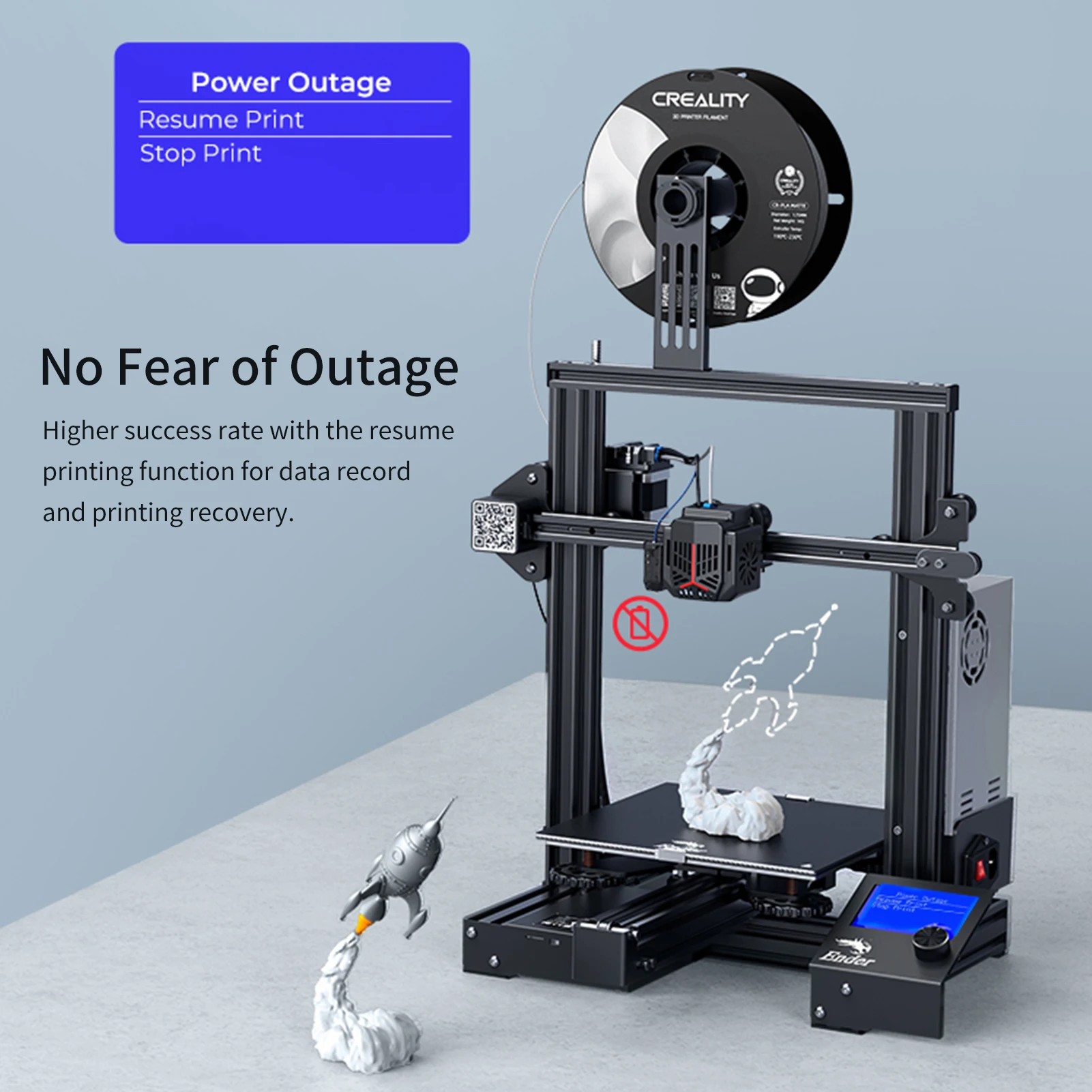

- Powerful Functions: The printer supports resume printing after power interruptions. It also boasts fast heat dissipation, thanks to its corrugated radiator with a large area.
Specifications:
- Model: Ender-3 Neo
- Molding Technology: FDM
- Build Volume: 220x220x250 mm
- Machine Dimensions: 440x440x465 mm
- Net Weight: 7 kg
- Printing Speed: Maximum 120 mm/s
- Printing Precision: ±0.1 mm
- Layer Height: 0.05-0.35 mm
- Nozzle Diameter: 0.4 mm (standard)
- Nozzle Temperature: Up to 260℃
- Heat Bed Temperature: Up to 100℃
- Build Surface: Carborundum Glass
- Extruder Material: Full-metal
- Leveling Mode: CR Touch
- Display: 12864 Mono Knob Screen

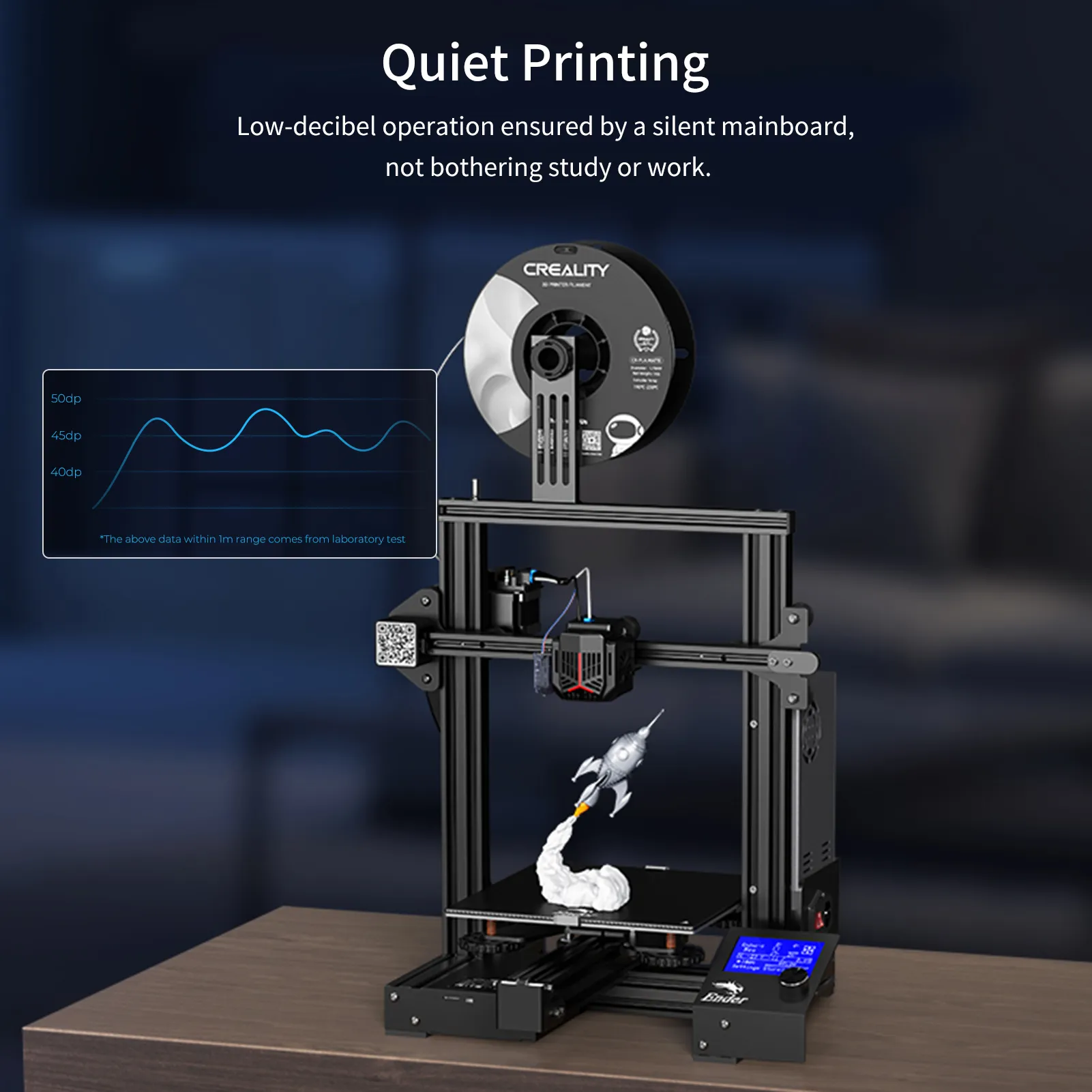

- Mainboard: 32-bit Silent Mainboard
- Resume Printing: Yes
- Rated Voltage: 100-120V~, 200-240V~, 50/60Hz
- Rated Power: 350W
- Slicing Software: Creality Slicer, Cura, Simplify3D
- Data Transmission Method: TF Card, USB
- 3D File Format: STL, OBJ, AMF
- Supported Filament: PLA, ABS, PETG
- Supported Languages: Chinese, English, Español, Deutsche, Français, Pусский, Português, Italiano, Türk
- Package Dimensions: 565x380x205 mm / 22.2x15x8 inches
- Gross Weight: 8.9 kg / 19.6 lb
Model: Ender-3 V2 Neo
Features:
- Ender-3 V2 Neo 3D Printer: This model boasts a stable, integrated metal body that’s easy to install in just three steps. It offers a generous build volume of 220x220x250mm, ideal for printing a variety of models including medical, architectural, and movie models. It supports 1.75mm filaments like PLA, PETG, and ABS.

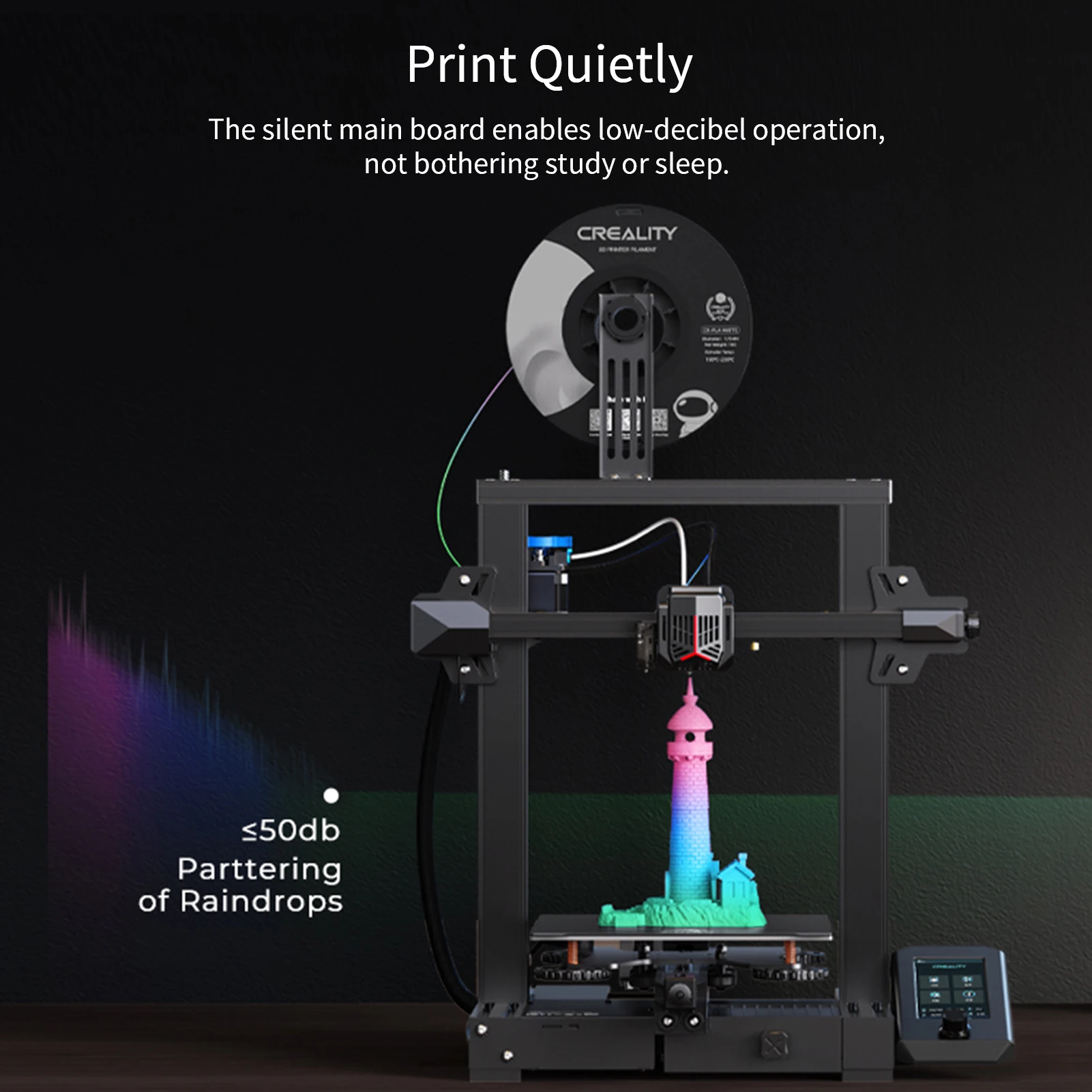

- Powerful Extruder & Silent Mainboard: The full-metal extruder provides enhanced extrusion force and durability. It includes a rotary knob for smooth filament feeding and withdrawal. The self-developed silent motherboard ensures smooth, quiet operation under 50dB.
- User-Friendly Platform and UI: The PC spring steel magnetic build plate ensures strong model adhesion and easy removal by bending slightly. The upgraded user interface features a model preview function for better shape visualization.
- Efficient Leveling: Equipped with CR Touch, this printer automatically measures and adjusts the print height between the nozzle and build surface, simplifying the leveling process.

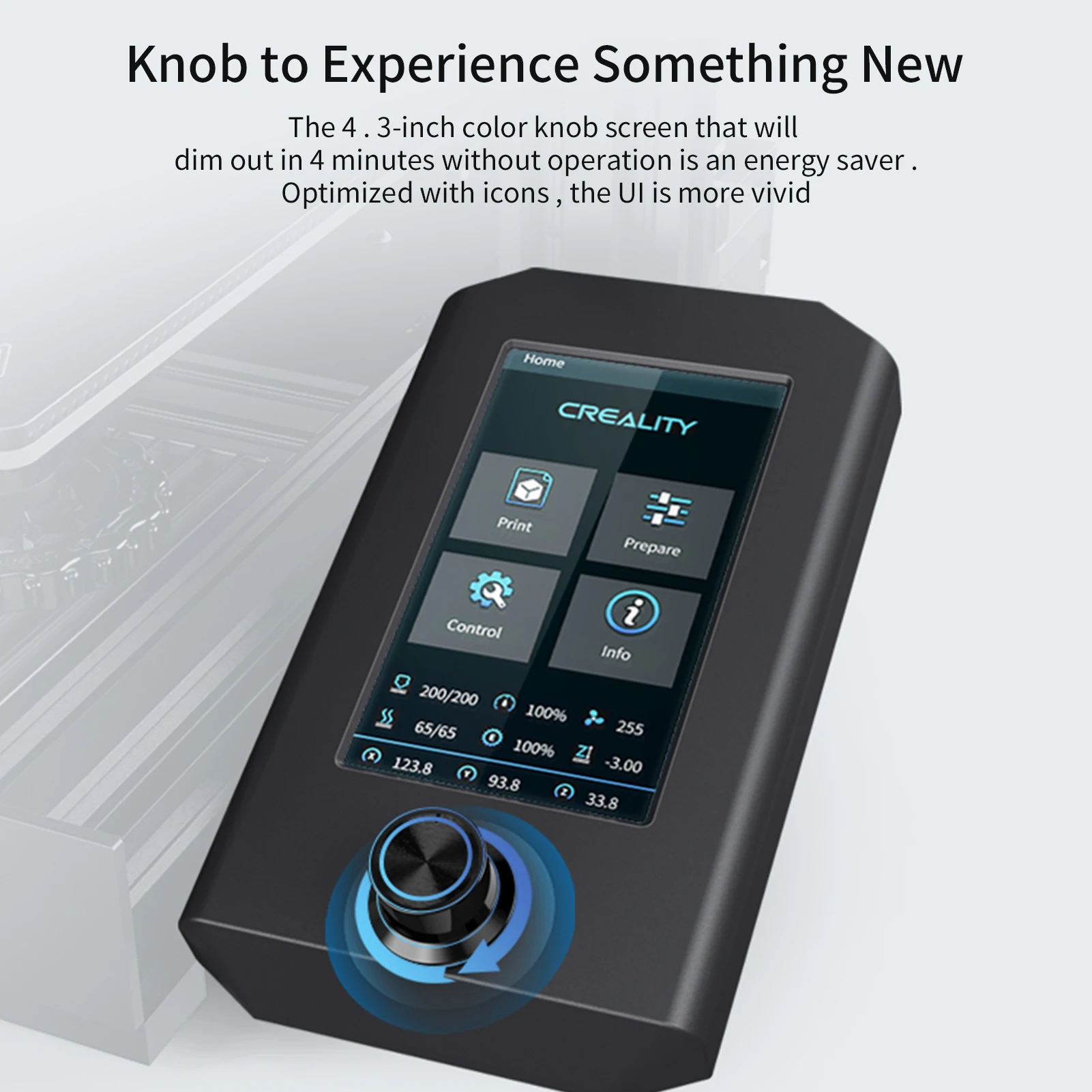

- Additional Functions: Features a 4.3-inch color knob screen with intuitive icons and an energy-saving automatic dimming function. The knob tensioner allows for quick belt tightness adjustments, ensuring optimal printing conditions.

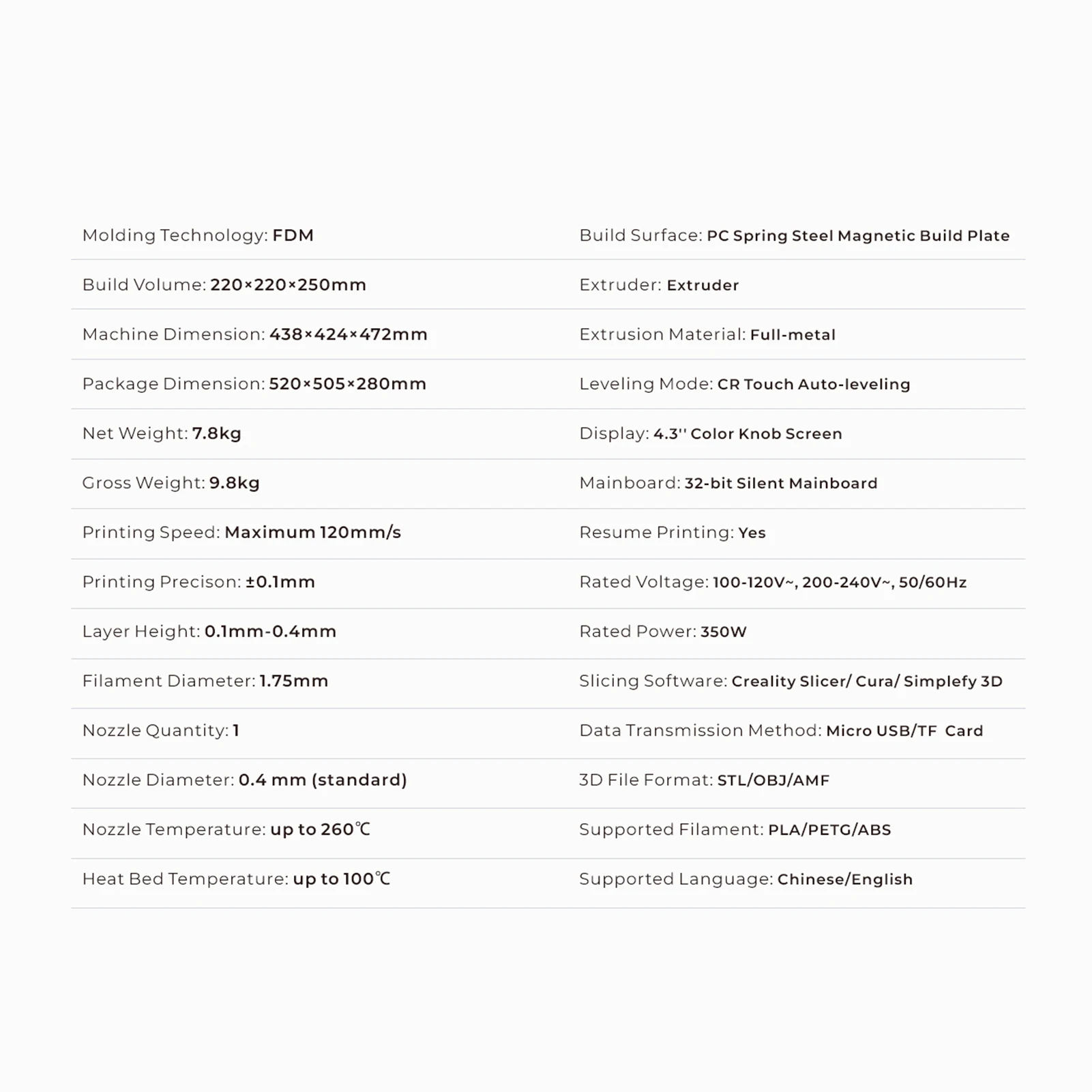

Specifications:
- Molding Technology: FDM
- Build Volume: 220x220x250mm
- Machine Size: 438 x 424 x 472mm
- Net Weight: 7.8kg
- Printing Speed: Up to 120mm/s
- Printing Precision: ±0.1mm
- Layer Height: 0.1mm-0.4mm
- Filament Diameter: 1.75mm
- Nozzle Quantity: 1
- Nozzle Diameter: 0.4 mm (standard)
- Nozzle Temperature: Up to 260℃
- Heat Bed Temperature: Up to 100℃
- Build Surface: PC Spring Steel Magnetic Build Plate
- Extruder: Full-metal
- Leveling Mode: CR Touch Auto-leveling
- Display: 4.3″ Color Knob Screen
- Mainboard: 32-bit Silent
- Resume Printing: Yes
- Rated Voltage: 100-120V~, 200-240V~, 50/60Hz
- Rated Power: 350W
- Slicing Software: Creality Slicer, Cura, Simplify3D
- Data Transmission Method: Micro USB, TF Card
- 3D File Format: STL, OBJ, AMF
- Supported Filament: PLA, PETG, ABS
- Supported Language: Chinese, English
- Package Size: 52 x 50.5 x 28cm (20.4 x 19.8 x 11in)
- Package Weight: 9.8kg (21.6lb)

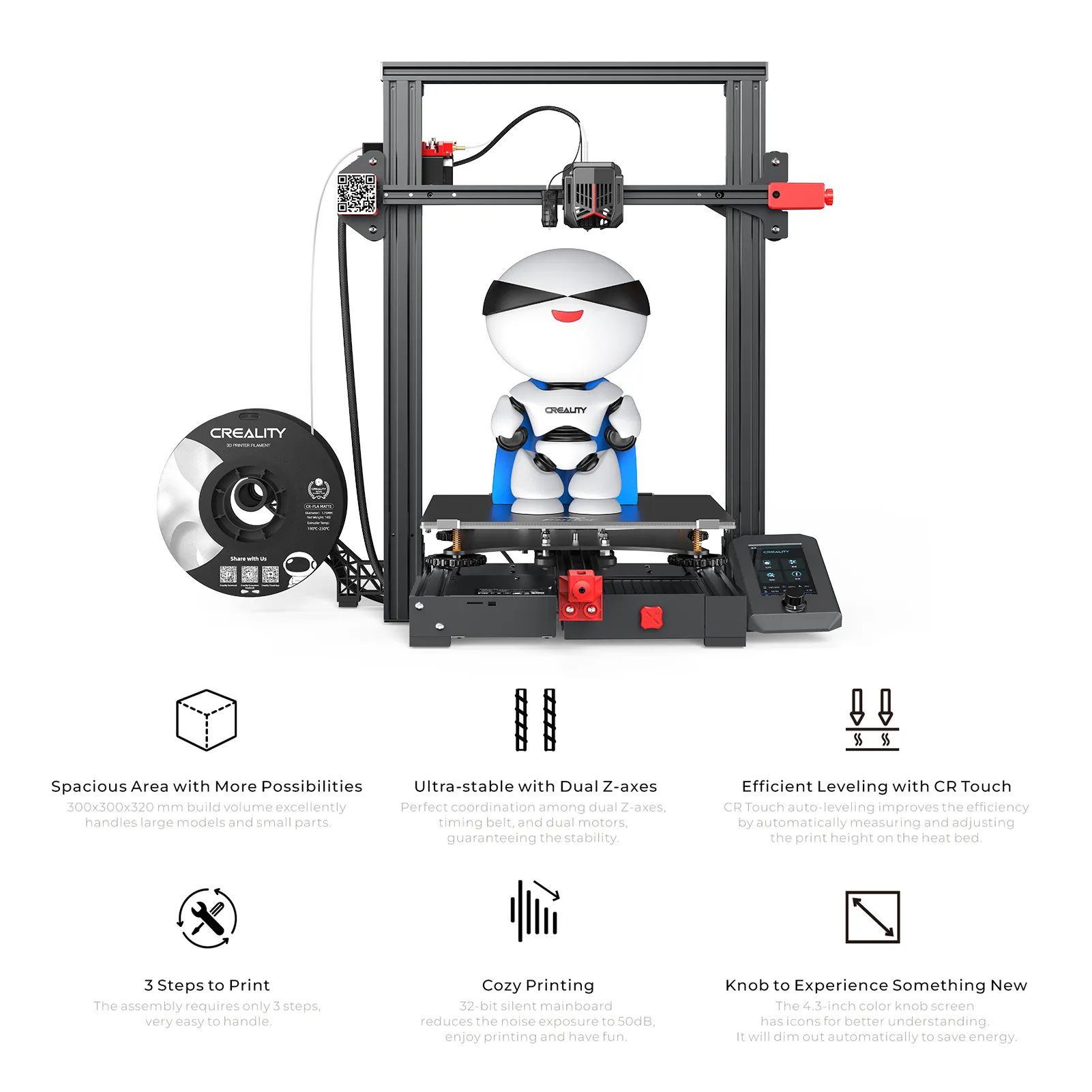

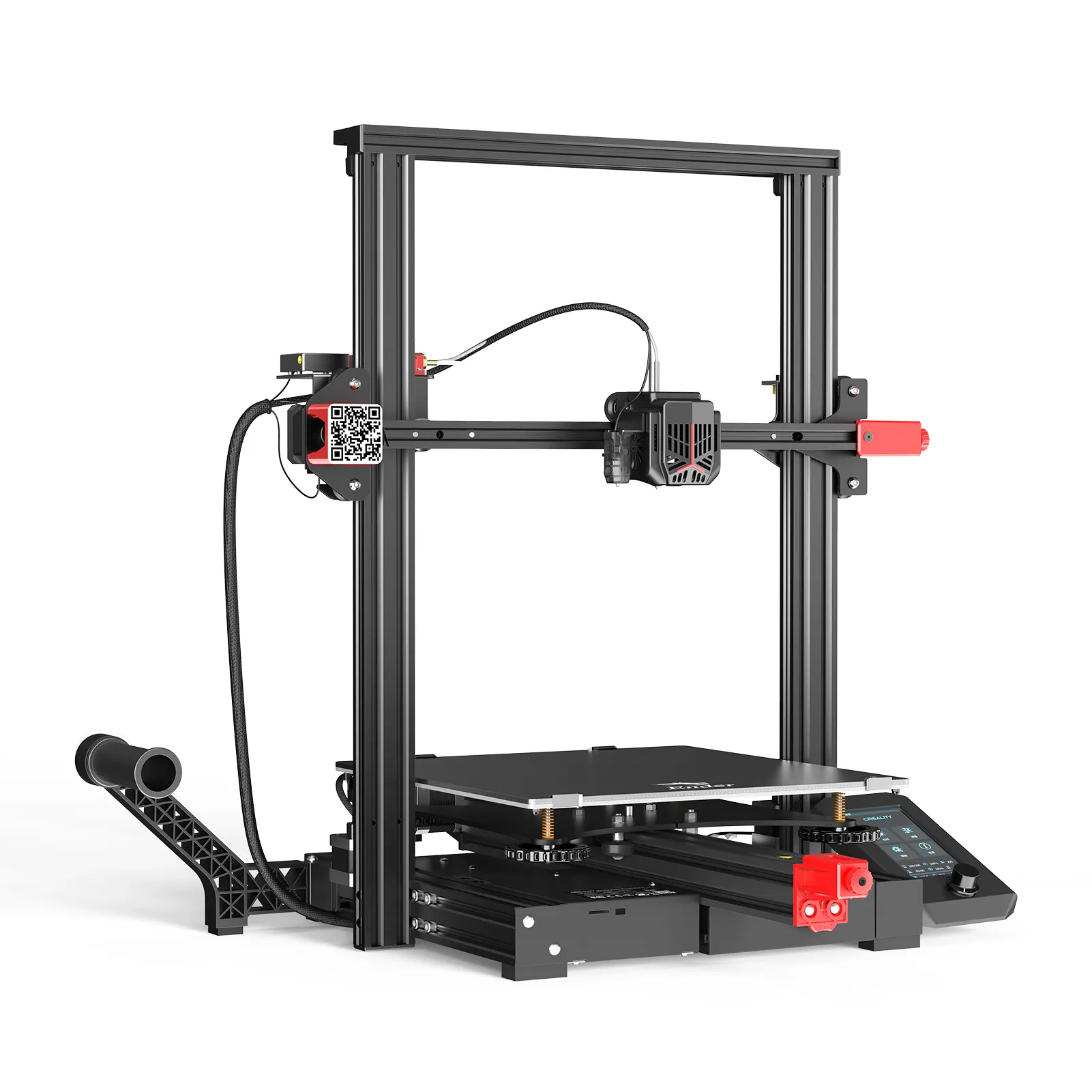

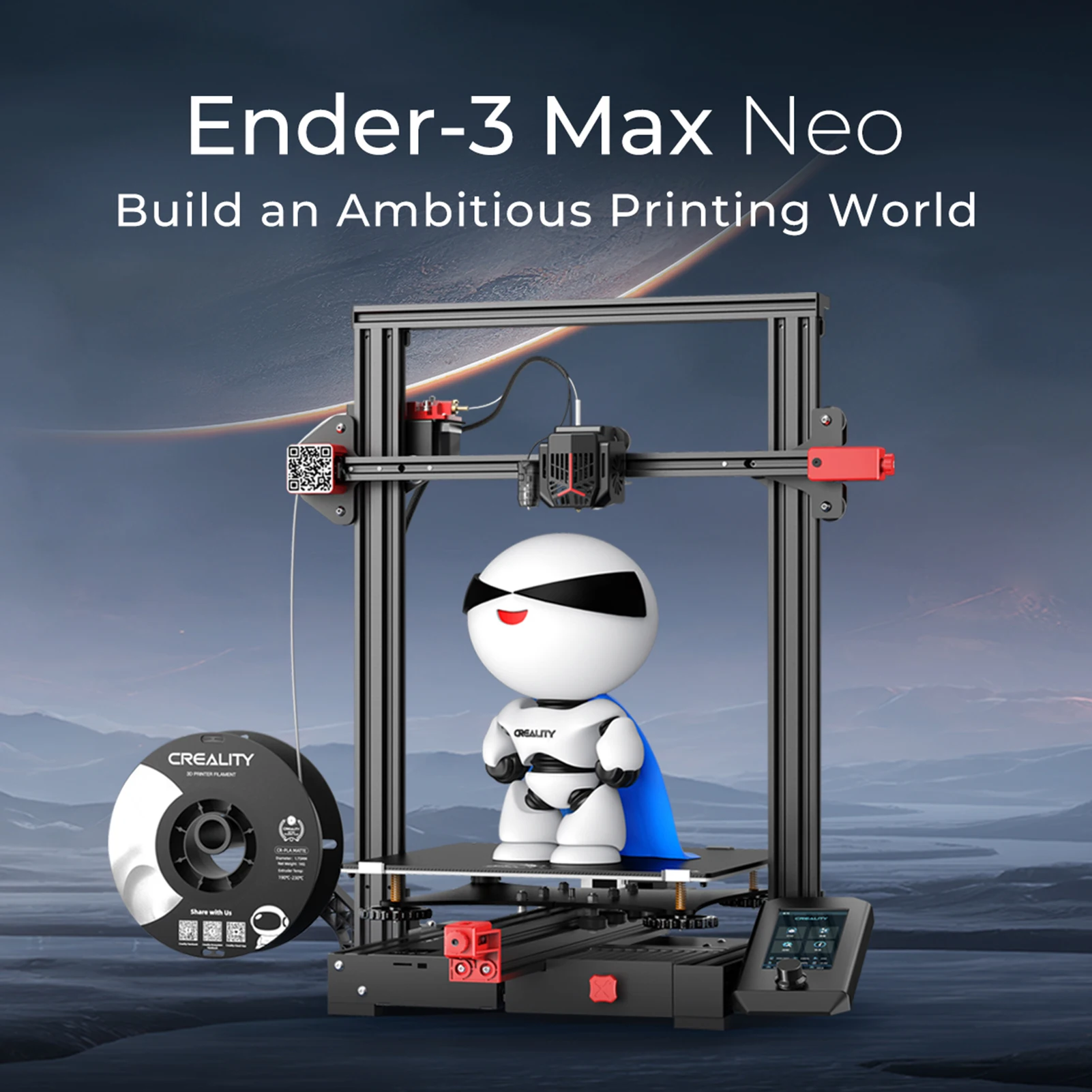

Model: Ender-3 Max Neo
Features:

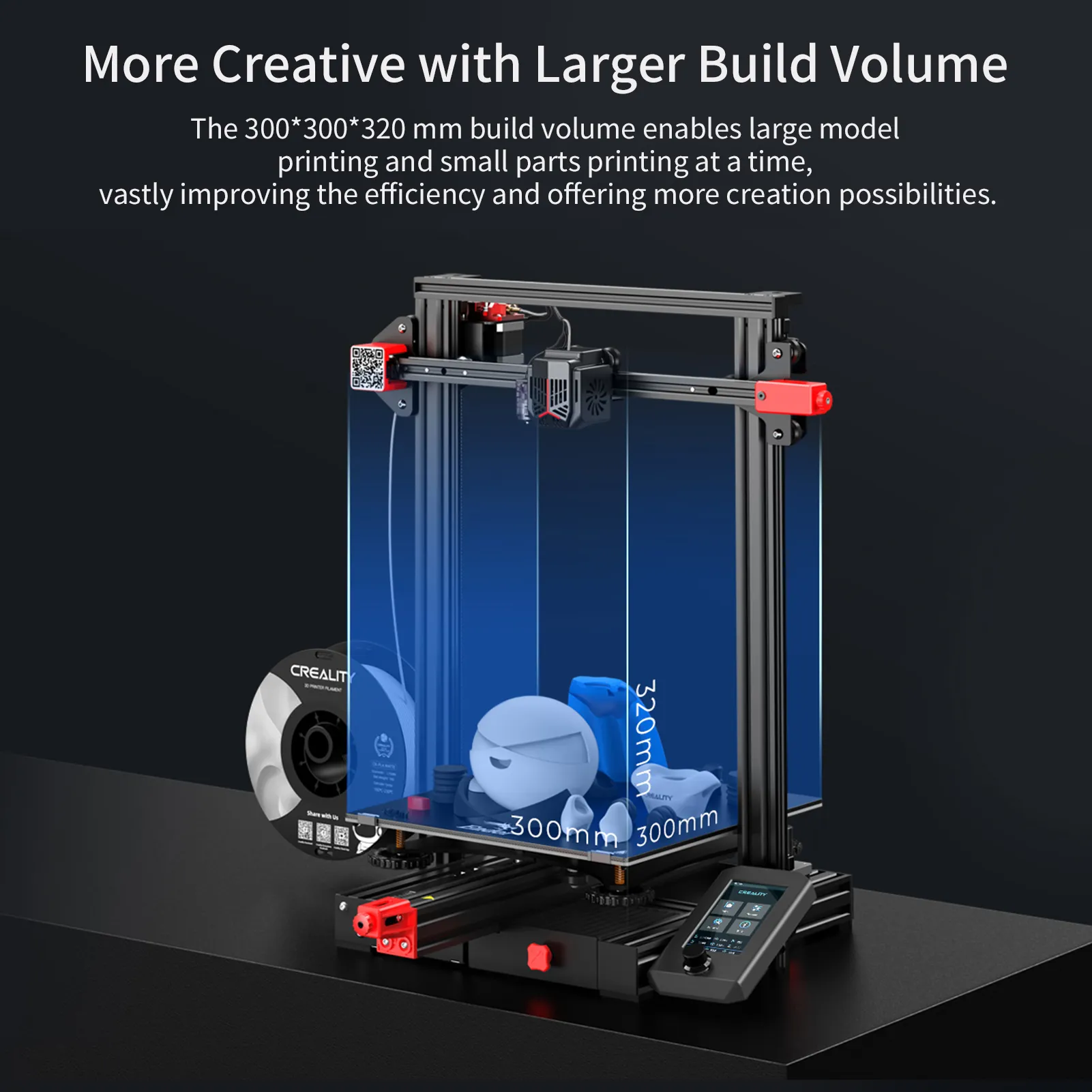

- Large Build Volume: This printer offers a spacious build volume of 300x300x320 mm, ideal for printing large models or multiple small parts at once. It supports a variety of filaments including PLA, ABS, PETG, and Wood.
- Ultra-stability & Ultra-quiet Operation: Enhanced with dual Z-axes, the printer ensures increased stability. The harmonious coordination between the timing belt and dual motors guarantees steady motion and high-quality printing. It also features a 32-bit silent mainboard, reducing noise levels to a mere 50dB for a quieter printing experience.

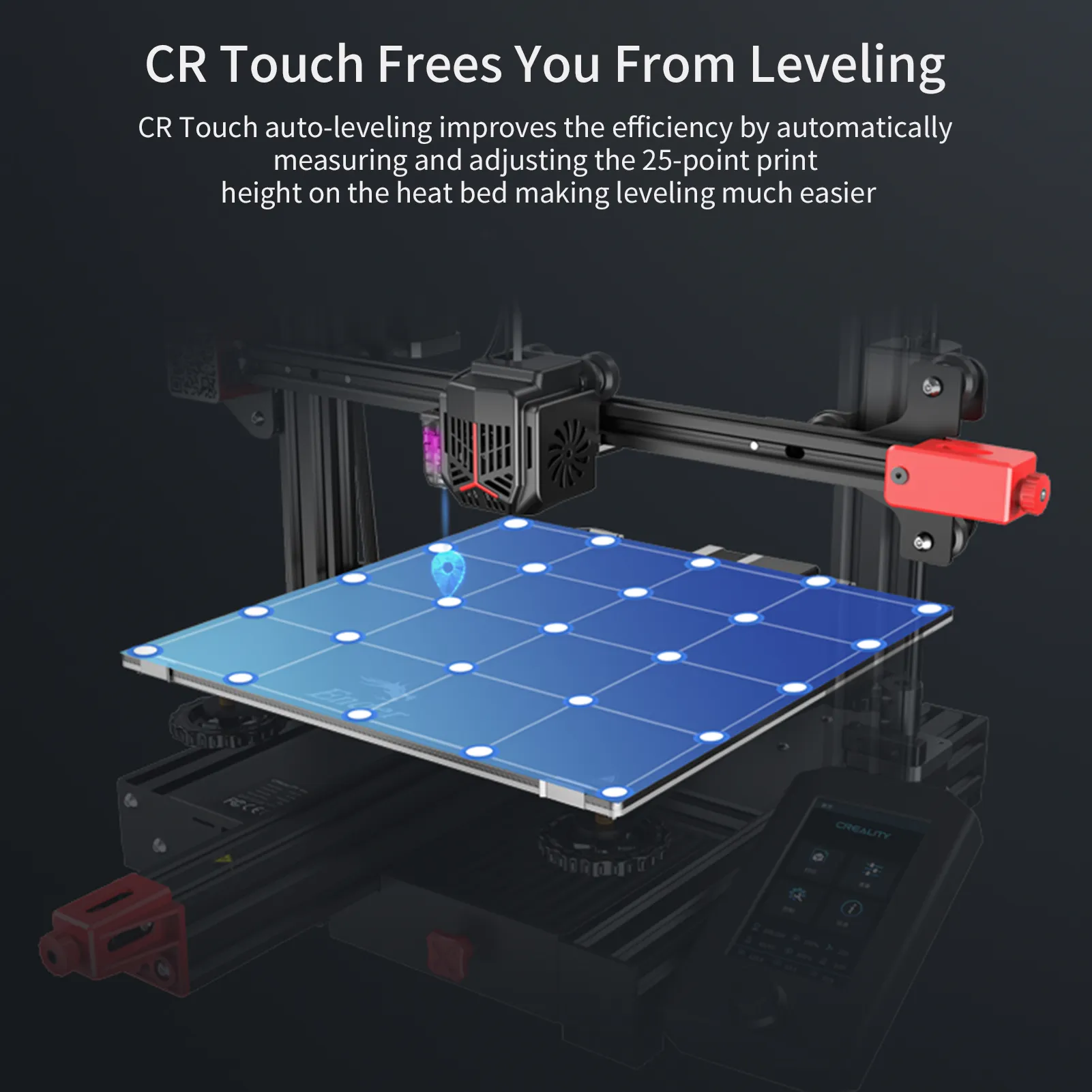

- Efficient Leveling: Leveraging CR Touch technology, this printer can automatically measure and adjust the print height between the nozzle and the build surface, simplifying the leveling process.

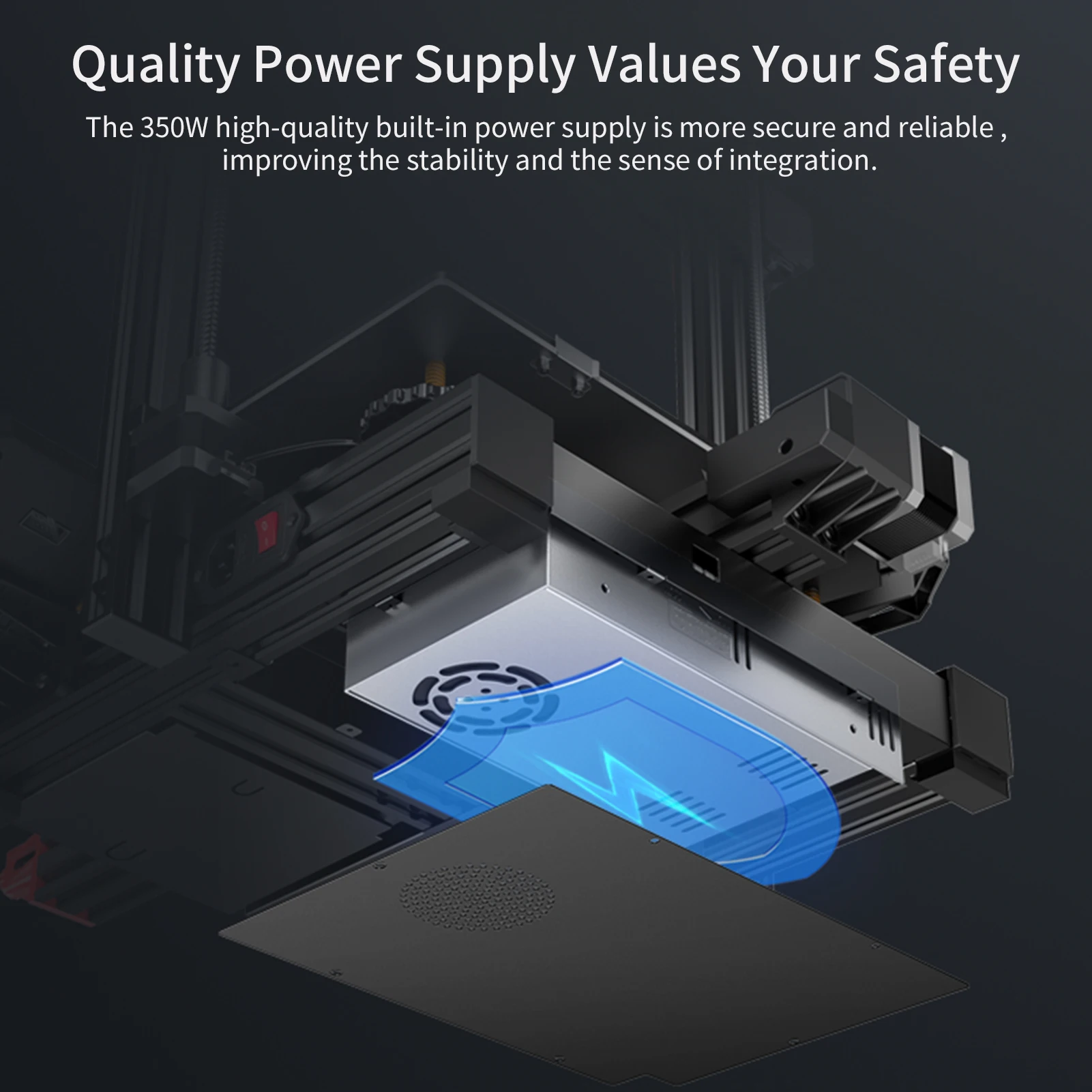

- Safety Priority & Easy Installation: Equipped with a 350W built-in power supply, the printer ensures safety and reliability, with no exposed parts or wires. Its pre-installation design allows for easy assembly in just three steps.
- Additional Functions: The printer includes a 4.3-inch color knob screen with intuitive icons and an energy-saving automatic dimming feature. The full-metal Bowden extruder offers durability and superior extrusion force, while the gear-assisted filament loading and withdrawal system enhances ease of use.
Specifications:
- Model: Ender-3 Max Neo
- Molding Technology: FDM
- Build Volume: 300x300x320 mm
- Machine Dimension: 516x582x590 mm
- Net Weight: 10.3 kg
- Printing Speed: ≤120 mm/s
- Printing Precision: ±0.1 mm
- Layer Height: 0.1-0.4 mm
- Filament Diameter: 1.75 mm
- Nozzle Quantity: 1
- Nozzle Diameter: 0.4 mm
- Maximum Nozzle Temperature: 260°C
- Maximum Heat Bed Temperature: 110°C
- Build Surface: Carborundum Glass
- Extruder Type: Bowden
- Extruder Material: Full-metal
- Leveling Mode: CR Touch Auto-leveling
- Display: 4.3-inch Color Knob Screen
- Mainboard: 32-bit Silent
- Resume Printing Function: Yes
- Filament Sensor: Yes
- Rated Voltage: 100-120V~, 200-240V~, 50/60Hz
- Rated Power: 350W
- Data Transmission: Micro USB/TF card
- 3D File Formats Supported: STL, OBJ, AMF
- Supported Filaments: PLA, ABS, PETG, Wood
- Supported Languages: Chinese, English
- Slicing Software: Repetier-Host, Simplify3D
- Package Dimensions: 665x555x290 mm (26.1×21.8×11.4 inches)
- Package Weight: 13520g (29.8 lbs)
