Description

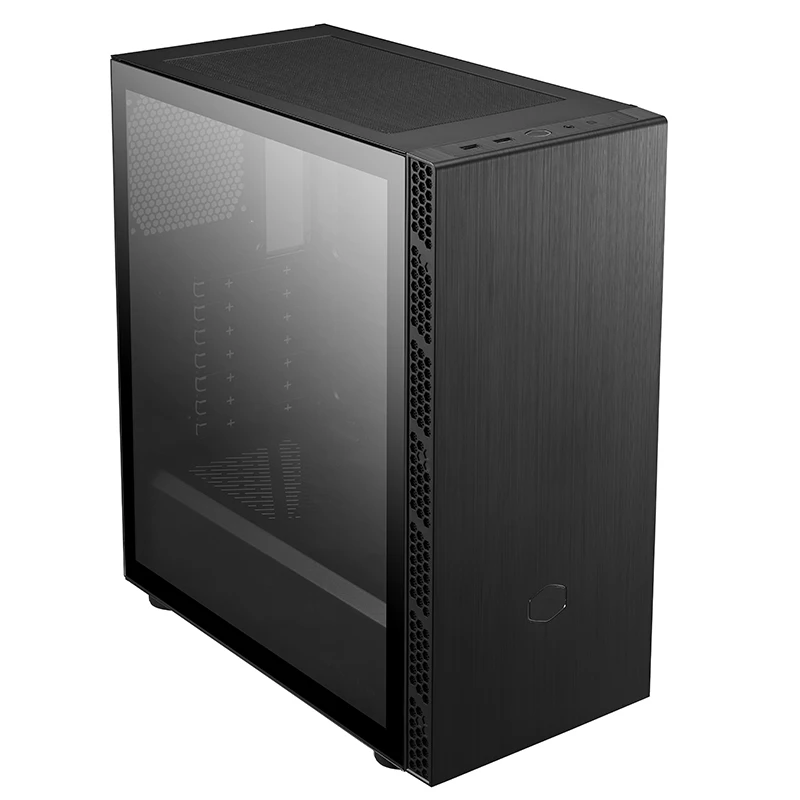

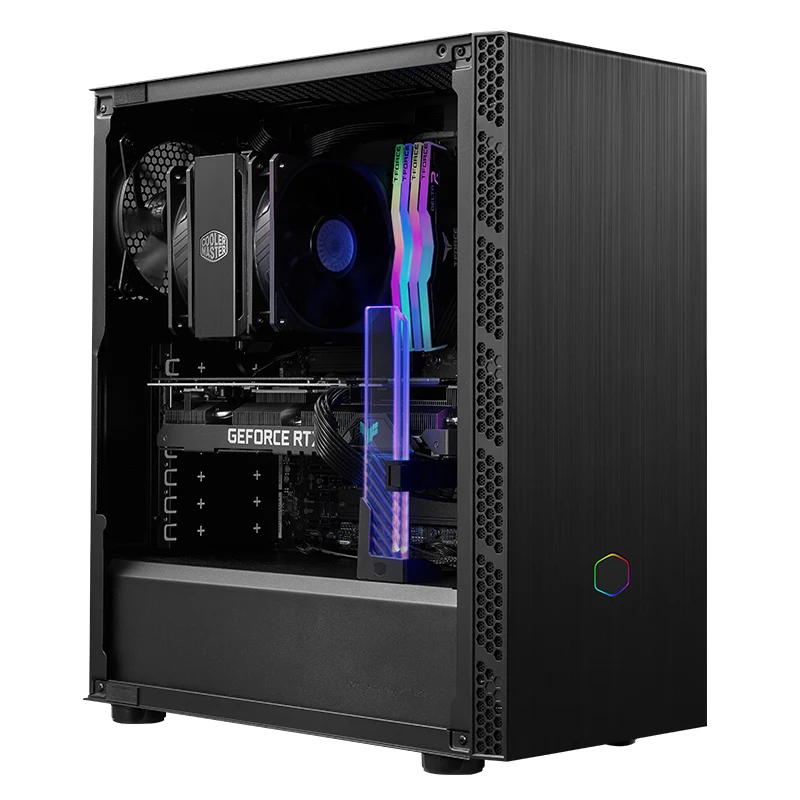

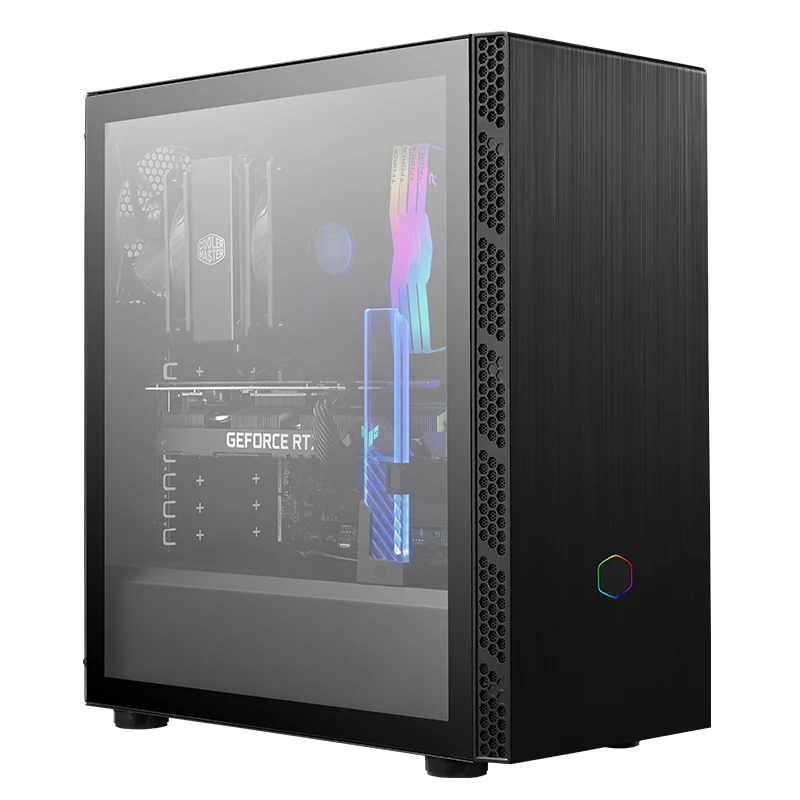

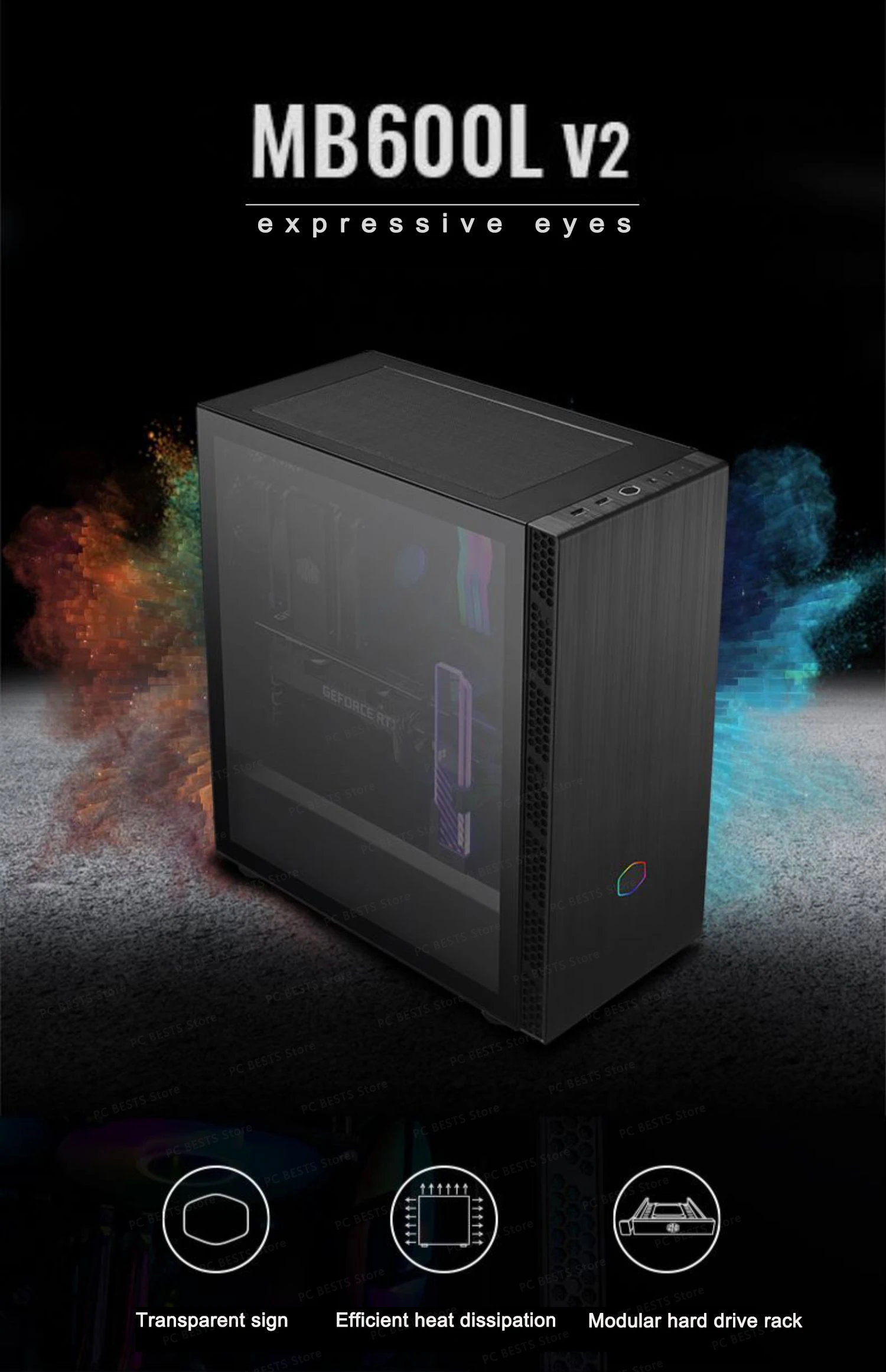

Cooler Master MB600L V2 Steel Glass Case
Product parameters
- Product Name: MasterBox MB600L V2
- Product Model: MB600L2-KGNN-SCN
- External Color: Black
- Raw Materials: Steel, Plastic, Tempered Glass
- Dimensions (L x W x H): Including Protrusions 405.5 x 204 x 455.3mm
- Dimensions (L x W x H): Excluding Protrusions 400 x 204 x 455.3mm
- Volume (Excluding Protrusions): 37.15L

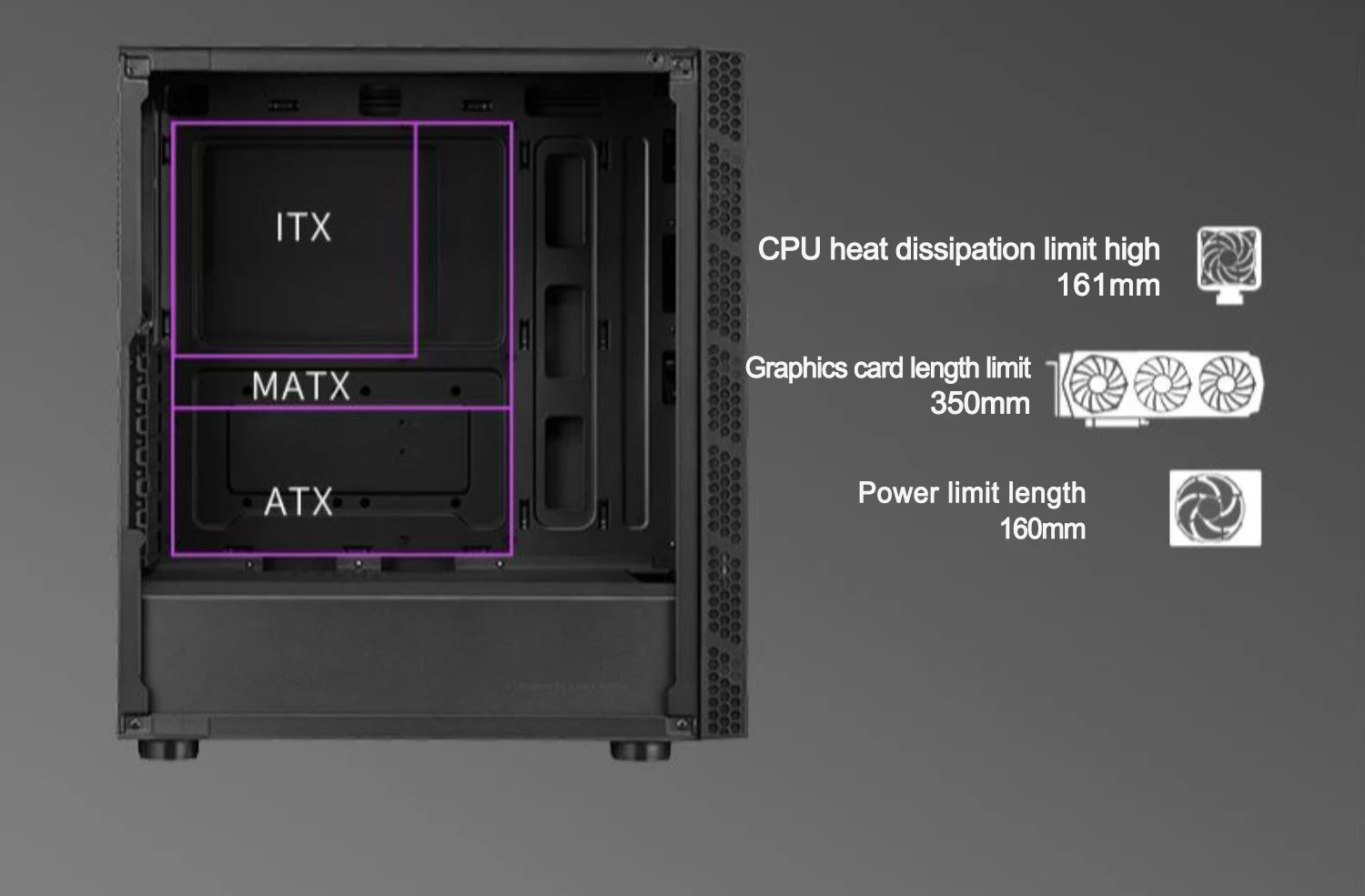

- Motherboard Compatibility: Mini ITX, Micro ATX, ATX
- Expansion Slot: 7

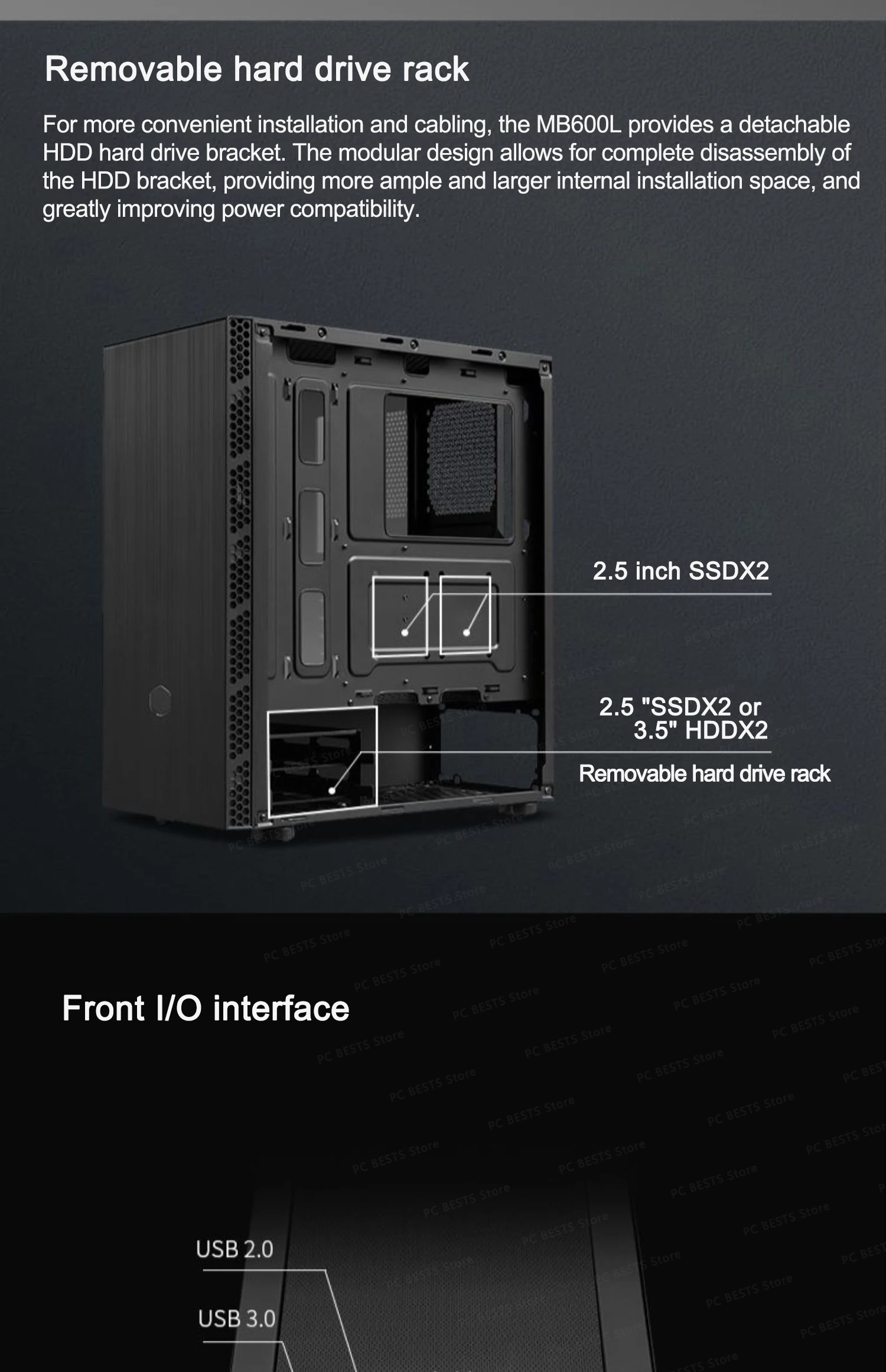

- Hard Drive Rack: 2.5″ / 3.5″ HDD x 2, 2.5″ SSD x 2

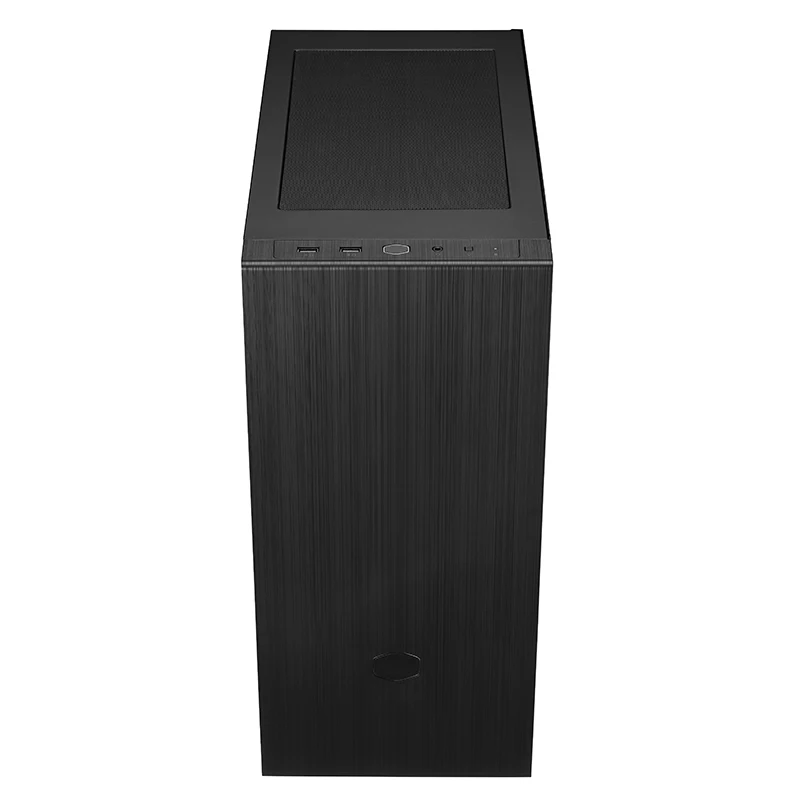

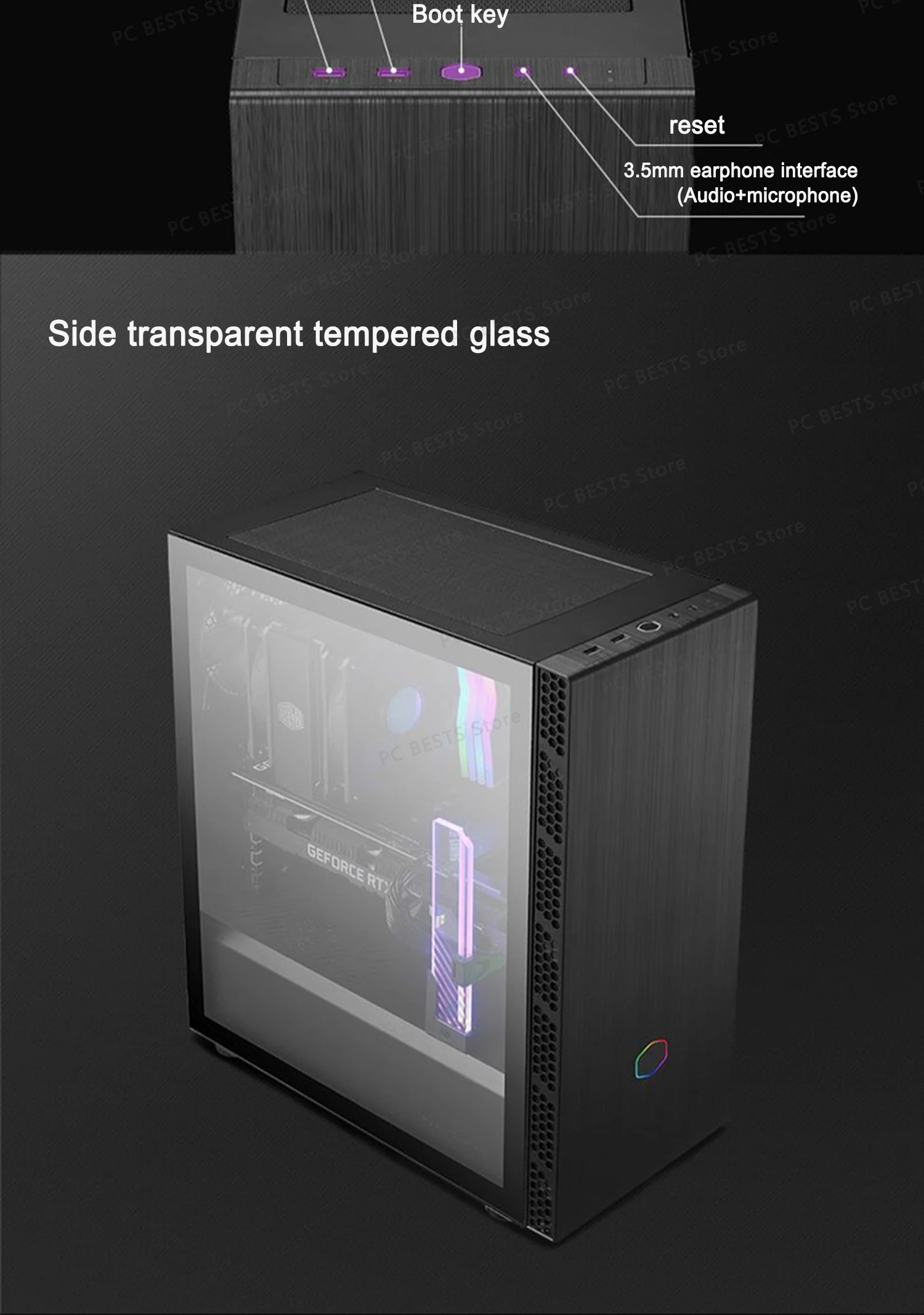

- I/O Panel:
- 1 x USB 3.2 Gen 1 Type A
- 1 x USB 2.0
- 1 x 3.5mm Headset Jack (Audio + Mic)

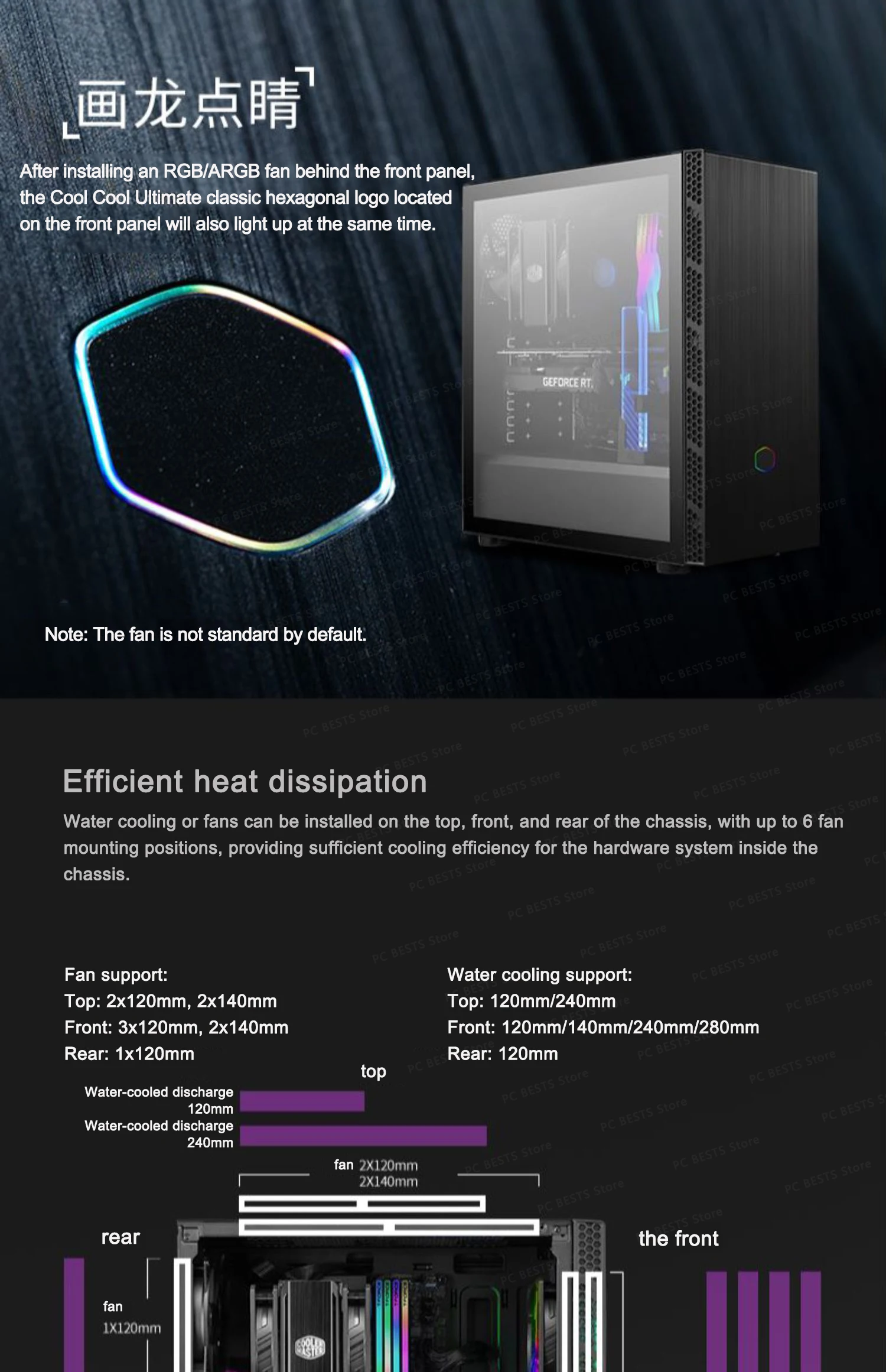

- Fan Support:
- Top: 2 x 120mm, 2 x 140mm
- Front: 3 x 120mm, 2 x 140mm
- Rear: 1 x 120mm

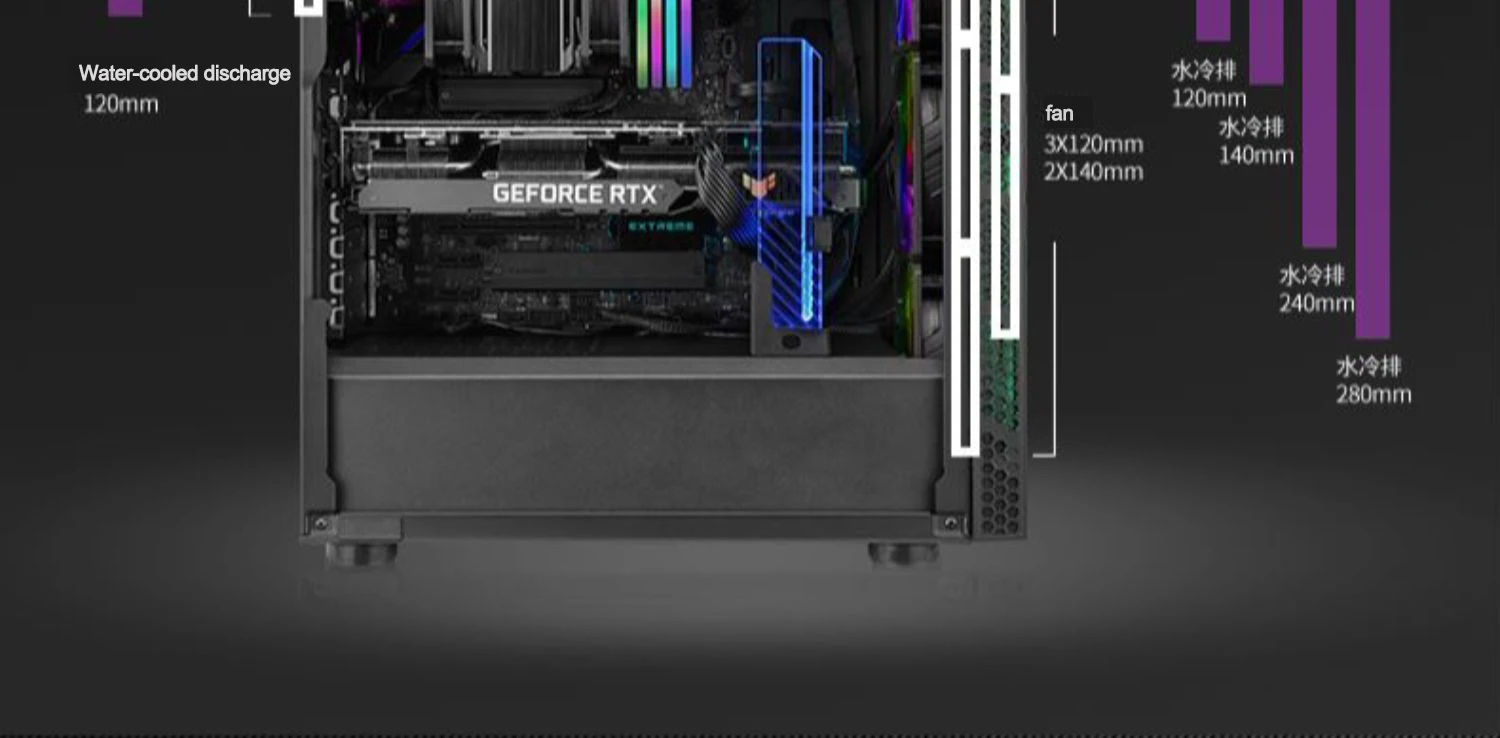

- Water Cooling Support:
- Top: 120/240mm (RAM height limit 32mm; install RAM first, then water cooling exhaust)
- Front: 120/140/240/280mm
- Rear: 120mm
- CPU Heat Sink Length Limit: 161mm
- Power Supply Length Limit: 160mm
- Graphics Card Length Limit: 350mm (without front fans & radiators)
- Cable Management Space: 18.5mm behind the motherboard

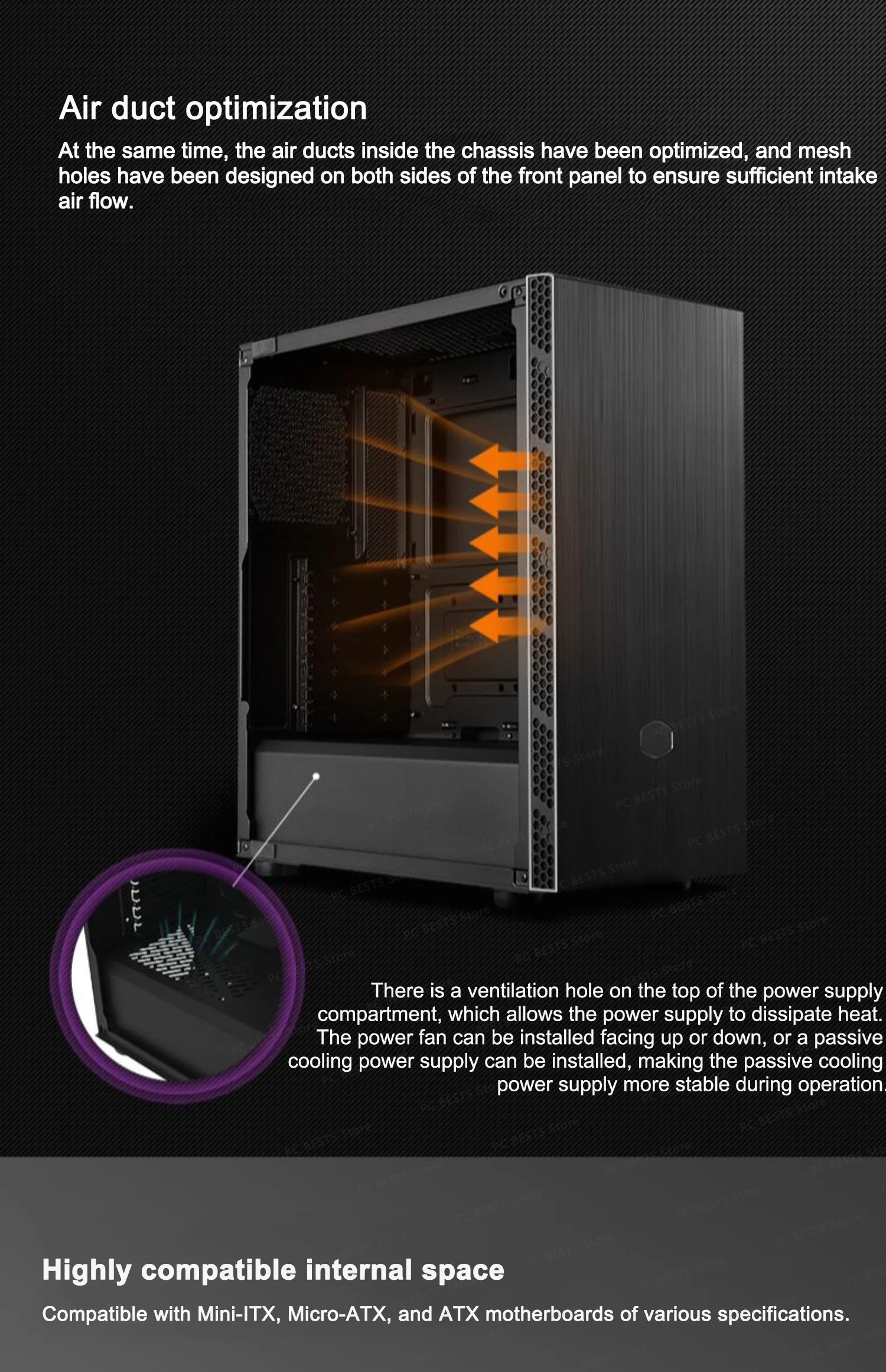

- Dust Filter: Front, Top, Bottom
- Power Compatibility: Bottom Mounted, ATX
