Description

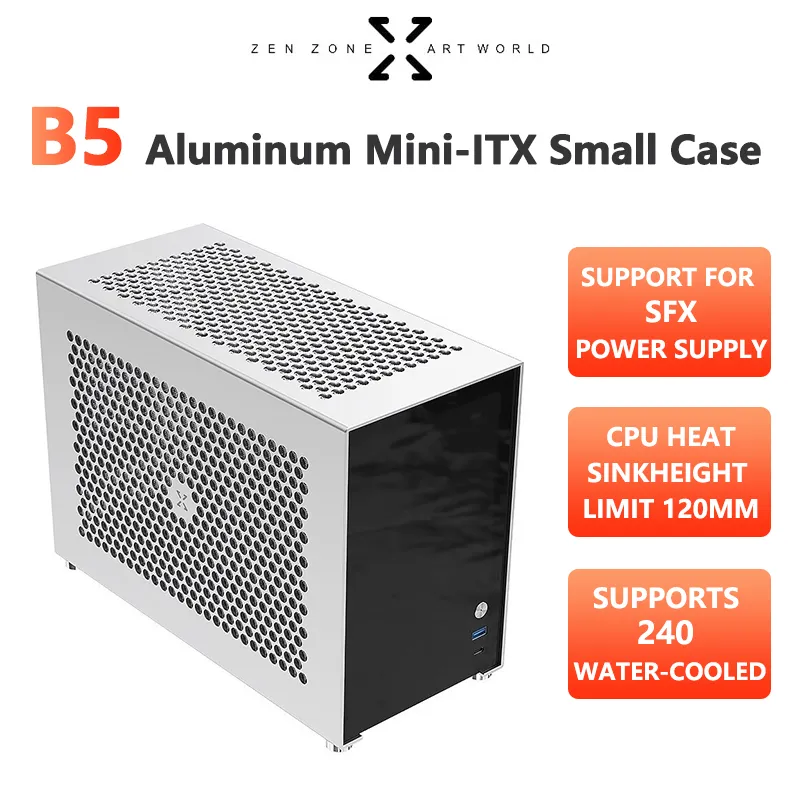

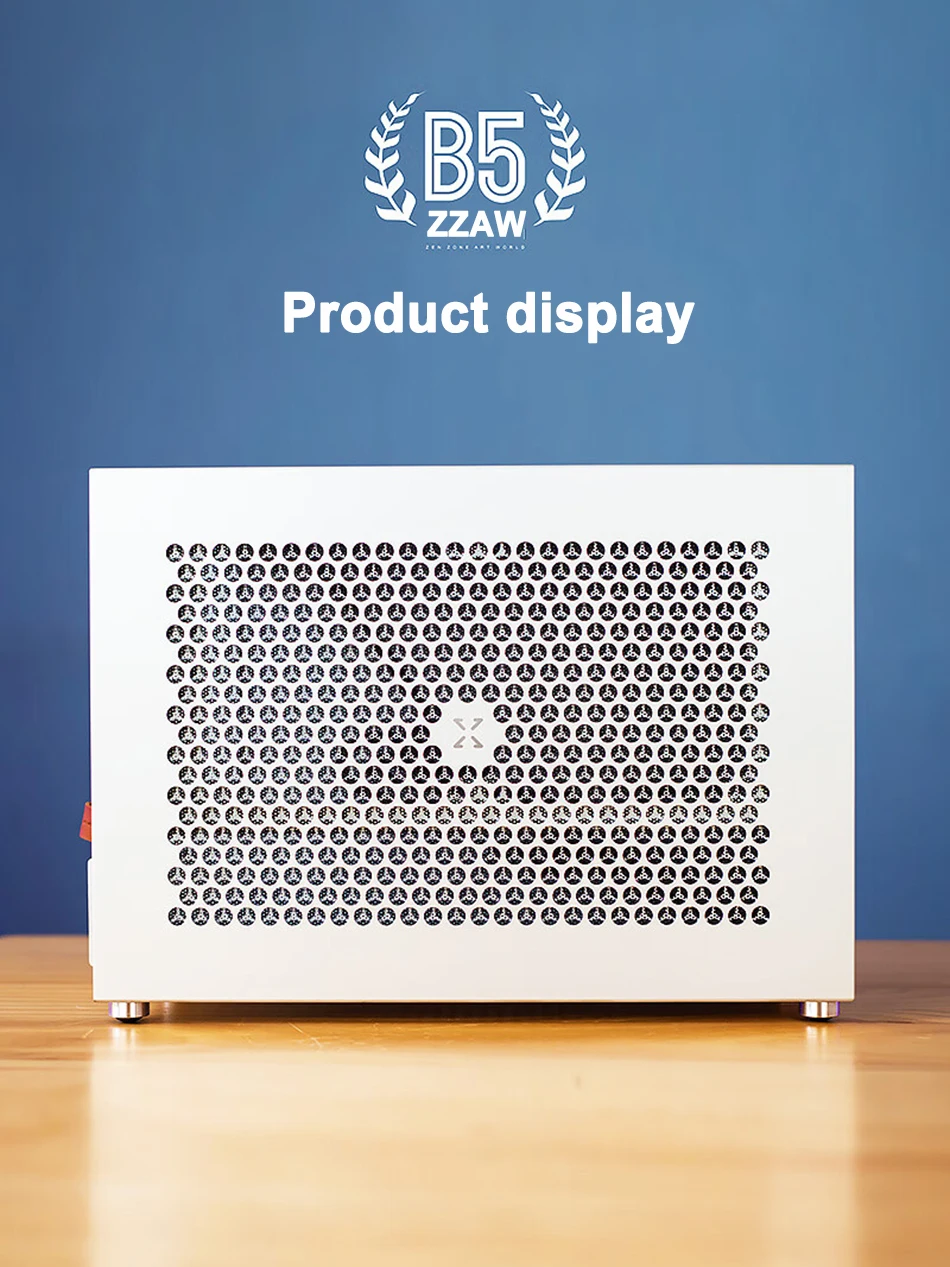

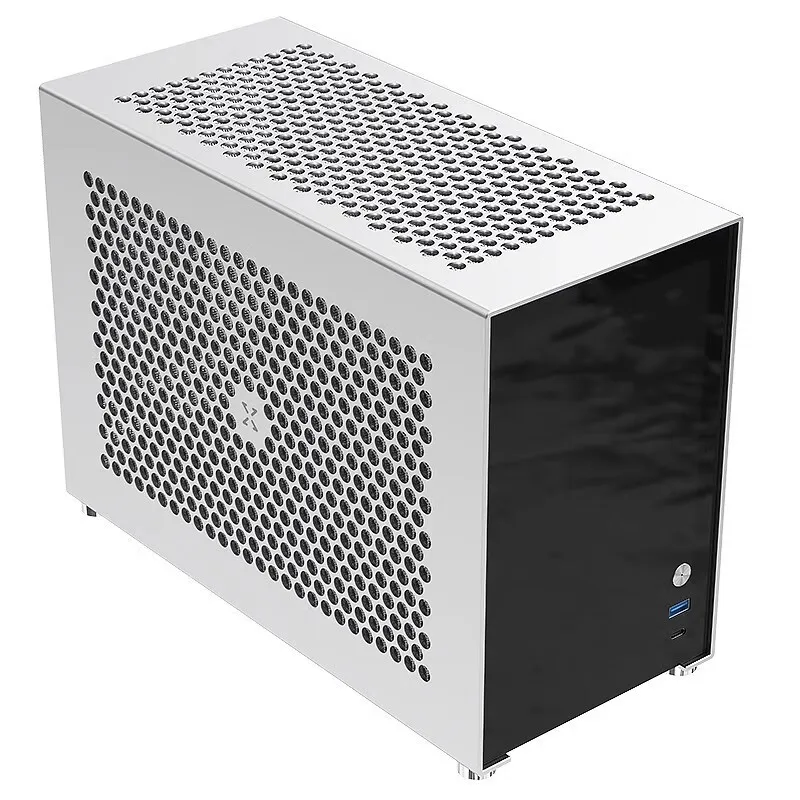

ZZAW B5 Mini-ITX Aluminum Gaming Case
Product Parameters for ZZAW B5 ITX Chassis:
- Brand Name: ZZAW
- Model: B5
- Type: Single Display Inline ITX Chassis

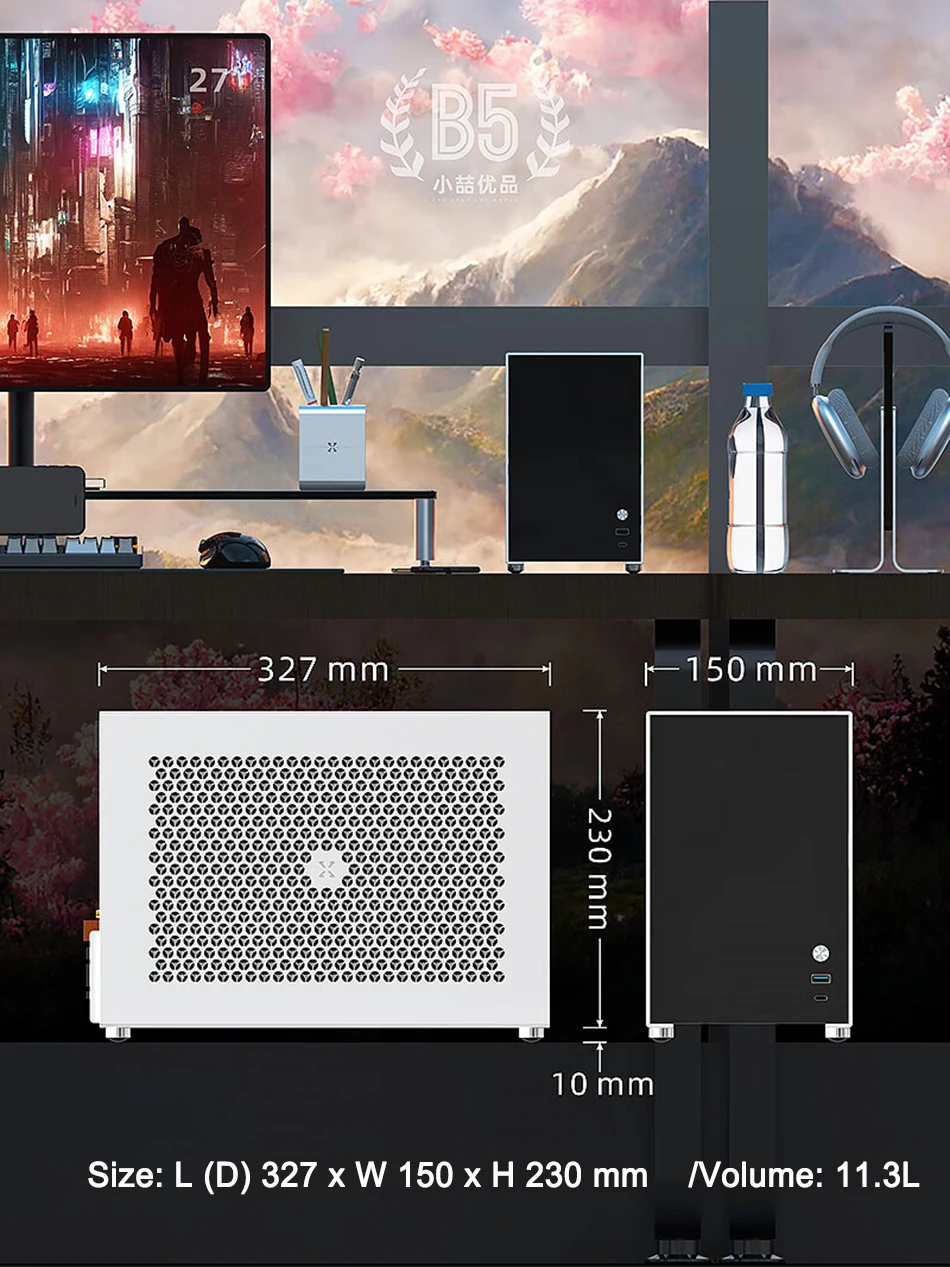

- Chassis Size: 327mm (Length) x 150mm (Width) x 230mm (Height)
- Volume: 11.28 Liters

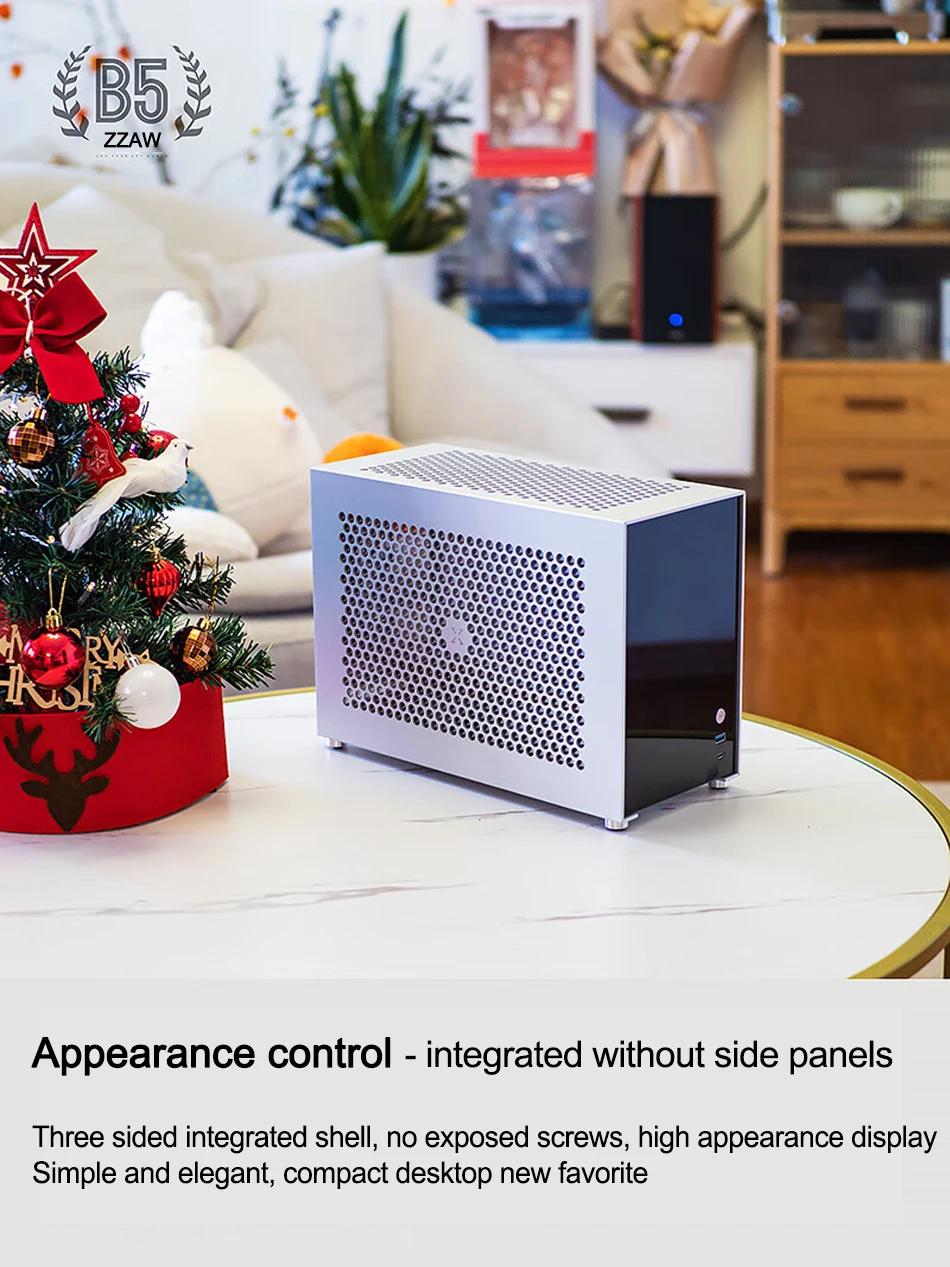

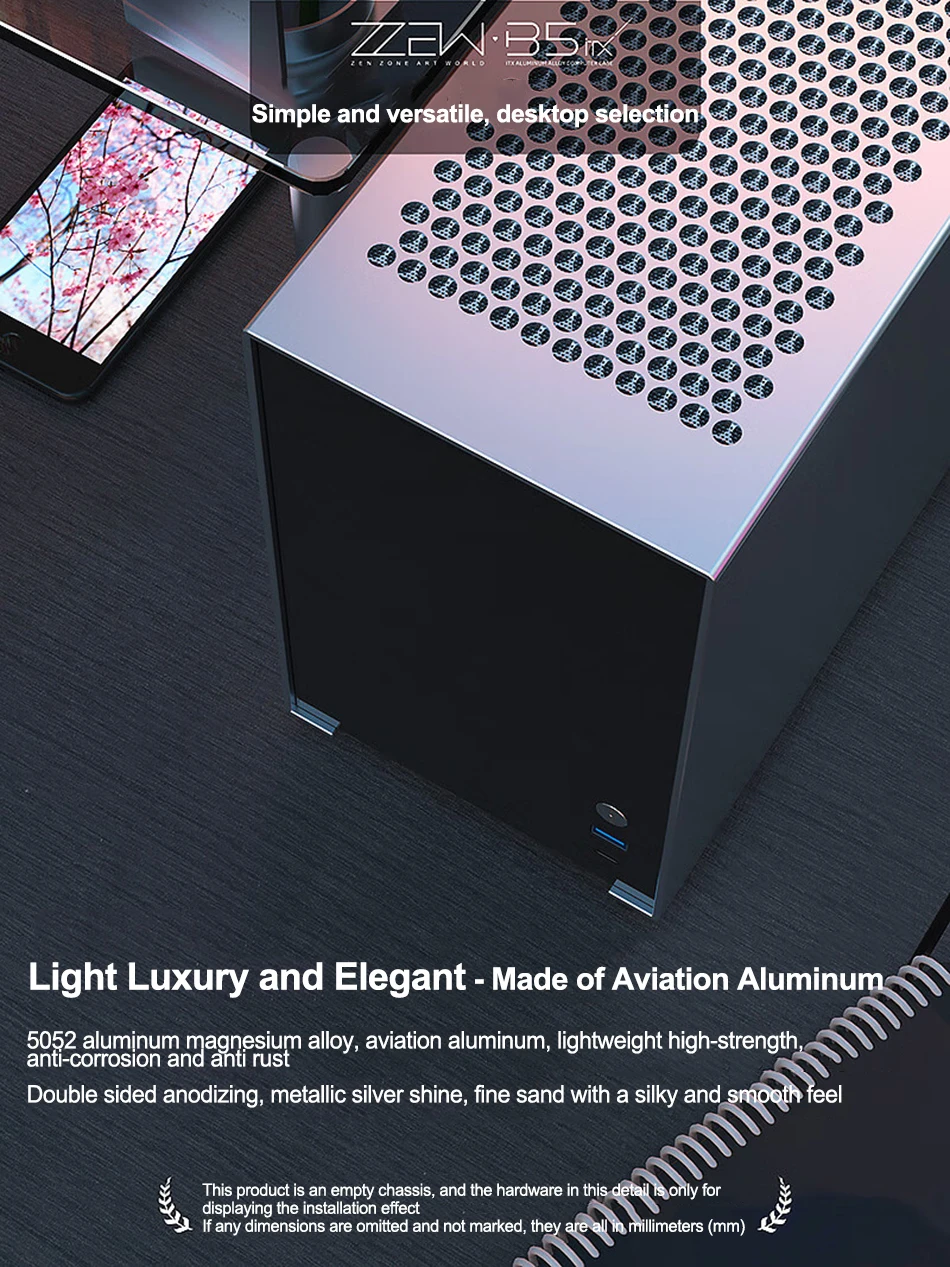

- Material and Color: Frosted Aluminum Magnesium Alloy in Anodized Silver. Integrated Shell Thickness: 3.0mm, Other Parts: 1.5mm
- Front Panel Trim: 3.0mm Thick Tempered Glass, Black Opaque
- Product Weight: Net Weight – 2.1 kg, Gross Weight – 3.2 kg
- Packaging Size: 410mm (Length) x 220mm (Width) x 305mm (Height)
- PCI Expansion Slot: 2 Slots
- Dust Net: 3 Pieces

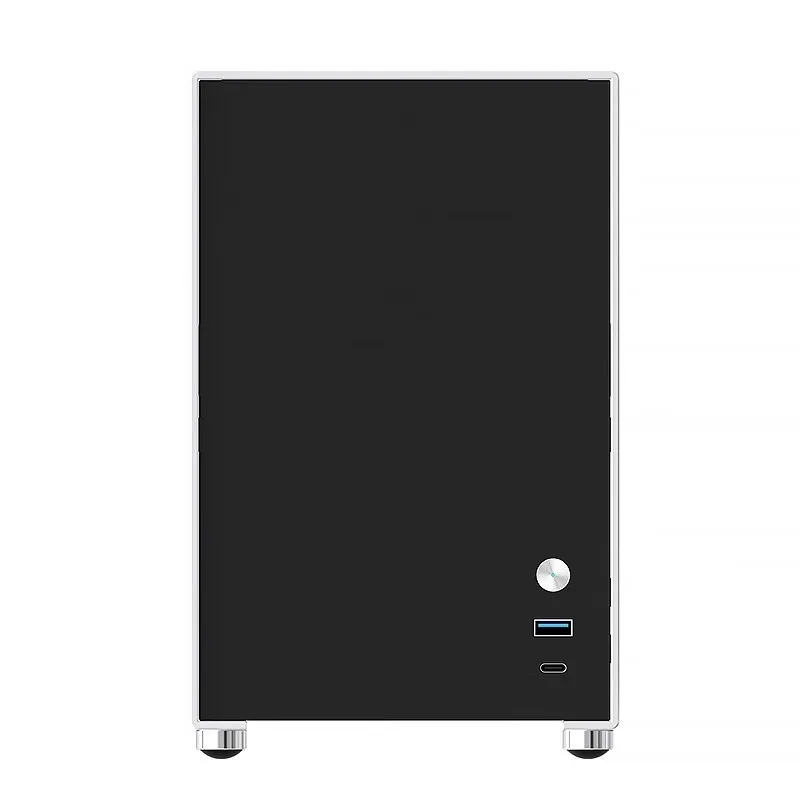

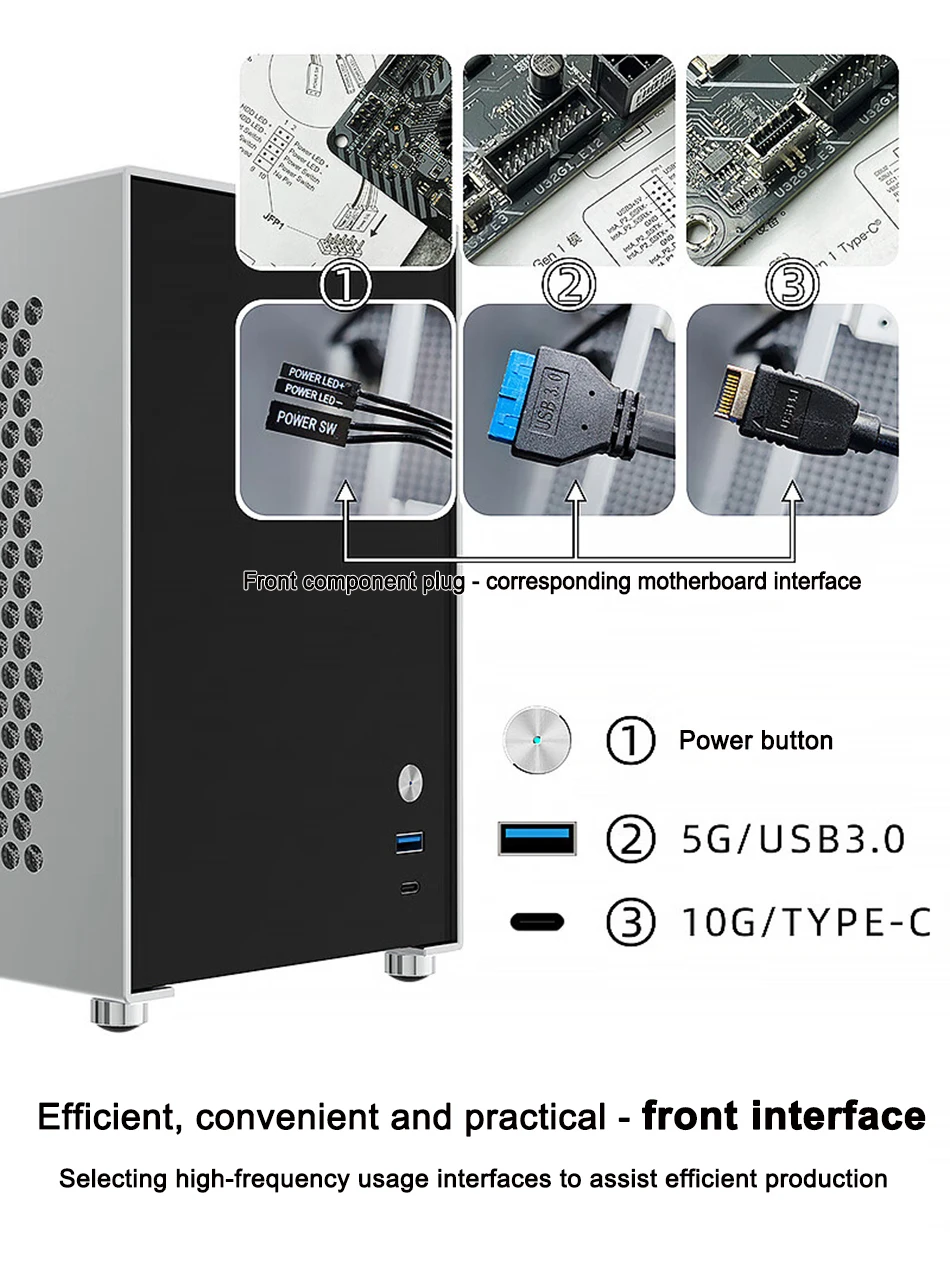

- Front Interface: 10G/Type C x1, 5G/USB3.0 x1, Light Switch x1
- Motherboard Compatibility: Mini ITX
- Hard Drive Support: 2.5″ x 2

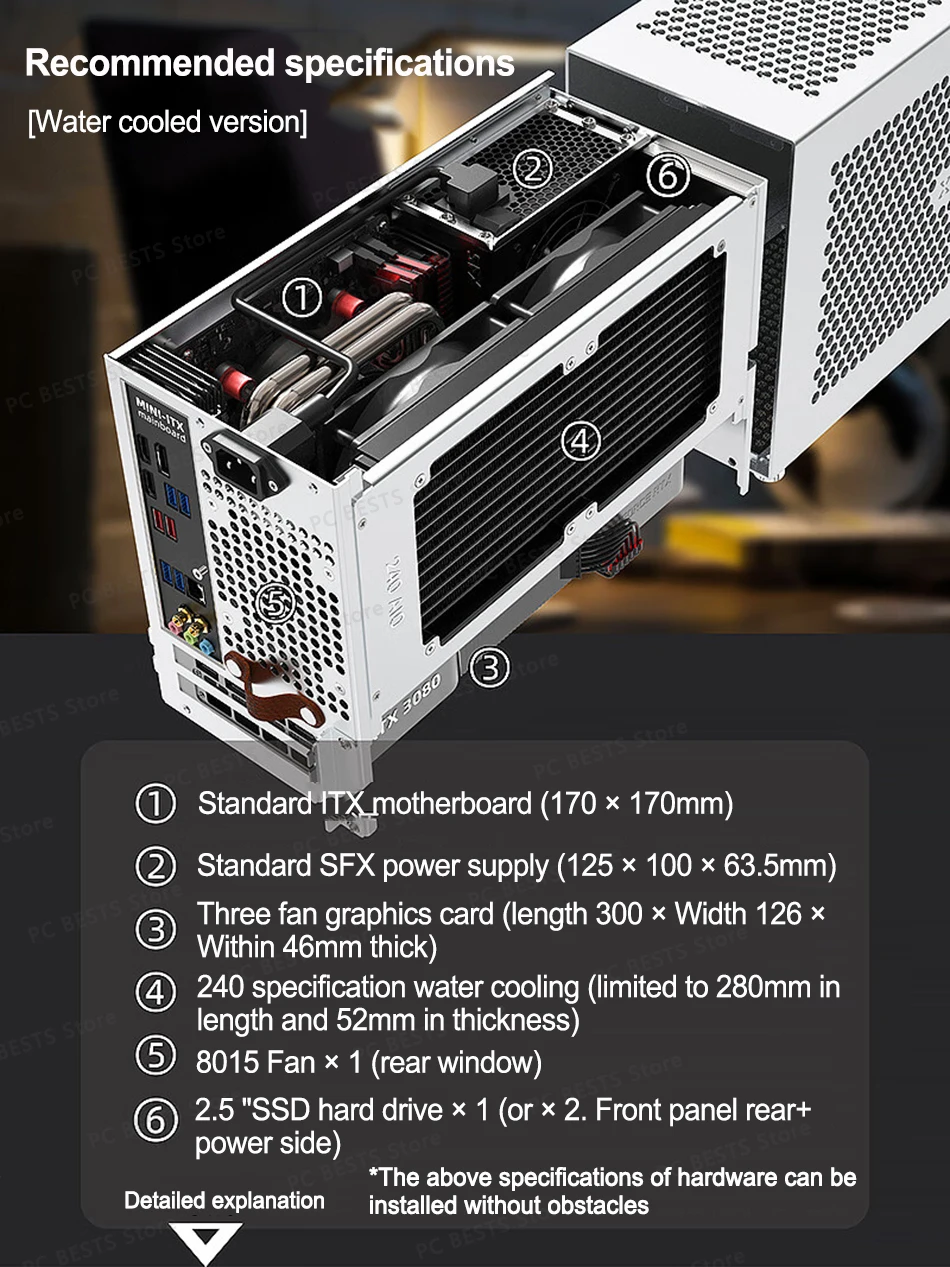

- Graphics Card Space: 300mm (Length) x 126mm (Width) x 46mm (Thickness) for Graphics Card Body Inside the Box (Excluding IO Chips and Including Power Lines)
- Power Support: SFX Power Supply (Limited to 100mm in Length)
- Water Cooling and Heat Dissipation: Supports 240 Integrated Water Cooling x 1 (Within a Length Limit of 280mm) + 8015 Fan x 1. Water Cooling Head (Water Pump) Height Limit: Within 64mm
- Air Cooling Heat Dissipation: Supports Low Tower CPU Heat Sink + 12025 Fan x 2 + 8025 Fan x 1. CPU Heat Sink Height Limit: 90mm/120mm (With/Without Fan on the Front Side)
- Memory Related: Approximately 70mm+ (Height Limit for Cold Head and Heat Sink)
