Twotrees Blu-5 3D Printer: DIY, TMC2209, PEI

Description

Twotrees Blu-5 3D Printer: DIY, TMC2209, PEI

Patented Design Products:

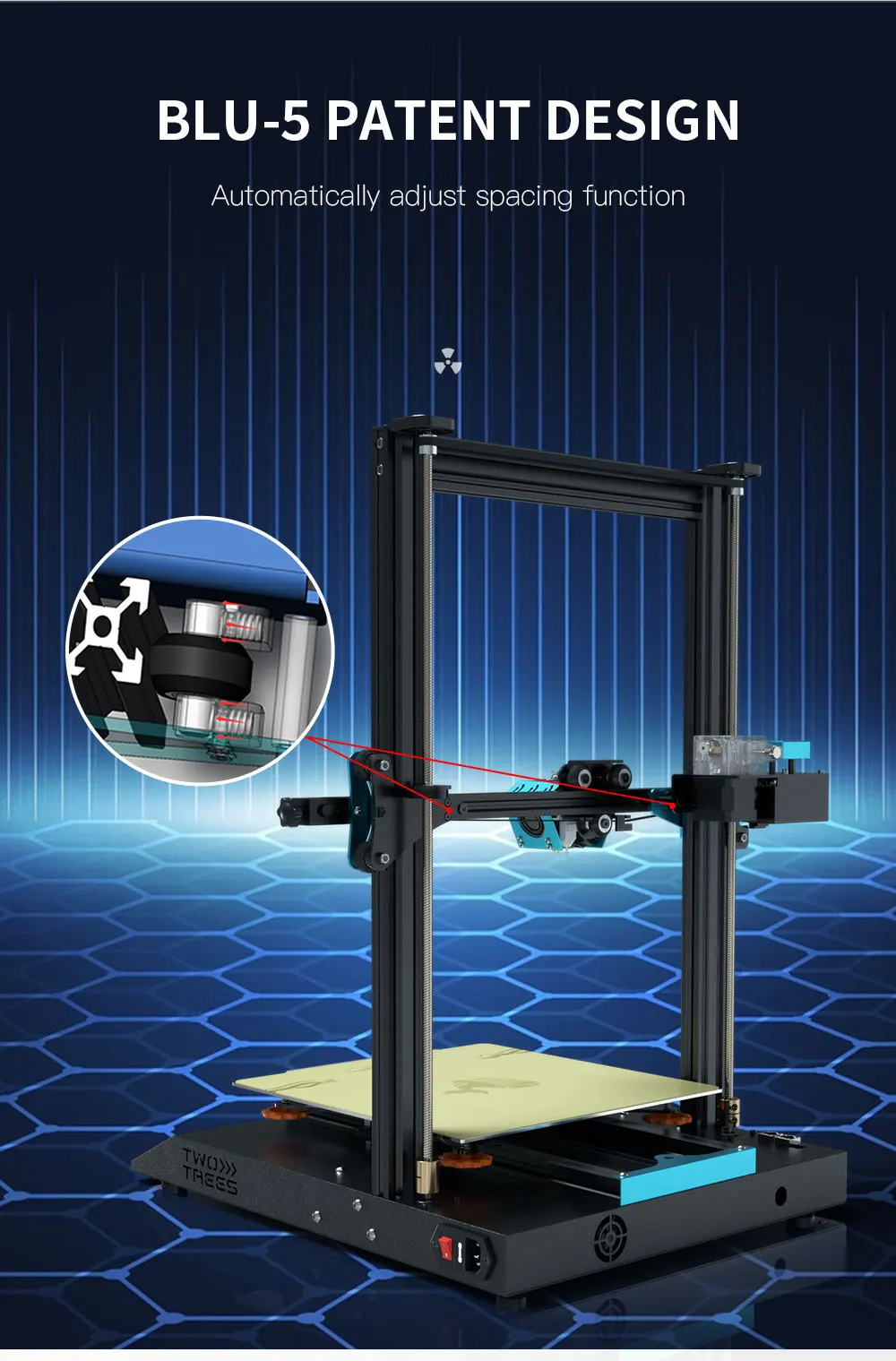

• The machine features a patented design: Y-axis movement with automatic adjustment function.

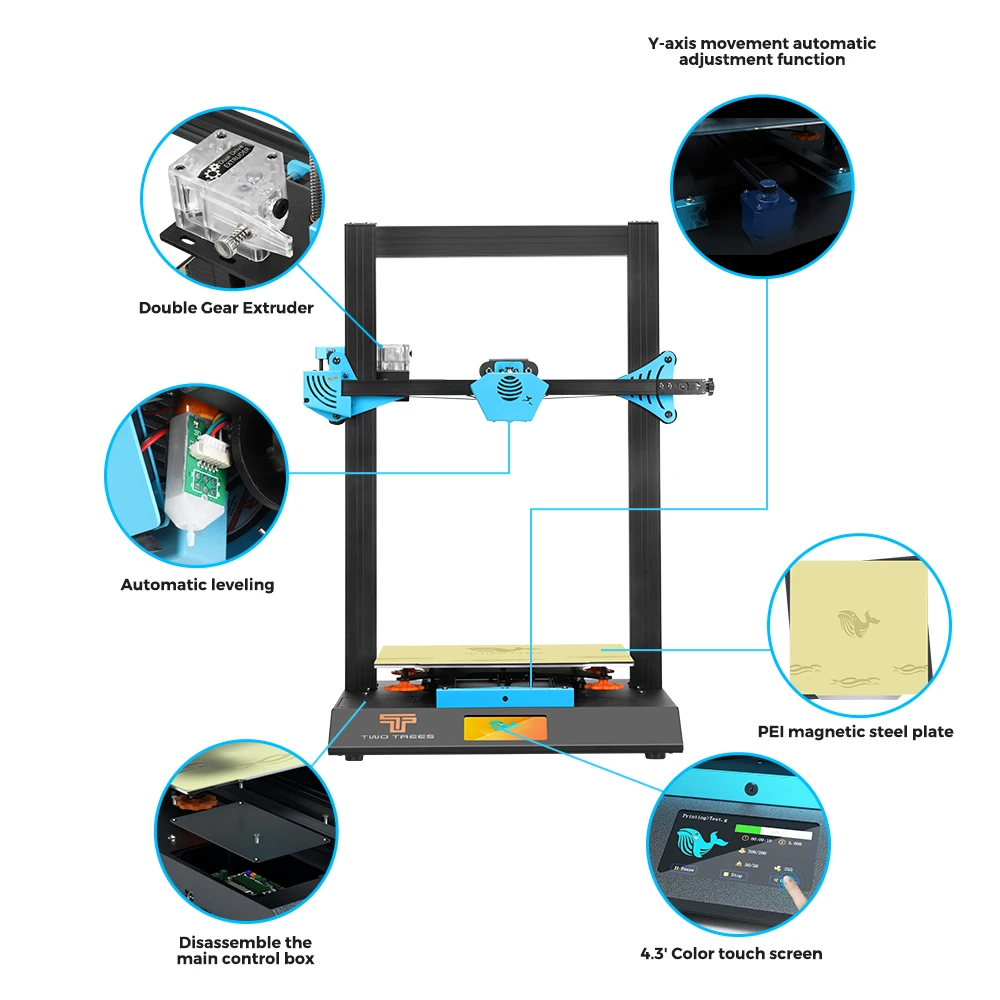

Machine Configuration:

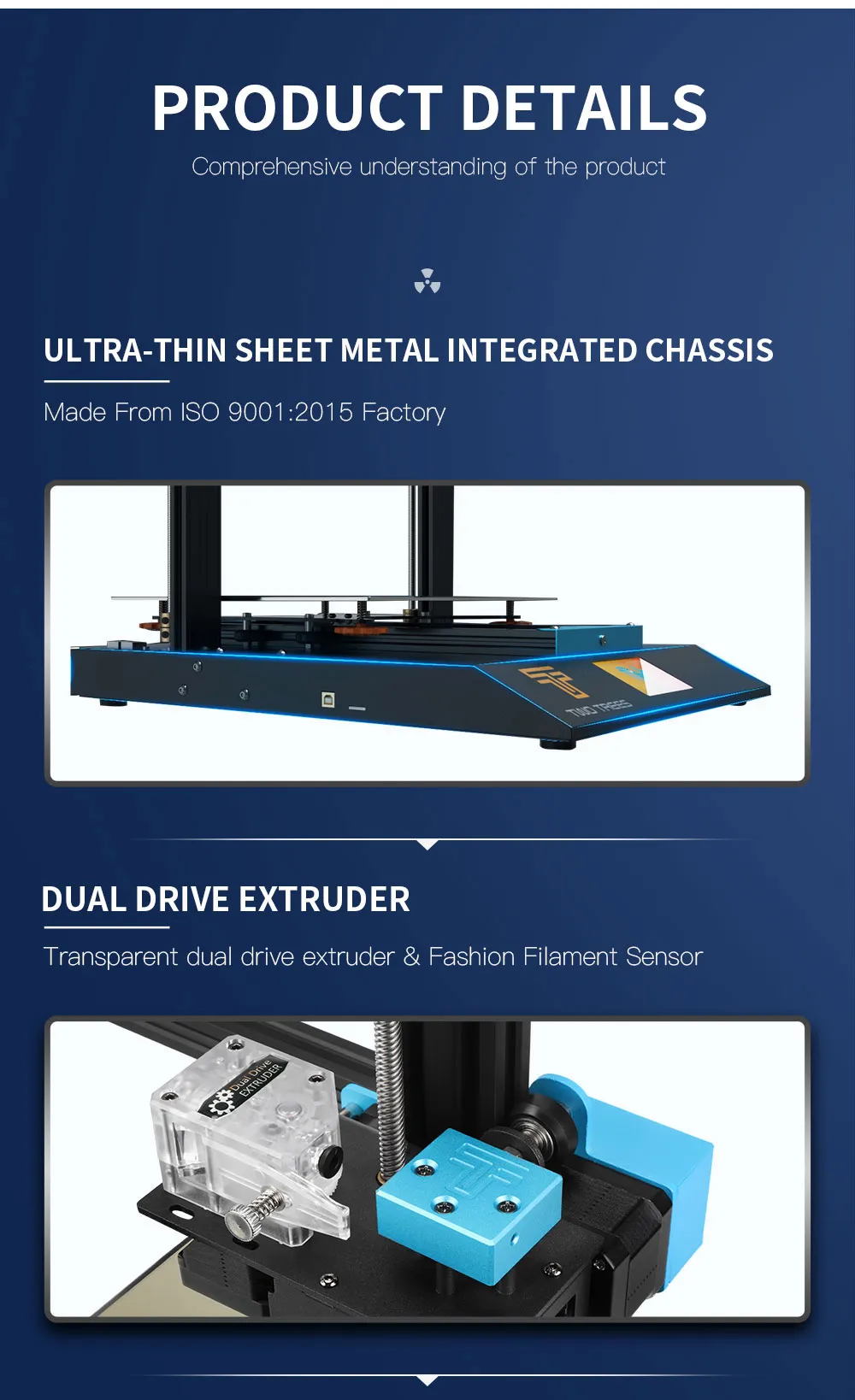

1. Full metal shell.
2. Independently developed, single cover, aluminum profile.
3. MKS Robin Nano V1.2 mainboard (Open source firmware).
4. Supports auto-leveling (MKS 3D Touch).

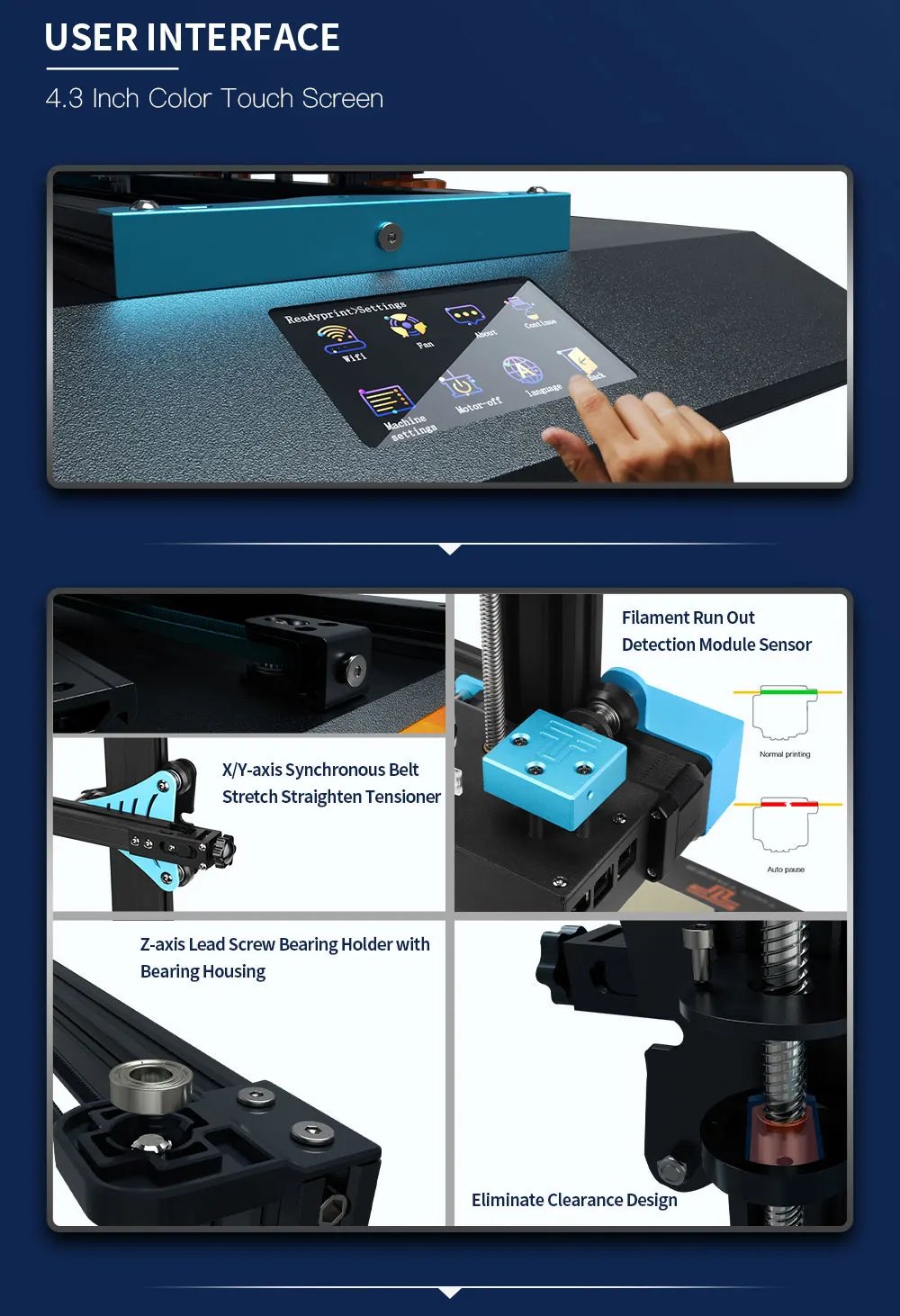

5. 4.3-inch touch LCD.
6. TMC2209 (256 Bit) Mute driver.
7. 1.8° high-precision stepper motor.

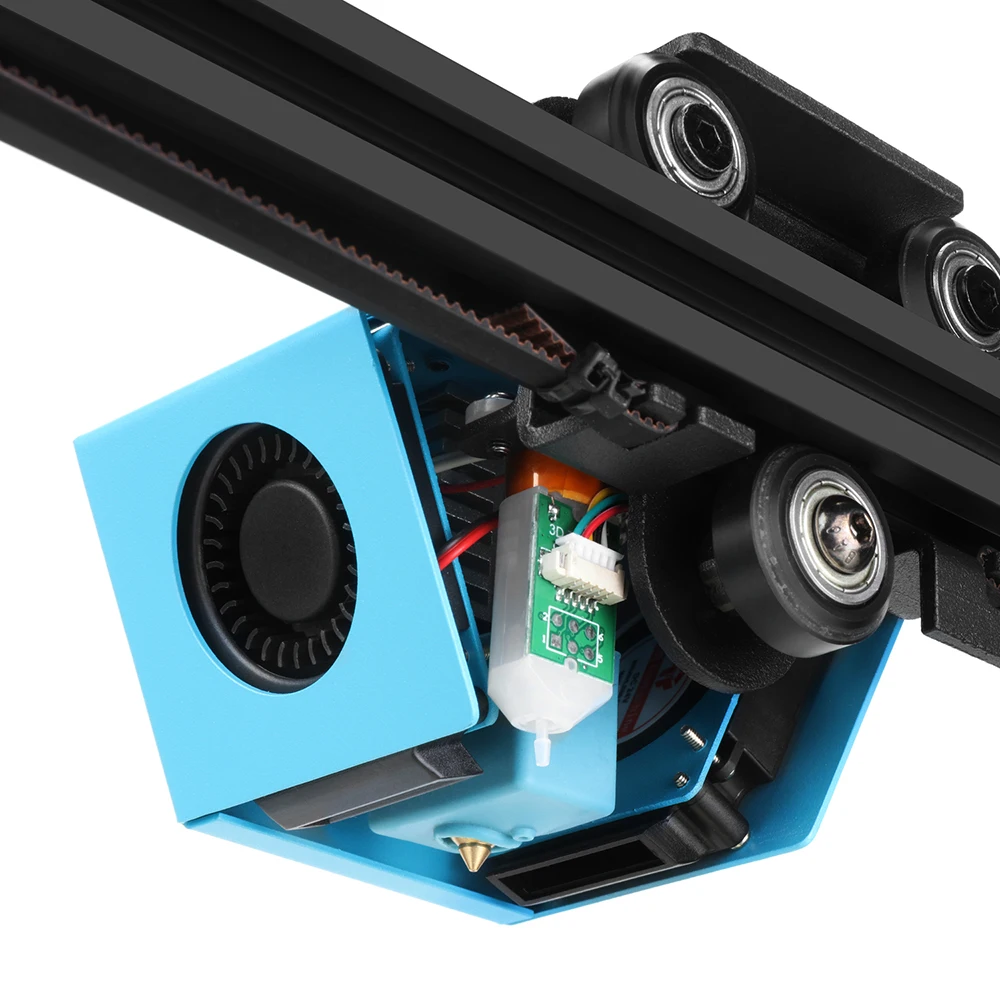

8. Double cooling fan with sapphire shell.
9. X.Y axis tensioner.
10. Power resume print function and filament sensor.

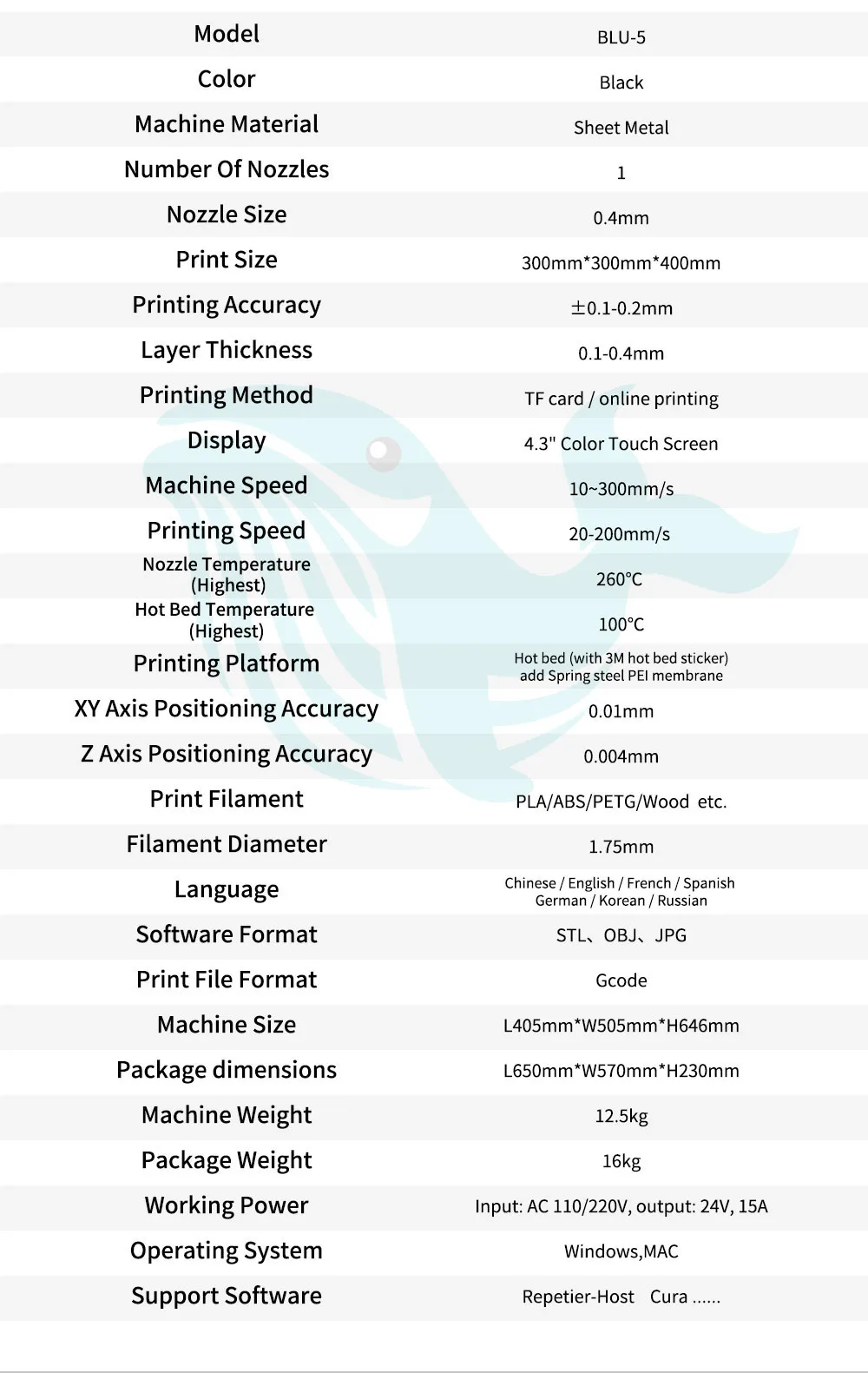

Product Parameters:

• Machine Material: Sheet Metal
• Nozzle Size: 0.4mm

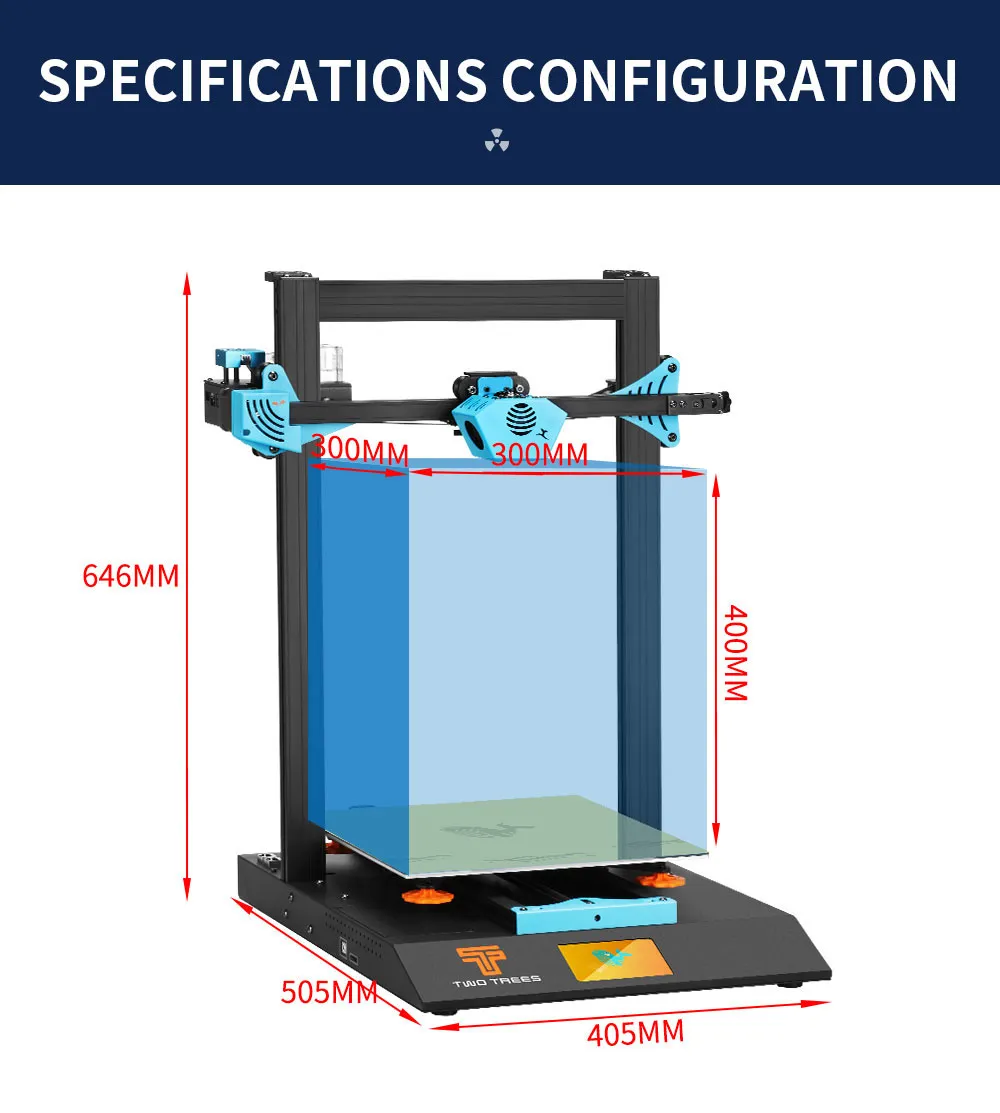

• Molding Platform Size: 300mm x 300mm x 400mm
• Printing Accuracy: ±0.1-0.2mm
• Layer Thickness: 0.1-0.4mm
• Printing Method: SD card / online printing
• Display: 4.3″ Color Touch Screen
• Machine Speed: 10-300mm/s
• Printing Speed: 20-200mm/s
• Extrusion Head Temperature: 260°C
• Hot Bed Temperature: 100°C

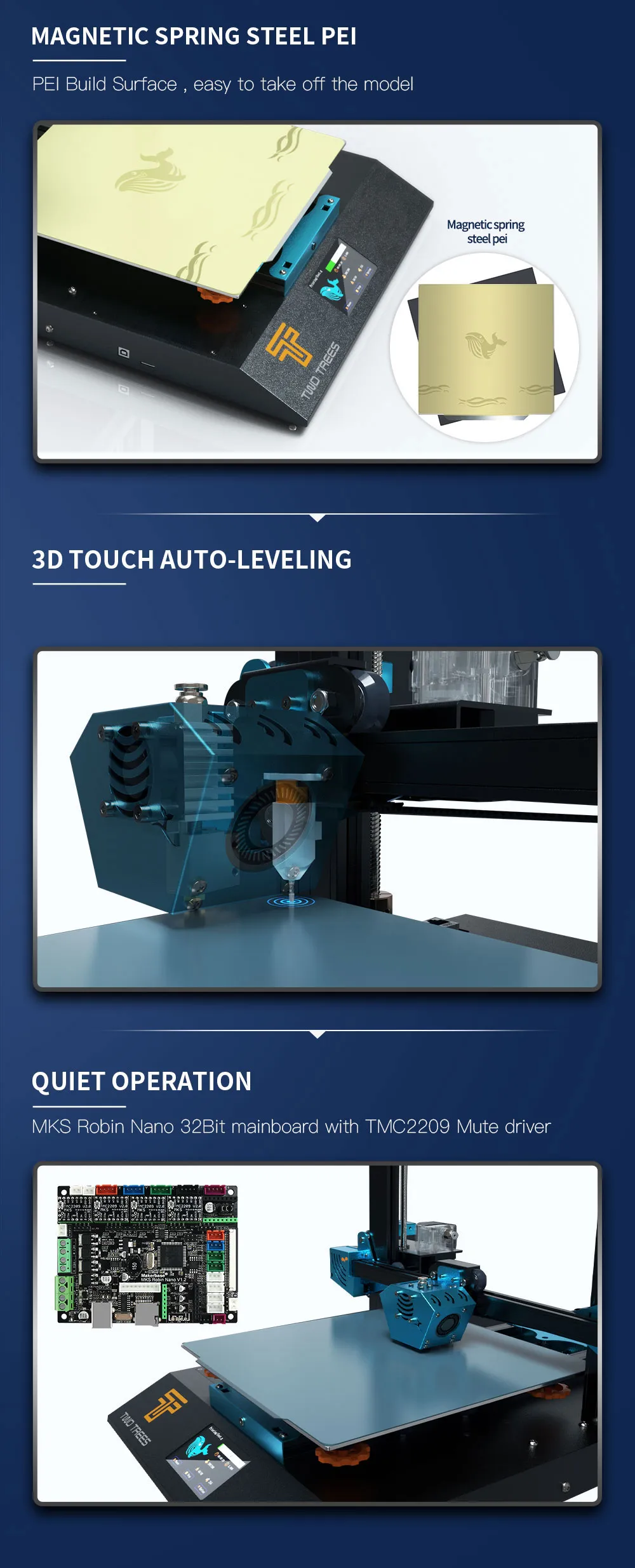

• Printing Platform: Hotbed with 3M hot bed sticker and Spring steel PEI membrane
• XY Axis Positioning Accuracy: 0.01mm
• Z Axis Positioning Accuracy: 0.004mm
• Supported Filaments: PLA, ABS, PETG, Wood
• Filament Diameter: 1.75mm
• Language Support: Chinese, English, French, Spanish, German, Korean, Russian
• Software Format: STL, OBJ, JPG
• Print File Format: Gcode
• Machine Size: 650mm x 570mm x 230mm
• Power Supply: 220V/110V, 360W
• Operating Systems Supported: Windows, MAC
• Supported Software: Repetier-Host, Cura, etc.
