Stainless Steel Submersible Well Pump 3-Inch

Stainless Steel Submersible Well Pump 3-Inch

Description

Instead of struggling with manual water pumping, switch to this high-quality, easy-to-use submersible well pump. Made from premium stainless steel, it’s durable and resistant to deformation. Once installed, just submerge it in water, plug it in, and enjoy fast water flow thanks to its powerful 0.5 HP motor. Pumping water has never been this efficient and effortless!

Key Features

• Large Range Pumping: Comes with a 33ft cable that integrates the motor and pump. It can operate in depths up to 216ft, making it perfect for a variety of water pumping tasks.
• Durable Construction: The pump casing and motor shaft are made of stainless steel. Its thick walls prevent deformation and help maintain clean water output over time.
• High Efficiency: Features precision bearings and a high-quality motor operating at 3420 r/min, allowing rapid water delivery.
• Reliable Performance: Equipped with high-quality sealed ball bearings, a heavy-duty thermoplastic impeller, diffuser, and filter mesh. It includes built-in thermal protection for longer service life and powerful performance.
• Easy Operation: Simply submerge the pump in the water and plug it in. The included manual offers clear instructions for beginners.
• Low-Noise Operation: The copper motor produces less than 65 dB of noise. Its submersible nature also minimizes sound, maintaining a quiet environment.

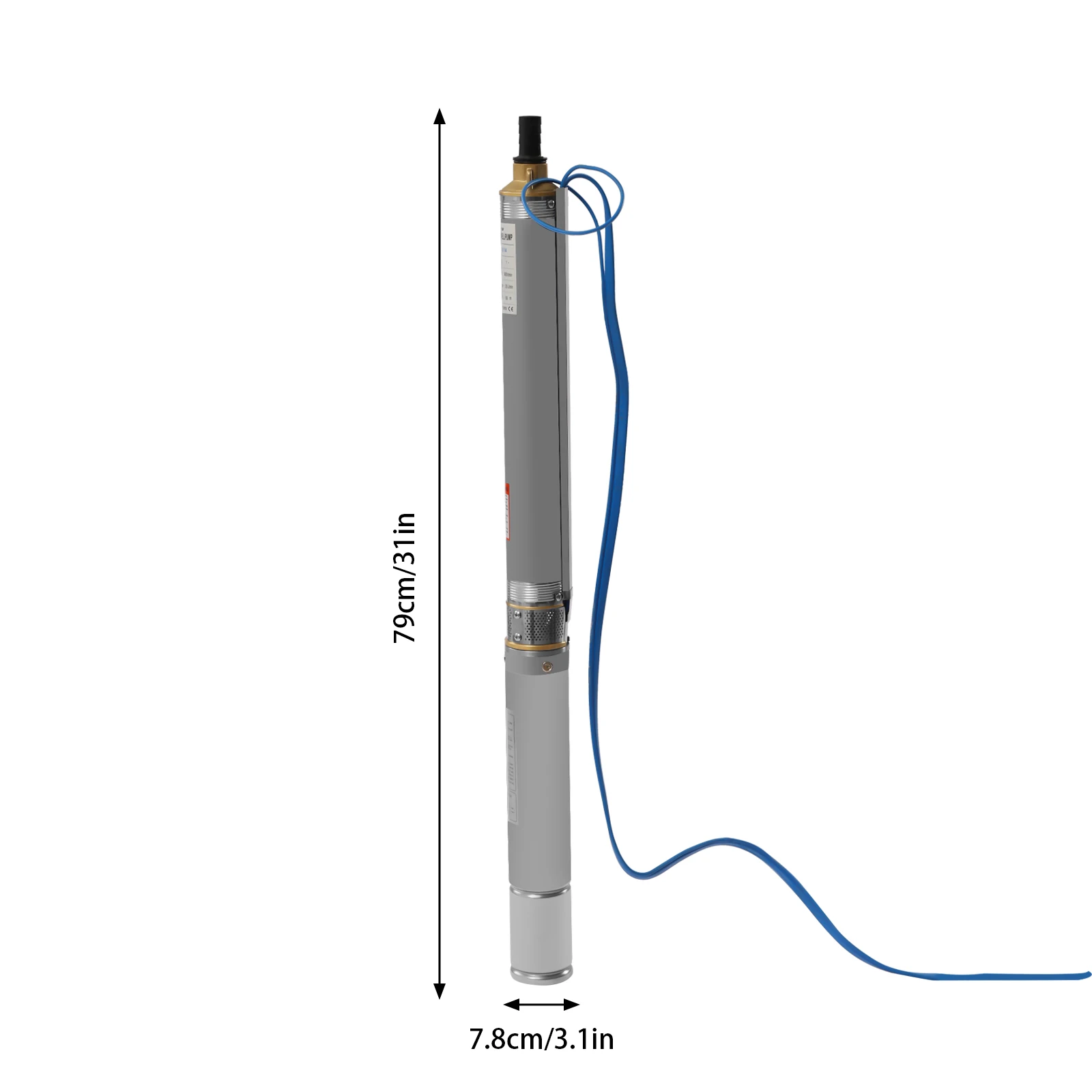

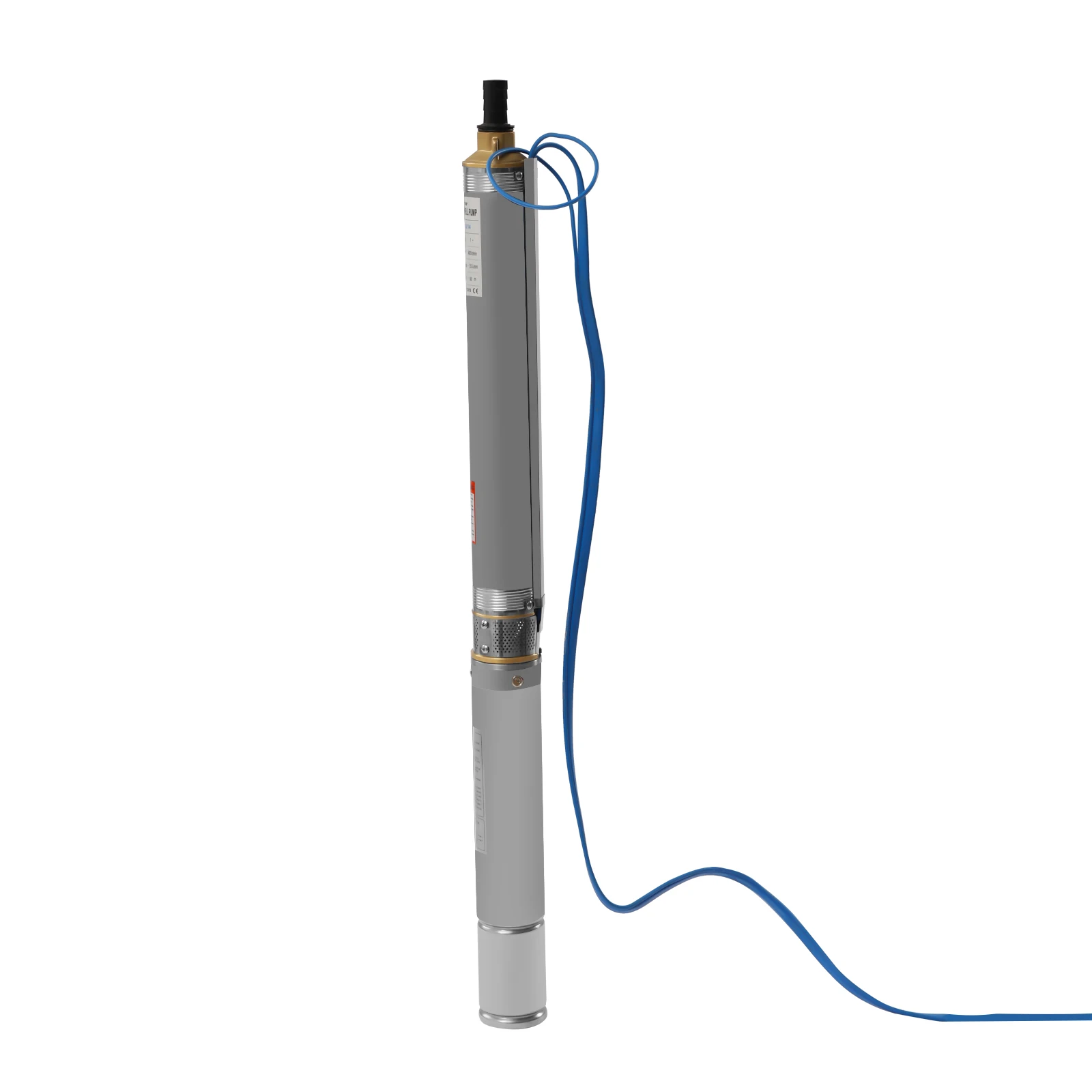

• Compact Size: At 31 inches long and 3 inches in diameter, it replaces traditional bulky submersible pumps, making it more portable and user-friendly.
• Simple Installation & Storage: The pump features a straightforward structure. Just align and rotate both ends to assemble it. It’s also easy to disassemble for storage.

Details

• Built-in Check Valve: Prevents backflow and impeller backspin when the pump is installed vertically.
• Heavy-Duty Thermoplastic Impeller: Designed to deliver high flow and lift capabilities.

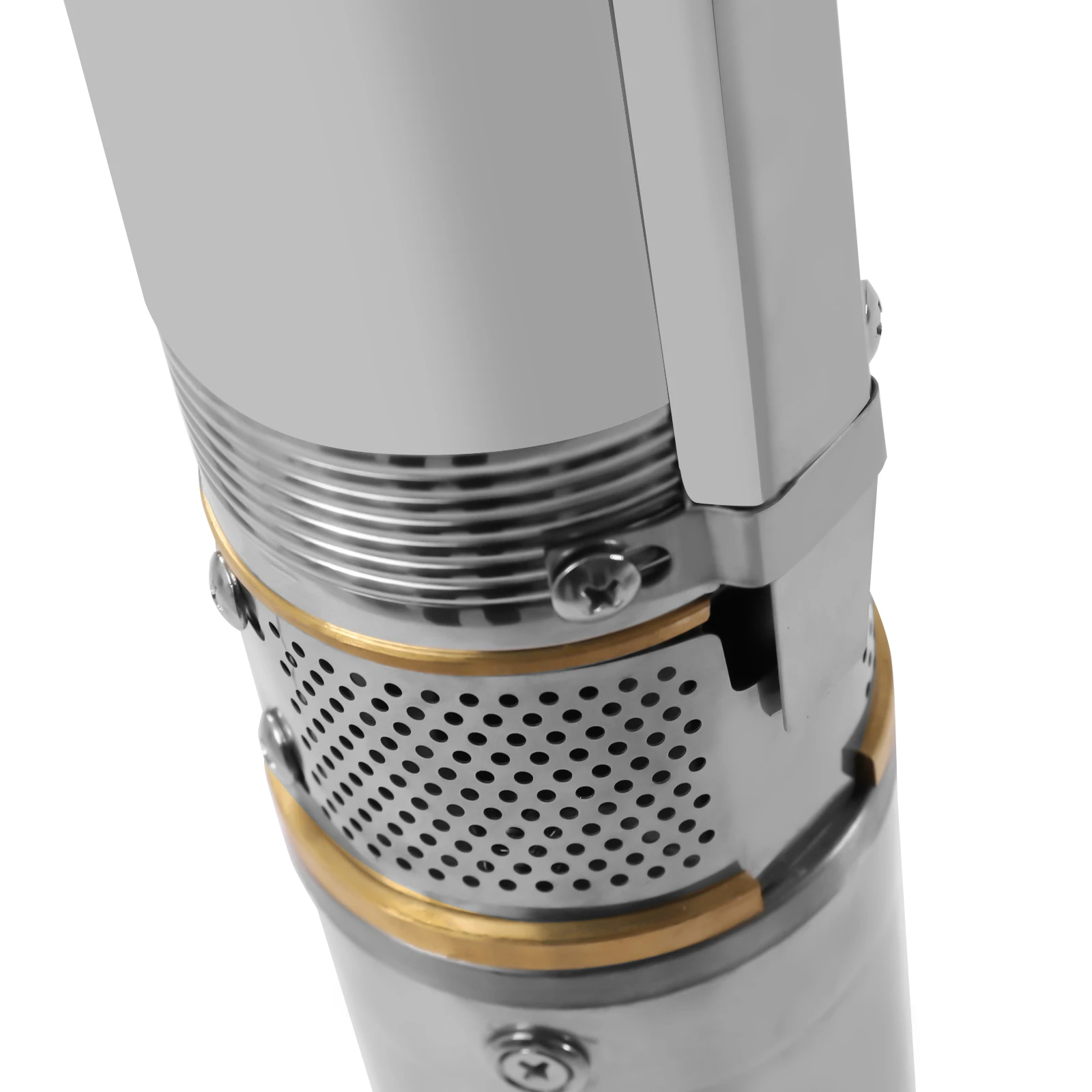

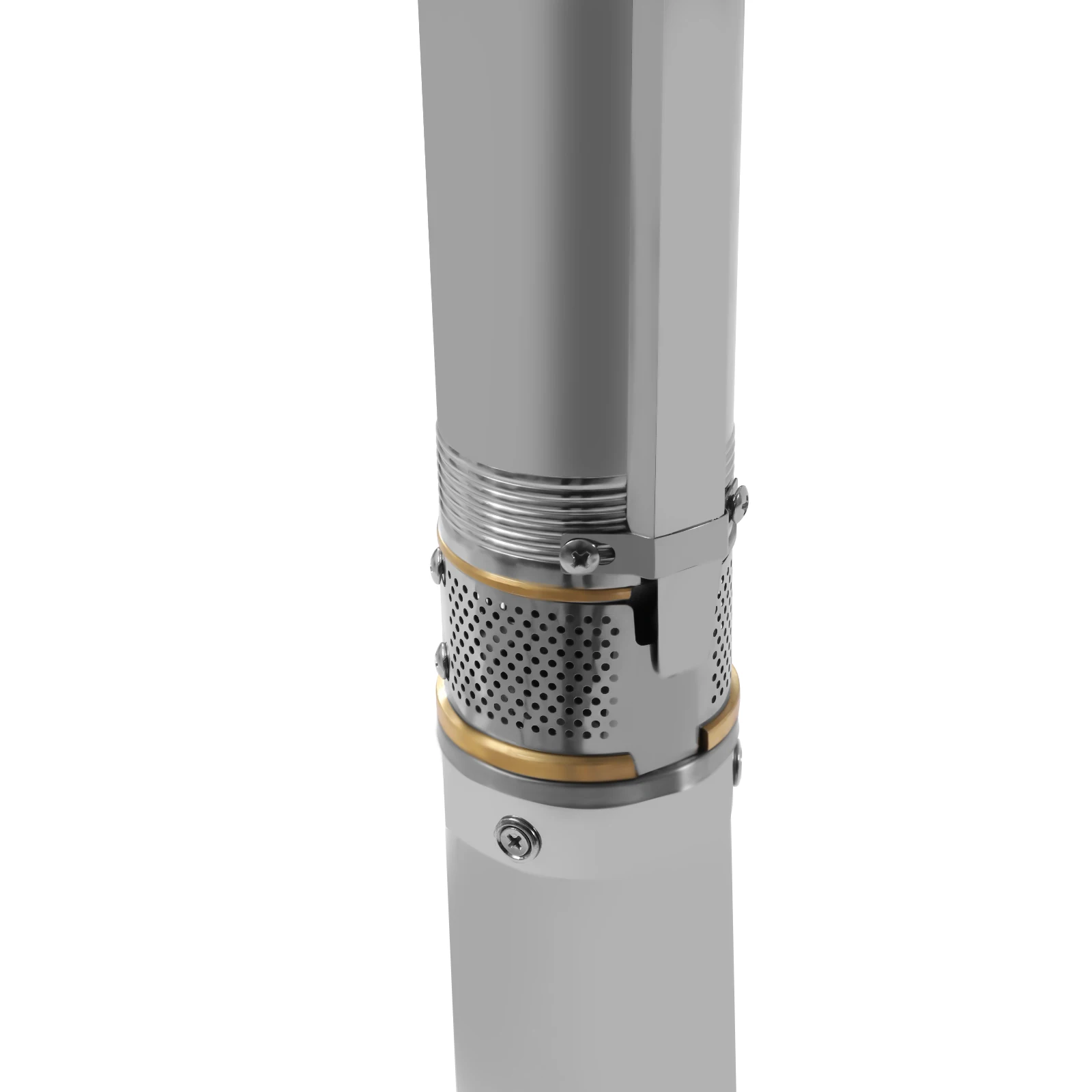

• Advanced Filter: Stainless steel filter screens out impurities. For new wells with sediment, a layer of gauze can be added at the filter inlet.

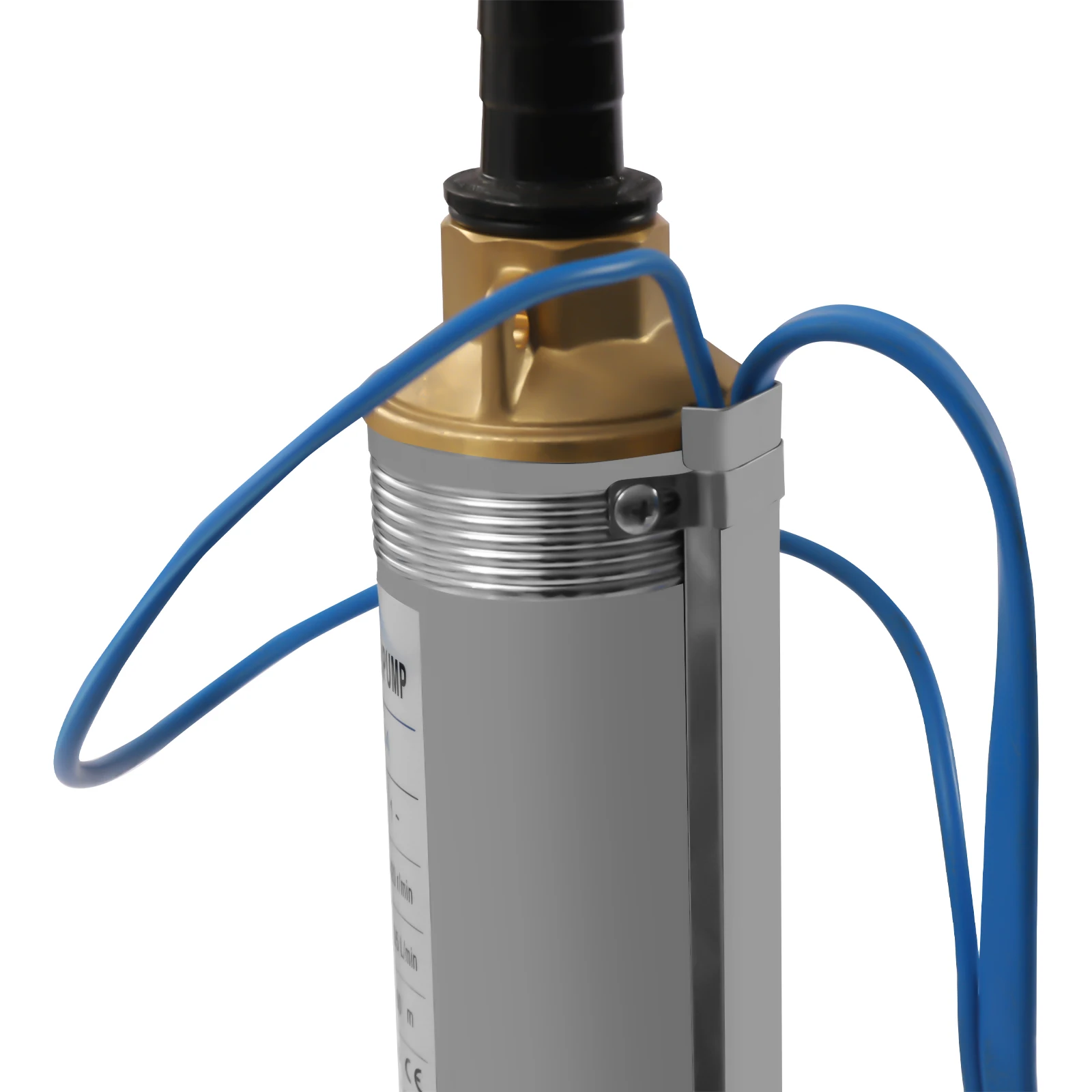

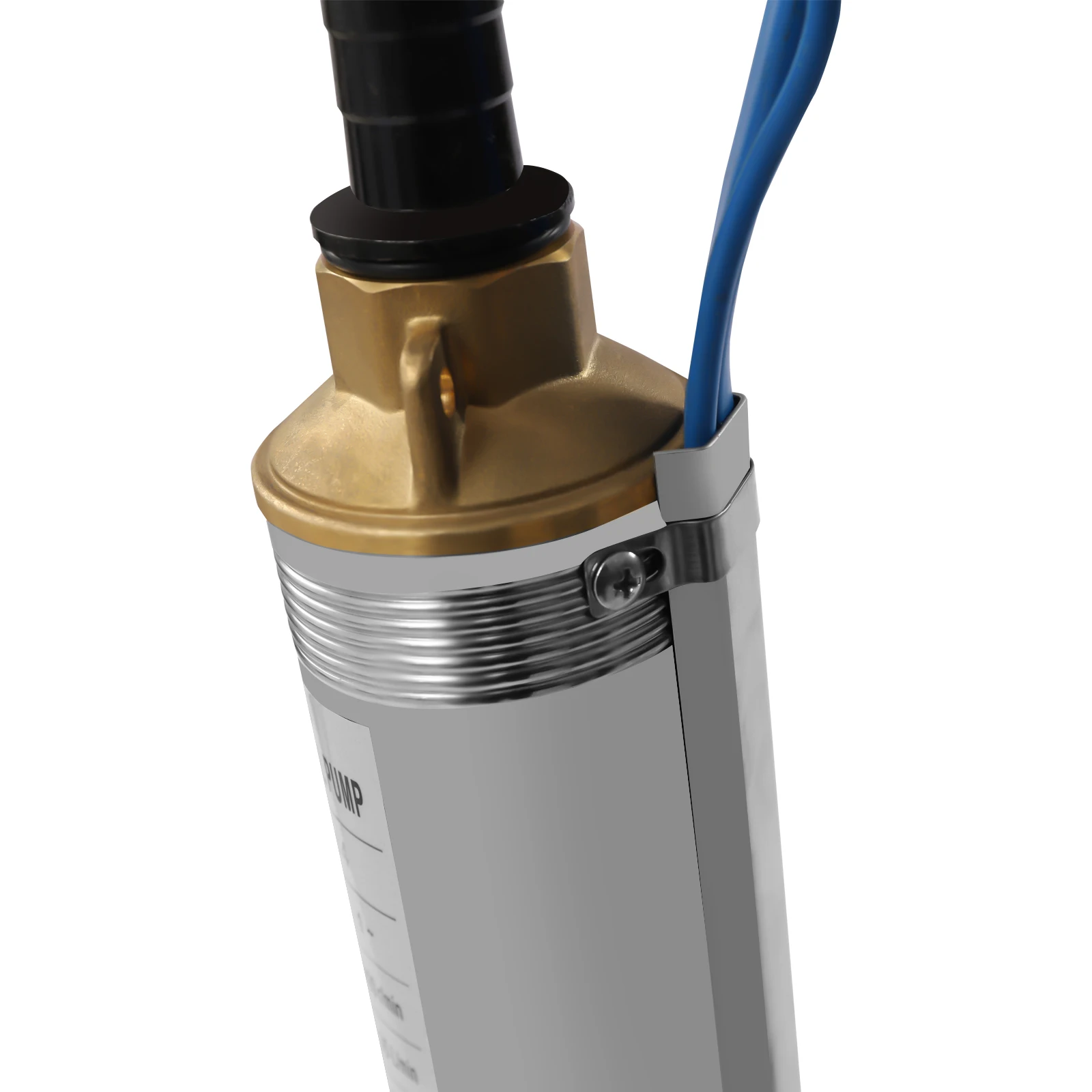

• Double Lifting Eye Hole: Dual eyelets make it easier to lower the pump using steel or nylon rope.

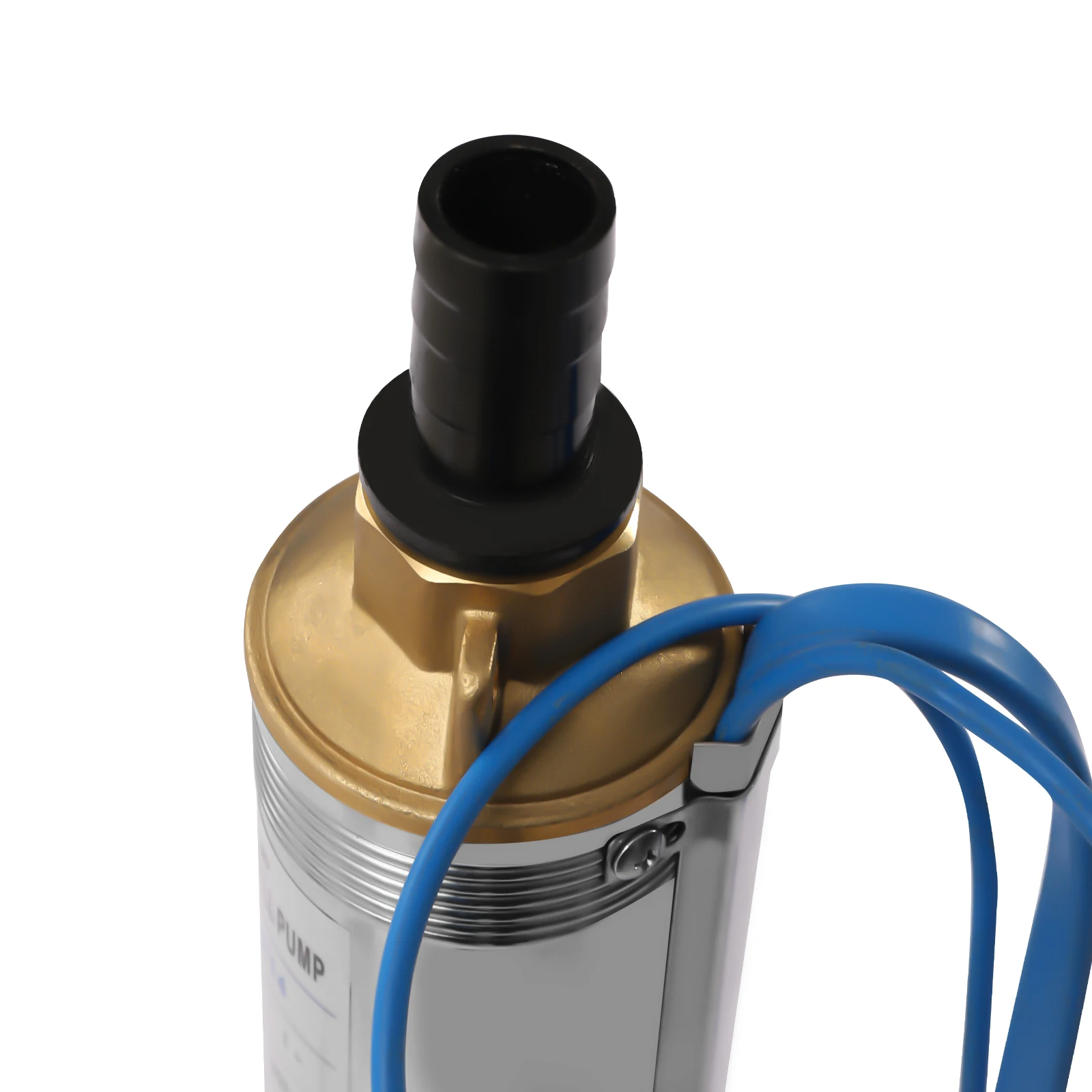

• Pagoda-Shaped Water Outlet: Facilitates easier hose connection, saving time and effort.
• Snap Ring Spring: High-precision stainless steel snap ring offers resistance to compression, impact, and deformation.
• High-Toughness Oil Seal: Protects the motor for stable operation under high water pressure.

Application

This pump fits wells over 3.5 inches in diameter. Ideal for extracting deep groundwater, it’s also suitable for river, reservoir, and canal water lifting. Common uses include farmland irrigation, providing water for people and livestock in mountainous areas, and drainage for urban, industrial, railway, and mining areas.

Specifications

• Model: 3SDM1.8/10
• Material: Stainless Steel
• Color: Silver
• Style: Submersible
• Power Source: Electric
• Noise Level: < 65 dB
• Applicable Well Diameter: > 3.5 inches (8.9 cm)
• Voltage: 110V/60Hz
• Power: 0.37KW / 0.5HP
• Max. Lift: 66m / 216ft
• Max. Flow Rate: 3.6m³/h (16GPM)
• Max. Speed: 3420r/min
• Outlet: 1 inch (2.54cm)

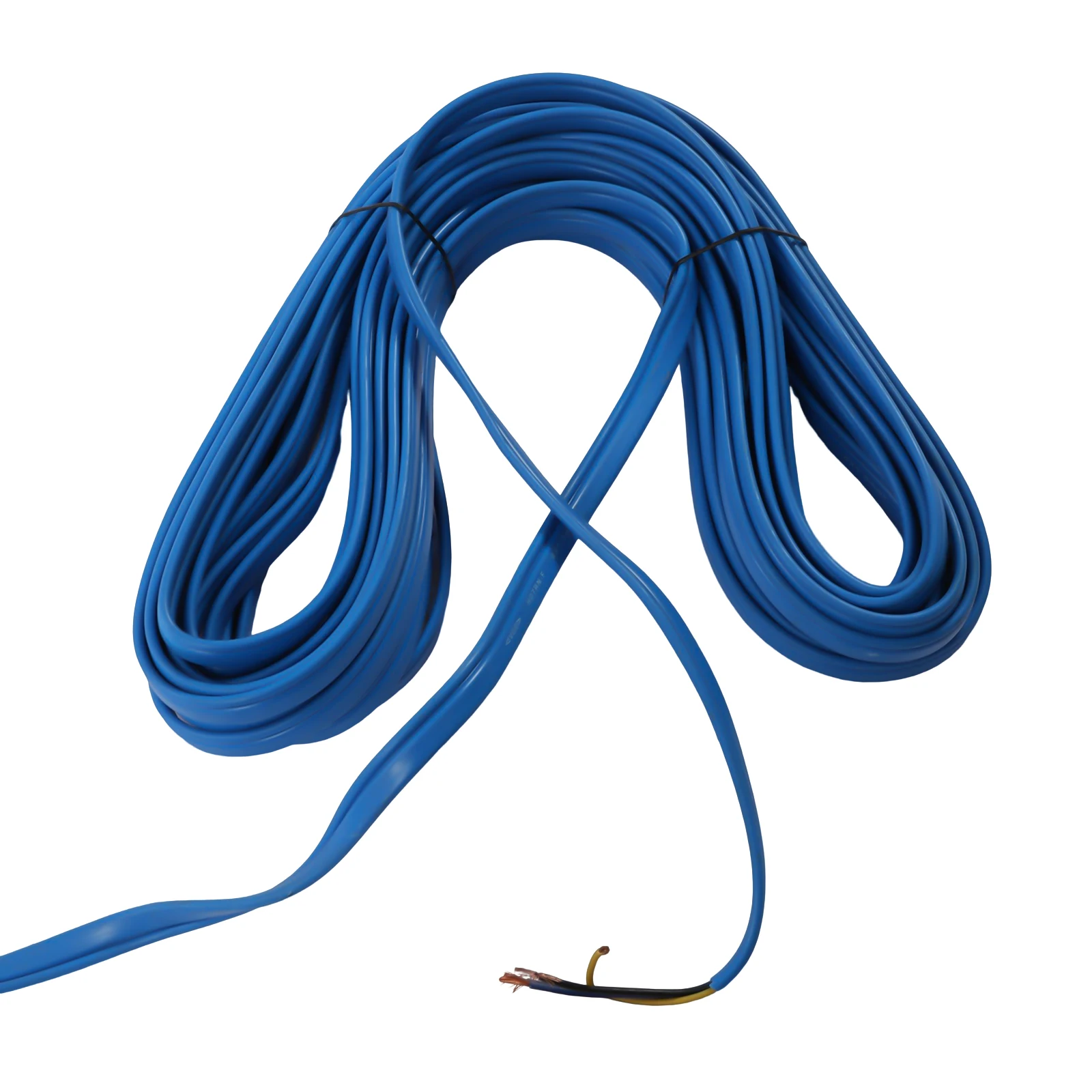

• Cable Length: 33ft (10m), flat blue
• Number of Impellers: 10

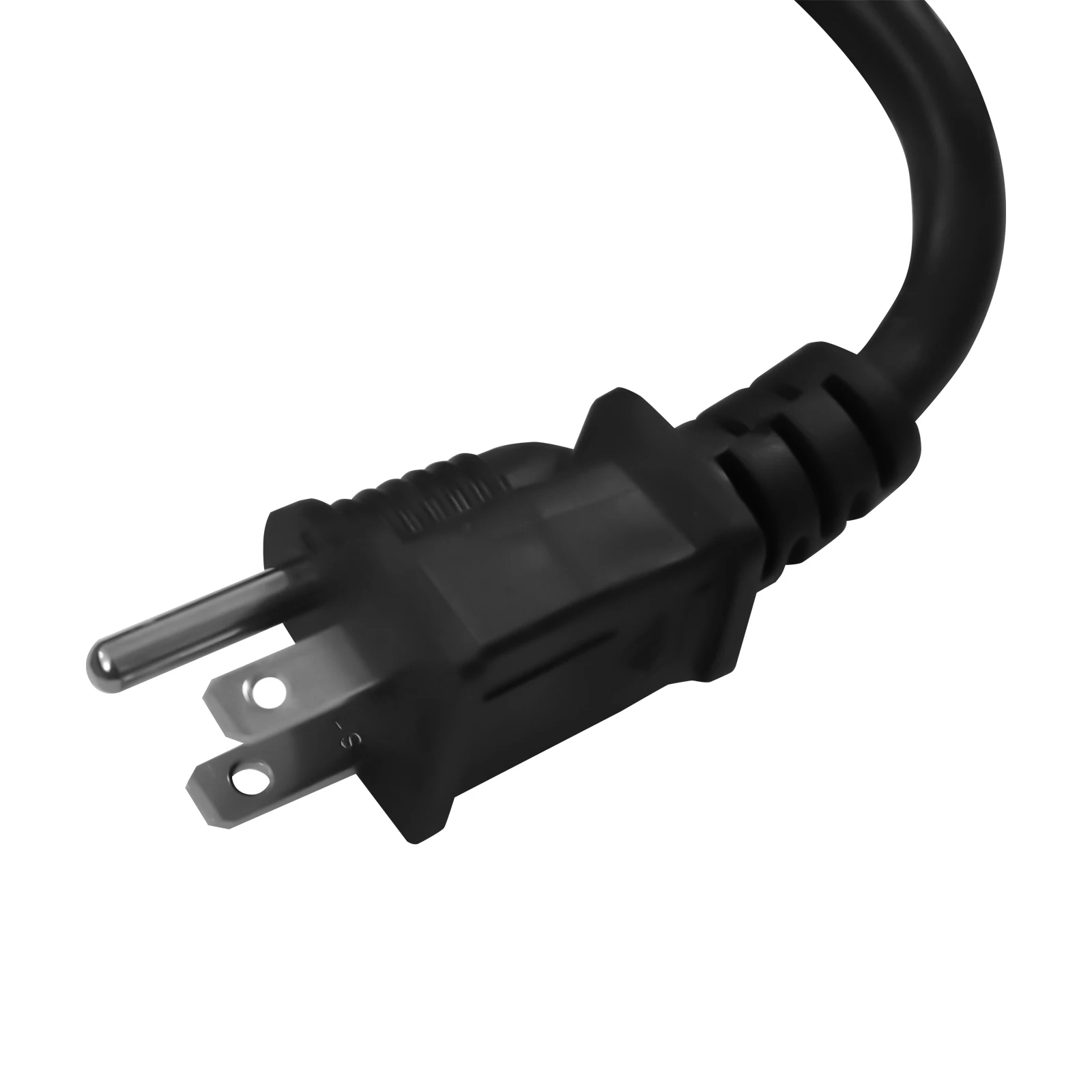

• Plug Type: US plug
• Package Size: 43.31 x 3.94 x 7.87 inches (110 x 10 x 20 cm)
• Product Height: 31 inches (79 cm)
• Pipe Diameter: 3 inches (7.8 cm)
• Gross Weight: 23.37 lbs (10.6 kg)
• Net Weight: 21.16 lbs (9.6 kg)

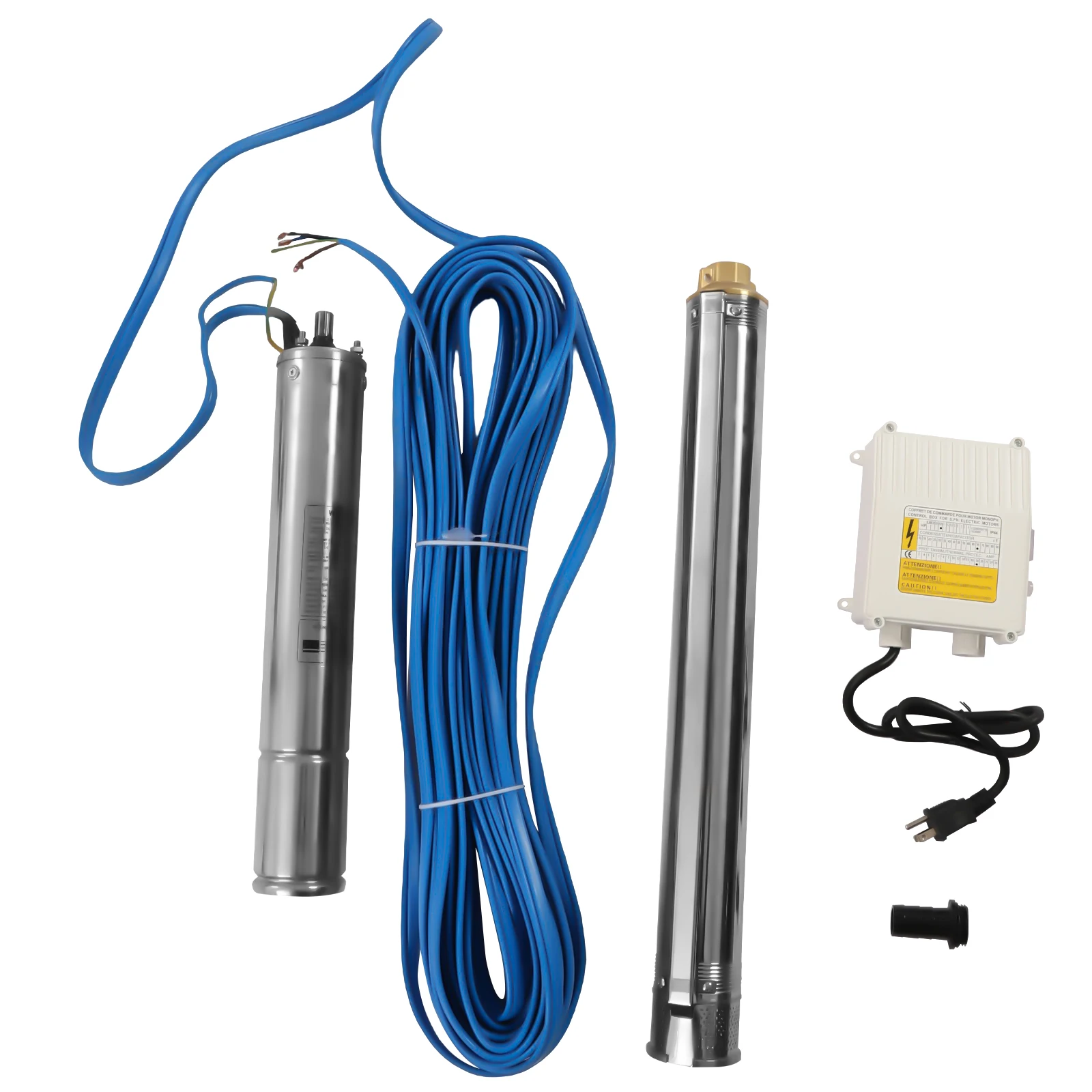

Package Includes

• 1 x Submersible Well Pump
• 1 x Control Box
• 1 x Outlet
• 1 x English Manual

Notes

• Please verify voltage and frequency compatibility before ordering. Do not operate the pump without water.
• The pumping speed depends on the depth of water intake; deeper water results in a slower pumping speed.
• The built-in check valve prevents backflow, but if used in a pressure system, an external check valve is still needed in the pipeline.
• Do not touch the electric pump while it’s operating. Avoid using the pump near people, livestock or while swimming to prevent electric shock. Never lift or pull the pump by the cable. Always disconnect the power before maintenance, movement, or cleaning.
• Carefully read the manual and follow the safety instructions before use.
• Minor color differences or 1-3cm variations in size may occur due to lighting and manual measurement.
