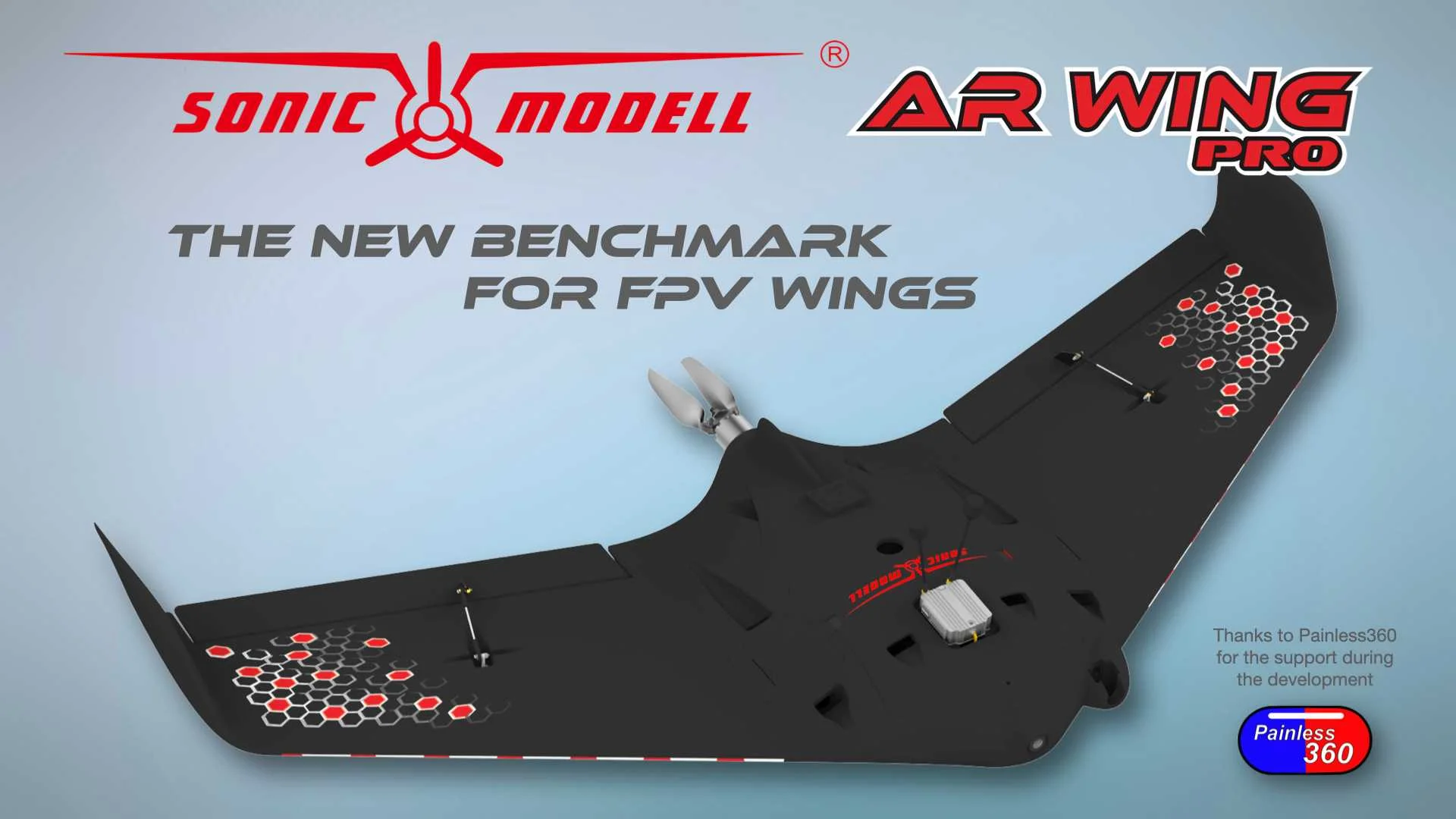

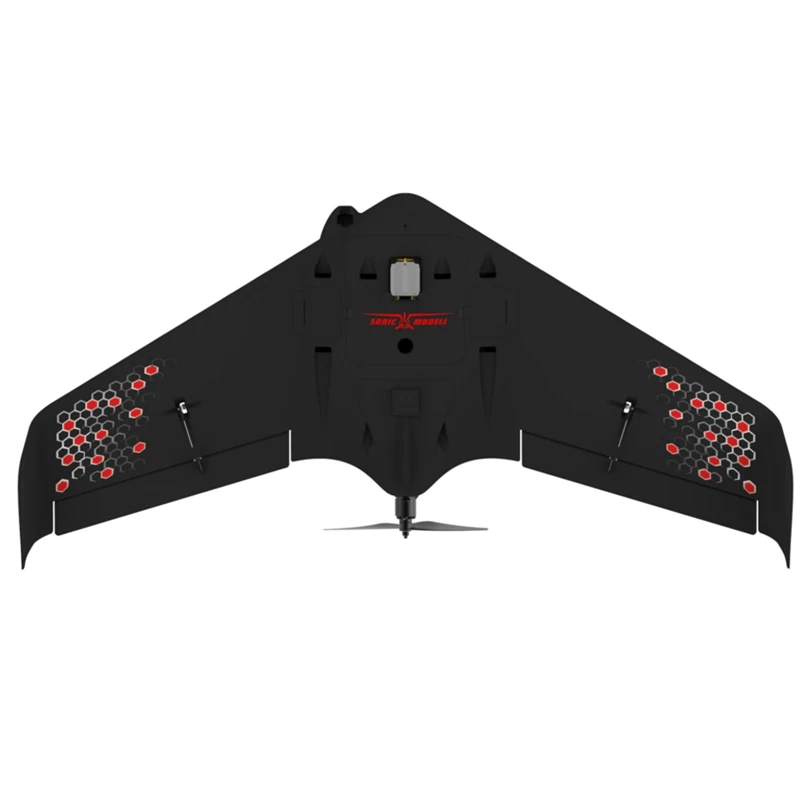

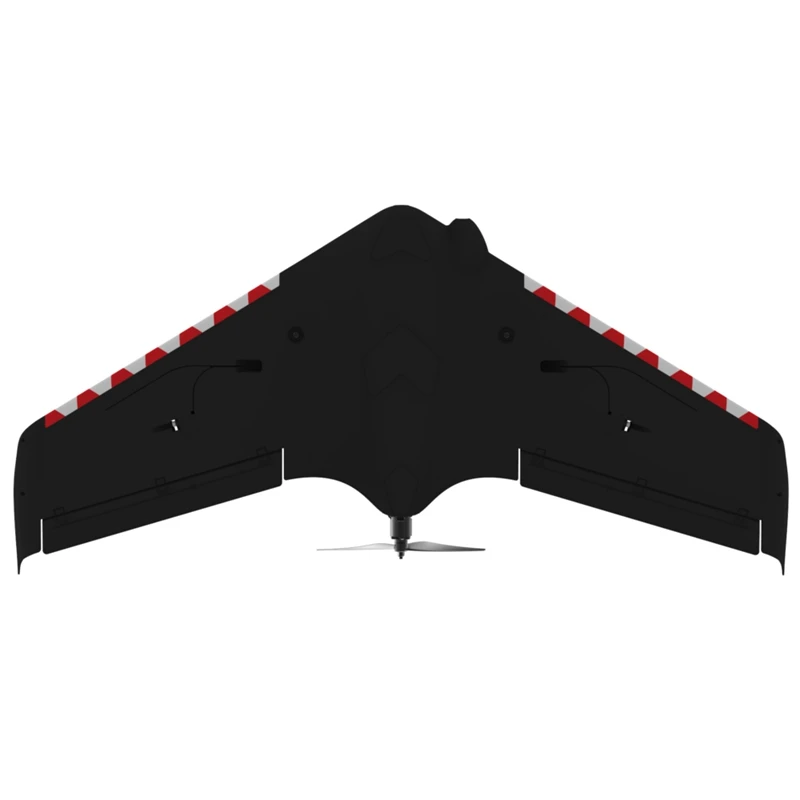

Sonicmodell AR Wing Pro Drone 1000mm FPV EPP Kit/PNP

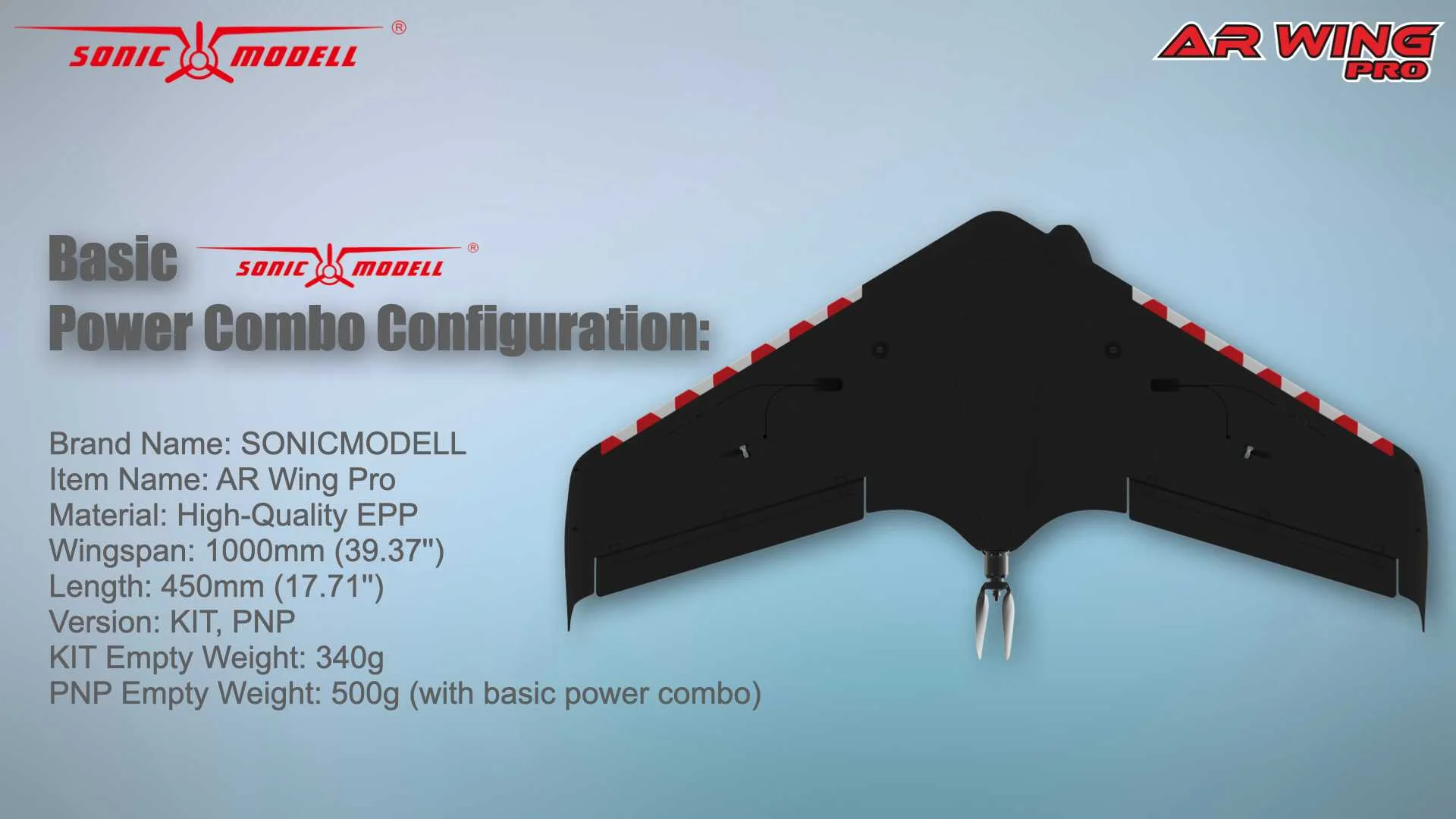

Description:

• Brand Name: Sonicmodell
• Item Name: AR Wing Pro
• Material: High-Quality EPP
• Wingspan: 1000mm (39.37”)
• Length: 450mm (17.71”)
• Versions: KIT, PNP (optional)
• KIT Empty Weight: 340g
• PNP Empty Weight: 500g

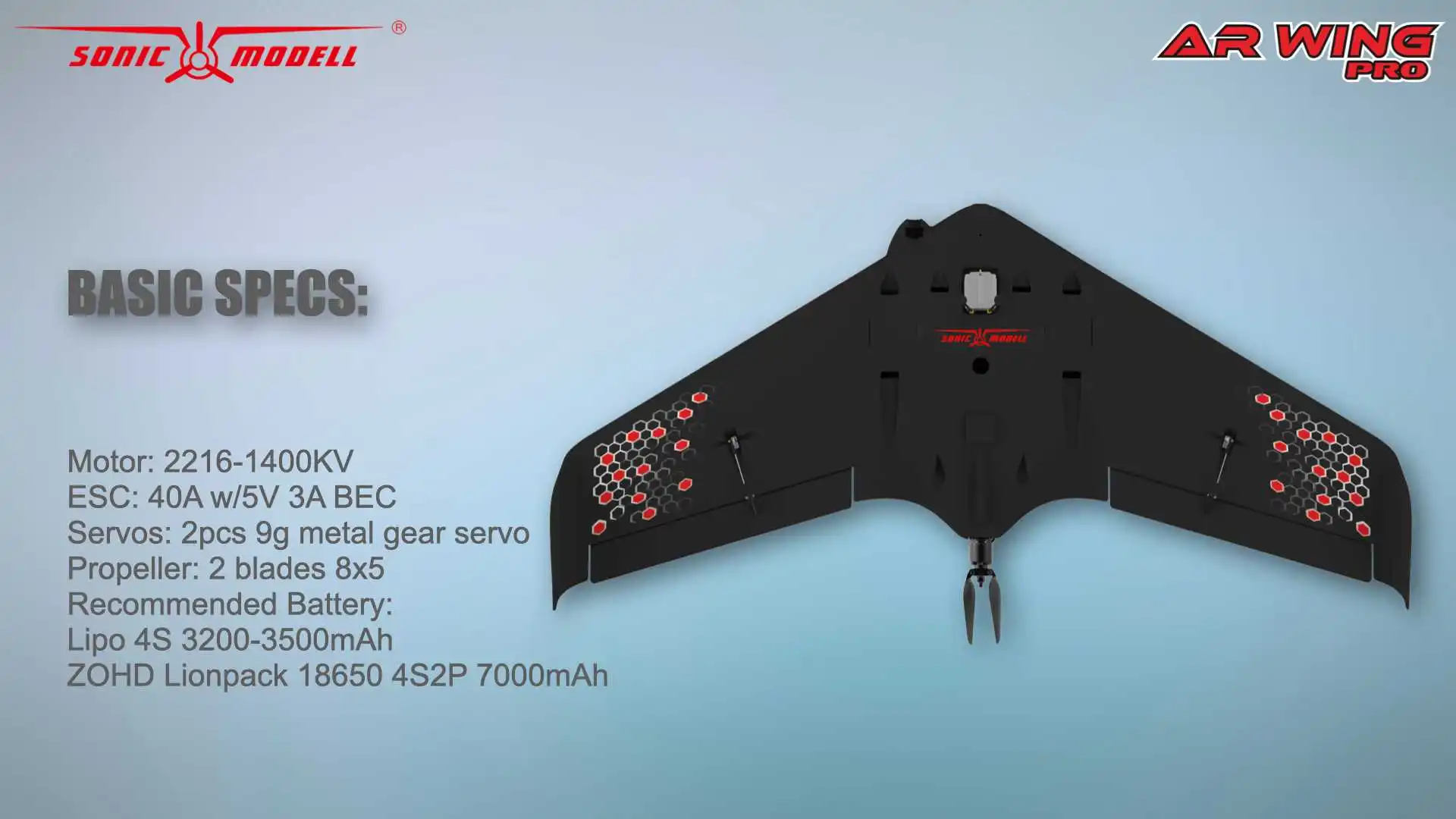

Recommended Sonicmodell Power Combo Configuration:

• Motor: 2216-1400KV
• ESC: 40A w/5V 3A BEC
• Servos: 2pcs 9g metal gear servo
• Propeller: 2 blades 8×5
• Recommended Battery: 4S 3200-3500mAh Lipo, ZOHD Lionpack 18650 4S2P 7000mAh

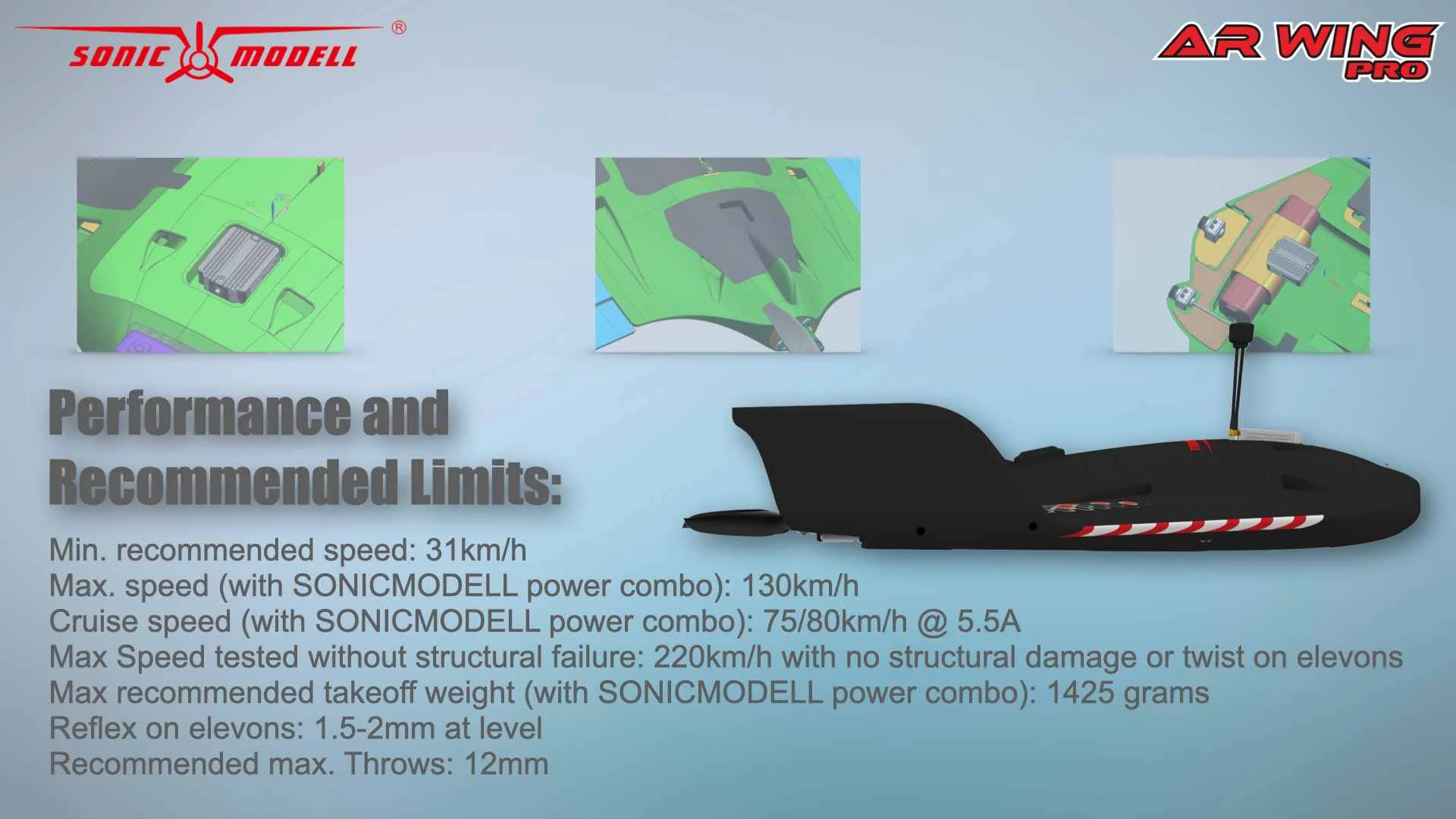

Recommended Flying Capability:

• Minimum Recommended Speed: 31km/h
• Maximum Speed (with SM power combo): 130km/h
• Cruise Speed (with Sonicmodell power combo): 75/80km/h @ 5.5A
• Maximum Speed Tested Without Structural Failure: 220km/h with no structural damage or twist on elevons
• Maximum Recommended Takeoff Weight (with SONICMODELL power combo): 1425 grams
• Reflex On Elevons: 1.5-2mm at level
• Recommended Max. Throws: 12mm

Features:

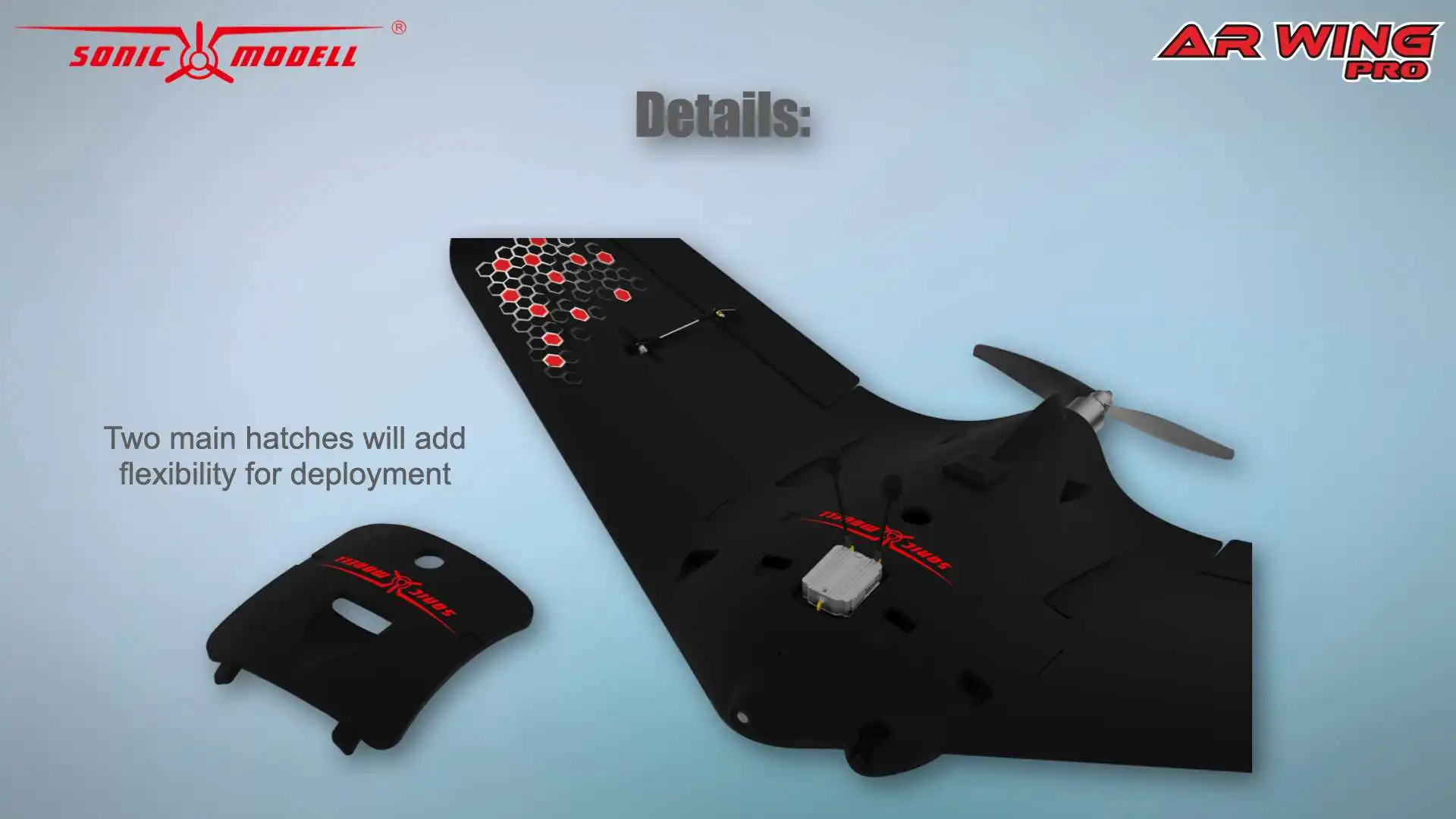

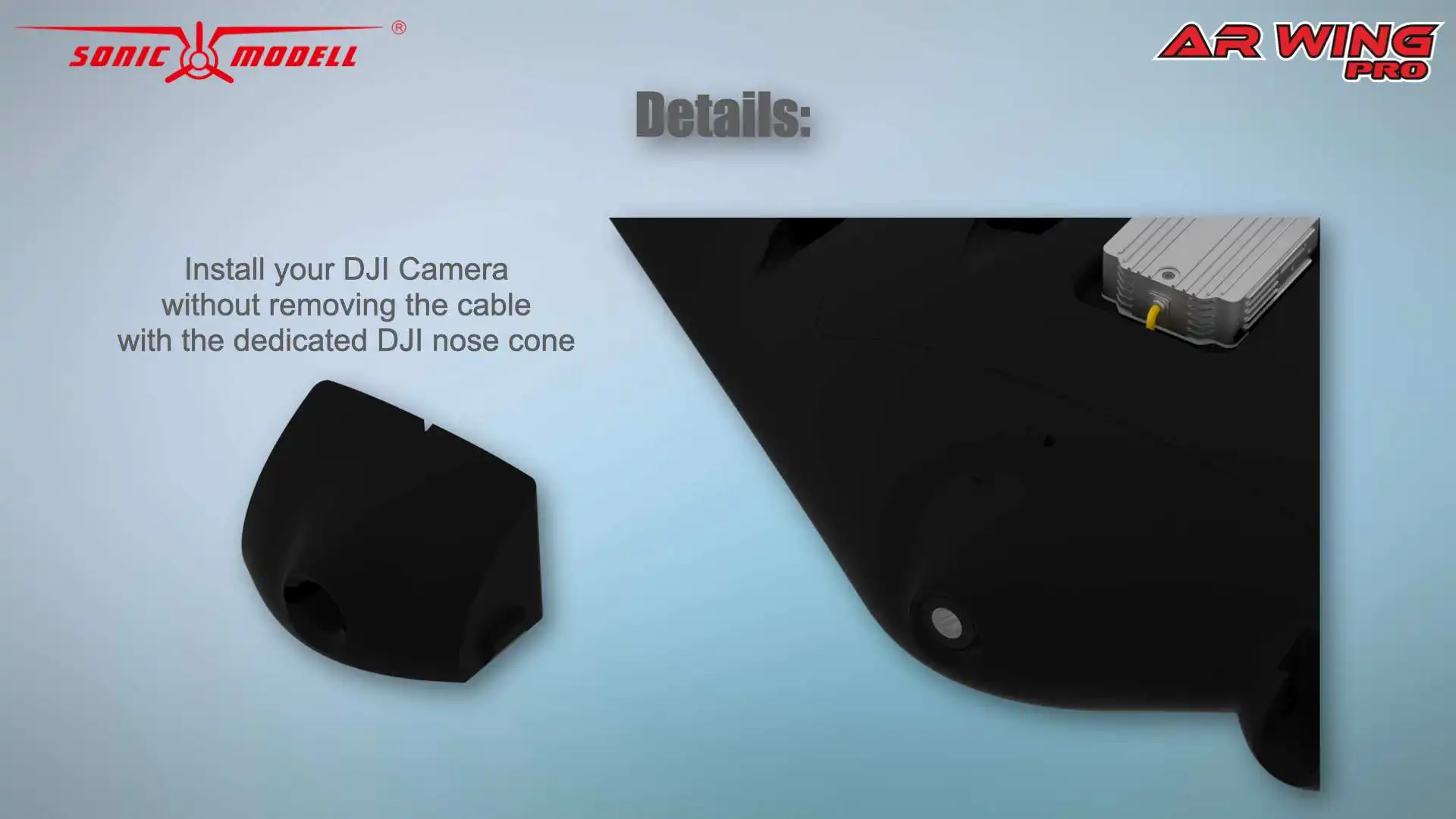

• The World’s First FPV Wing with a dedicated nose camera bay and main hatch bay for the DJI HD Air Unit System, eliminating the need for any modifications to fit the DJI System.

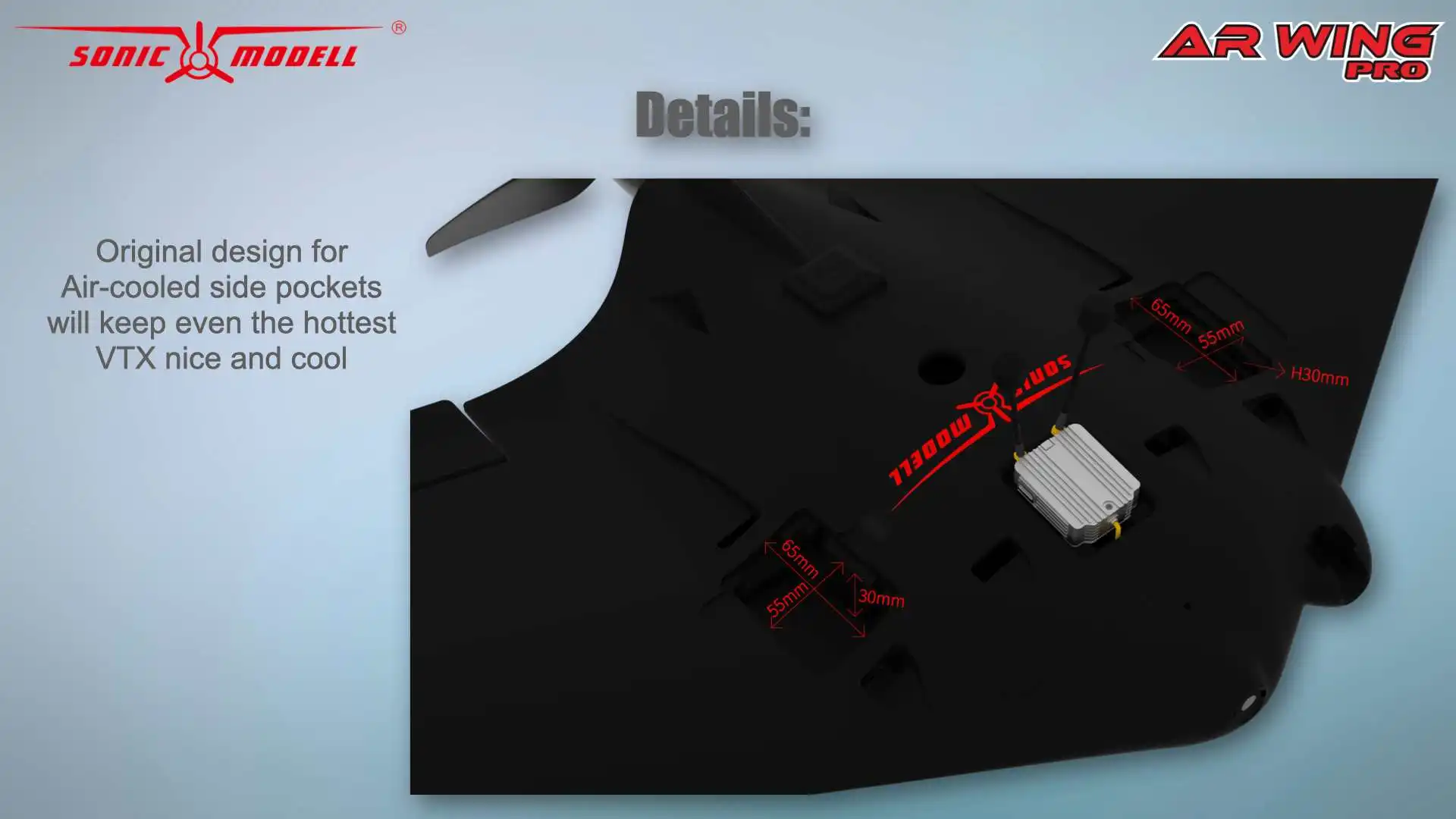

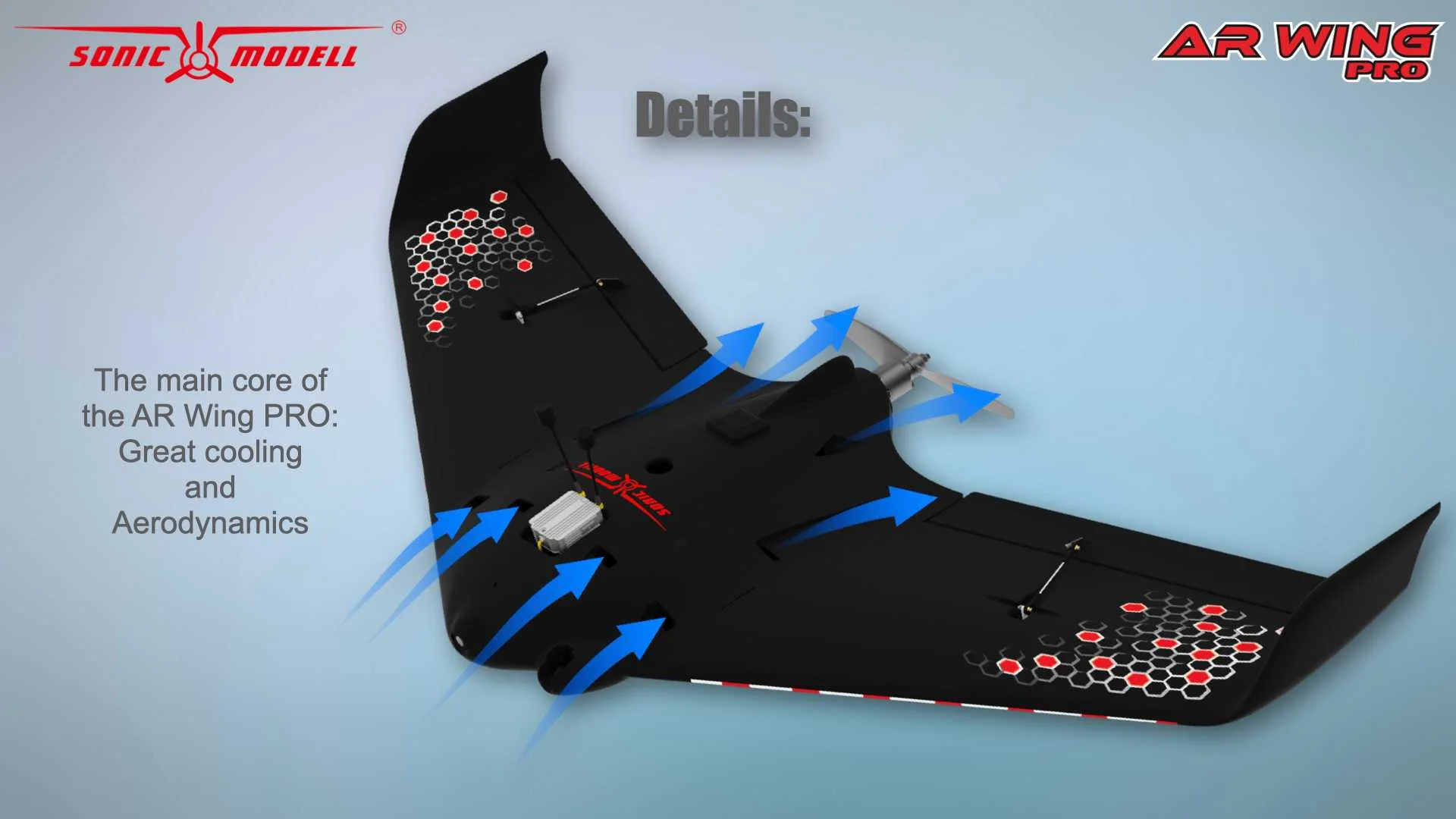

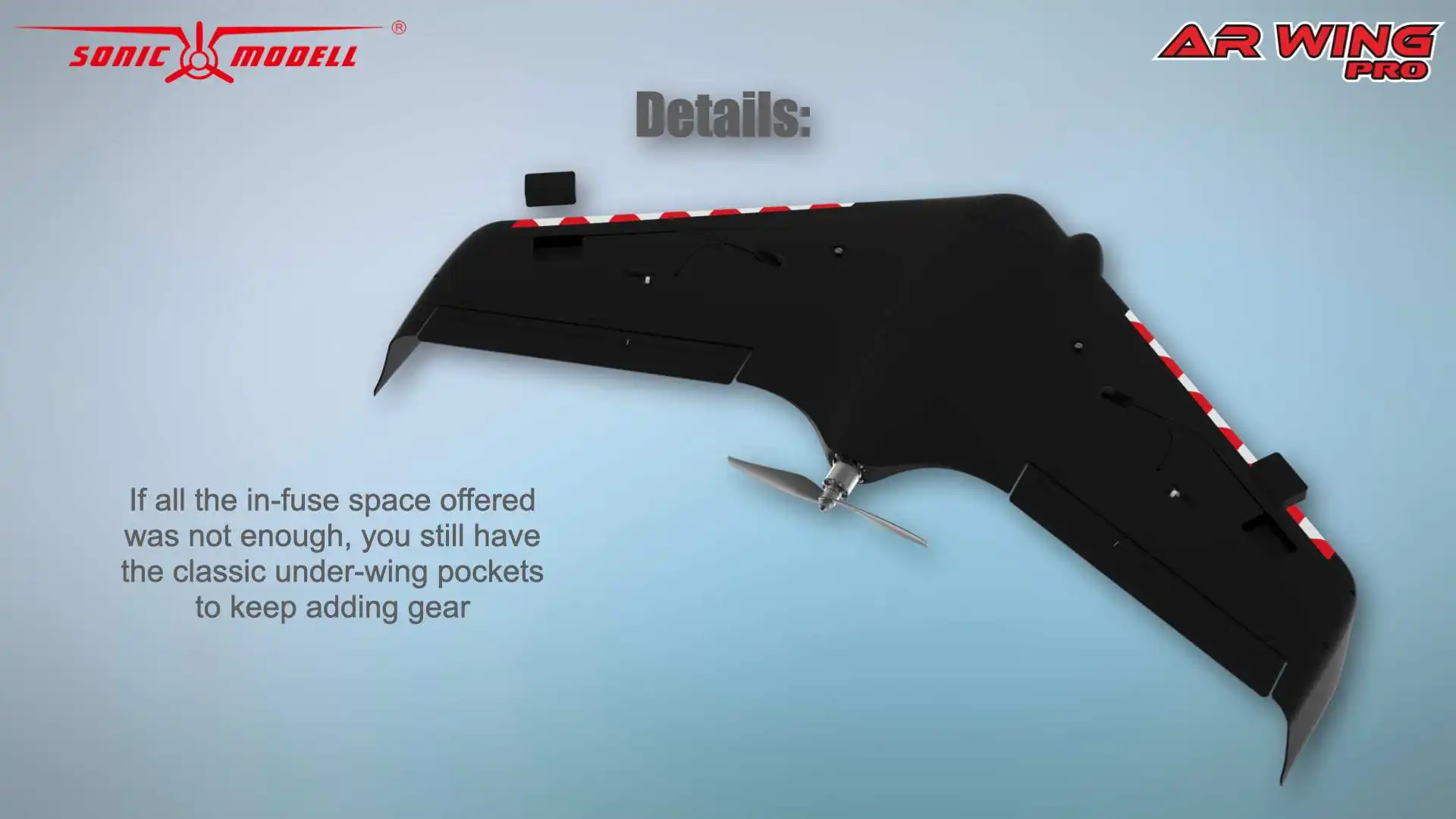

• Aerodynamically designed FPV pockets on both sides of the fuselage, featuring a high-efficiency NACA air cooling system to ensure FPV gear operates optimally.
• Constructed from durable EPP material with built-in CF spar for enhanced stability, flying capability, and crash resistance.

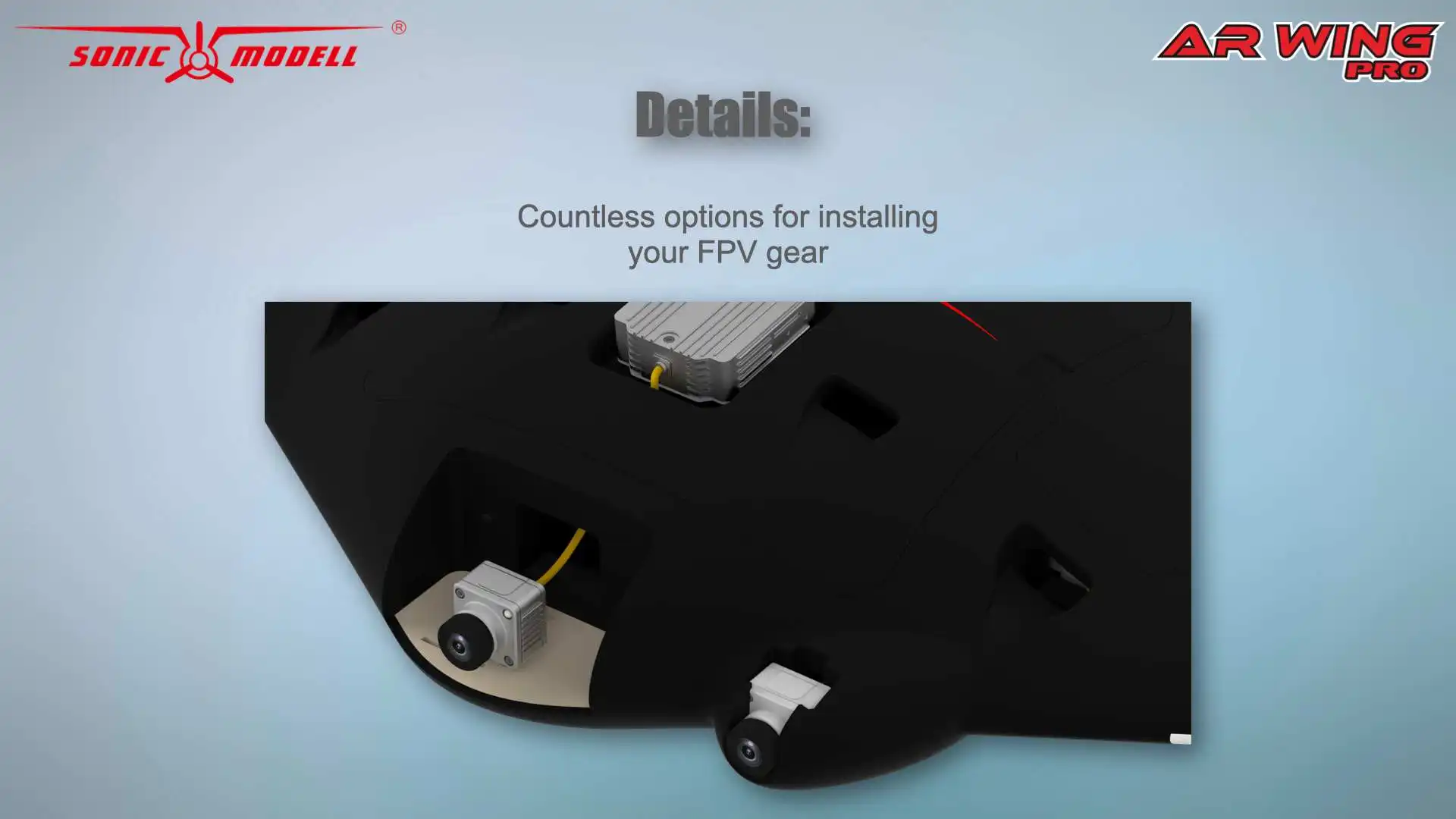

• Compatibility with all FPV and AIO cameras on the market through the extra nose side camera bay and main hatch.

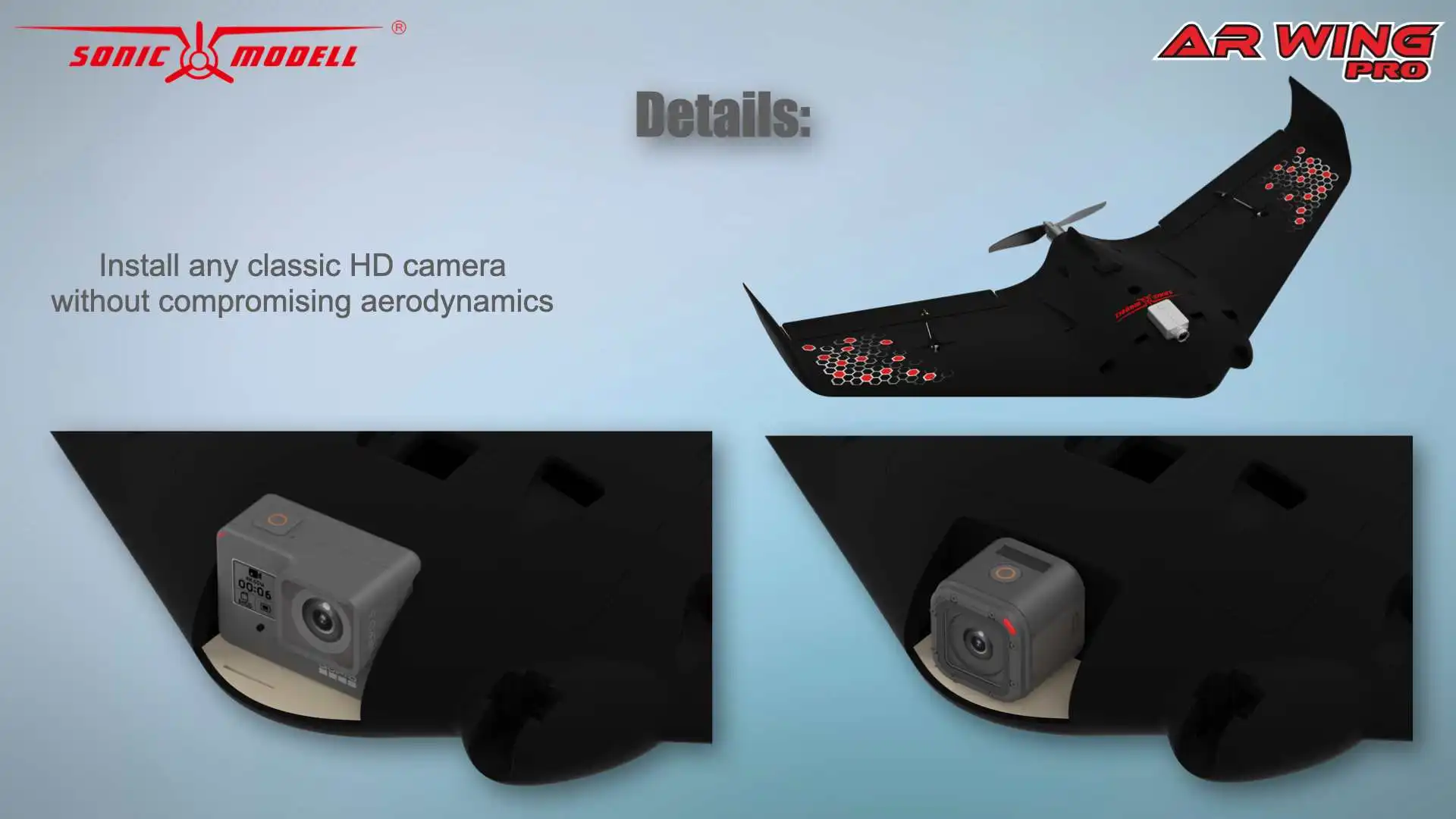

• Nose camera slot compatible with all HD Auction cameras (e.g., GoPro, DJI, Runcam).
• Multiple tunnels inside all equipment bays for easy wire layout.

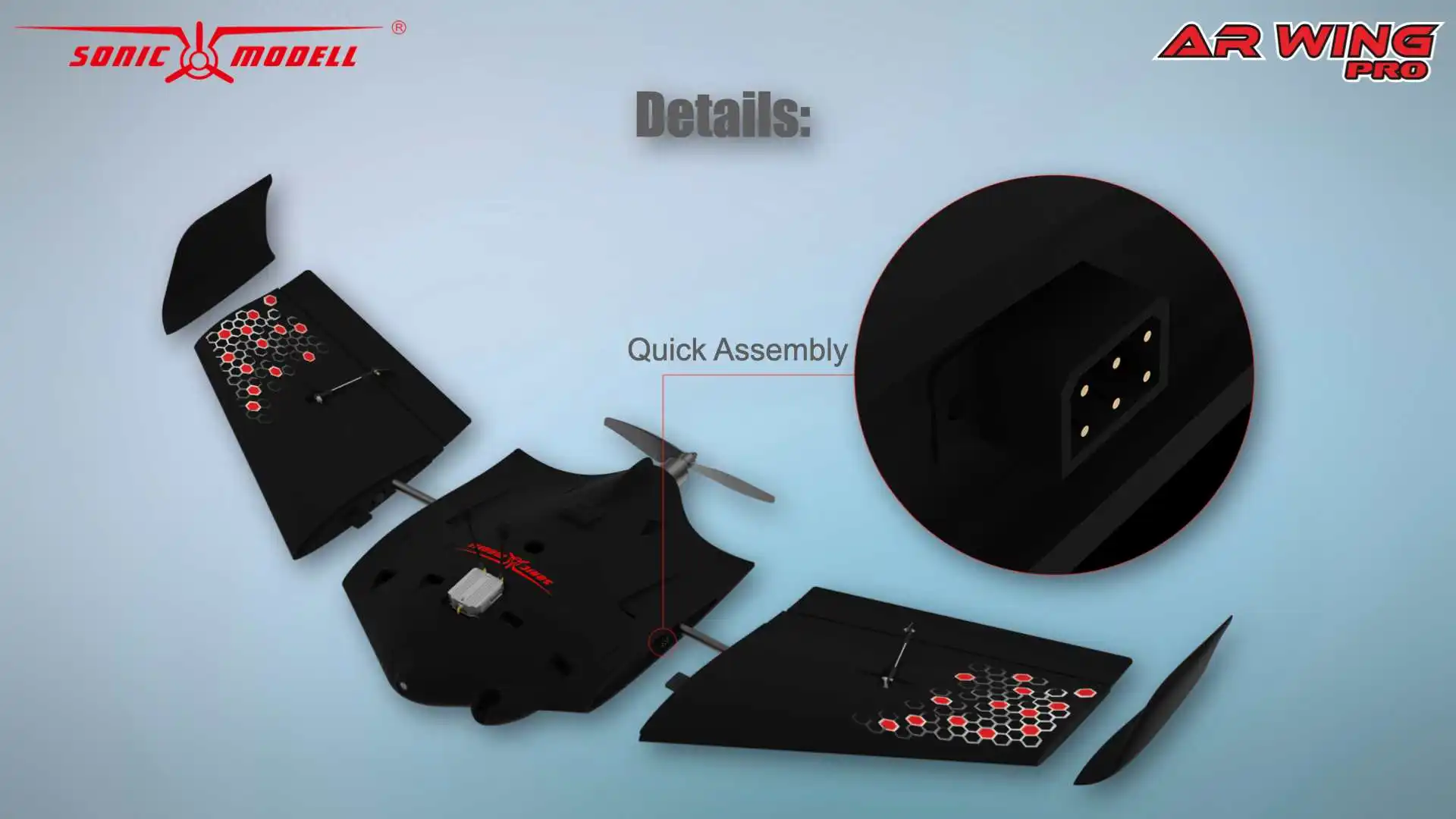

• Detachable main wing and wing tip for glue-free assembly and portability.
• Built-in CF rod in the ailerons for precise and sharp control.
• High-accuracy ball link control system for agile and quick response.
• Special “servo arm built-in” structure for servo arm protection.

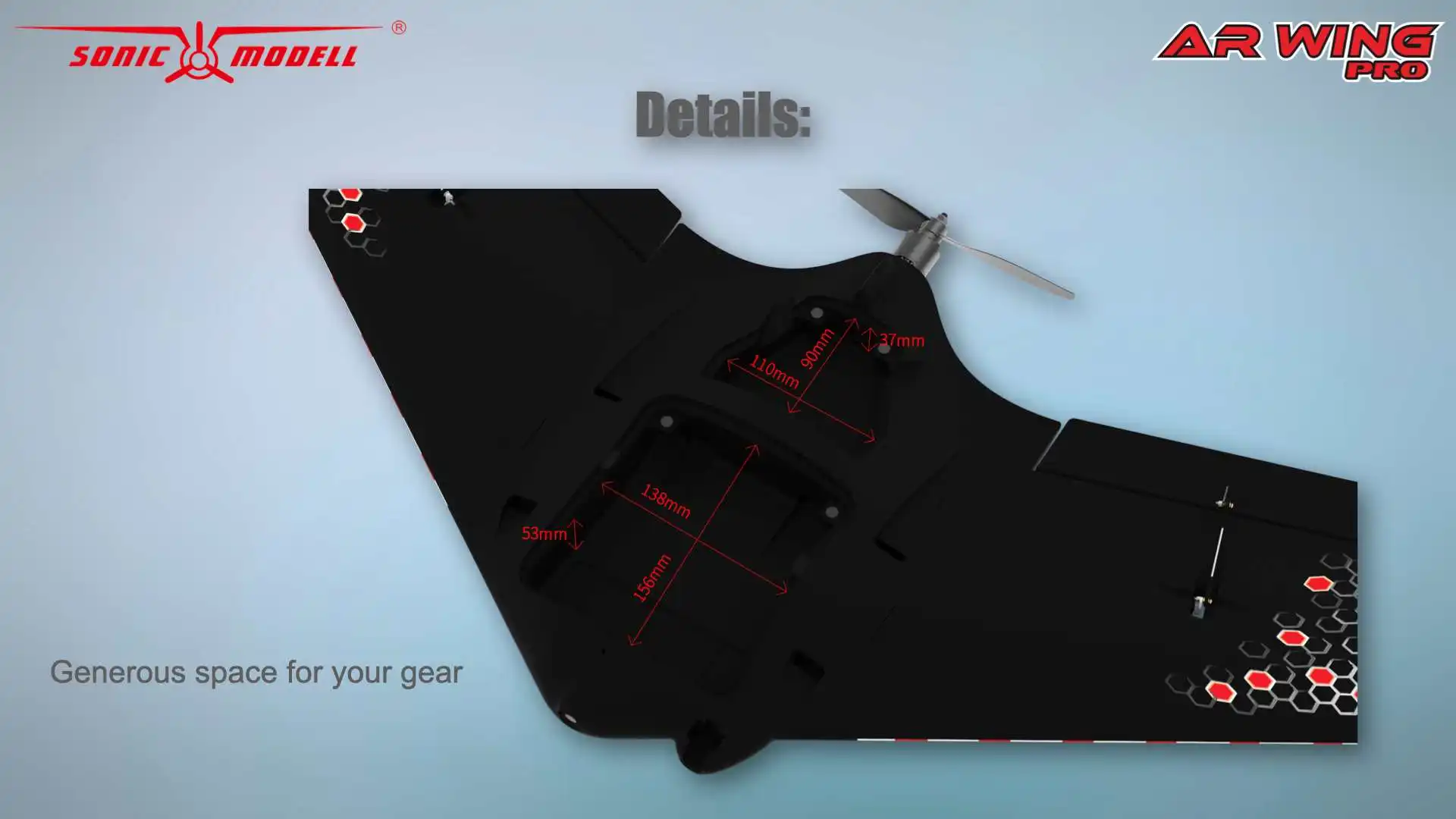

• Large battery bay for extended flight times and accommodation of various Flight Controllers.
• Dedicated rear bay for ESC to isolate interference from other FPV equipment.

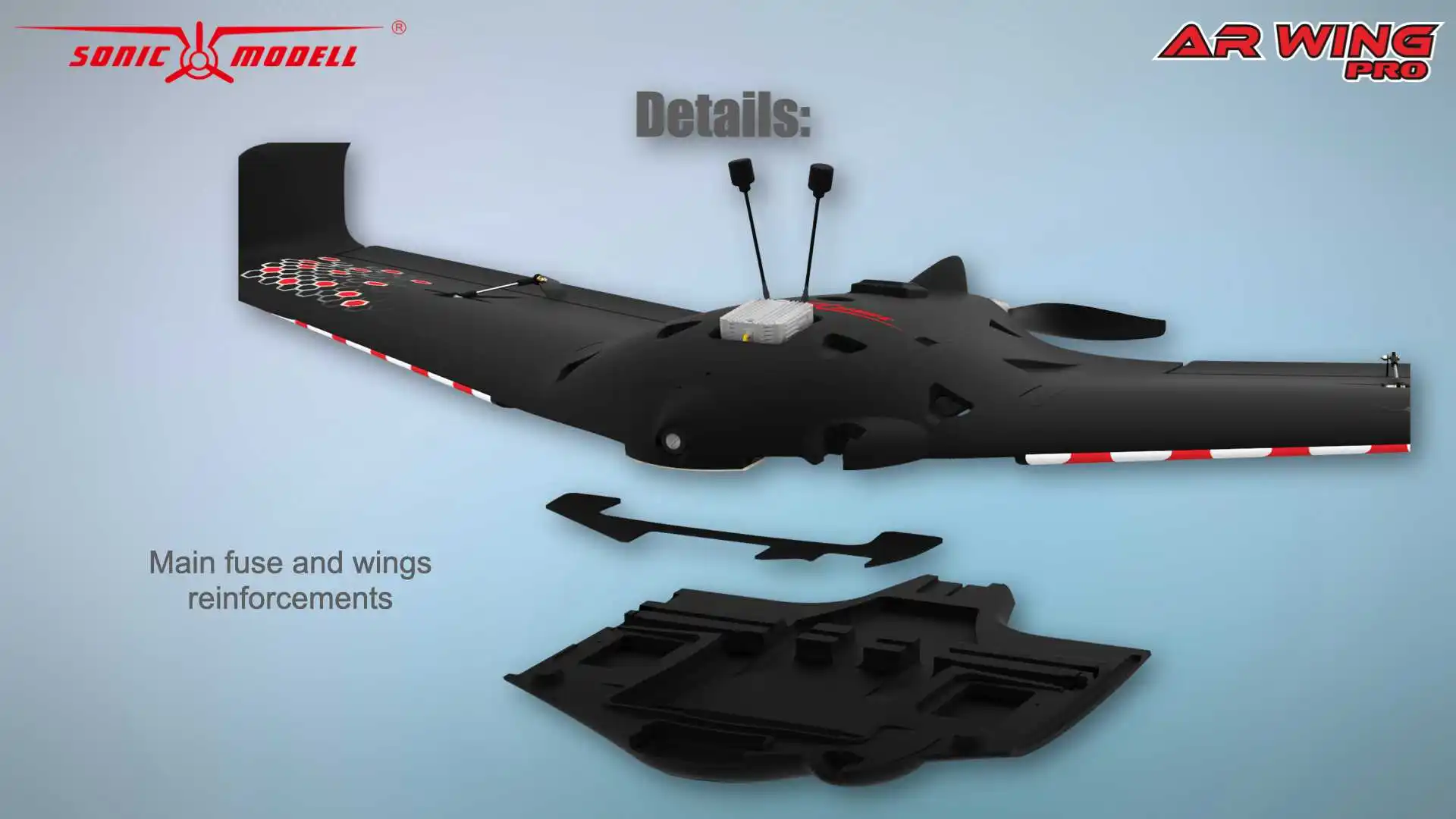

• The built-in plate inside the fuselage for additional reinforcement.
• Extra CA Hinges for DIY, offering more stiff and agile control.
• Optimized air-cooling design to prevent overheating of gear.

English Manual Included

KIT Includes:

• SONICMODELL AR Wing Pro KIT with all hardware.
• Package Size: 423115.5cm
• Package Weight: 1200g
• Note: Motor, ESC, servos, propeller, battery, charger, transmitter, and receiver are not included.

PNP Includes:

• SONICMODELL AR Wing Pro KIT with power combo (uninstalled motor, ESC, servos, propeller, and hardware).
• Package Size: 423115.5cm
• Package Weight: 1500g
• Note: Battery, charger, transmitter, and receiver are not included.
