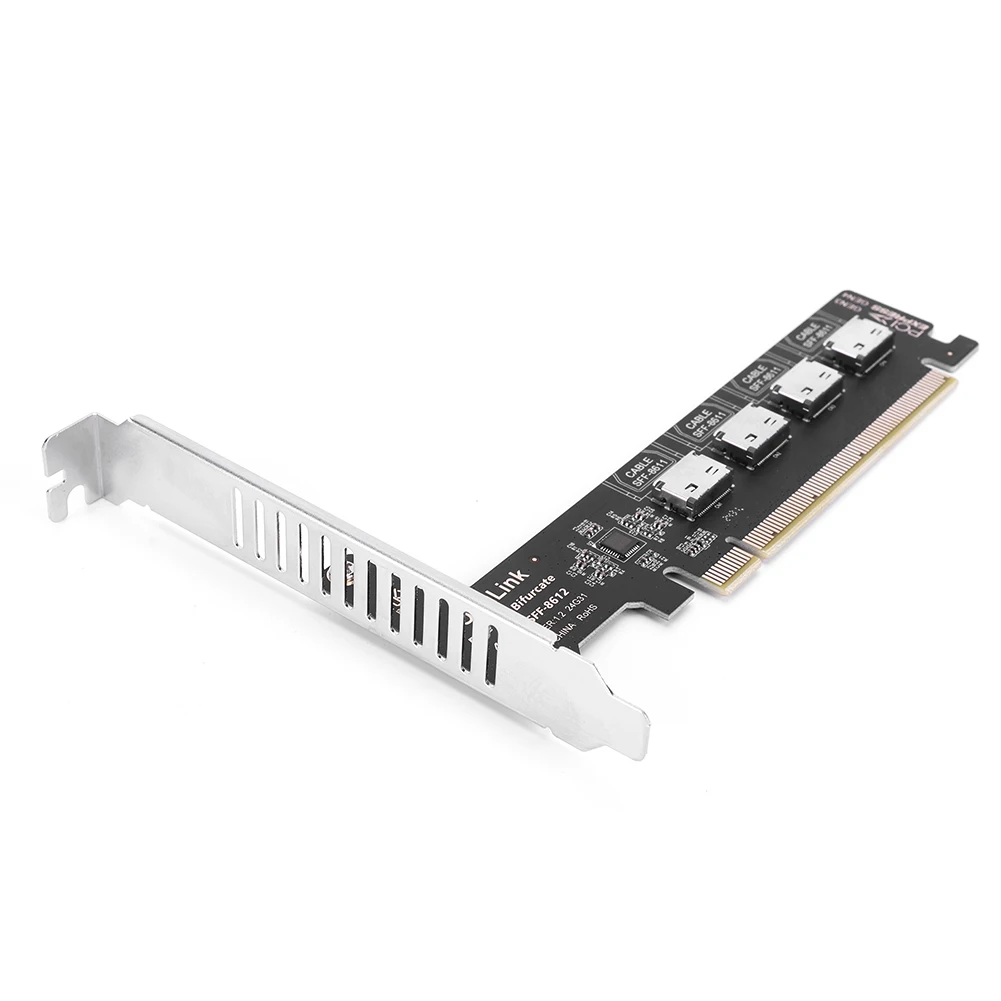

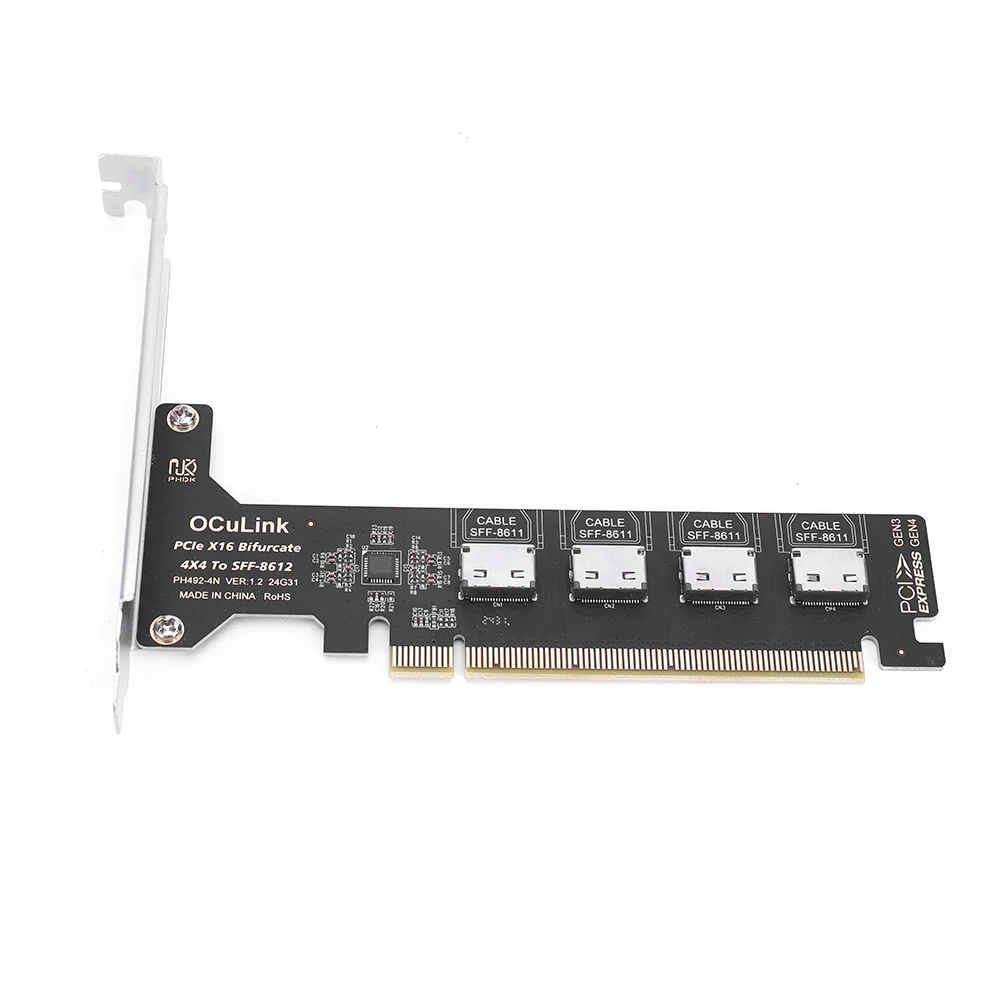

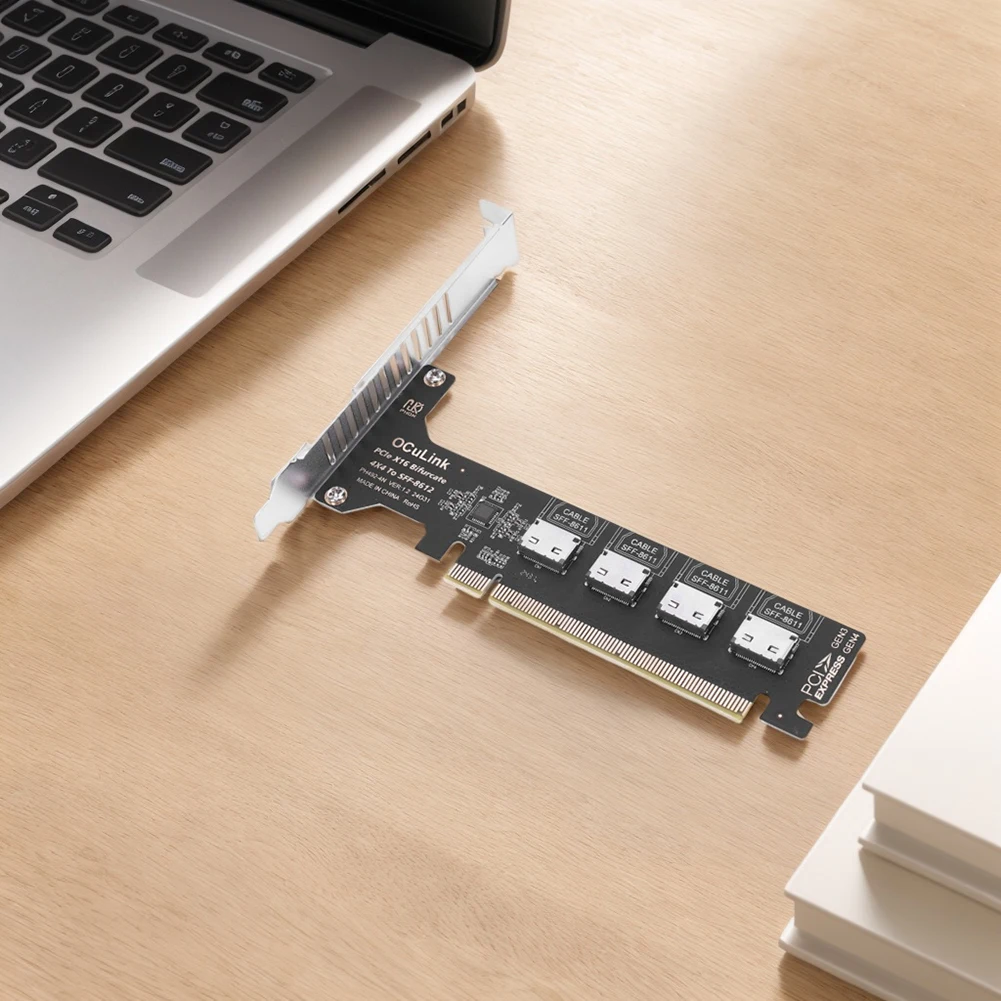

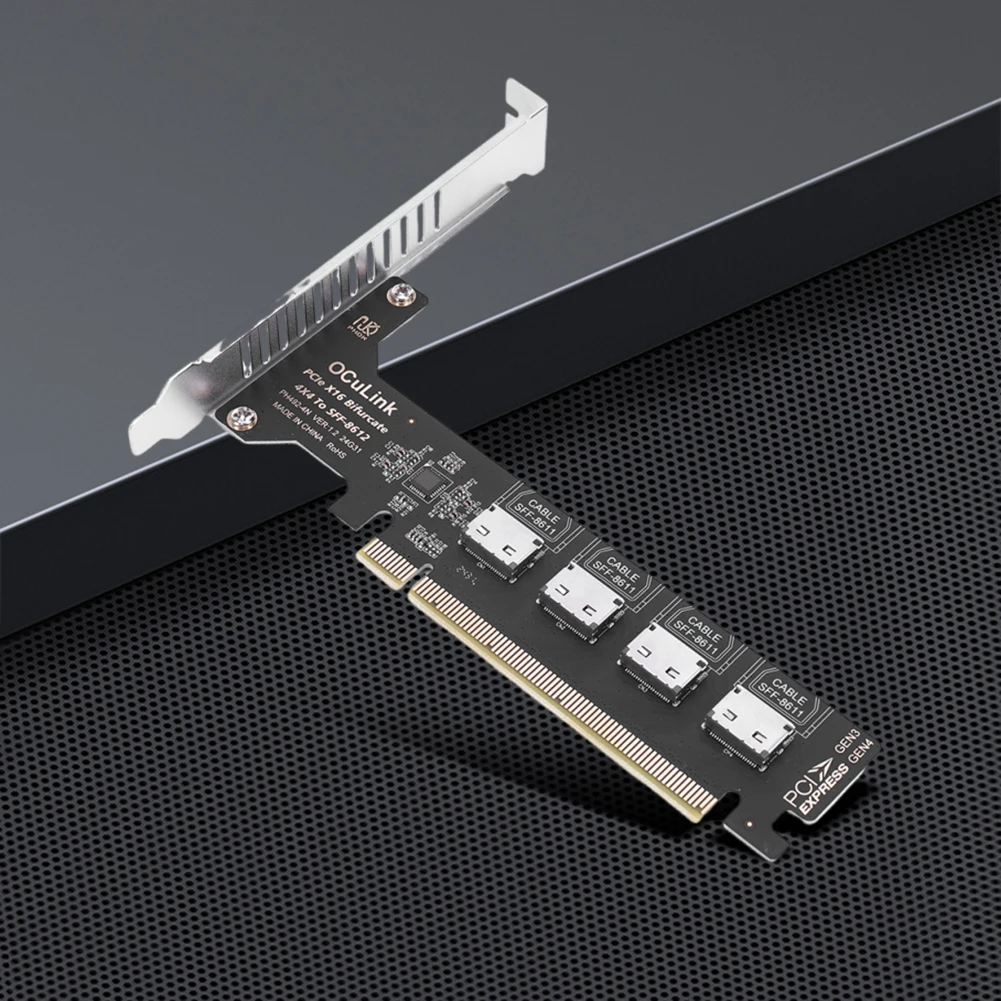

PCI-E 4.0 16x Oculink Split Expansion Card eGPU

PCI-E 4.0 16x Oculink Split Expansion Card eGPU

Features:

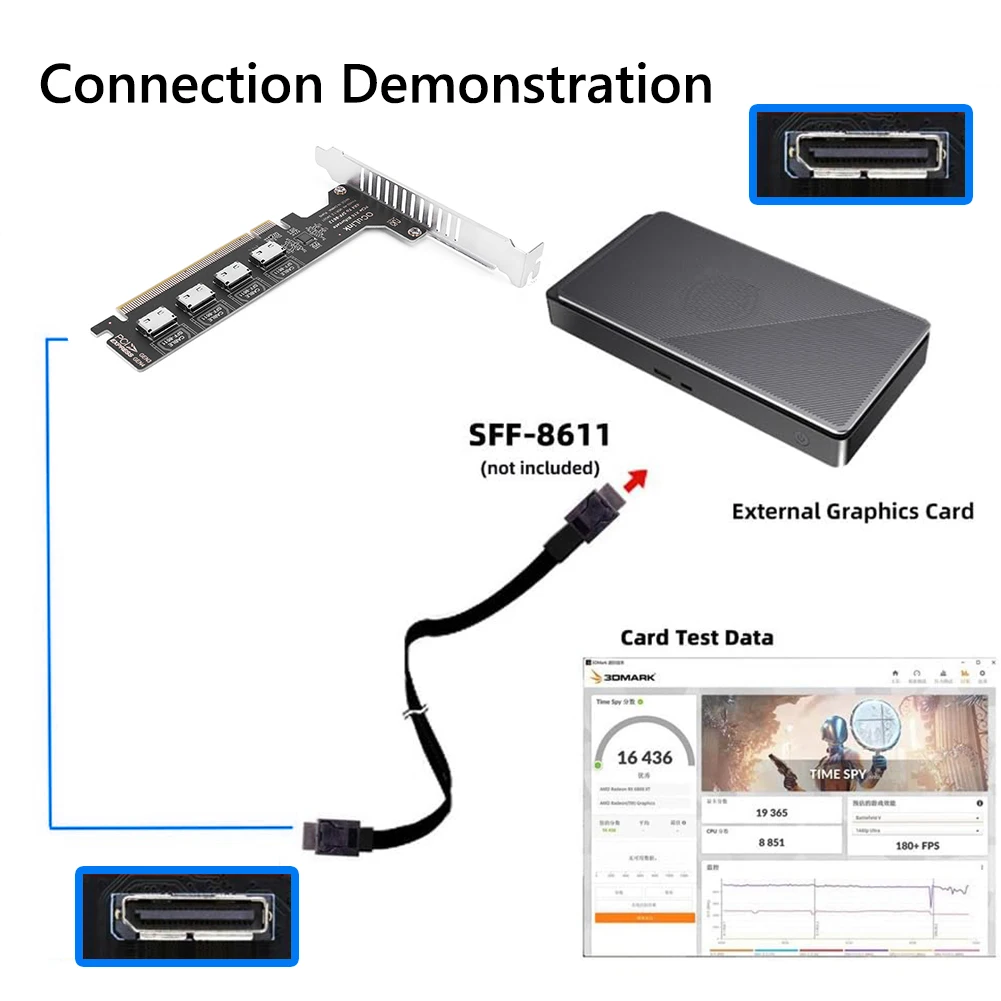

• Multi-functional split expansion card: Connects up to four OCuLink devices, enabling high-performance storage expansion.
• OCuLink to U.2 conversion: Use with U.2 SSDs for flexible, modern storage configurations.

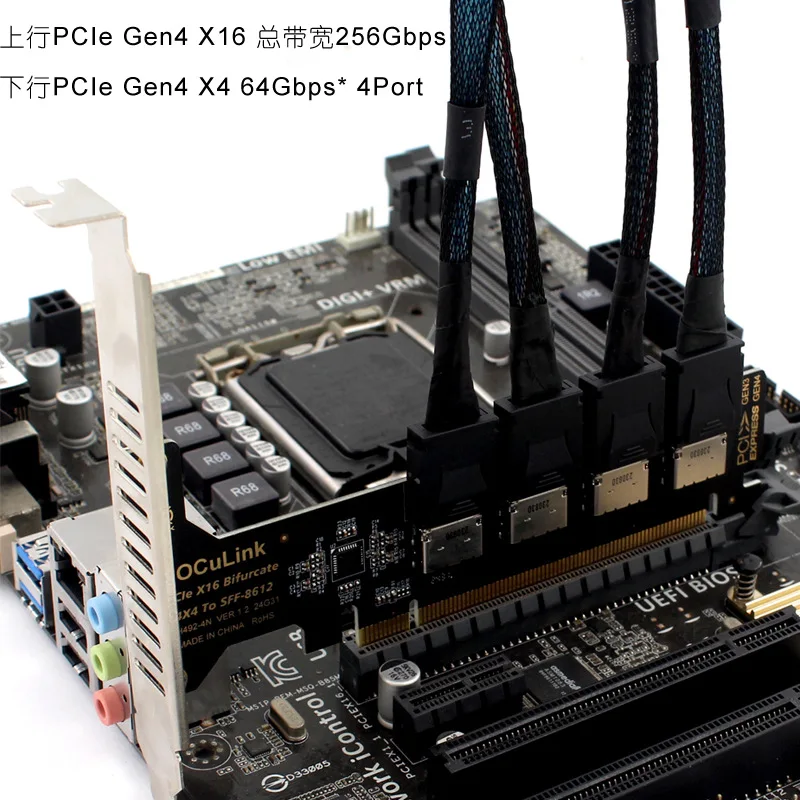

• High-speed performance: Up to 256 Gbps upstream (PCIe Gen4 x16) and 64 Gbps downstream per port (PCIe Gen4 x4) for fast data transfers.
• Wide system compatibility: Works with macOS, Windows, and Linux.

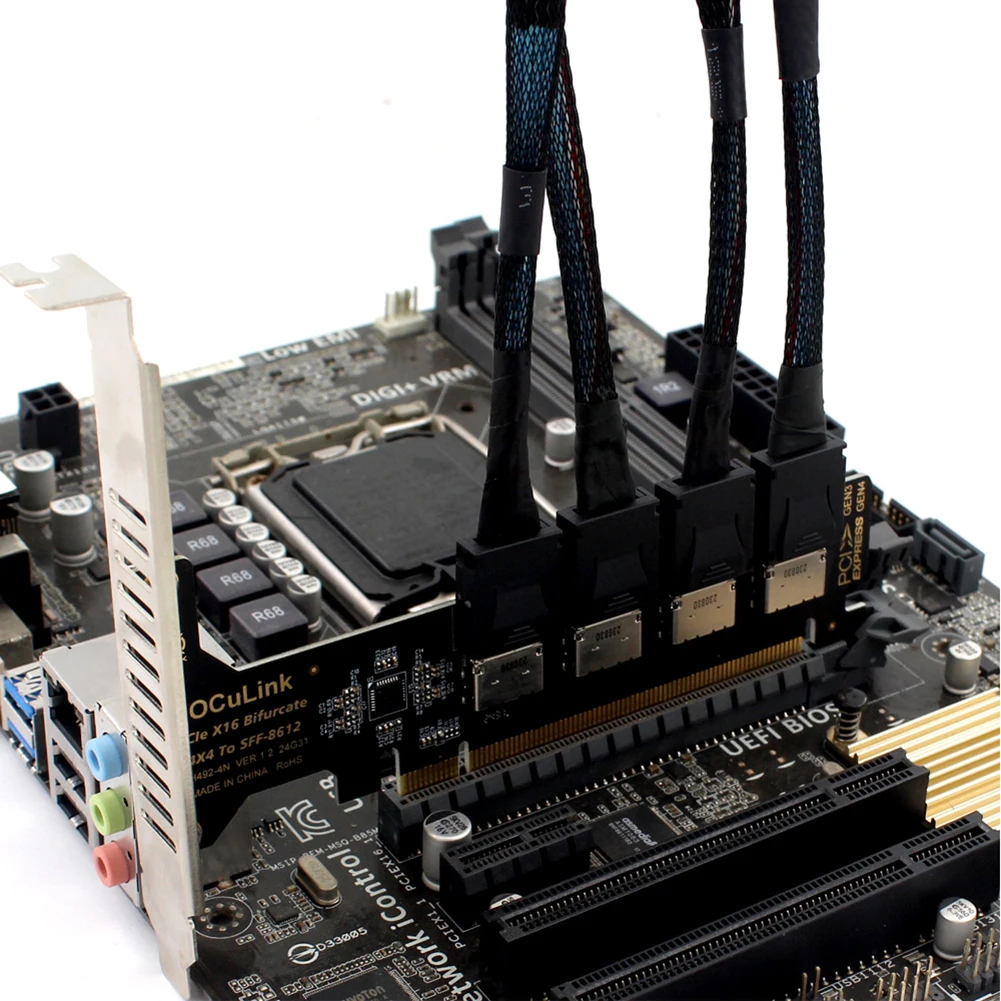

• Desktop ready: Supports full-height and half-height brackets for stable installation and simultaneous full-speed operation of up to four PCIe drives.

Specifications:

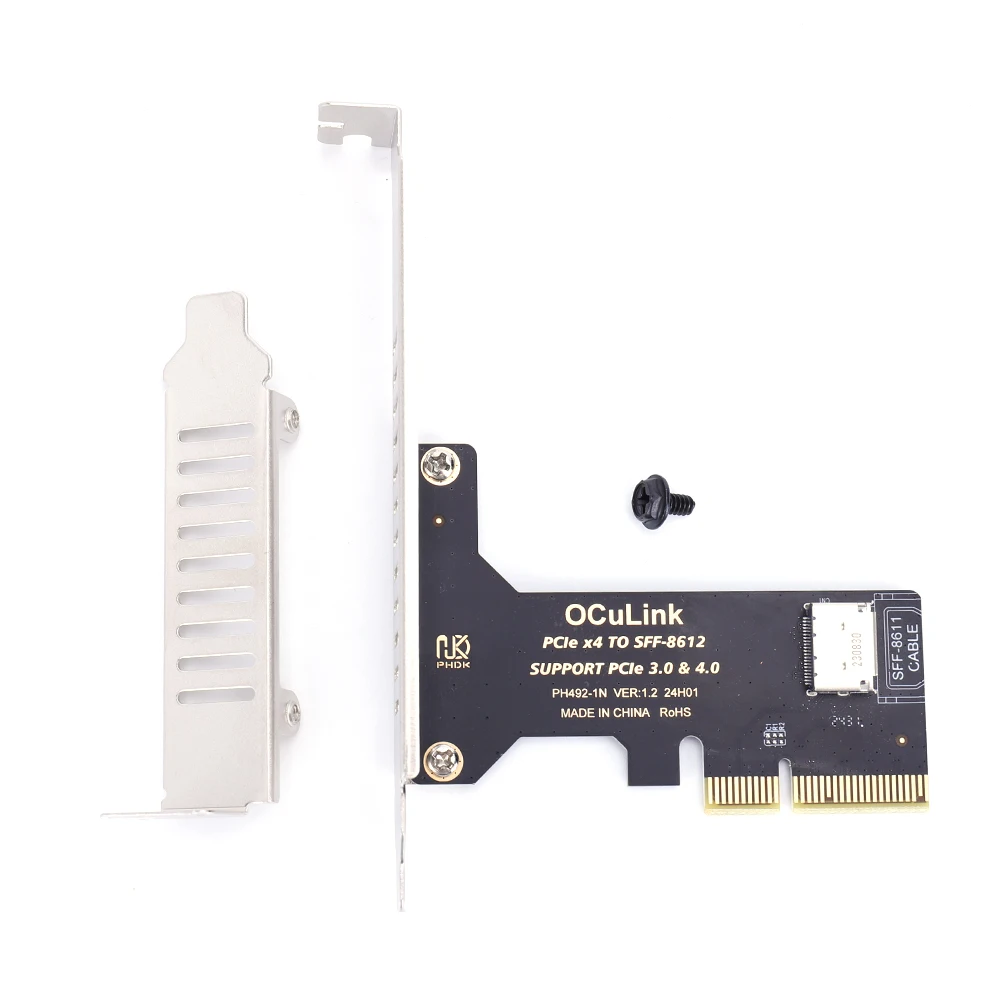

• Type: PCIe x4 4.0 split (1 port) or PCIe x16 4.0 split (4 ports) – optional.

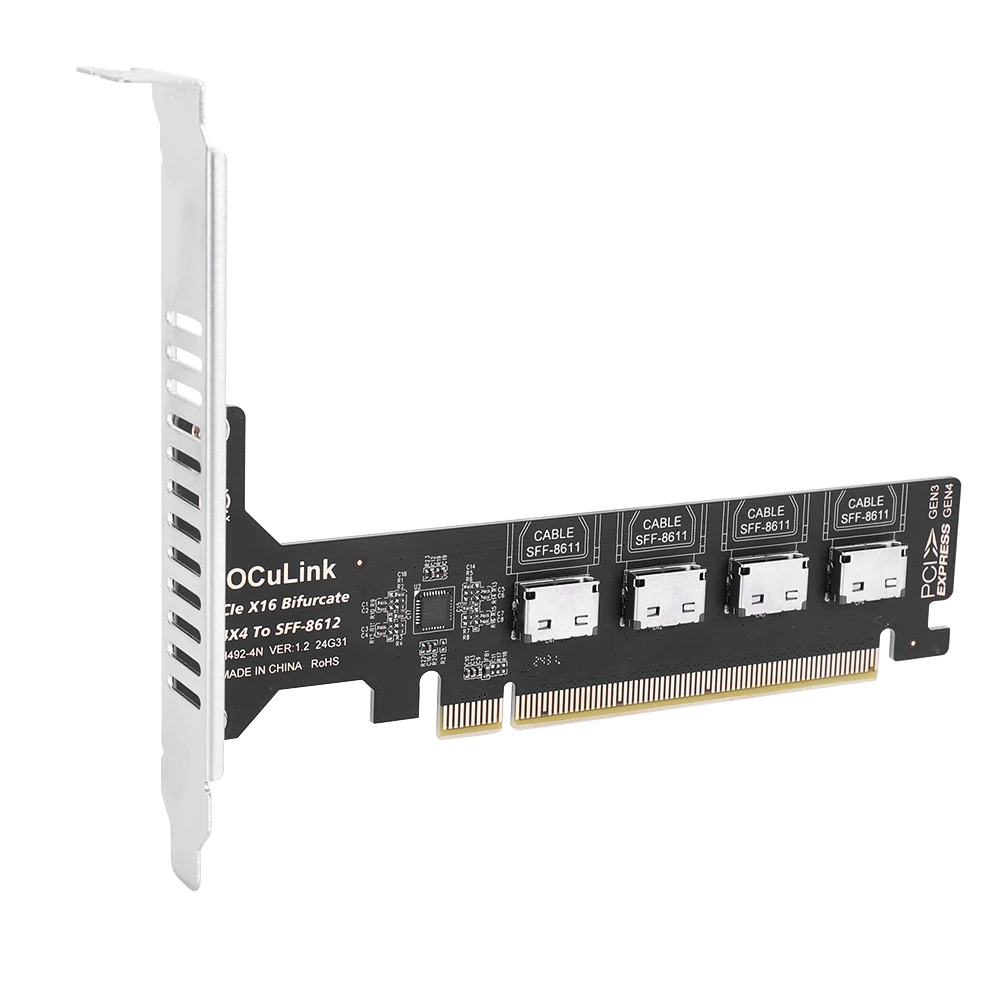

• Interface: PCIe 4.0 x16 to OCuLink SFF-8612 / SFF-8611.
• Protocol support: PCIe 4.0; backward compatible with PCIe 3.0 and PCIe 2.0.
• Compatible systems: macOS / Windows / Linux.
• Motherboard requirement: PCIe x4/x4/x4/x4 bifurcation support.

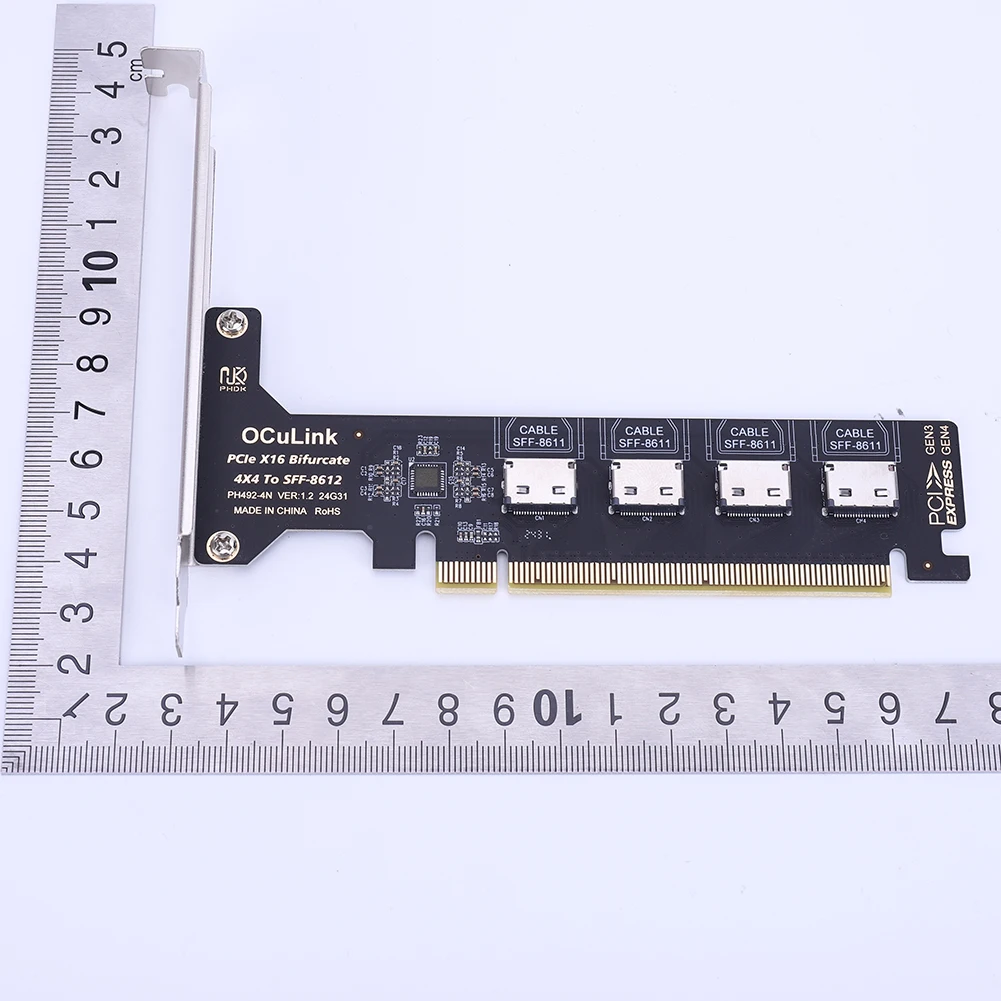

• Sizes (side by side): X4 board: 80 × 53 mm; X16 board: 145 × 53 mm; Long baffle: 120 × 19 mm; Short baffle: 80 × 19 mm; Product: 145.00 × 53.00 × 19.00 mm (5.71 × 2.09 × 0.75 in).

Notes:

• Actual color may vary slightly due to monitor and lighting differences.
• Please allow a 1–2 cm size variation due to manual measurement.

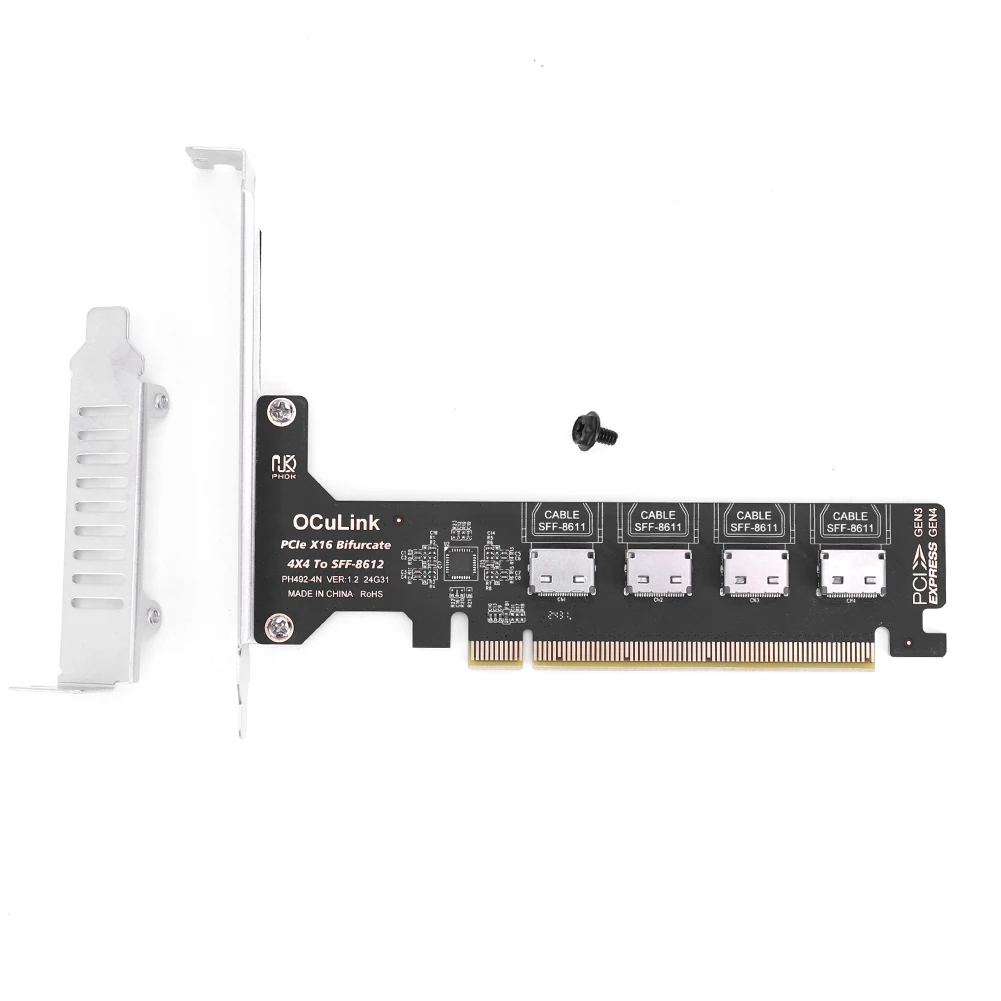

Package includes:

• 1 × Expansion card
• 1 × Baffle
• 1 × Screw
