Microzone MC8RE 8CH RC Control System

Description

Microzone MC8RE 8CH RC Control System

Low Voltage Alarm Mode:

• The device features an LED indicator and a buzzer that alarms simultaneously.
• It supports both analog and external power sources.
• The LCD screen displays menus in both Chinese and English.

Receiver Features:

• The receiver has a wide voltage design, ranging from DV 2V to 9V.
• It supports 8 PWM (Pulse Width Modulation) signals and 1 SBUS signal.

Helicopter Functionality:

• The device offers support for 90-degree and 120-degree CCPM (Cyclic/Collective Pitch Mixing).
• It allows for gyro sensitivity adjustments.

Usability Enhancements:

• The classical neutral knob is finely tuned for quick switching between platform and attitude modes.

Remote Controller Specifications:

• The 8-channel full-function remote controller is compatible with fixed-wing aircraft, helicopters, and multi-axis aircraft.

Transmitter Specifications:

• Channels: 8
• Model Compatibility: Fixed-wing model airplanes, UAVs (Unmanned Aerial Vehicles), helicopters, cars, and boats.
• RF Range: 2405MHz to 2479MHz
• RF Power: Less than 100mW
• Working Current: Less than 150mA
• Working Voltage: 4.5V to 8.5V
• Modulation Mode: FSK (Frequency Shift Keying)
• Sensitivity: 1024
• Signal Output: 8 PWM signals and 1 SBUS signal.
• Supports both analog and external power supply (not exceeding 8V).
• Low Voltage Alarm: The LED indicator and buzzer alarm activate simultaneously based on the battery type in the system.
• The LCD screen displays menus in both Chinese and English.
• Internal Software Support: Channels 5 to 8 can have their settings arbitrarily replaced; channels 1 to 8 signal detection.
• Additional Software Features: M1 and M2 throttle swap (double return), flight time setting, main screen lock, factory reset.
• Helicopter Function: Supports 90-degree and 120-degree CCPM, along with gyro sensitivity adjustment.
• Power: 6V 1.5AA*4
• Adopts the latest FHSS (Frequency Hopping Spread Spectrum) mode in compliance with European standards.
• Certifications: FCC, CE_RED
• Size: 215mm x 105mm x 220mm
• Weight (Gross): 580g

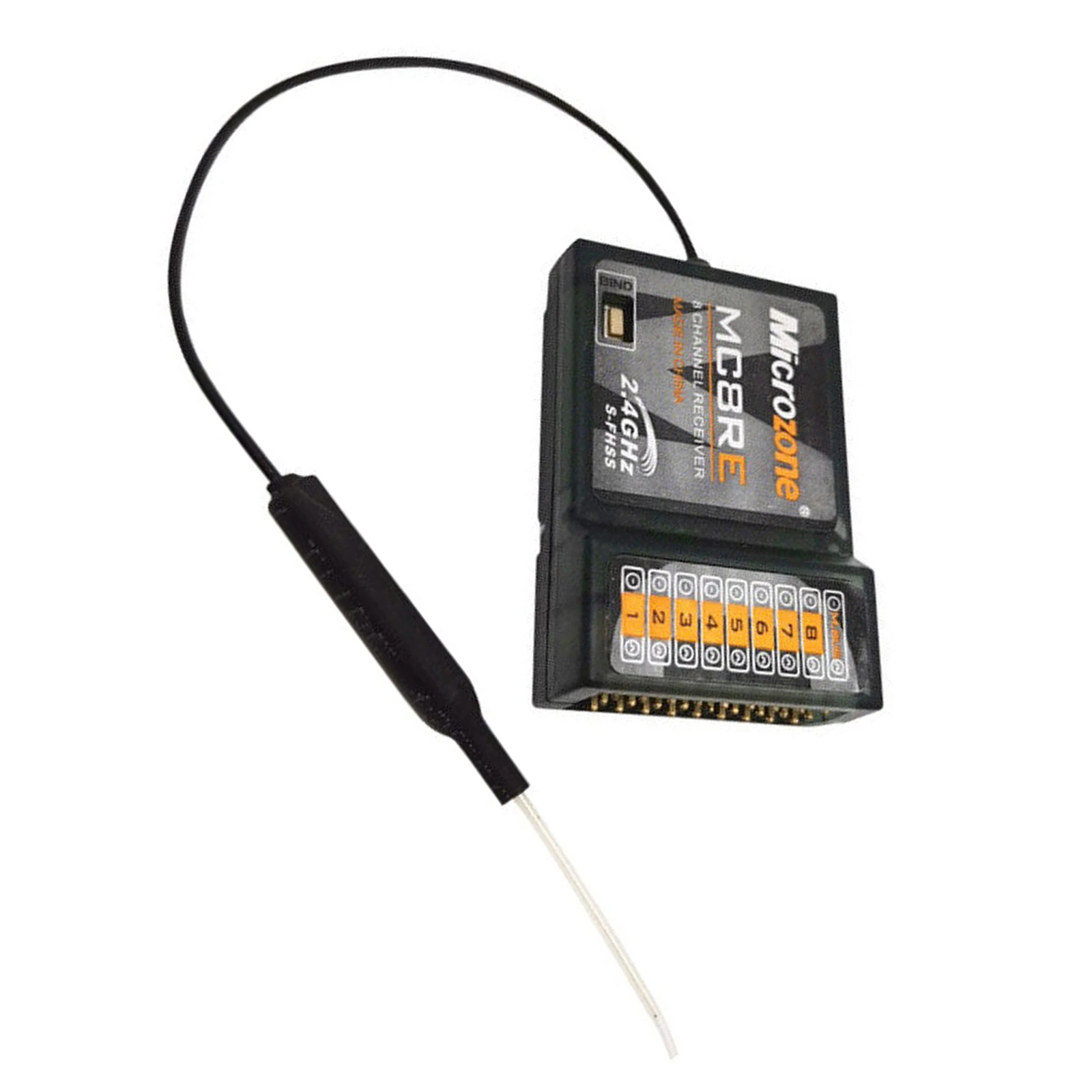

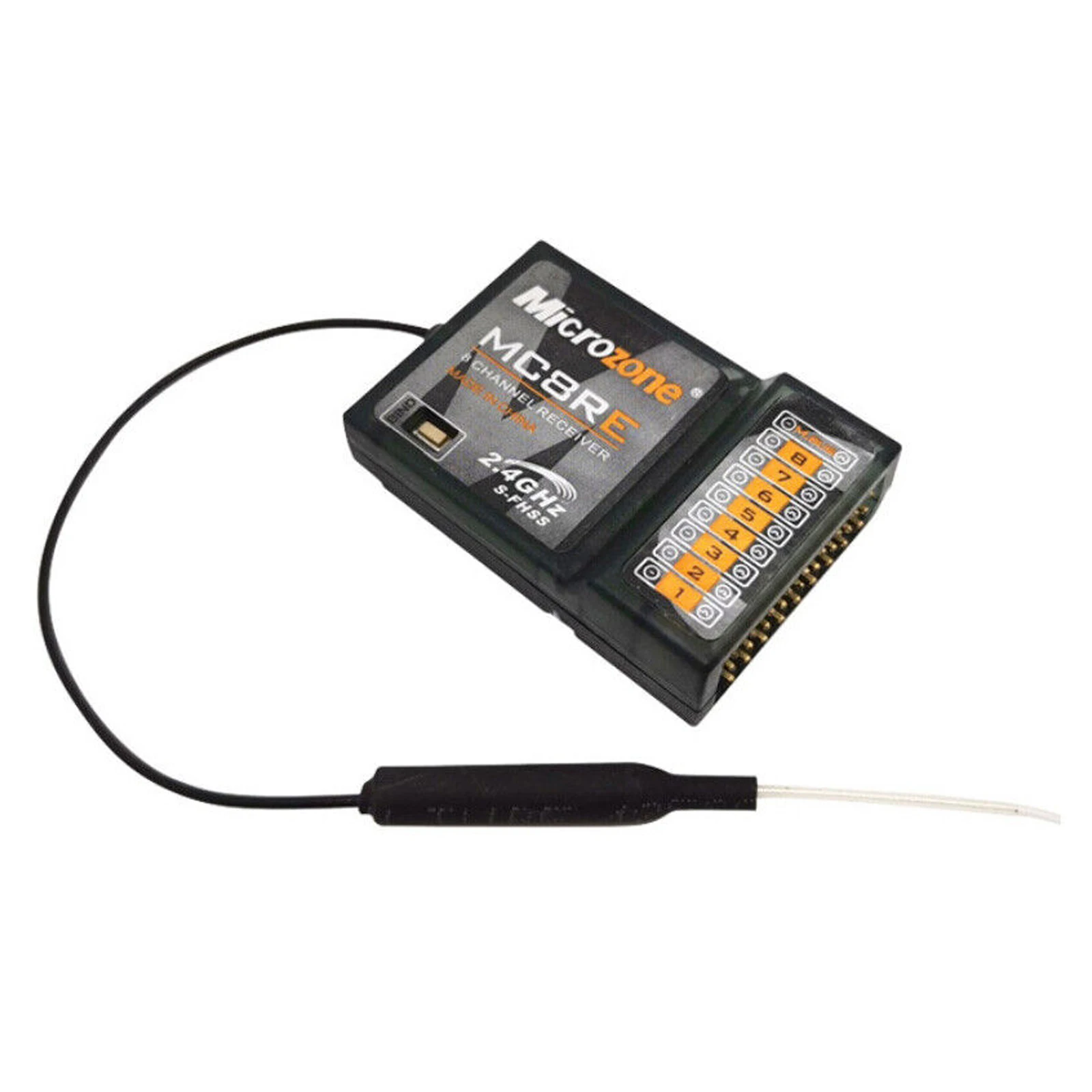

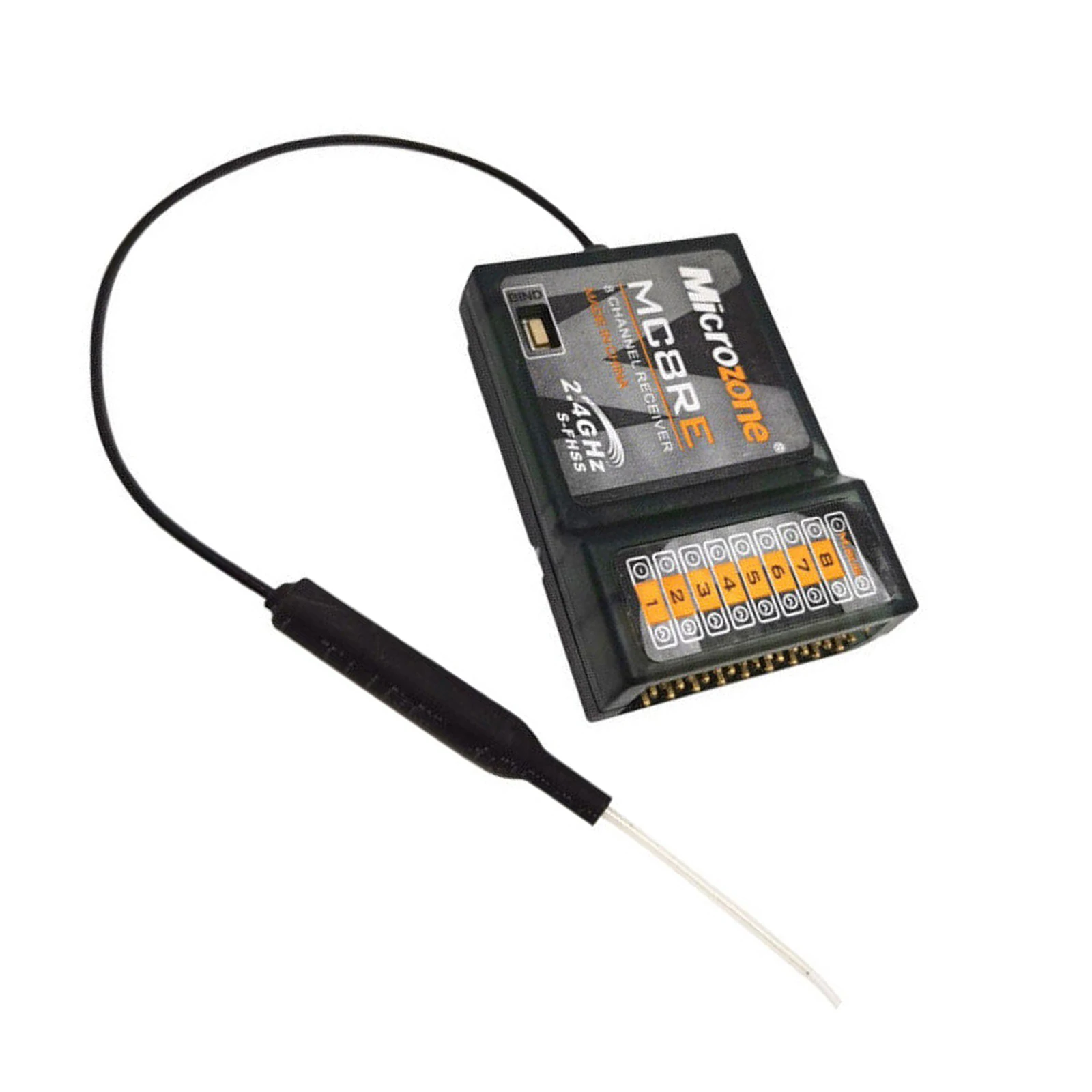

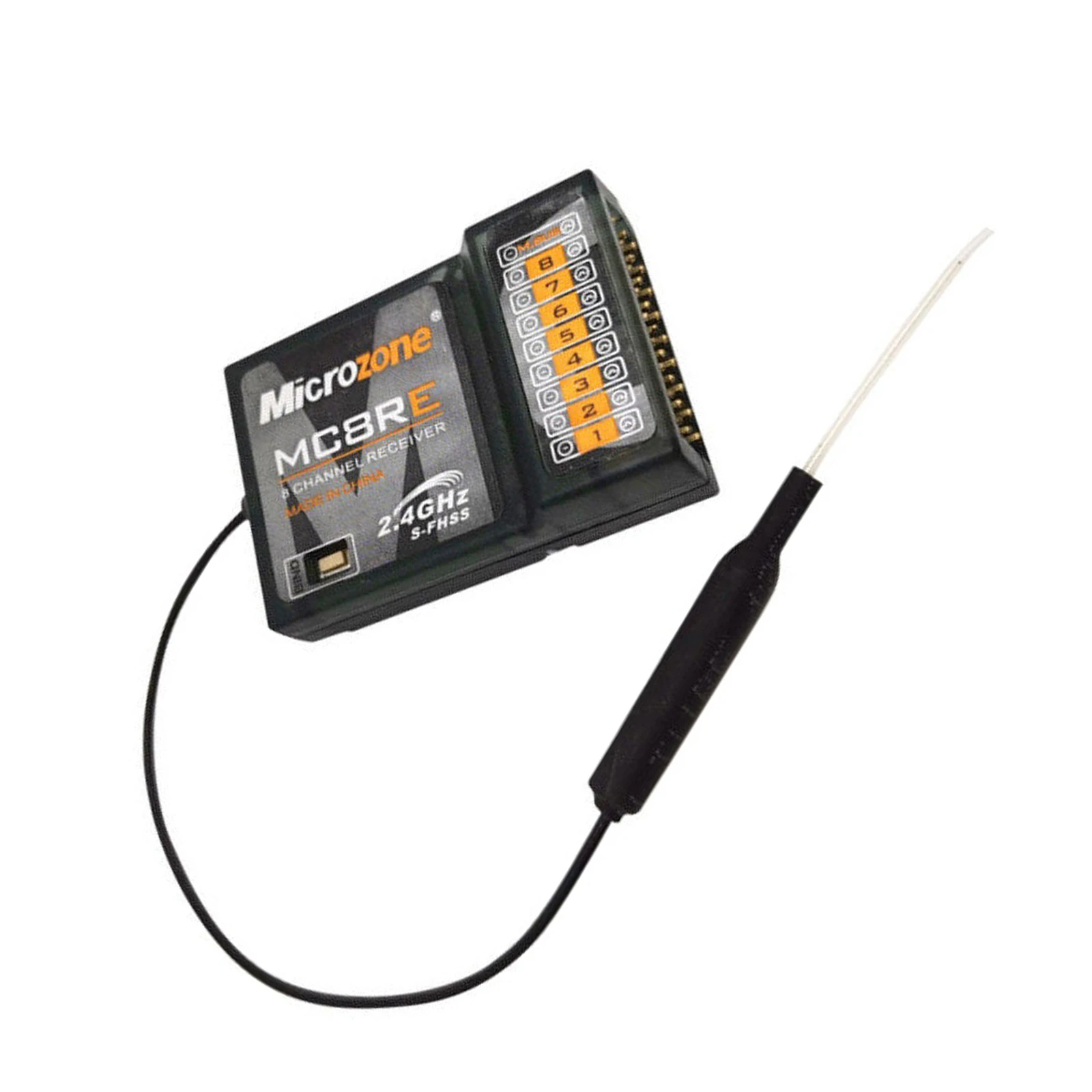

Receiver Specifications:

• Product Name: MC8RE Receiver
• Antenna Length: 110mm
• Output Channel: 8 PWM signal channels and 1 SBUS signal channel
• Reception Frequency: 2401MHz to 2479MHz
• Application: Compatible with MC8A, MC8B remote controls, fixed-wing models, UAVs, helicopter models, trams, tanker models, and ship models.
• Size: 42mm x 28mm x 12mm
• Weight: 12g
