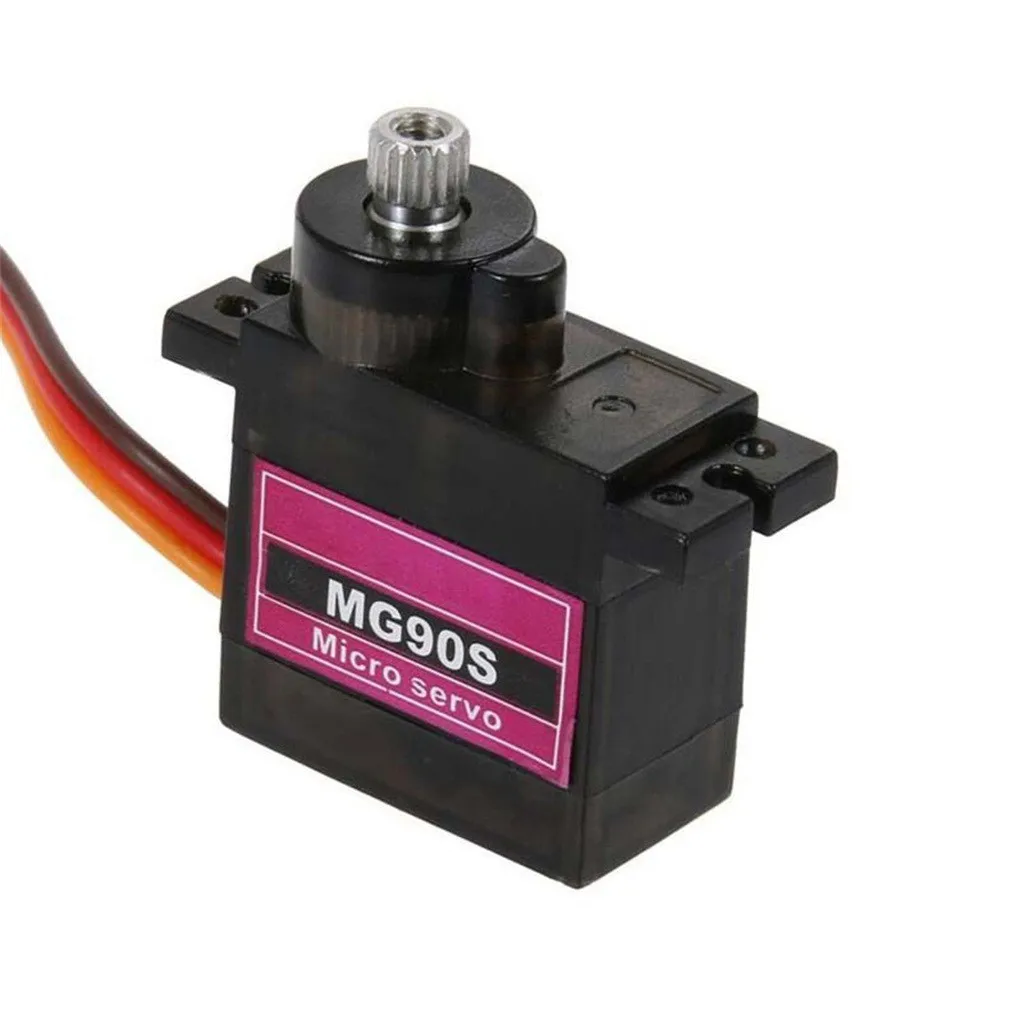

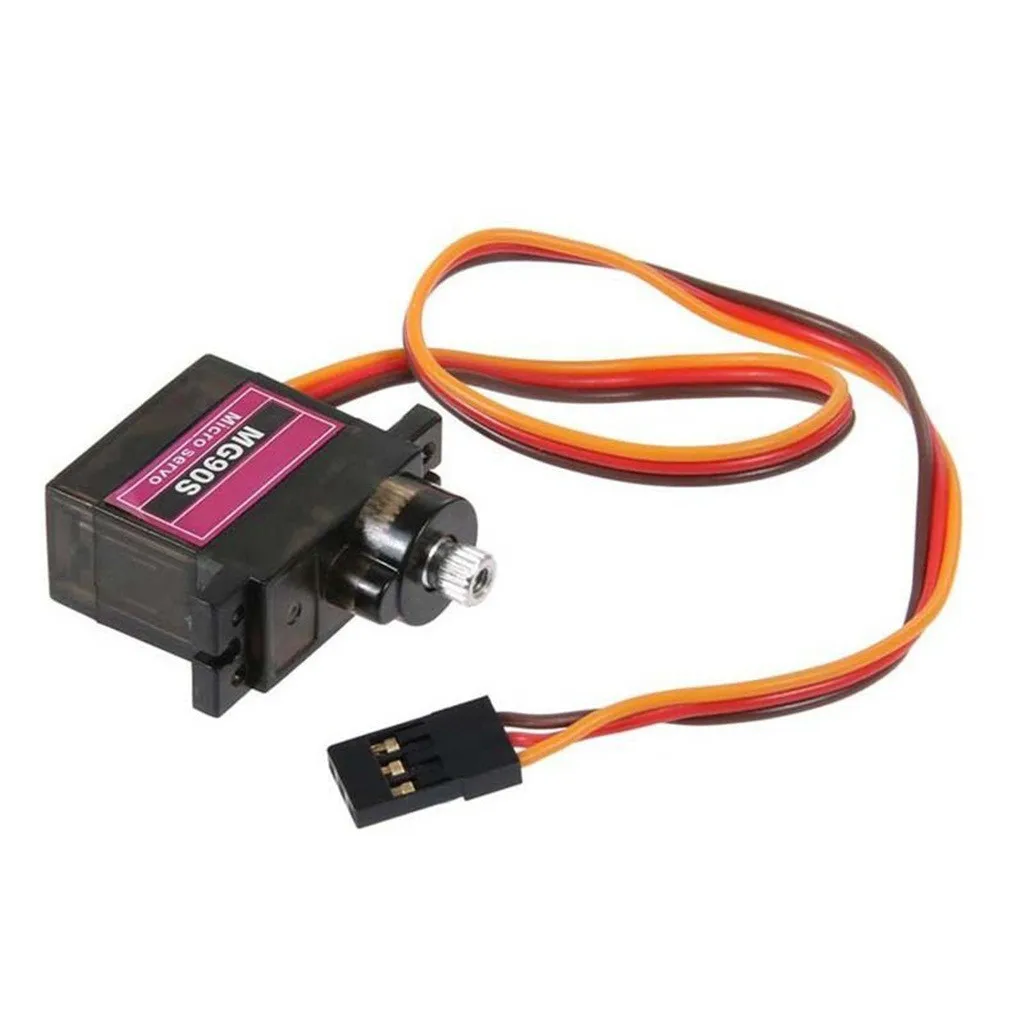

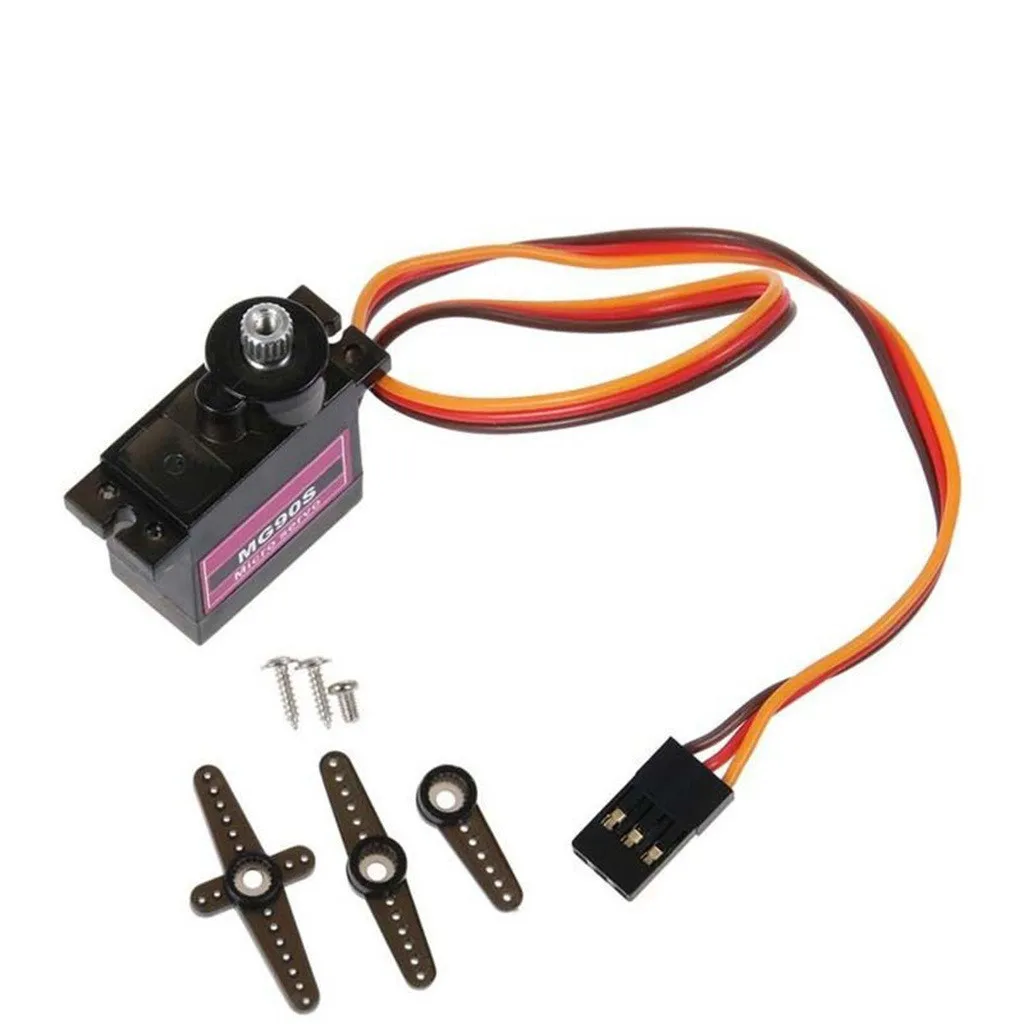

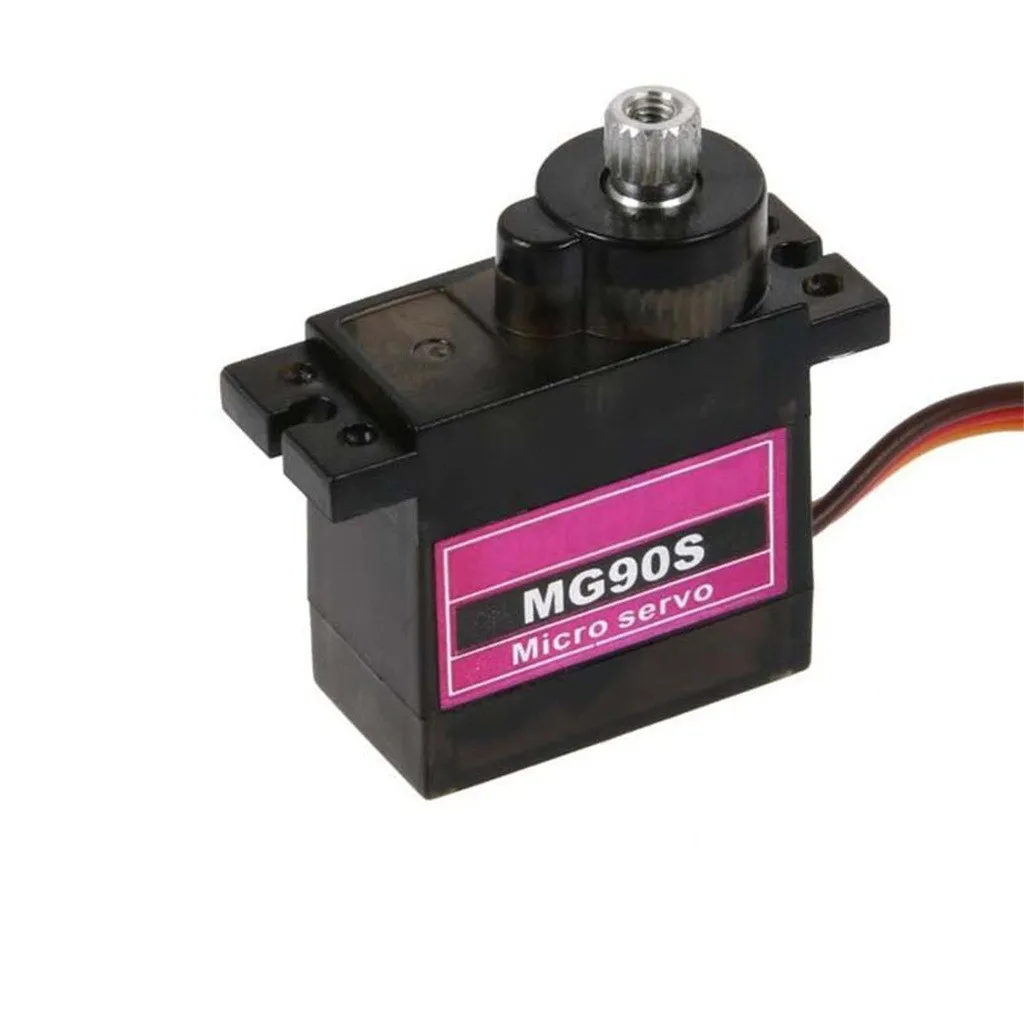

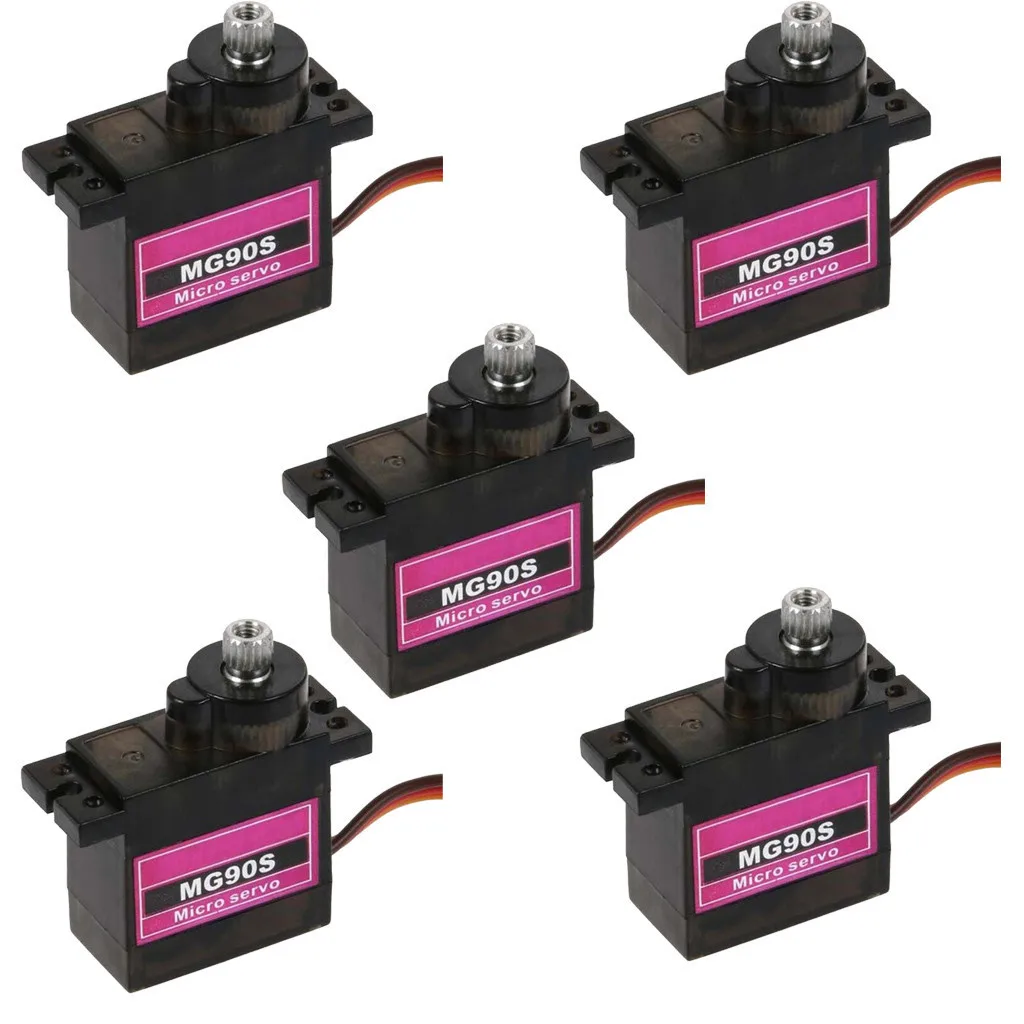

MG90S Mini Servo for RC Models – 14g Metal Gear

Description

MG90S Mini Servo for RC Models – 14g Metal Gear

Feature:

MG90S micro servo motor updated SG90 servo motor. Metal Gear / Full Ball Bearing / Light Weight / Less Noise
Mini micro Servo 450Dead bandwidth: 10usec.
Fit for ALL kinds of R/C Toys and also make electronics DIY based on Arduino, Raspberry Pi, etc.
Gear Micro Servo Motor For Robot Plane Helicopter Boat Car Horns Servo Remote controlled aircraft for DIY.
The model is suitable for ordinary small electric aircraft models and is not recommended in large fixed-wing and electric helicopters.
The use of superior waterproof ABC hardshell. If you encounter heavy rain in the wild, you needn’t worry about the drone getting wet. great perfectly to protect your UAV does not suffer any damage.

Specifications:

Dimensions: 23 x 12.2 x 29mm
Operating Speed (4.8V no load): 0.11sec / 60 degrees
Operating Speed (6.0V no load): 0.10sec / 60 degrees
Stall Torque (4.8V): 2.0 kg/cm
Stall Torque (6.0V): 2.5 kg/cm
Temperature Range: 0 to 55 degrees C

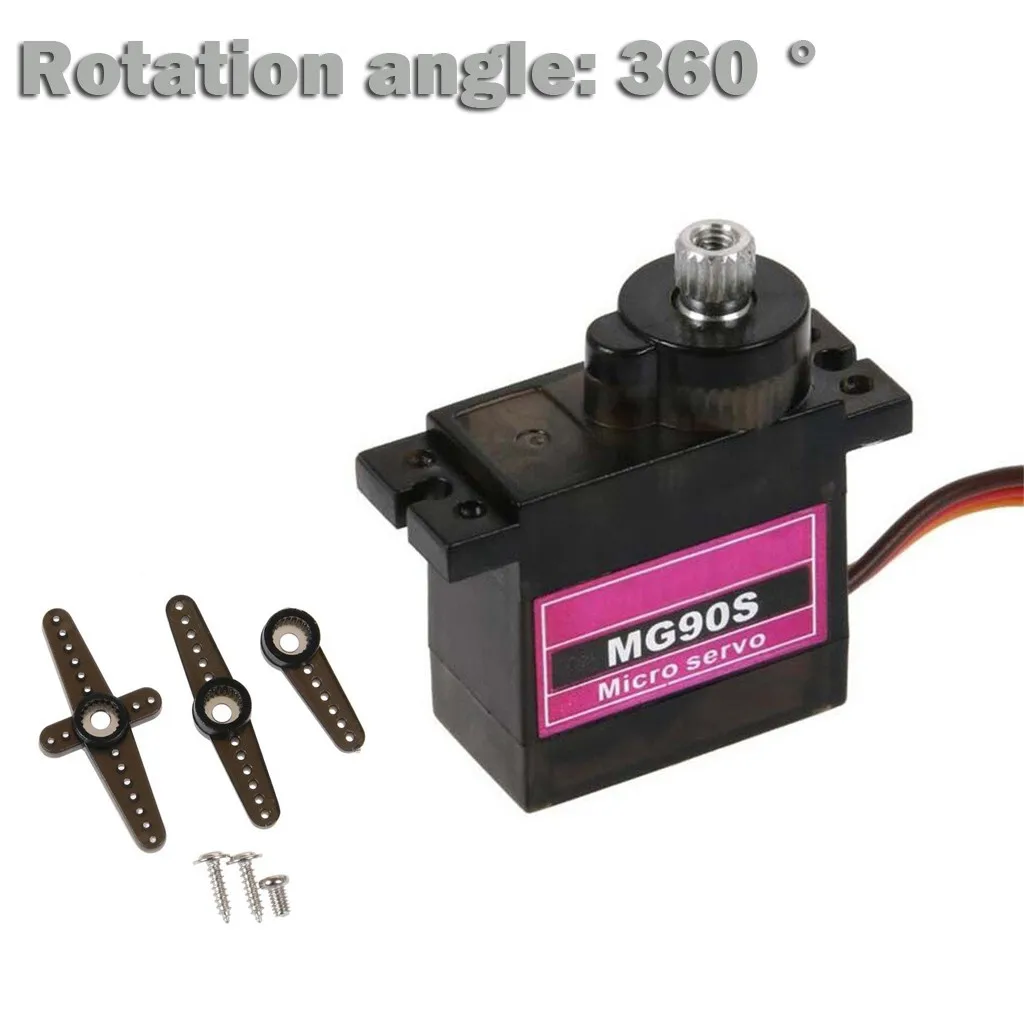

Rotation angle: 360 °
Dead Band Width: 15 Microsecond
Operation Voltage: 4.8 – 6.0 Volts
Recommend Model: Mini Car / Mini Ship /Helicopter & Airplane

Note:

Please allow 0-3cm difference due to manual measurement。
Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures.
Thank you for your understanding, nice day!

Package Contents:

1 pc MG90S RC Metal Gear Speed & Torque Micro Servo
