MeLE Fanless Mini PC Stick Windows 11 Dual HDMI 4K

Description

MeLE Fanless Mini PC Stick Windows 11 Dual HDMI 4K

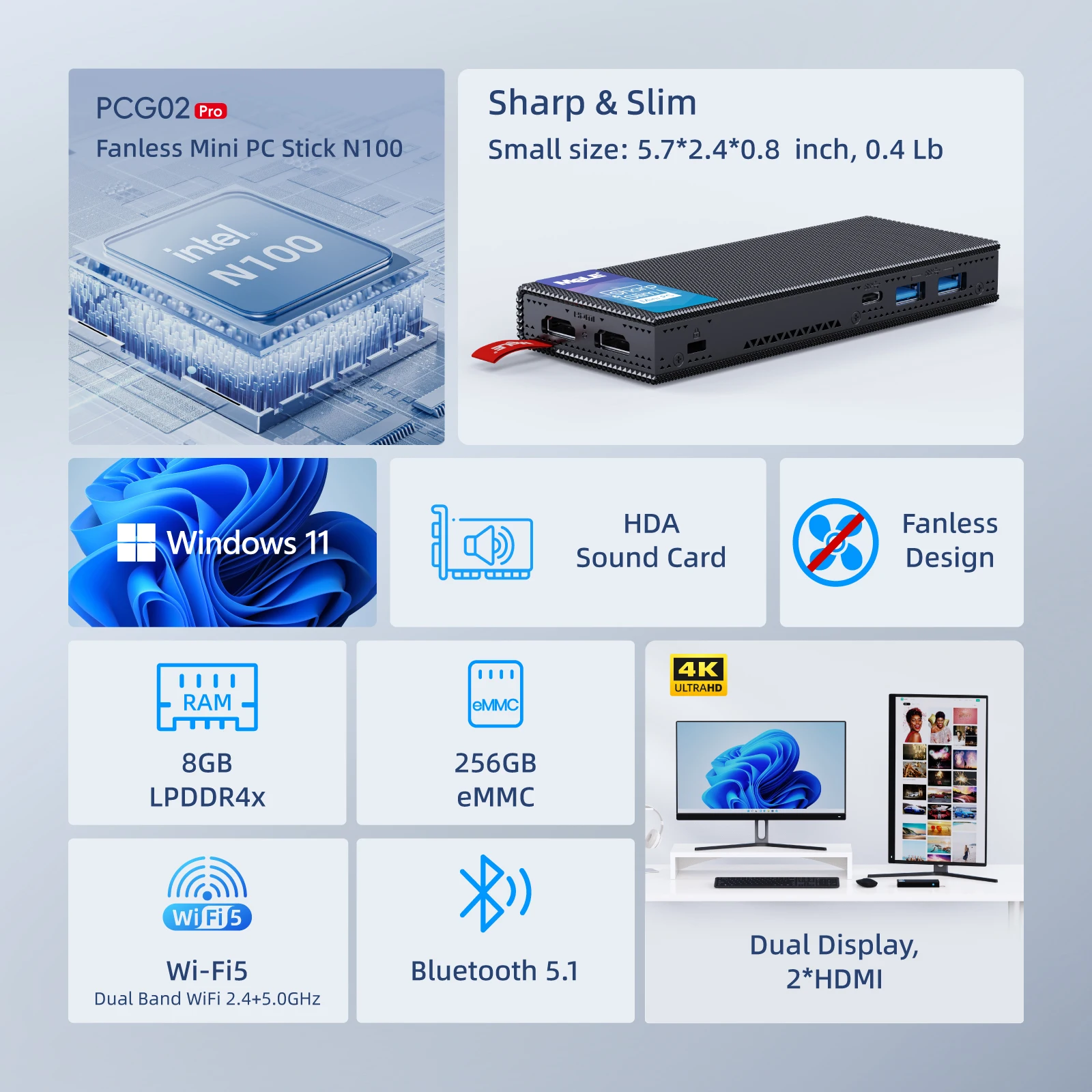

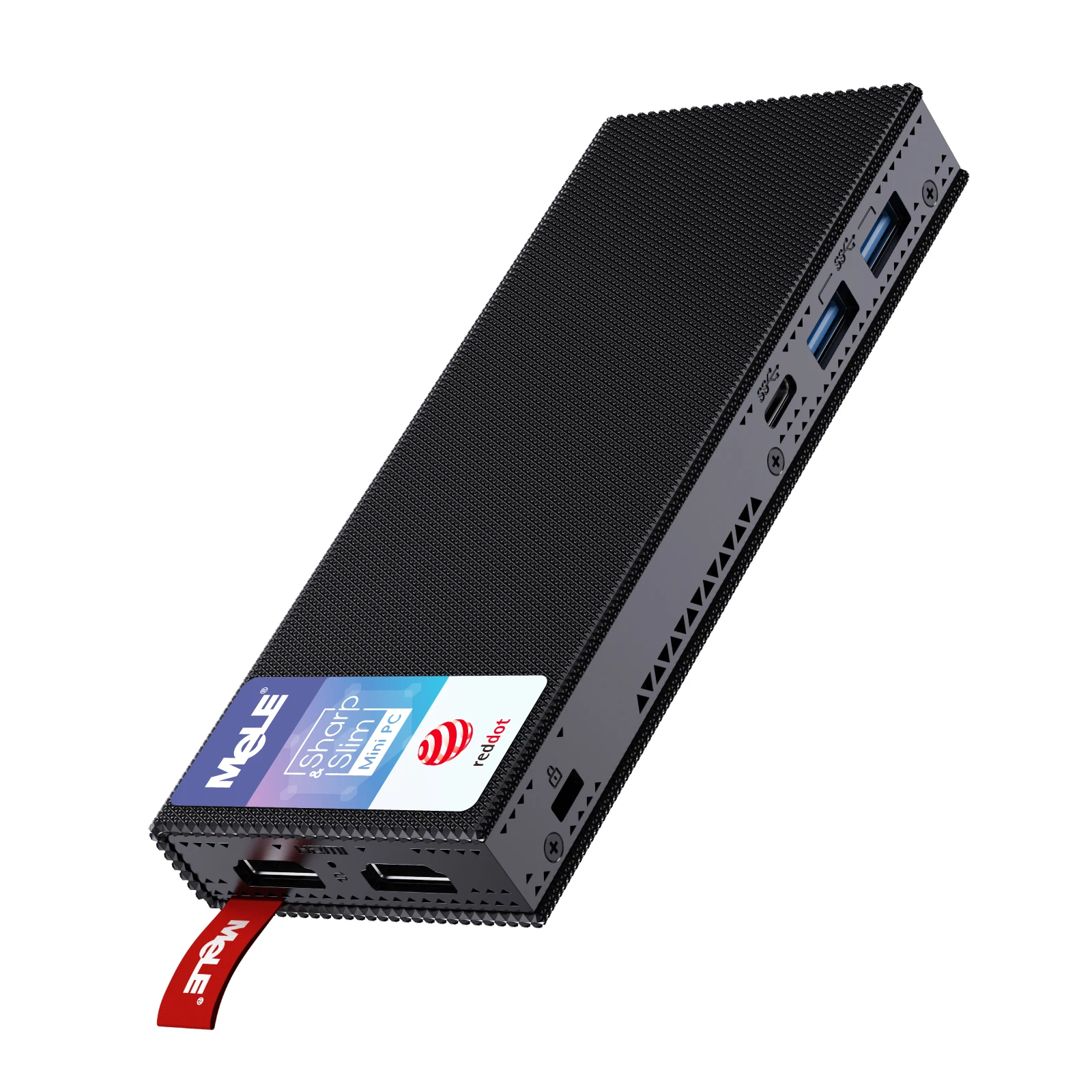

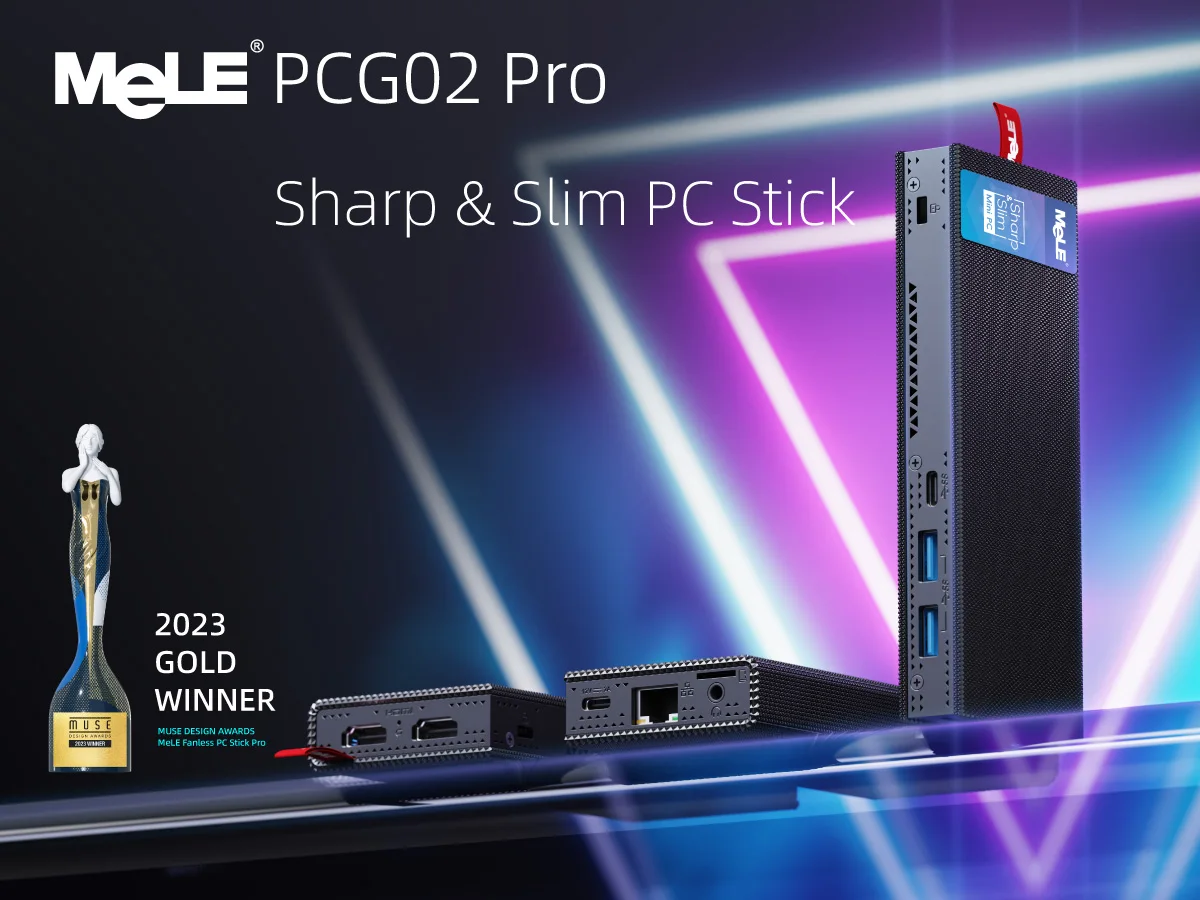

PCG02 Pro: High-Performance Low Power Fanless Mini PC Stick

Pay Celeron Mini PC Stick cost and get Core i7-5500U, i5-6200U, or i3-7100U Mini PC performance.

MeLE PCG02 Pro fanless mini PC stick is designed with no fan, utilizing a patented design and high heat-dissipation plastic case on the Intel X86 platform. It is small, powerful, reliable, and energy-efficient, ensuring 24/7 silent operation with low power consumption. It is widely used for home entertainment, office work, digital signage, media playback, and IoT intelligent systems. The device provides a quiet environment and saves space.

MeLE PCG02 Pro supports dual 4K displays and offers a stable internet connection via a Gigabit LAN port and dual-band Wi-Fi (5GHz/2.4GHz). It comes preinstalled with an official Windows OS, ensuring functionality and consistent software updates from Microsoft.

Easy to install, it can be placed horizontally, vertically, or mounted on the back of an HDTV or monitor using a VESA mount.

Specifications

Processor & OS

• Intel Celeron Quad-Core Processor:
• J4125 (2.0~2.7 GHz), Intel UHD Graphics
• N5105 (2.0-2.9 GHz), Intel UHD Graphics
• Operating System: Pre-installed Windows 11 Pro (64-bit); Supports Linux, Ubuntu
• Languages: Preinstalled in multiple languages including English, Spanish, Russian, French, German, Italian, Portuguese, Polish, Dutch, Swedish, Japanese, Korean, Arabic, Hebrew, and more (100+ languages supported)
• BIOS: Supports Wake on LAN, PXE, BIOS One-Step Reset, Auto Power On, RTC Wake-up

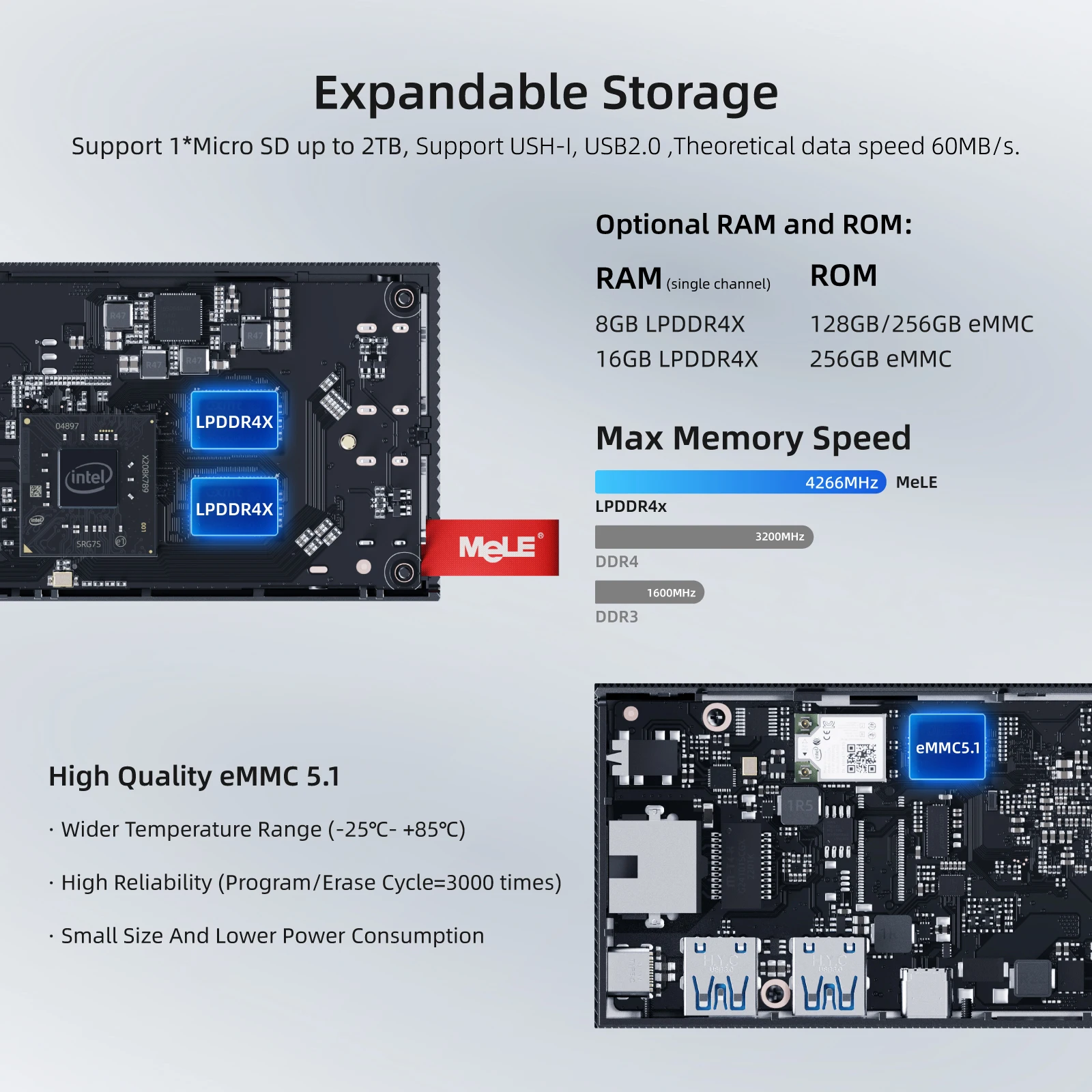

Storage

• Memory: 4GB/8GB LPDDR4
• Storage: 64GB/128GB/256GB/512GB onboard
• Expandable Storage: Supports MicroSD card up to 2TB

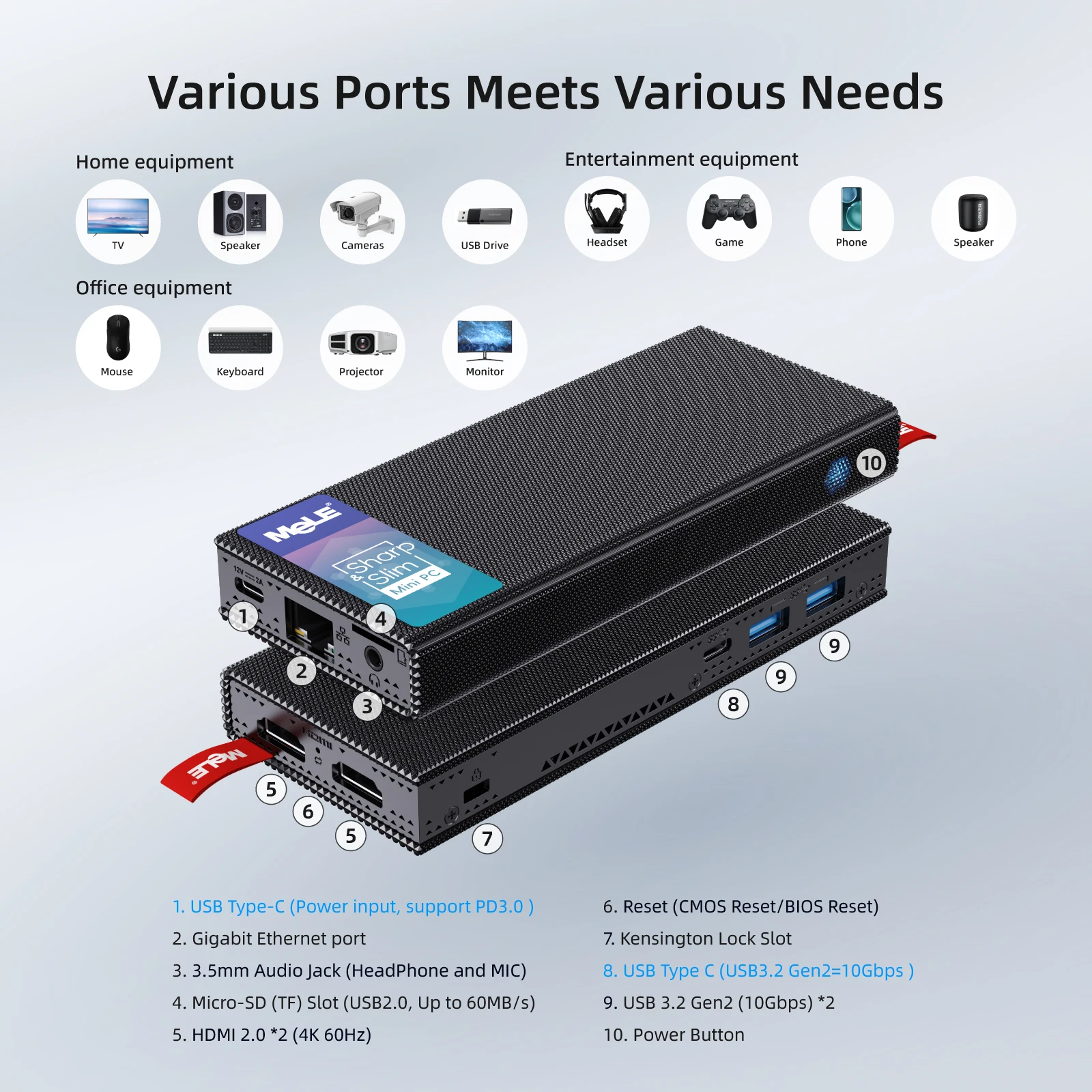

I/O Specification

• 2x USB 3.2 Gen2 (for N100/N5105)
• 2x USB 3.2 Gen1 (for J4125)
• 2x HDMI ports (HDMI 2.0, supports 4K@60Hz)
• 1x Type-C
• 1x 3.5mm Audio combo jack
• 1x MicroSD Card Slot
• 1x Gigabit LAN Port
• 1x Kensington Lock Slot

Network and Wireless Connection

• J4125: Wi-Fi 5 (802.11a/b/g/n/ac) Dual Band (2.4GHz/5GHz) & Bluetooth 4.2
• N5105/N100: Wi-Fi 5 (802.11a/b/g/n/ac) Dual Band (2.4GHz/5GHz) & Bluetooth 5.1
• 1x Gigabit LAN Port

Product Dimensions & Weight

• Dimensions: 2.4 x 0.79 x 5.75 inches (14.6 x 6.1 x 2 cm)
• Weight: 0.74 lb (182g)

Power Supply

• Input: AC 100-240V
• Output: DC 12V/2A

Package Includes

• 1x Mini PC Stick
• 1x Power Supply with EU/US/UK/AU Adapters (adapters optional depending on sales regions)
• 1x User Manual
• 1x VESA Mount Kit

FAQ

Can it be powered by a power bank?

Yes, it supports USB PD3.0 technology and can be powered by a power bank, power station, or other sources with an output of at least 24W and voltage range of 12V-23V.

How to reinstall Windows OS?

• Prepare a USB flash drive with the NTFS file system.
• Download the latest Windows image from the MeLE forum and extract the .zip file.
• Copy all system files to the root of the USB flash drive.
• Insert the USB flash drive into the Mini PC and connect a keyboard.
• Press the power button and continuously press F7 or Delete to access the boot menu.
• Select the USB flash drive to reinstall Windows OS.

How to enter BIOS settings?

Press the power button and continuously press F7 or Delete to access the boot menu, then select “Enter Setup” and press Enter.

How to activate Windows?

Windows 11 is preinstalled and will activate automatically when connected to the internet.

Can it run Linux Ubuntu?

Yes, it supports Linux Ubuntu OS.
