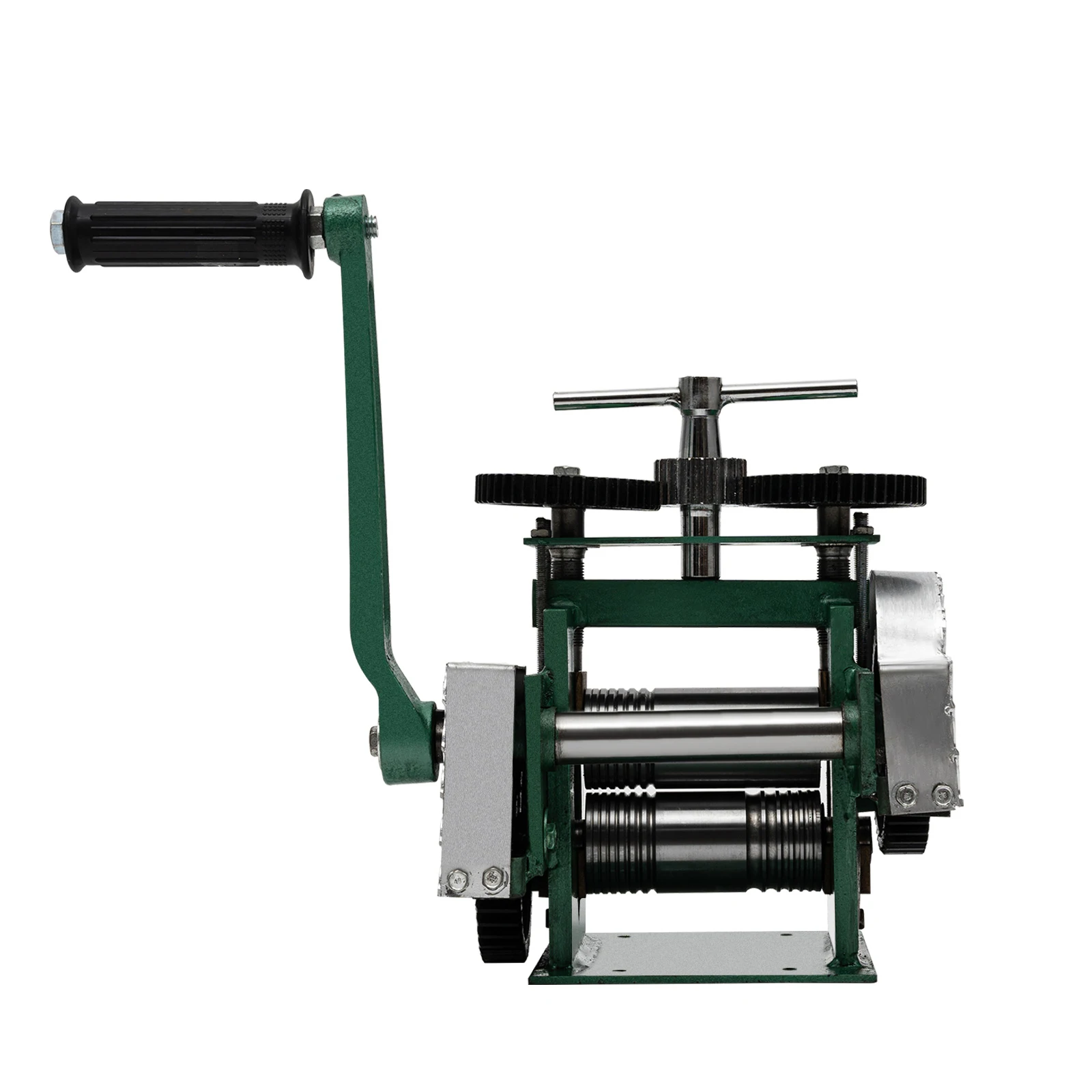

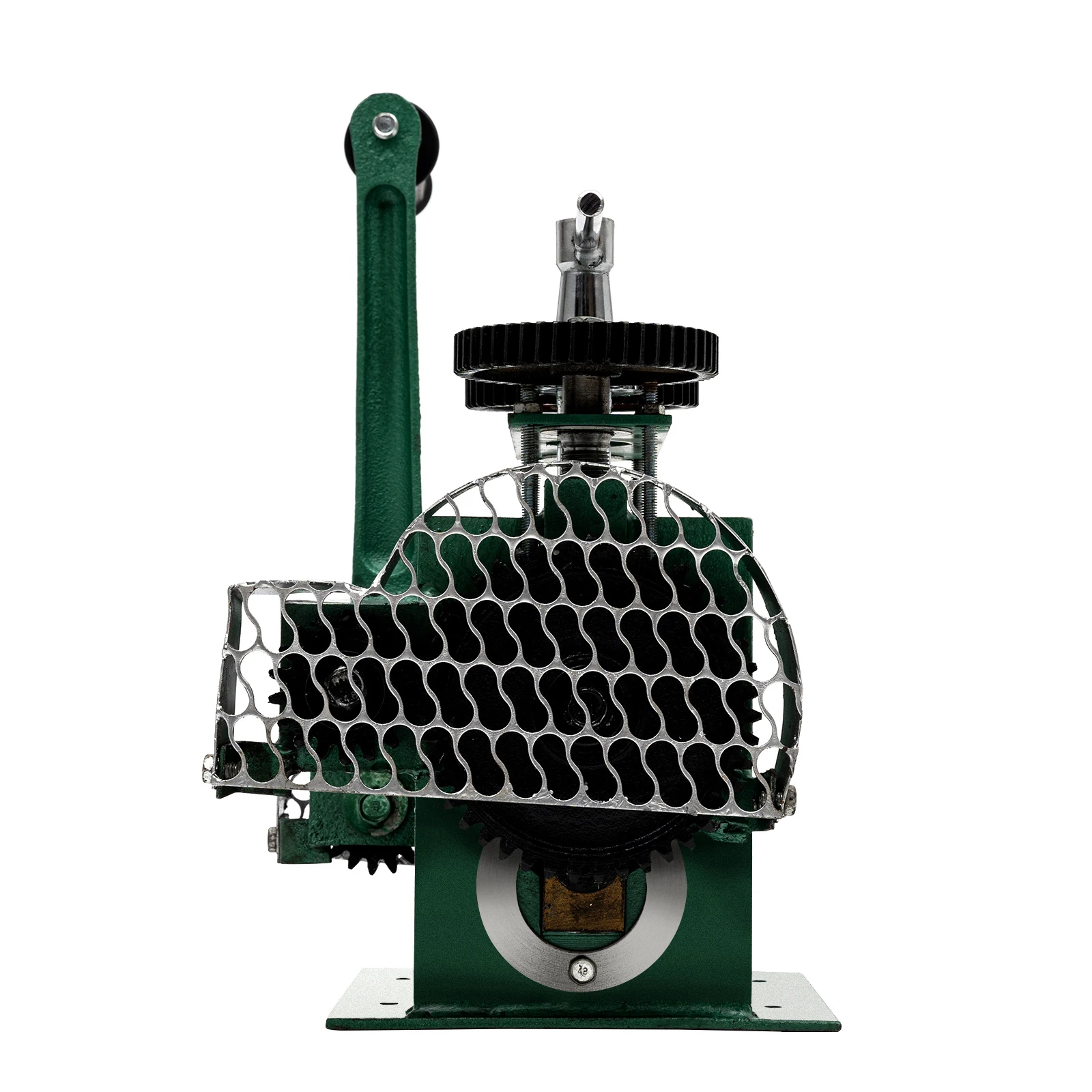

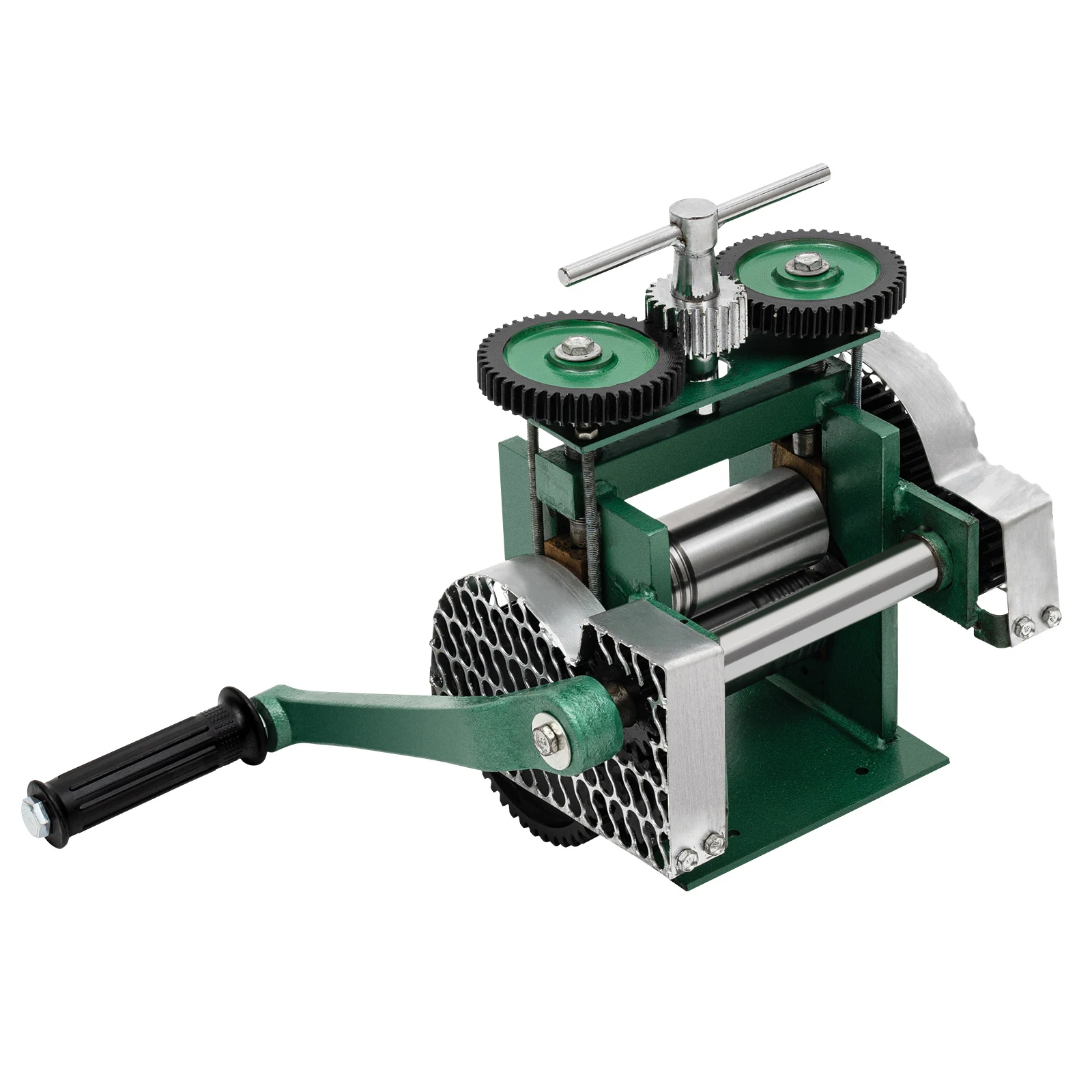

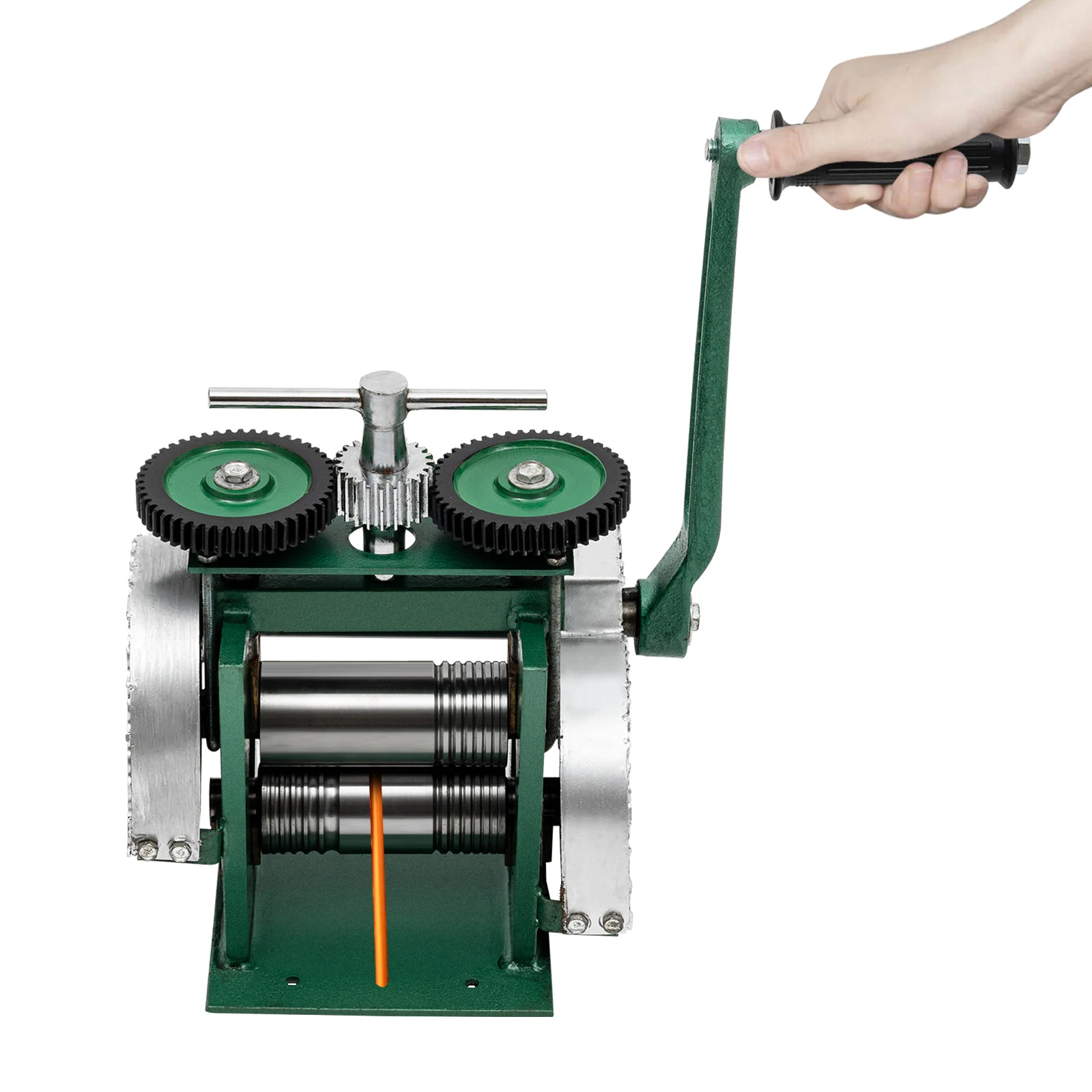

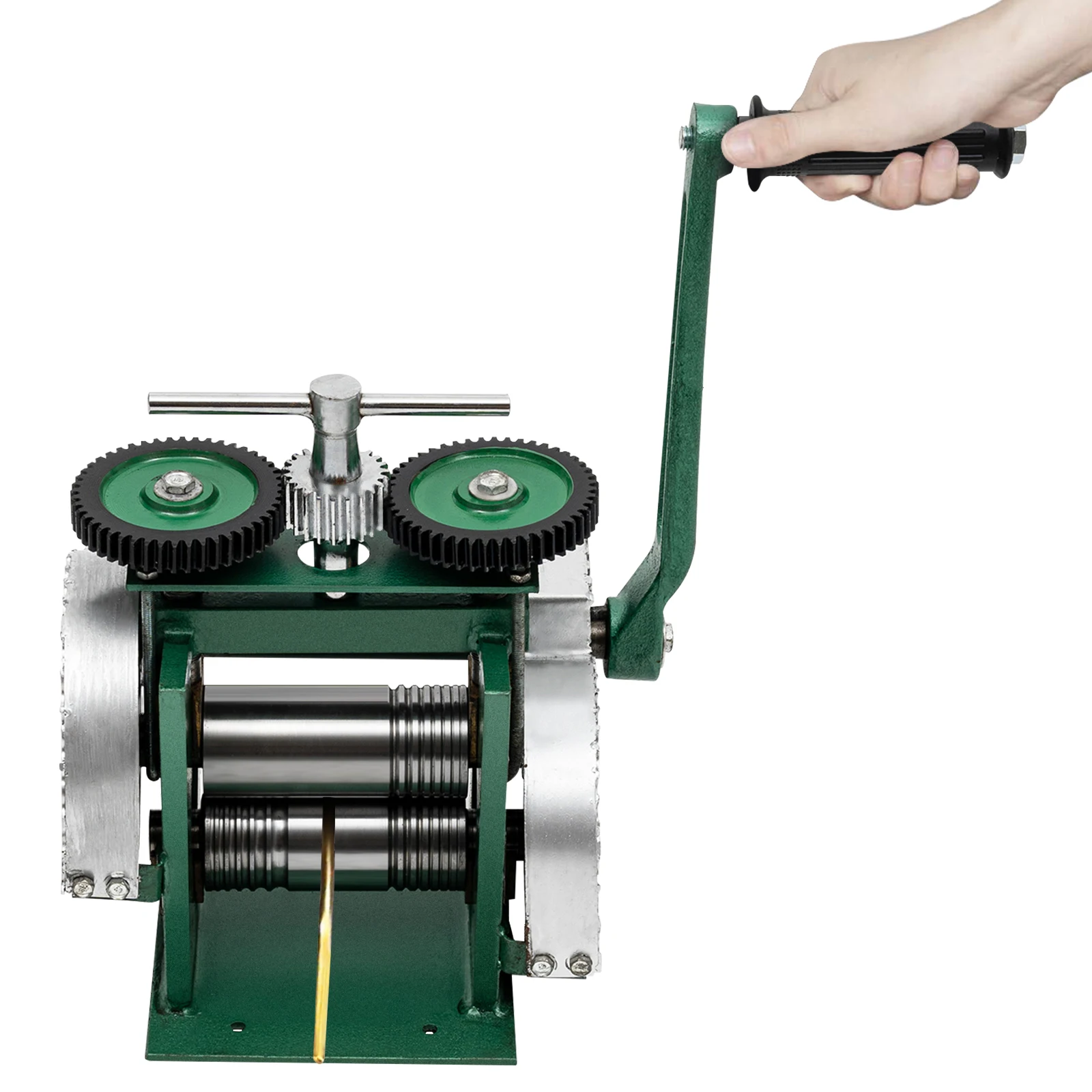

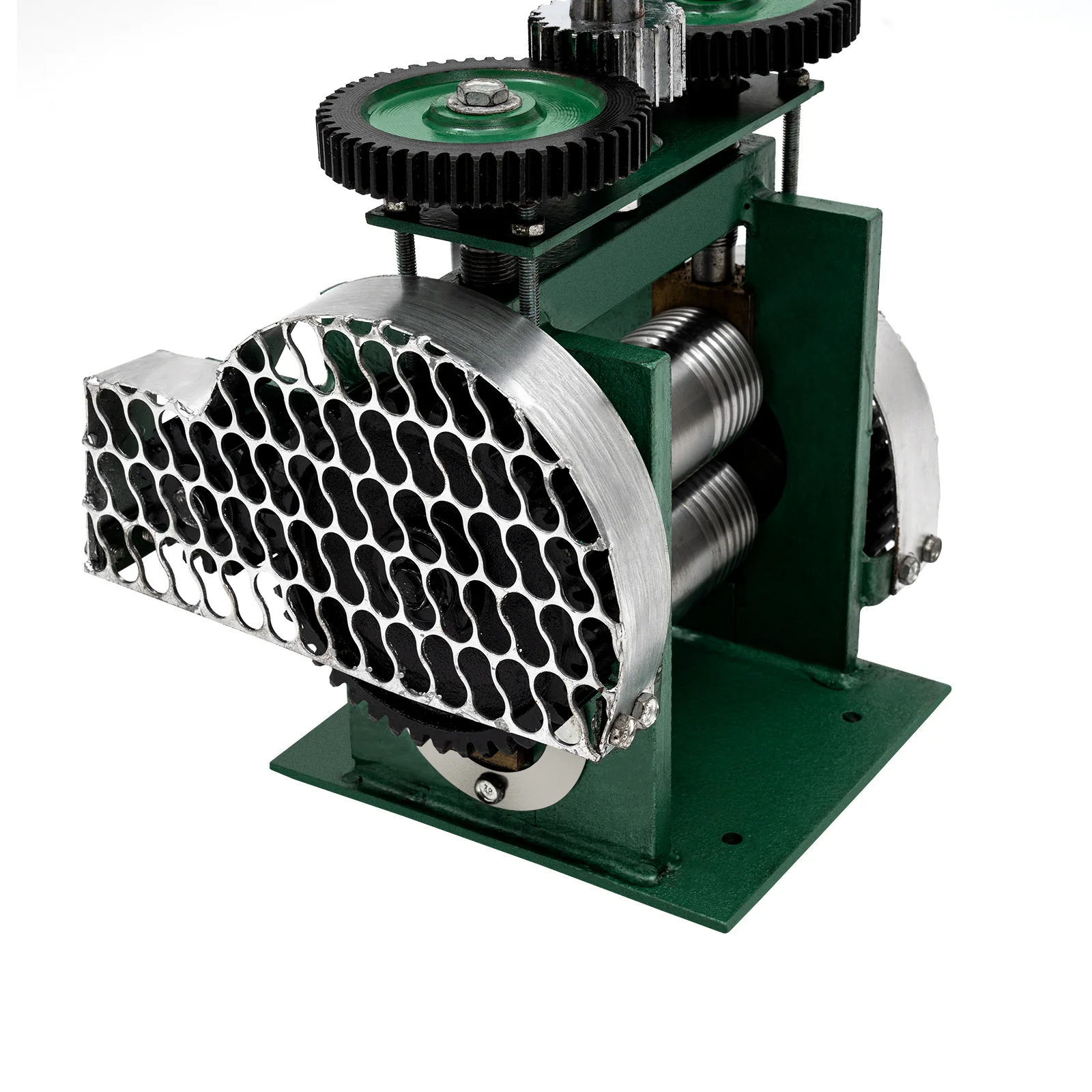

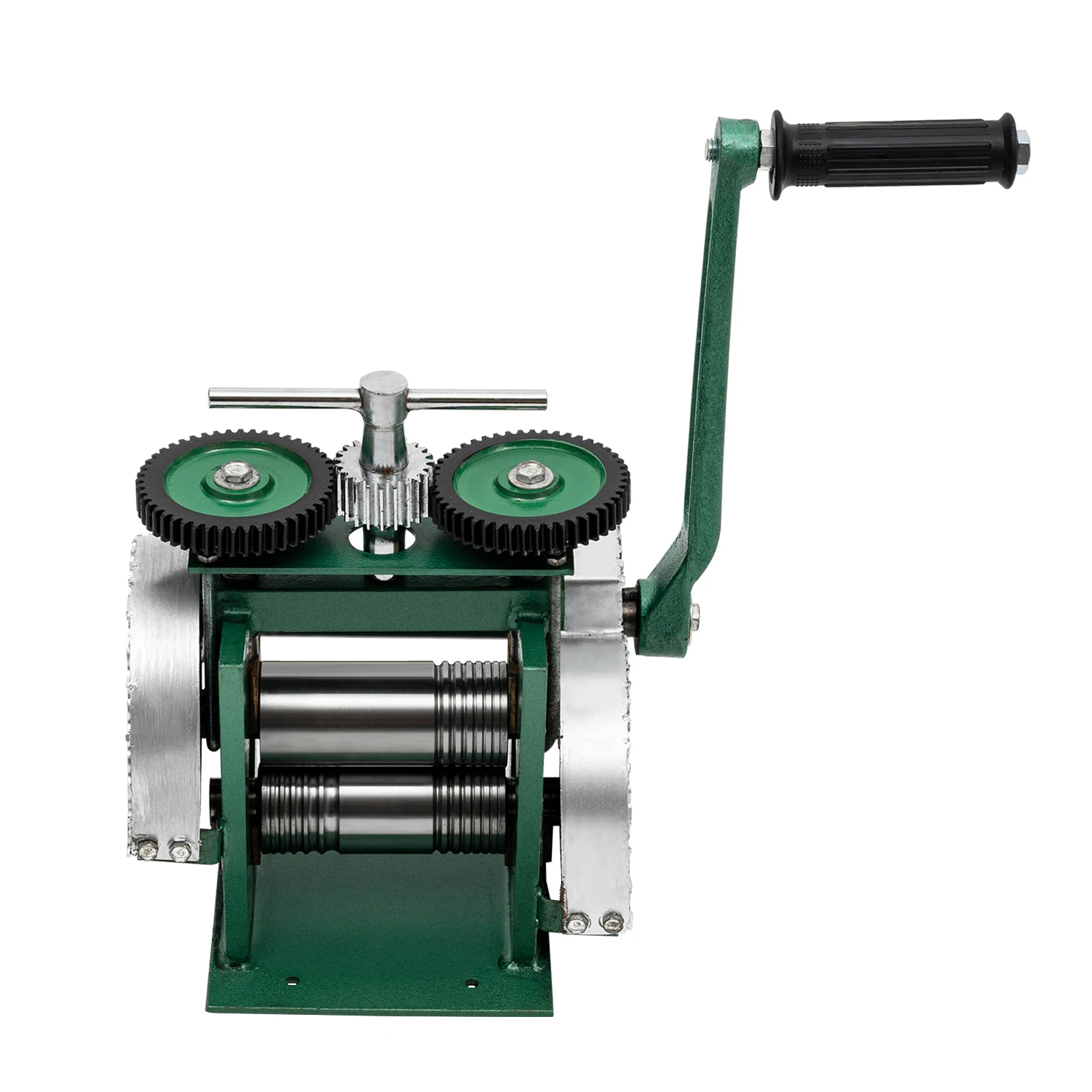

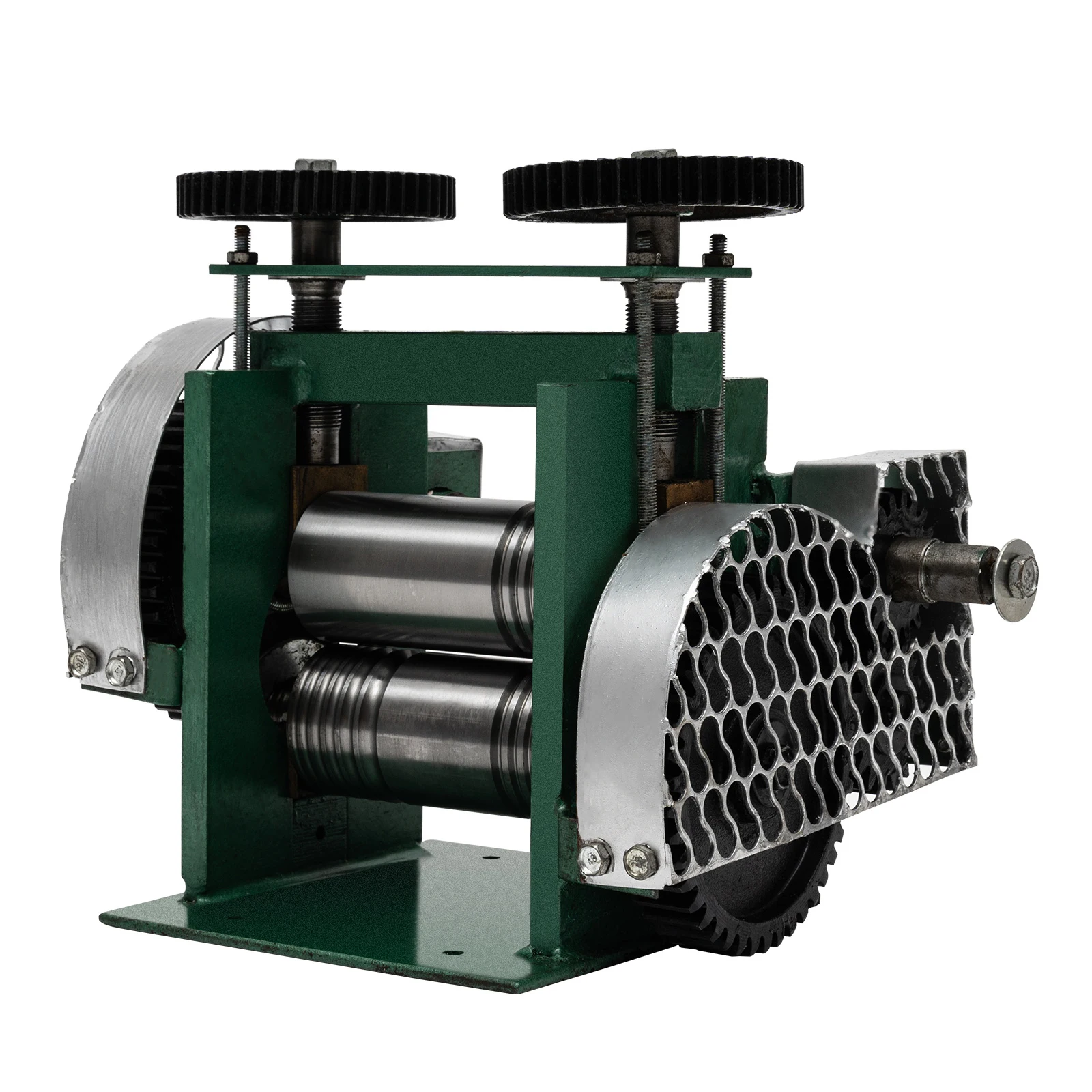

Manual Jewelry Rolling Mill 120mm Adjustable Press
Application

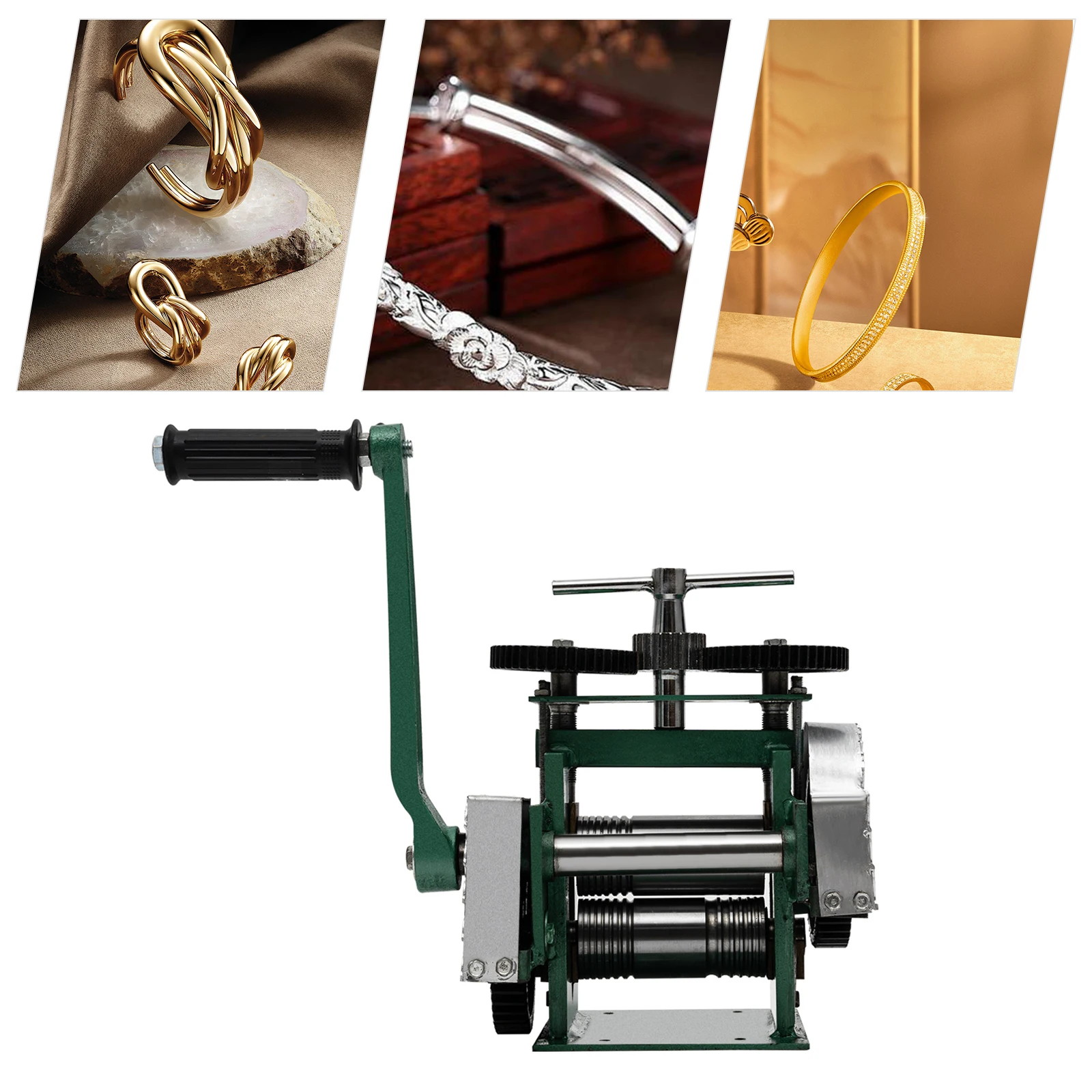

This jewelry rolling mill machine is used in the jewelry industry for processing gold, silver, copper, aluminum, and other tough metals. It is ideal for jewelers and craftsmen to make fine jewelry.
Specifications
- Color: Green

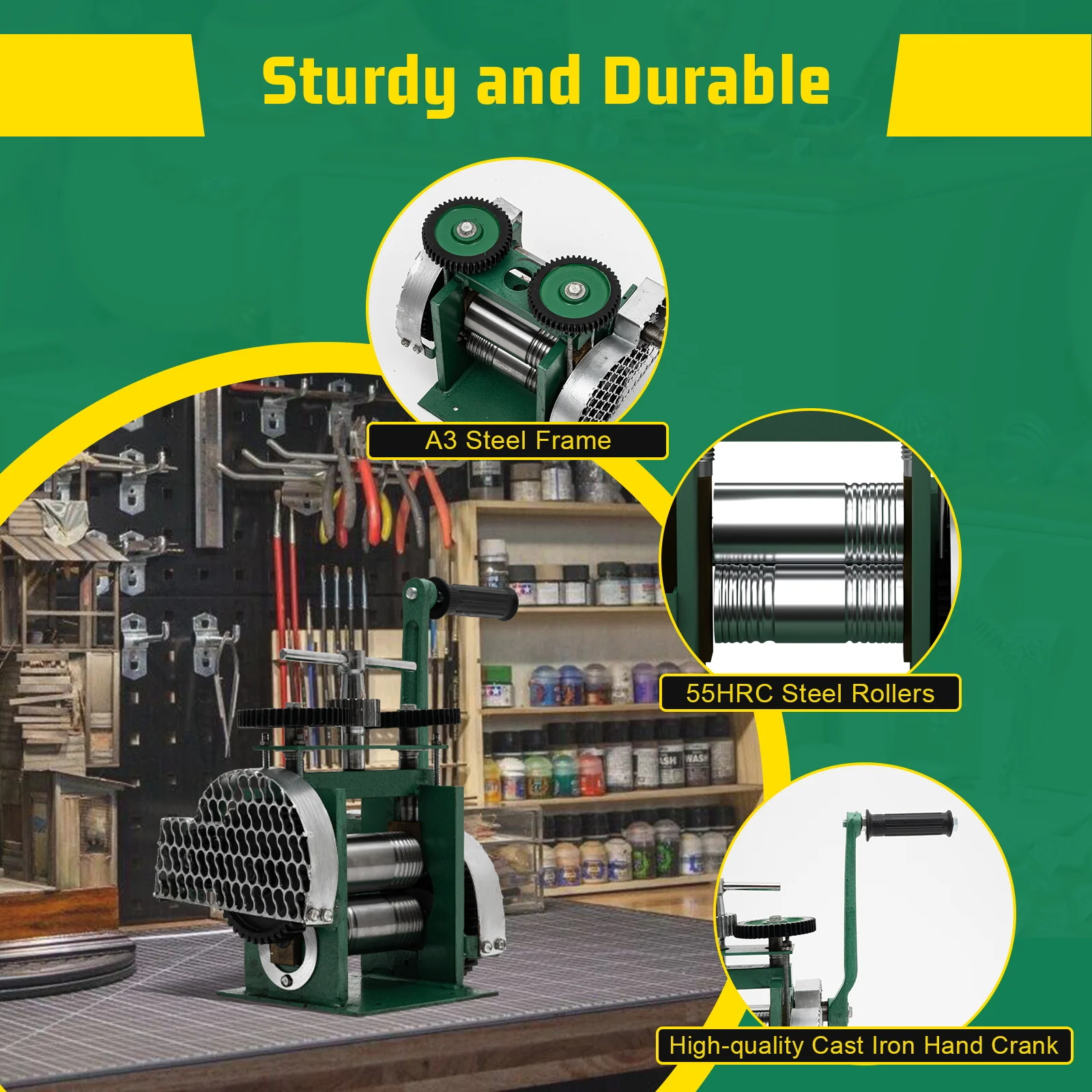

- Material: Cast iron, 55 HRC steel, A3 steel, ABS
- Treatment: Spray paint, heat treatment process
- Assembly required: Yes

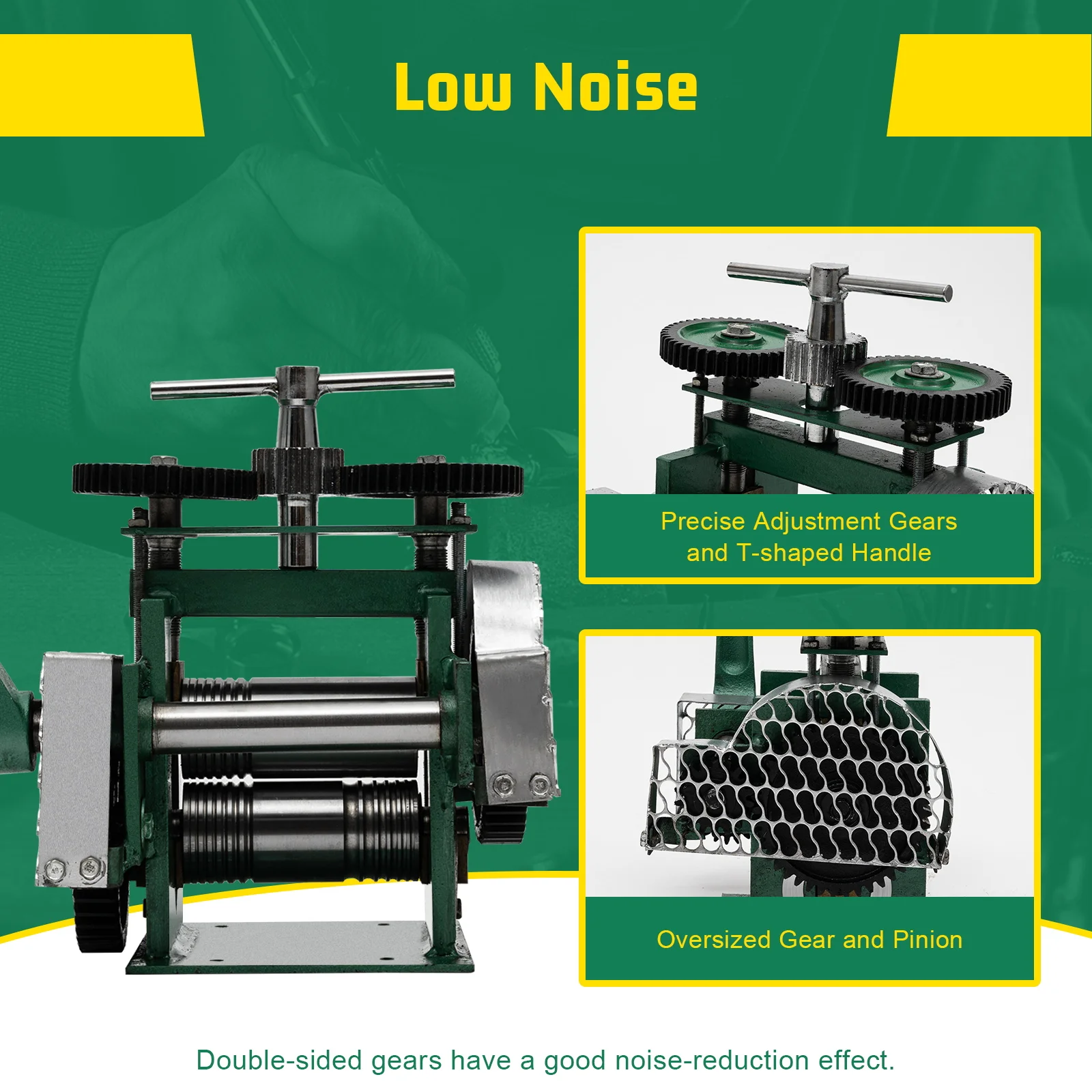

- Gear ratio: 2.4:1
- Thickest compressibility: 18 mm / 0.7 in
- Thinnest compressibility: 0.01 mm / 0.0004 in

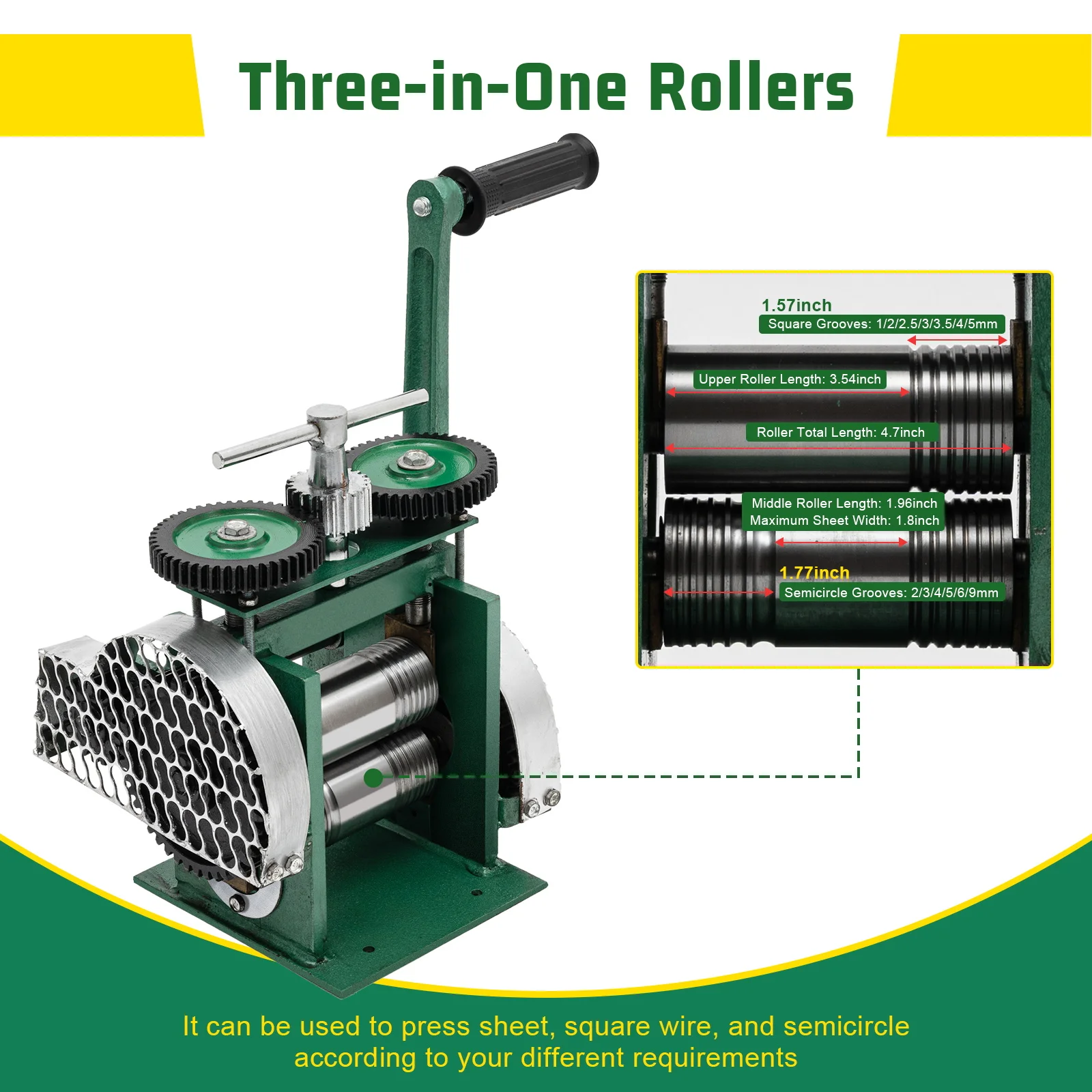

- Upper roller length: 9 cm / 3.54 in
- Middle roller length: 5 cm / 1.96 in
- Square groove width: 4 cm / 1.57 in
- Semicircle groove width: 4.5 cm / 1.77 in

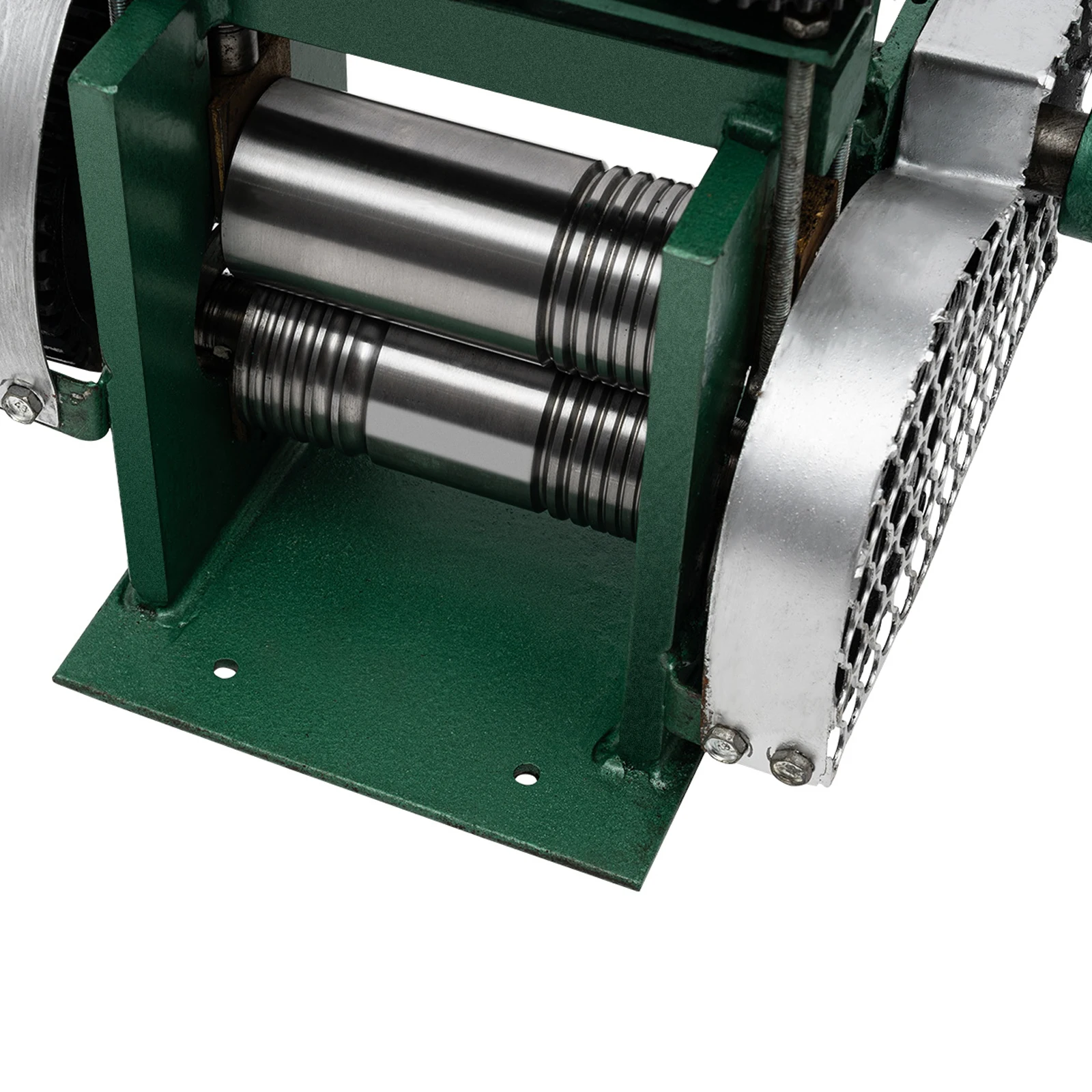

- Roller total length: 12 cm / 4.7 in
- Roller diameter: 5 cm / 1.96 in
- Space between rollers: 0-25 mm / 0-0.7 in
- Square wire sizes: 1 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 5 mm
- Semicircle wire sizes: 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 9 mm
- Maximum sheet width: 45 mm / 1.8 in

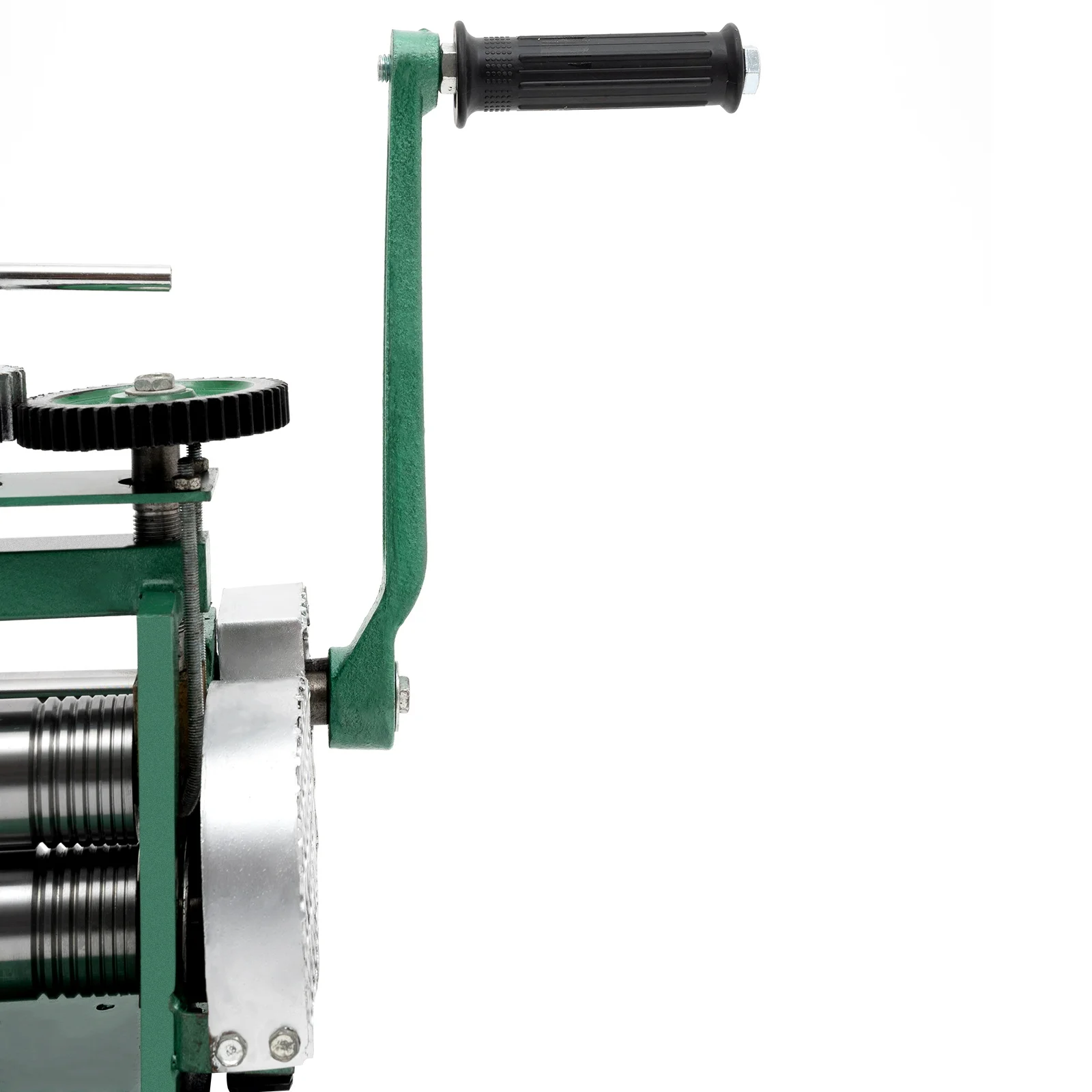

- Hand crank length: 29 cm / 11.4 in
- Gross weight: 18.35 kg / 40.5 lb
- Net weight: 17.55 kg / 38.7 lb

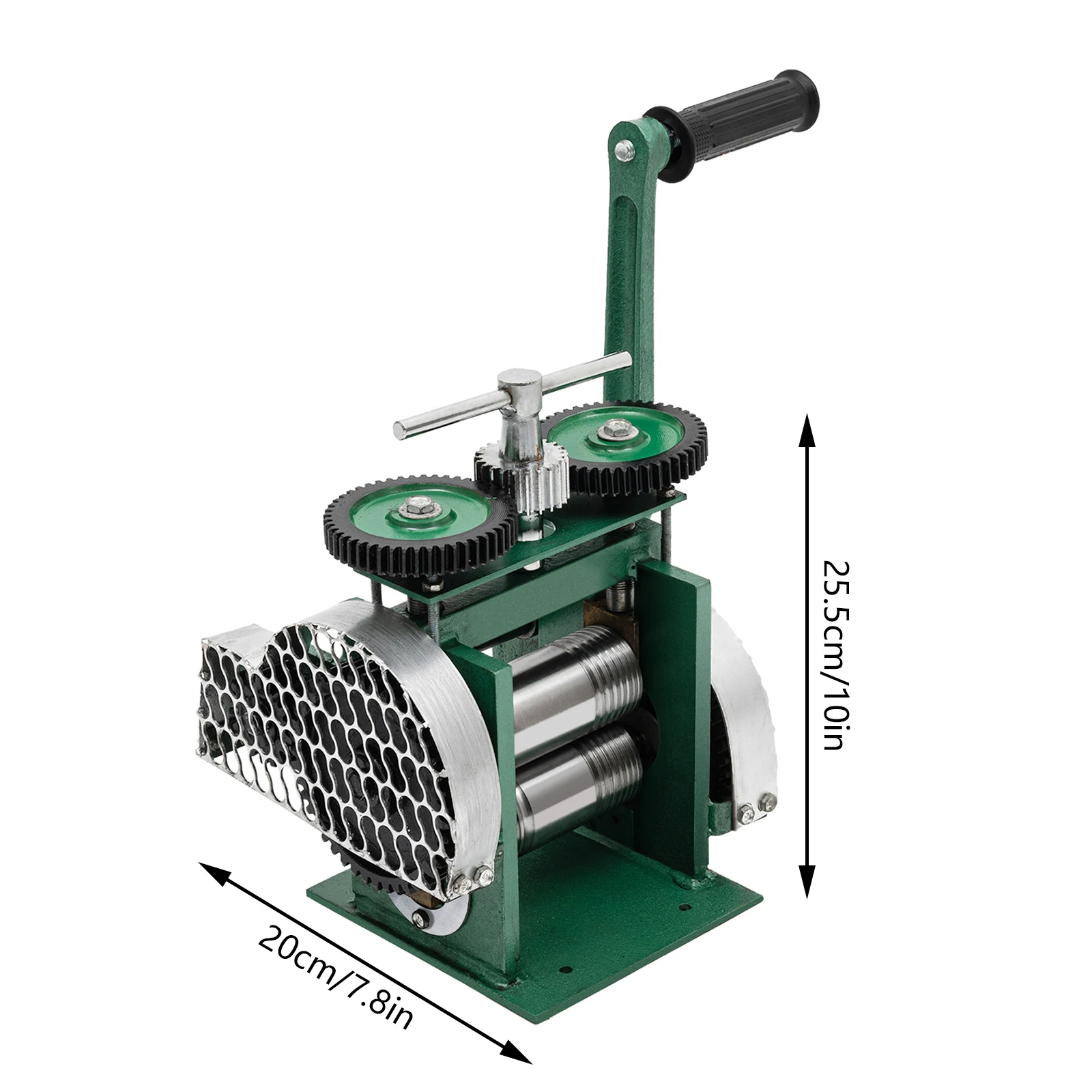

- Product size: 24.5 × 24 × 26 cm / 9.6 × 9.4 × 10.2 in
- Package size: 35 × 29 × 30 cm / 13.7 × 11.4 × 11.8 in

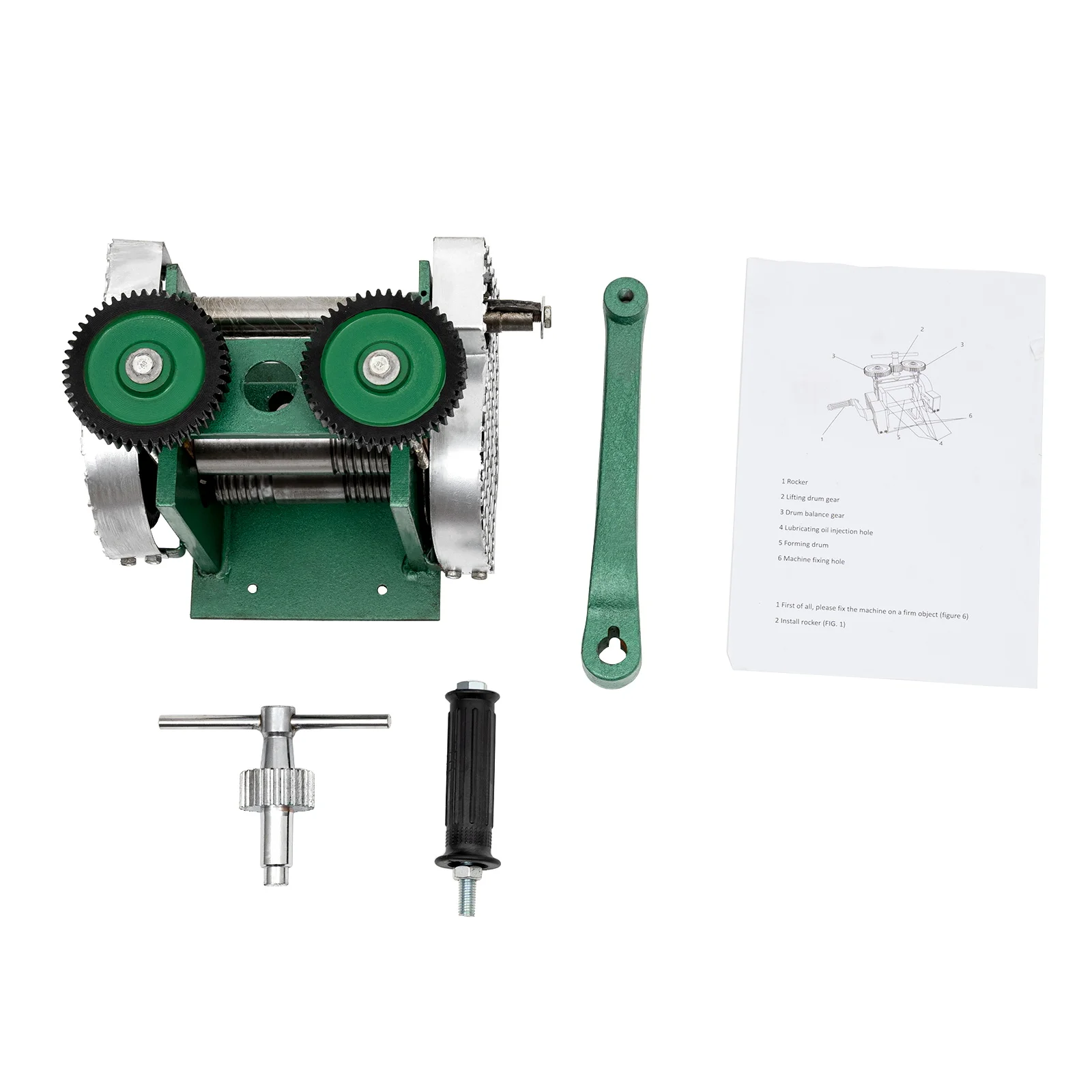

Package Included
- 1 × Rolling mill machine
- 1 × English manual
- All accessories for assembly
Notes
- Screws are not included.
- Add lubricating oil to the injection holes once or twice a day during use.
- Remove the plastic wrap from the rollers before first use.
- Slight color differences may occur due to lighting, and manual measurement may have a 1-3 cm variance.
