M.2 M-Key to SATA 6Gbps 5-Port Adapter
Feature:
1. Perfect Size for M.2 Interface: This riser card has a compact size of 22 x 80mm and is specifically designed to fit M.2 interfaces. Its dimensions make it compatible with various devices and allow for easy installation.
2. PCB Material: Made from high-quality PCB material, this expansion card offers excellent electrical performance and durability. It is designed to withstand regular use and provide long-lasting reliability.

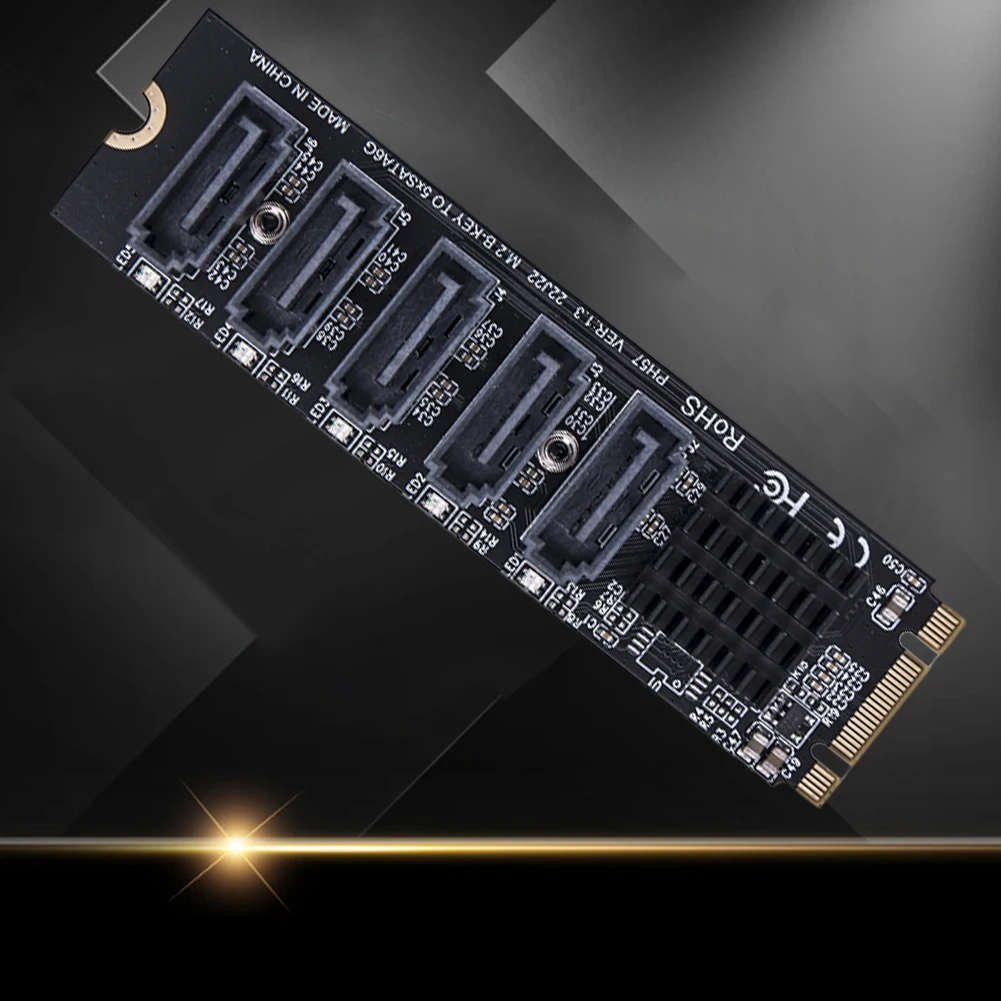

3. 5-Port M.2 NGFF to SATA3.0: Supporting a SATA3.0 6Gbps transfer rate, this adapter card requires motherboard support for PM port multiplier functionality. It uses the JMB575 chip and is compatible with macOS, Windows, and Linux systems.

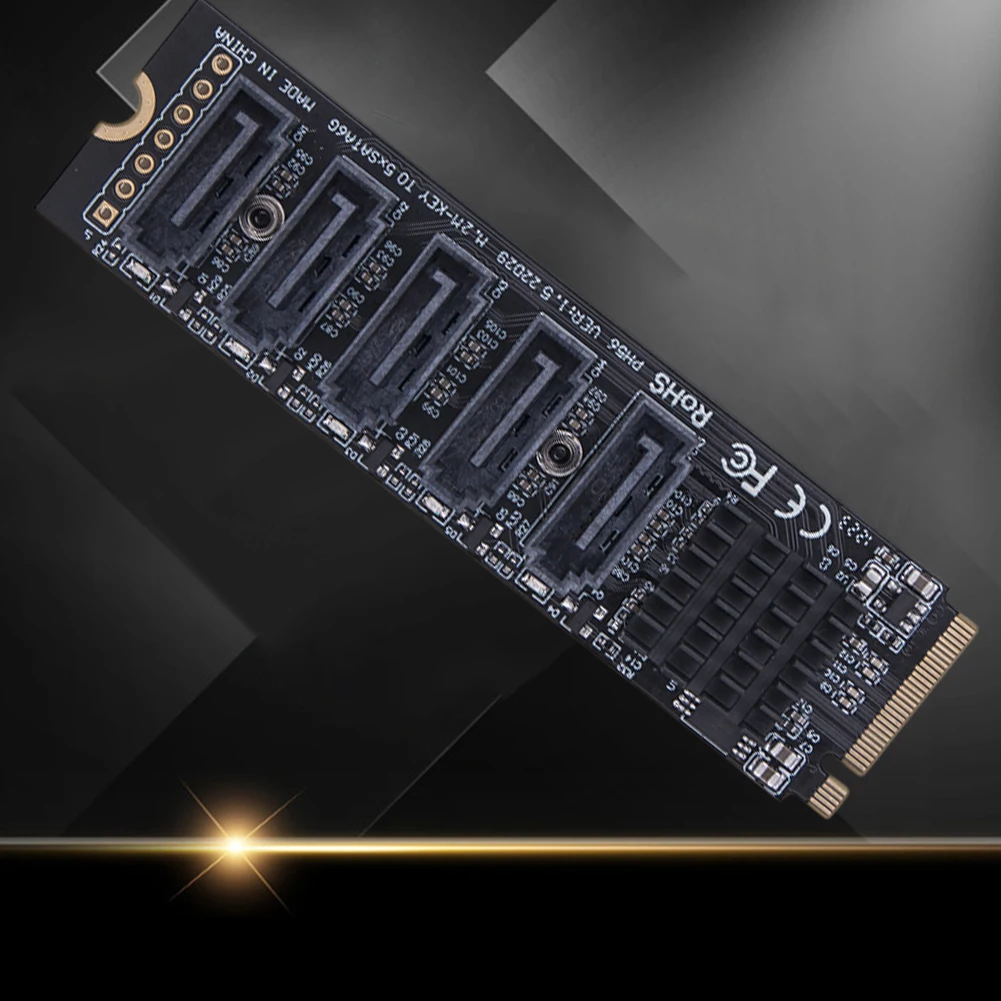

4. 5-Port M.2 NVME to SATA3.0: Using a PCI-E 3.0 x2 interface for upstream connectivity, this converter reaches a maximum transfer rate of 16Gbps. The downstream connection uses a SATA3.0 interface, supporting up to 6Gbps transfer rate per port. It uses the JMB585 chip and is compatible with macOS, Windows, and Linux systems.

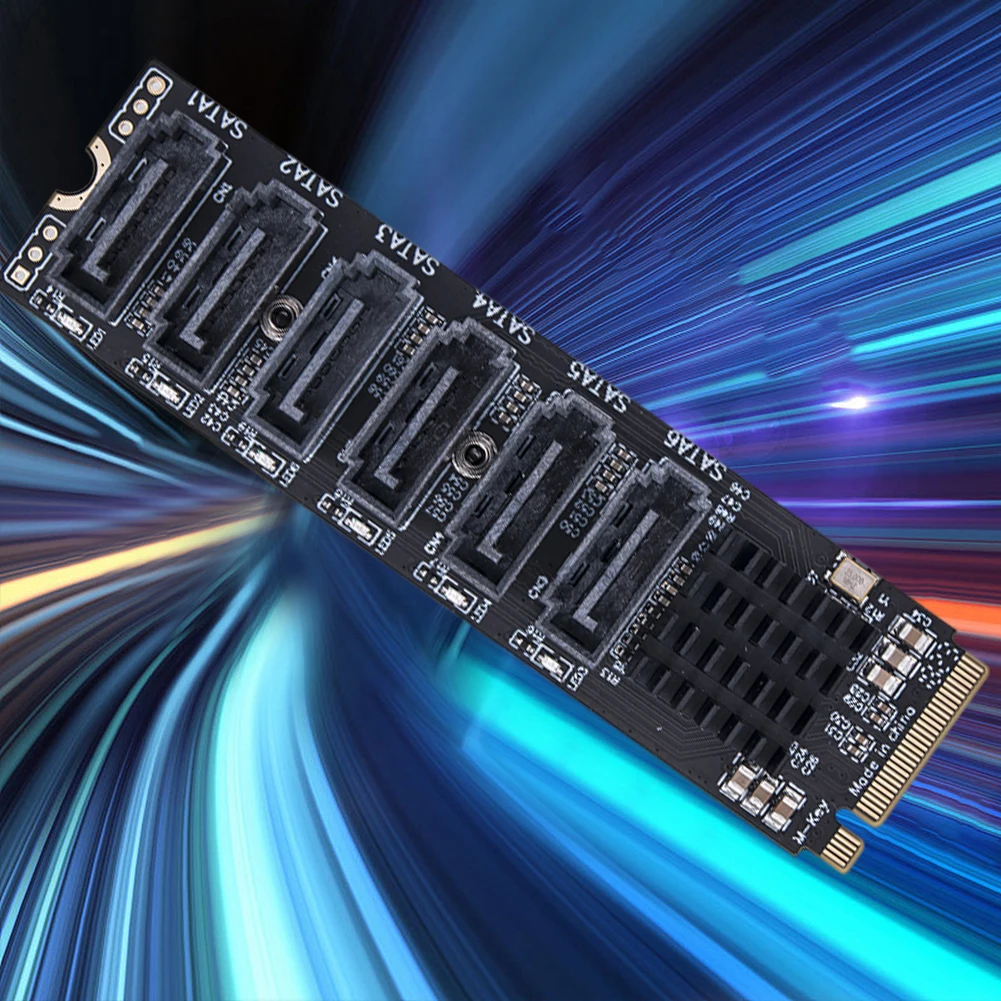

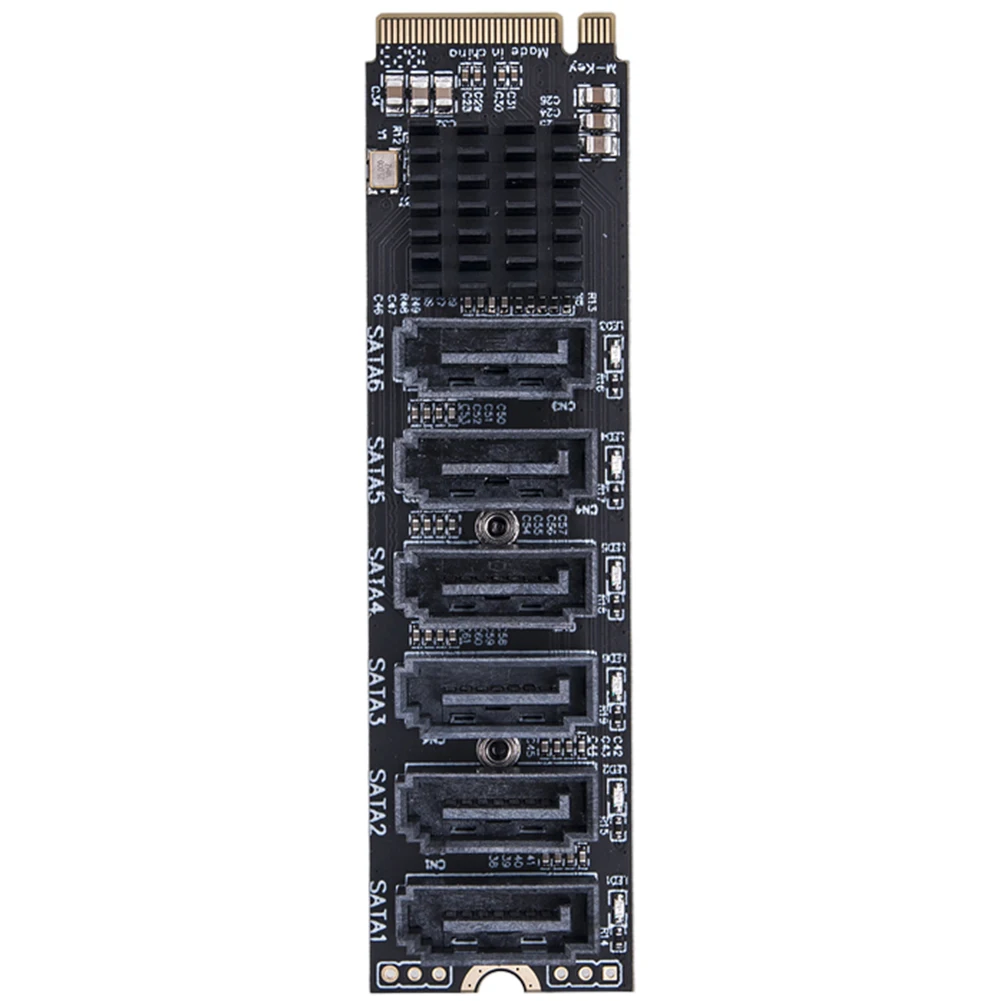

5. 6-Port M.2 NVME to SATA3: With a PCI-E 3.0 x2 interface for upstream connection, this SATA3.0 adapter reaches a maximum transfer rate of 16Gbps. The downstream connection uses ATA ports, each supporting transfer rates of up to 6Gbps. It uses the A6M1166I chip and is compatible with macOS, Windows, and Linux systems.
Specification:
Certification: NONE
Origin:
Type: Add On Cards
Model Number: Riser Card

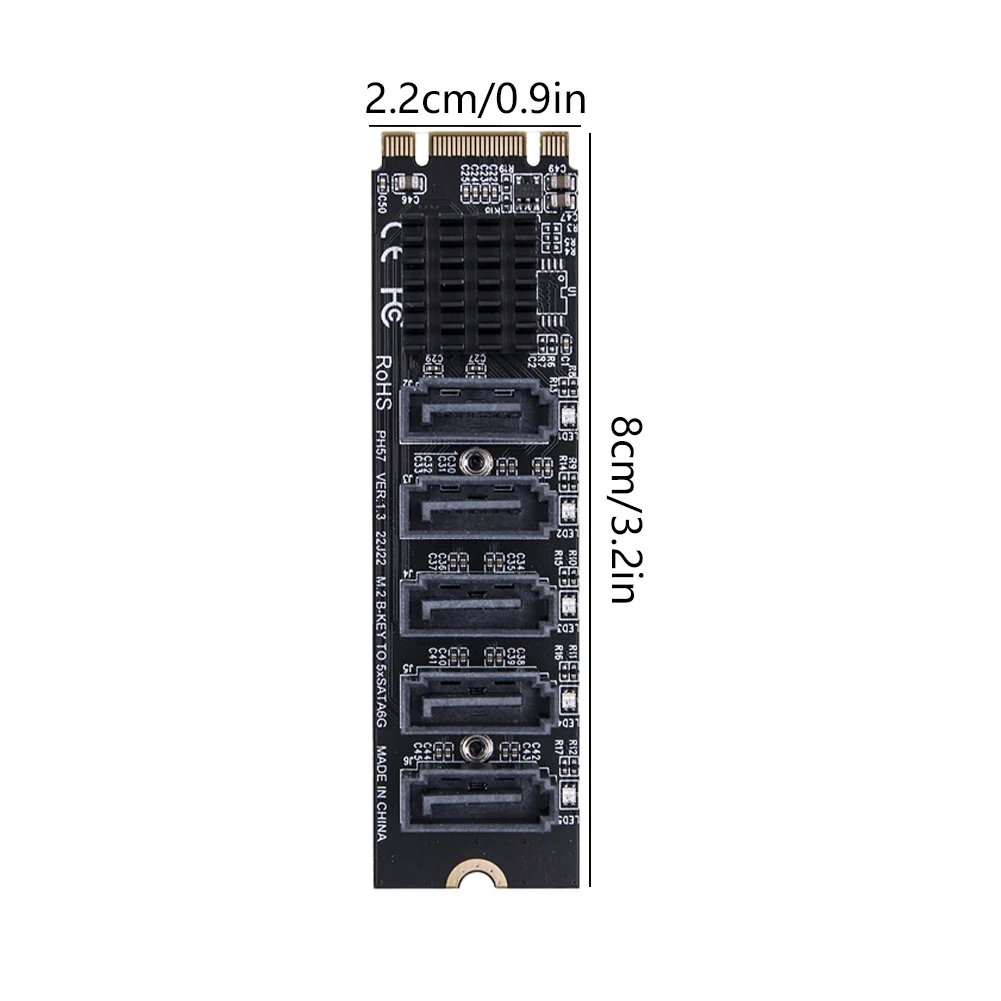

Size: 22 x 80mm or 0.8 x 3.1 inch
Material: PCB

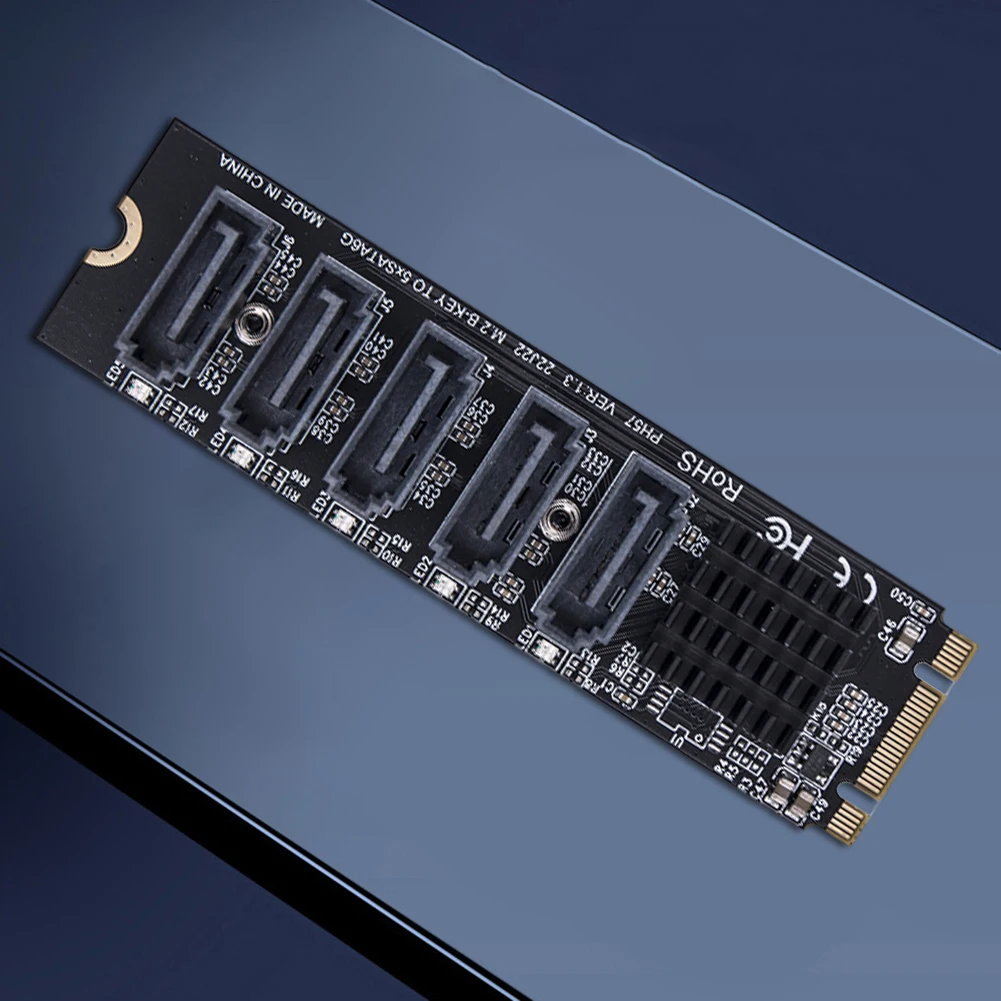

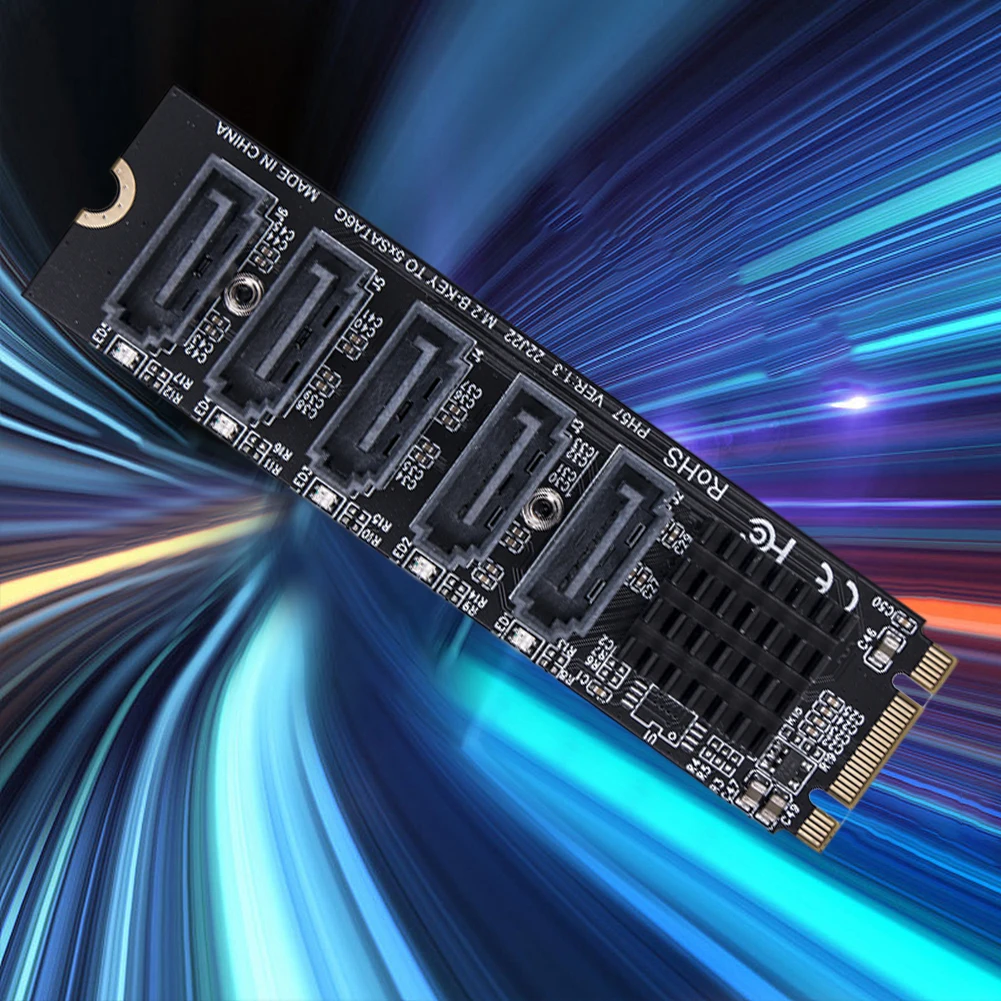

5-port M.2 NGFF to SATA3.0:
SATA3.0 6Gbps
Requires motherboard support for PM
Chip: JMB575
System: macOS, Windows, Linux

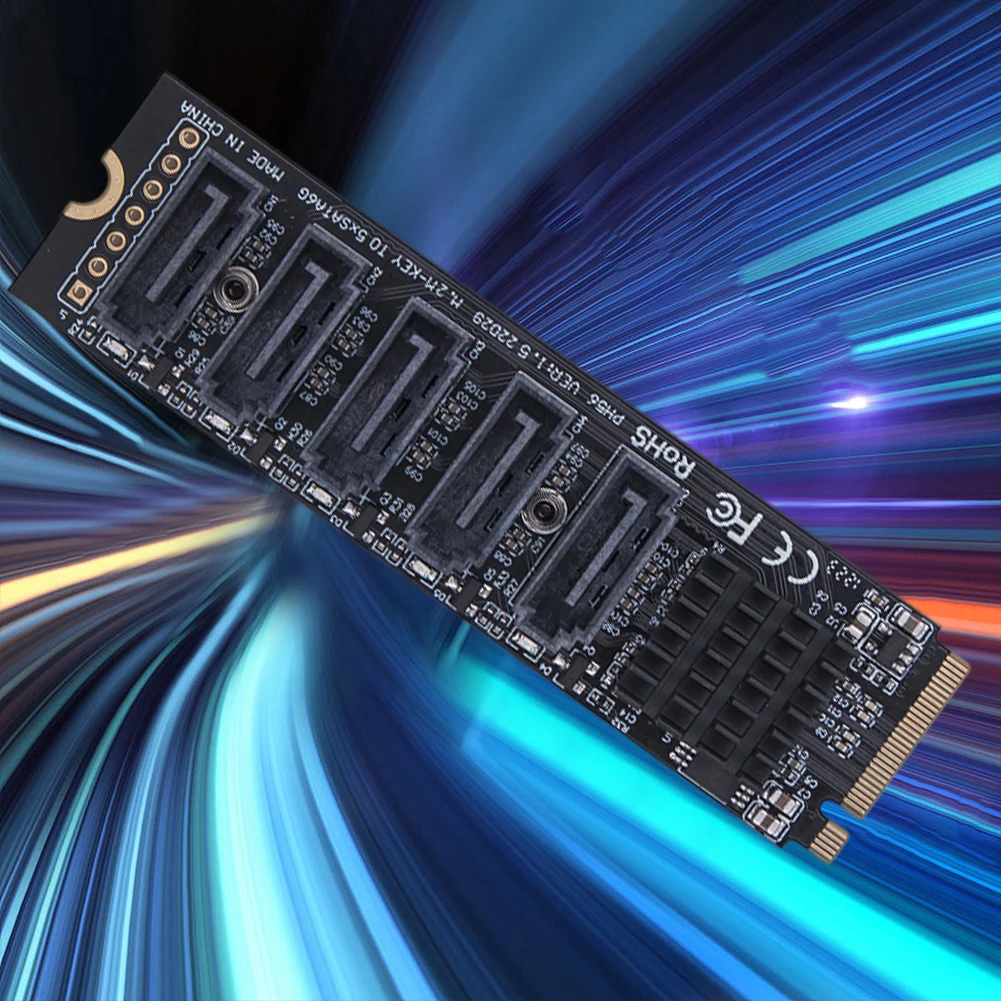

5-port M.2 NVME to SATA3.0:
Uplink: PCI-E 3.0 x2 16Gbps
Downstream: SATA3.0 6Gbps
Chip: JMB585
System: macOS, Windows, Linux

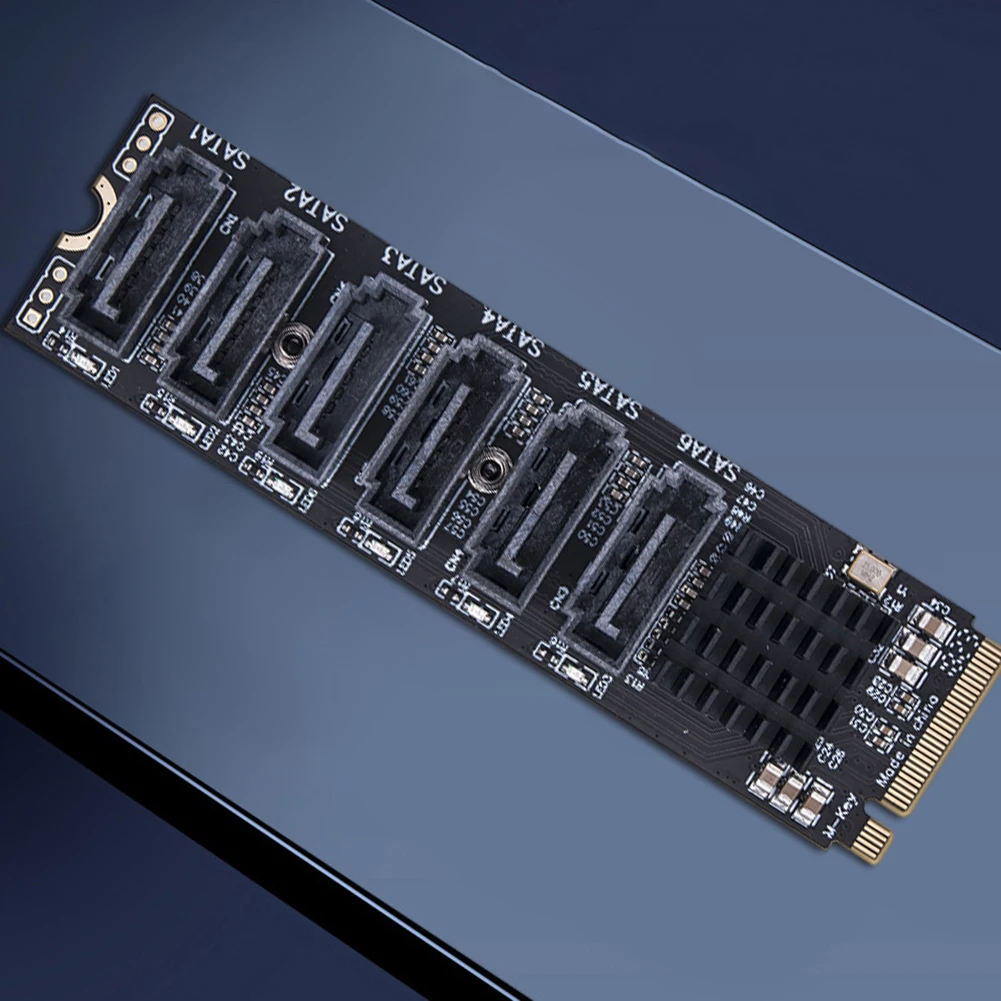

6-port M.2 NVME to SATA3:
Uplink: PCI-E 3.0 x2 16Gbps
Downstream ATA ports with up to 6Gbps transfer rate
Chip: A6M1166I
System: macOS, Windows, Linux
Note:
Due to different monitor settings and lighting effects, the actual color of the item may be slightly different from the color shown in the pictures.
Please allow a 1 to 2cm measurement deviation due to manual measurement.

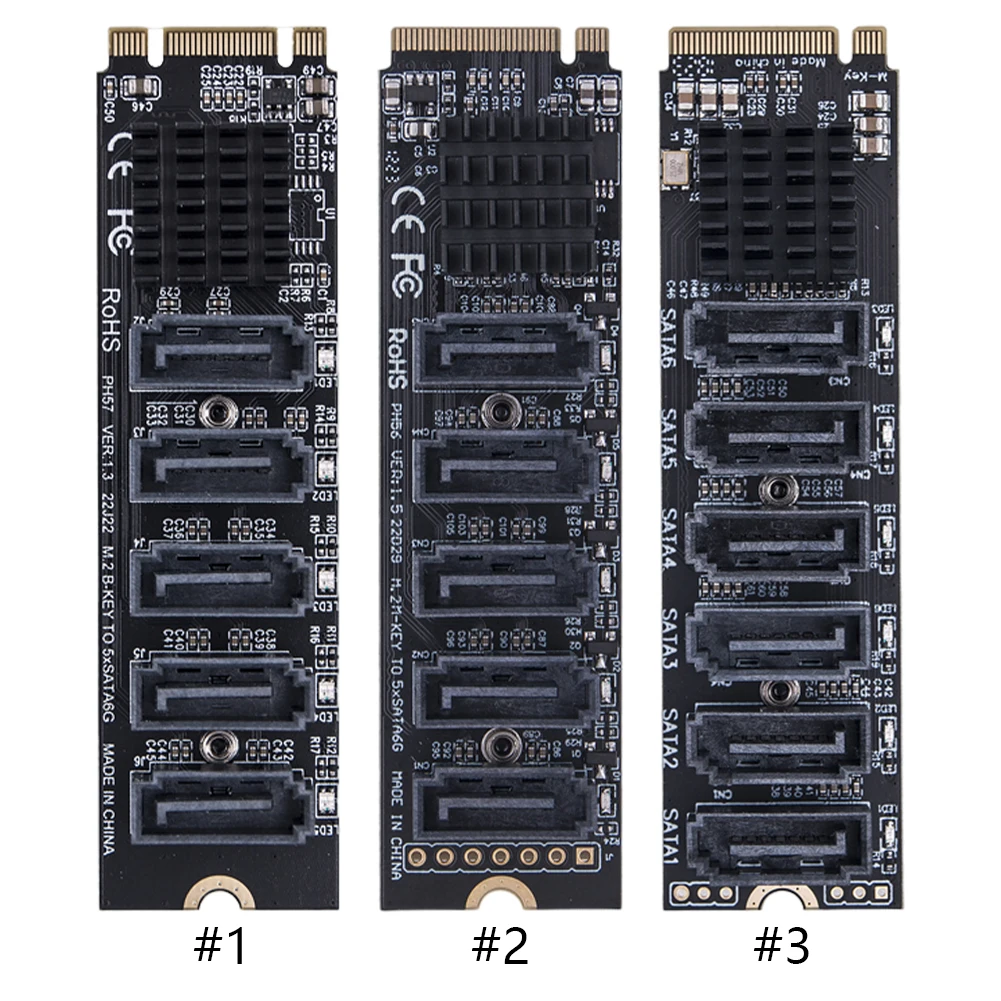

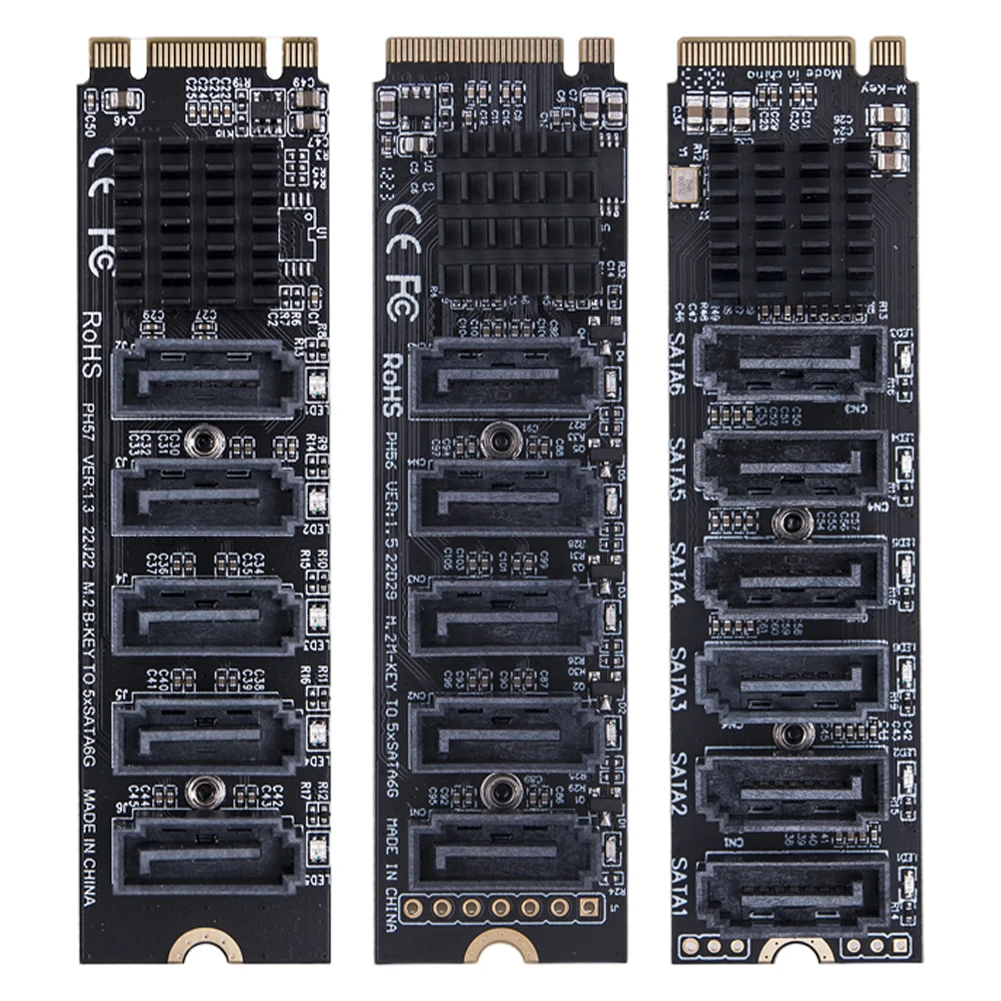

NGFF to 5-port SATA: 1 x Riser Card
NVME to 5-port SATA: 1 x Riser Card
NVME to 6-port SATA: 1 x Riser Card
