Khadas RTX 4060 Ti 16GB 160W eGPU Expansion Dock

Khadas RTX 4060 Ti 16GB 160W eGPU Expansion Dock

Highlights

• Performance powerhouse: Khadas Mind Graphics features an NVIDIA GeForce RTX 4060 Ti desktop GPU with Ada Lovelace architecture, boosting performance and power efficiency for AI generation, 3D rendering, video editing, and modern games.
• Versatile eGPU: Works via Mind Link and Thunderbolt 3/4 USB-C, compatible with third-party laptops and desktops that have Thunderbolt ports.
• Compact, stylish design: CNC unibody aluminum enclosure in an ultra-compact 2.5-liter form factor for minimalist setups.
• Rich I/O and security: USB-C, USB-A 3.2, HDMI, DisplayPort, 2.5 Gbps Ethernet, SD 4.0 card reader, 3.5 mm audio jack, fingerprint reader, and a Mind Locking Mechanism to prevent accidental disconnections.
• All-in-one entertainment: Up to 8K60 output and support for up to four external displays, far-field microphones for clear calls, and tuned dual-driver speakers.
• Worry-free warranty: 1-year warranty from the order date with repair or replacement for eligible defects.

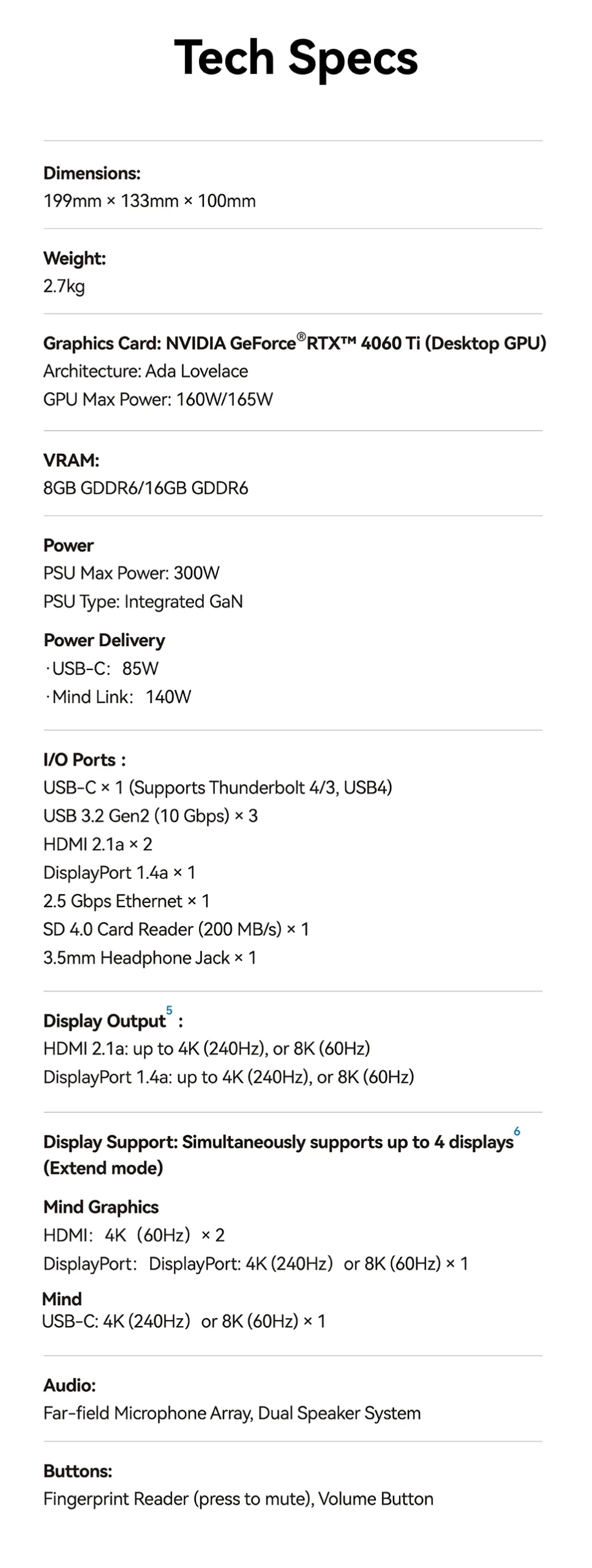

I/O Ports and Physical Buttons

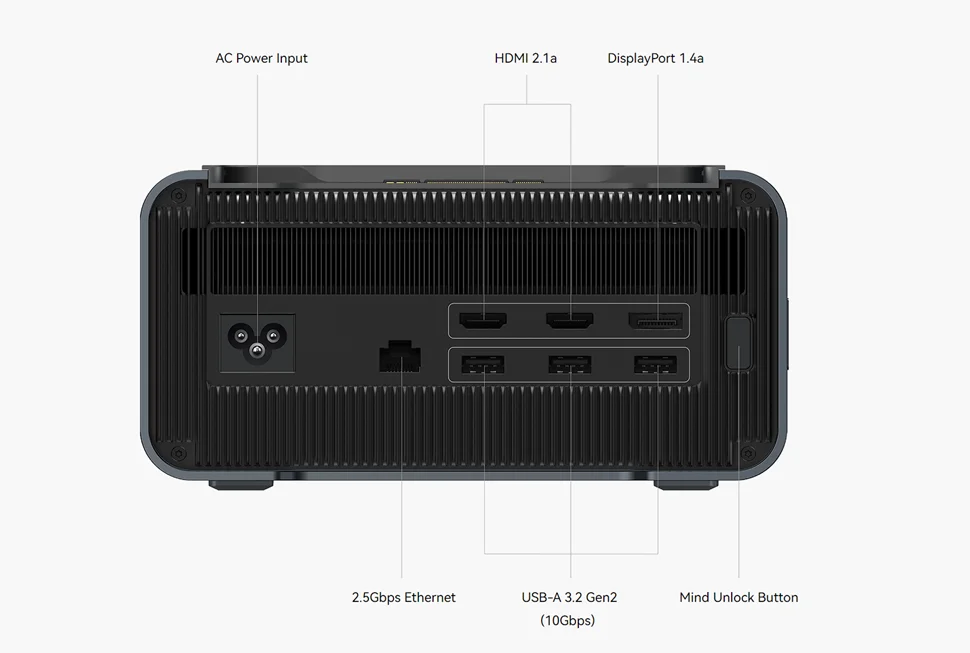

• I/O Ports: 1 × USB-C (USB4/Thunderbolt 4/Thunderbolt 3), 3 × USB-A 3.2 Gen 2 (10 Gbps), 2 × HDMI 2.1a (up to 4K240 or 8K60), 1 × DisplayPort 1.4a (up to 4K240 or 8K60), 1 × 2.5 Gbps Ethernet, 1 × SD Card 4.0 (200 MB/s), 1 × Mind Link, 1 × 3.5 mm headphone jack with mic, 2 × speakers (10 W), 2 × far-field microphones.
• Buttons: Physical volume rocker, Mind Locking, fingerprint reader with mute button.

Desktop-class GPU made to go faster

Experience next-gen graphics and smooth performance with the NVIDIA GeForce RTX 4060 Ti desktop GPU. The Ada Lovelace architecture multiplies performance and improves power efficiency. From AI generation and 3D rendering to video editing and blockbuster gaming, Mind Graphics handles GPU-intensive tasks with ease.

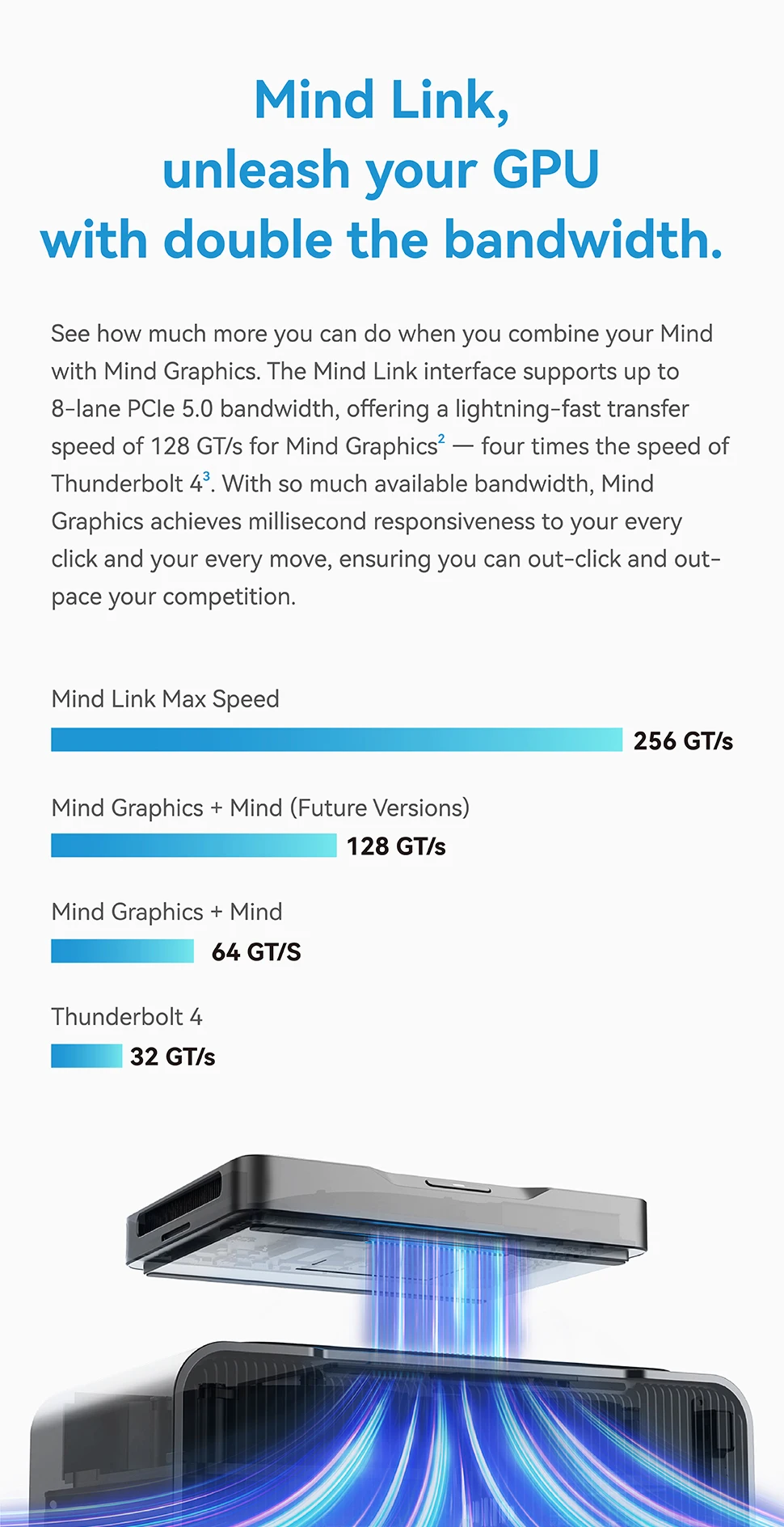

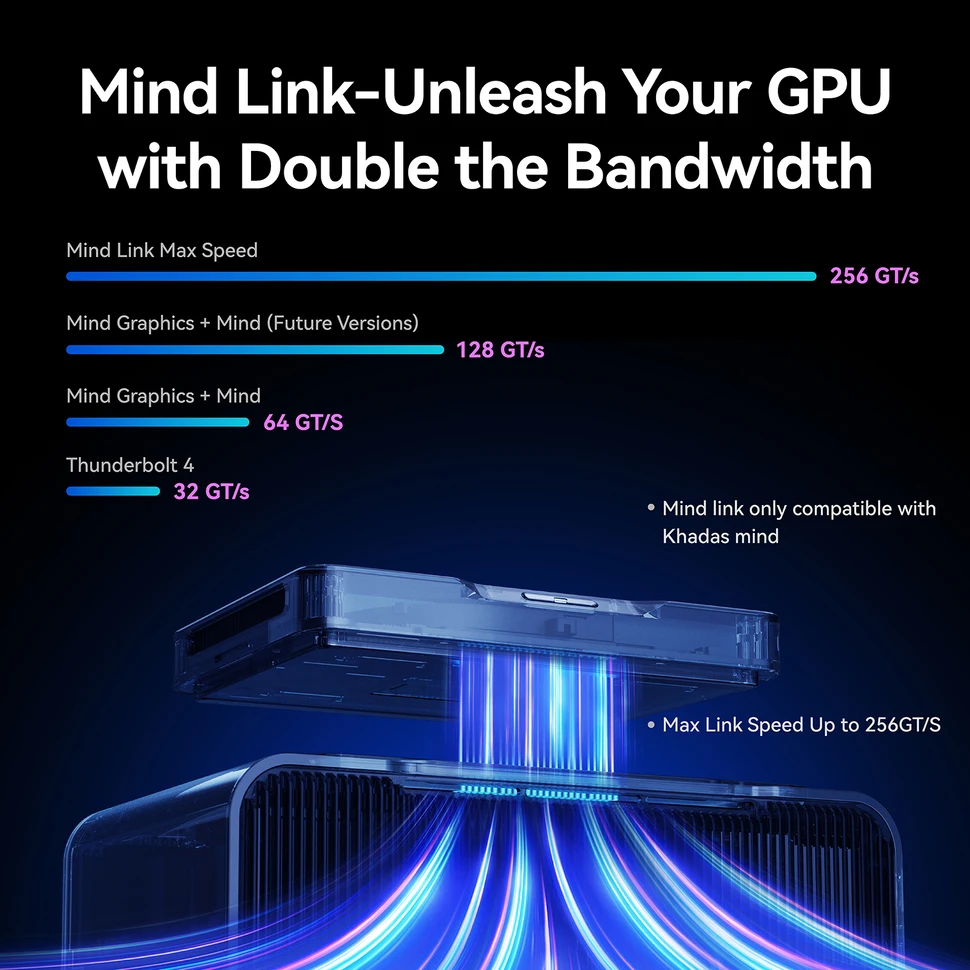

Mind Link: unleash your GPU with double the bandwidth

The Mind Link interface supports up to 8-lane PCIe 5.0 bandwidth for transfer speeds up to 128 GT/s, four times the bandwidth of Thunderbolt 4. Without bandwidth bottlenecks, Mind Graphics delivers millisecond responsiveness so you can out-click and outpace the competition.

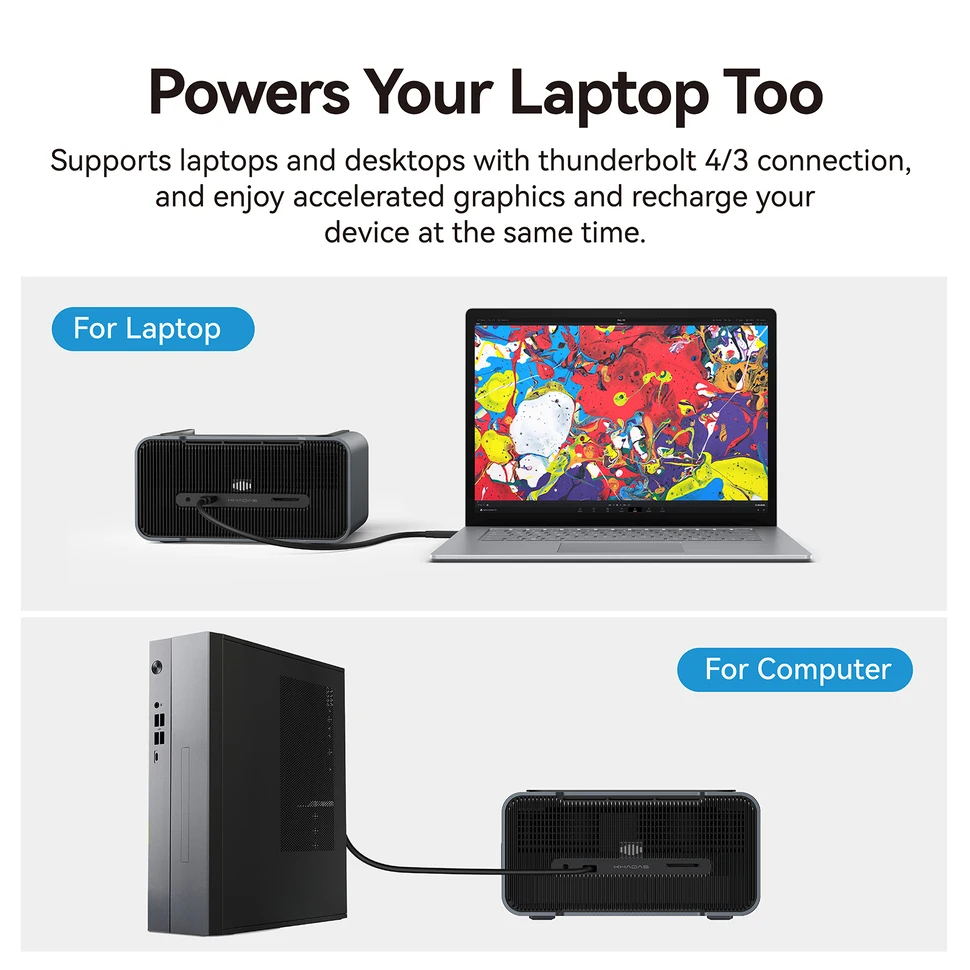

Versatile: powers your laptop too

The USB-C interface is compatible with Thunderbolt 4, Thunderbolt 3, and USB4, and supports USB-PD charging. Connect a laptop or desktop to harness the RTX 4060 Ti and enjoy a major performance leap. Mind Graphics can also recharge your laptop with up to 85 W while you work or play.

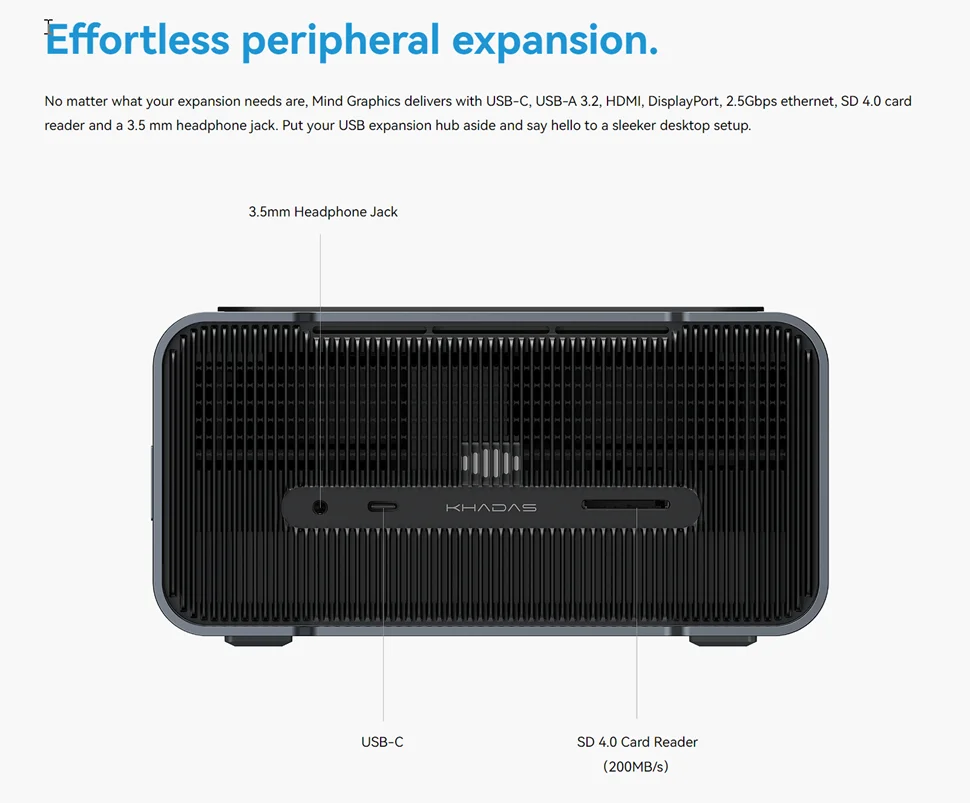

Effortless peripheral expansion

Replace cluttered hubs with built-in USB-C, USB-A 3.2, HDMI, DisplayPort, 2.5 Gbps Ethernet, SD 4.0, and a 3.5 mm headphone jack for a cleaner desk setup.

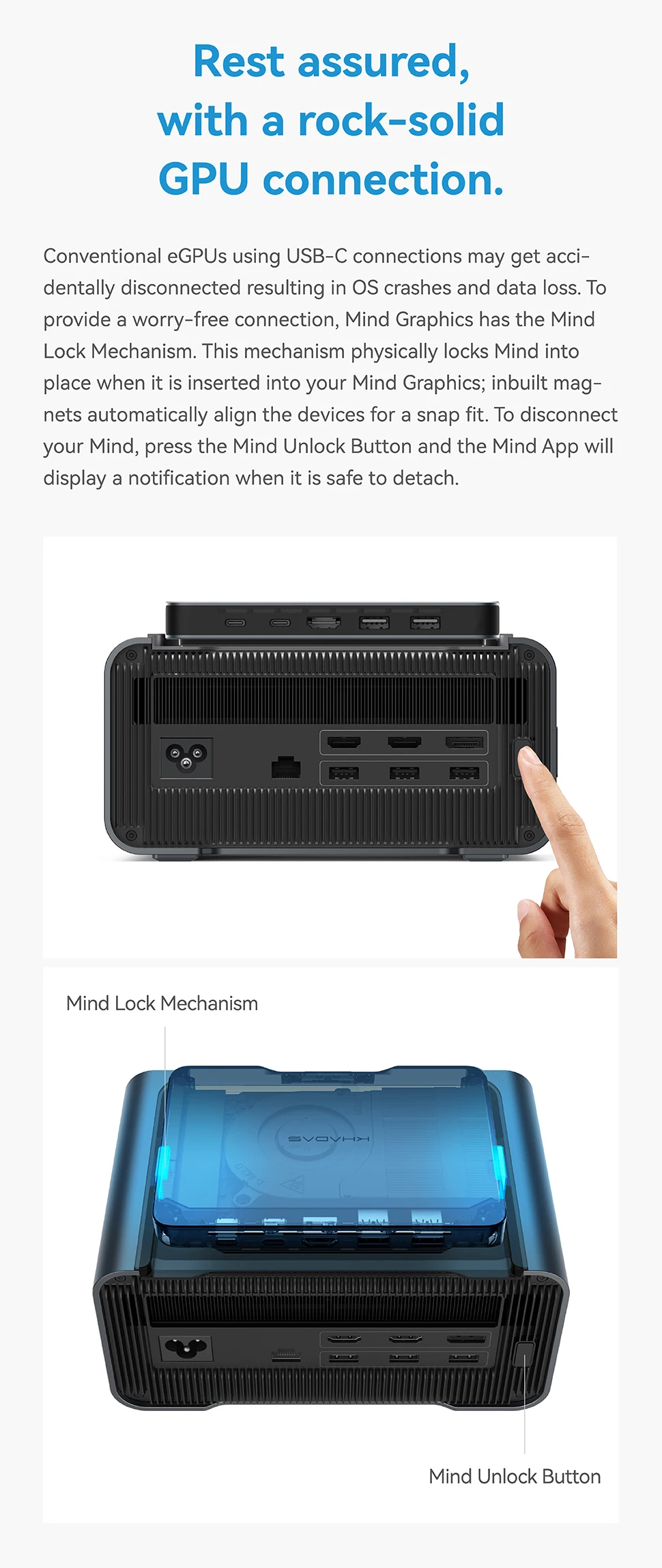

Rock-solid GPU connection

Conventional eGPUs over USB-C can disconnect accidentally and cause crashes or data loss. The Mind Lock Mechanism physically locks the Mind into place, while magnets align devices for a snap fit. Press the Mind Unlock Button and wait for the Mind App notification before safely detaching.

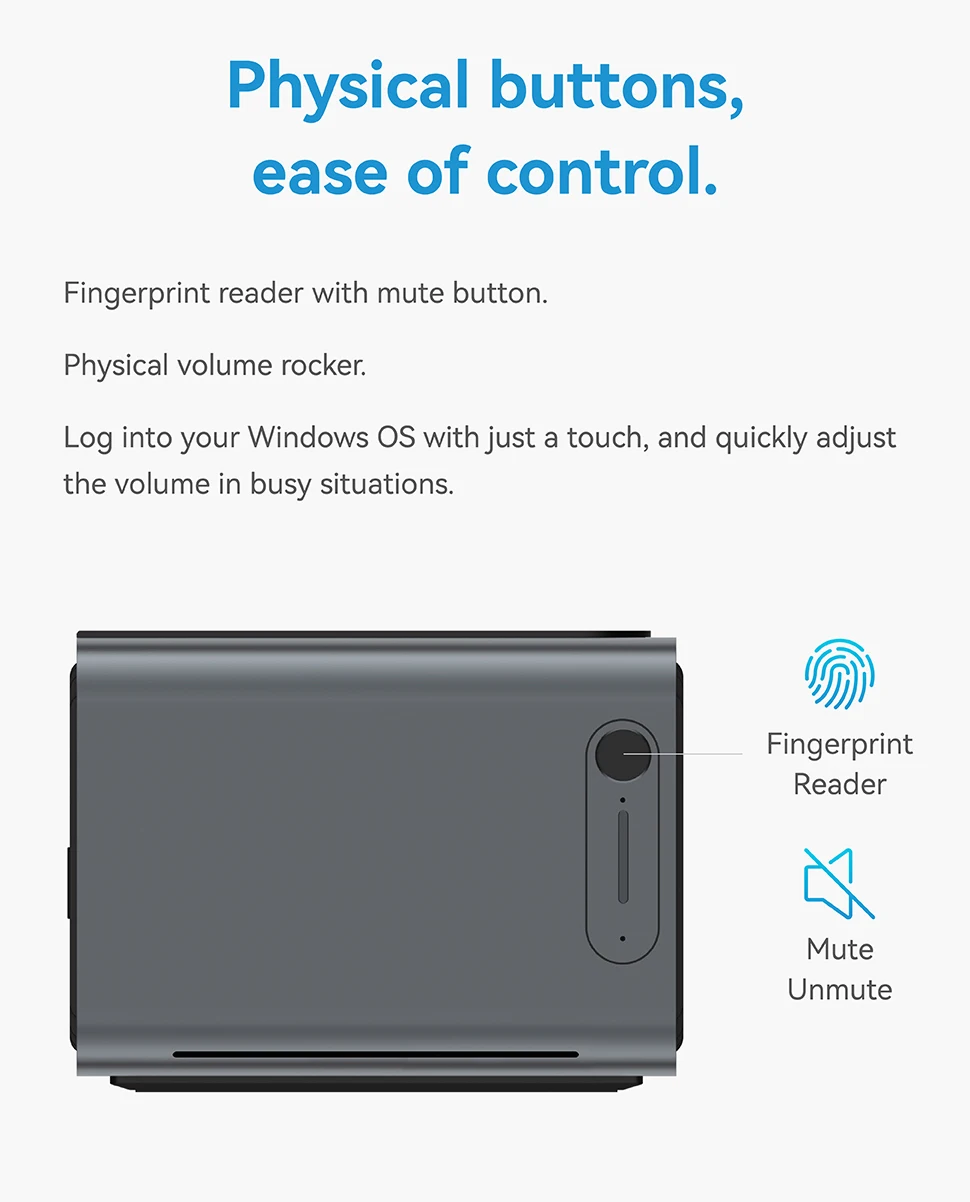

Physical buttons, easy control

• Fingerprint reader with mute button.
• Physical volume rocker.
• Sign in to Windows with a touch and adjust volume quickly when needed.

More than just an eGPU

Enjoy lifelike visuals up to 8K at 60 Hz and connect up to four external displays. The far-field microphone array captures a clear voice within a 3-meter radius with noise reduction and voice enhancement. Tuned dual-driver speakers deliver immersive audio across high and low frequencies.

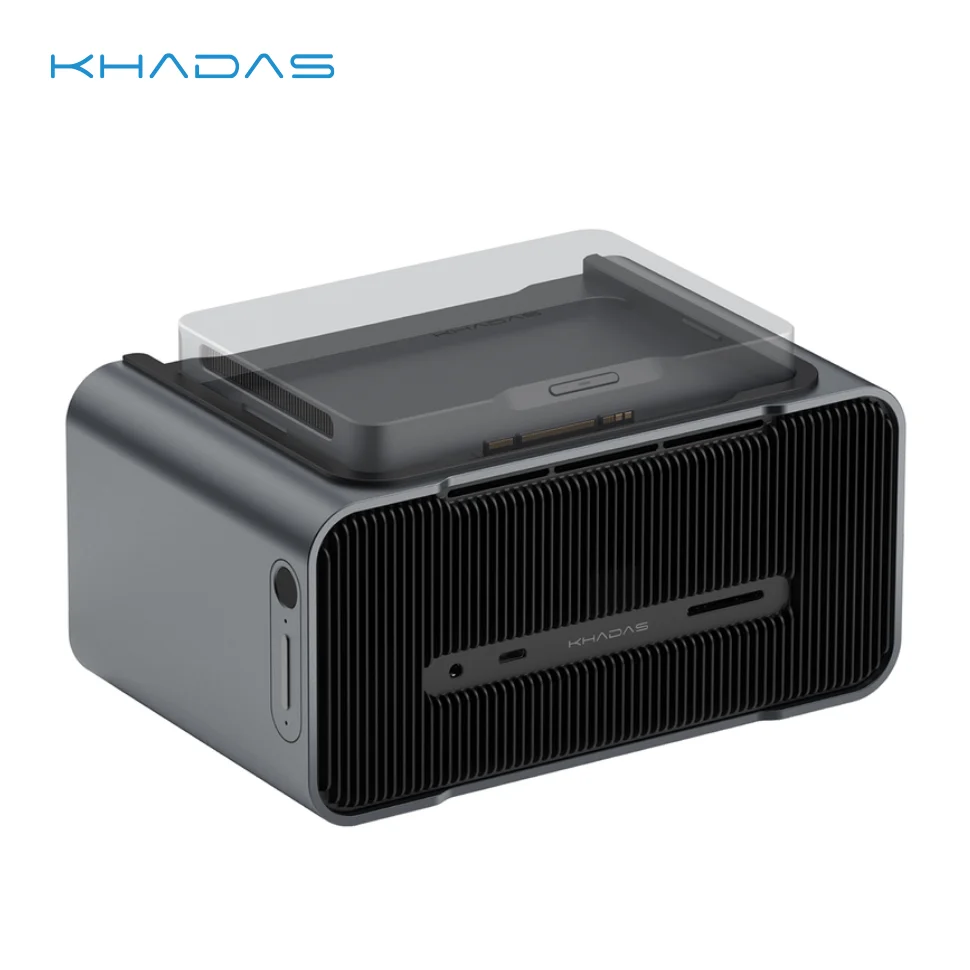

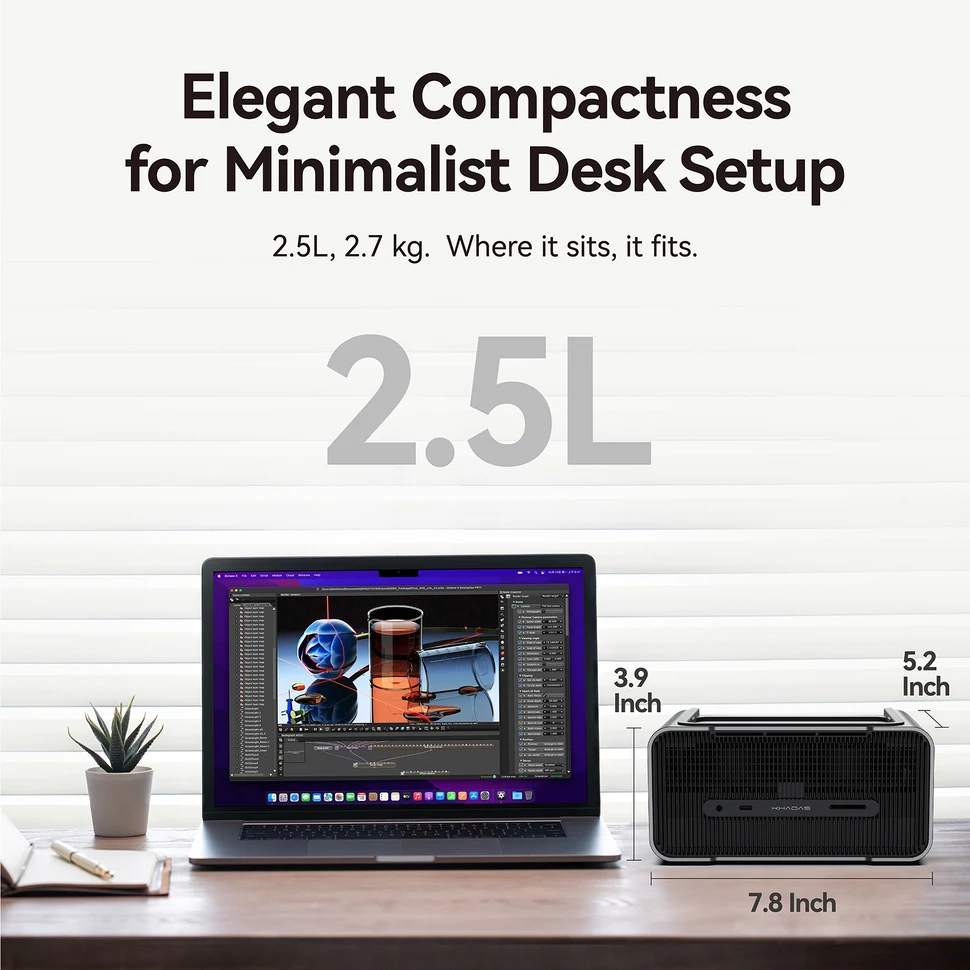

Exquisitely designed

• CNC unibody aluminum enclosure that follows the Khadas design language.
• Ultra-compact footprint that fits anywhere.

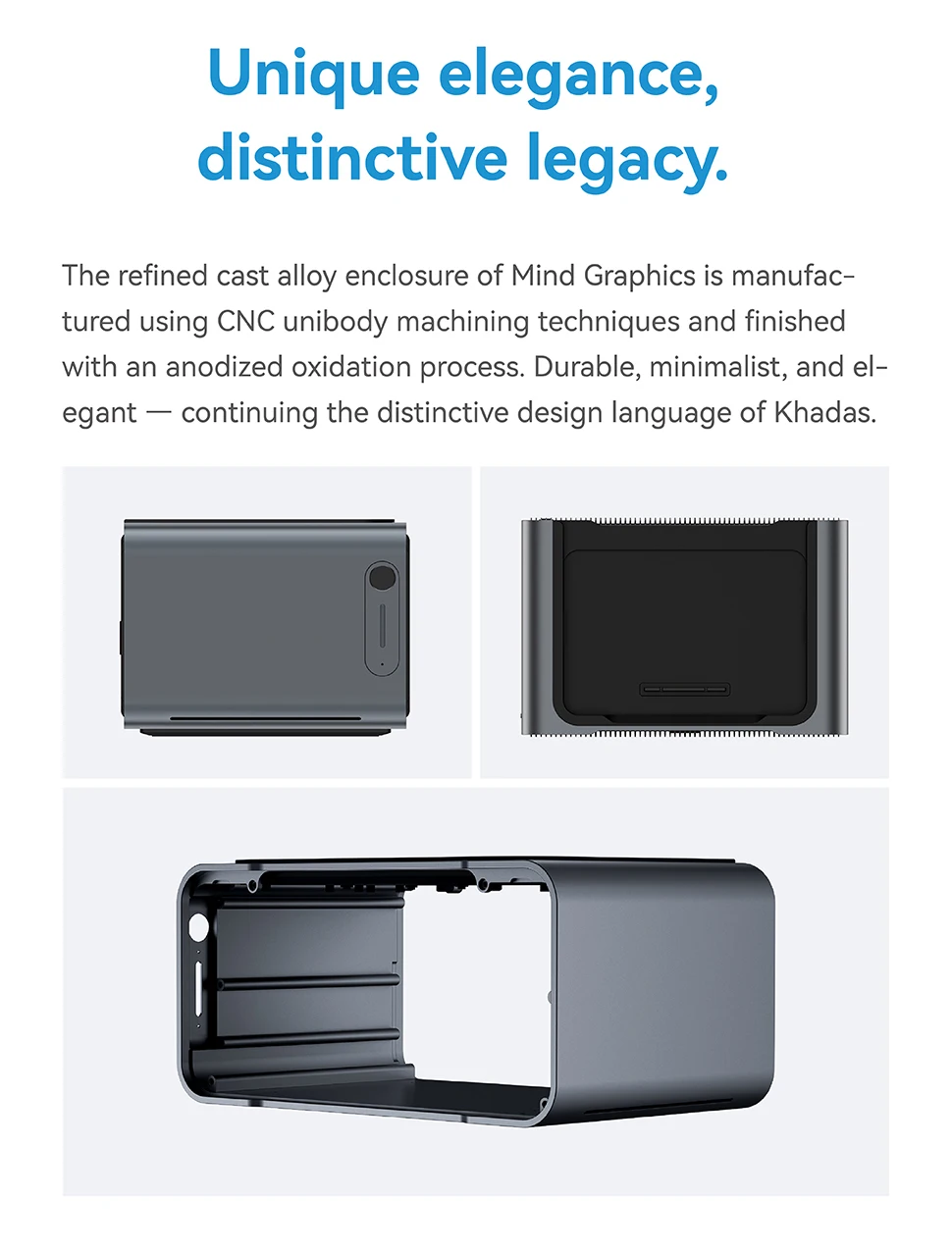

Unique elegance, distinctive legacy

The refined Al-Si-Cu cast alloy enclosure is CNC-machined and finished with an anodized surface. It is durable, minimalist, and elegant, continuing the distinctive Khadas design language.

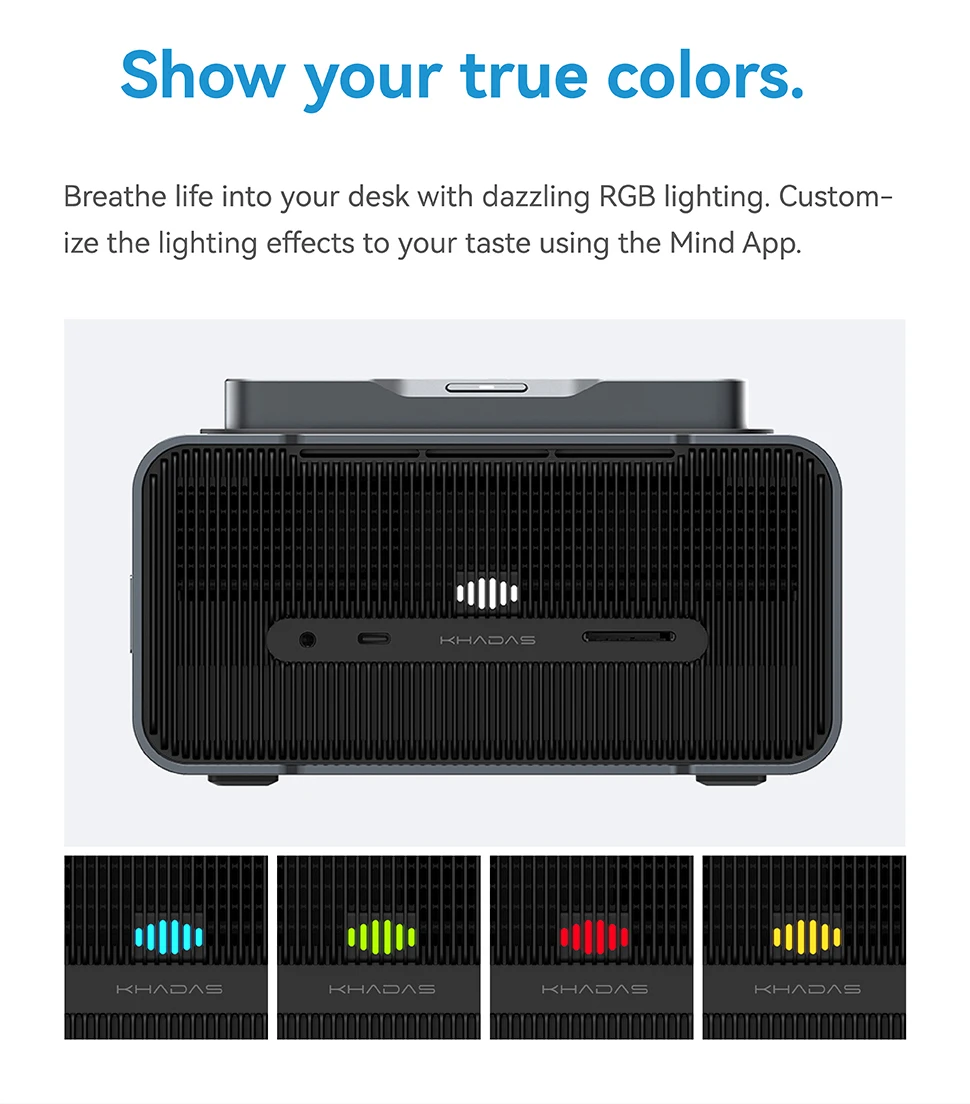

Show your true colors

Add personality to your desk with customizable RGB lighting using the Mind App.

What’s in the box

• 1 × Mind Graphics
• 1 × AC power cable
• 1 × Manual
• 1 × Warranty card

Notes

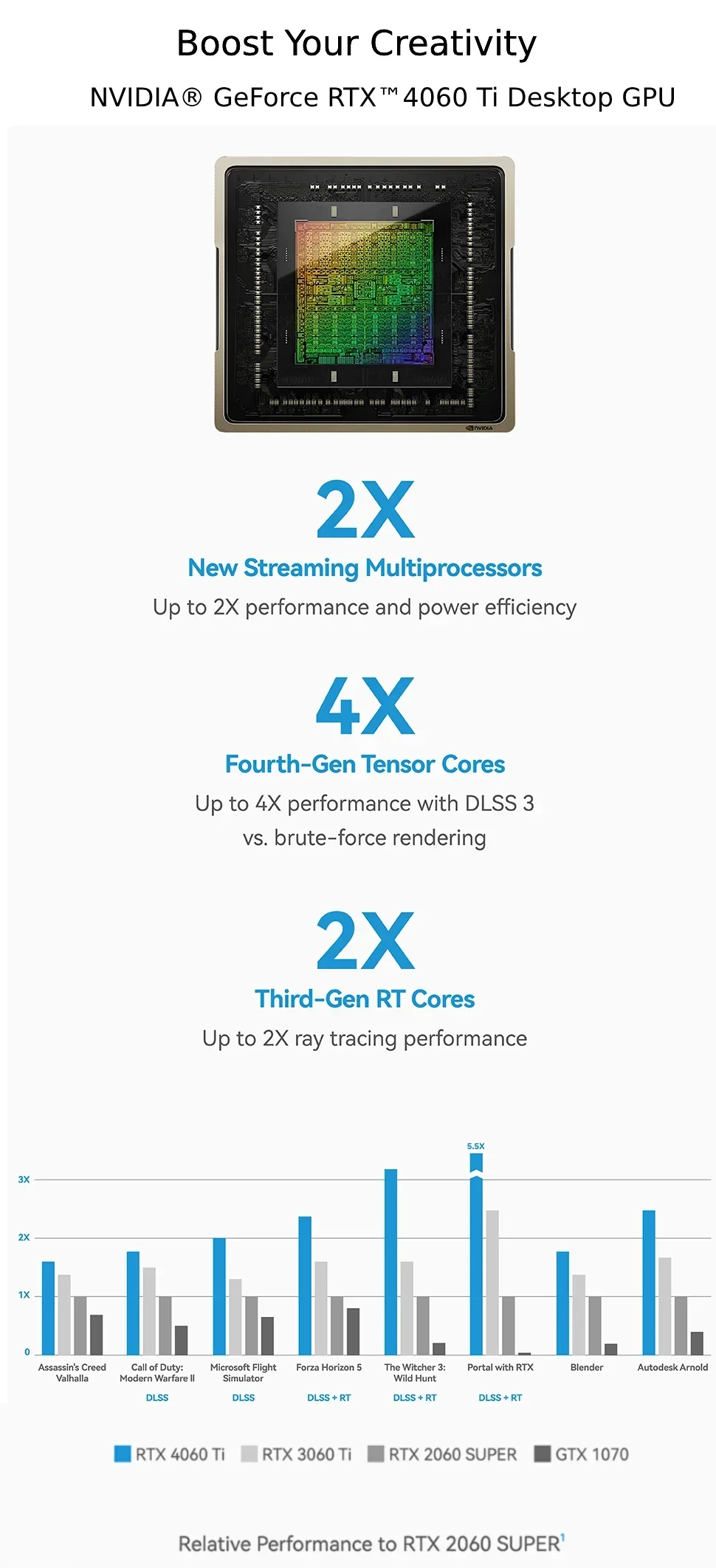

• Performance data reference: 1920 × 1080 resolution, highest game settings. DLSS Super Resolution Quality Mode on GeForce RTX 20/30/40 Series; Frame Generation on RTX 40 Series. Example test system: Core i9-12900K, 32 GB RAM, Windows 11 x64, RTX 4060 Ti 16 GB model.
• Mind Graphics supports 8-lane PCIe 4.0 for up to 128 GT/s; Mind supports 4-lane PCIe 4.0 for up to 64 GT/s when combined with Mind Graphics.
• Bandwidth comparison is based on peak theoretical PCIe 4.0 (128 GT/s for 8 lanes) versus Thunderbolt 4 PCIe speed (32 GT/s).
• Compatible with laptops or desktops that have Thunderbolt 4 or Thunderbolt 3 ports.
• HDMI 2.1a and DisplayPort 1.4a support up to 4K at 240 Hz or 8K at 60 Hz; maximum resolutions may require displays with DSC support.
• In Extend mode, up to three displays can connect to Mind Graphics simultaneously, and one to Khadas Mind. The remaining two ports on Mind (USB-C and HDMI) support Duplicate mode output.
