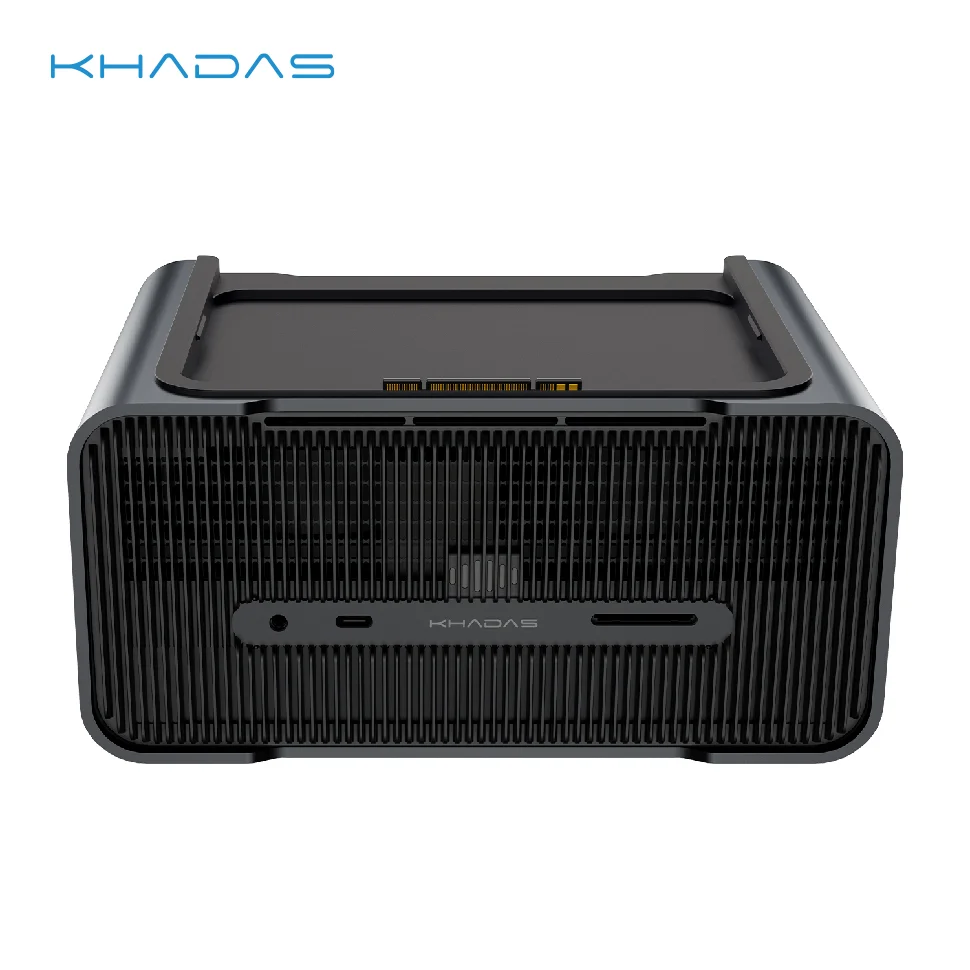

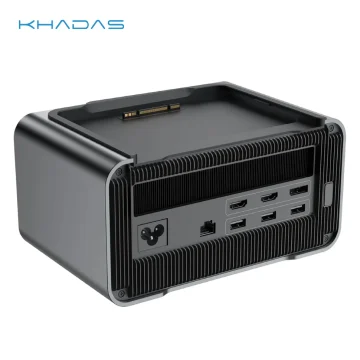

Khadas Mind RTX 4060 Ti eGPU 16GB Docking Station

Khadas Mind RTX 4060 Ti eGPU 16GB Docking Station

Desktop-class GPU is made to make it faster

Experience breathtaking next-gen graphics and smooth performance with the NVIDIA GeForce RTX 4060 Ti desktop GPU. The advanced Ada Lovelace architecture enables Mind Graphics to multiply performance while improving power efficiency. Whether you are using AI generation, 3D rendering, video editing, or playing blockbuster games – Mind Graphics handles GPU-intensive tasks with ease so you can work faster and create more.

Tech Specs

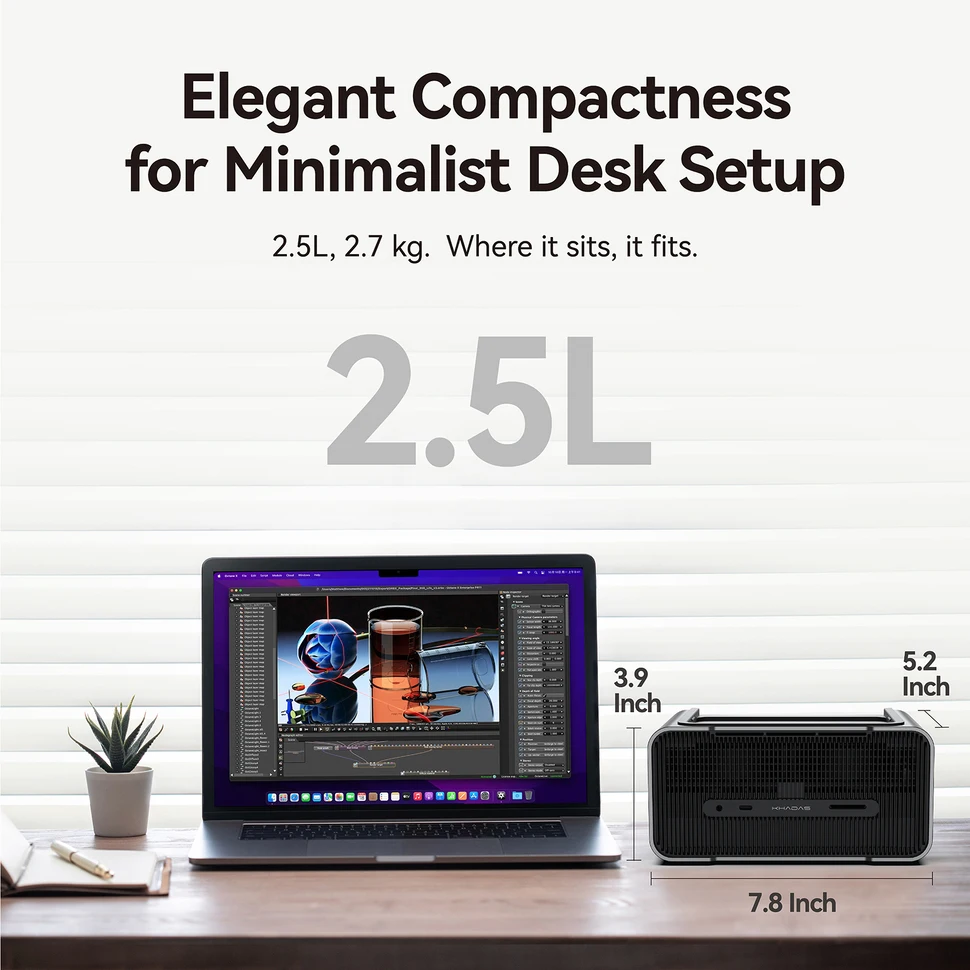

• Dimensions: 199 mm × 133 mm × 100 mm
• Weight: 2.7 kg
• Graphics card: NVIDIA GeForce RTX 4060 Ti (desktop GPU)
• Architecture: Ada Lovelace
• GPU max power: 160 W
• VRAM: 8 GB GDDR6
• Power: PSU max power 300 W
• PSU type: Integrated GaN
• Power delivery: USB-C 85 W; Mind Link 140 W
• Display outputs: HDMI 2.1a up to 4K 240 Hz or 8K 60 Hz; DisplayPort 1.4a up to 4K 240 Hz or 8K 60 Hz
• Display support: up to 4 displays (Extend mode)
• Mind Graphics: HDMI 4K 60 Hz × 2; DisplayPort 4K 240 Hz or 8K 60 Hz × 1
• Mind: USB-C 4K 240 Hz or 8K 60 Hz × 1

What’s in the box

• Mind Graphics × 1
• AC power cable × 1
• Manual × 1
• Warranty card × 1

Notes

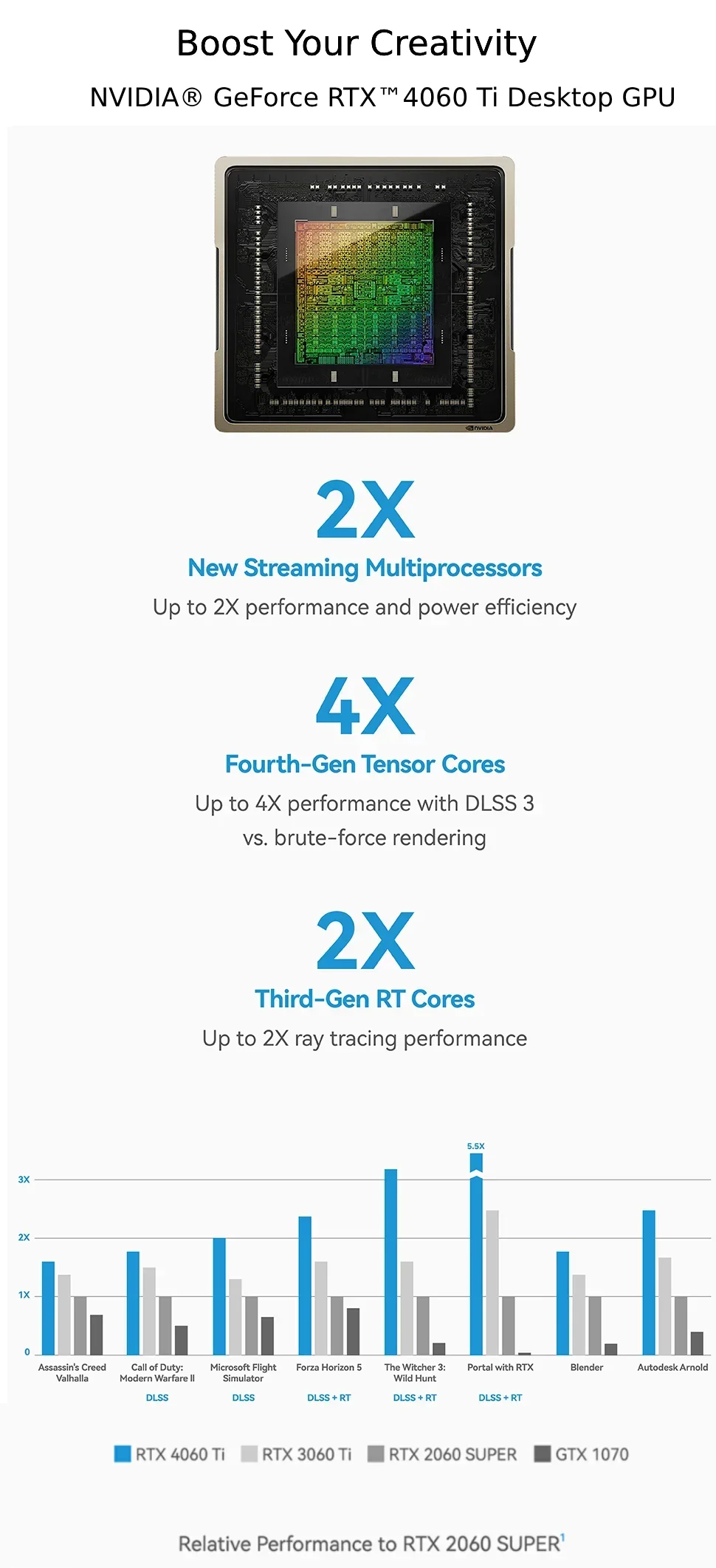

• Performance data provided by NVIDIA. Test setup: 1920 × 1080 resolution, highest game settings; DLSS Super Resolution Quality Mode on GeForce RTX 20/30/40 Series; Frame Generation on RTX 40 Series; i9-12900K, 32 GB RAM, Windows 11 x64; RTX 4060 Ti 8 GB model.
• Mind Graphics supports 8-lane PCIe 4.0 (up to 128 GT/s). When paired with Mind, Mind supports 4-lane PCIe 4.0 (up to 64 GT/s).
• Peak theoretical 8-lane PCIe 4.0 (128 GT/s) is compared with Thunderbolt 4 PCIe speed (32 GT/s).
• Compatible with laptops or desktops that have Thunderbolt 4 or Thunderbolt 3 ports.
• HDMI 2.1a and DisplayPort 1.4a support up to 4K 240 Hz or 8K 60 Hz; displays that support DSC are required to use maximum resolutions.
• In Extend mode, up to 3 displays can connect to Mind Graphics simultaneously, and 1 display can connect to Khadas Mind. The remaining USB-C and HDMI ports on Mind support Duplicate mode output.

Highlights

• Performance powerhouse: NVIDIA GeForce RTX 4060 Ti desktop GPU on Ada Lovelace architecture boosts performance and power efficiency for AI creation, 3D rendering, video editing, and modern games.
• Versatile eGPU: Works with both Mind Link and Thunderbolt 3/4 over USB-C for broad compatibility with third-party laptops and desktops.
• Compact and stylish: CNC unibody aluminum enclosure; ultra-compact 2.5-liter volume for minimalist desk setups.
• Rich I/O and security: USB-C, USB-A 3.2, HDMI, DisplayPort, 2.5 Gbps Ethernet, SD 4.0 card reader, 3.5 mm headphone jack, fingerprint reader, and a Mind Locking Mechanism to prevent accidental disconnection.
• All-in-one entertainment: Up to 8K 60 Hz visuals and support for up to 4 external displays, far-field microphones for clear calls, and dual-driver speakers tuned for immersive audio.
• Worry-free warranty: 1-year warranty from order date with repair or replacement for qualified defects; post-warranty service available per official standards.

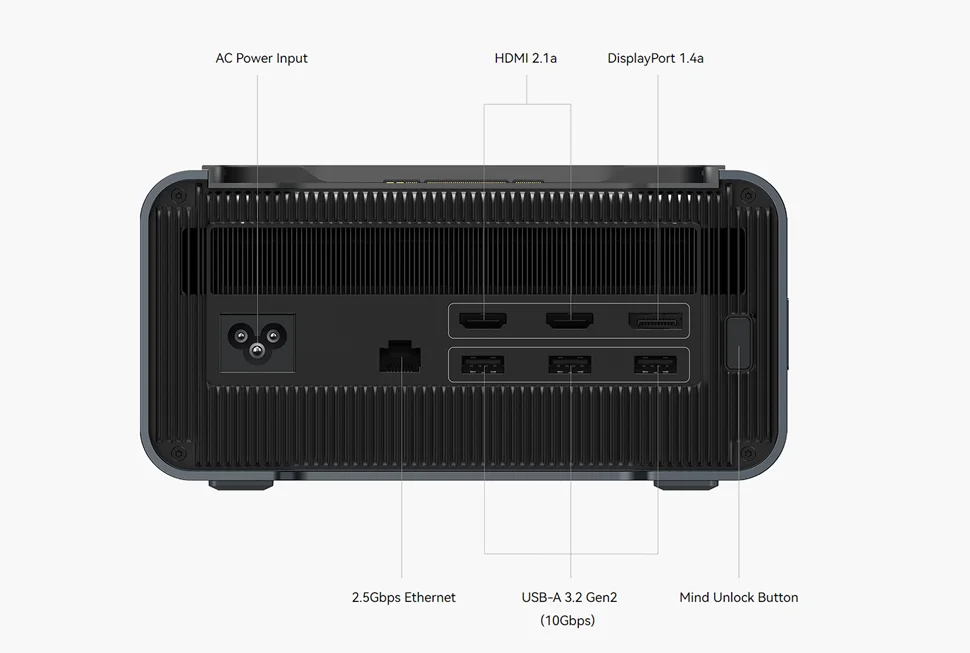

I/O ports and physical buttons

I/O ports

• USB-C (USB4 / Thunderbolt 4 / Thunderbolt 3)
• USB-A 3.2 Gen 2 × 3 (10 Gbps)
• HDMI 2.1a × 2 (supports 4K 240 Hz or 8K 60 Hz)
• DisplayPort 1.4a × 1 (supports 4K 240 Hz or 8K 60 Hz)
• Ethernet 2.5 Gbps × 1
• SD Card 4.0 × 1 (up to 200 MB/s)
• Mind Link × 1
• Headphone jack 3.5 mm with mic support × 1
• Speakers × 2 (10 W)
• Far-field microphone array × 2

Buttons

• Physical volume rocker
• Mind Locking
• Fingerprint reader with mute button

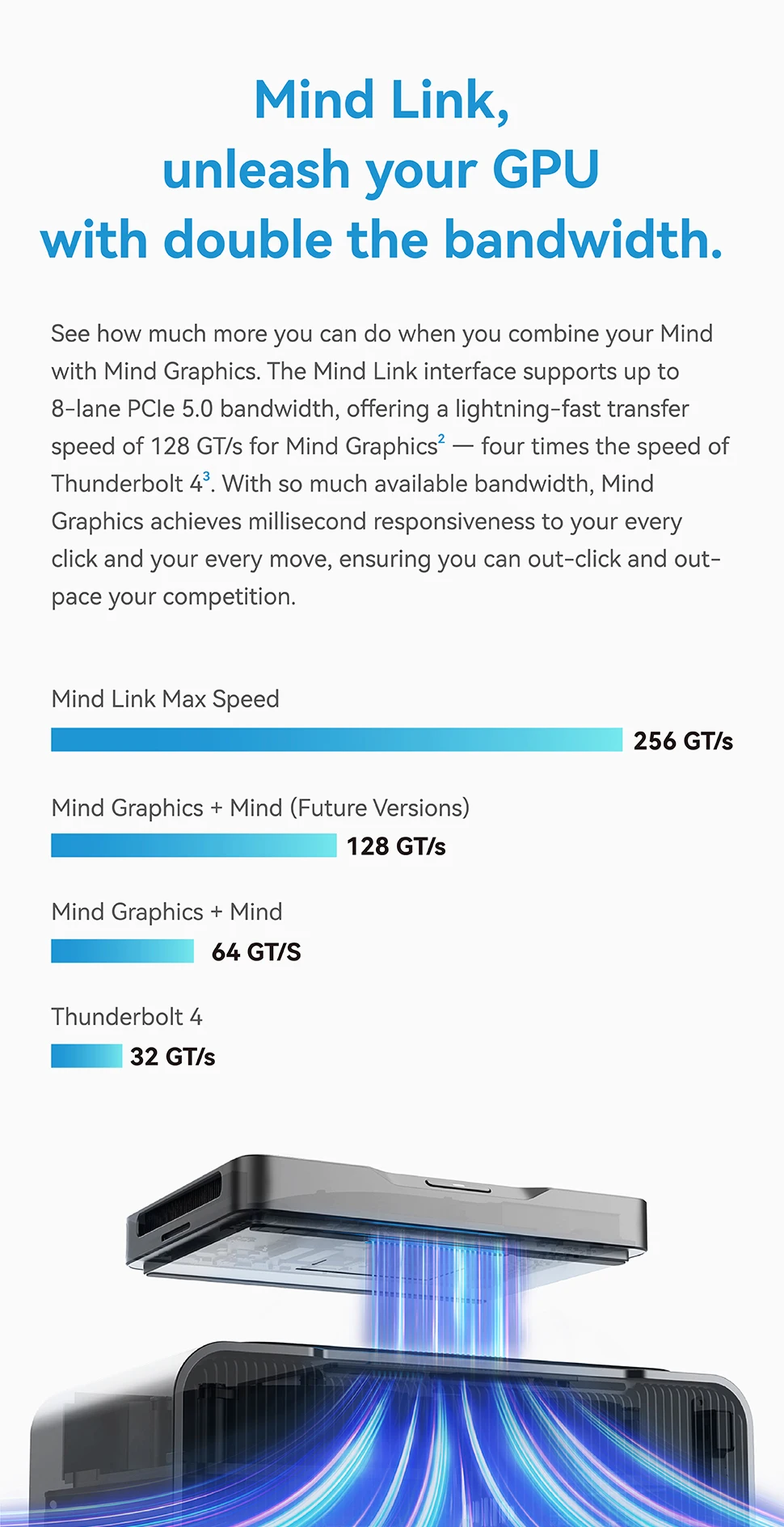

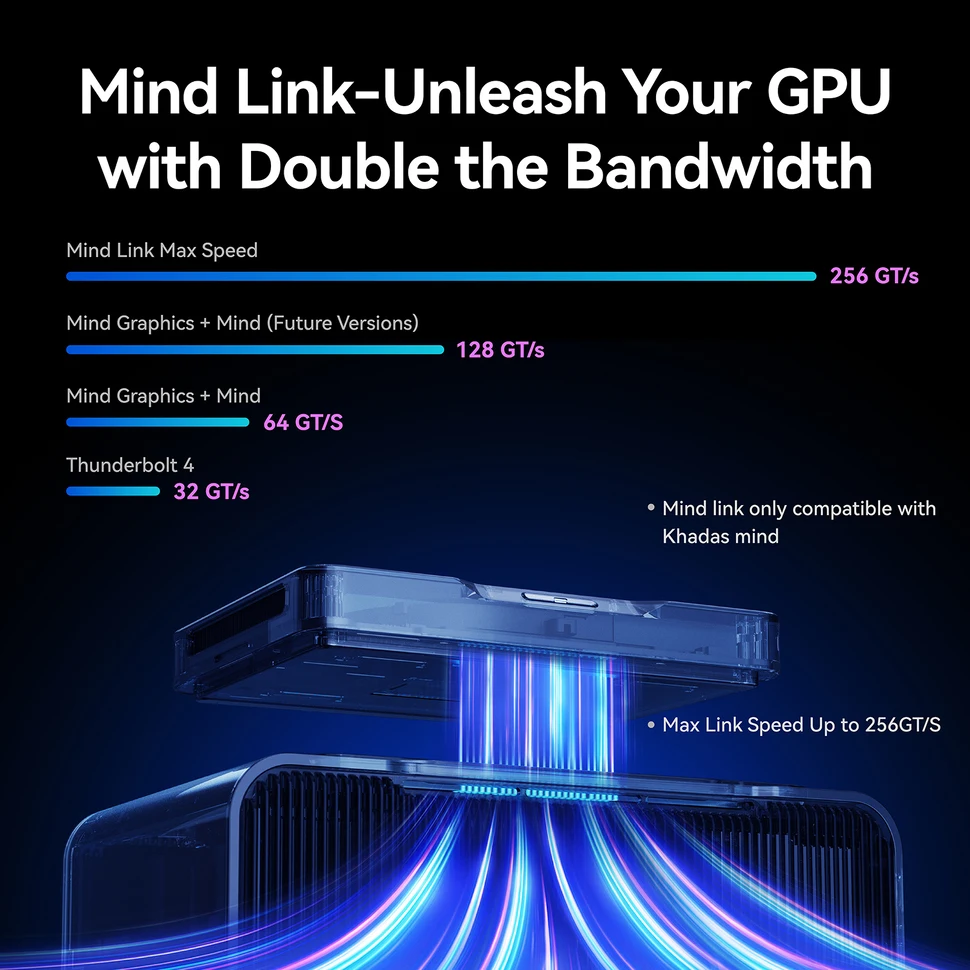

Mind Link – unleash your GPU with double the bandwidth

Combine Mind with Mind Graphics using Mind Link for up to 8-lane PCIe bandwidth and a transfer speed of 128 GT/s – four times the bandwidth of Thunderbolt 4. With no bandwidth bottleneck, Mind Graphics achieves near-instant responsiveness for competitive workflows and play.

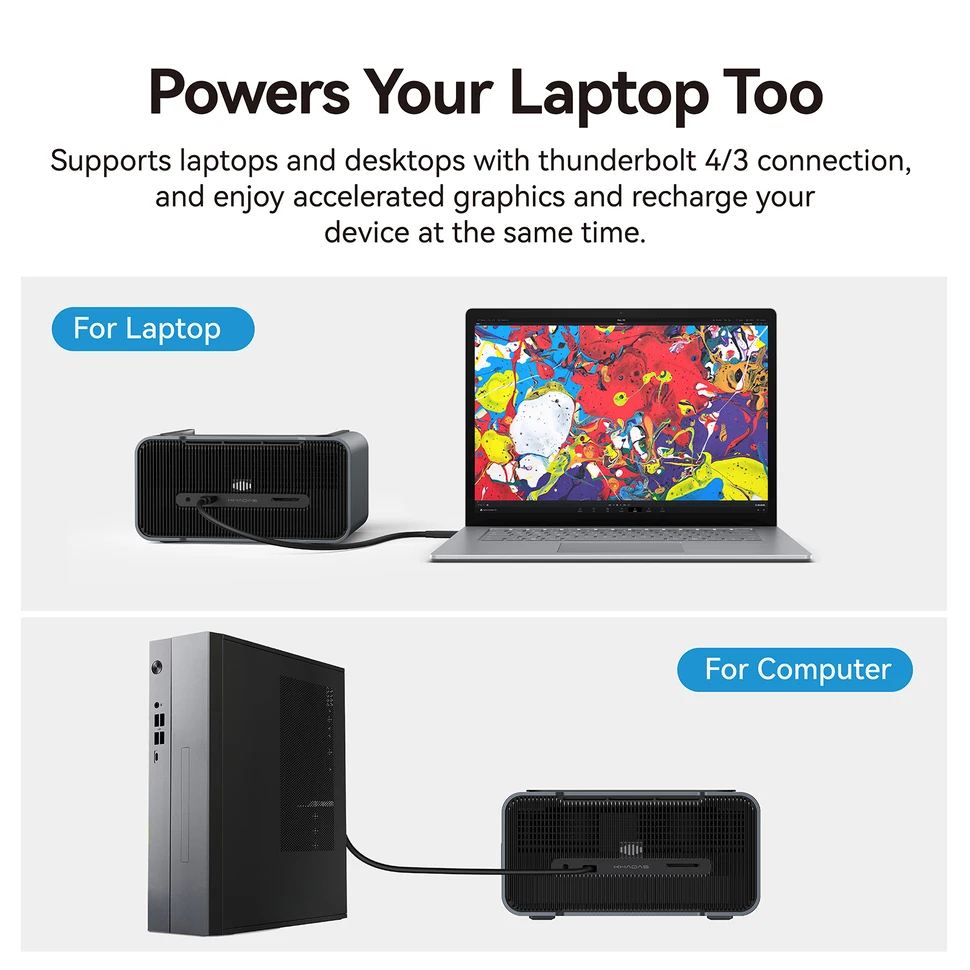

Versatile – powers your laptop too

The USB-C interface supports Thunderbolt 4, Thunderbolt 3, and USB4 with USB-PD charging. Connect your laptop or desktop to Mind Graphics to leverage the RTX 4060 Ti for a major performance boost and recharge your laptop with up to 85 W at the same time.

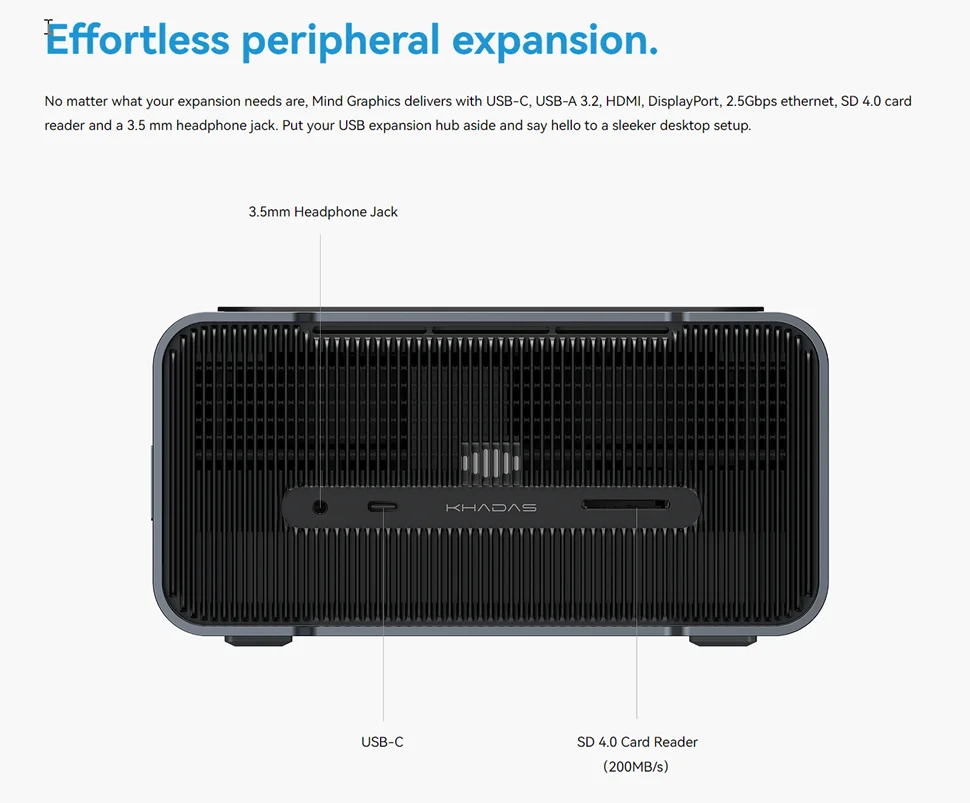

Effortless peripheral expansion

Meet all your expansion needs with USB-C, USB-A 3.2, HDMI, DisplayPort, 2.5 Gbps Ethernet, SD 4.0 card reader, and a 3.5 mm headphone jack for a clean, hub-free desktop.

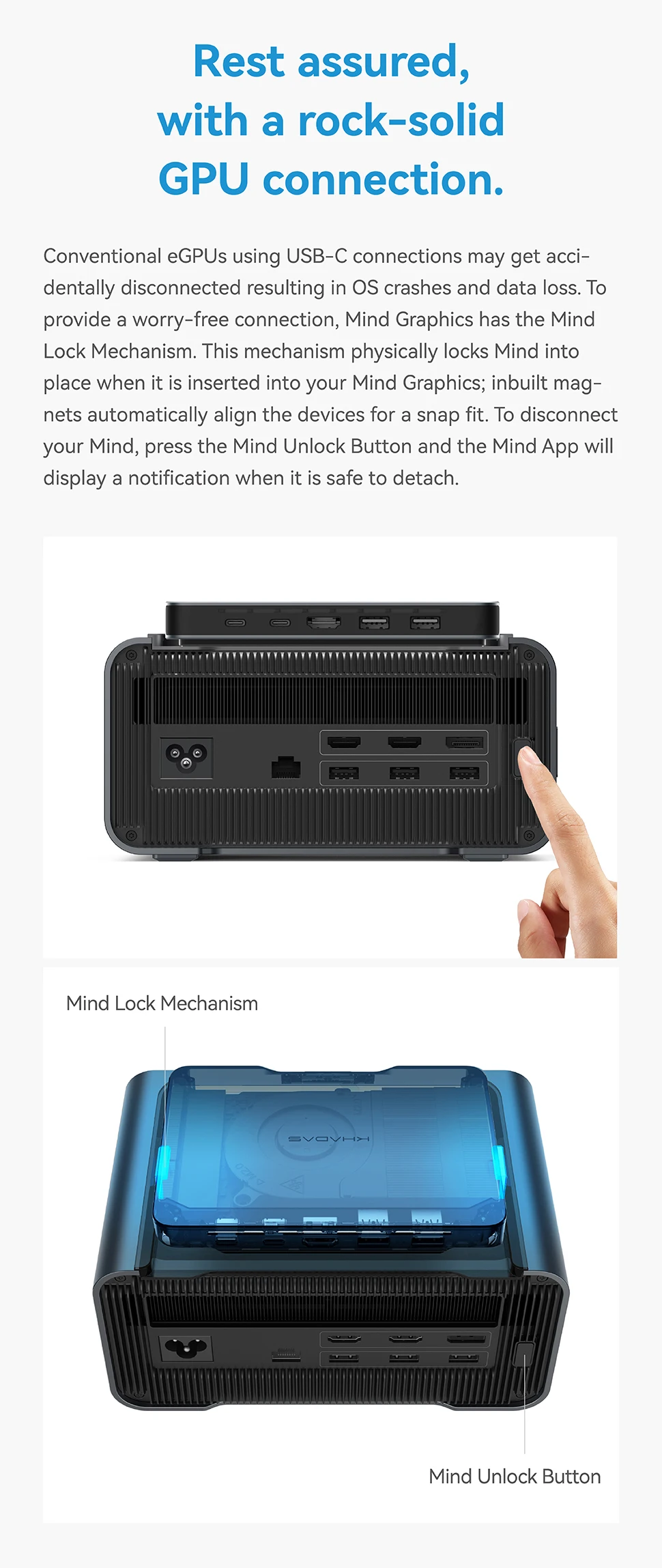

Rock-solid GPU connection

Unlike conventional eGPUs that can be disconnected accidentally over USB-C, Mind Graphics adds a Mind Lock Mechanism that physically secures your Mind. Inbuilt magnets align for a snap fit, and the Mind App notifies you when it is safe to detach.

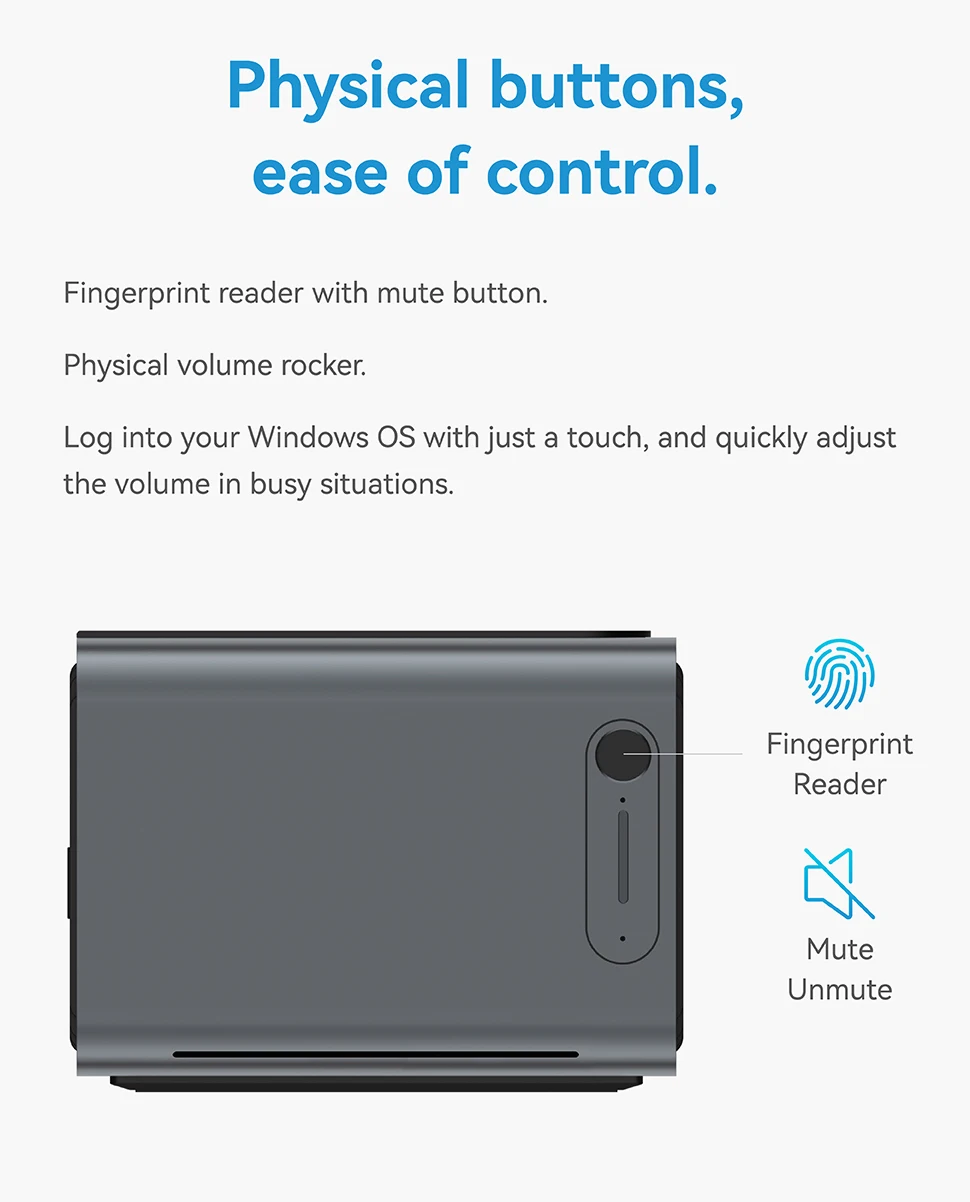

Physical controls for ease of use

Use the fingerprint reader to sign in quickly and the volume rocker for instant audio control in busy situations.

More than an eGPU

Enjoy lifelike ultra-HD visuals up to 8K 60 Hz with support for up to 4 external displays, far-field microphones with noise reduction and voice enhancement, and dual-driver speakers tuned for rich sound.

Exquisitely designed

CNC unibody aluminum enclosure that continues the brand’s signature design language. Ultra-compact so it fits anywhere.

Unique elegance, distinctive legacy

The refined Al-Si-Cu cast alloy enclosure is CNC-machined and finished with an anodized process for durability and minimalist style.

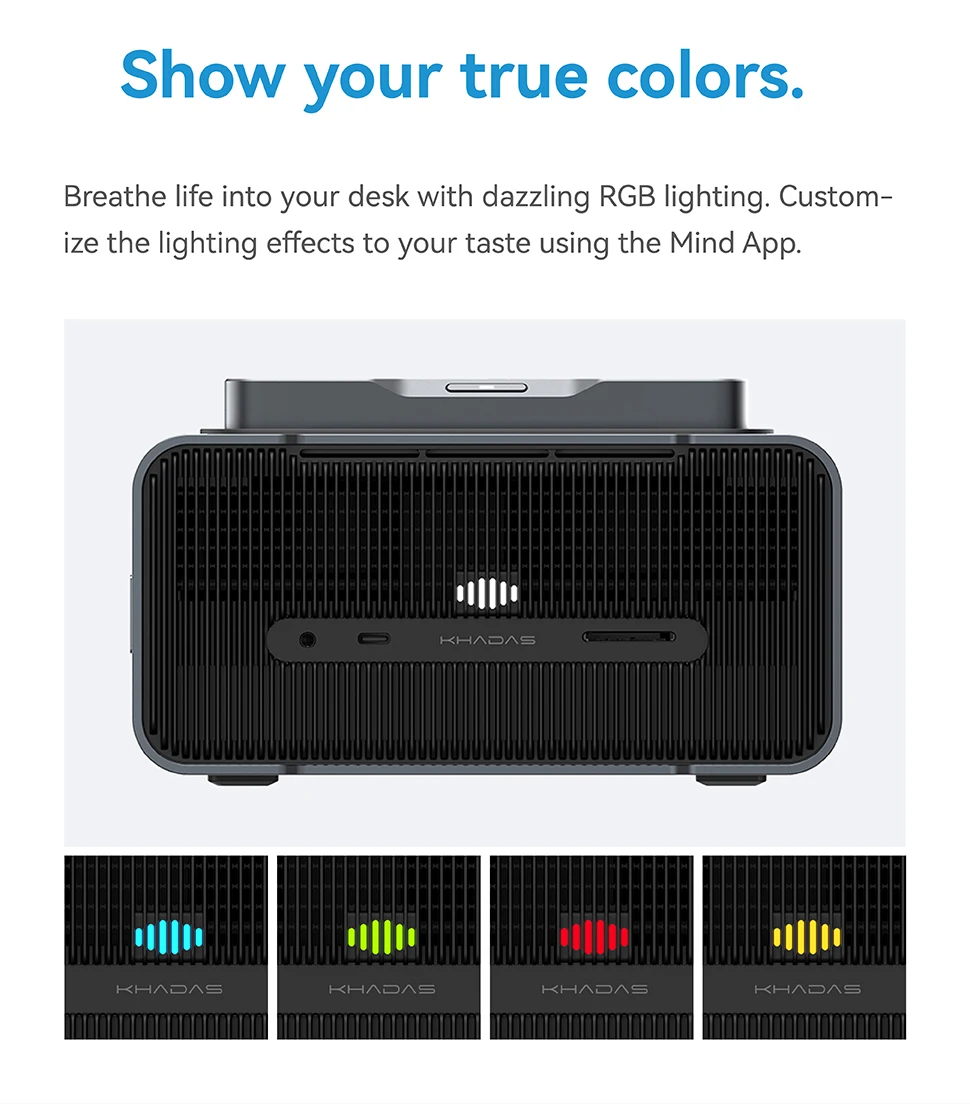

Show your true colors

Bring your desk to life with customizable RGB lighting effects using the Mind App.
