Khadas Mind RTX 4060 Ti 16GB Desktop GPU Dock USB4

Khadas Mind RTX 4060 Ti 16GB Desktop GPU Dock USB4

Desktop-class GPU built for speed

Experience breathtaking next-gen graphics and smooth performance with the NVIDIA GeForce RTX 4060 Ti desktop GPU. The advanced Ada Lovelace architecture helps multiply performance while improving power efficiency. Whether it is AI-generated content, 3D rendering, video editing, or blockbuster games, Mind Graphics handles GPU-intensive tasks with ease so you can streamline your workflow and unleash your creativity.

Tech Specs

• Dimensions: 199 mm × 133 mm × 100 mm
• Weight: 2.7 kg
• Graphics Card: NVIDIA GeForce RTX 4060 Ti (desktop GPU)
• Architecture: Ada Lovelace
• GPU Max Power: 165 W
• VRAM: 16 GB GDDR6
• Power: PSU Max Power 300 W
• PSU Type: Integrated GaN
• Power Delivery
  • USB-C: up to 85 W
  • Mind Link: up to 140 W
• Display Output
  • HDMI 2.1a: up to 4K 240 Hz or 8K 60 Hz
  • DisplayPort 1.4a: up to 4K 240 Hz or 8K 60 Hz
• Display Support
  • Supports up to 4 displays simultaneously (Extend mode)
• Mind Graphics Ports
  • HDMI: 4K 60 Hz × 2
  • DisplayPort: 4K 240 Hz or 8K 60 Hz × 1
• Mind Ports
  • USB-C: 4K 240 Hz or 8K 60 Hz × 1

What’s in the Box

• Mind Graphics × 1
• AC Power Cable × 1
• Manual × 1
• Warranty Card × 1

Notes

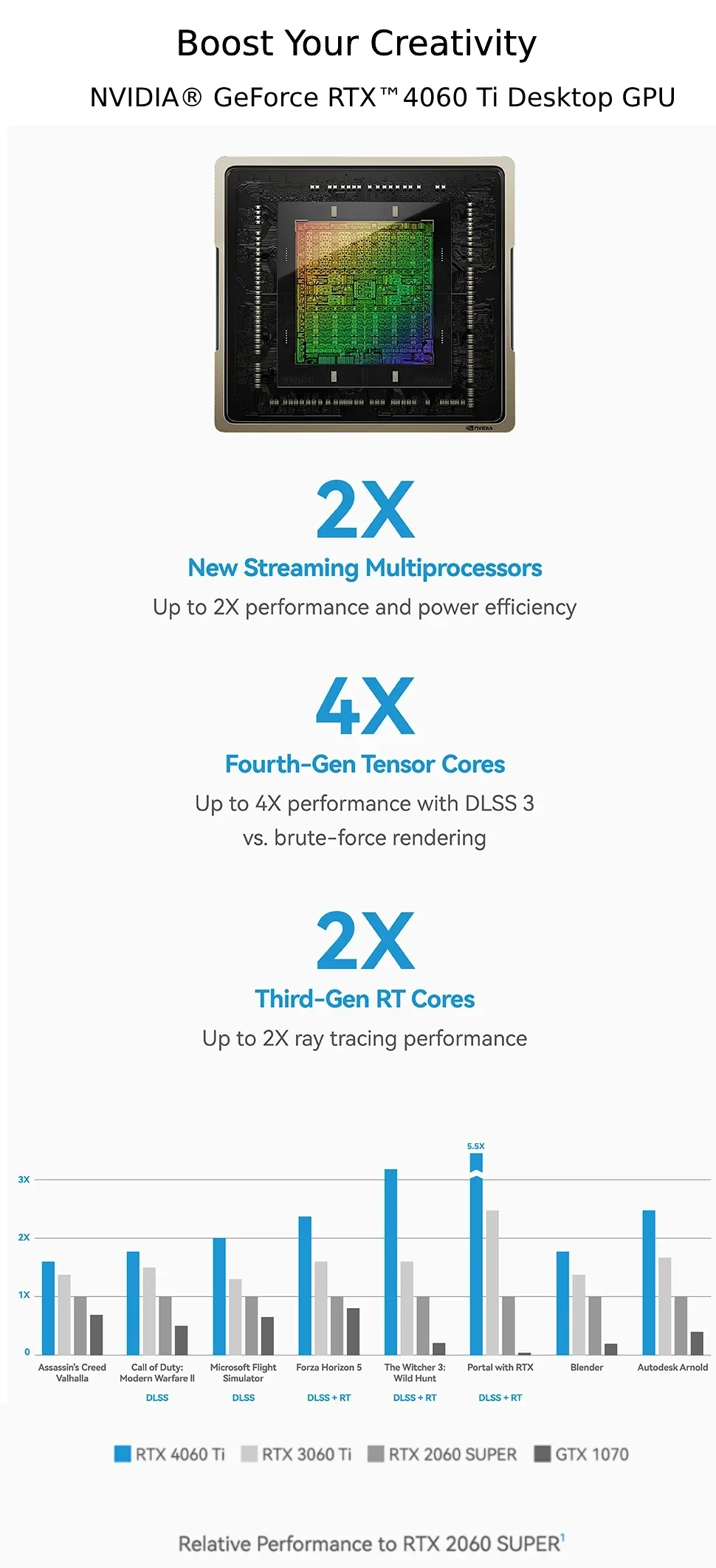

• Performance data provided by NVIDIA. Test setup: 1920 × 1080 resolution, highest game settings; DLSS Super Resolution Quality Mode on GeForce RTX 20/30/40 Series; Frame Generation on RTX 40 Series; i9-12900K, 32 GB RAM, Windows 11 x64; RTX 4060 Ti 16 GB model.
• Mind Graphics supports 8-lane PCIe 4.0 (up to 128 GT/s). Mind supports 4-lane PCIe 4.0 (up to 64 GT/s) when combined with Mind Graphics.
• The 128 GT/s figure is the peak theoretical bandwidth of 8-lane PCIe 4.0, compared with Thunderbolt 4 PCIe speed of 32 GT/s.
• Mind Graphics is compatible with laptops or desktops equipped with Thunderbolt 4 or Thunderbolt 3 ports.
• HDMI 2.1a and DisplayPort 1.4a ports support up to 4K 240 Hz or 8K 60 Hz. Displays that support DSC are required for maximum resolution.
• In Extend mode, up to 3 displays can connect to Mind Graphics simultaneously, and 1 display can connect to Khadas Mind. The remaining two Mind ports (USB-C and HDMI) support Duplicate mode output.

Highlights

• Performance powerhouse: NVIDIA GeForce RTX 4060 Ti with Ada Lovelace architecture boosts performance and power efficiency for AI, 3D, video, and gaming workflows.
• Versatile eGPU: Works via Mind Link and Thunderbolt 3/4 over USB-C, compatible with third-party laptops and desktops that have Thunderbolt ports.

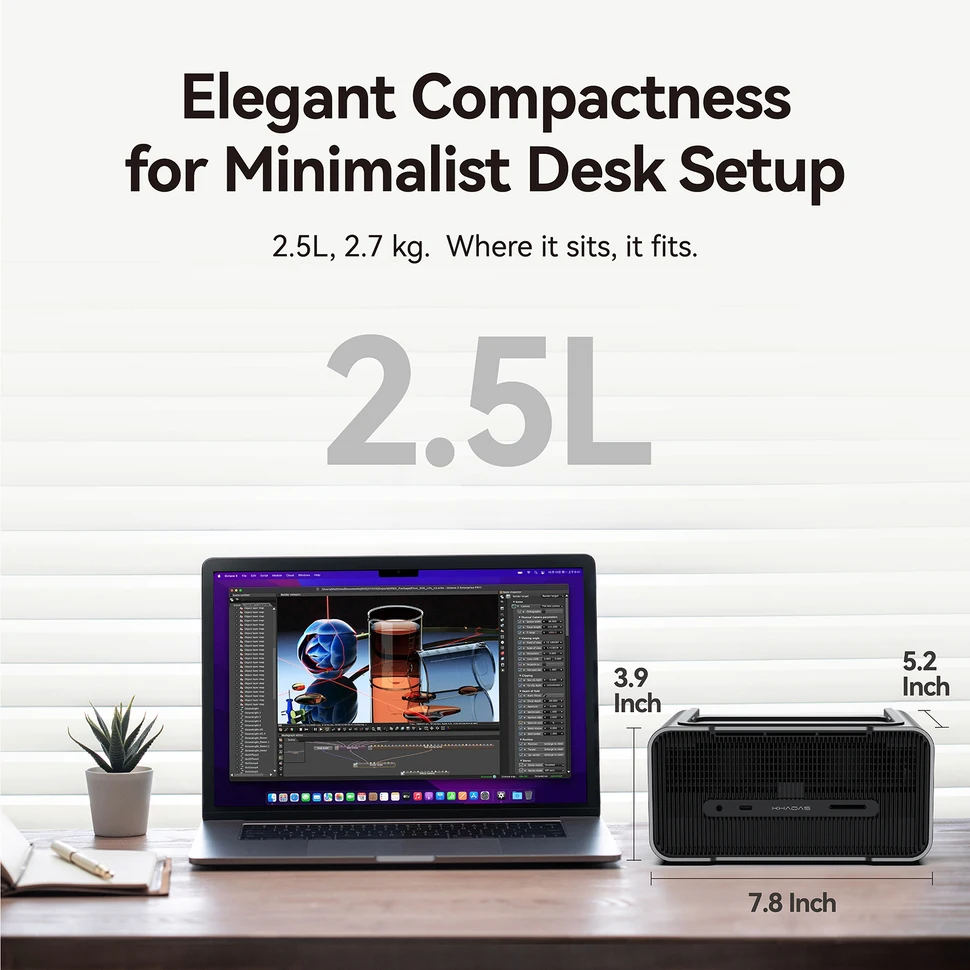

• Compact, stylish design: CNC unibody aluminum enclosure; ultra-compact 2.5 L volume for minimalist setups.
• Rich connectivity: USB-C, USB-A 3.2, HDMI, DisplayPort, 2.5 Gbps Ethernet, SD 4.0 card reader, 3.5 mm headphone jack, fingerprint reader, and a Mind locking mechanism to prevent accidental disconnects.
• All-in-one entertainment: Up to 8K 60 Hz visuals, support for up to 4 external displays, a far-field microphone array for clear calls, and tuned dual-driver speakers for immersive audio.
• Worry-free warranty: 1-year warranty from order date; free replacement or repair for quality defects within the warranty period. Post-warranty repairs follow official service standards.

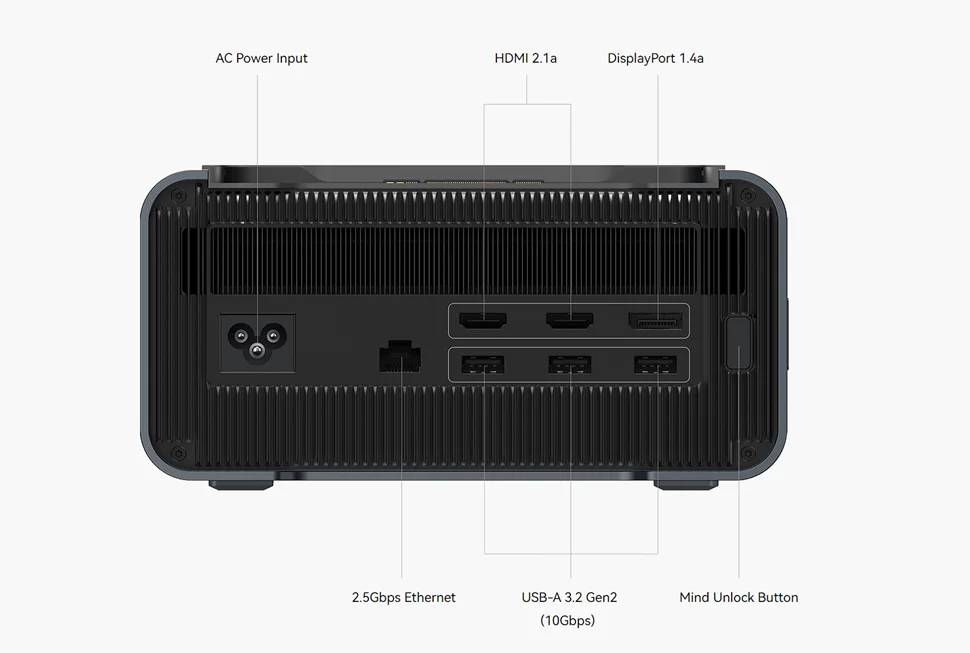

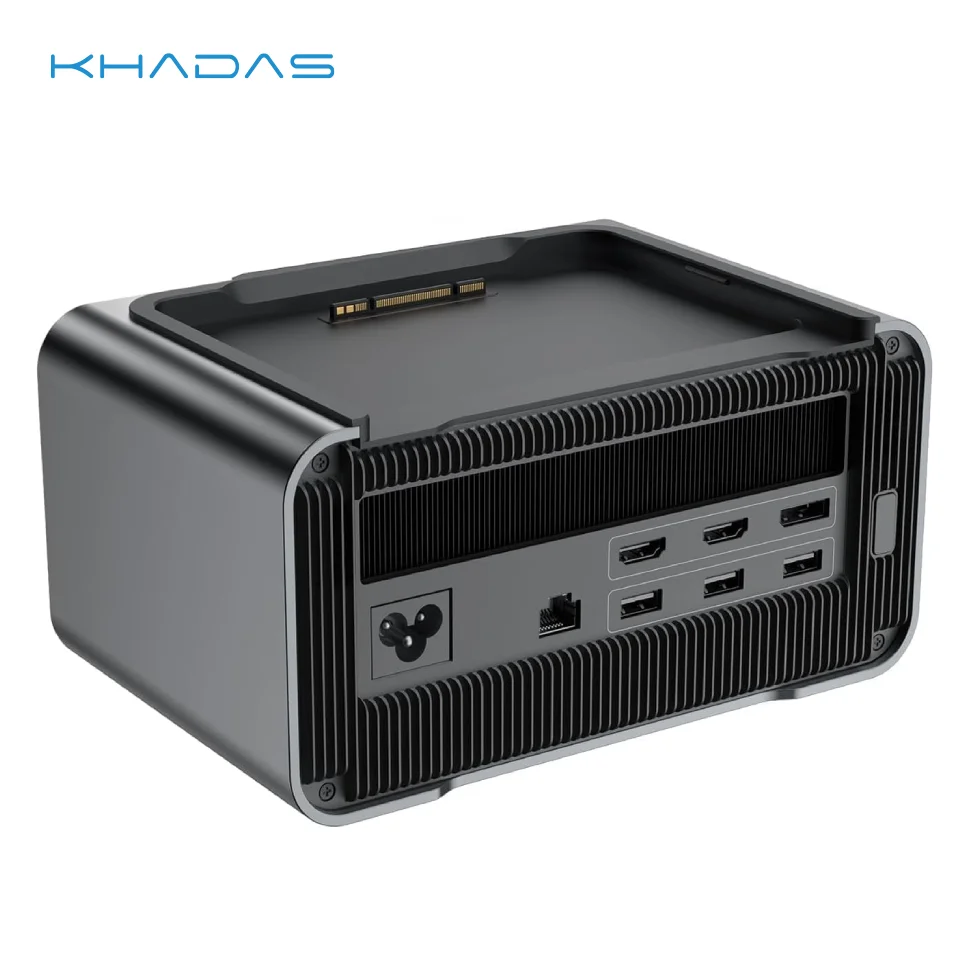

I/O Ports

• USB-C (USB4/Thunderbolt 4/Thunderbolt 3)
• USB-A 3.2 Gen 2 × 3 (10 Gbps)
• HDMI 2.1a × 2 (supports 4K 240 Hz or 8K 60 Hz)
• DisplayPort 1.4a × 1 (supports 4K 240 Hz or 8K 60 Hz)
• Ethernet 2.5 Gbps × 1
• SD Card 4.0 (up to 200 MB/s) × 1
• Mind Link × 1
• 3.5 mm headphone jack with mic support × 1
• Speakers × 2 (10 W)
• Far-field microphone array × 2

Physical Buttons

• Physical volume rocker
• Mind Locking control
• Fingerprint reader with mute button

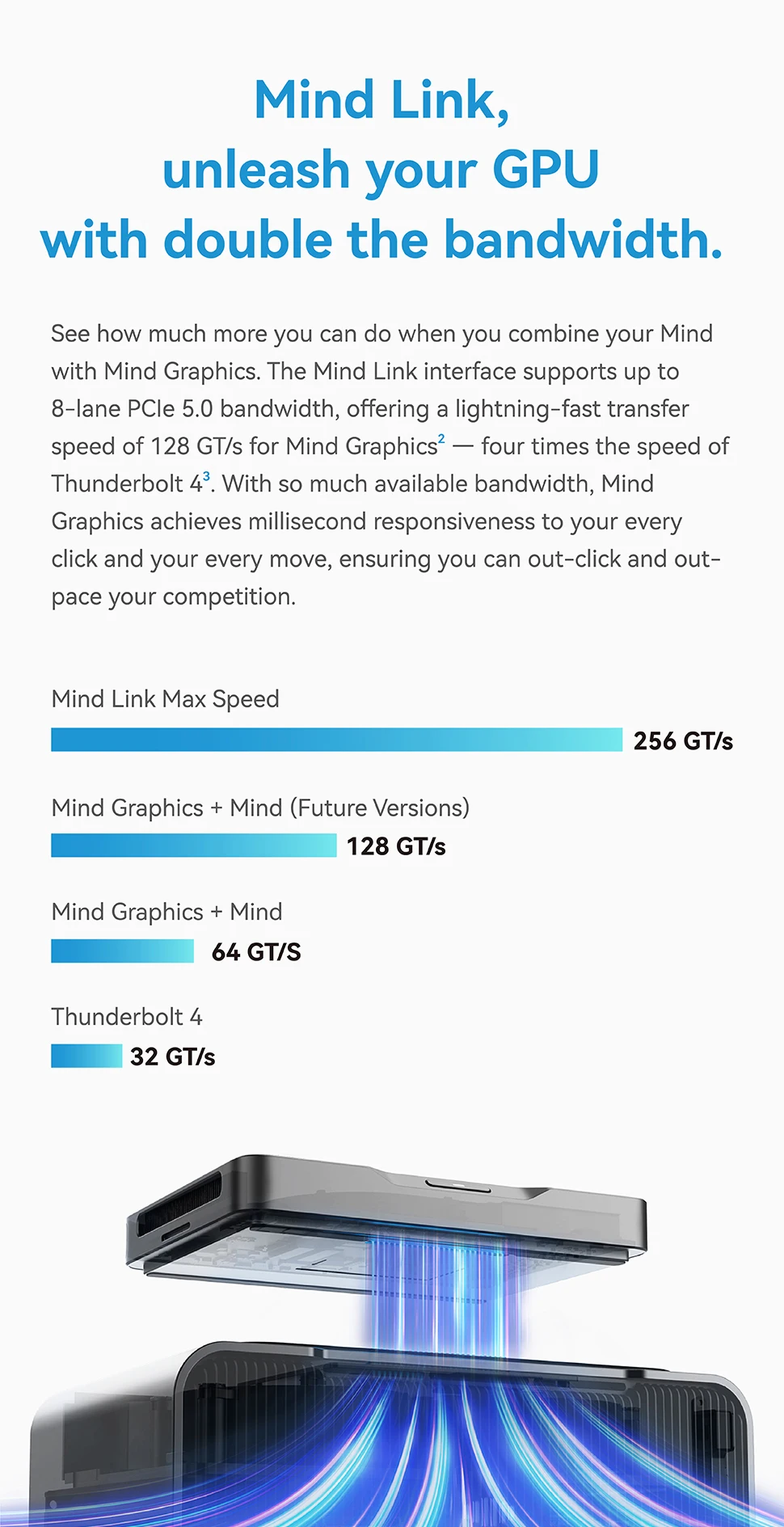

Mind Link: double the bandwidth

Pair Mind with Mind Graphics over the Mind Link interface for up to 8-lane PCIe bandwidth and a transfer rate of 128 GT/s, providing significantly higher throughput than common external connections and enabling highly responsive performance.

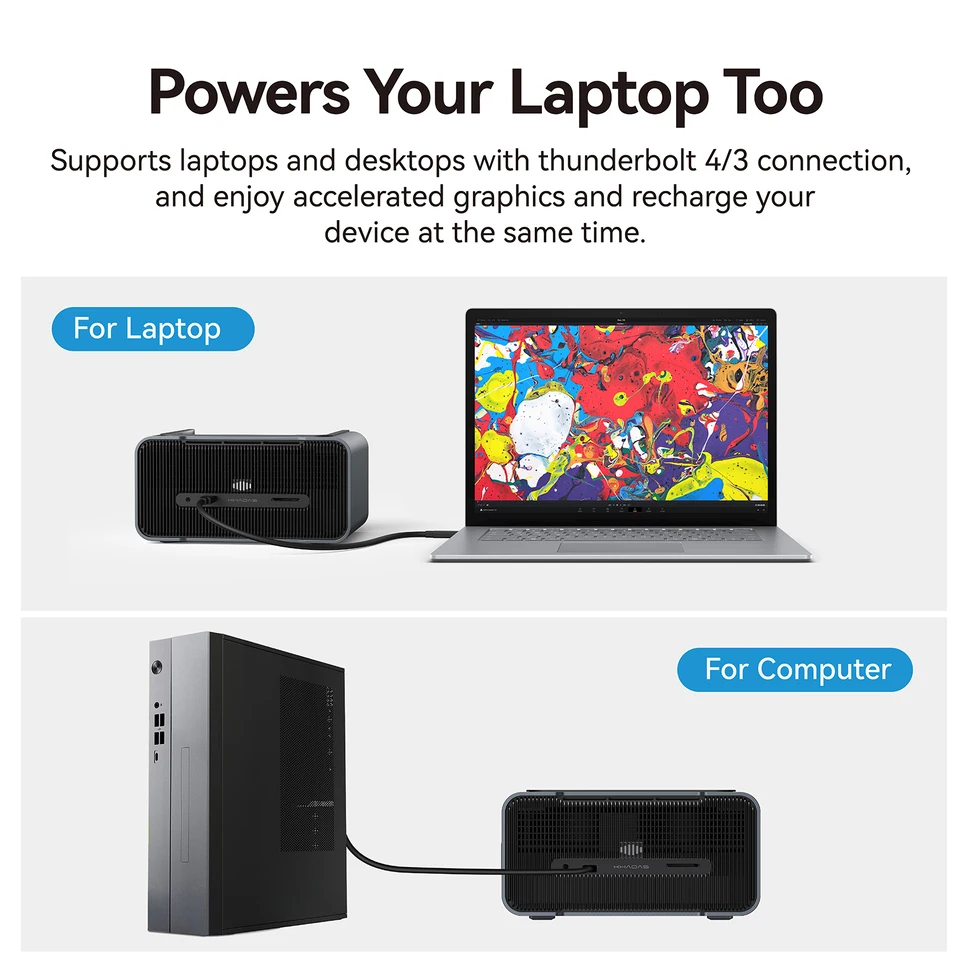

Versatile and laptop-friendly

The USB-C interface is compatible with Thunderbolt 4, Thunderbolt 3, and USB4, and supports USB-PD charging. Connect a laptop or desktop to harness RTX 4060 Ti performance and recharge a laptop with up to 85 W power delivery while you work or play.

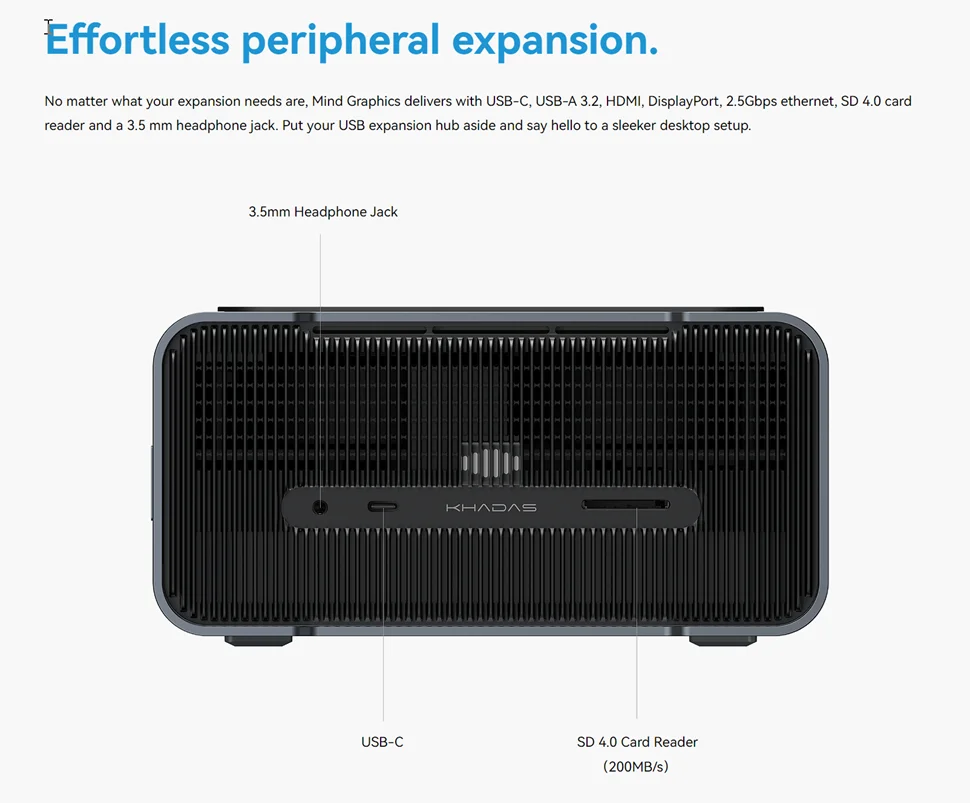

Effortless peripheral expansion

Mind Graphics simplifies your setup with broad connectivity-no separate USB hub required.

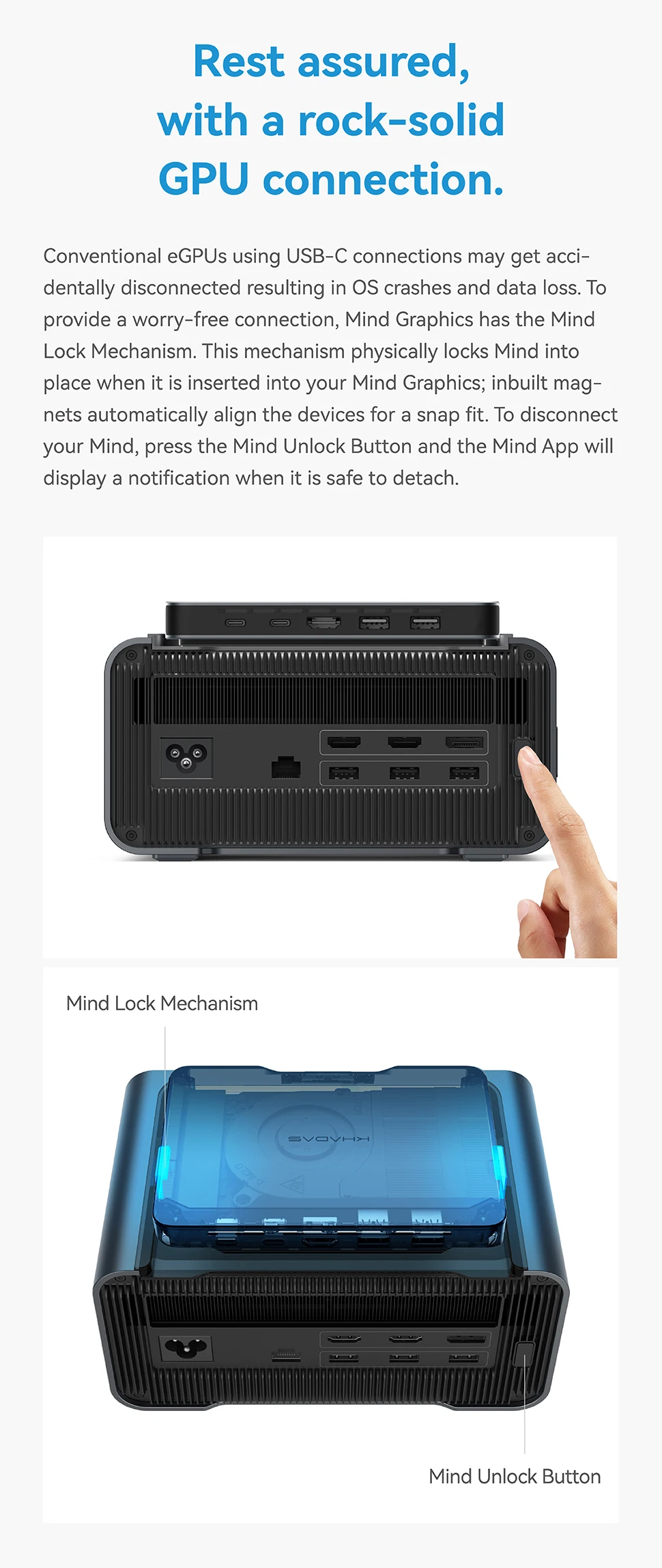

Rock-solid GPU connection

Conventional eGPUs over USB-C can be unplugged accidentally, risking crashes and data loss. The Mind Lock Mechanism physically secures the connection; the Mind App also notifies you when it is safe to detach.

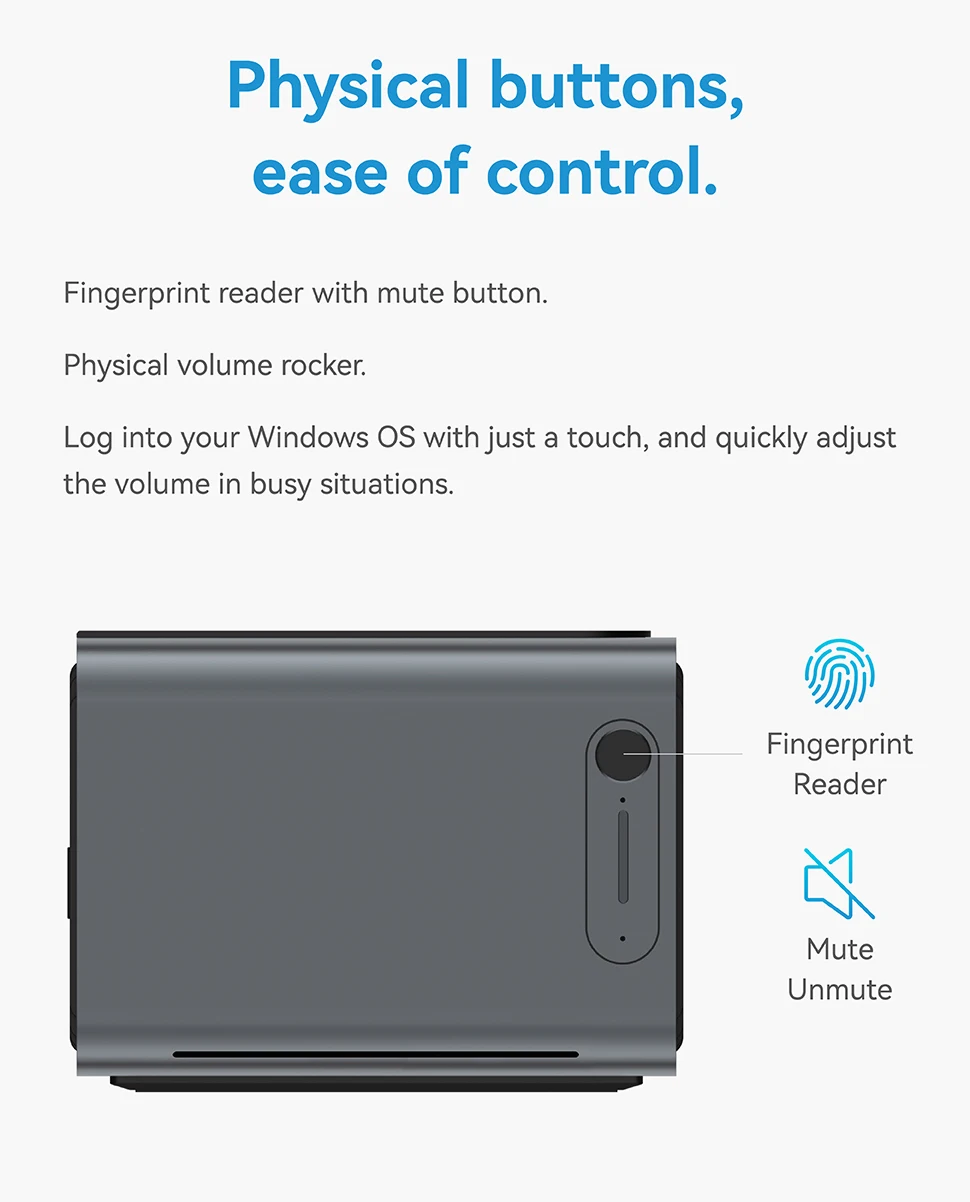

Simple, tactile controls

Log in with a touch using the fingerprint reader with a mute button, and quickly adjust volume with the physical rocker.

More than an eGPU

Delivers up to 8K 60 Hz visuals and supports up to 4 external displays. The far-field microphone array captures a clear voice within a 3-meter radius with noise reduction and voice enhancement. The dual-driver speakers are tuned for rich sound across frequencies.

Exquisitely designed

CNC unibody aluminum enclosure that is ultra-compact and easy to place anywhere.

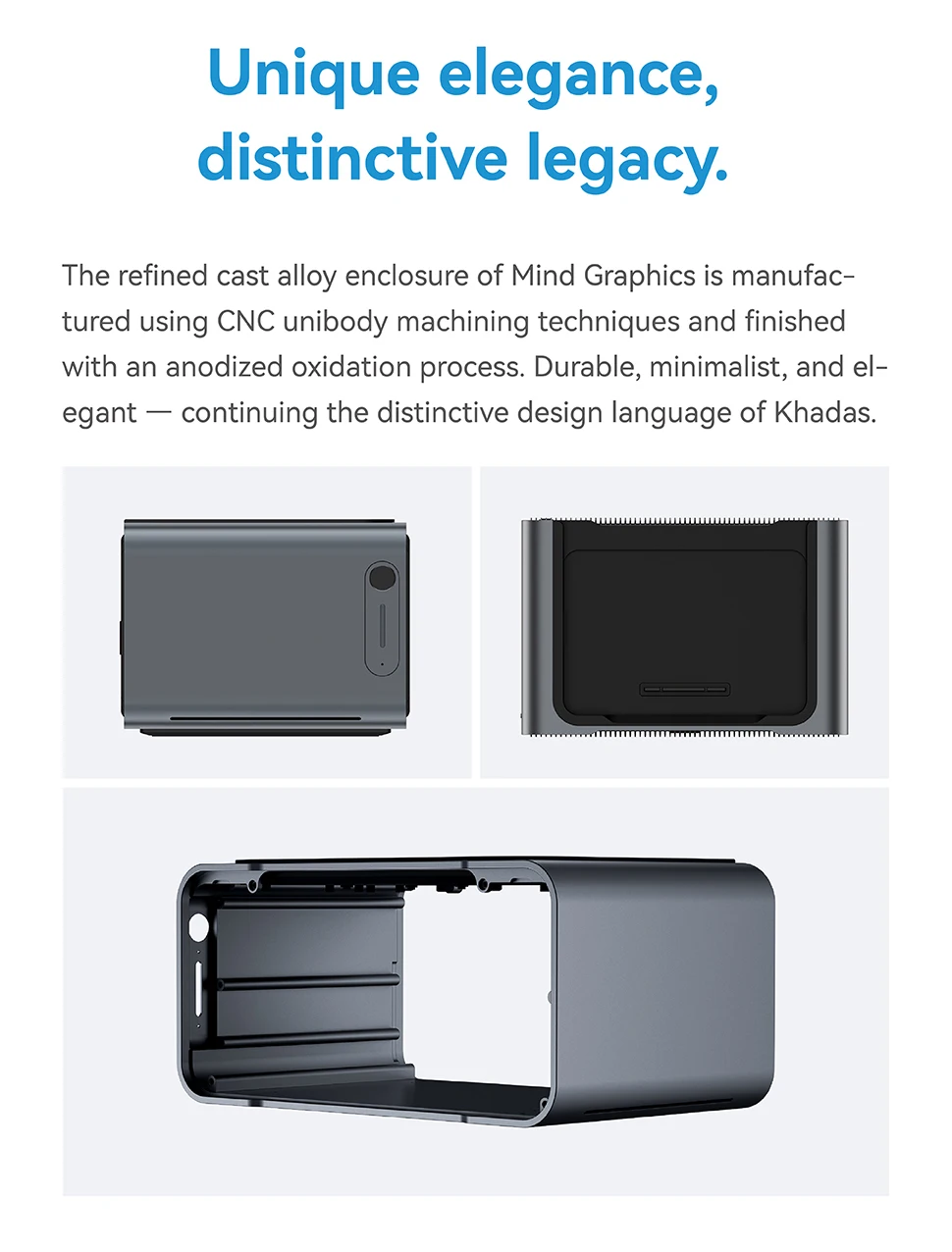

Unique elegance, lasting durability

The refined Al-Si-Cu cast alloy enclosure is CNC-machined and finished with an anodized process for a durable, minimalist, and elegant look.

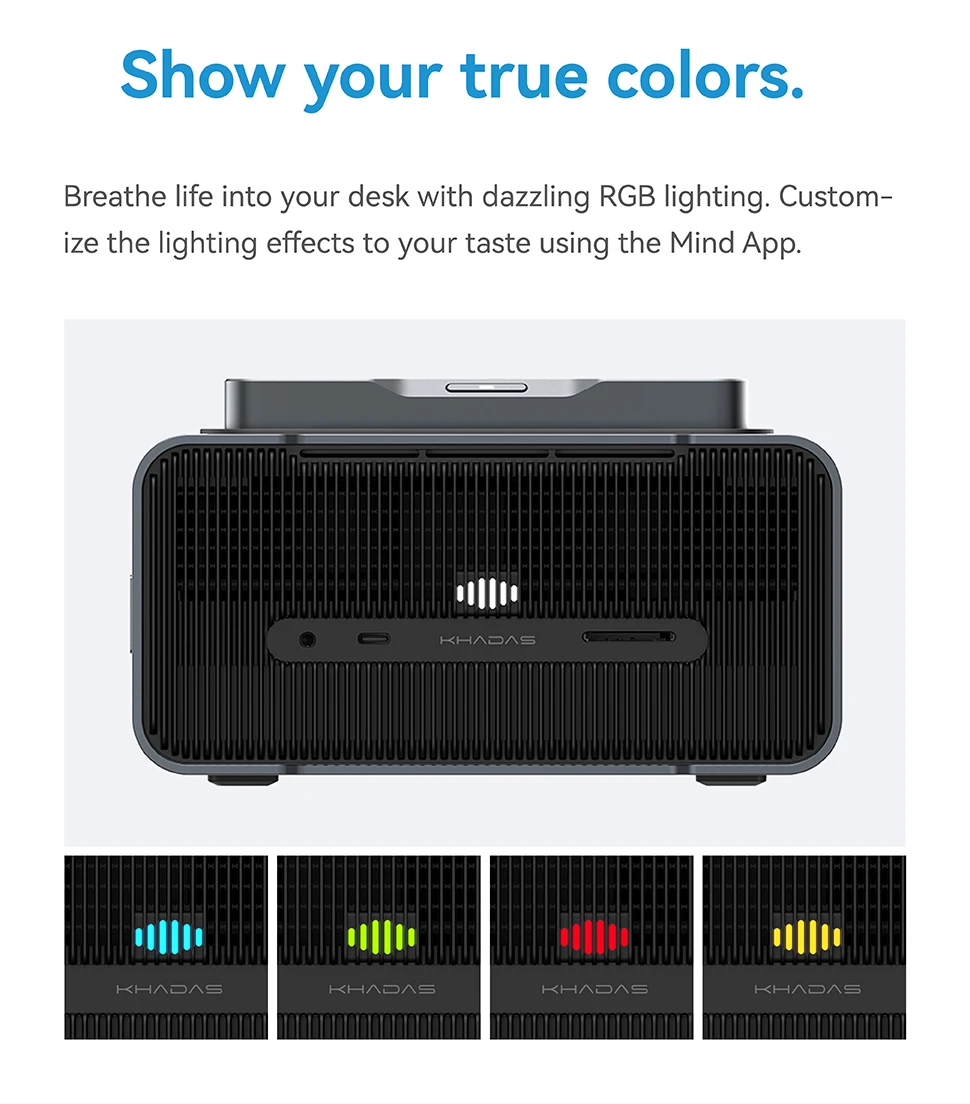

Show your true colors

Bring your desk to life with customizable RGB lighting effects using the Mind App.
