Jewelry Rolling Mill Machine Press Tool

Jewelry Rolling Mill Machine Press Tool

Application

This jewelry rolling mill machine is used in the jewelry industry for gold, silver, copper, aluminum, and other tough metals. It is ideal for jewelers and craftsmen to make fine jewelry.

Specification

• Color: Green
• Material: Cast iron, 55 HRC steel, A3 steel, ABS
• Treatment: Spray paint, heat treatment process
• Assembly required: Yes
• Gear ratio: 2.4:1
• Thickest compressibility: 18 mm / 0.7 in
• Thinnest compressibility: 0.01 mm / 0.0004 in
• Upper roller length: 9 cm / 3.54 in
• Middle roller length: 5 cm / 1.96 in
• Square grooves width: 4 cm / 1.57 in
• Semicircle grooves width: 4.5 cm / 1.77 in
• Total roller length: 12 cm / 4.7 in
• Roller diameter: 5 cm / 1.96 in
• Space between rollers: 0–25 mm / 0–0.7 in
• Square wire sizes: 1, 2, 2.5, 3, 3.5, 4, 5 mm
• Semicircle wire sizes: 2, 3, 4, 5, 6, 9 mm
• Maximum sheet width: 45 mm / 1.8 in
• Hand crank length: 29 cm / 11.4 in
• Gross weight: 18.35 kg / 40.5 lb
• Net weight: 17.55 kg / 38.7 lb

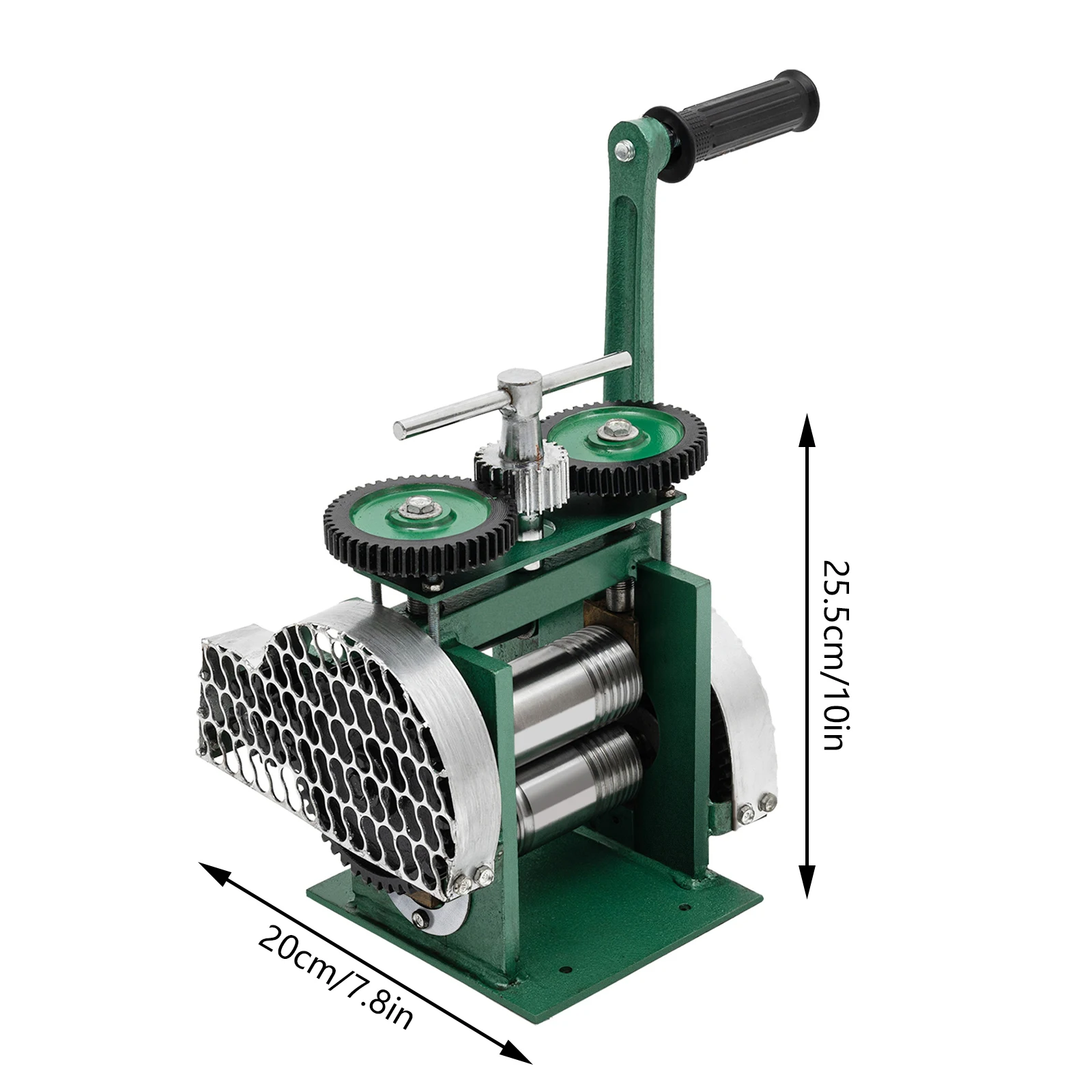

• Product size: 24.5 × 24 × 26 cm / 9.6 × 9.4 × 10.2 in
• Package size: 35 × 29 × 30 cm / 13.7 × 11.4 × 11.8 in

Package Included

• 1 × Rolling mill machine
• 1 × English manual
• All accessories for assembly

Key Features

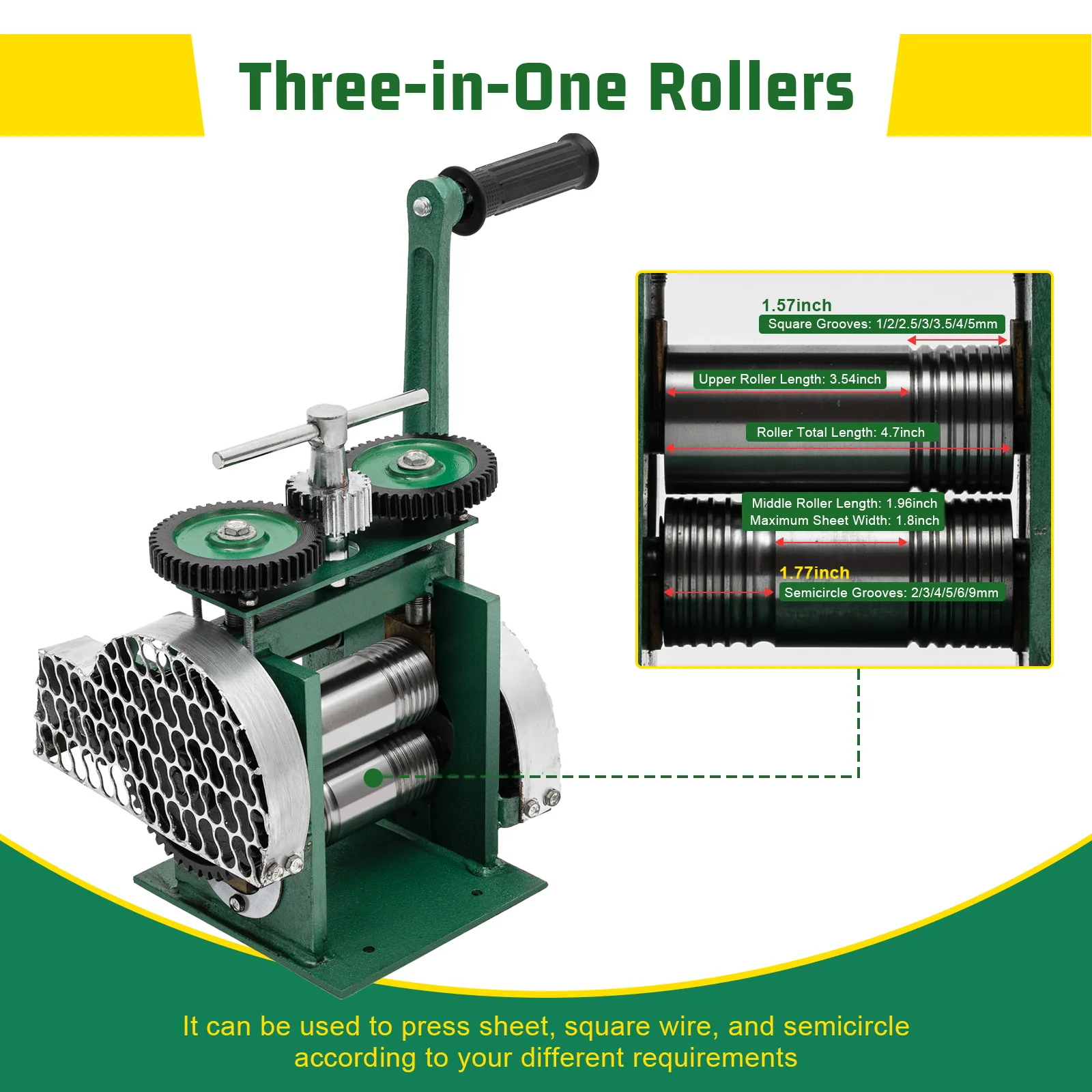

• Three-in-one rollers: Press gold and silver into multiple sizes of sheet, square wire, and semicircle wire. Rollers are easy to change to meet different needs.

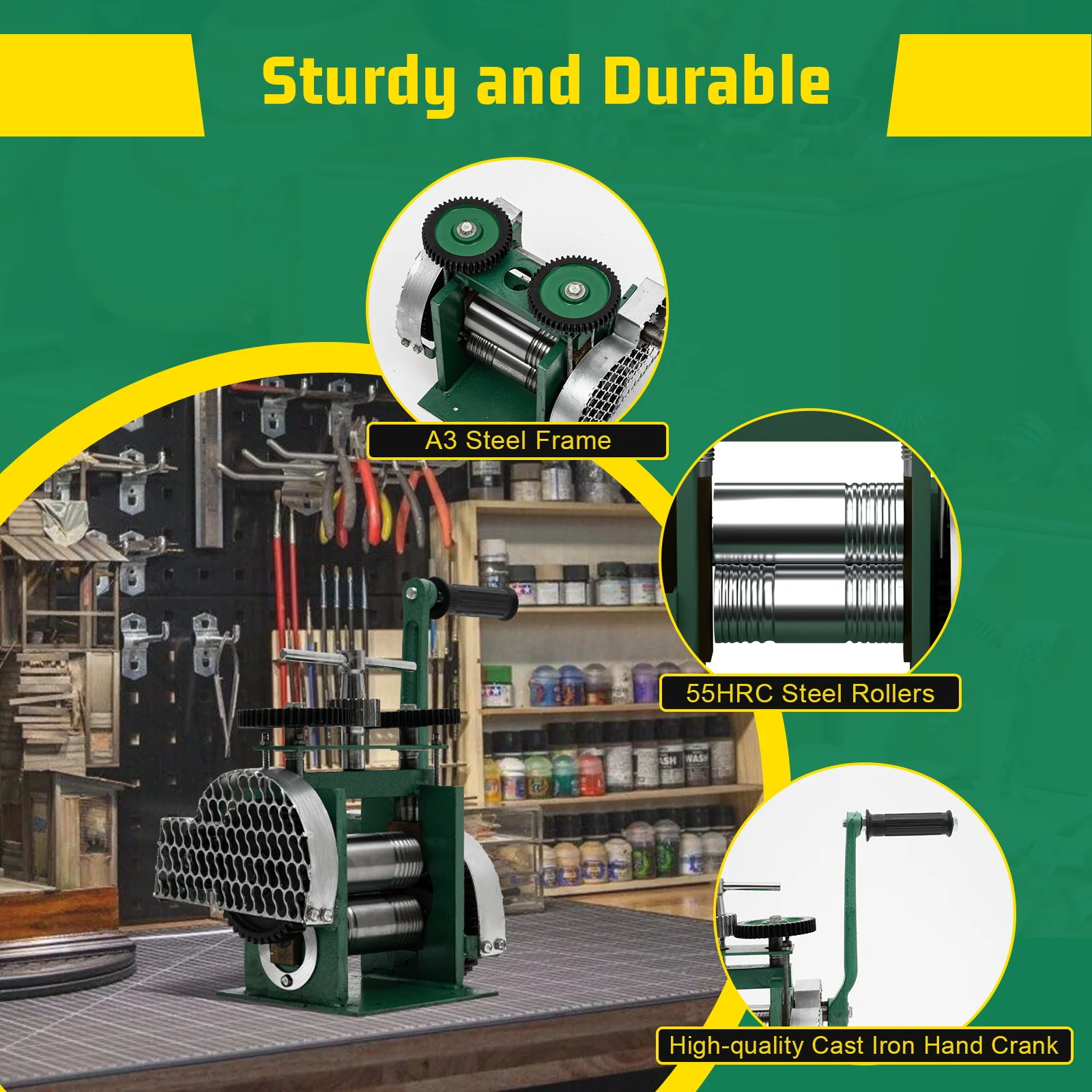

• Sturdy and durable: 55 HRC steel rollers with heat treatment, cast iron hand crank, and A3 steel frame with spray paint resisting deformation during long-term use.
• Labor-saving design: The 2.4:1 reduction ratio and pinion driving an oversized gear reduce the force needed to operate the mill.

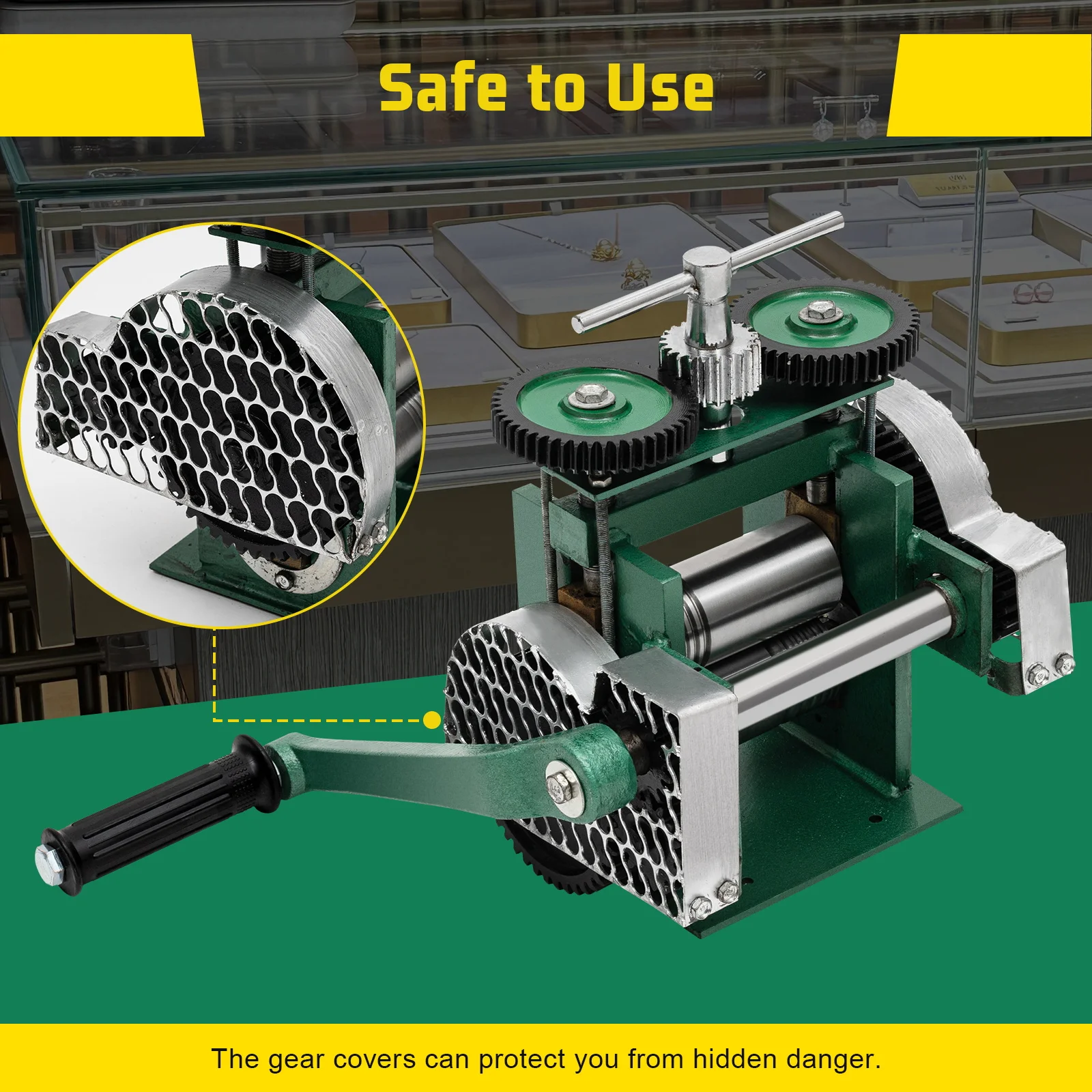

• Safe to use: High-quality A3 steel gear covers on both sides help protect the user during standard operation.

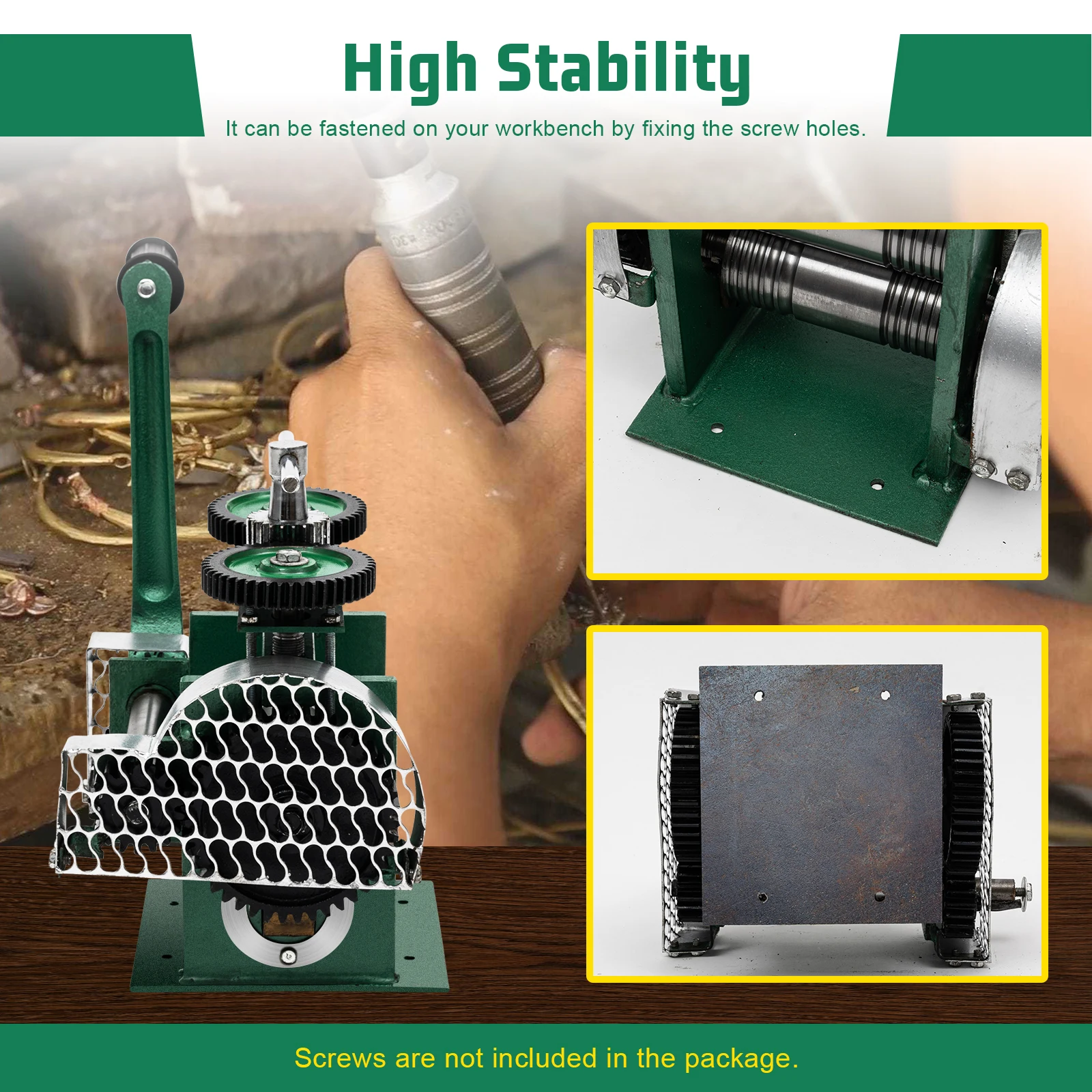

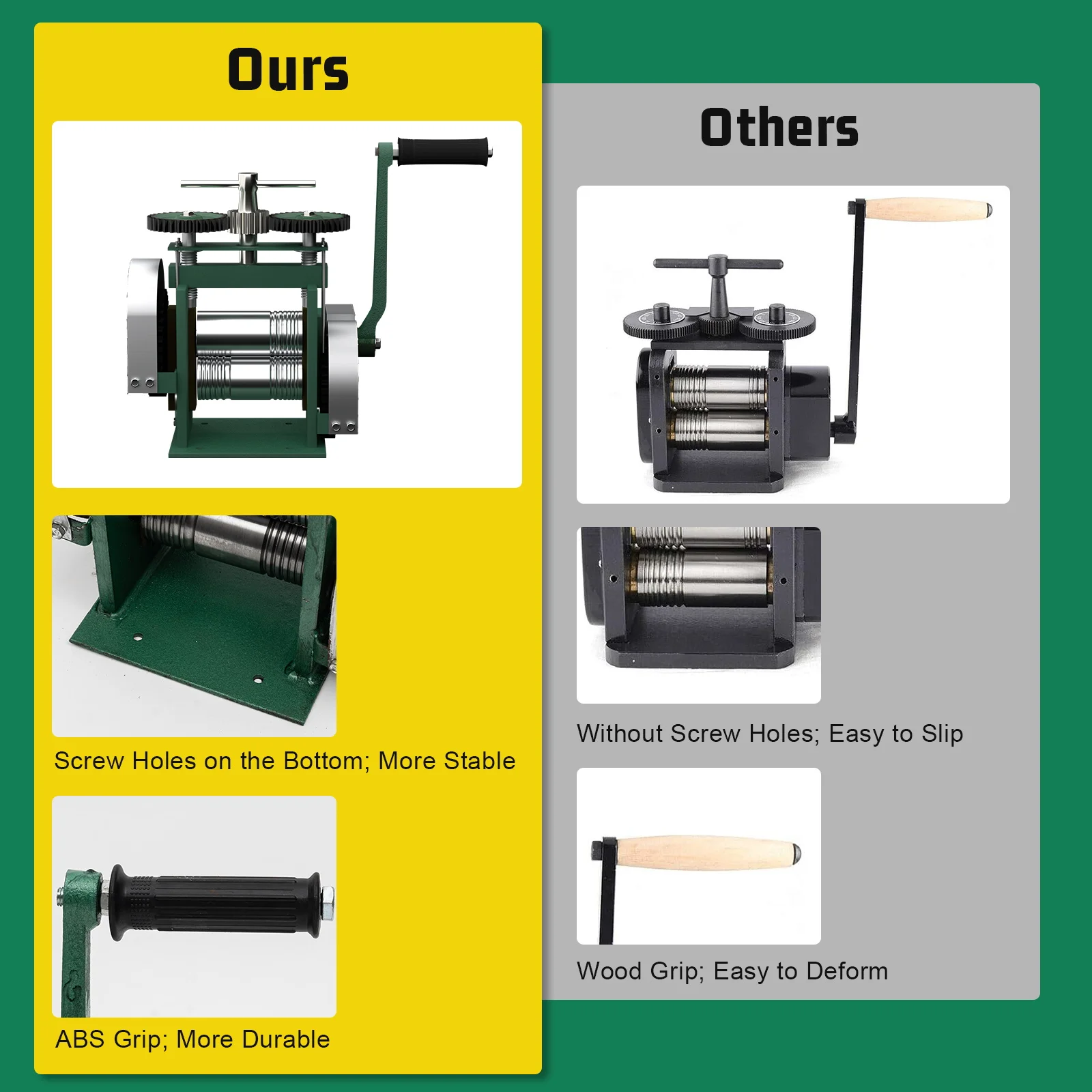

• High stability: Screw holes at the base allow fastening to a workbench for steady operation.
• Adjustable press thickness: The T-shaped gear handle precisely adjusts roller distance within 0.7 in to suit different tasks.

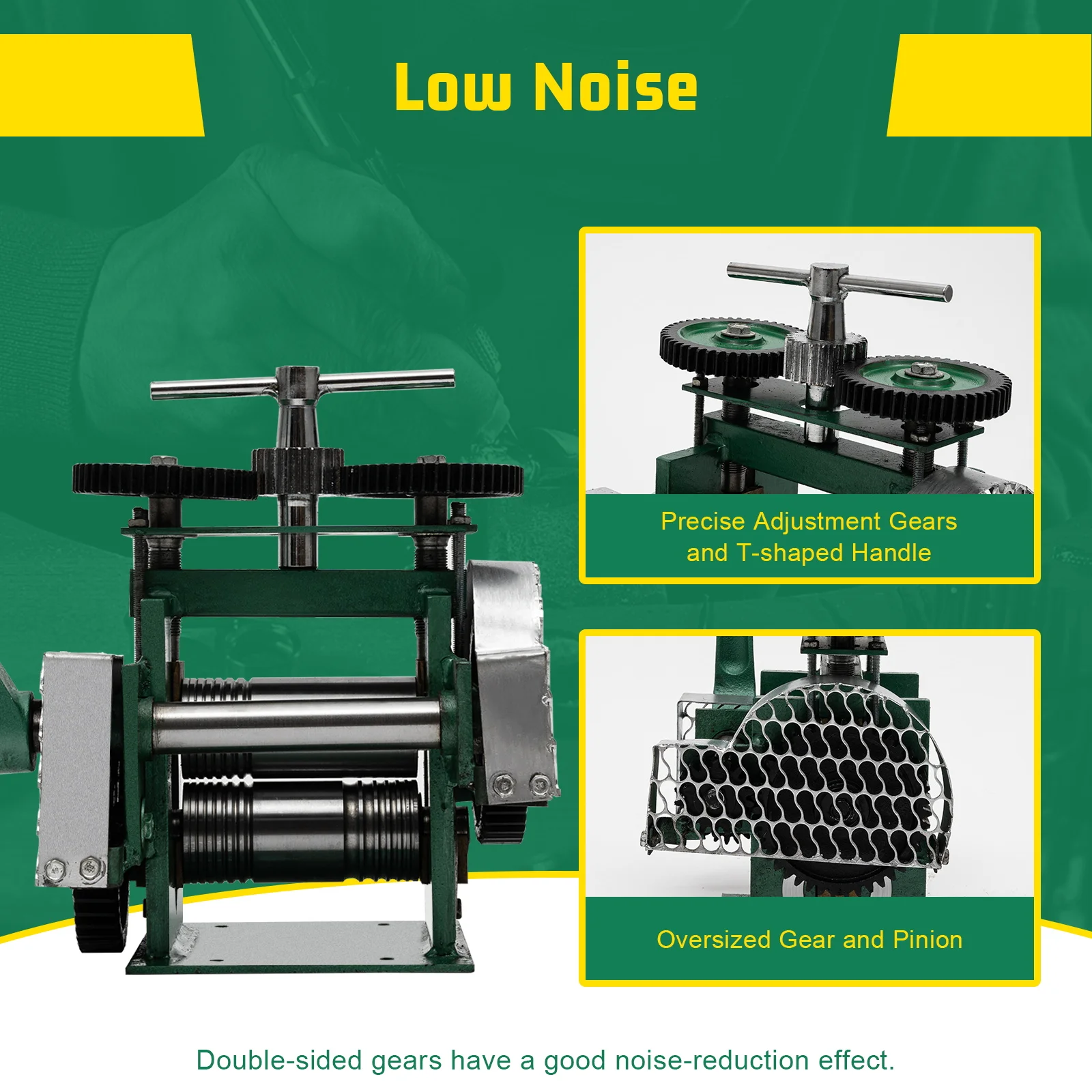

• Low noise: Double-sided gears help reduce noise and create a quieter working environment.
• Protective packaging: Custom foam resists compression and drops to help prevent damage during transit.

Details

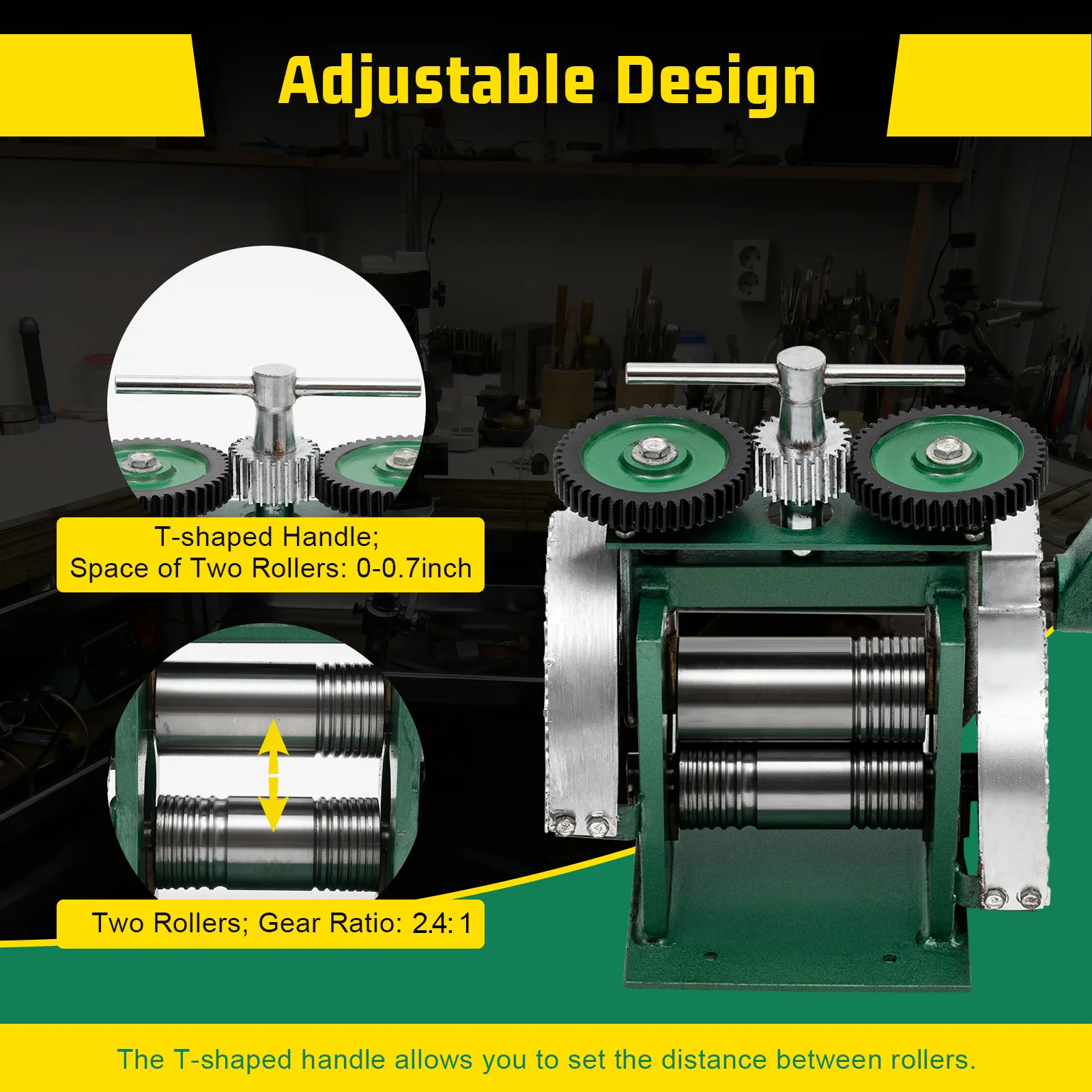

• Gear handle: The T-shaped handle connects to parallel adjustment gears, letting you set the roller gap to match material texture and size.
• Extra-long hand crank: The long crank with a cast iron body and a non-slip ABS grip allows even force and smooth operation.

Notes

• Screws are not included.
• Add lubricating oil to the injection holes once or twice a day during use.
• Remove the plastic wrap from the rollers before first use.
• Slight color differences from lighting and a 1–3 cm manual-measurement variance may occur.
