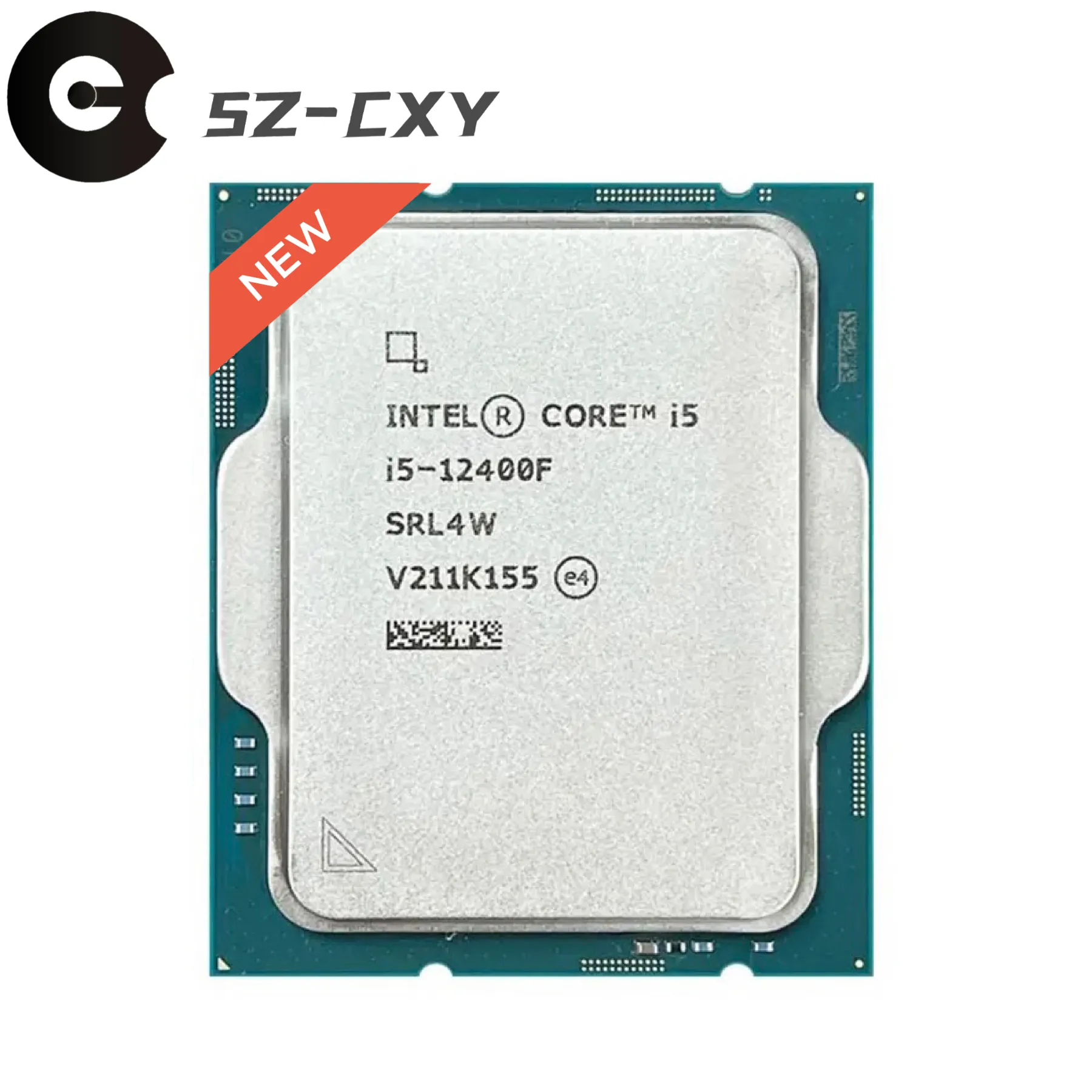

Intel i5-12400F 6-Core 12-Thread CPU 65W

Description

Intel i5-12400F 6-Core 12-Thread CPU 65W

Origin and Warranty Information

• The product is shipped randomly and comes with a one-year warranty.
• Due to the manufacturing process, the product’s surface may not be entirely smooth and could include scratches.

Intel Core i5-12400F Specifications Overview

• These specifications are suitable for short-term listings on auction and classified sites. For more details and related links, refer to the specs area.

General Information

• Type: Desktop
• Market Segment: Desktop
• Family: [Information not provided]
• Model Number: [Information not provided]

CPU Part Numbers

• CM8071504555318: OEM/tray microprocessor
• CM8071504650609: OEM/tray microprocessor
• BX8071512400F: Boxed processor (English version)
• BXC8071512400F: Boxed processor (Chinese version)

Performance

• Frequency: 2.5 GHz / 2500 MHz
• Maximum Turbo Frequency: 4.4 GHz / 4400 MHz
• Bus Speed: 32 GT/s PCI Express interface, 16 GT/s Direct Media Interface
• Clock Multiplier: 25

Physical Characteristics

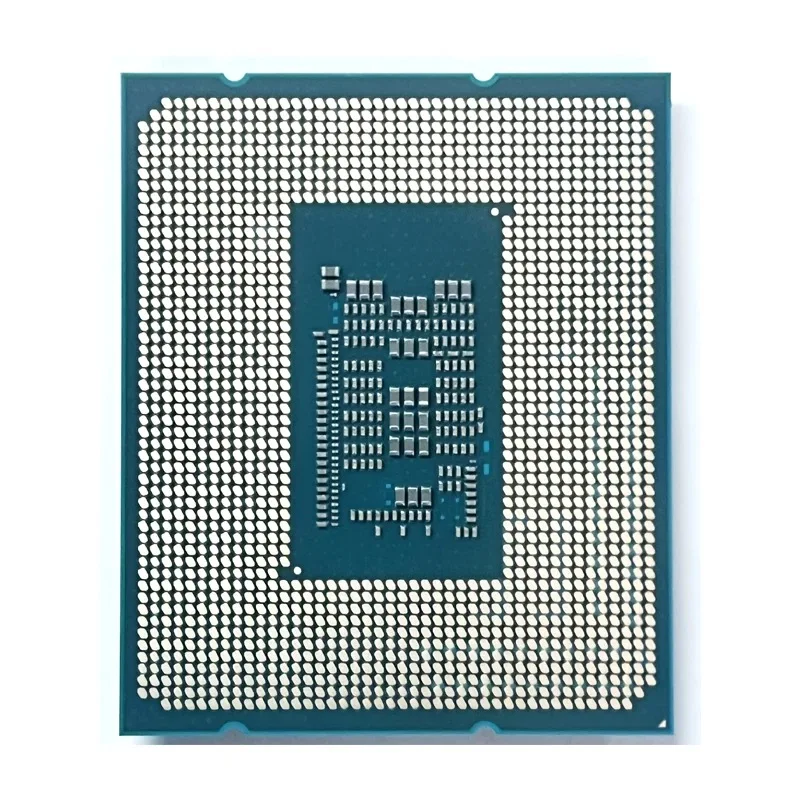

• Package: 1700-land Flip-Chip Land Grid Array (FC-LGA) with integrated heat spreader
• Socket: Socket 1700
• Size: 1.77″ x 1.48″ / 4.5cm x 3.75cm

Introduction Date and Part Numbers

• Introduction Date: [Information not provided]
• S-spec Numbers: [Information not provided]
• Part Numbers: BX8071512400F, BXC8071512400F, CM8071504555318, CM8071504650609

Architecture and Microarchitecture

• Microarchitecture: Alder Lake
• Processor Core: Alder Lake-S
• Core Stepping: C0, H0
• Manufacturing Process: 0.010 micron “Intel 7” process
• Data Width: 64-bit
• Number of CPU Cores: 6
• Number of Threads: 12
• Floating Point Unit: Integrated

Cache

• Level 1 Cache: 6 x 32 KB instruction caches, 6 x 48 KB data caches
• Level 2 Cache: 6 x 1.25 MB caches
• Level 3 Cache: 18 MB shared cache

Memory and Multiprocessing

• Physical Memory: Up to 128 GB
• Multiprocessing: Uniprocessor

Extensions and Technologies

• Includes MMX, SSE, SSE2, SSE3, SSSE3, SSE4, AES, AVX, AVX2, BMI, Deep Learning Boost, F16C, FMA3, Gaussian Neural Accelerator 3.0, SHA, EM64T, HT, VT-x, VT-d, TBT 2.0

Security Features

• NX / XD / Execute Disable Bit

Low Power Features

• Enhanced SpeedStep Technology

Integrated Peripherals/Components

• Integrated Graphics: None
• Memory Controller: Supports DDR4-3200, DDR5-4800 memory
• Other Peripherals: Direct Media Interface 4.0, PCI Express 5.0 and 4.0 interfaces, Image Processing Unit 6.0

Electrical and Thermal Parameters

• Operating Temperature: 0°C – 71.3°C (case), 100°C (junction)
• Thermal Design Power: 65 Watt
