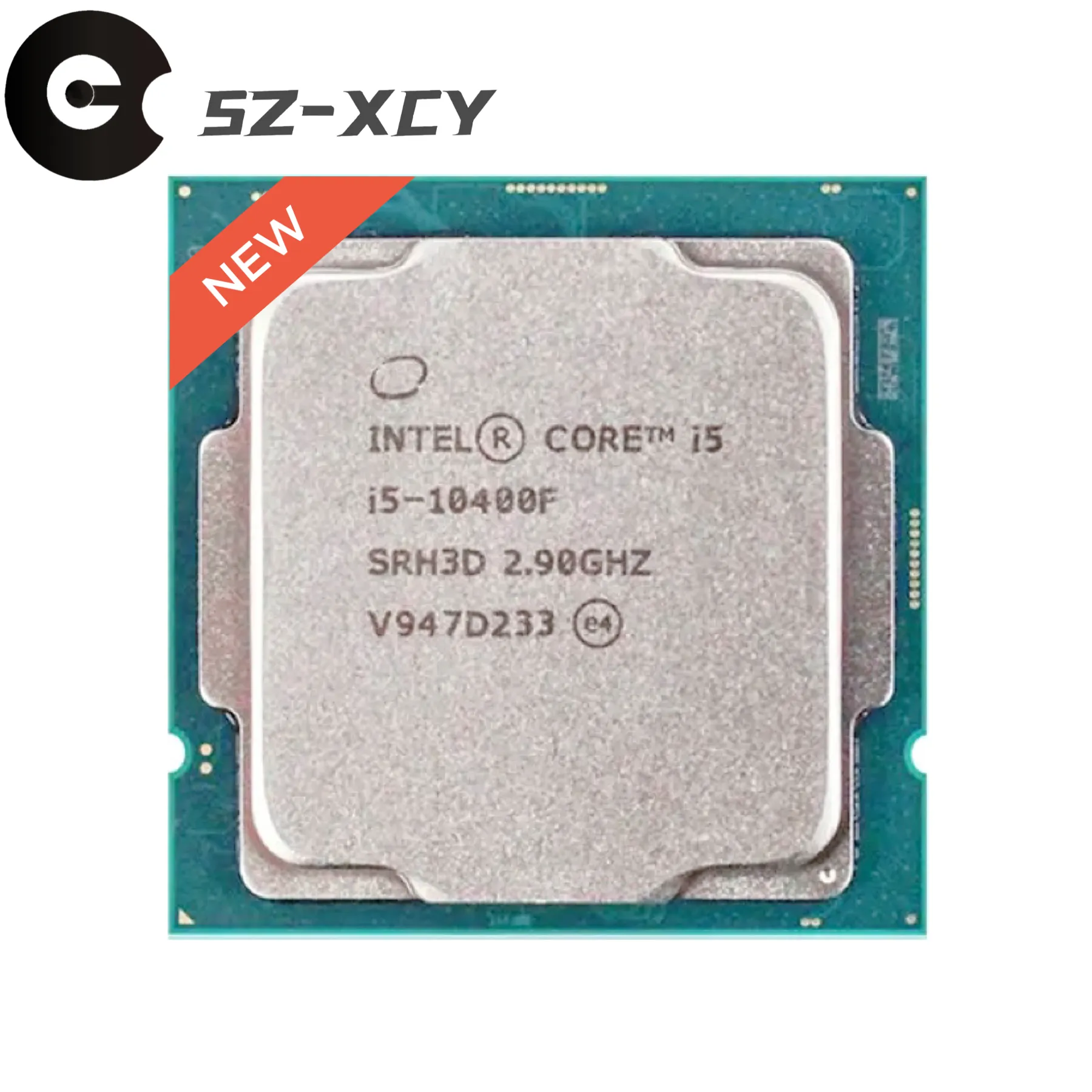

Intel i5-10400F 2.9GHz 6-Core CPU LGA1200

Intel i5-10400F 2.9GHz 6-Core CPU LGA1200

Intel Core i5-10400F Specifications

General Information

• Type: Desktop

CPU Part Numbers

• CM8070104282719: OEM/tray microprocessor
• CM8070104290716: OEM/tray microprocessor
• BX8070110400F: Boxed processor (English version)
• BXC8070110400F: Boxed processor (Chinese version)

Performance

• Frequency: 2900 MHz
• Maximum Turbo Frequency: 4300 MHz (1 core), 4000 MHz (all cores)
• Low Power Frequency: 800 MHz
• Bus Speed: 8 GT/s DMI
• Clock Multiplier: 29

Physical/Technical Details

• Package: 1200-land Flip-Chip Land Grid Array
• Socket: Socket 1200
• Size: 1.48″ x 1.48″ (3.75cm x 3.75cm)

Market Introduction

• Introduction Date: [Not specified]
• Price at Introduction: $157 (OEM), $155 (box)

S-spec Numbers

• Part Numbers:
  • BX8070110400F: [Available]
  • BXC8070110400F: [Available]
  • CM8070104282719: [Available]
  • CM8070104290716: [Available]

Architecture/Microarchitecture

• Microarchitecture: Comet Lake
• Processor Core: Comet Lake-S
• Core Steppings: G1 (SRH3D), Q0 (SRH79)
• Manufacturing Process: 0.014 micron
• Data Width: 64-bit
• CPU Cores: 6
• Threads: 12
• Floating Point Unit: Integrated

Cache

• Level 1 Cache: 6 x 32 KB 8-way set associative instruction caches, 6 x 32 KB 8-way set associative data caches
• Level 2 Cache: 6 x 256 KB 4-way set associative caches
• Level 3 Cache: 12 MB 16-way set associative shared cache

Memory

• Physical Memory: 128 GB
• Multiprocessing: Uniprocessor

Extensions and Technologies

• Includes MMX, SSE, SSE2, SSE3, SSSE3, SSE4, AES, AVX, AVX2, BMI, F16C, FMA3, EM64T, HT, VT-x, VT-d, TBT 2.0

Security Features

• NX/XD, MPX, SGX, SMAP, SMEP

Low Power Features

• Core C1/C1E, C3, C6, C7, C8, C9, C10 states
• Package C3, C6, C7, C8, C9, C10 states
• Enhanced SpeedStep technology

Integrated Peripherals/Components

• Integrated Graphics: None
• Memory Controller: 1 controller, 2 memory channels (per controller), 2 total memory channels, 64-bit channel width, supports DDR4-2666, 2 DIMMs per channel, maximum memory bandwidth 42.7 GB/s
• Other Peripherals: Direct Media Interface 3.0 (4 lanes), PCI Express 3.0 interface (16 lanes)

Electrical/Thermal Parameters

• Minimum/Maximum Operating Temperature: 0°C (case) – 71.3°C (case), 100°C (junction)
• Thermal Design Power: 65 Watt

Notes on Intel Core i5-10400F

• Supports Intel Optane memory
• Features security, data protection, and software features including Intel Boot Guard, Identity Protection technology, OS Guard, and Secure Key.
