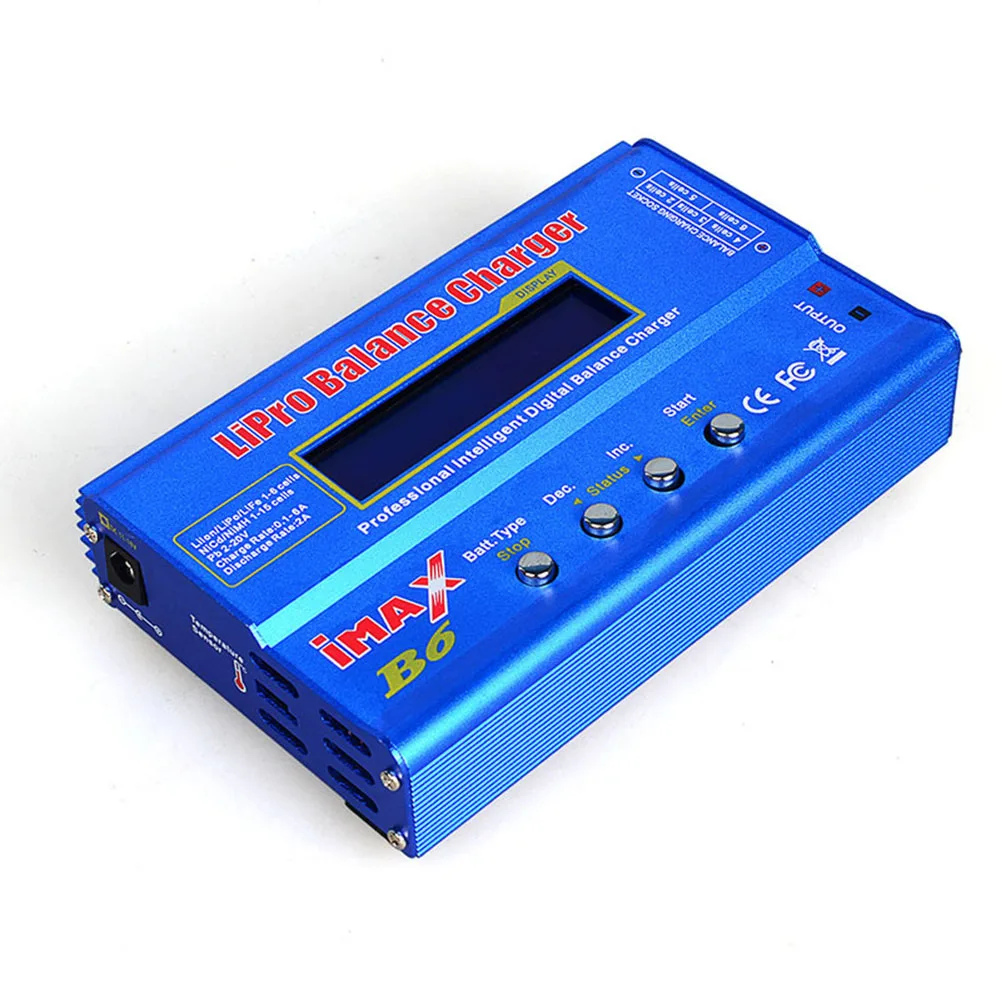

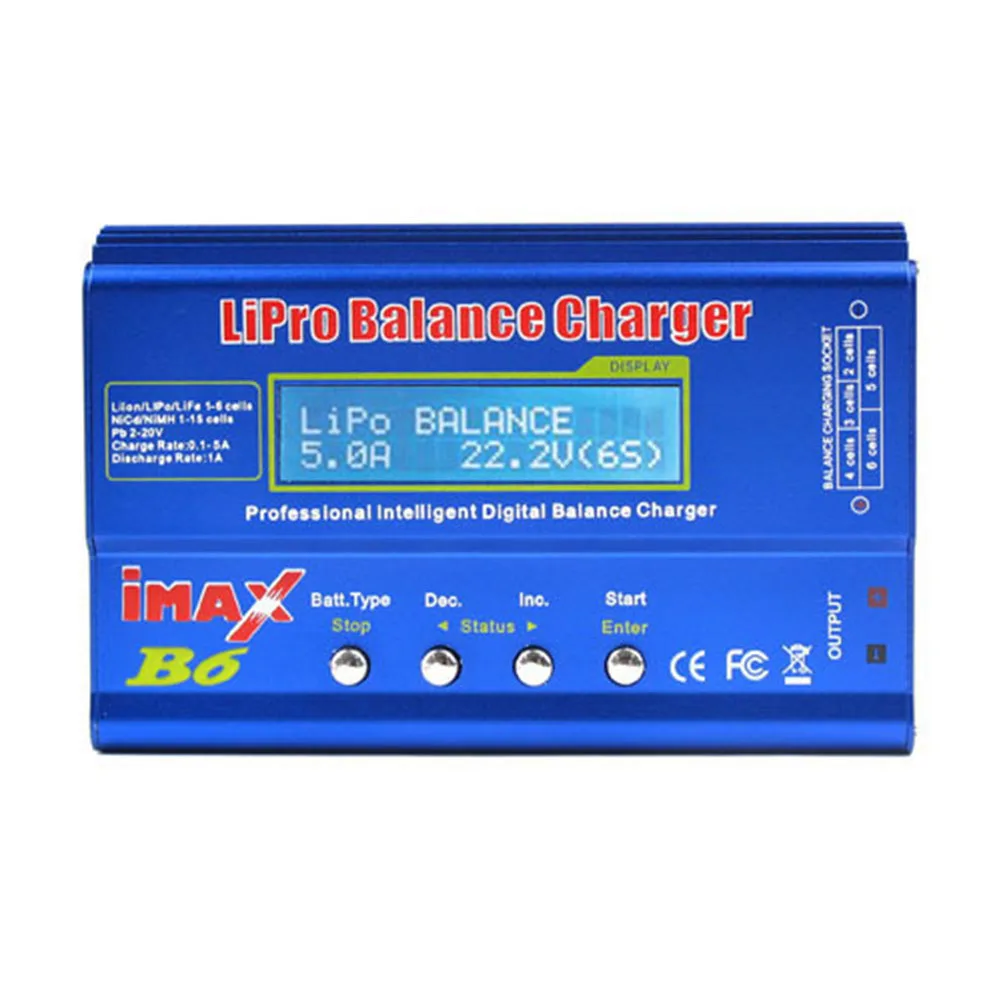

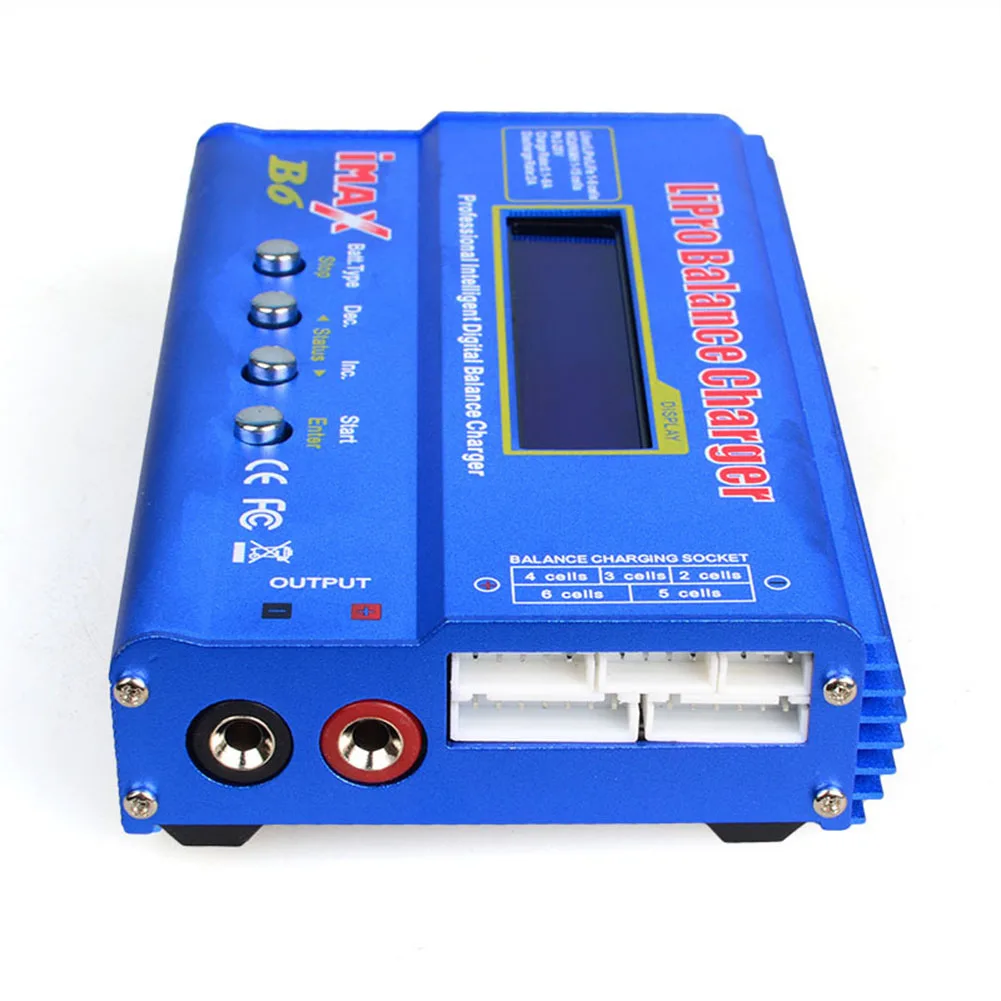

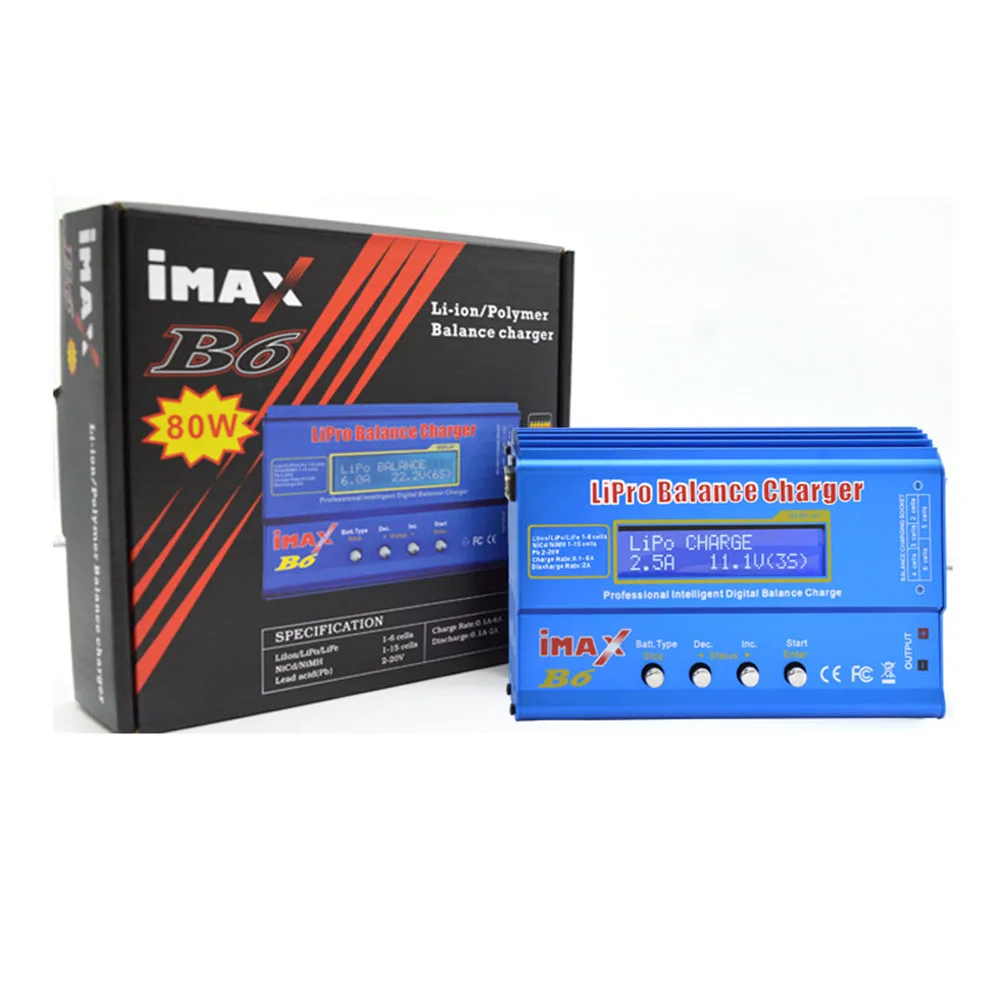

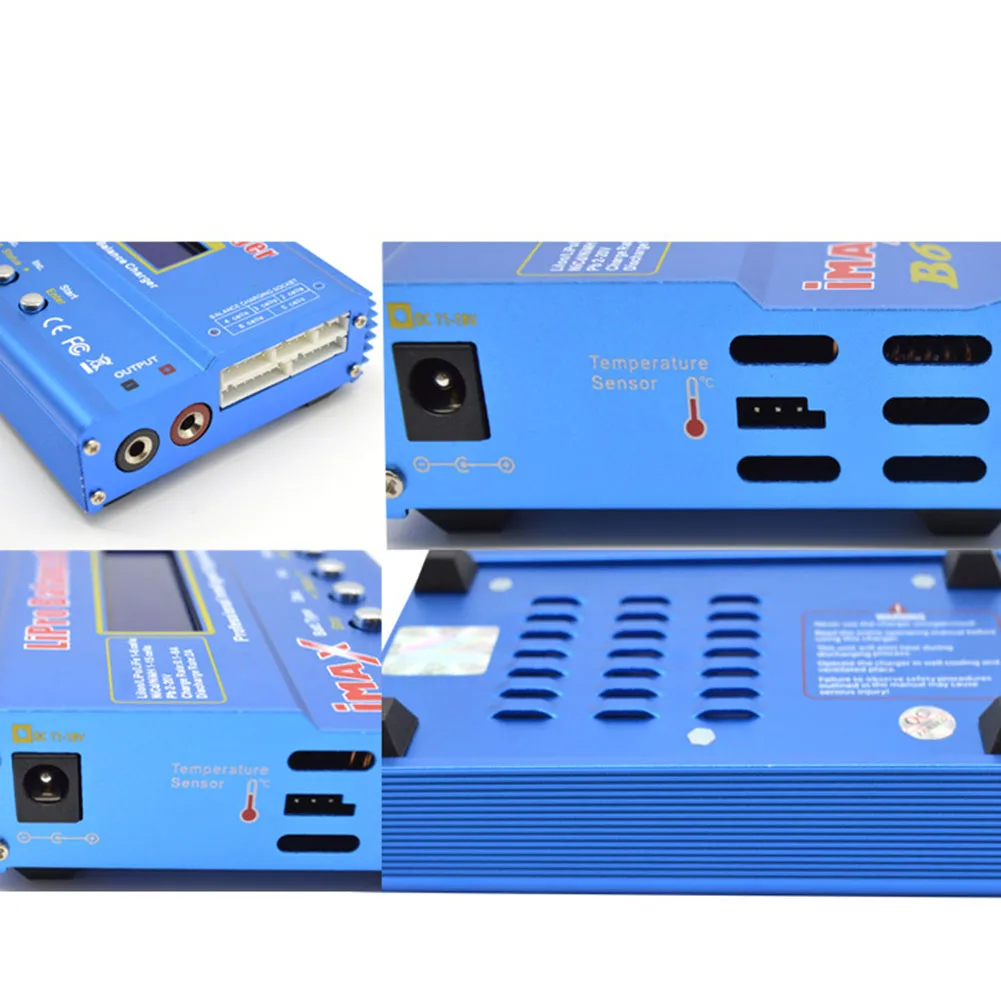

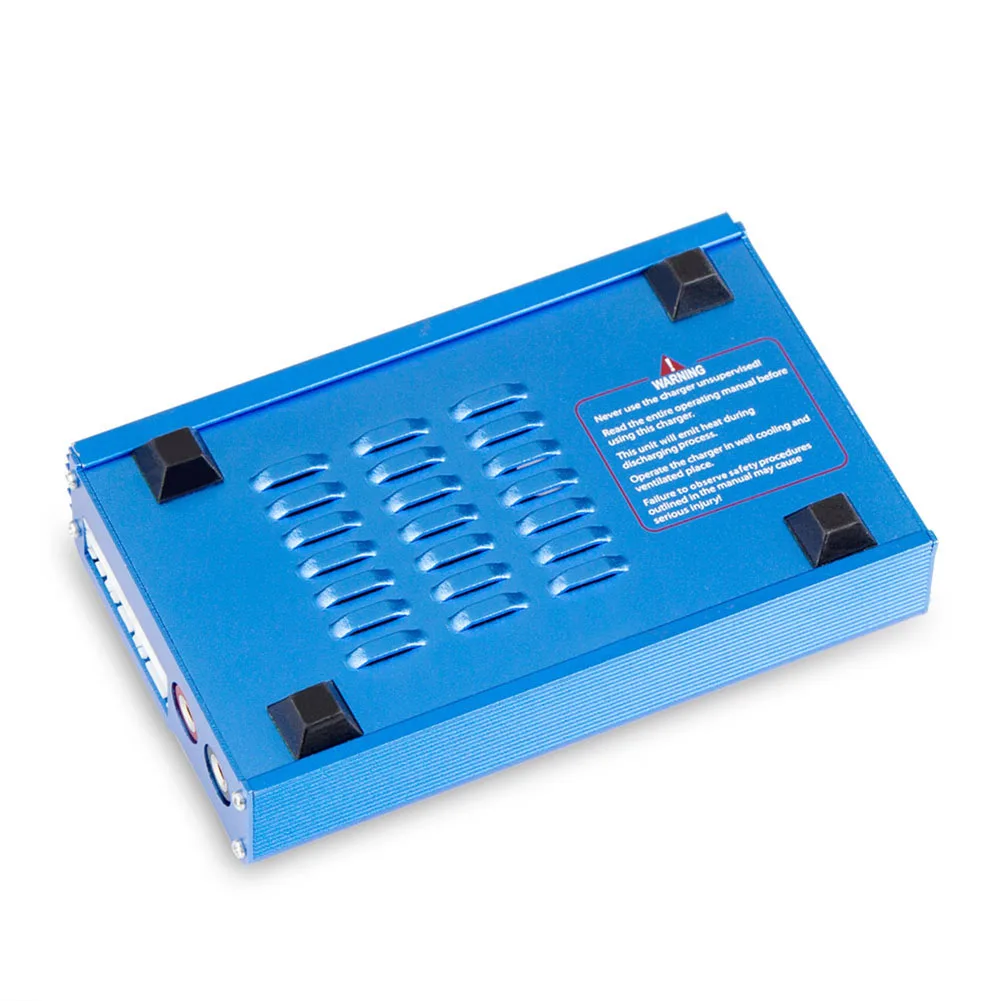

IMAX B6 80W RC Lipo/NiMh Balance Charger

Features:

• Microprocessor-Controlled Delta-Peak Sensitivity
• Individual Cell Balancing for Li-ion, LiPo, LiFe, Ni-Cd, and NiMH Batteries
• Wide Range of Charging Current Options with Safe Storage Function
• Time Limit Function
• Input Voltage Monitoring (to Protect Car Batteries at the Scene)
• Data Storage (Capability to Store Settings for Up to 5 Battery Packs)
• Battery Break-In and Cycling Features
• Support for New Generation LiFe Batteries

Description: The IMAX B6 80W is an advanced, multifunctional charger capable of charging and discharging Lion, LiPo, LiFe (A123), Pb, NiCd, and NiMH batteries. It boasts comprehensive capabilities.

Specifications:

• Operating Voltage Range: DC 11.0-18.0 Volts / AC to DC Adapter (DC 11.0-18.0V/6A/5A)
• Circuit Power: Maximum Charging Power 50W/80W, Maximum Discharge Power 5W
• Charging Current Range: 50W: 0.1-5.0A / 80W: 0.1-6.0A
• Discharge Current Range: 50W: 0.1-1.0A / 80W: 0.1-2.0A
• Current Consumption for Balancing Li-Po: 300mAh per Cell
• LiIon/LiPo/LiFe Battery Compatibility: 1-6 Cells
• NiCd/NiMH Battery Compatibility: 1-15 Series
• Lead Battery Voltage Range: 2-20V
• Packing Size: 152 x 135 x 38 mm (5.98 x 5.31 x 1.49 inches)

Notes:

• Please allow a 1-3 mm margin of error due to manual measurement.
• The actual color of the item may vary slightly from the pictures shown, due to differences in display settings and lighting conditions.

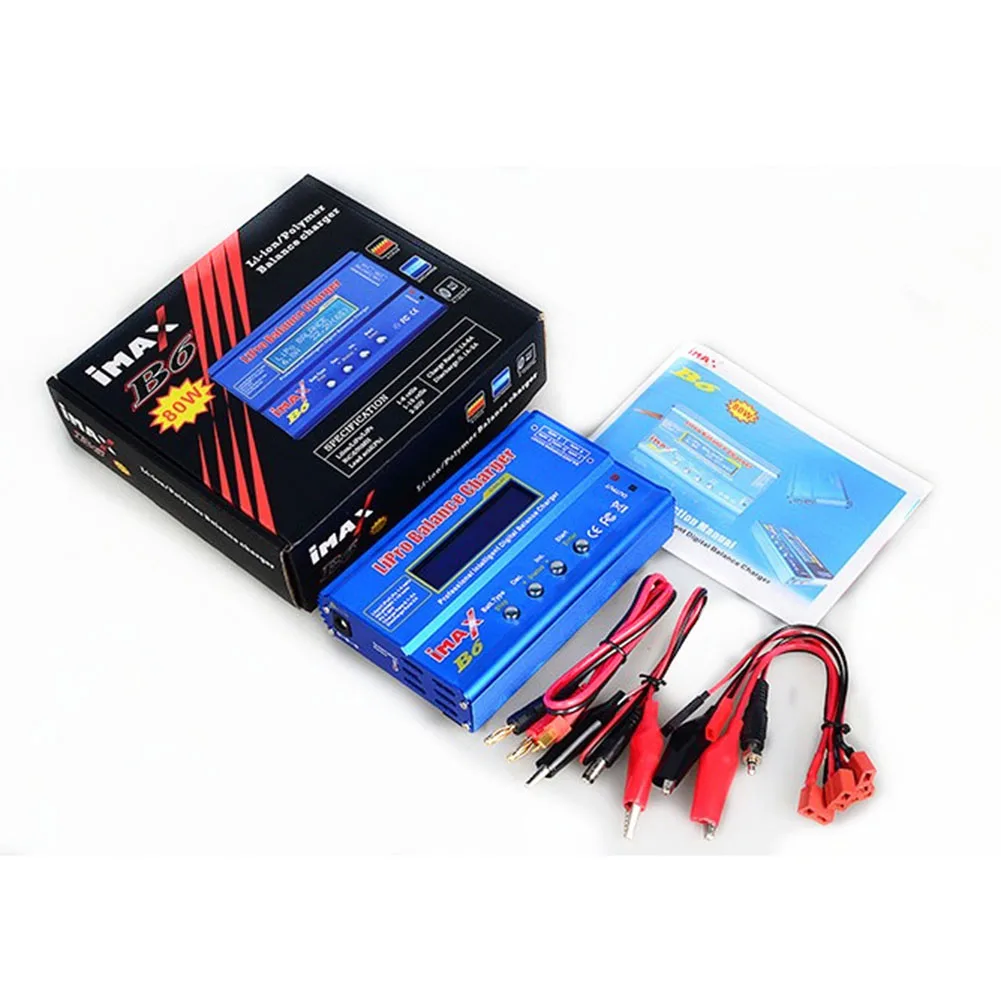

Package Contents:

• IMAX B6 LiPo Battery Balance Charger
• Cable Kit
• User Manual
