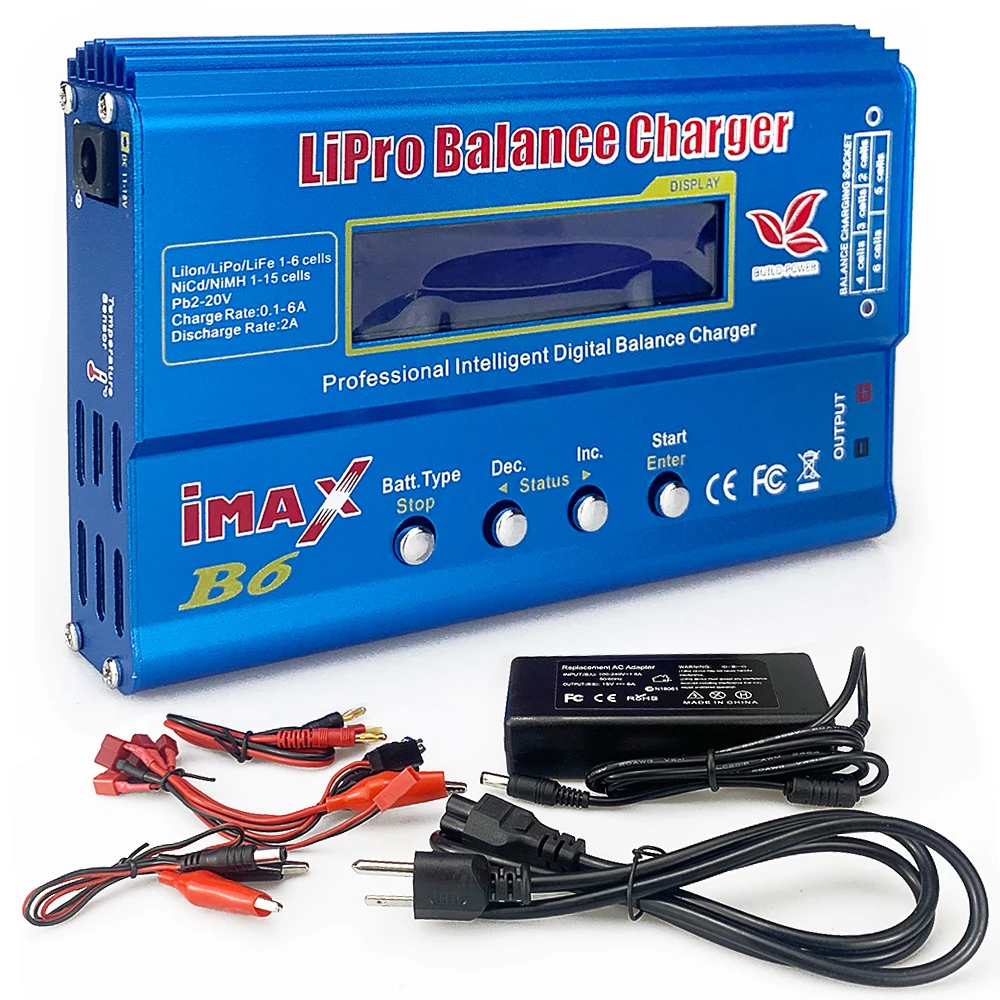

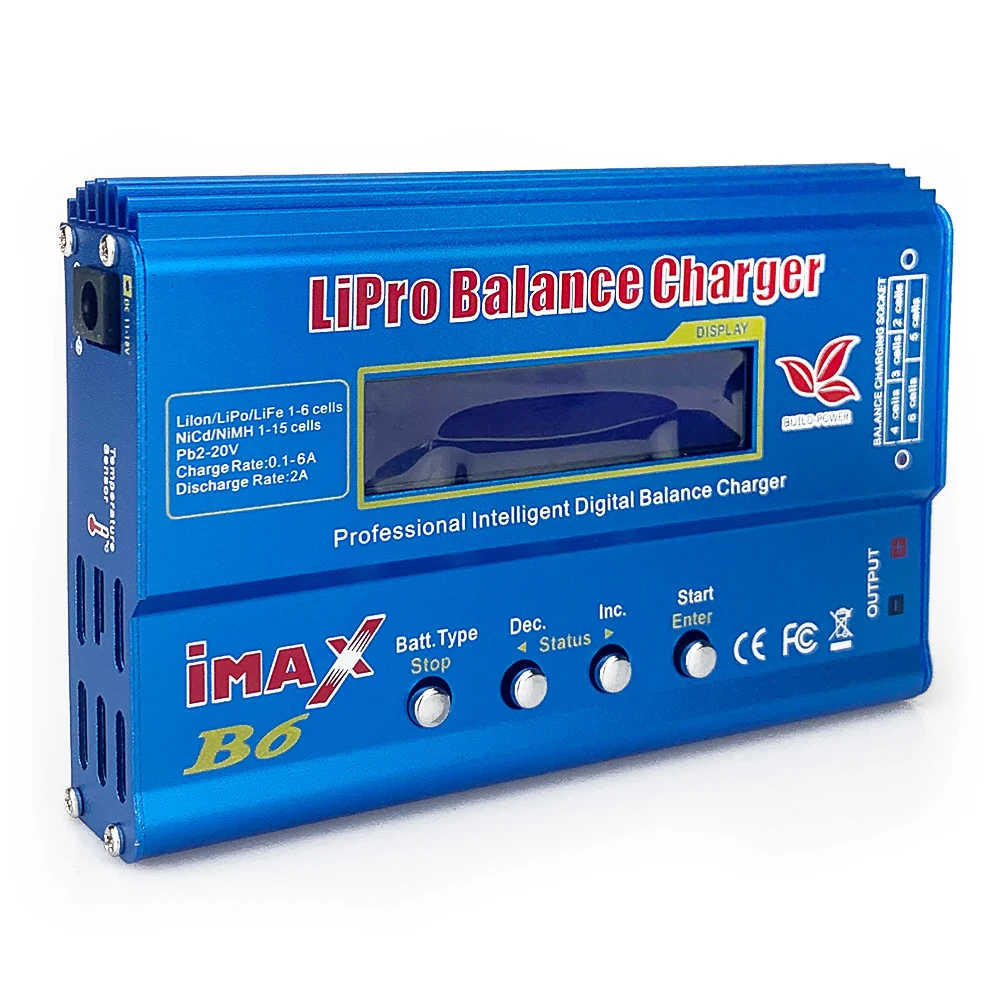

iMax B6 80W RC Balance Charger & Discharger

The IMAX B6 LCD Screen Digital RC Lipo NiMH NiCd LiFe Pb Battery Balance Charger Discharger is a versatile and intelligent multifunction charger. It is capable of charging and discharging a variety of battery types including Lion, LiPo, LiFe, Pb, NiCd, and NiMH. This device stands out for its comprehensive functionality.

Features:

• Microprocessor controlled with Delta-peak sensitivity.
• Capable of individual cell balancing for Li-ion, LiPo, and LiFe; also supports Ni-Cd and NiMH batteries.
• Offers a wide range of charge currents and includes a store function for safe storage current.
• Equipped with a time limit function.
• Features input voltage monitoring to protect car batteries when used in the field.
• Includes data storage capable of storing up to 5 battery packs in memory.
• Supports battery break-in and cycling.
• Compatible with the new generation system (LiFe) batteries.

Specifications:

• Operating Voltage Range: DC11.0-18.0 Volt / AC to DC adaptor (DC11.0-18.0V/5A).
• Circuit Power: Maximum charge power of 50W and maximum discharge power of 5W.
• Charge Current Range: 0.1~5.0A.
• Discharge Current Range: 0.1-1.0A.
• Current Drain for Balancing Li-po: 300mAH/cell.
• Compatibility: 1-6 cells for LiIon/LiPo/LiFe, 1-15 cells for NiCd/NiMH.
• Pb Battery Voltage: 2~20v.
• Net Weight: 277g.
• Dimensions: 133x87x33mm.

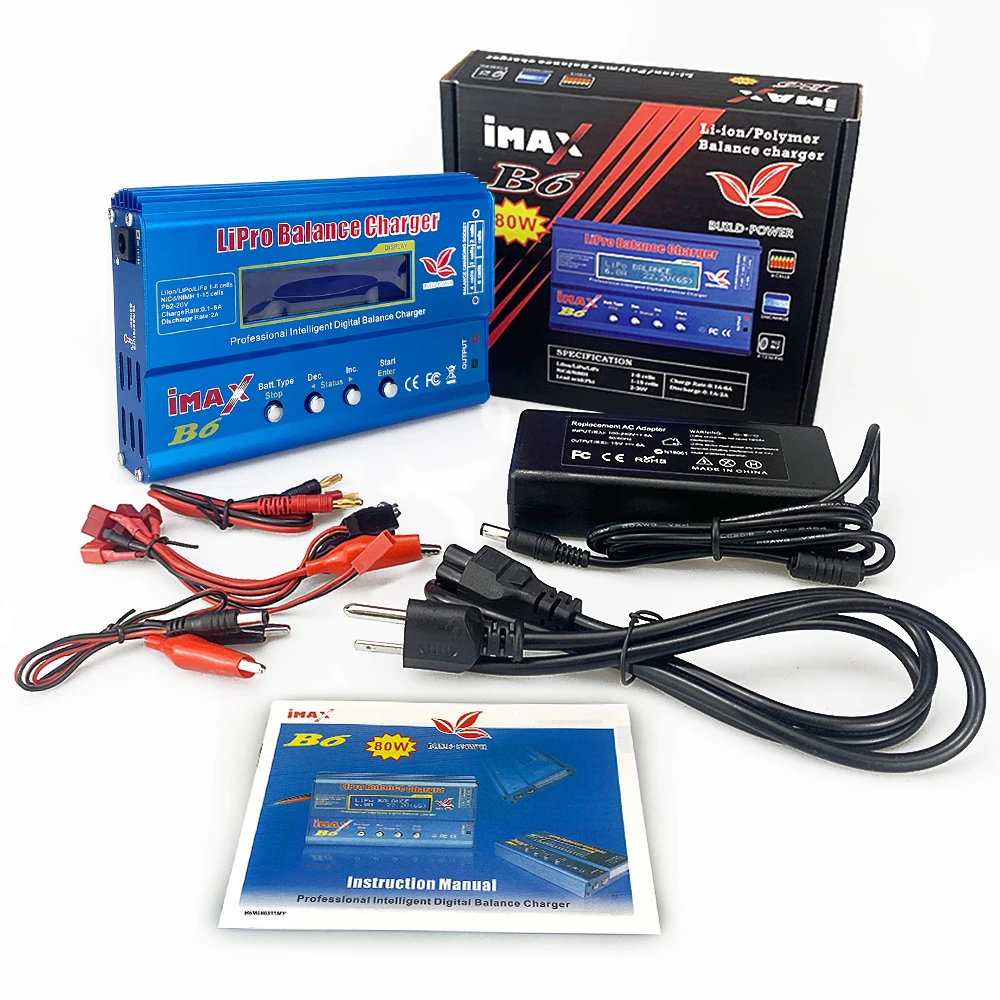

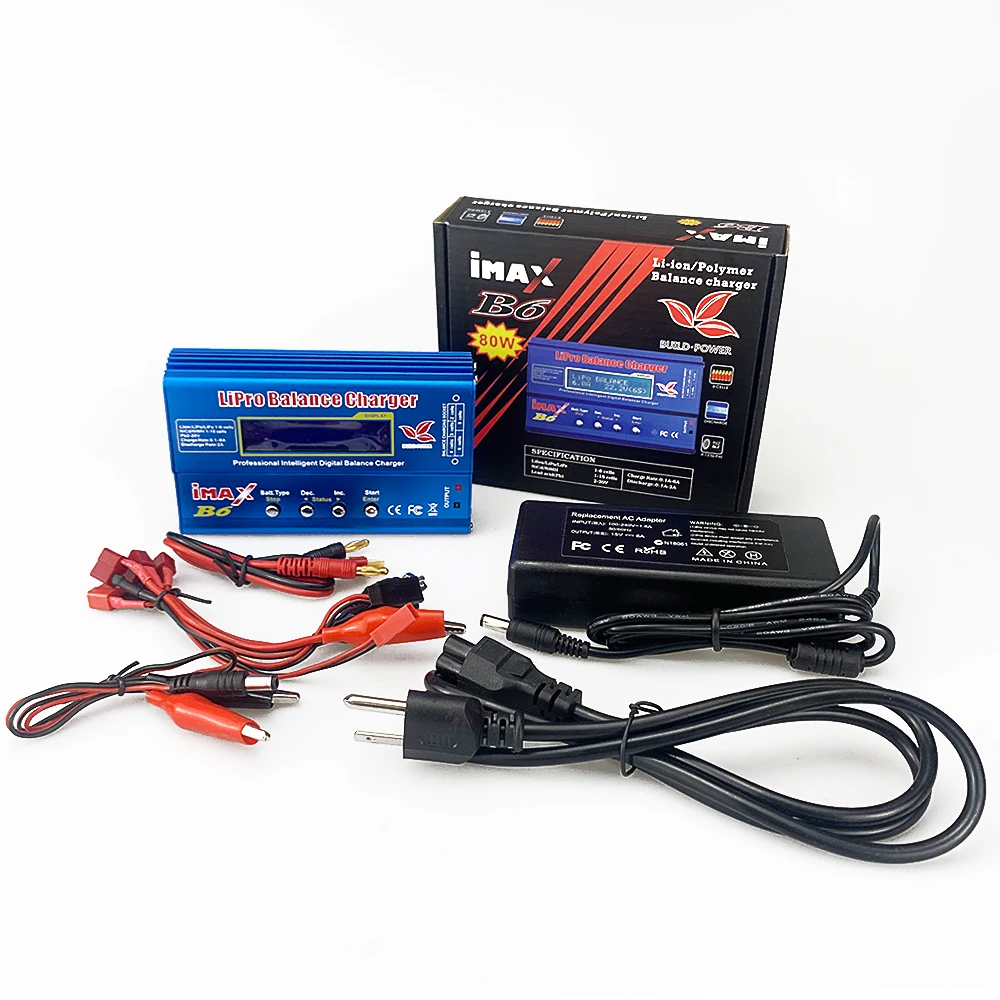

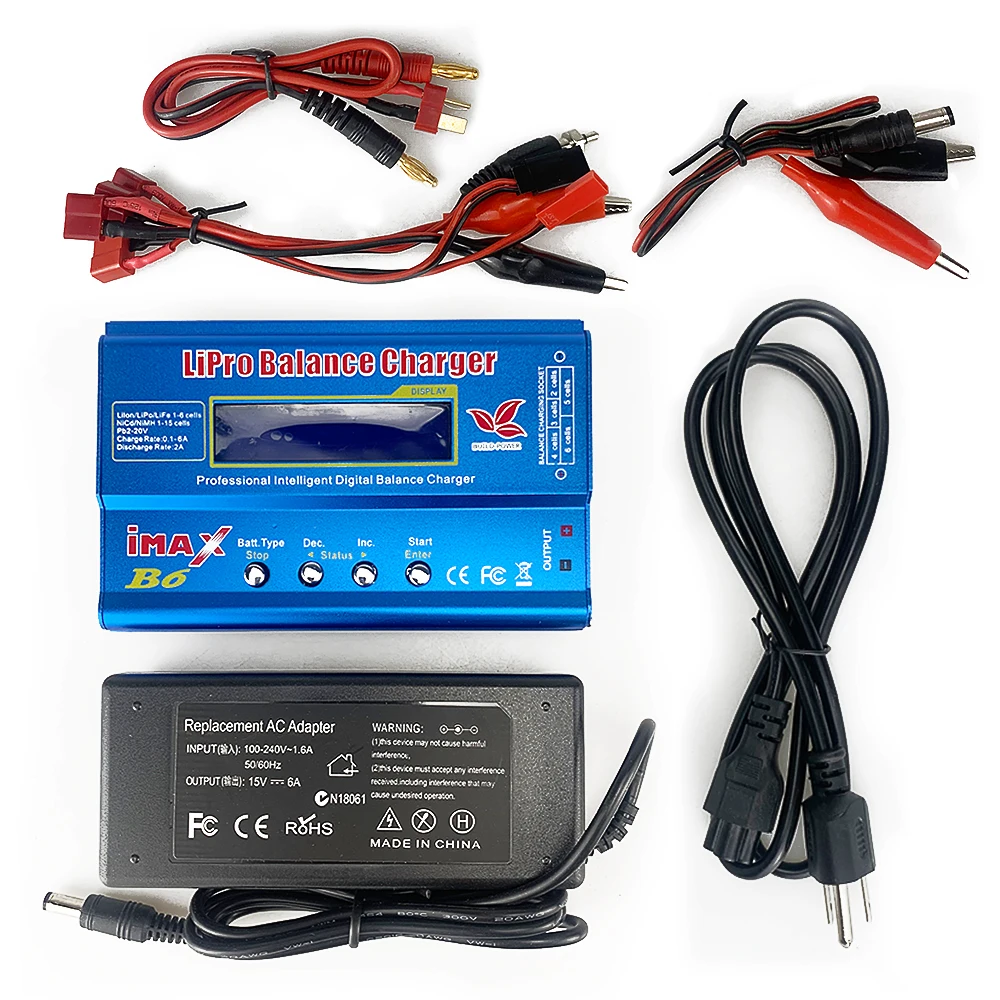

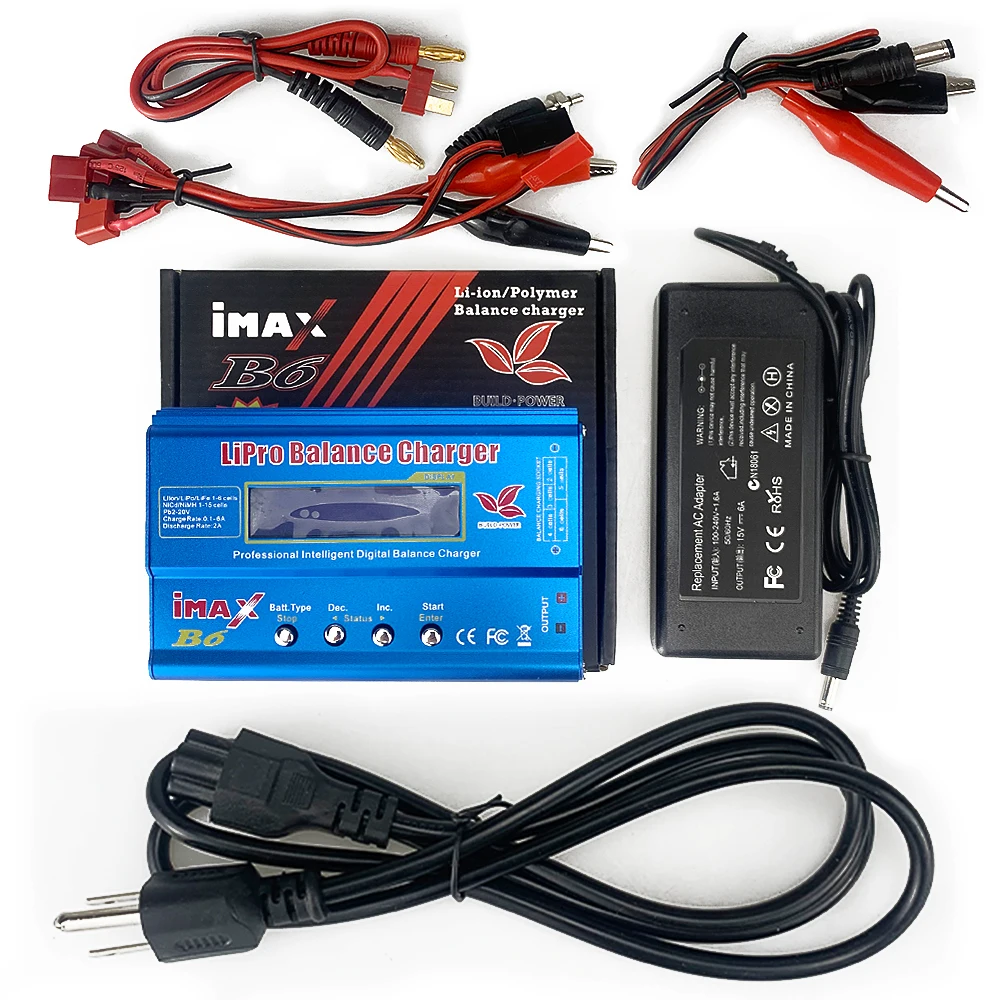

Package Contents:

• 1 IMAX B6 LiPo Battery Balance Charger.
• 1 Multi-functional Extension Wire.
• 1 Universal Crocodile Clip.
• 1 JST Plug.
• 1 Receiver Plug.
