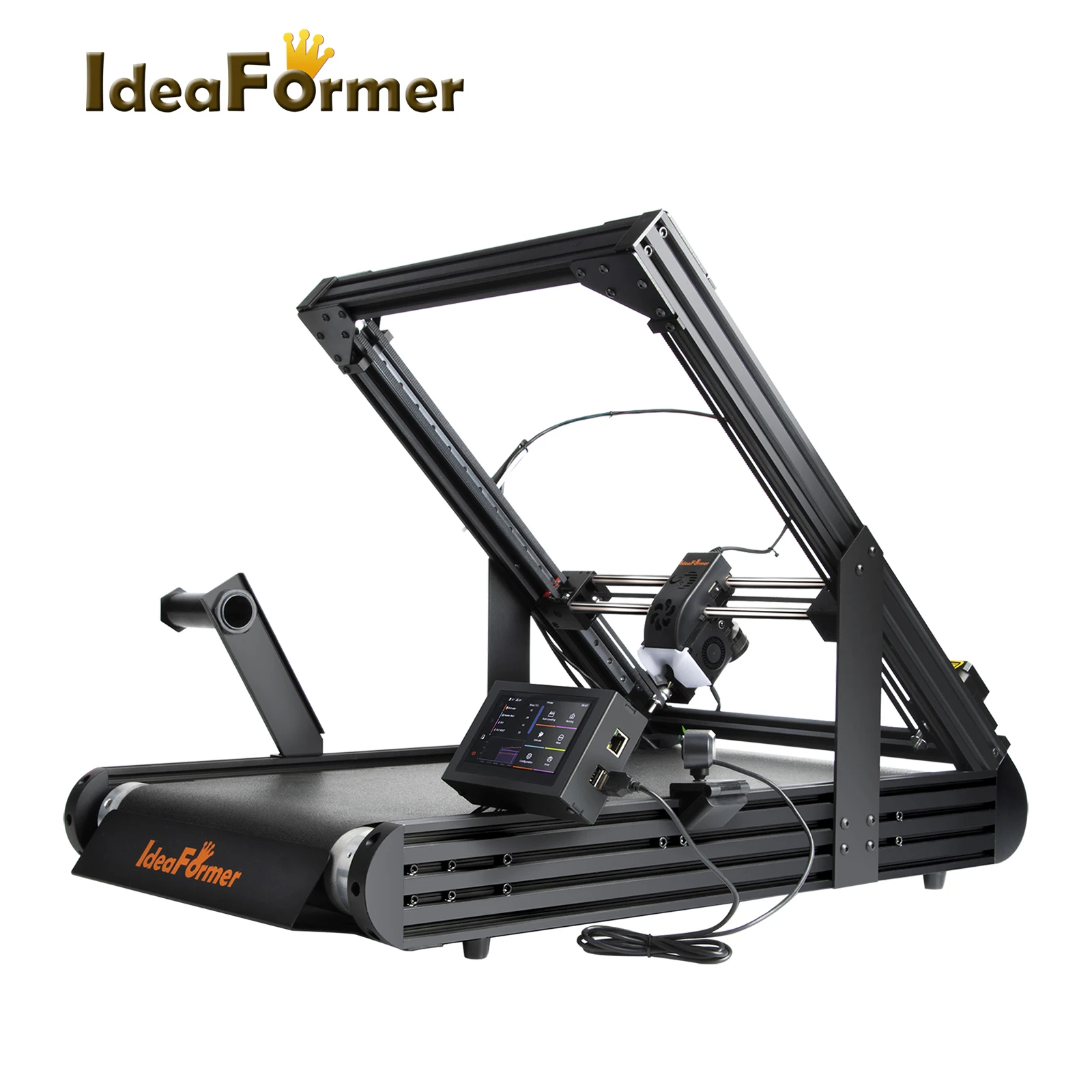

IdeaFormer IR3 V2 Conveyor Belt 3D Printer

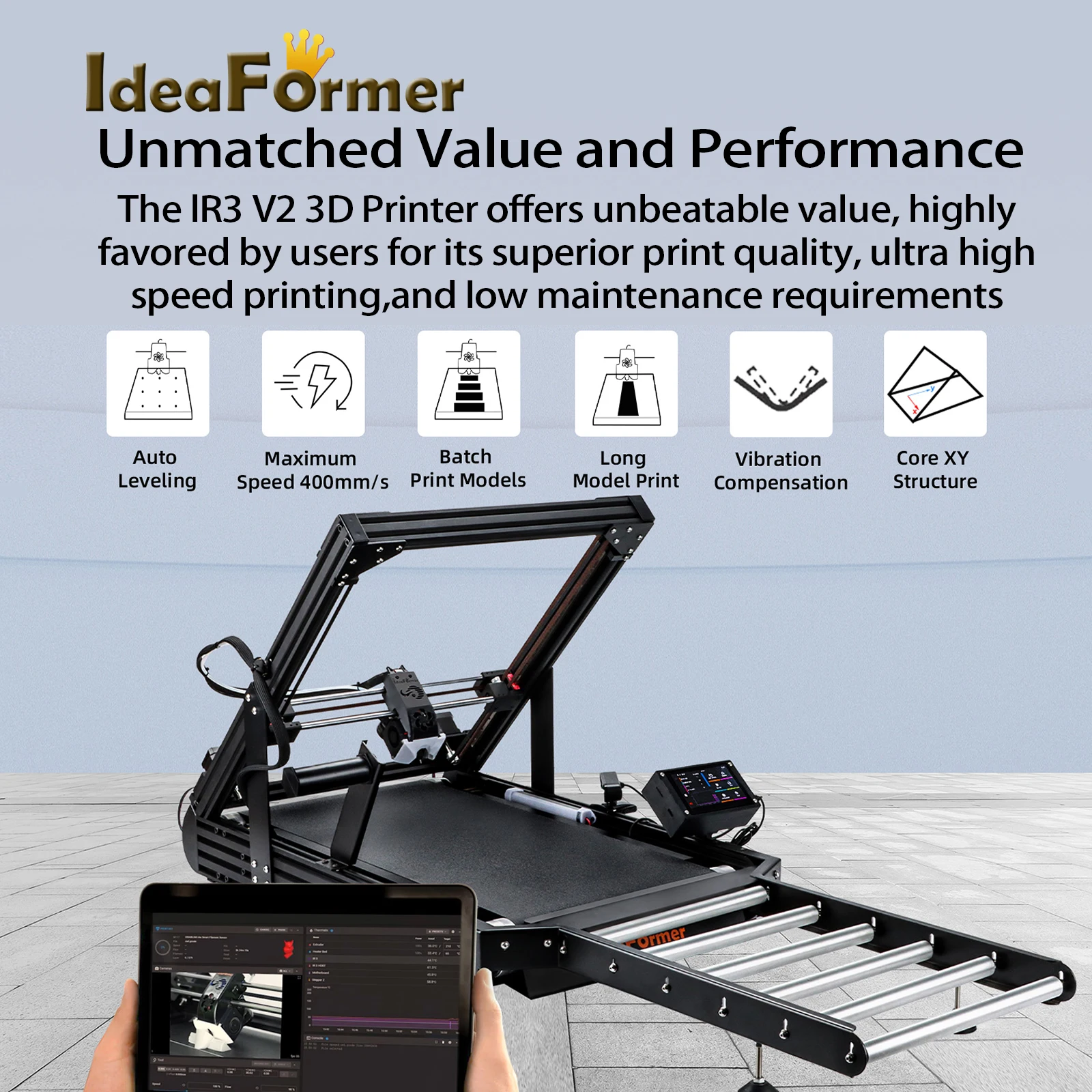

IR3 V2 Belt Printer Advantages:

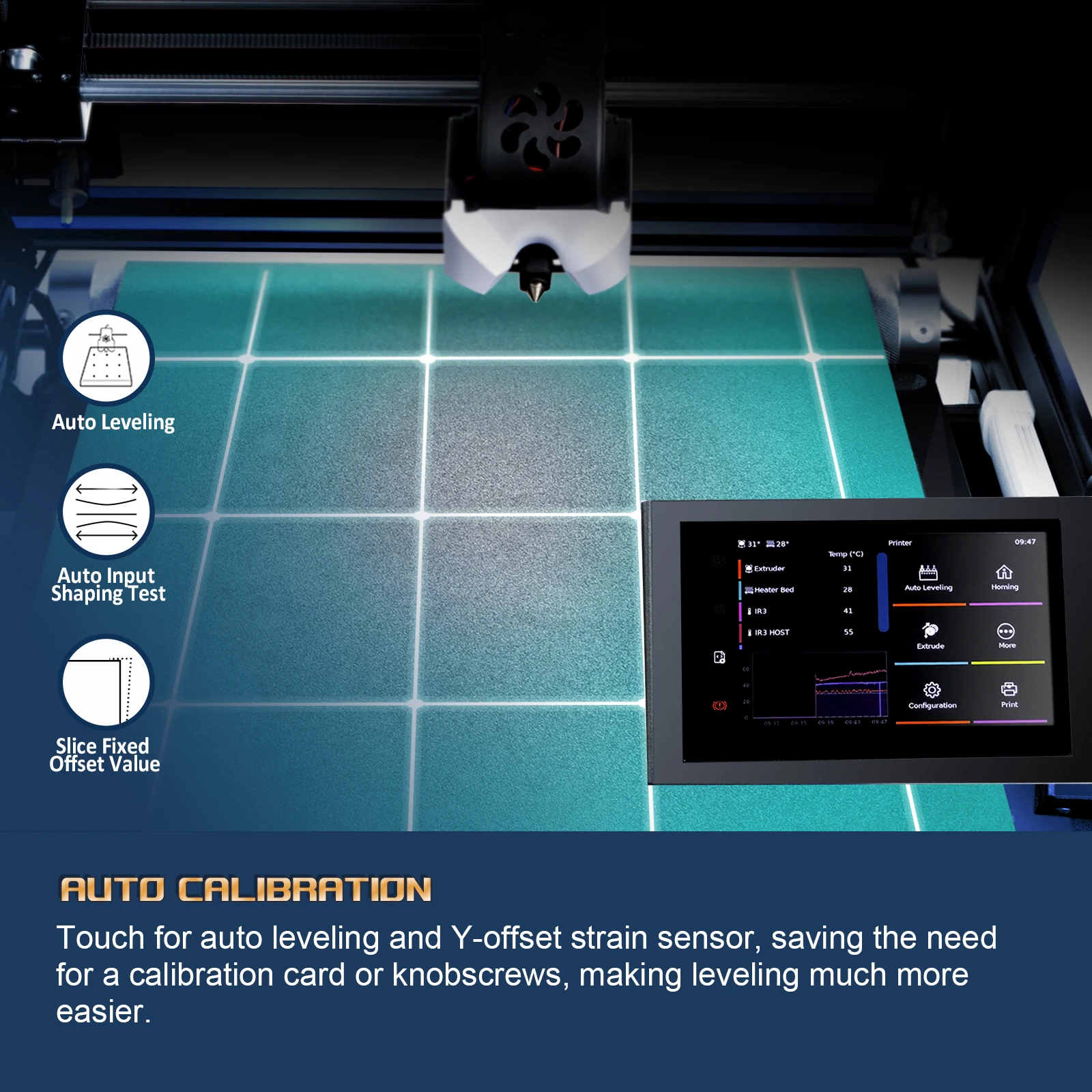

1. 100% Auto Leveling: The machine performs auto-leveling after assembly. The print head features a sensor that detects the distance to the bed platform and, combined with the slice setting Y offset of -0.1 to -0.2mm, ensures excellent adhesion to the belt.

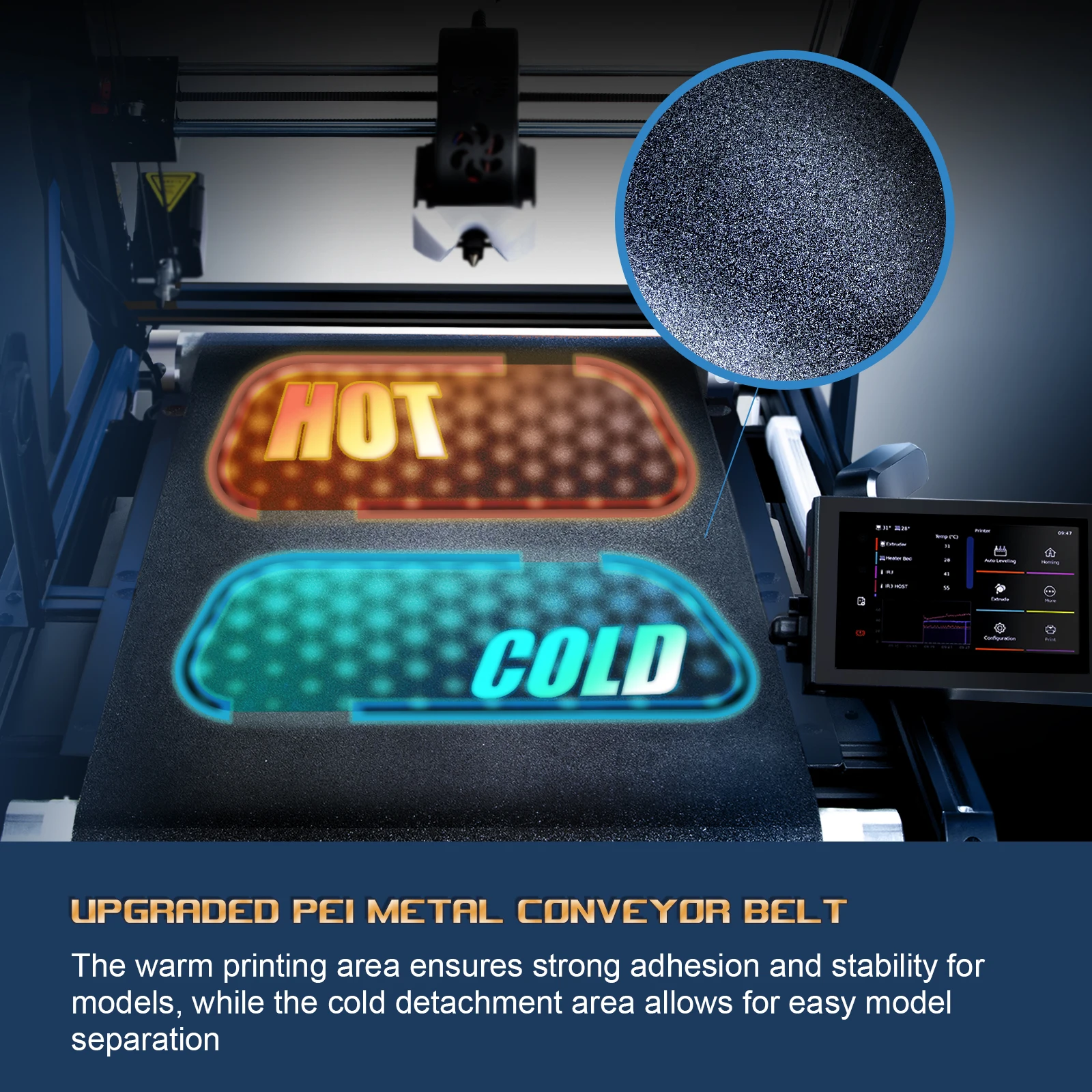

2. Metal Conveyor Belt with PEI Coating: The printing area is warm, which promotes strong model adhesion. Its high hardness prevents tall models from shaking. The detached model area is cold, making it easy to separate the model from the conveyor belt.

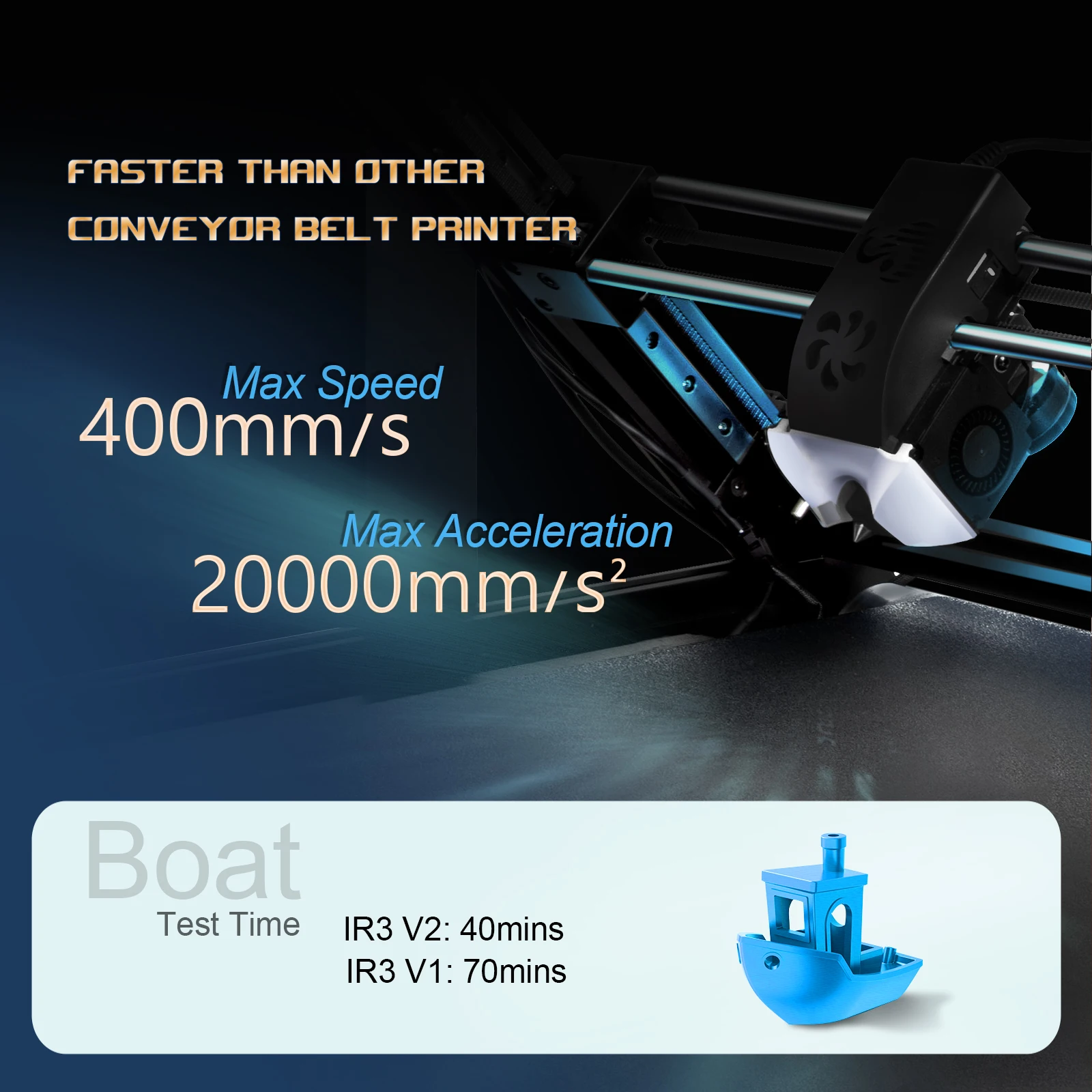

3. Klipper Firmware (Fully Open Source) / Fast Printing: With Klipper firmware, the printer achieves speeds over 400+ mm/s. The XY axis movement is very smooth, and the Z-axis is powerful with a gearbox integrated into the roller.
4. Lost Step Detection: Various reasons can cause a layer shift or lost step during printing, such as incorrect X, Y, or Z axis movement (due to dust or accidental interference), poor model adhesion (especially for 45-degree printing where each layer needs to touch the belt, which can be affected by incorrect filament temperature settings or complex models lacking proper support), or excessive print speed. If a lost step occurs, the printer might hit its edge or scratch the belt. This detection function stops printing when such situations happen, protecting the print head and conveyor belt. You can then investigate the cause of the lost step.
5. Enclosure Box: Essential for printing high-temperature filaments like ABS or nylon, it prevents models from warping and cracking.

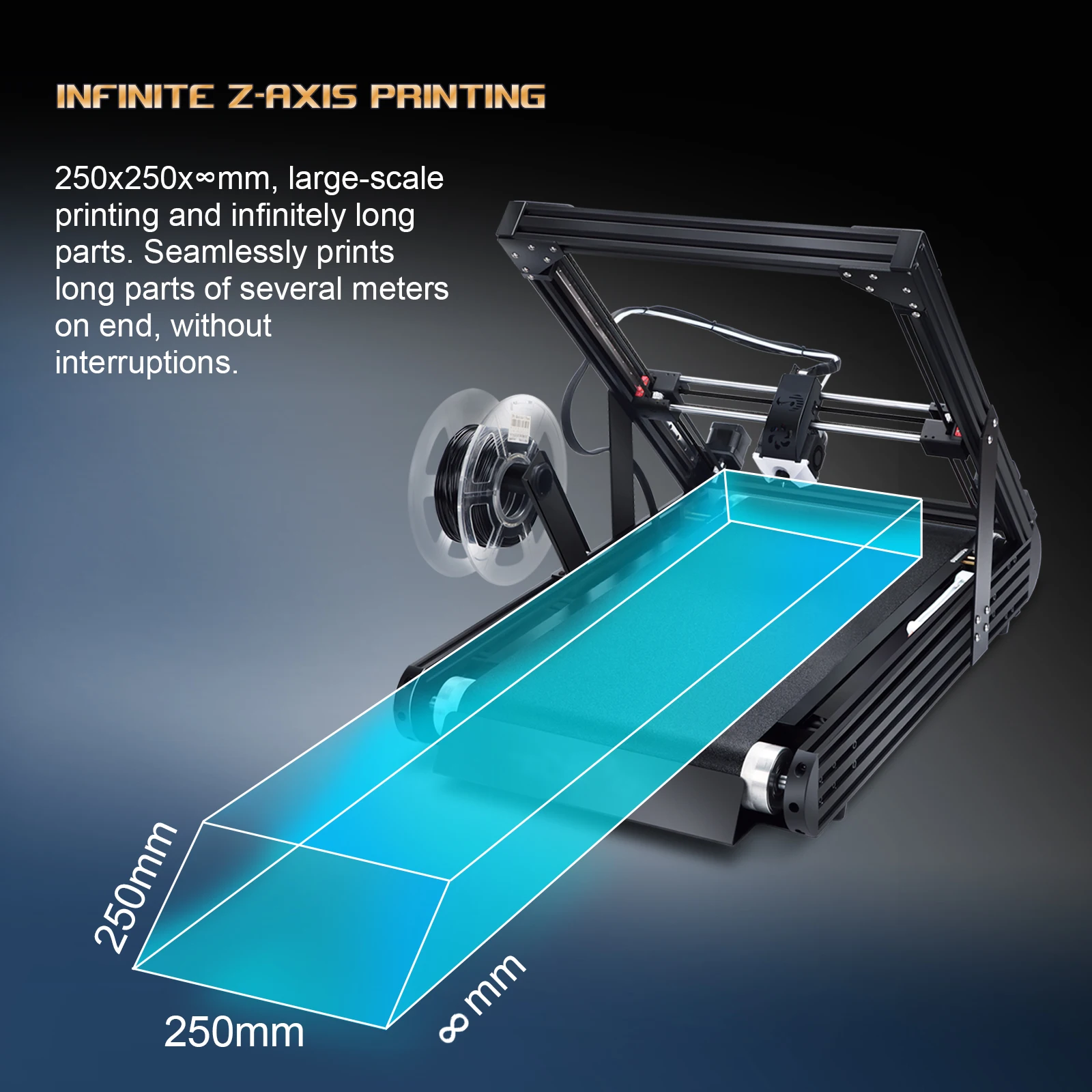

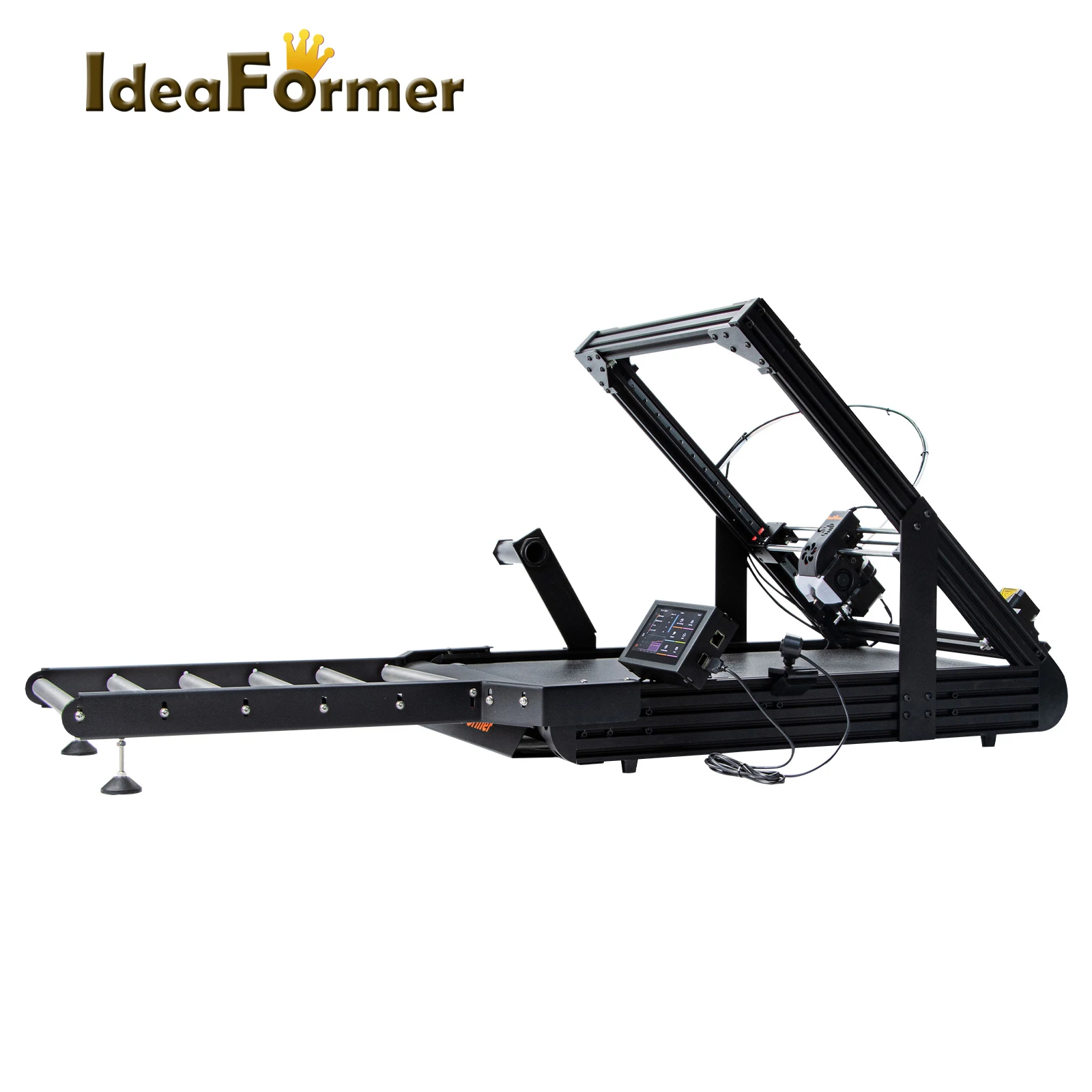

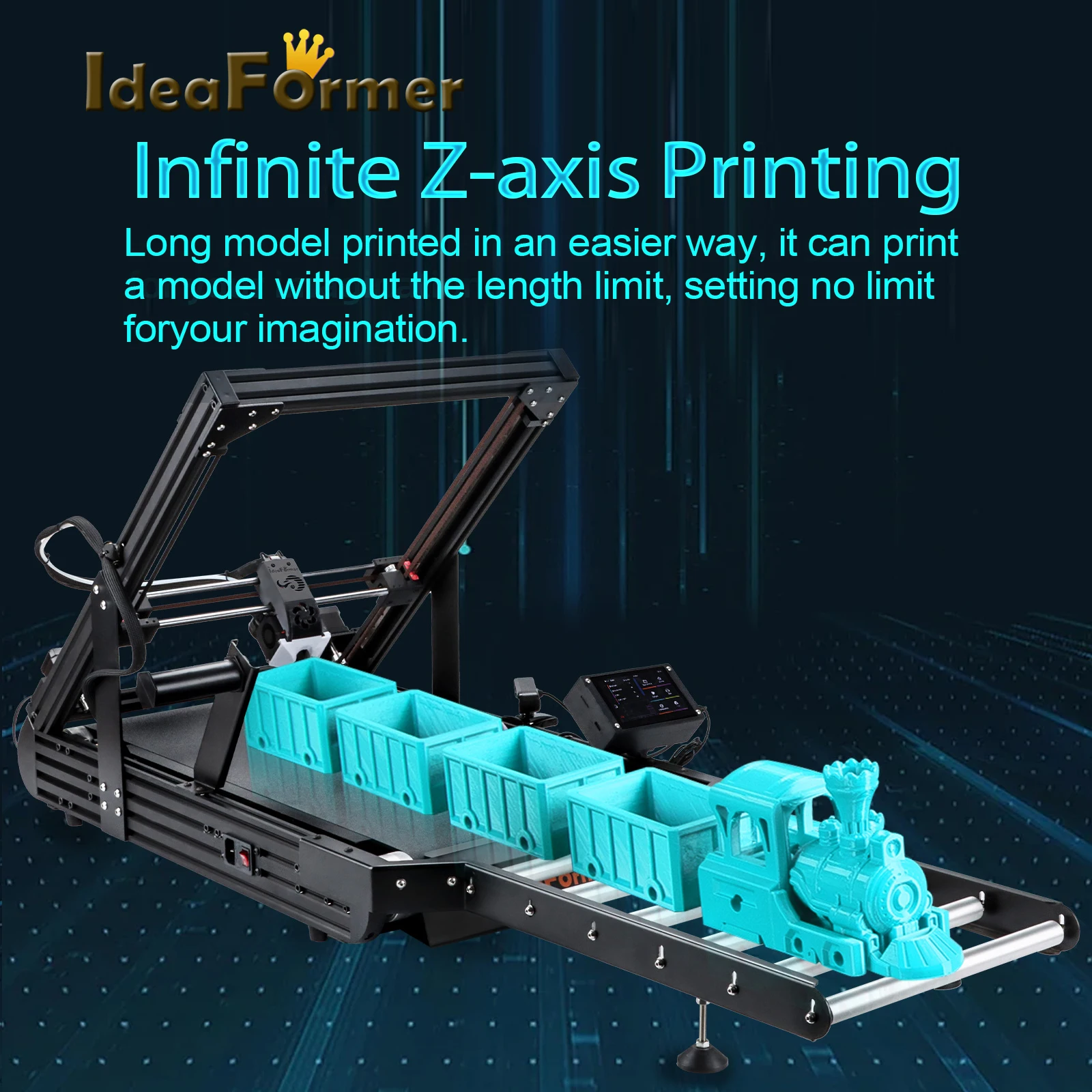

6. Extend Roll: Designed for printing long models, it ensures the printed side adheres well and prevents the model from bending.
7. WiFi and Camera: Allows for remote control via phone or computer. If sufficient filament is loaded, you can operate the printer for extended periods even when you are not physically present.
8. LED Light: Enables you to check the printer’s status in low-light conditions.
9. Filament Input Detection: If filament feeding stops for over 12mm, the printer will pause. This indicates a potential issue with the filament, a clogged nozzle, or that the filament has run out. After reloading the filament, printing can resume.
10. Easy Assembly and Stable Printing: Based on auto-leveling, models adhere very well, and the metal belt keeps models stable without shaking.

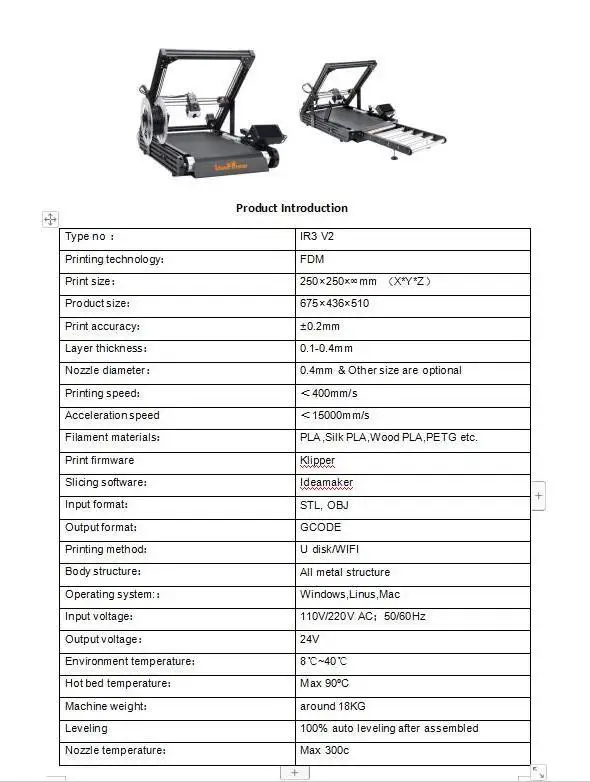

IR3 V2 Specifications:
