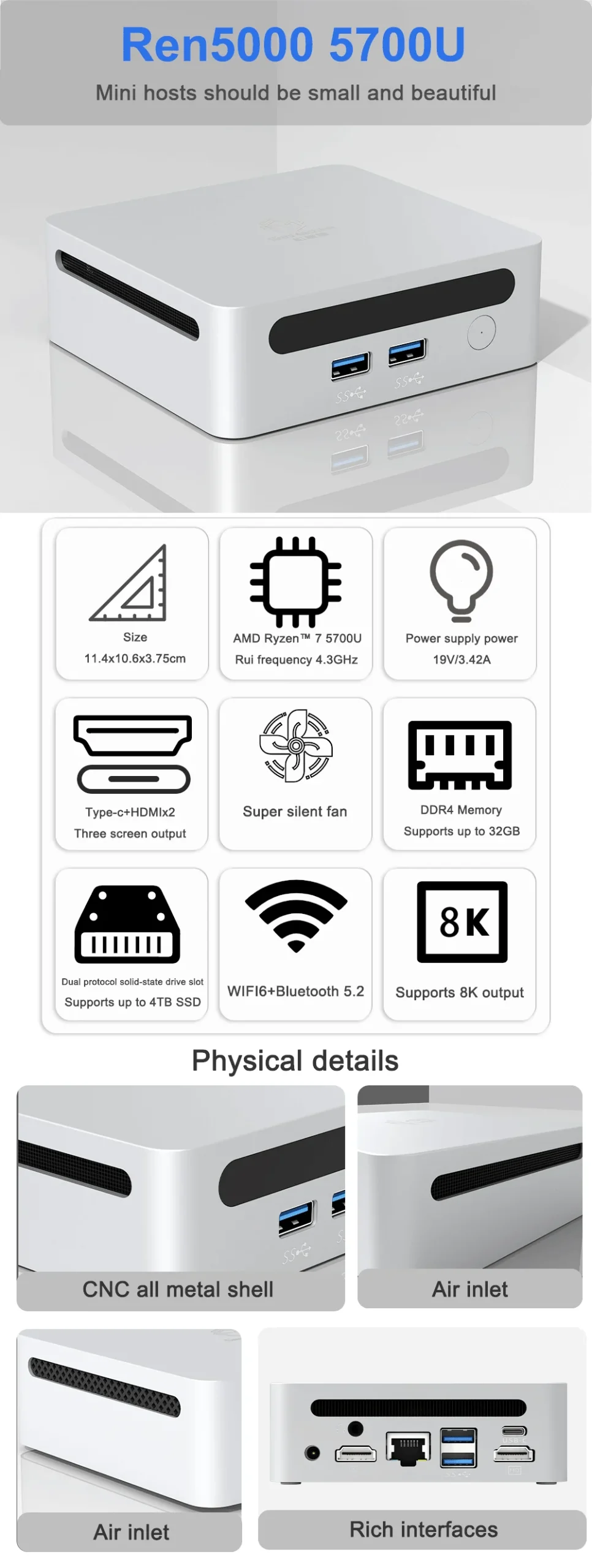

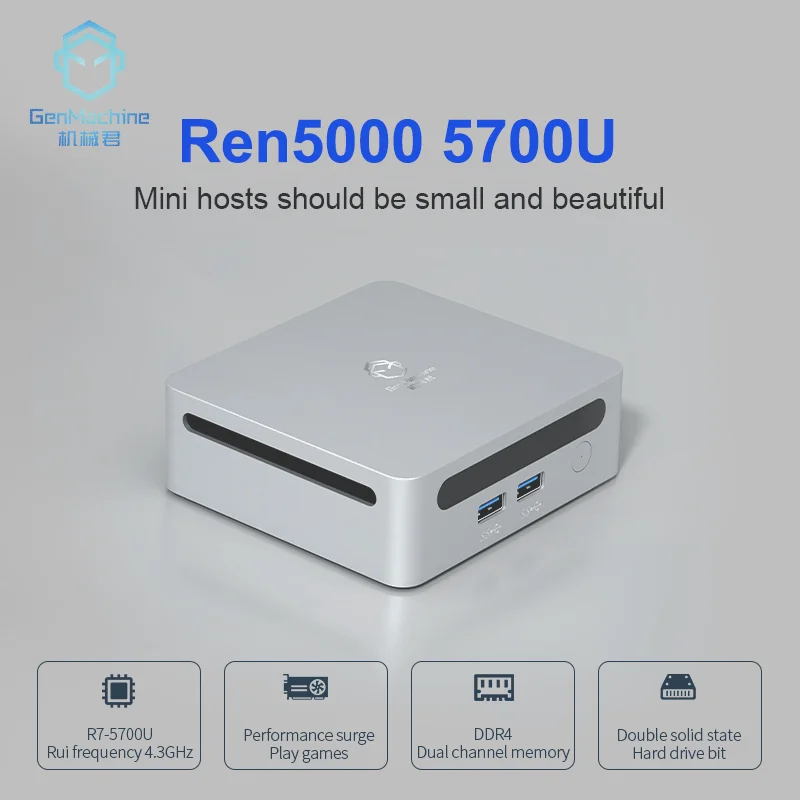

GenMachine Mini PC Ren5000 5700U AMD Ryzen 7 16G 512G

GenMachine Mini PC Ren5000 5700U AMD Ryzen 7 16G 512G

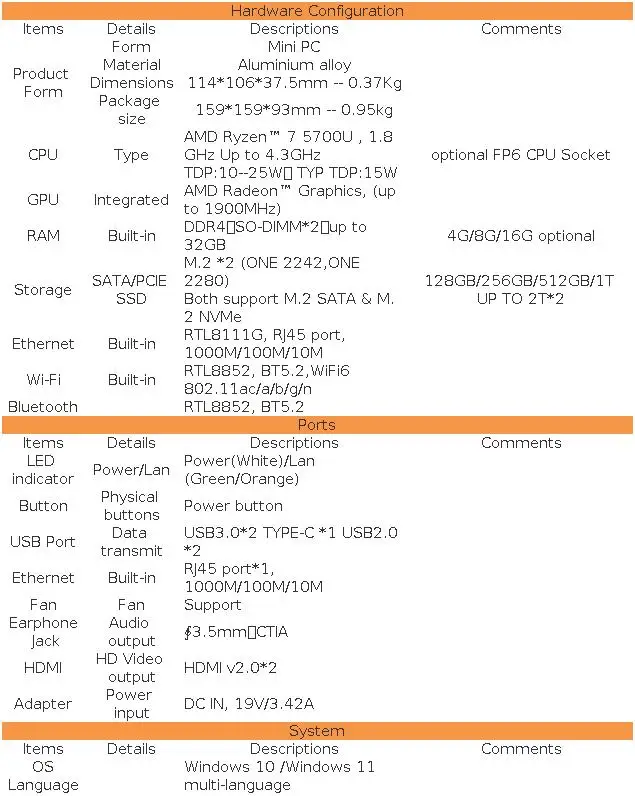

Hardware Configuration

Product

• Form: Mini PC

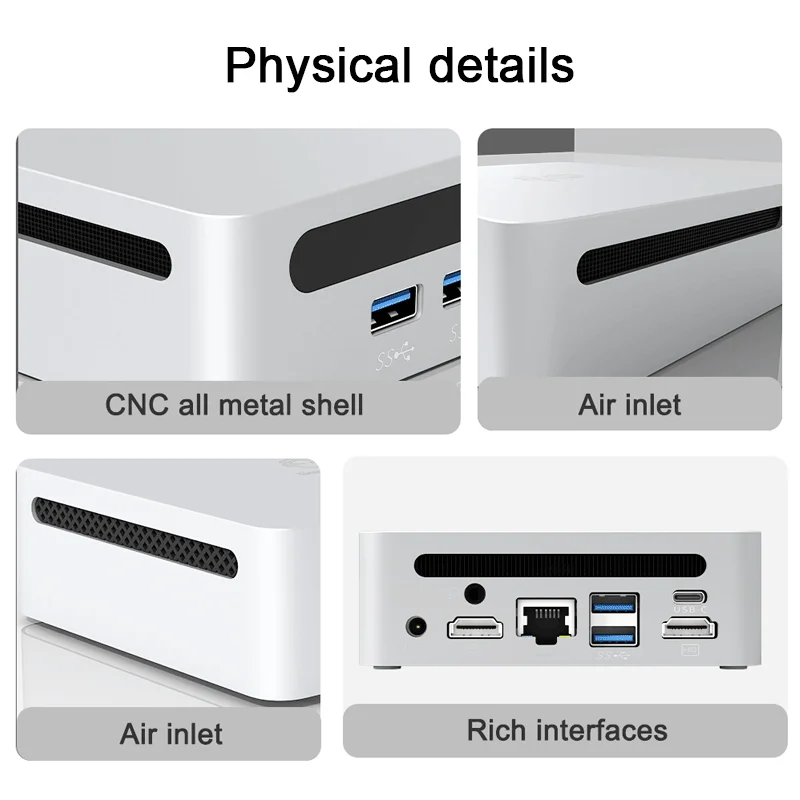

• Material: Aluminum alloy

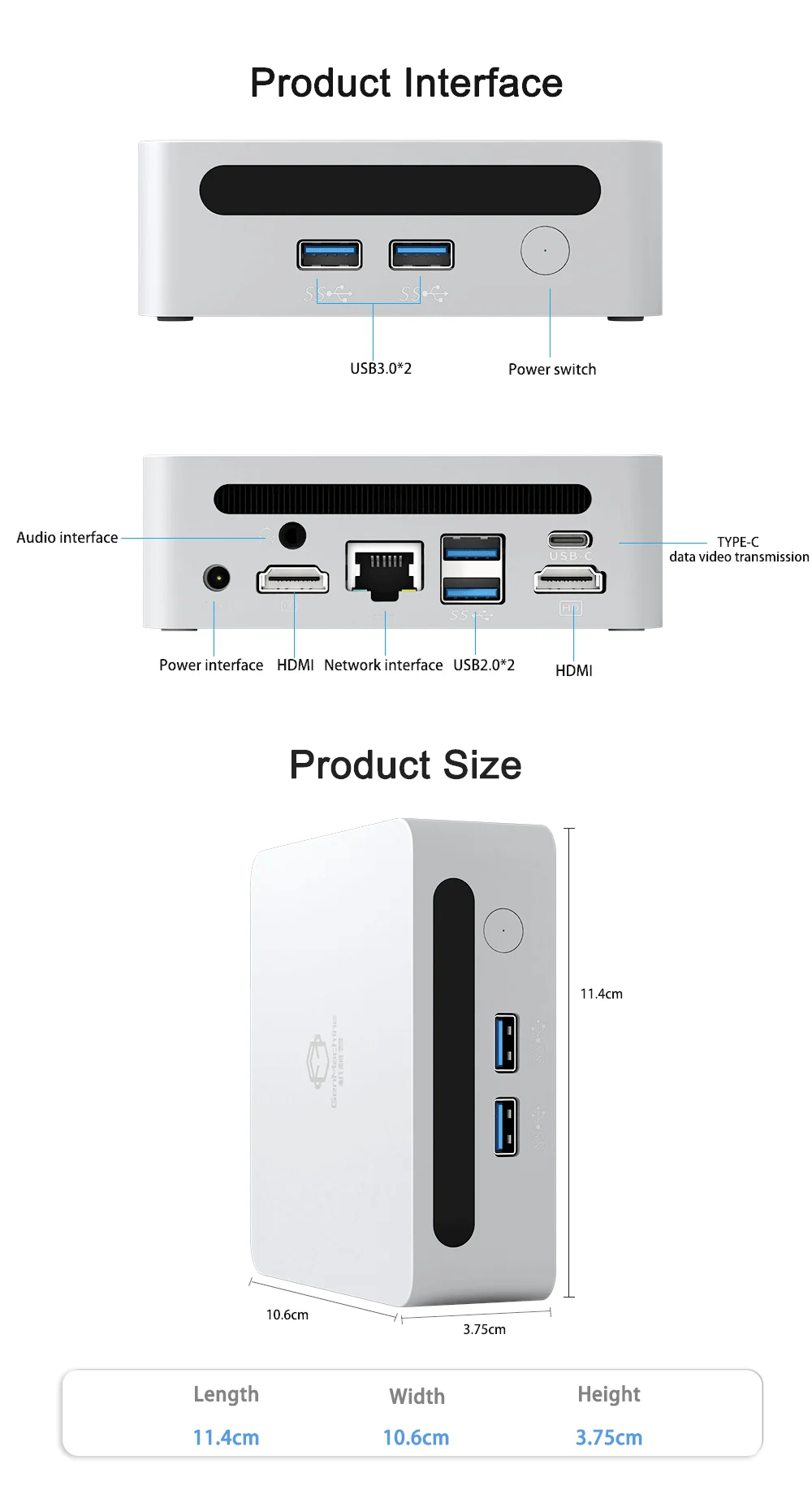

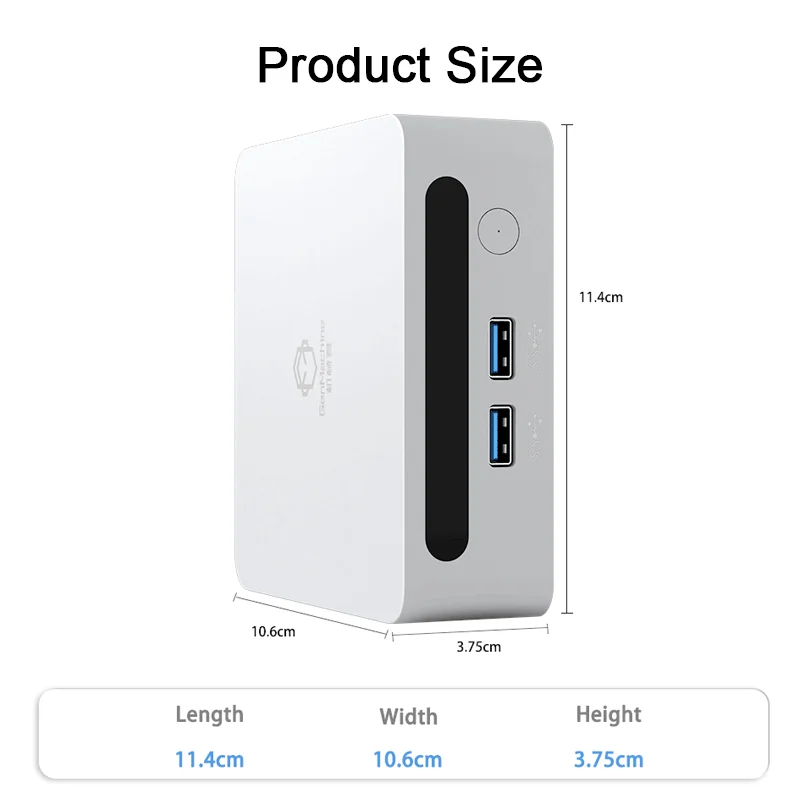

• Dimensions: 114*106*37.5mm — 0.37Kg
• Package Size: 159*159*93mm — 0.95Kg

CPU

• Type: AMD Ryzen™ 7 5700U, 1.8GHz Up to 4.3GHz
• TDP: 10-25W, TYP TDP: 15W
• Socket: Optional FP6 CPU Socket

GPU

• Type: Integrated
• Details: AMD Radeon™ Graphics (up to 1900MHz)

RAM

• Type: DDR4, SO-DIMM*2, up to 32GB
• Options: 4GB / 8GB / 16GB

Storage

• Type: SATA / PCIE SSD
• Slots: M.2 *2 (ONE 2242, ONE 2280)
• Support: Both M.2 SATA & M.2 NVMe
• Capacity Options: 128GB / 256GB / 512GB / 1TB up to 2TB*2

Ethernet

• Type: Built-in
• Chipset: RTL8111G, RJ45 port
• Speed: 1000M / 100M / 10M

Wi-Fi

• Type: Built-in
• Model: RTL8852, BT5.2, WiFi6 802.11ac/a/b/g/n

Bluetooth

• Type: RTL8852, BT5.2

Ports

• LED Indicator: Power (White) / LAN (Green/Orange)
• Button: Physical Power Button
• USB Ports: USB 3.0 *2, Type-C *1, USB 2.0 *2
• Ethernet: RJ45 port *1, 1000M / 100M / 10M
• Fan: Supported
• Earphone Jack: ∮3.5mm, CTIA
• HDMI: HDMI v2.0 *2
• Adapter: DC IN, 19V / 3.42A

System

• OS: Windows 10 / Windows 11
• Language: Multi-language

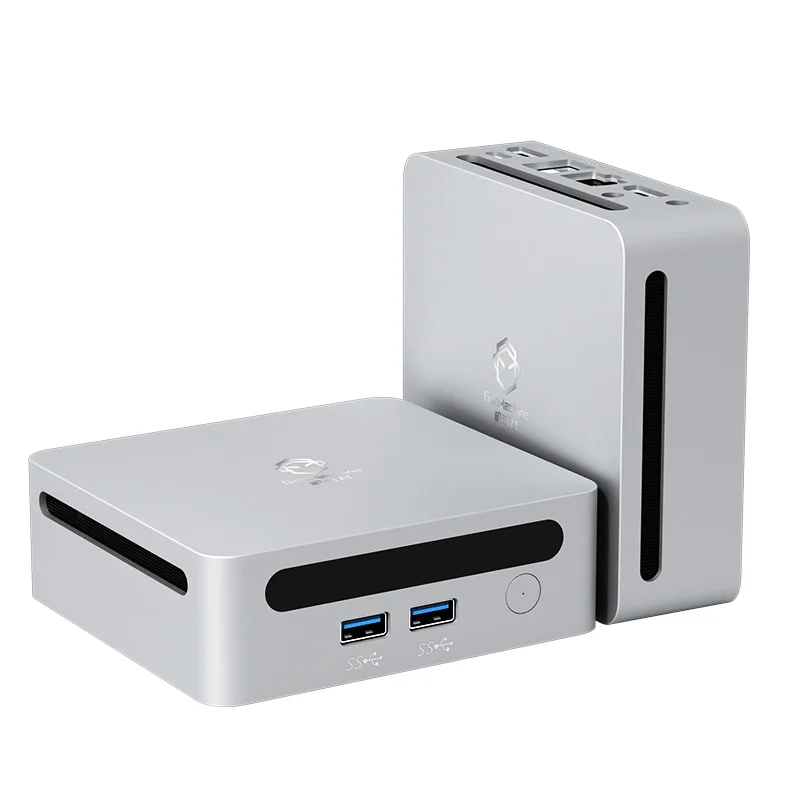

Product Images
