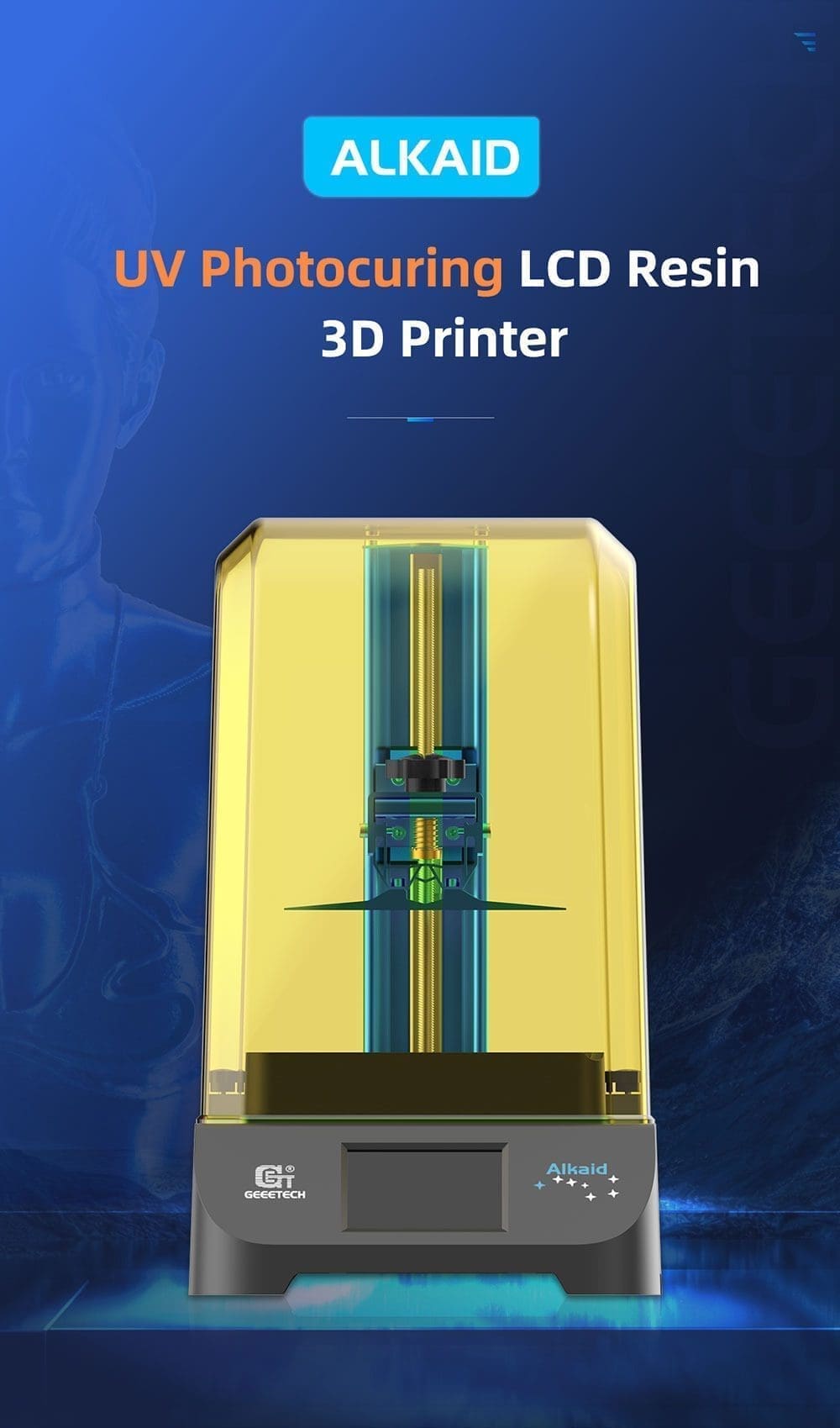

GEEETECH ALKAID 3D Printer – UV Resin, Large Volume

Alkaid is a 3D printer that utilizes light-curing technology with an LCD screen. It features a 6.08-inch 2K resolution black and white forming screen, offering a longer lifespan than its color counterparts. The high 2K resolution of Alkaid ensures a precise printing accuracy of 0.051mm. Additionally, Alkaid is equipped with a 3.5-inch touch color screen, boasting a user-friendly UI interaction for an enhanced user experience.

Main Features:

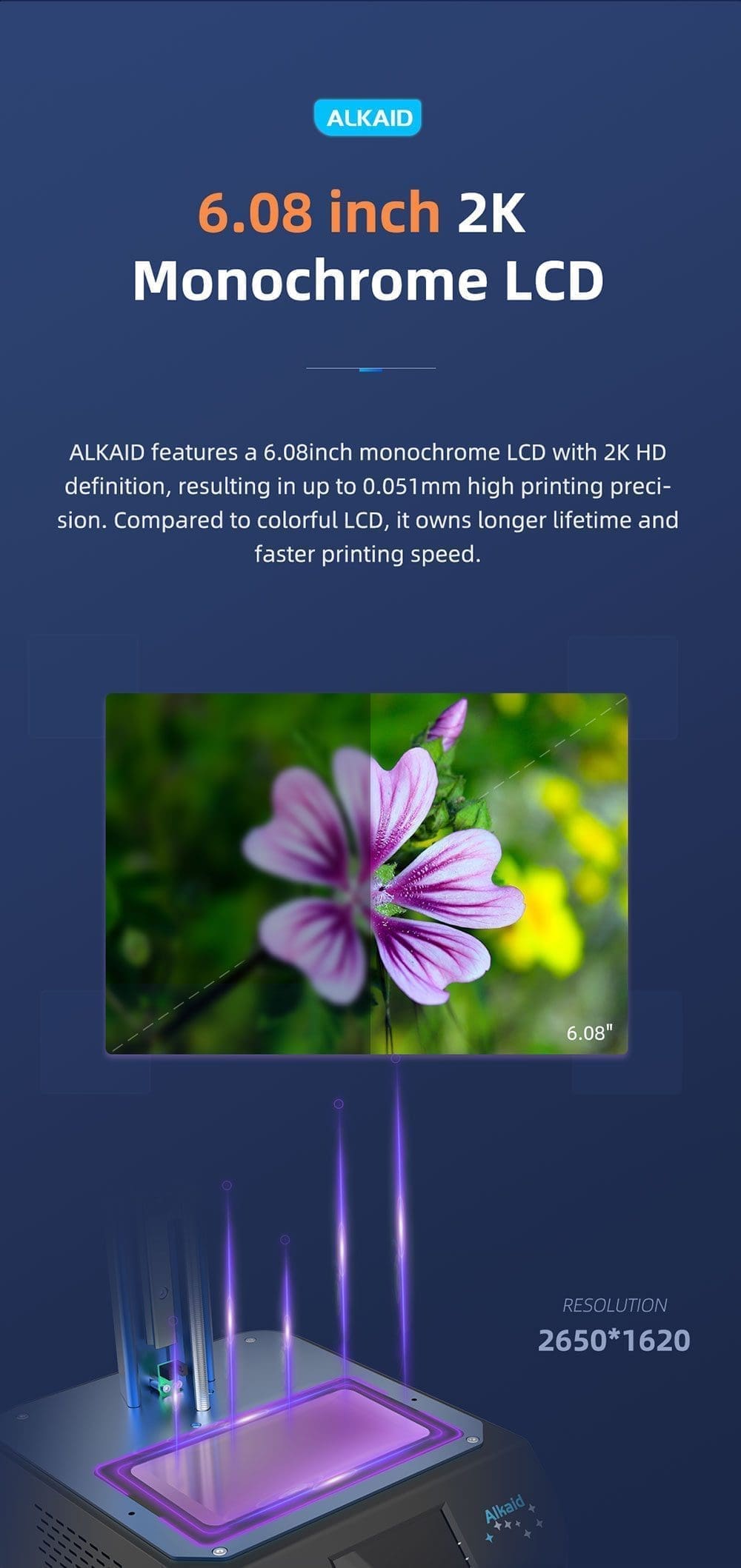

• High-Resolution Forming Screen: The 6.08-inch 2K black and white screen not only provides higher light transmittance but also boasts a longer service life compared to color screens. Its 2K resolution significantly enhances printing accuracy, achieving an X/Y precision of 0.05mm.

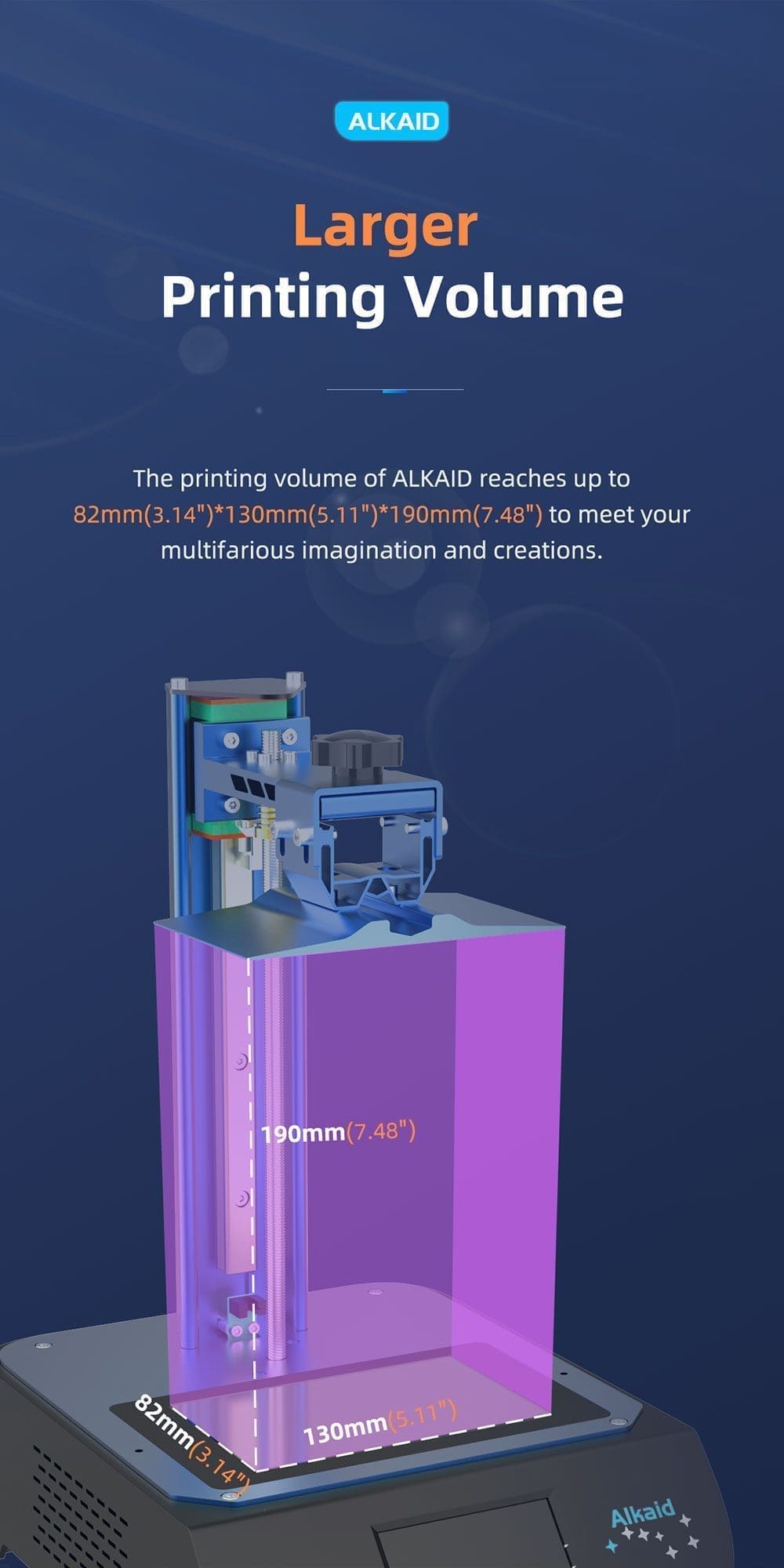

• Large Printing Size: Alkaid offers a generous printing size of 82(L) x 130(W) x 190(H) mm³ (3.14″ x 5.11″ x 7.48″).

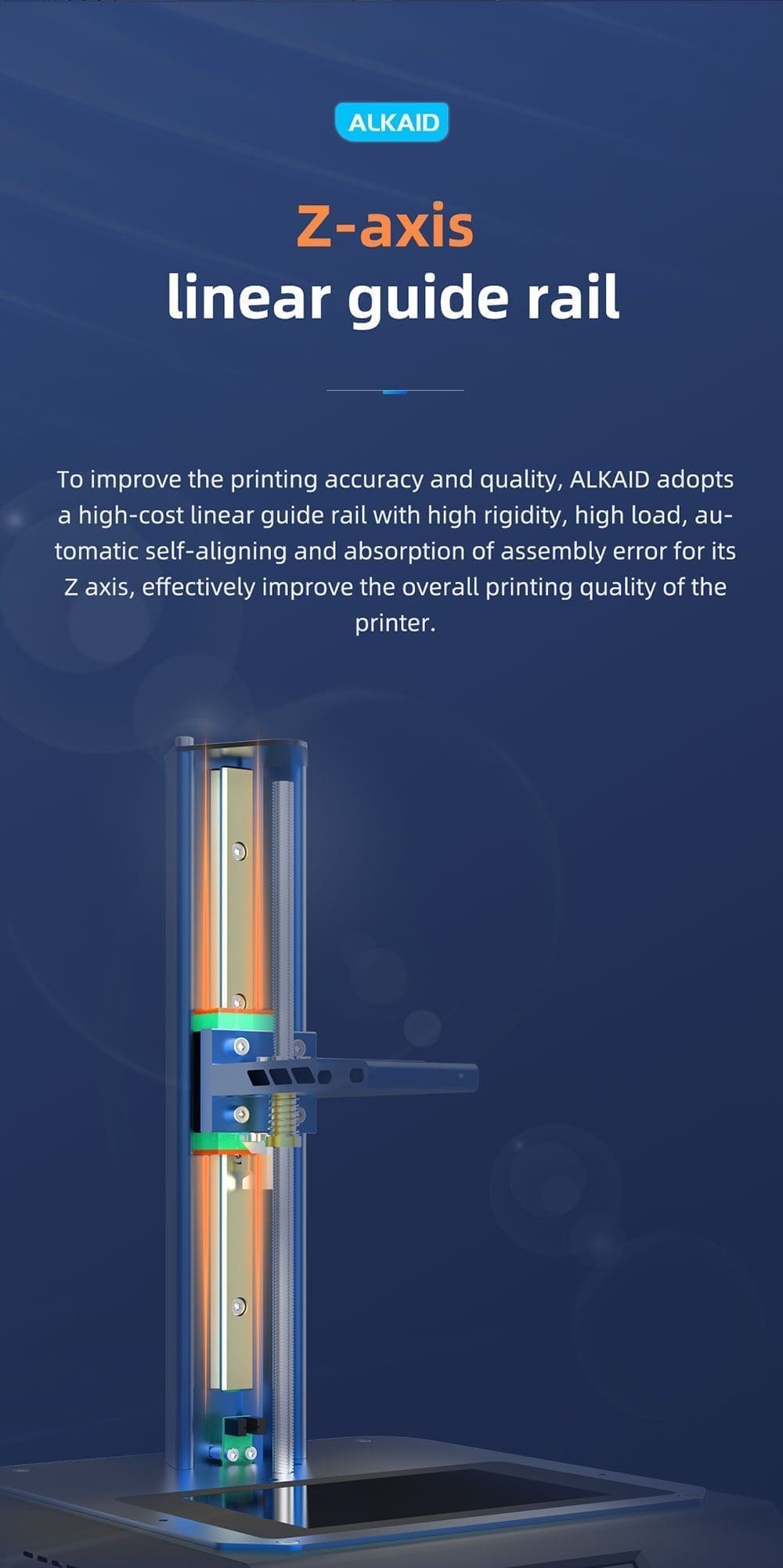

• Z-axis Linear Rail: To boost printing accuracy and quality, Alkaid’s Z-axis employs a high-cost linear rail. This feature ensures high rigidity and load capacity, automatic self-aligning, and absorption of assembly errors, thereby enhancing the overall print quality.

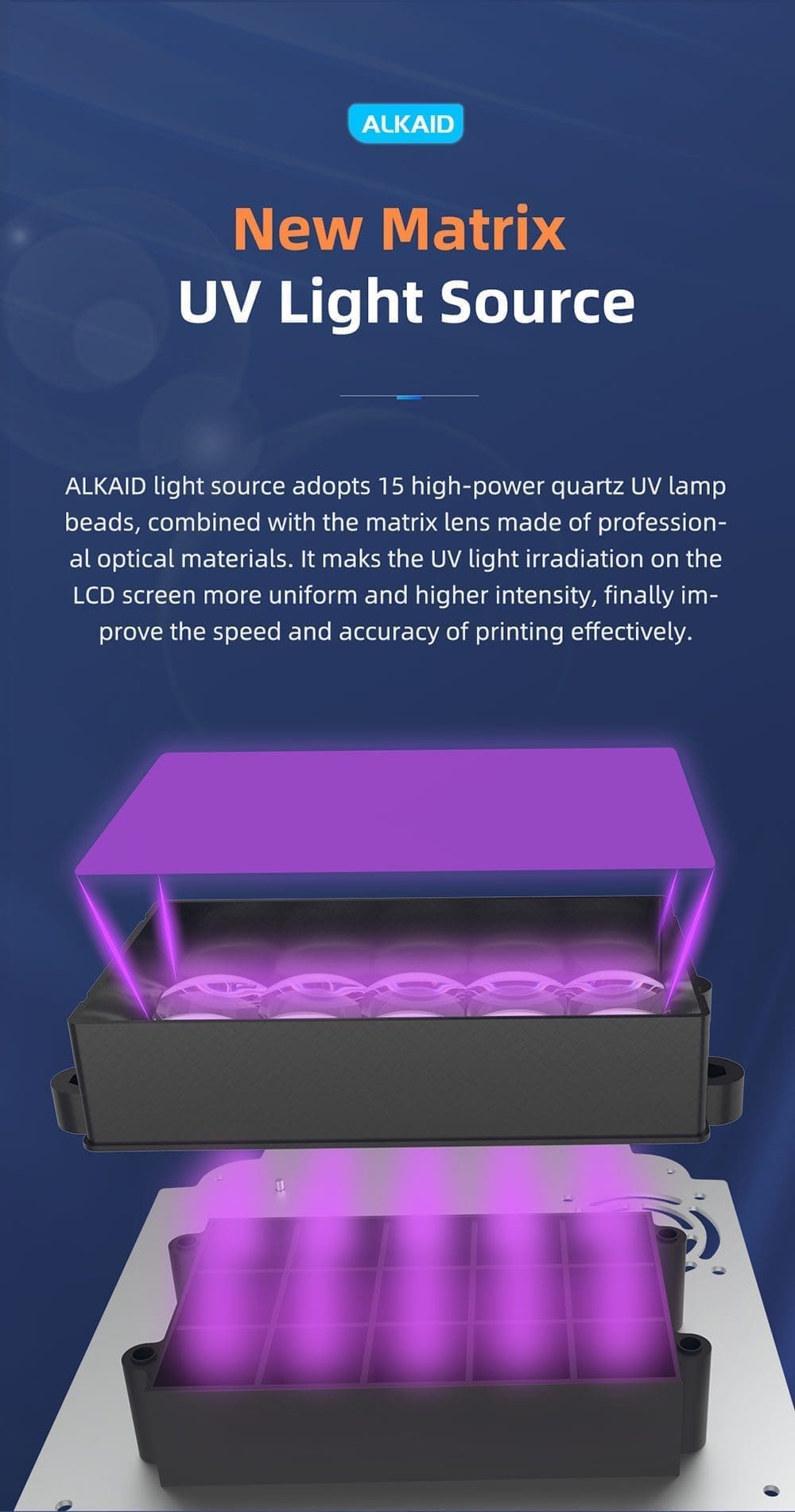

• Advanced Matrix Light Source: The printer uses 15 high-power quartz lamp beads in a matrix arrangement, coupled with professional optical materials. This design ensures even UV irradiation on the LCD screen, improving both printing speed and accuracy.

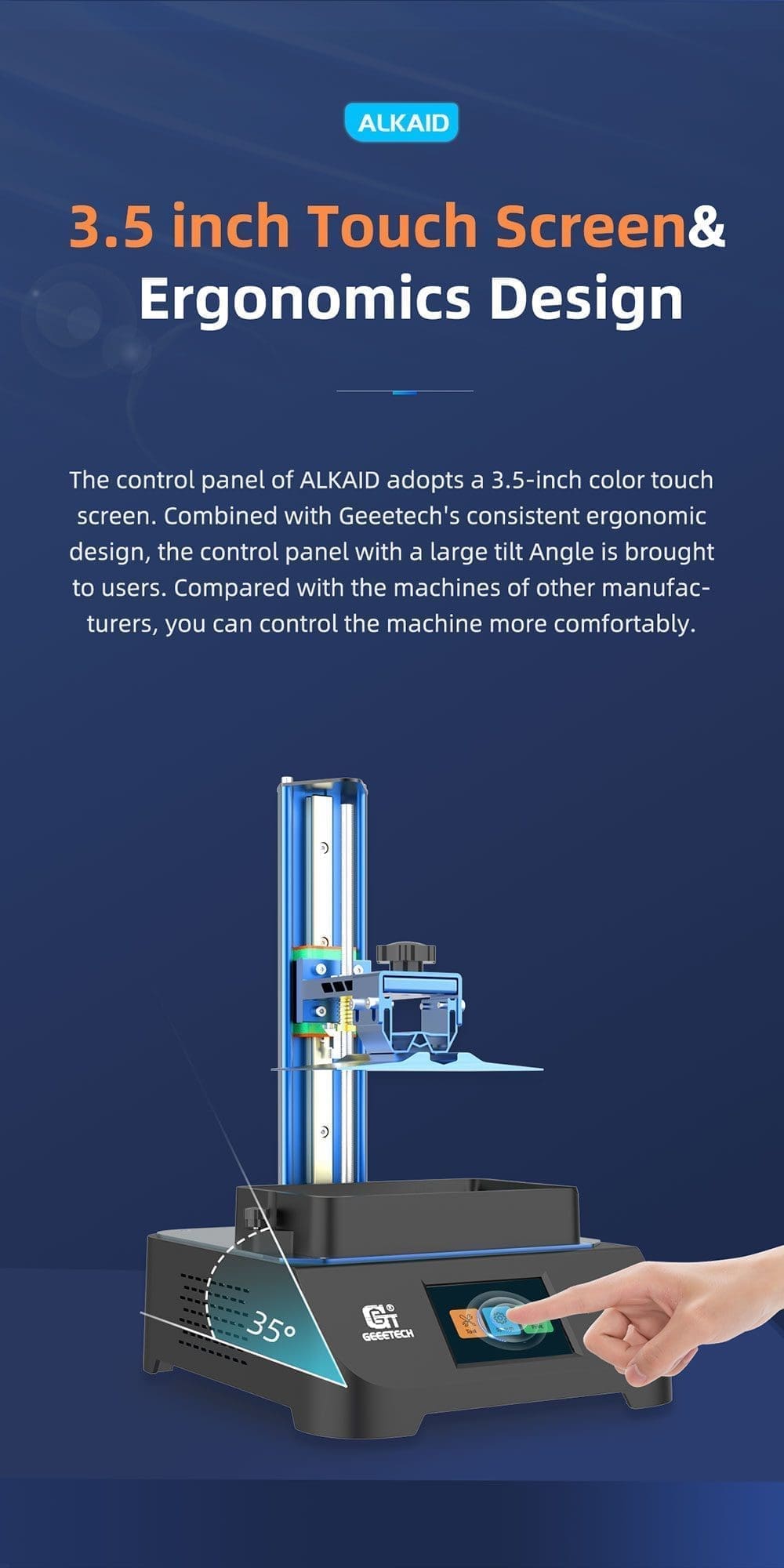

• Ergonomic Design: The control panel is ergonomically designed with a large tilt angle, making it more comfortable to use compared to other models.

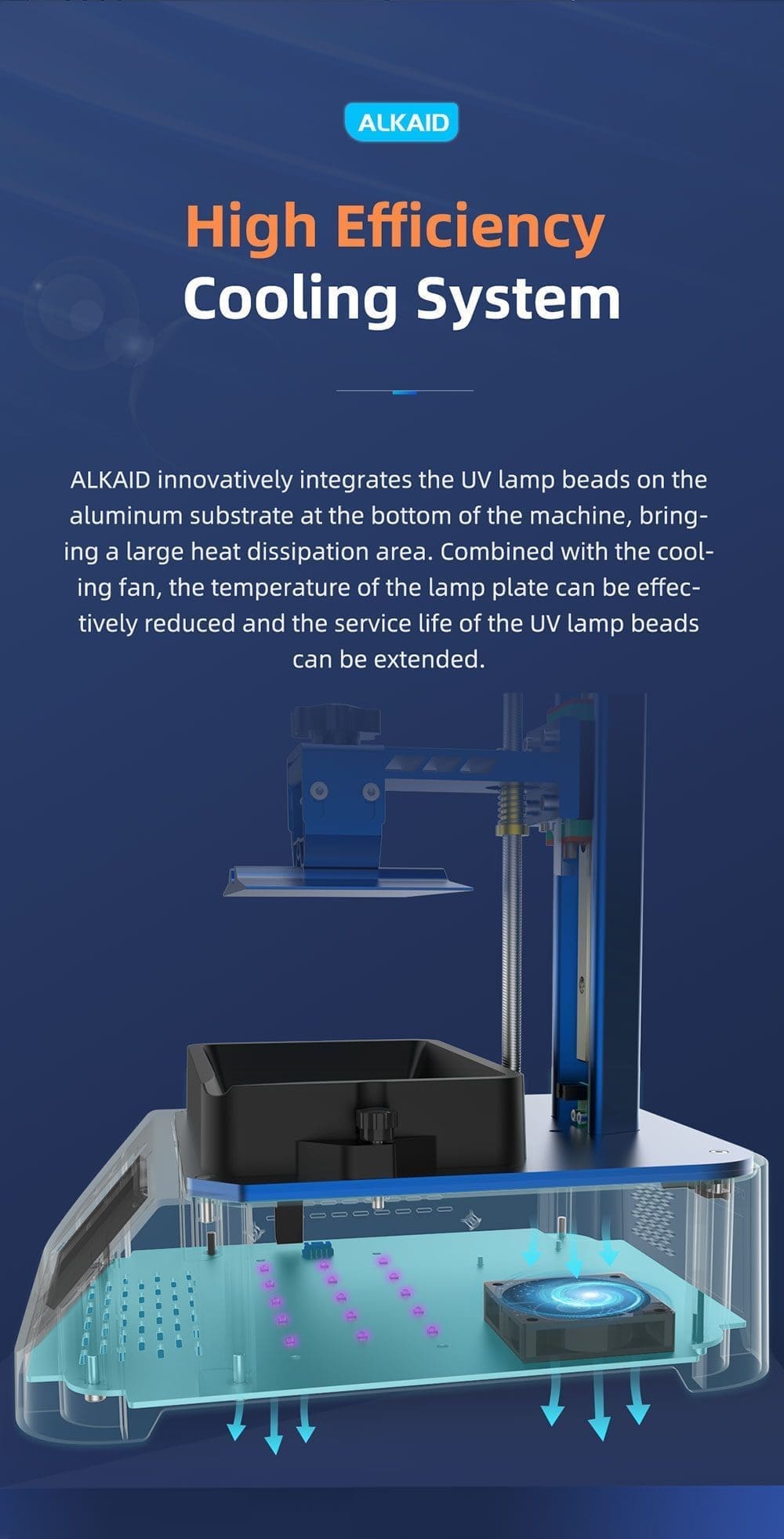

• Efficient Heat Dissipation System: Alkaid features an innovative heat dissipation system. The UV lamp beads are integrated into the machine’s bottom aluminum substrate, enlarging the heat dissipation area. Together with a cooling fan, this system effectively reduces the temperature of the lamp board, extending the lifespan of the UV lamp beads.

• Rigorous Testing: Key components undergo strict testing before delivery.

• Support and Customization: Technical support is available, along with the capability to provide ODM & OEM customized design and manufacturing.

Mechanical Parameters:

• Printer Size: 286(L) x 226(W) x 372(H) mm
• Package Size: 353(L) x 293(W) x 464(H) mm
• Net Weight: 4.2 kg
• Gross Weight: 5.8 kg

Electrical Parameters:

• Power Adapter: Input 100V~240V, 50/60Hz; Output 12V/5A
• Connectivity: USB
• Touch Screen: 3.5-inch Full-color Touch Screen
• LCD Screen Resolution: 2K Forming Screen

Printing Parameters:

• Printing Technology: LCD Light Curing Surface Forming Technology
• Printing Size: 82 x 130 x 190 mm
• XY Resolution: 0.051 mm
• LCD Size: 6.08 inches
• LCD Resolution: 2560 x 1620 Pixels
• Z-axis Precision: 0.001 mm
• Layer Thickness: 0.01 to 0.2 mm
• Printing Speed: 30 mm/h
• UV Lamp Rated Power: 45W
• Resin: 405nm Wavelength Ultraviolet Resin
• Slicer Software: CHITUBOX
• File Type: CTB
• Working Environment Temperature: 10℃ to 35℃
• Working Environment Humidity: 30% to 70%
