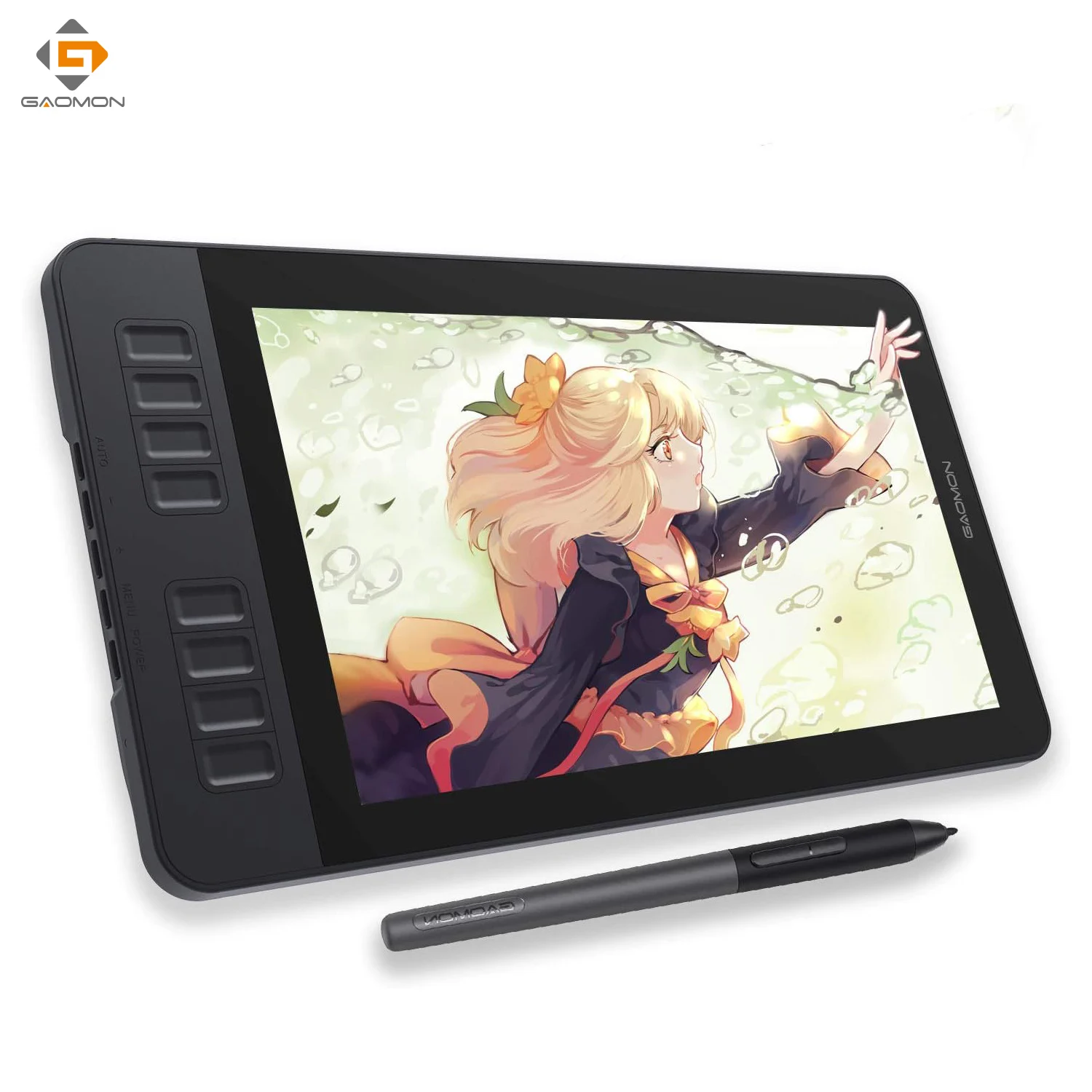

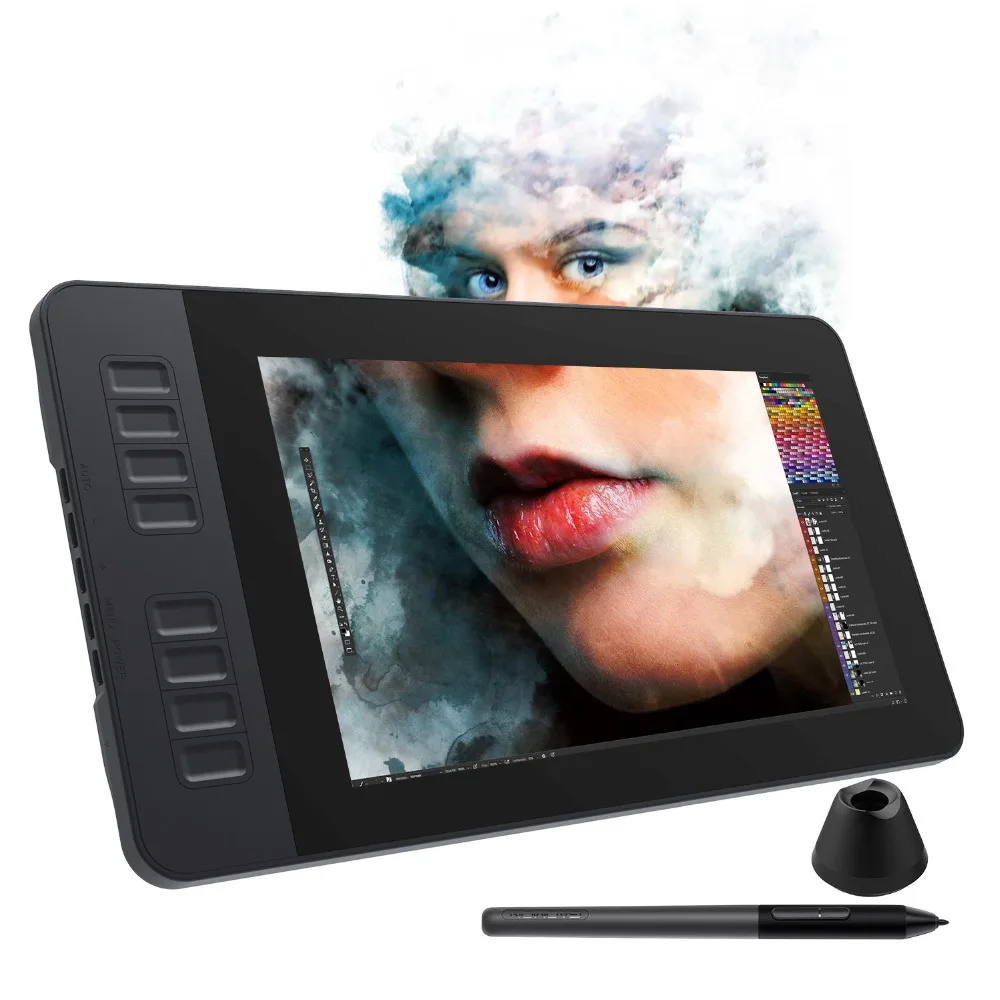

GAOMON PD1161 11.6-inch Pen Display Tablet

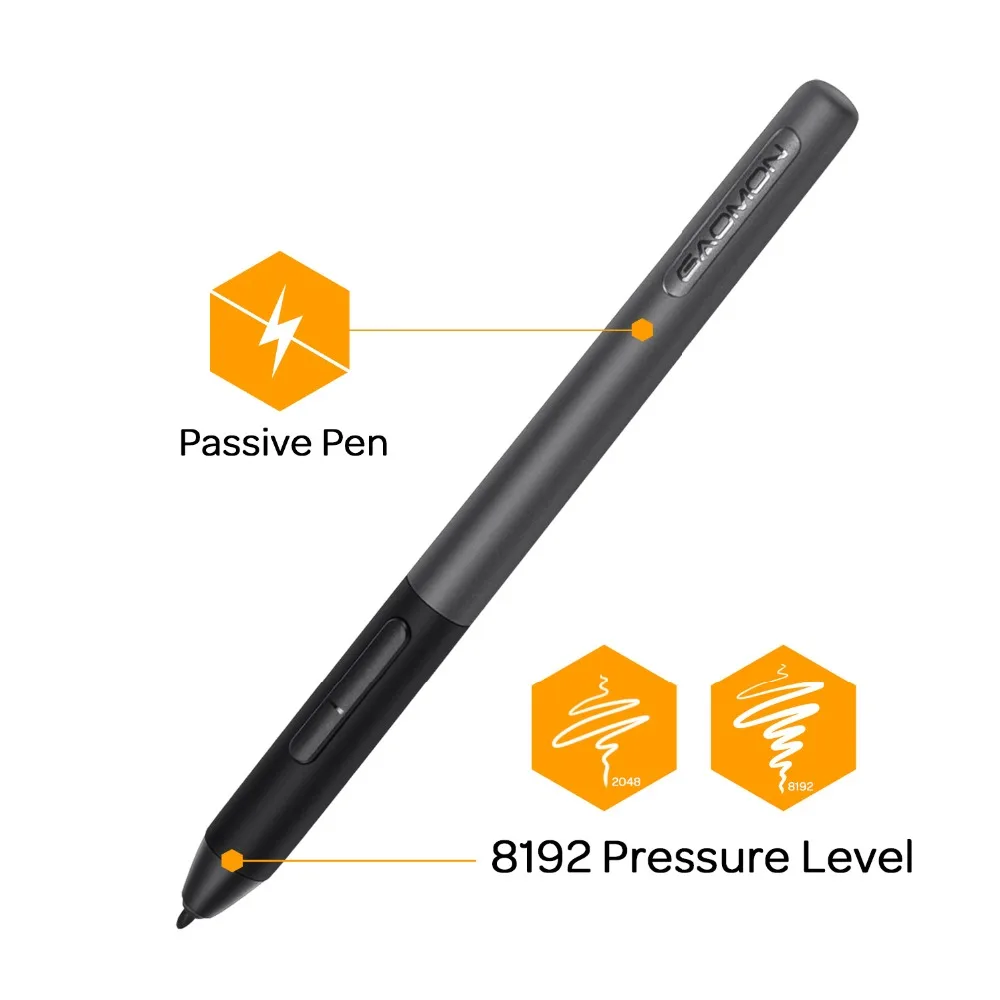

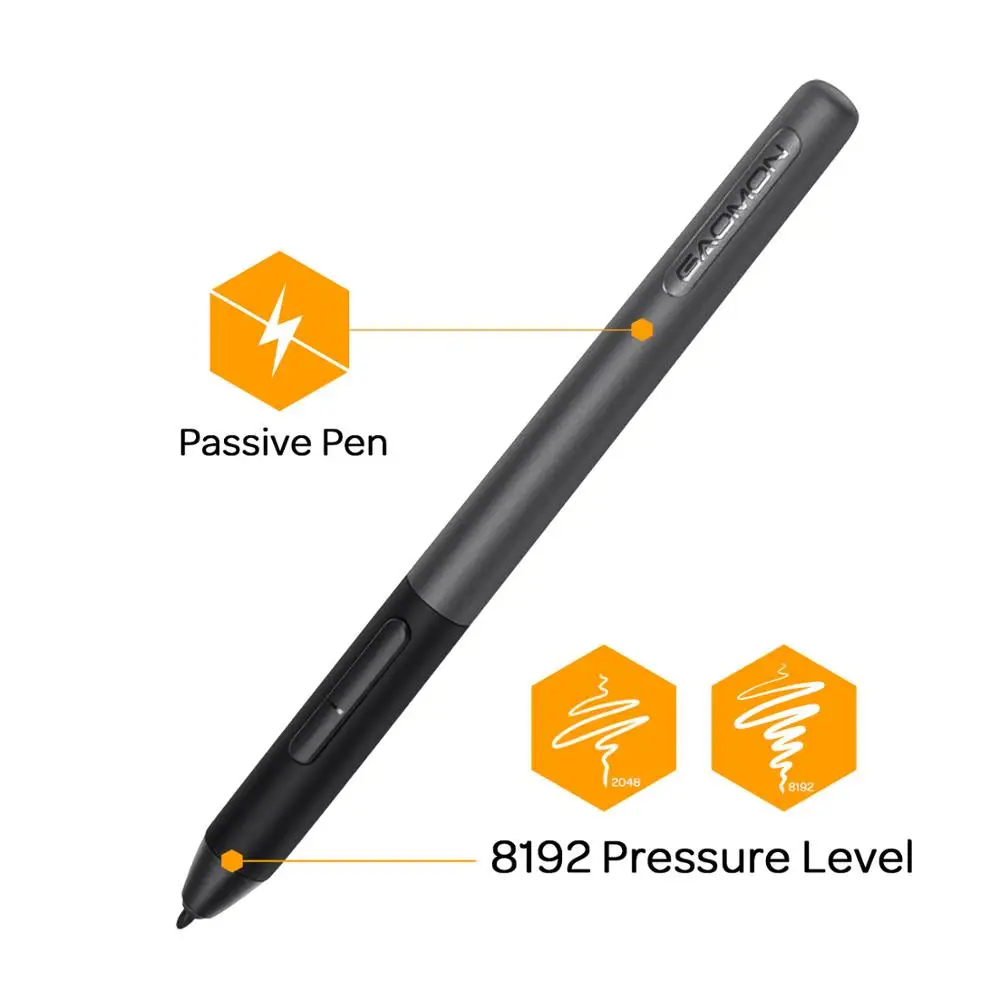

1. 8192 Levels Pen Pressure and Passive Pen High pen pressure levels enable accurate, smooth, neat, and natural lines during digital creation. With battery-free technology, there is no need to charge the pen or replace batteries, making it more environmentally friendly.

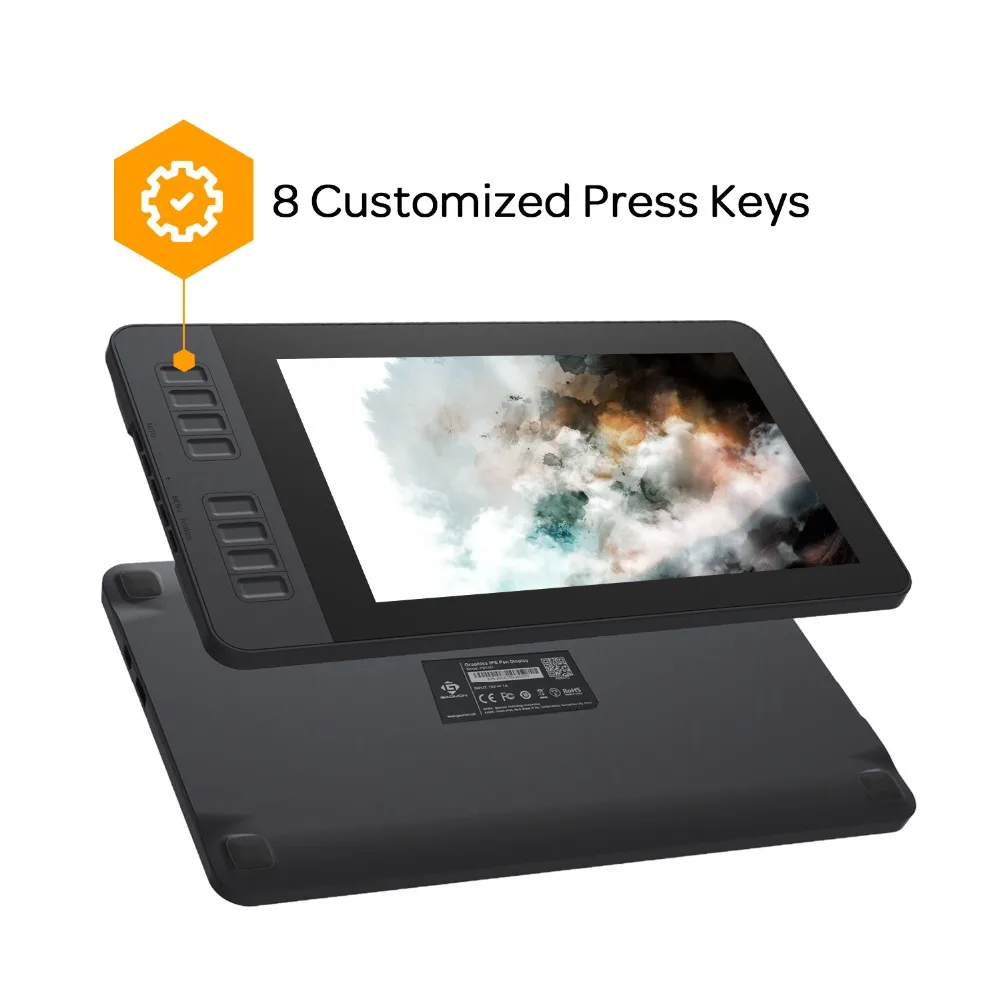

2. 8 Shortcut Keys 8 shortcut keys can be customized according to your creative habits, such as zooming in or out, scrolling up and down, and more, helping improve work efficiency.
3. Lightweight and Portable With a net weight of 866g or 1.9lb, the 11.6-inch PD1161 pen display monitor is easy to carry to the workplace, school, outdoor painting sessions, or trips, allowing creation on the go.
4. OS Support and Program Compatibility: Compatible with Windows 7 or macOS 10.12 and above. It is suitable for drawing, photography, animation, fashion design, sketching, image editing, 3D sculpting, beginners, painting enthusiasts, and architectural designers. It is also compatible with software such as Adobe Photoshop, Illustrator, Clip Studio, Lightroom, Sketchbook Pro, Manga Studio, CorelPainter, FireAlpaca, OpenCanvas, Paint Tool SAI2, Krita, and more.
IPS Full HD Screen Screen Resolution: 1920 x 1080 16:9. Report Rate: 266 PPS. Display Area: 256.32 x 144.18mm or 10.09 x 5.68 inch. Accuracy: ±0.5mm center and ±3mm corner. Sensing Height: 10mm. Signal Output: Mini HDMI and Type-C. Viewing Angle: 89°/89° horizontal and 89°/89° vertical. Resolution: 5080 LPI.

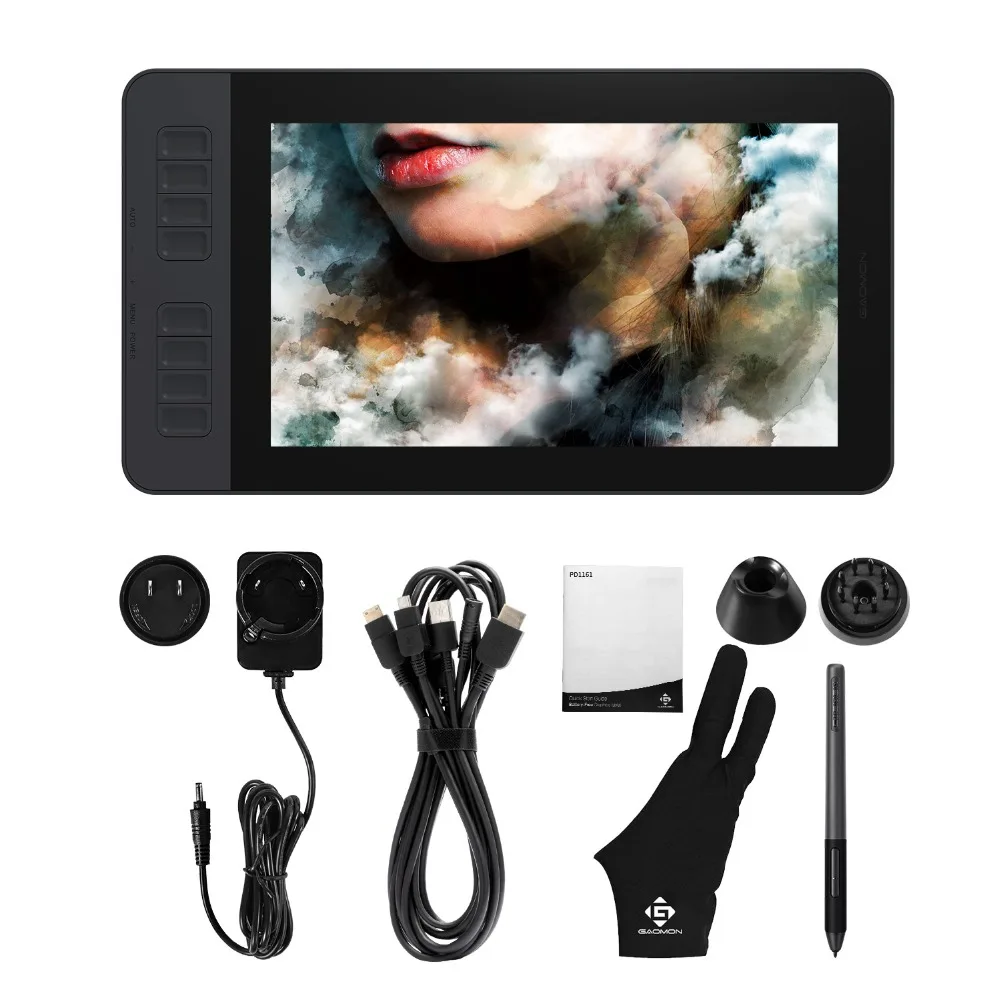

What is in the box?
Pen Display PD1161 x 1
Passive Pen AP50 x 1
Power Adapter x 1
Pen Holder x 1, Replacement Nibs x8 inside
Glove x 1
3 in 1 Integrated Cable x 1
Quick Start Guide x 1
Product Parameter
Product Model: PD1161
Digital Pen: ArtPaint AP50
Screen Size: 11.6 Inches
Screen Resolution: 1920 x 1080 16:9
Liquid Crystal Type: IPS
Dimension: 361.6 x 200 x 13 mm
Active Area: 256.32 x 144.18 mm
Contrast Ratio: 1000:1
Brightness: 220 cd/m2
Report Time: 25 ms
Resolution: 5080 LPI
Pressure Sensitivity: 8192 Levels
Reading Height: 10mm
Report Rate: 266 PPS
Net Weight: 866g
Gross Weight: 1.65 kg
Signal Interface: Mini HDMI and Type-C
Accuracy: ±0.5mm center and ±3mm corner
Pen Technology: Battery-Free Electromagnetic Resonance
Viewing Angle: 89°/89° horizontal and 89°/89° vertical Typ. CR＞10
OS Support: Windows 7 or later, macOS 10.12 or later
Ergonomic Design
The silicone covers the pen grip area to help reduce pain and discomfort during long periods of creation.
5 Menu Keys
AUTO, plus, minus, MENU, and POWER. These keys are placed on the left side of the board and can be used to adjust color, brightness, contrast, and other settings.

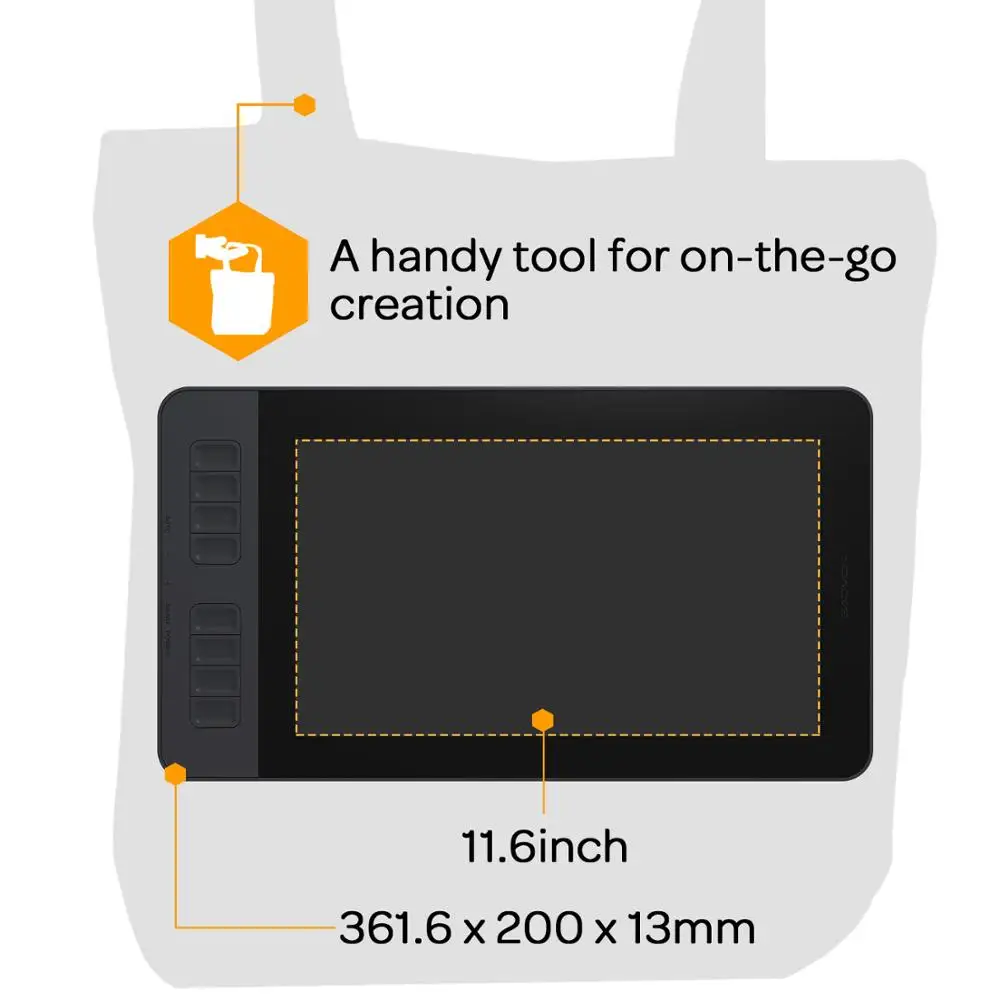

Portable Size
The 11.6-inch working area is designed to meet common creative needs. Combined with its slim thickness and portable weight, it is easy to carry with a laptop in a backpack, allowing you to capture inspiration more freely.
Remarkable Screen
The IPS LCD screen with a 178-degree viewing angle provides a wide and comfortable working area. The 1920 x 1080 Full HD display presents artwork details accurately with clear visuals and strong color saturation.

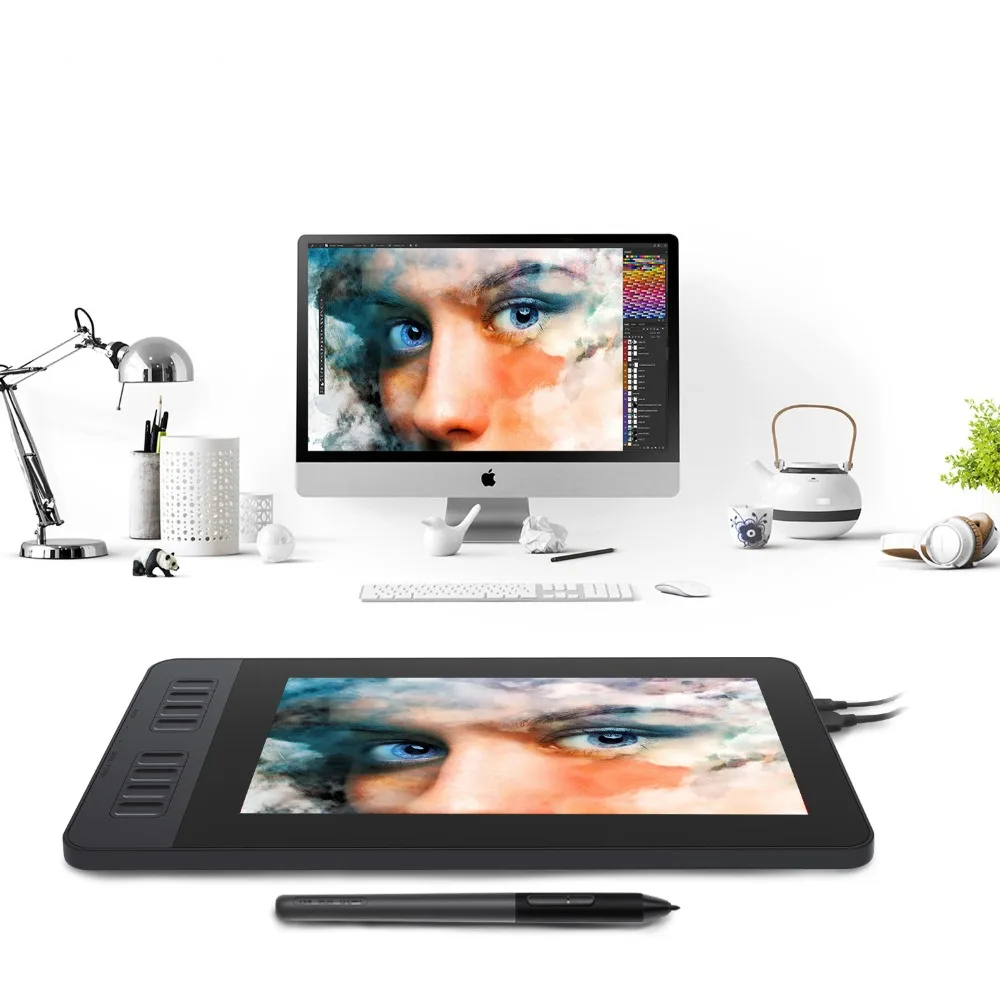

Dual and Tri Monitor Support
Duplicated Mode: The PD1161 displays the same content as your computer monitor. What you draw on the PD1161 will also appear on your computer monitor.
Windows OS: Press Windows + P on the keyboard and choose Duplicate.
Mac OS: Open System Preferences, go to Displays, then Arrangement, and check Mirror Displays.
Extended Mode: The PD1161 displays its own wallpaper without programs on it. You can draw on the PD1161 while the computer monitor displays other content separately.
Windows OS: Press Windows + P on the keyboard, choose Extend, then open the GAOMON Driver Panel and go to Work Area. You will see Display 1, Display 2, and All Displays. Choose the PD1161 1920 x 1080 display as the work area, usually Display 2, then click Apply and OK.
Mac OS: Open System Preferences, go to Displays, then Arrangement, and uncheck Mirror Displays. Then open the GAOMON Driver Panel, go to Work Area, and choose the PD1161 1920 x 1080 display as the work area, usually Display 2, then click Apply and OK.
Tri Monitor Support depends on whether your computer graphics card supports three monitors connected at the same time. If it does, refer to the dual monitor instructions above.
Notes:
1. Before installing the driver, uninstall all tablet drivers from your computer and keep all antivirus programs closed. After installation, restart your computer. The driver can be downloaded from the official GAOMON website.
2. A 1-year warranty is provided for non-human-caused damage and accidental damage. If you need assistance, feel free to contact support.
3. For macOS Mojave users: macOS 10.14 requires higher permissions for newly downloaded programs. After installing the GAOMON driver, open System Preferences, then Security and Privacy, and add GaomonTablet and TabletDriverAgent to the list to help ensure the pen works properly on macOS 10.14.
