FYSETC VORON ERCF V2 Multi-color 3D Printer Kit

FYSETC VORON ERCF V2 Multi-color 3D Printer Kit

FYSETC would like to thank everyone in the ERCF team for their efforts. After continuous communication with the team, and after suggestions and improvements, the FYSETC Voron ERCF V2 project was completed and obtained the official ERCF certification. Thank you again

Note: If you have purchased the ERCF v1.0 version before, and if you want to upgrade it to v2.0, you can choose to purchase “Upgrade set 1/2/3/4.”

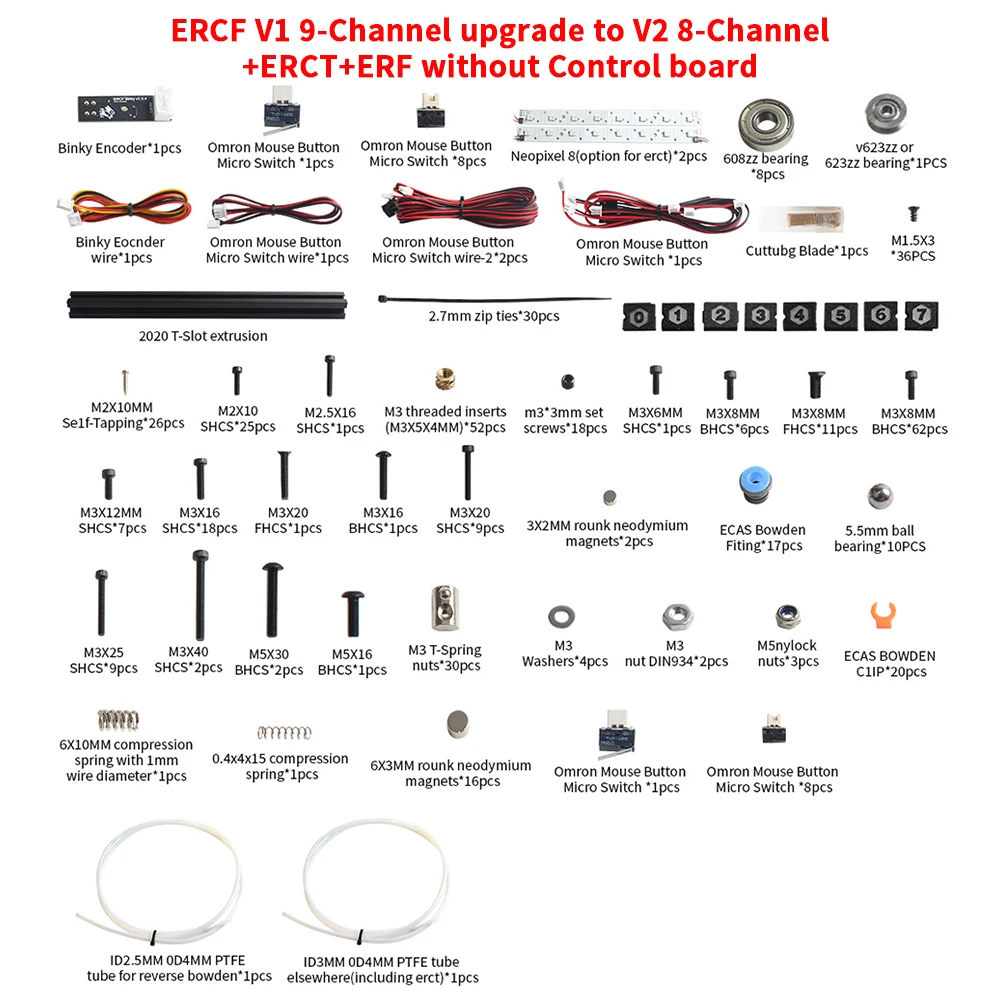

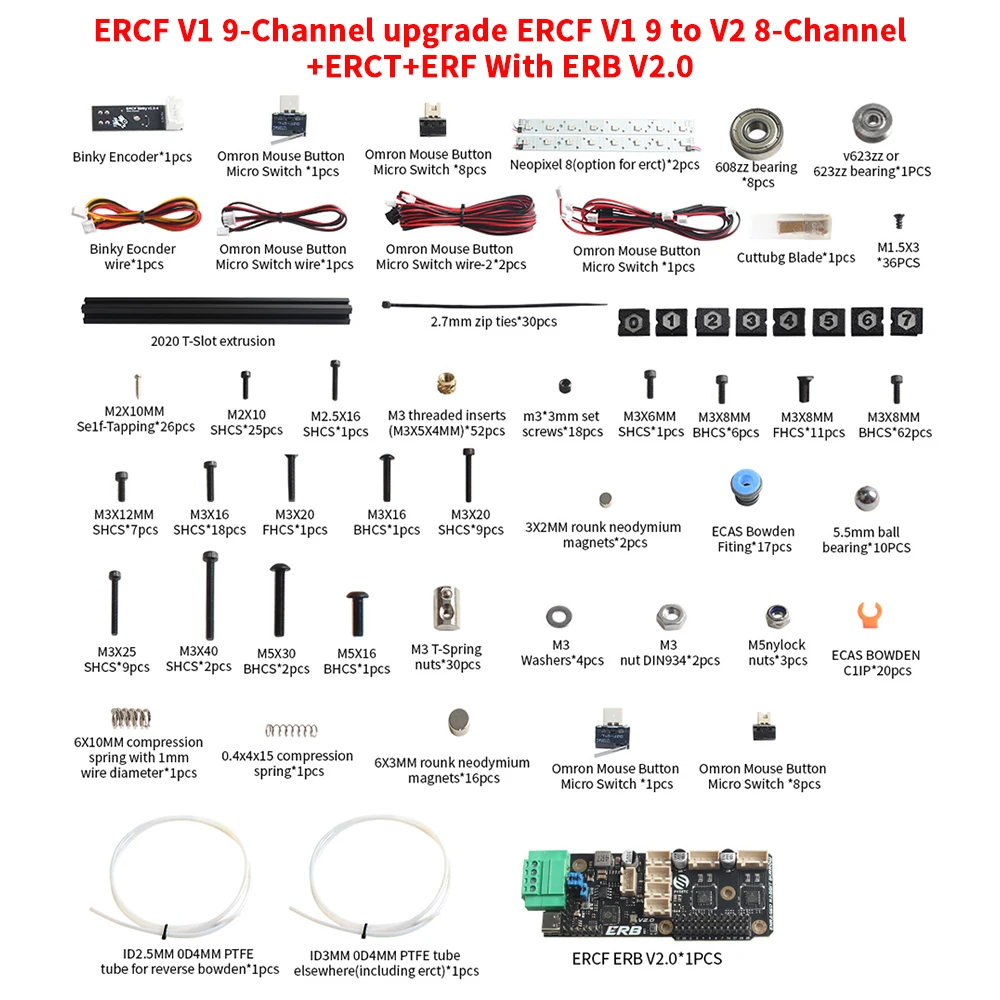

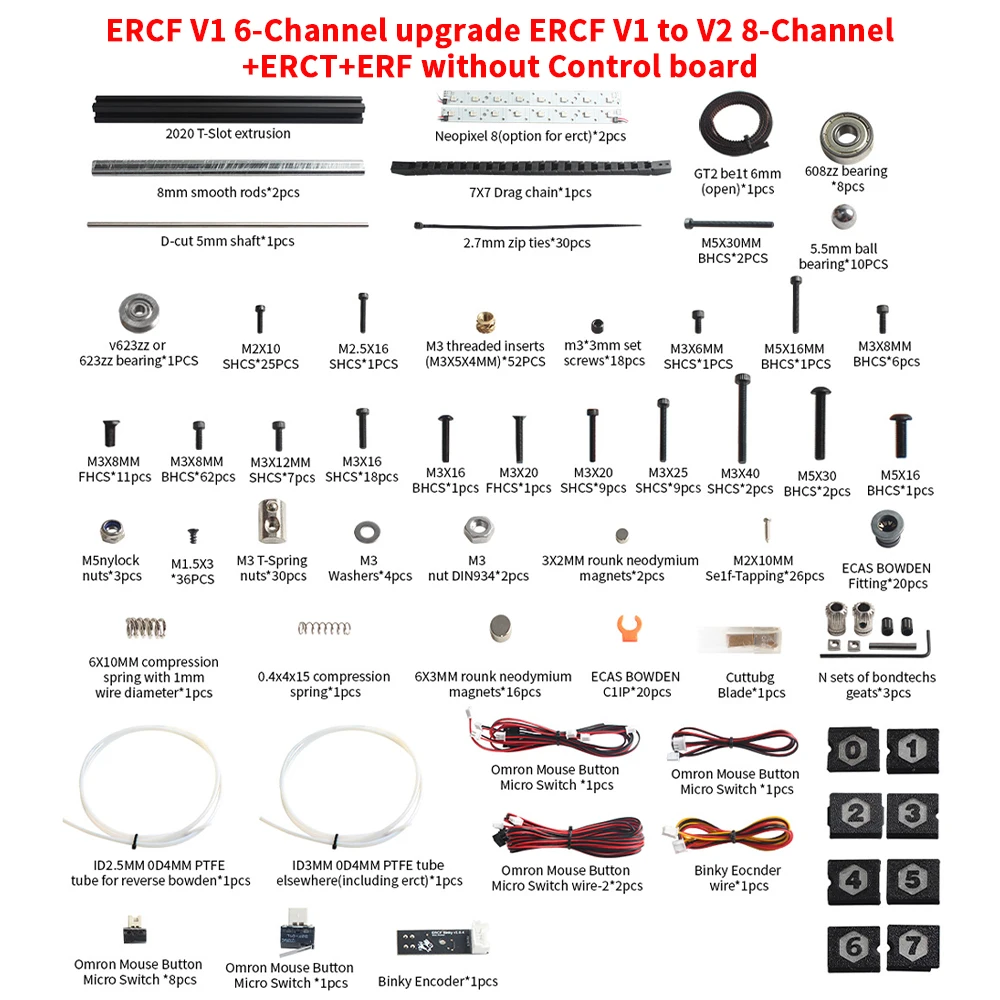

Upgraded set 4: ERCF V1 9-Channel upgrade to V2 8-Channel + ERCT + ERF without Control board Upgraded set 1: ERCF V1 6-Channel upgrade to V2 8-Channel + ERCT + ERF With ERB V2.0 Upgraded set 2: ERCF V1 6-Channel upgrade ERCF V1 to V2 8-Channel + ERCT + ERF without Control board Upgraded set 3: ERCF V1 9-Channel upgrade ERCF V1 9 to V2 8-Channel + ERCT + ERF With ERB V2.0

About Products:

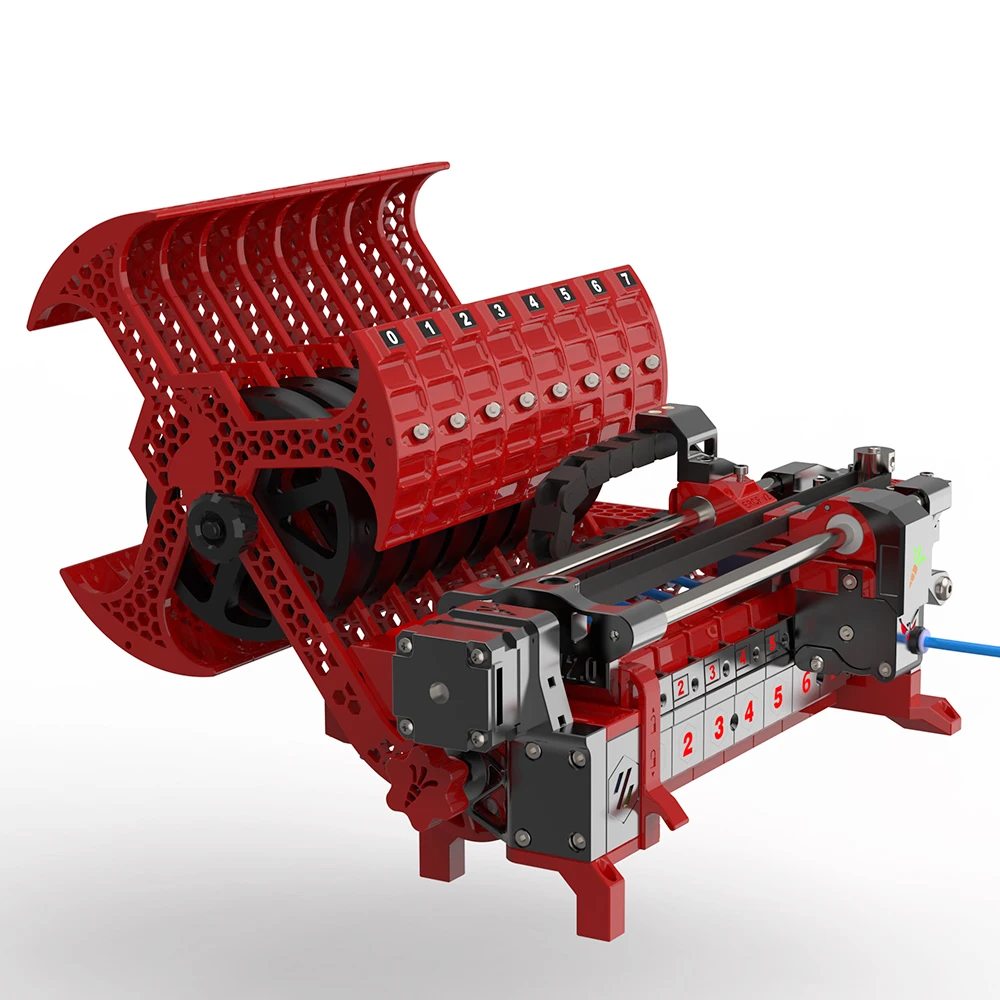

1. The Rabbit multi-color extruder system is a consumable switching device that allows a single machine to automatically switch between multiple different consumables or materials to print models in the same printing process. The replaceable consumable unit of the product is divided into 8 Channels. Model with 12 Channel.

2. Applicable models: VORON 2.4 R2, VORON Trident, VORON Switchwire, also works on any 3D printer running Klipper and possibly RRF.

3. FYSETC ERCF V2 Features:

• Pre-pressed wire harness, no need to press terminals, cut wires, or adjust wire sequence. Just plug and play.
• Uses integrated module LED lights; no need to connect welding wires one by one, resulting in less wiring and a simpler, more aesthetic appearance.
• Uses module limit switches; one set of wire harness can be connected to the motherboard. No soldering wires are needed to connect them one by one, making the connection more reliable, simpler, and more aesthetically pleasing.
• The self-produced ERB V2.0 module is selected as the hardware. Compared with other modules, the self-produced ERB module is based on the RP2040 MCU and uses a power management chip. Compared with LDO, it generates less heat, has greater output power, is more stable, and uses the USBC interface, improving device performance.
• Structurally, the motion module part uses chrome-plated optical shafts and engineering plastic bearings to enable the device to run smoothly and silently. The difference from metal bearings is that the engineering plastic bearings and optical shafts cooperate with small clearances to achieve higher operating accuracy.
• Can realize fully automatic consumable switching for multi-color printing, and can be compatible with a large number of consumable units.

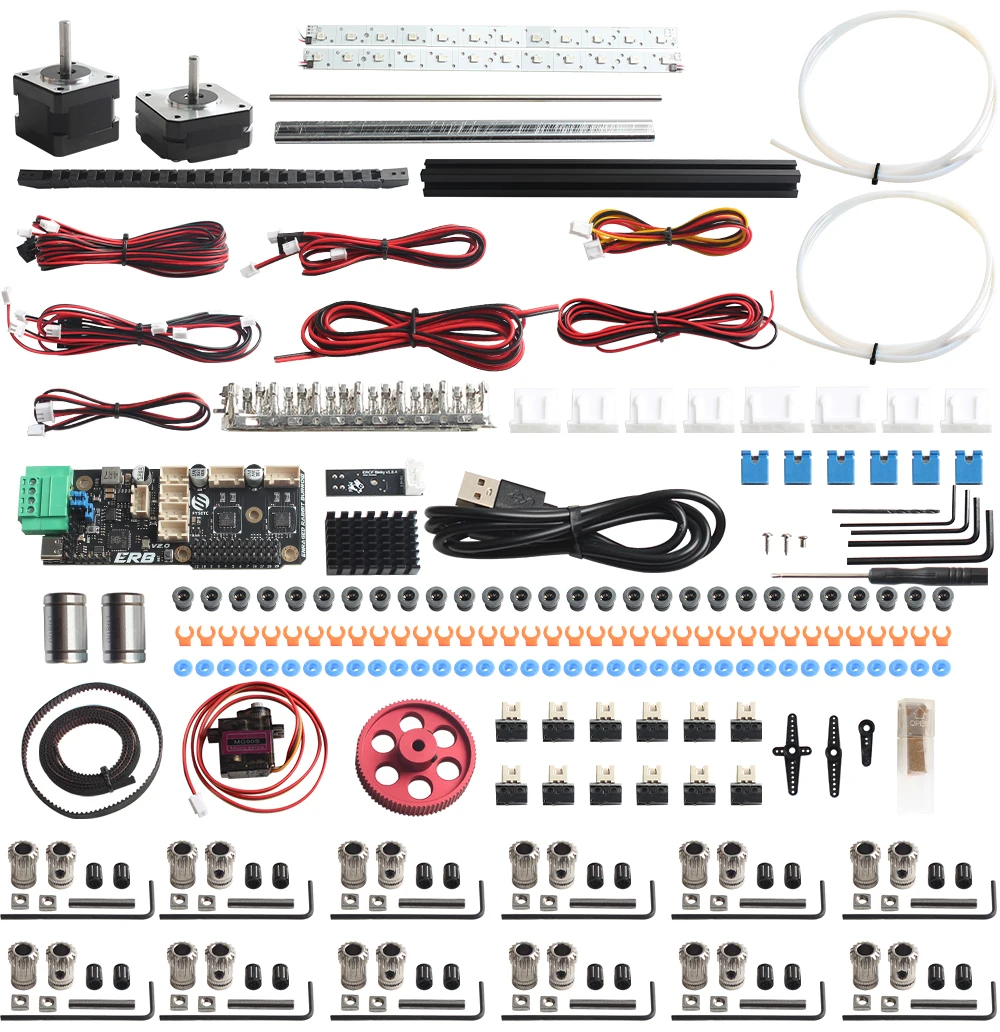

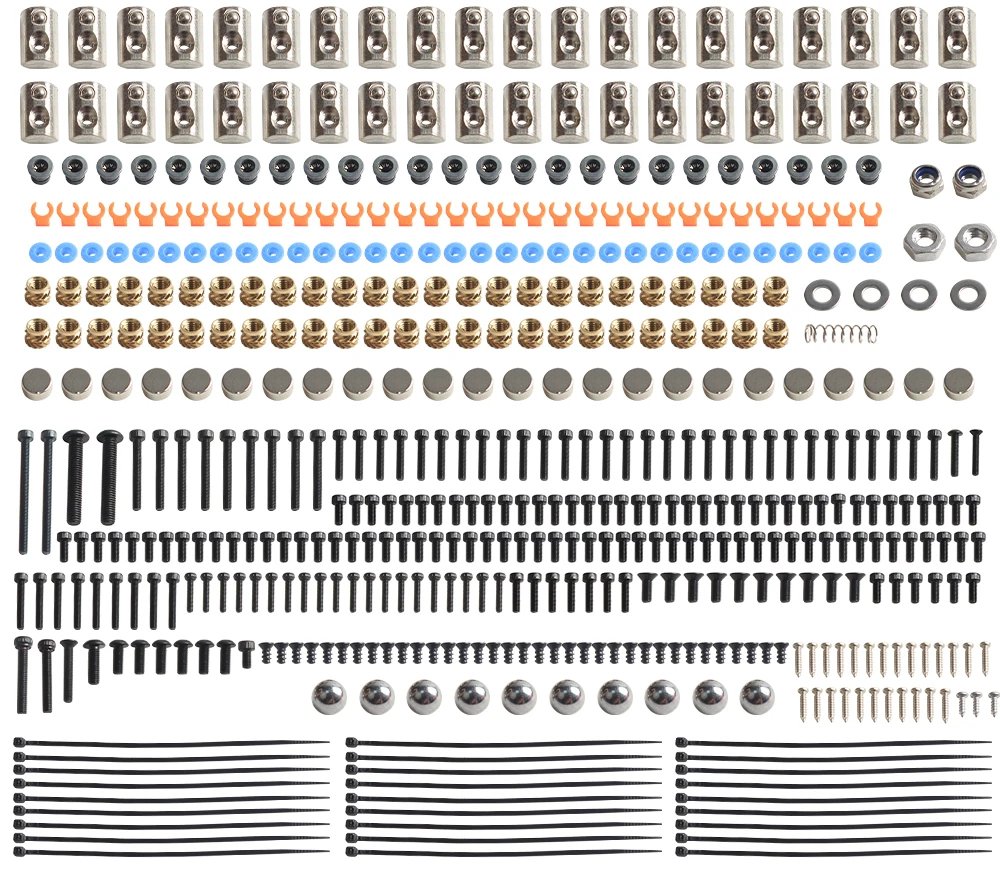

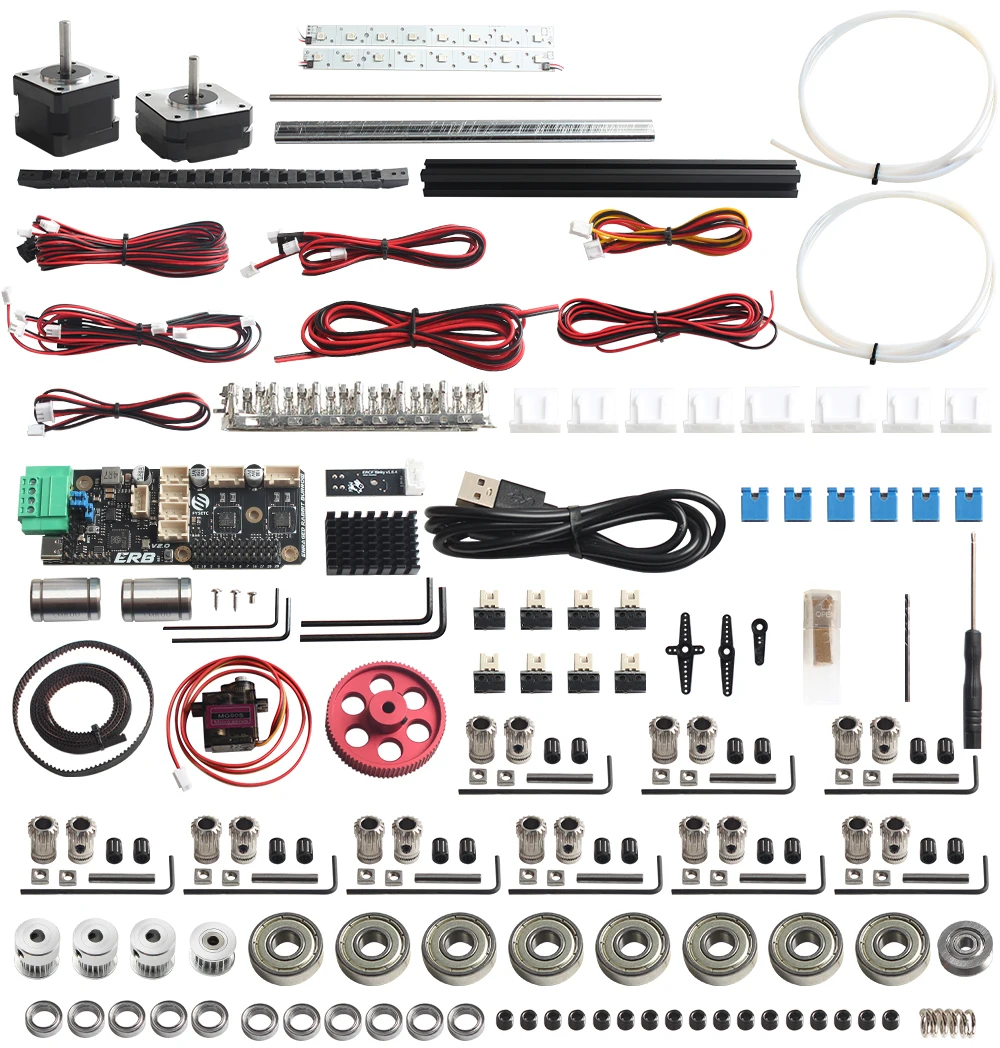

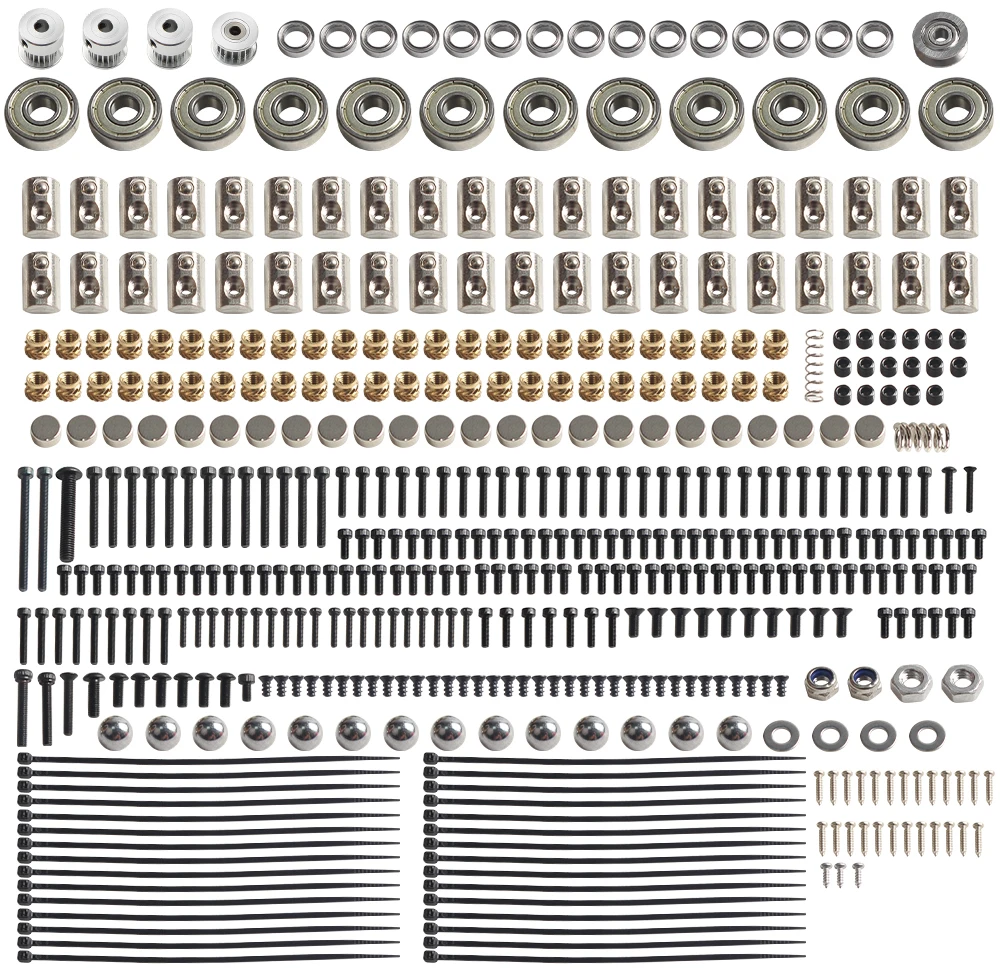

Packing list: as shown in the picture (depends on your choice; if you have any questions about the package list, please contact the store customer service).

Printed part STL link: https://github.com/Enraged-Rabbit-Community/ERCF_v2/tree/rc1/Vendor_Mods/Fysetc

If you want to know more information, you can check out the official link: https://github.com/Enraged-Rabbit-Community/ERCF_v2

https://github.com/FYSETC/FYSETC-ERCF-V2

Installation tutorial: https://github.com/Enraged-Rabbit-Community/ERCF_v2/tree/master/Documentation

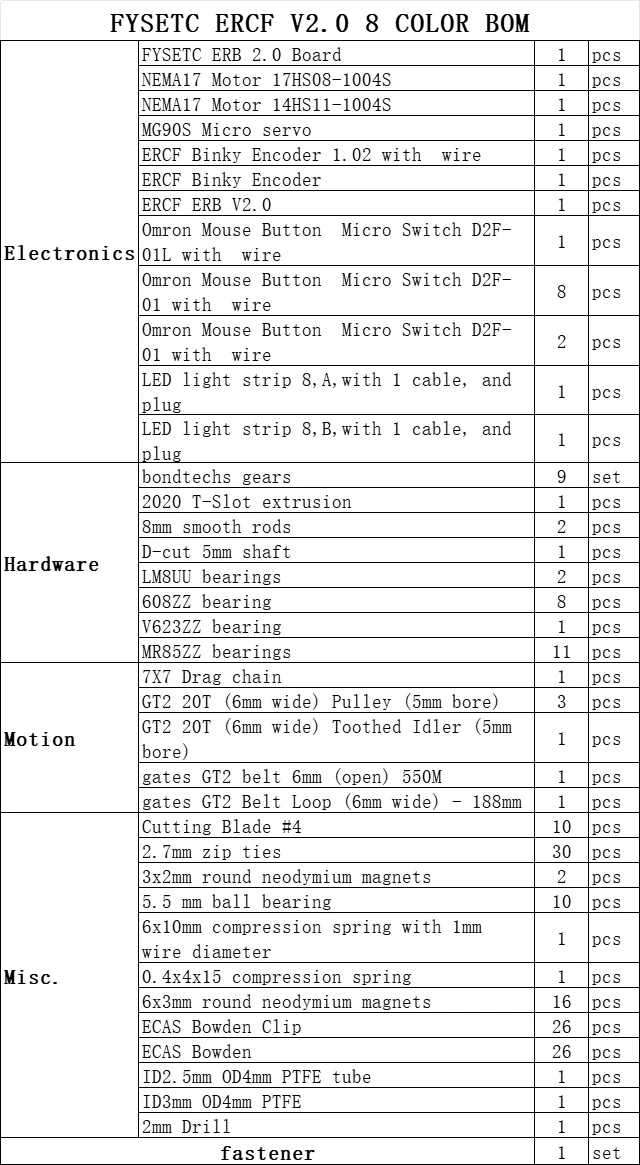

8-Color BOM:

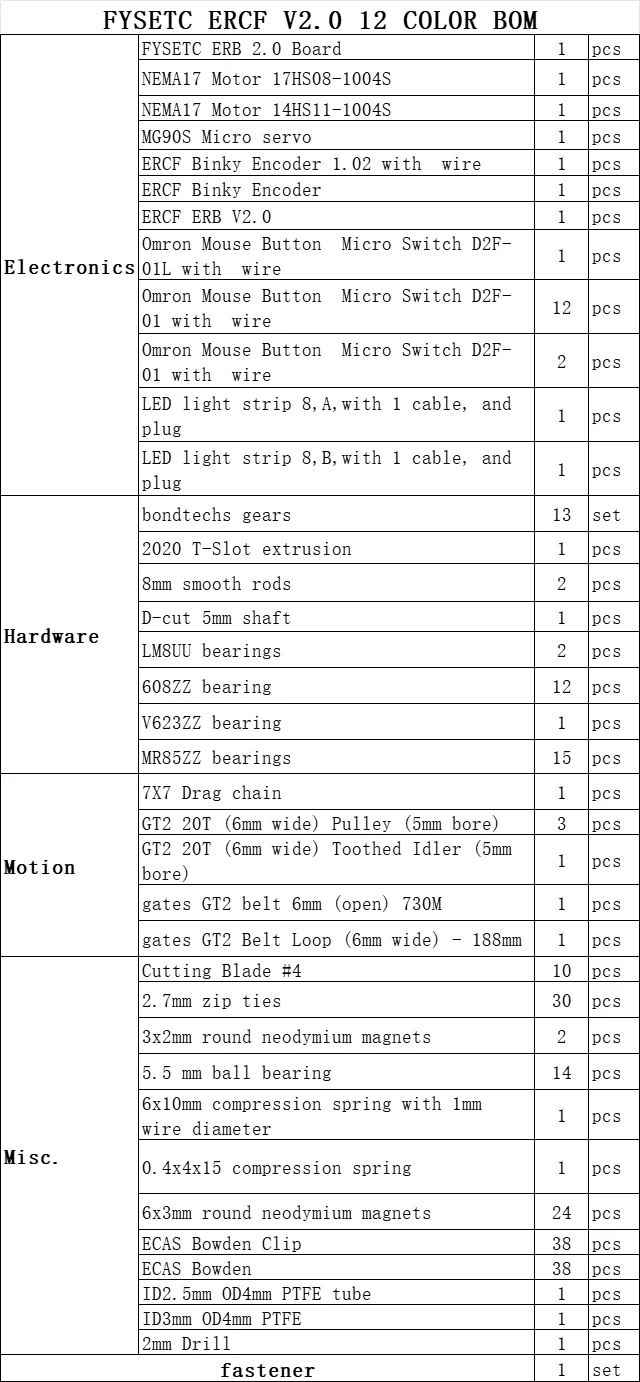

12-Color BOM:
