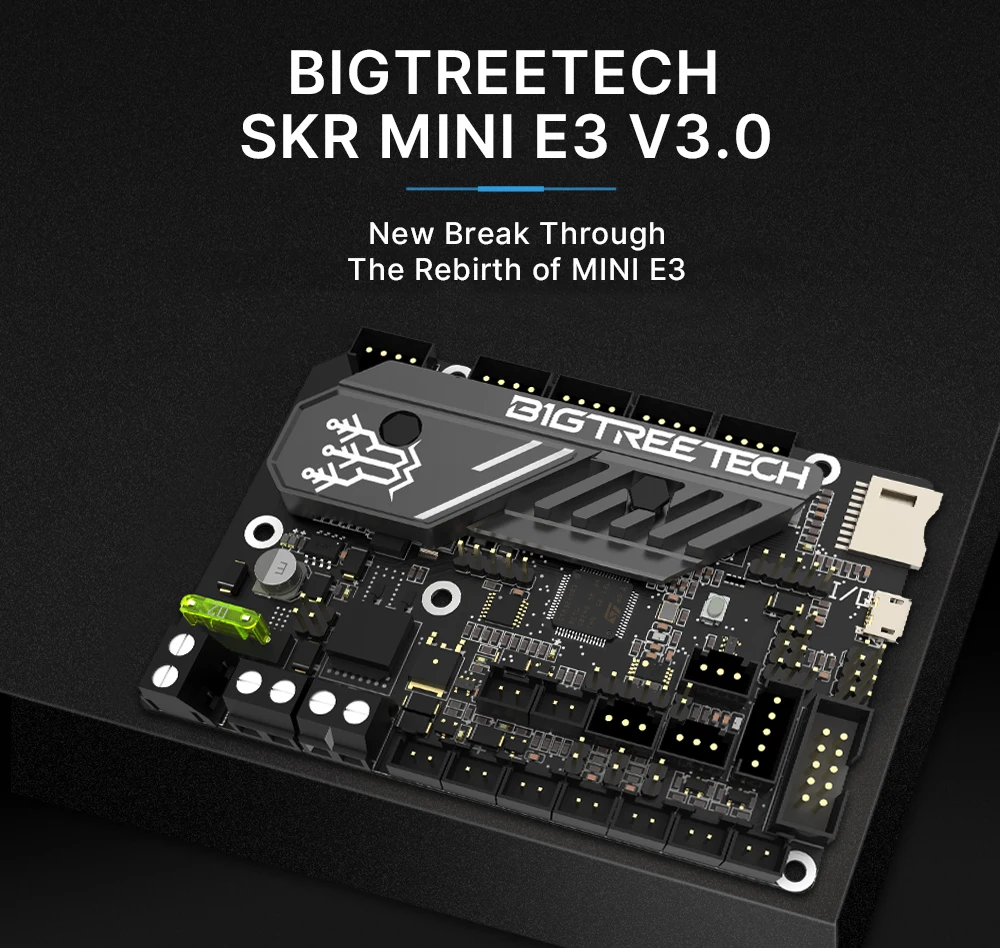

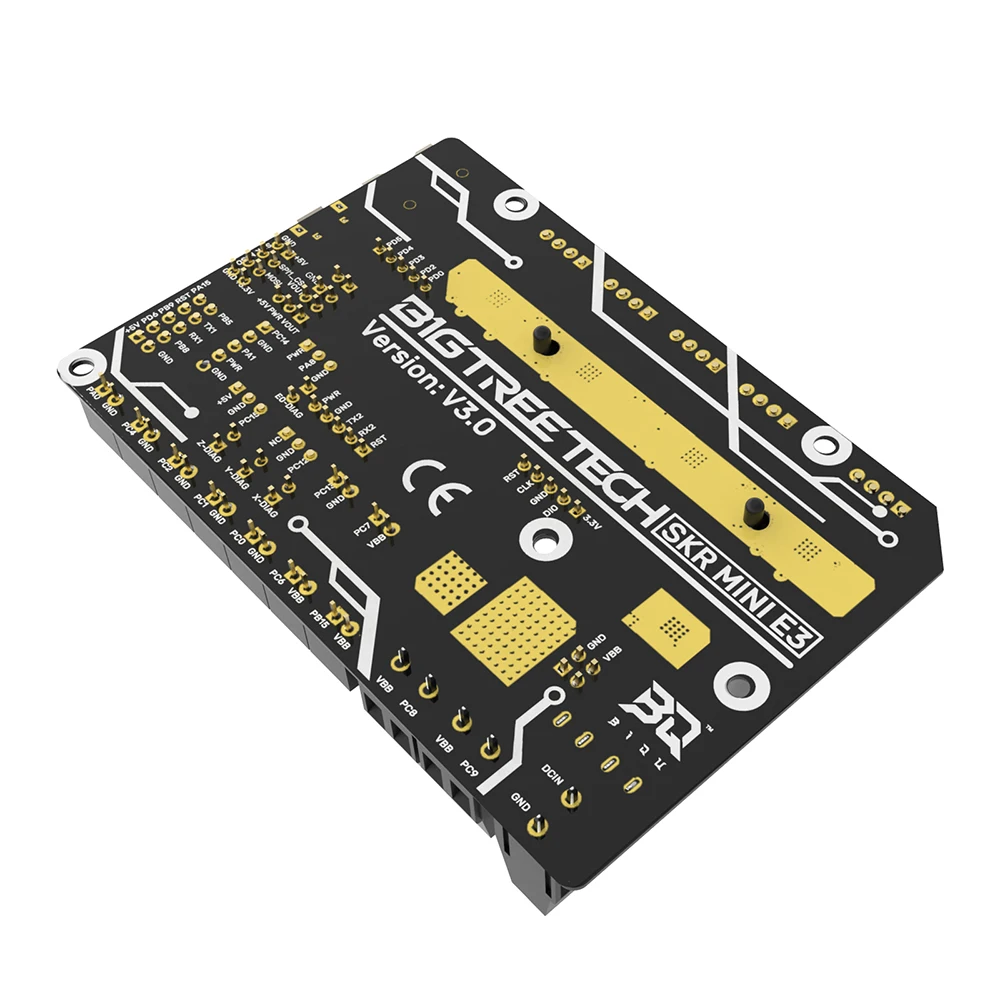

BIGTREETECH SKR Mini E3 V3.0 Motherboard

BIGTREETECH SKR Mini E3 V3.0 Motherboard

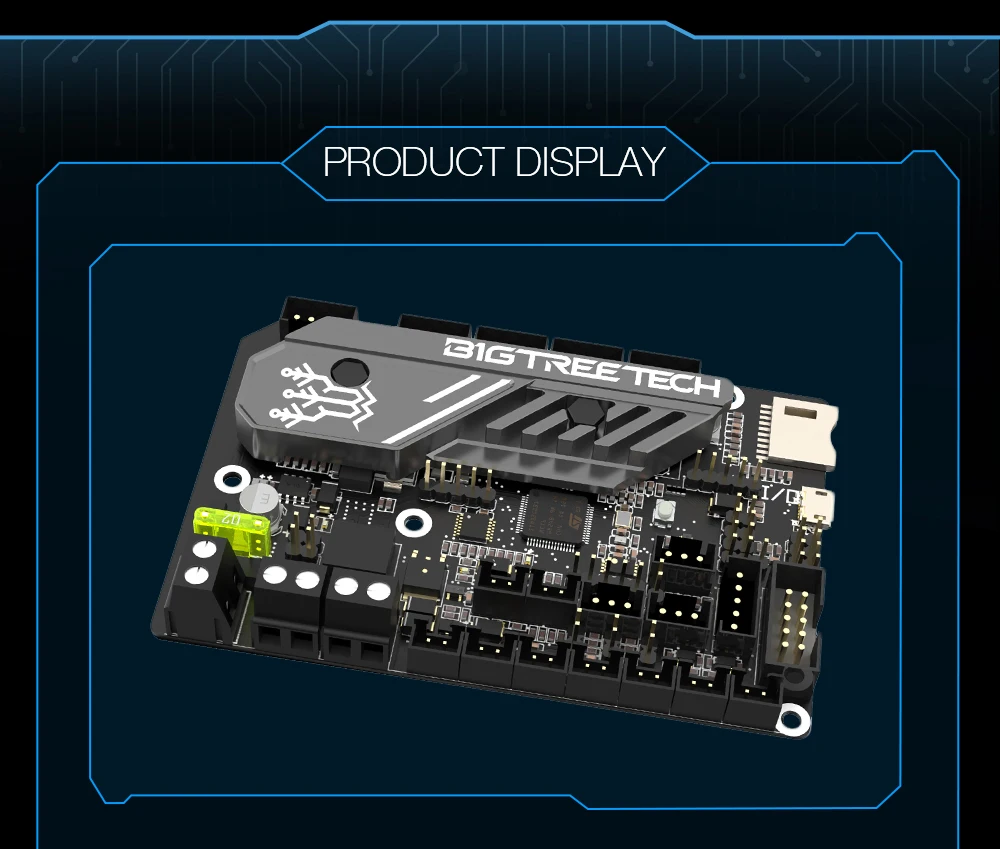

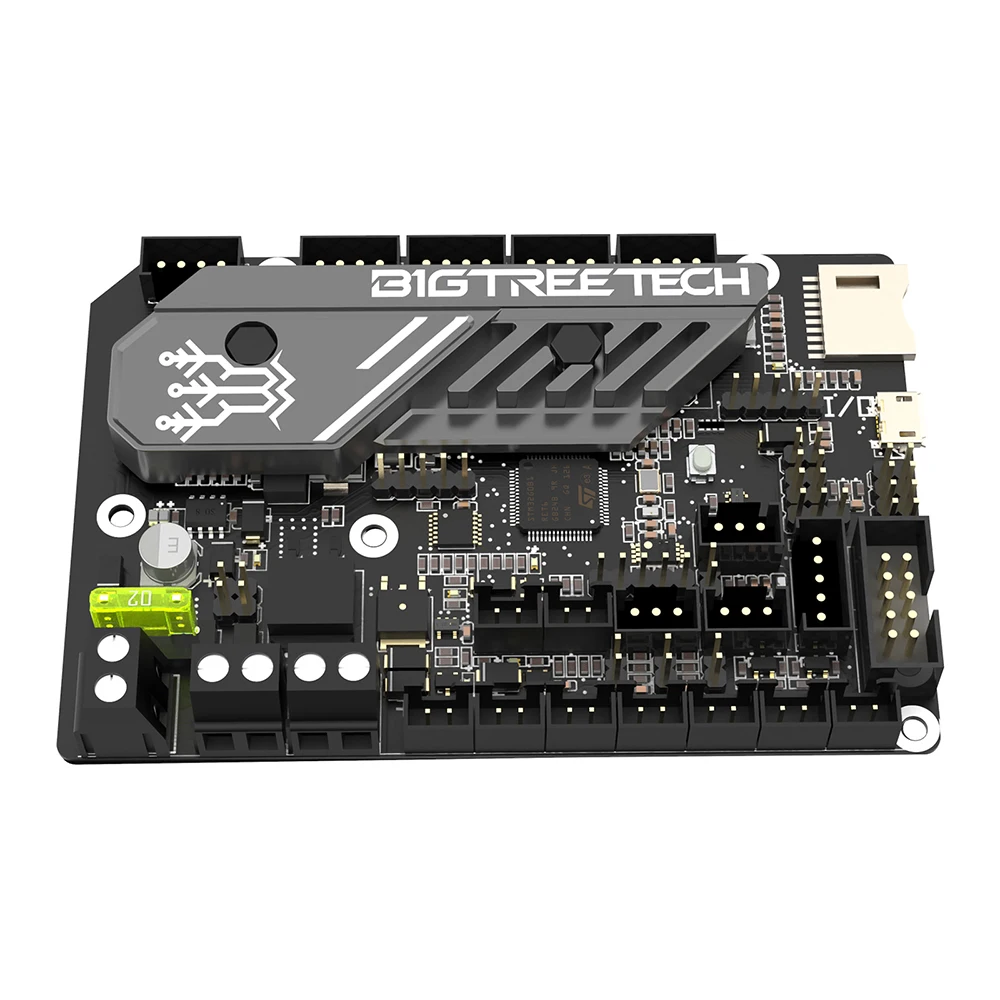

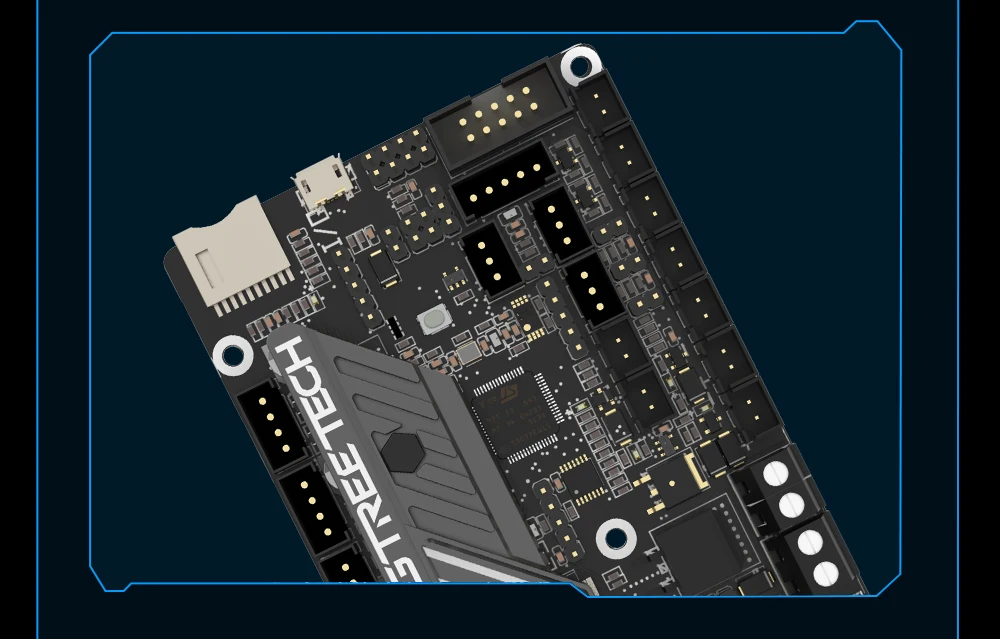

SKR MINI E3 V3.0 is a motherboard specifically designed for Ender 3 printers, serving as a perfect replacement for the original Ender 3 printer motherboards.

• Increase SPI output port +3.3V power supply, external SPI sensor power supply voltage +3.3V and +5V optional.
• PC communication USB interface is changed from Mini USB to Micro USB B, which is more adaptable.
• Increase the power supply of the SPI output port, supporting the motherboard to directly supply power to the peripherals.
• Onboard TMC2209 mute driver UART mode, supporting silent printing.
• Increase the thermistor interface protection circuit to prevent burning of the main control chip.

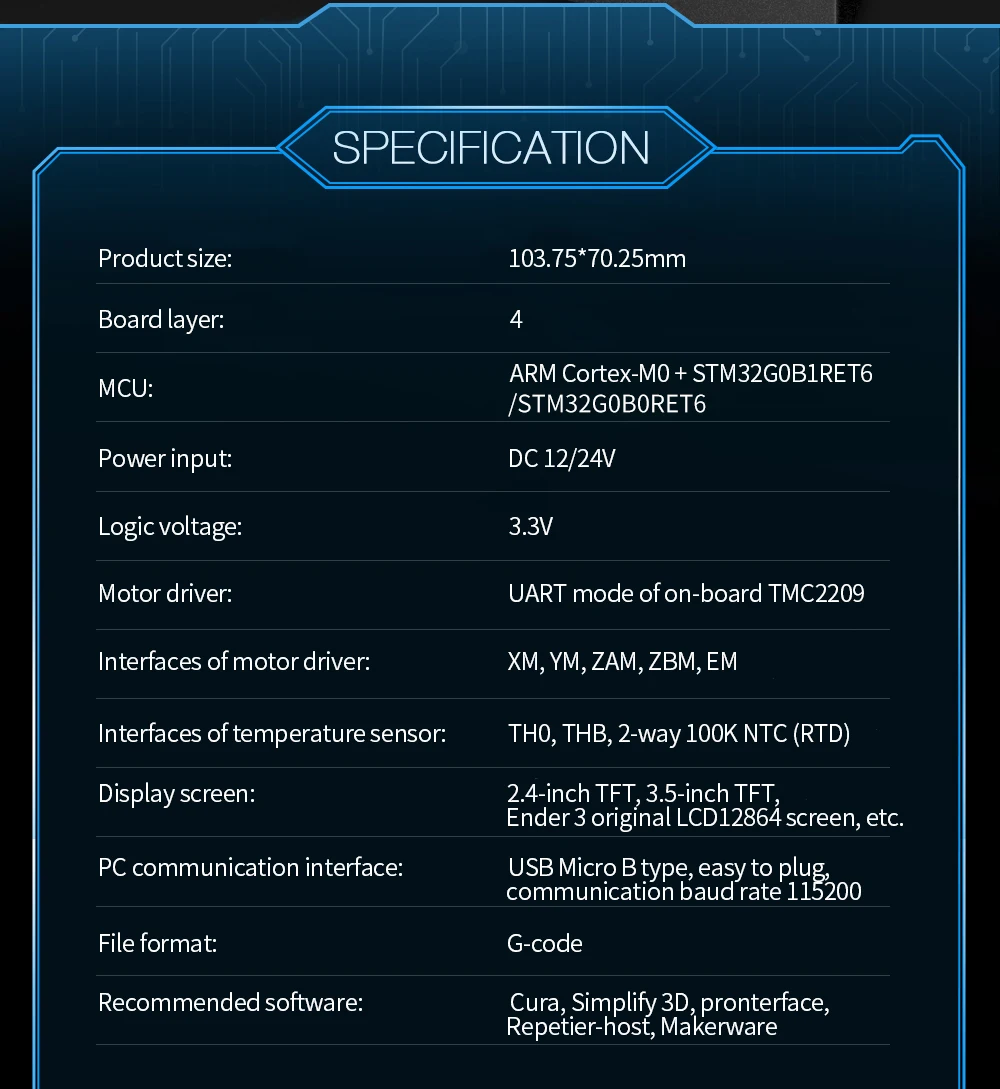

Specification

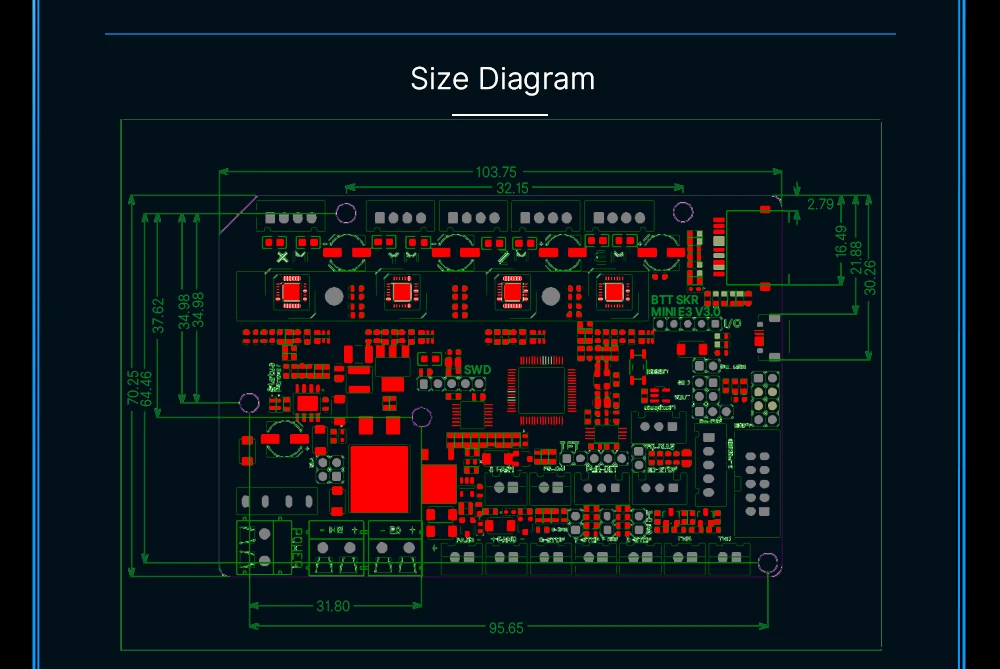

Product Size: 103.75*70.25mm

Board Layer: 4

MCU: ARM Cortex-MO+STM32G0B1RET6/STM32G0B0RET6

Power Input: DC12/24V

Logic Voltage: 3.3V

Motor Driver: UART mode of on-board TMC2209

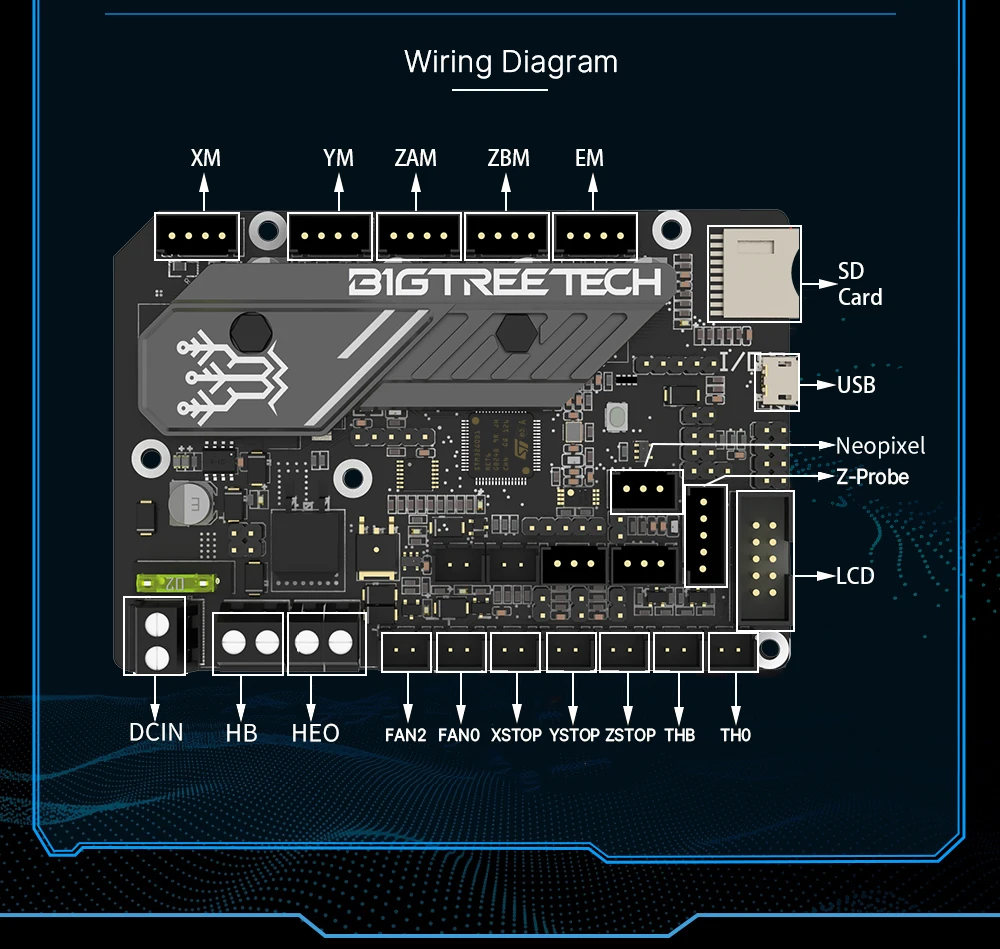

Interfaces Of Motor Driver: XM, YM, ZAM, ZBM, EM

Interfaces Of Temperature Sensor: TH0, THB, 2-way 100K NTC(RTD)

Display Screen: 2.4-inch TFT, 3.5-inch TFT, Ender3 original LCD12864 screen, etc.

PC Communication Interface: USB Micro B type, easy to plug, communication baud rate 115200

File Format: G-code

Recommended Software: Cura, Simplify 3D, Pronterface, Repetier-host, Makerware

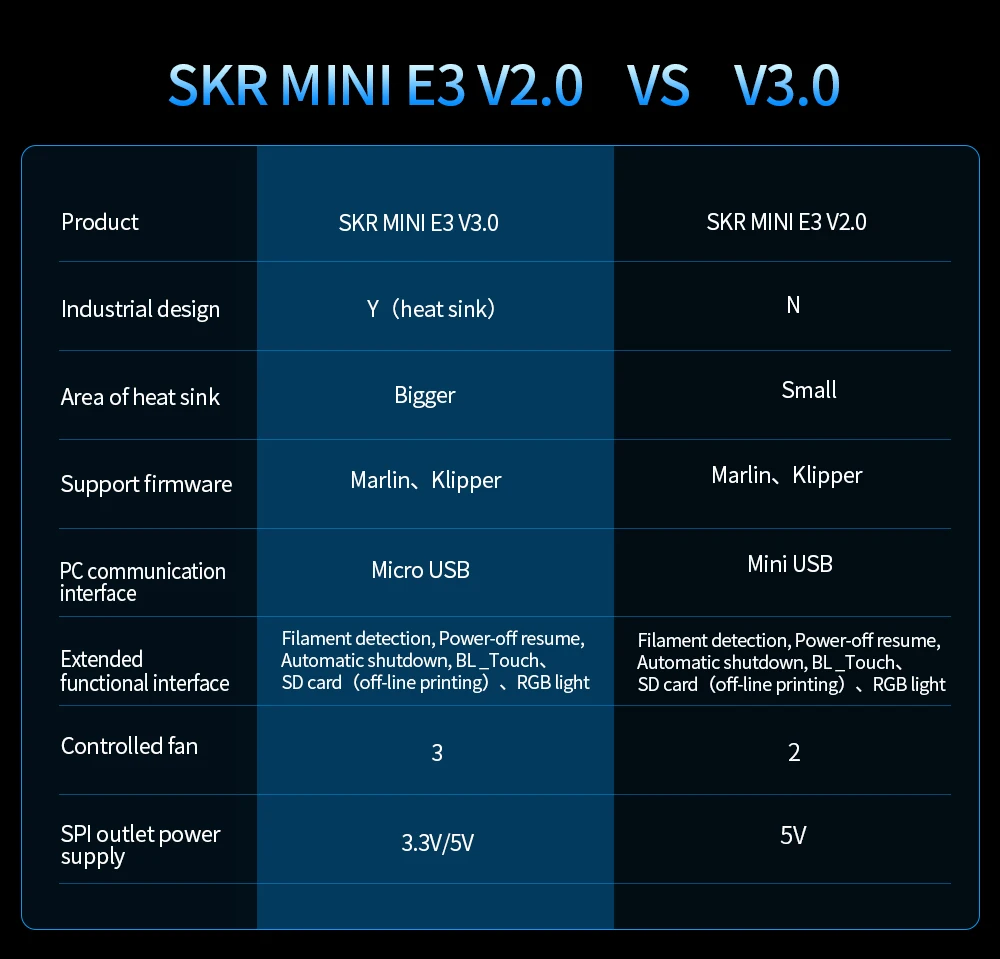

Industrial Design: Y(heat sink)

Area of Heat Sink: Bigger

Supported Firmware: Marlin, Klipper

PC Communication Interface: Micro USB

Extended Functional Interface: Filament detection, Power-off resume, Automatic shutdown, BL_Touch, SDcard (offline printing), RGB light

Controlled Fan: 3

SPI Outlet Power Supply: 3.3V/5V

Onboard EEPROM: 24C32

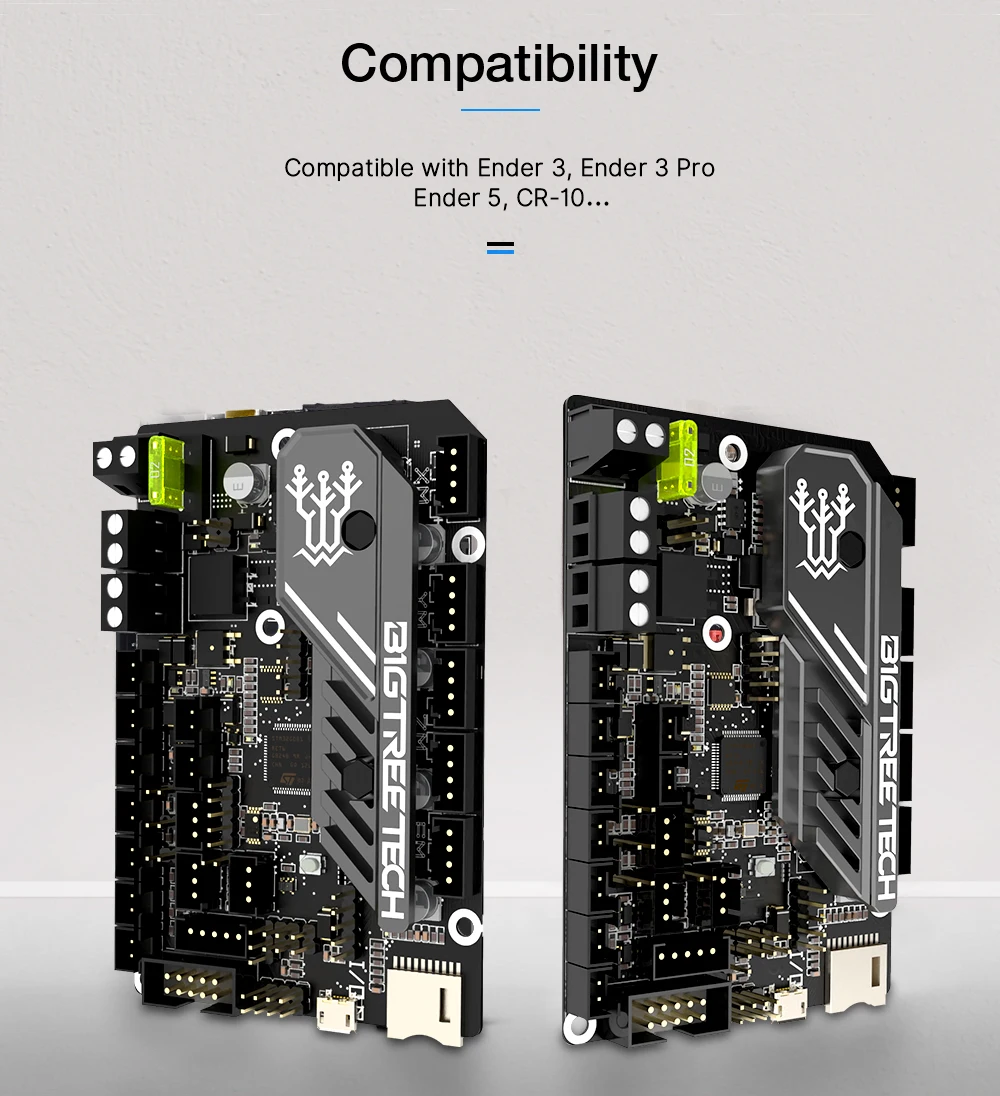

Compatibility: Ender 3, Ender 3 Pro, Ender 5, CR 10

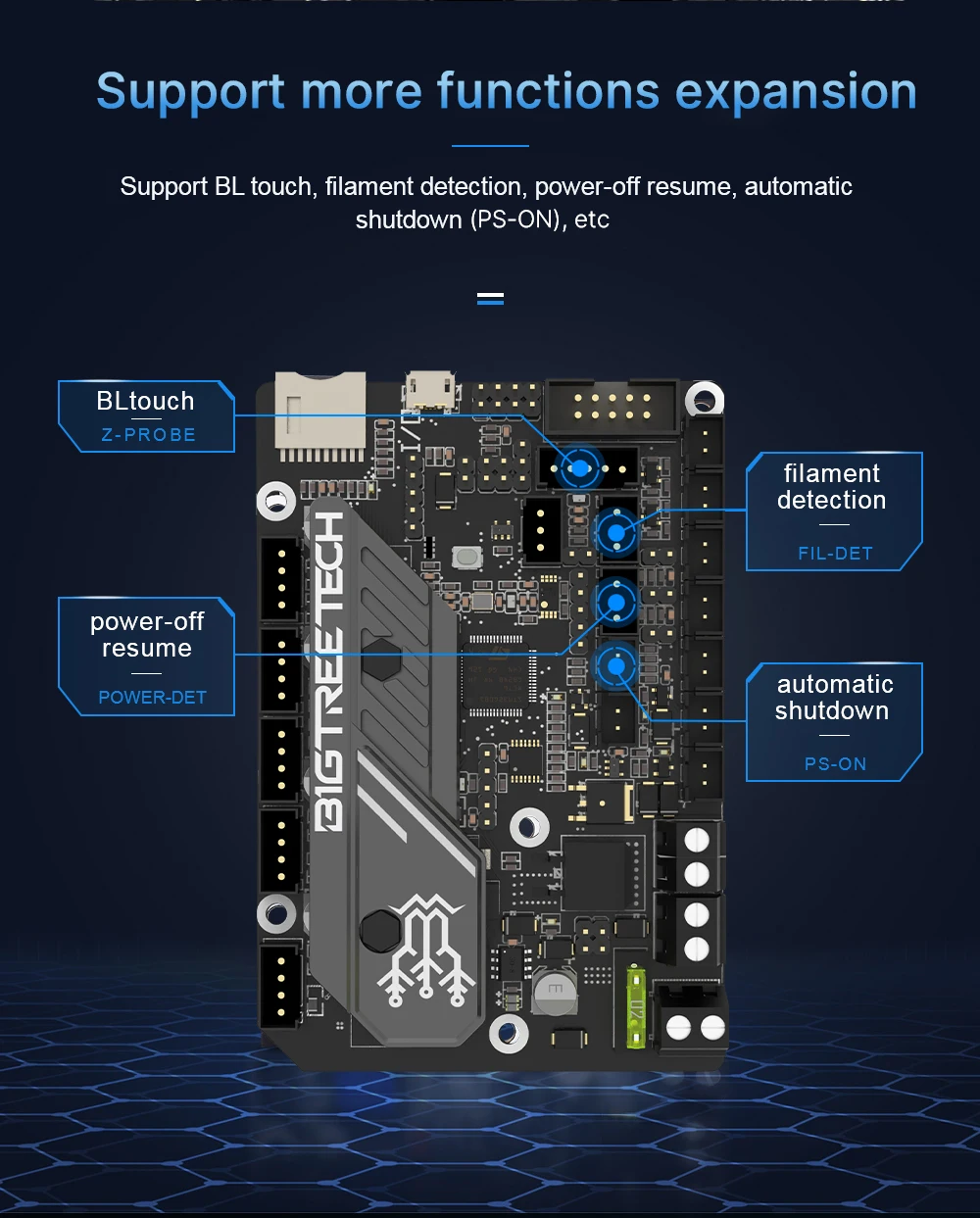

Support More Functions Expansion: Supports BL touch, filament detection, power-off resume, automatic shutdown (PS-ON), etc.

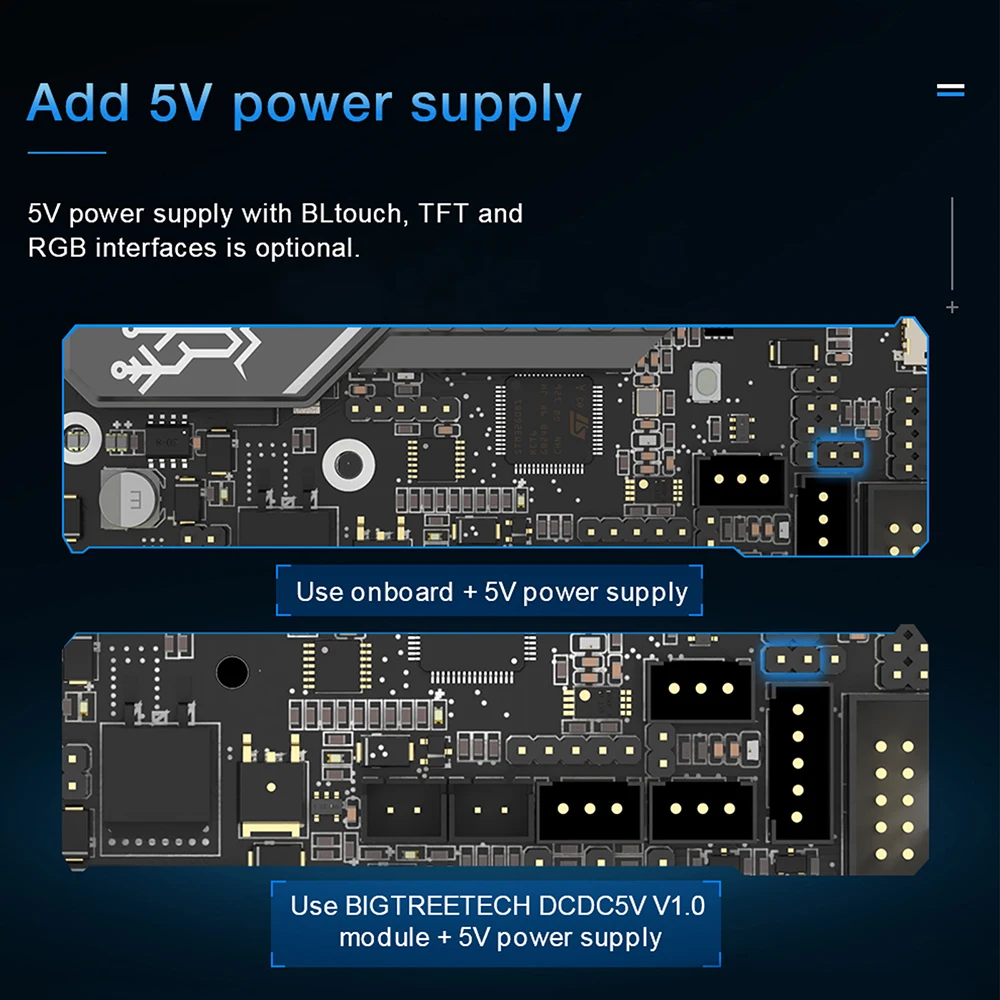

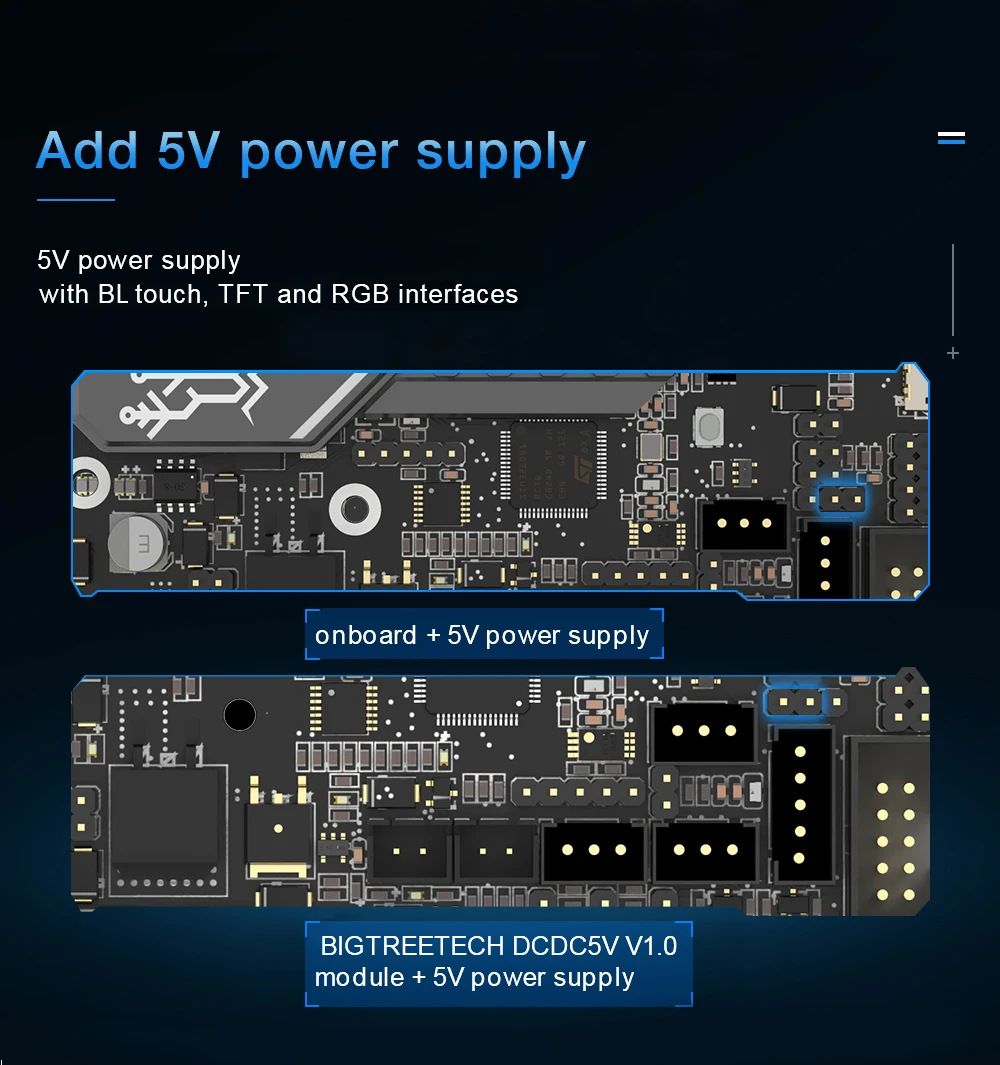

Add a 5V power supply: 5V power supply with BL touch, TFT, and RGB interfaces

Onboard: 5V power supply

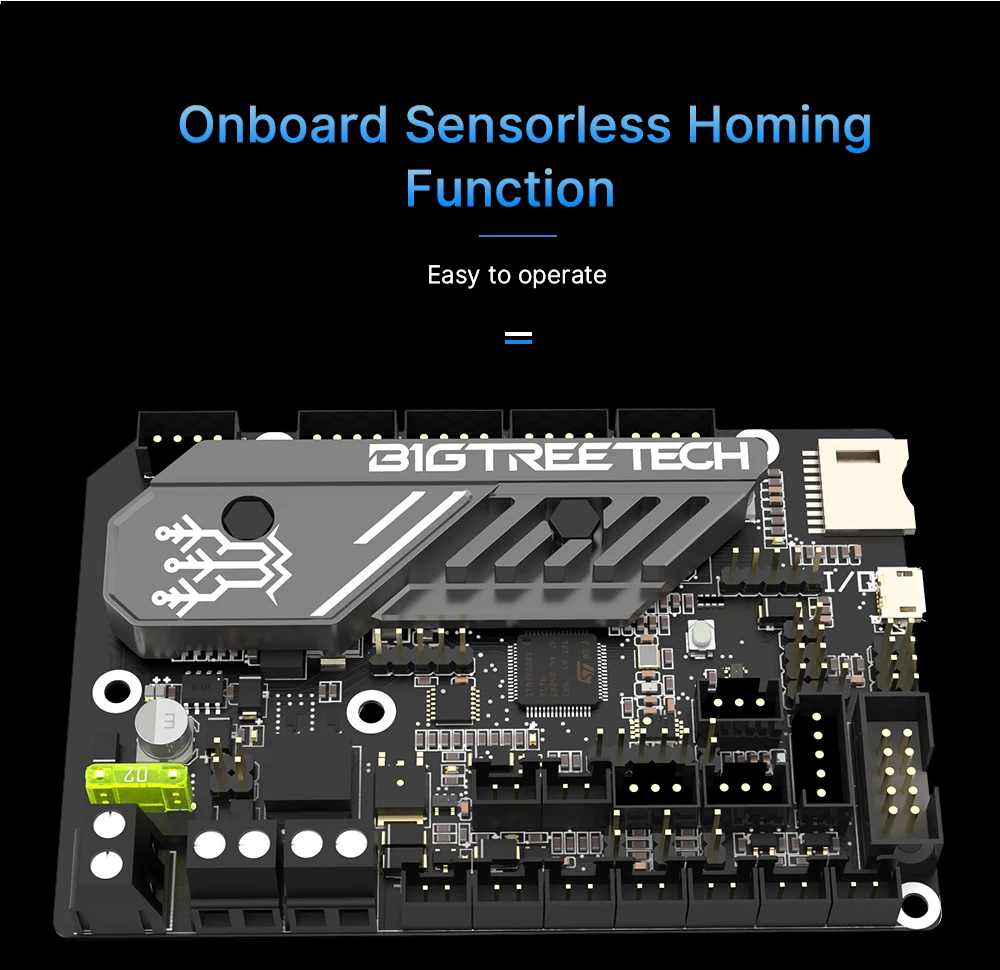

Onboard Sensorless Homing Function: Easy to operate

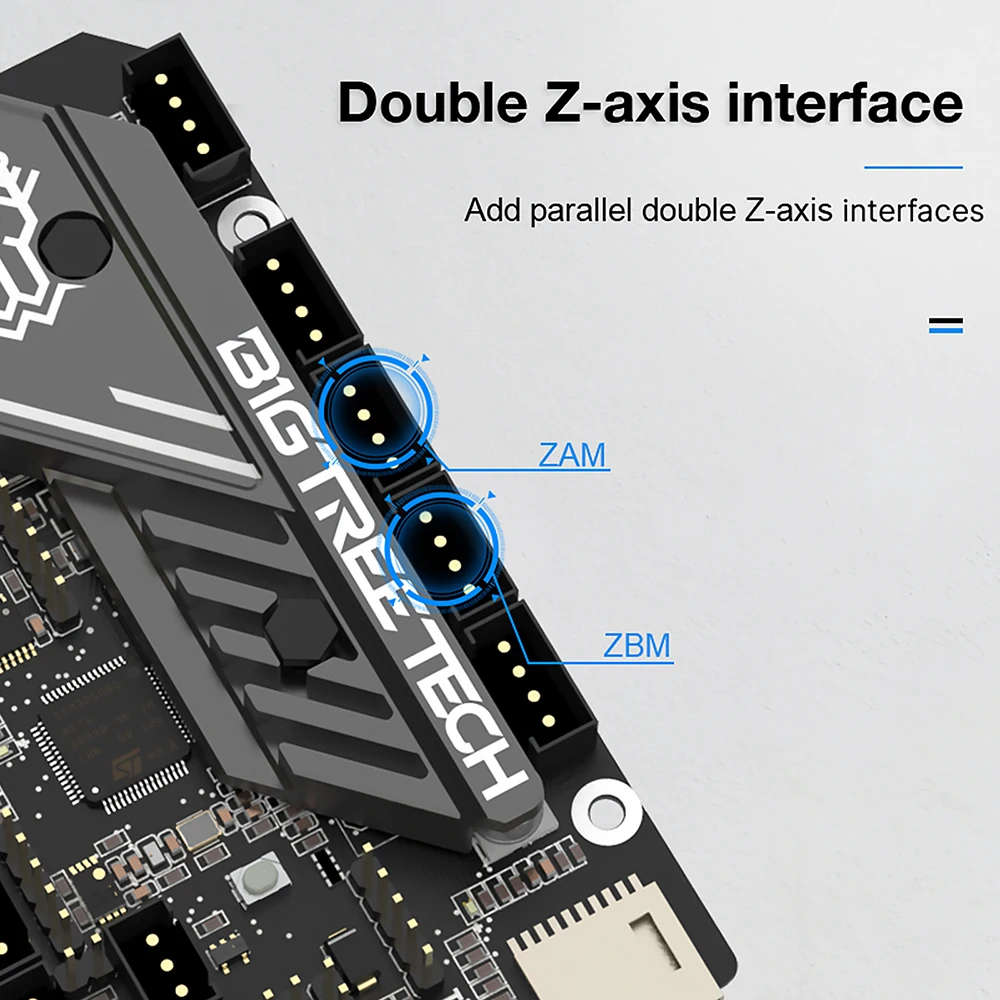

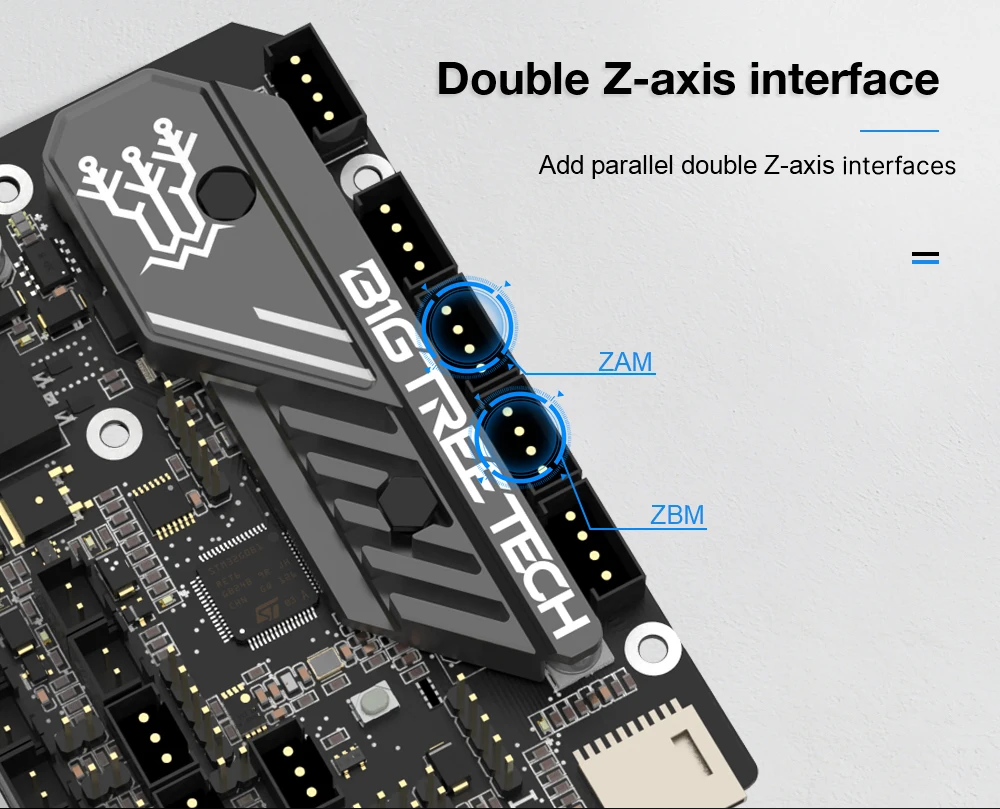

• Double Z-axis interface: Added parallel double Z-axis interfaces

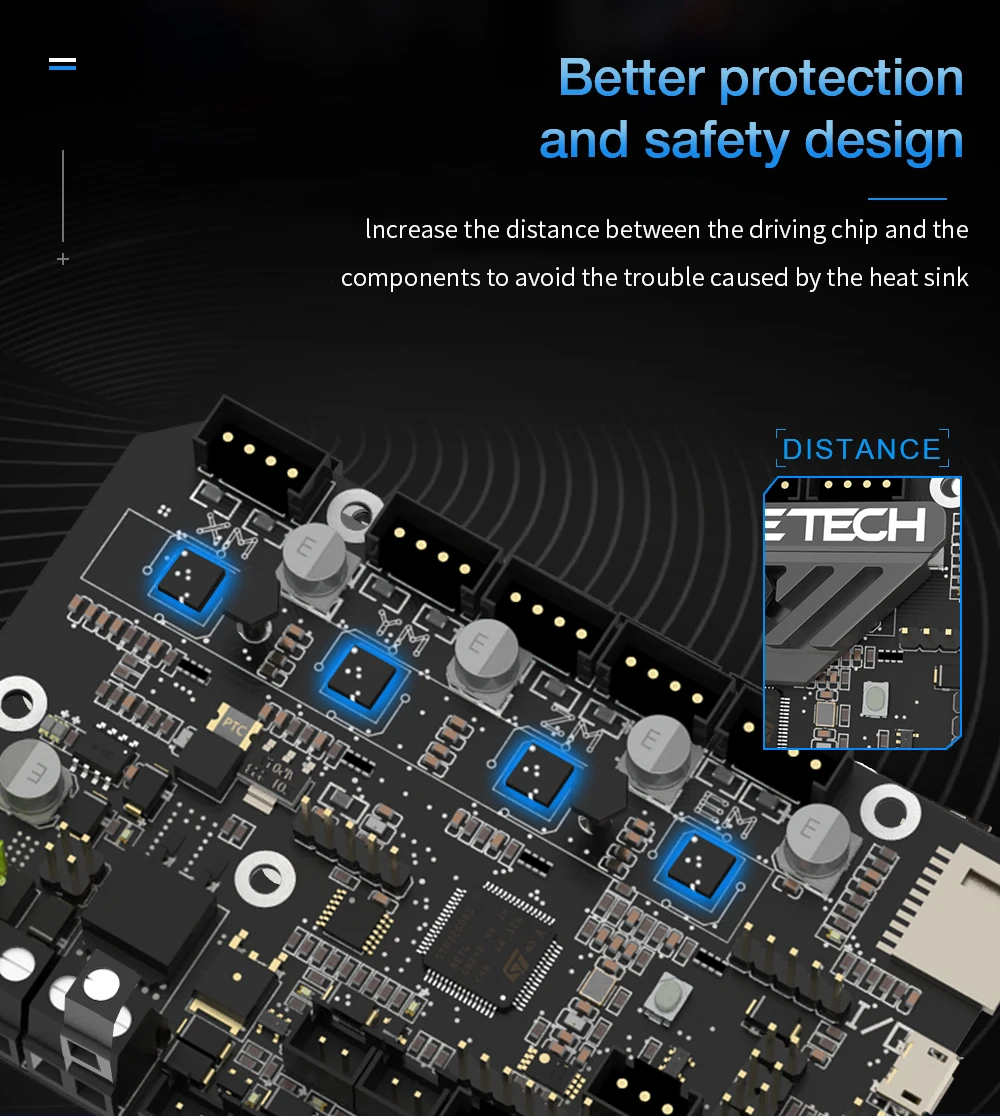

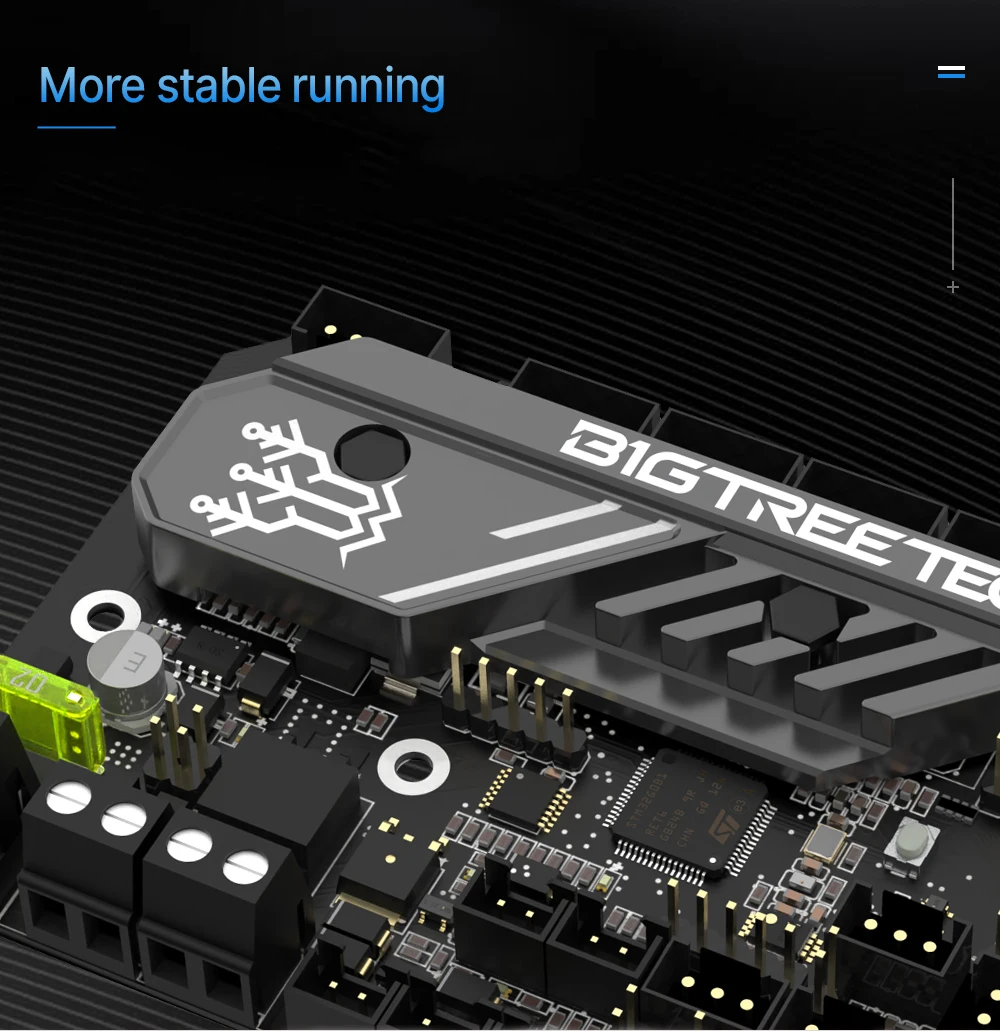

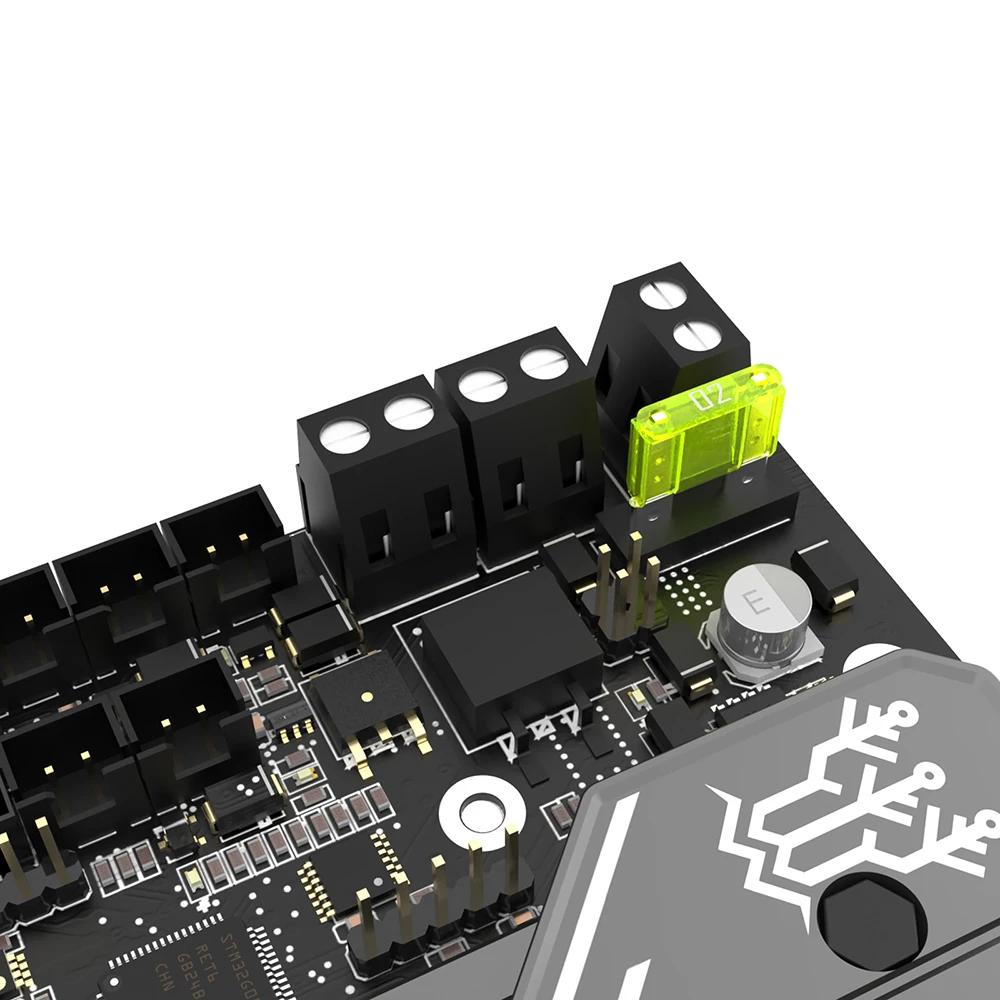

• Better protection and safety design: Increased distance between the driving chip and components to avoid issues caused by heat sink interference.

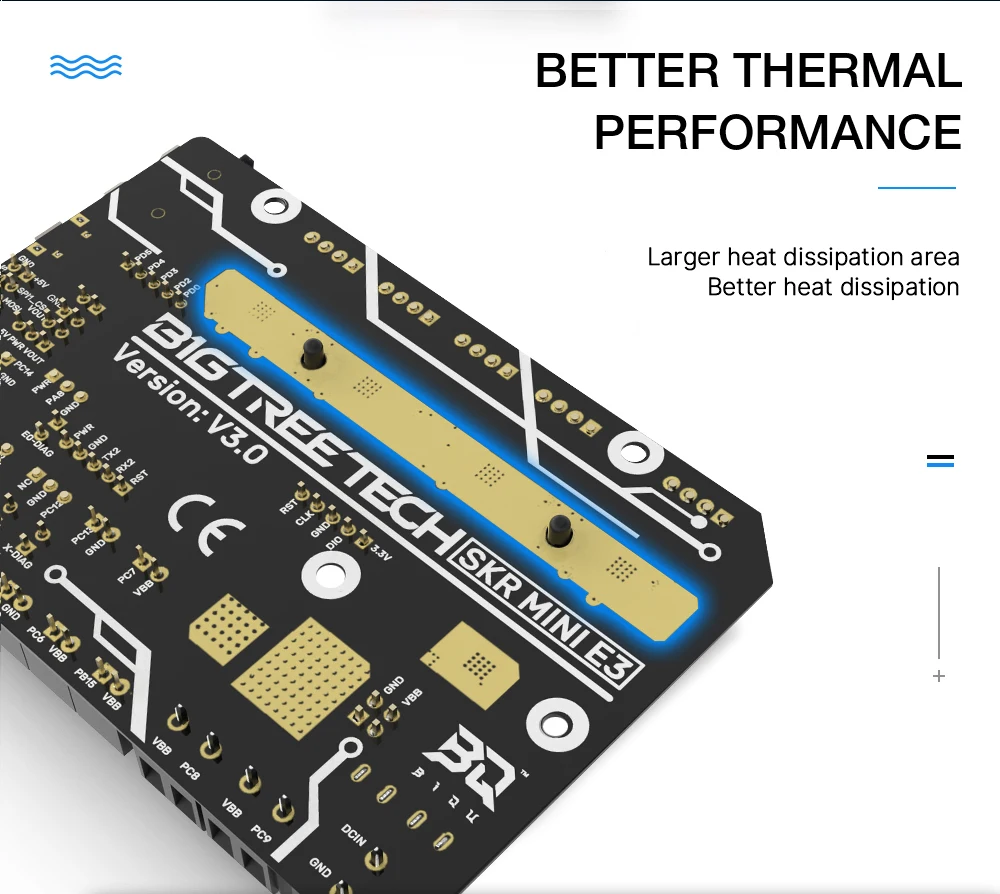

• Better Thermal Performance: Larger heat dissipation area for improved heat dissipation.

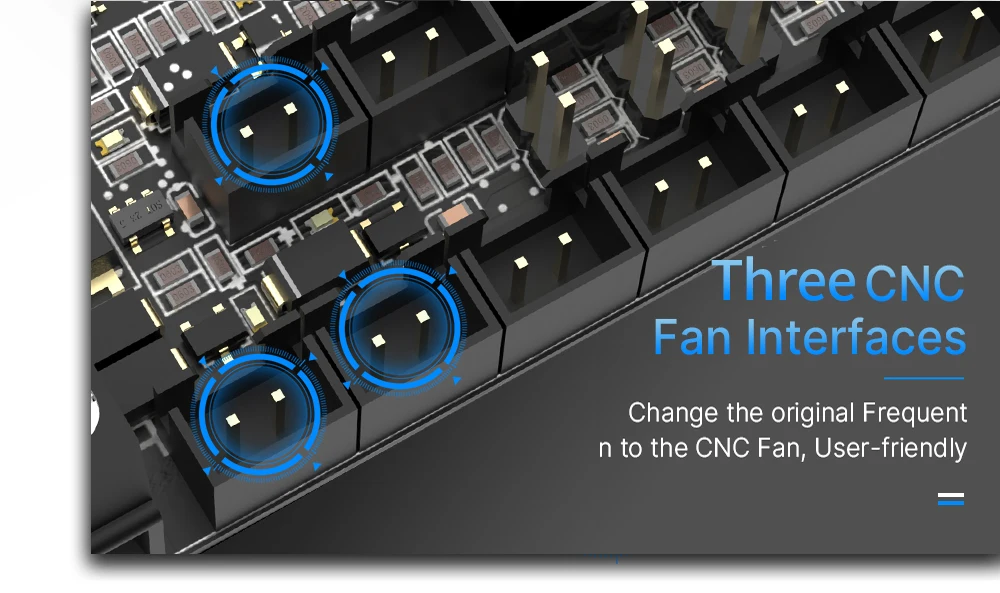

• Three CNC Fan Interfaces: Changed from the original Frequent n to CNC Fan, user-friendly.

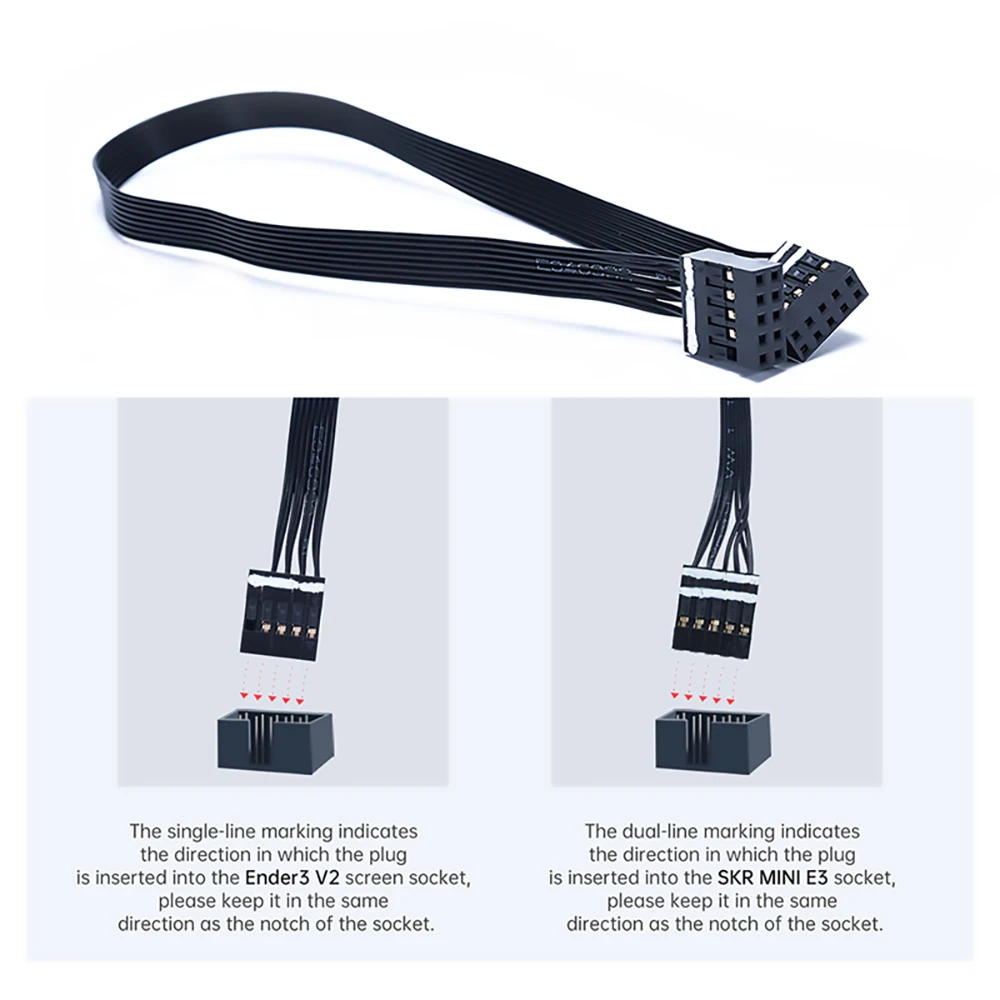

SKR MINI E3 V3.0 With cable (length 500mm): Choose the option with cable to use directly with the original screen of Ender 3 V2.

NOTE

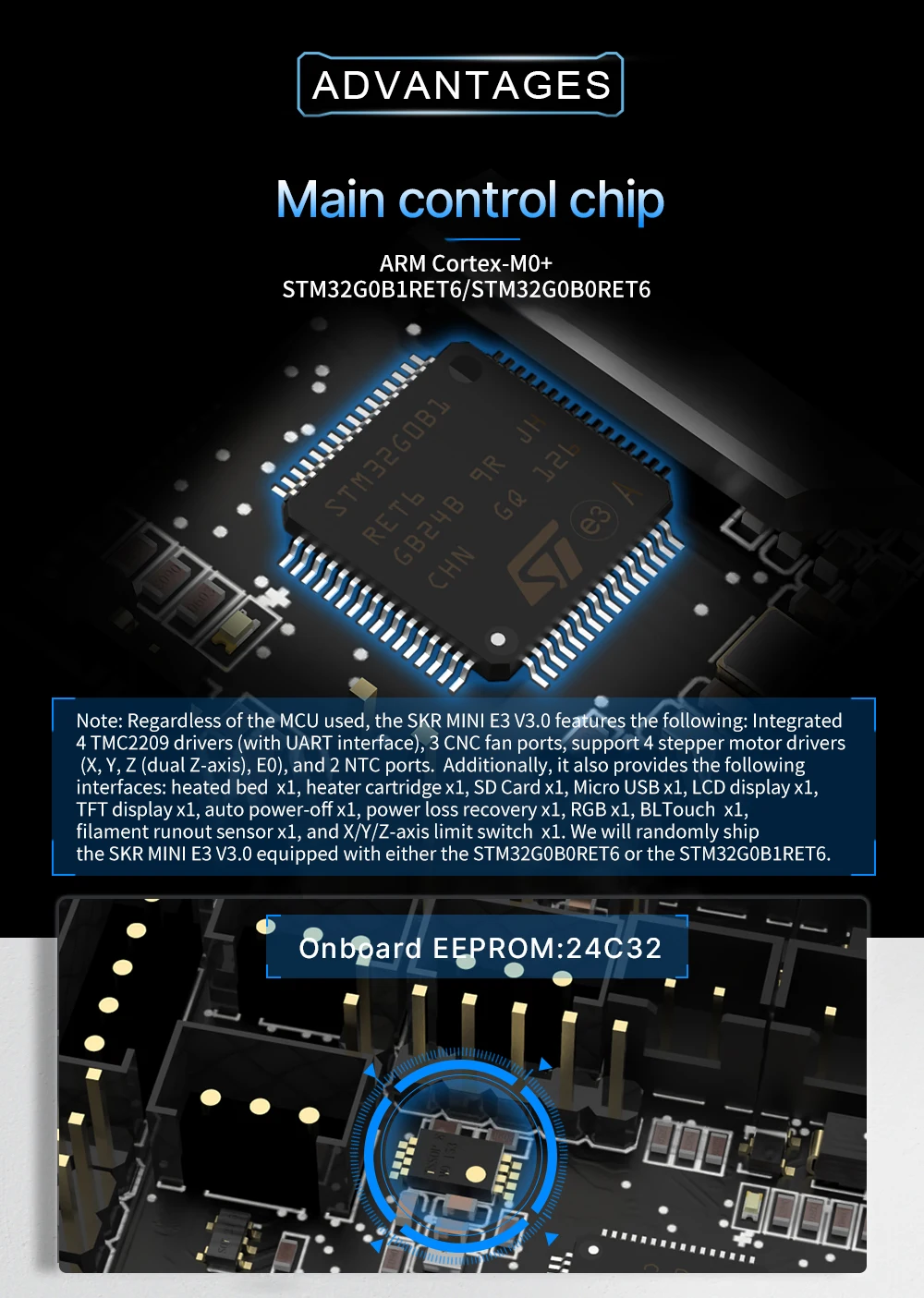

Regardless of the MCU used, the SKR MINI E3 V3.0 features the following: Integrated 4 TMC2209 drivers (with UART interface), 3 CNC fan ports, support 4 stepper motor drivers (X, Y, Z (dual Z-axis), EO), and 2 NTC ports. Additionally, it also provides the following interfaces: heated bed x1, heater cartridge x1, SD Card x1, Micro USB x1, LCD x1, TFT display x1, auto power-off x1, power loss recovery x1, RGB x1, BLTouch x1, filament runout sensor x1, and X/Y/Z-axis limit switch x1. We will randomly ship the SKR MINI E3 V3.0 equipped with either the STM32G0B0RET6 or the STM32G0B1RET6.

The SD card/TF card in the picture on the detail page is only shown as a usage scenario, and the SD card/TF card is not included in the package.
