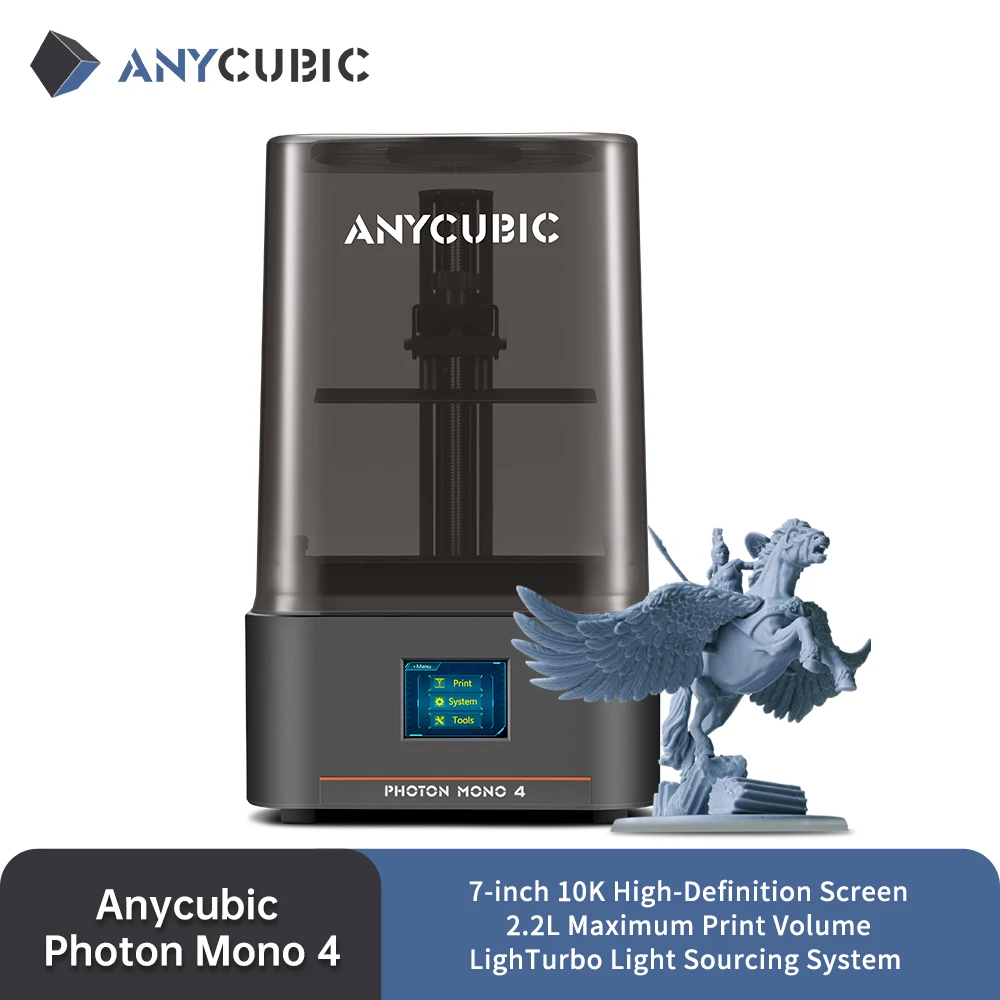

ANYCUBIC Photon Mono 4 Resin 3D Printer
Features:
- 10K Resolution at Entry-Level
- LighTurbo Light Sourcing System
- More Cohesive Platform 2.0+
- Exquisite, on Each Level & Every Pixel, No Grid Lines, No Uneven Curing
- Print Speed 50mm/h with 0.1mm Layer with High Standard Resin; Print Speed 70mm/h with 0.1mm Layer with High-Speed Resin
Specifications:
XY Resolution: 17*17µm
Build Platform: Laser printing platform
Exposure Screen: 7″ High-Definition Screen
LCD Resolution: 10K (9024*5120px)
Light Source: Parallel matrix upgrade Light Source
Control Panel: 2.8” TFT touch-control
Data Input: USB Type
Machine Leveling: 4-point manual leveling
Printing Speed: ≤ 50mm/hr. 1.97in/hr
Printing Dimensions: 153 x 87 x 165 mm / 6.0 x 3.43 x 6.5 inches (LWH)
Machine Size: 230 x 235 x 391 mm / 9.1 x 9.3 x 15.4 inches (LWH)
Machine Weight: 4kg / 8.8lb
Maximum print volume: 2.2L

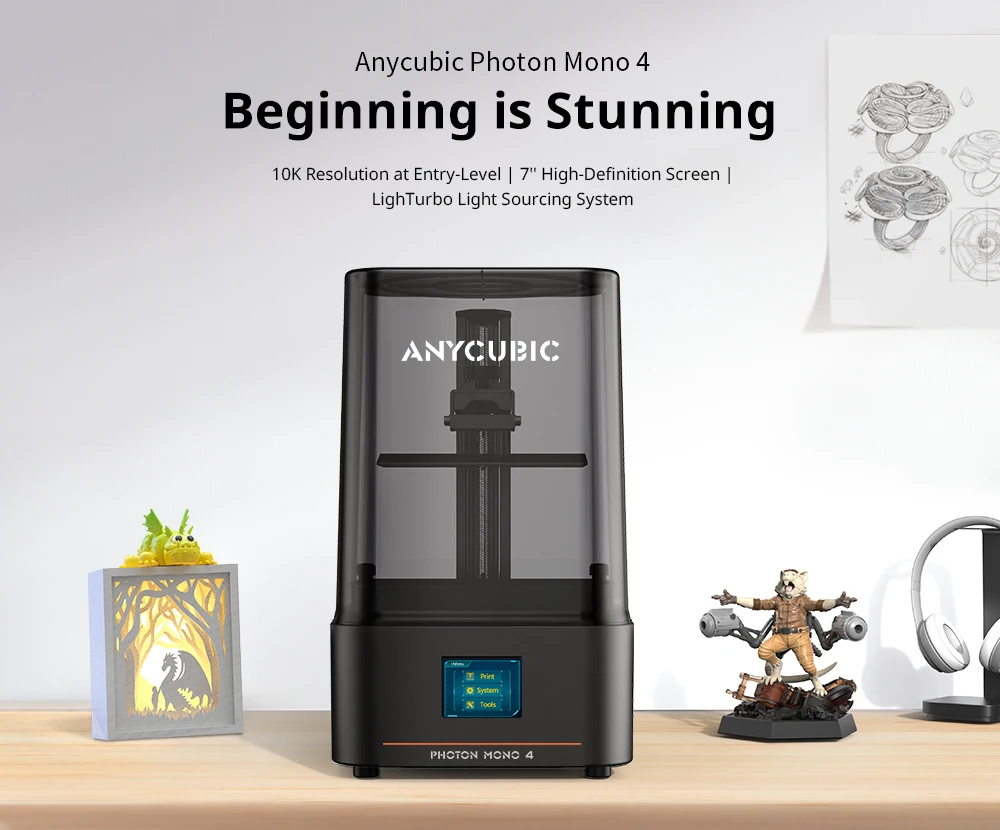

Beginning is Stunning
10K Resolution at Entry-Level | 7-inch High-Definition Screen | LighTurbo Light Sourcing System
Details Define Difference
The Mono 4 boasts an impressive 105% increase in print precision compared to its predecessor, improving from 35µm to just 17µm. With a resolution of 9024×5120, each pixel measures a mere 17×17µm on the X and Y axes. This enhanced capability allows for creating models with exceptional detail and dynamic richness.

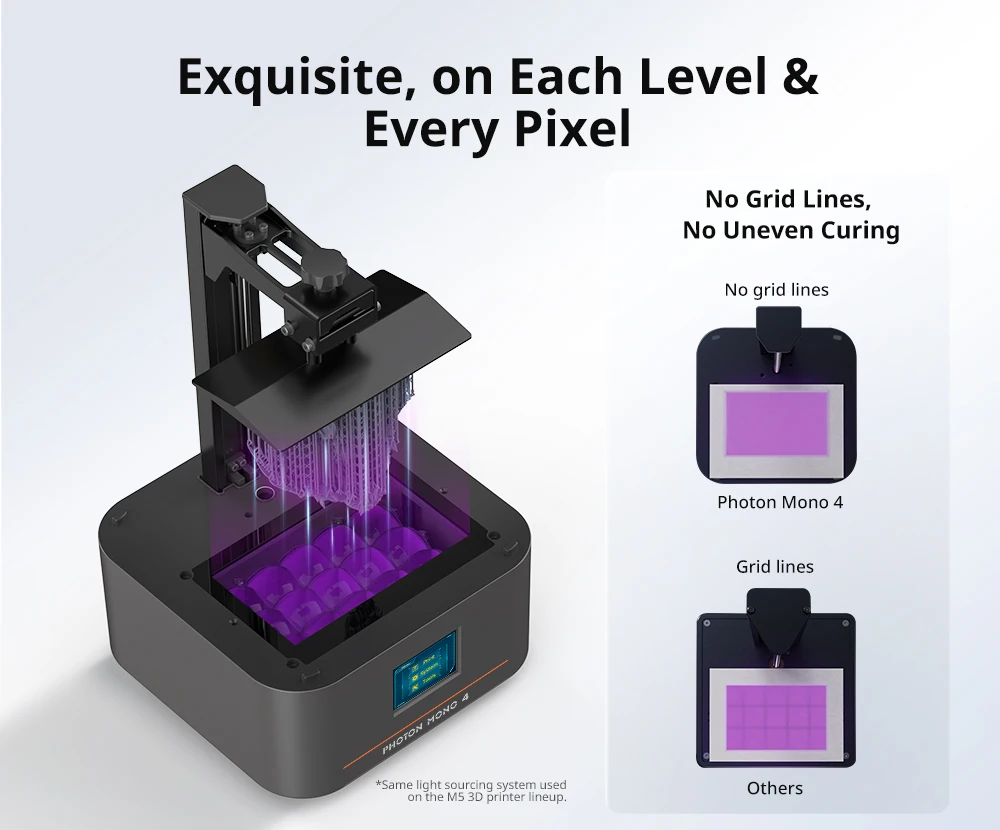

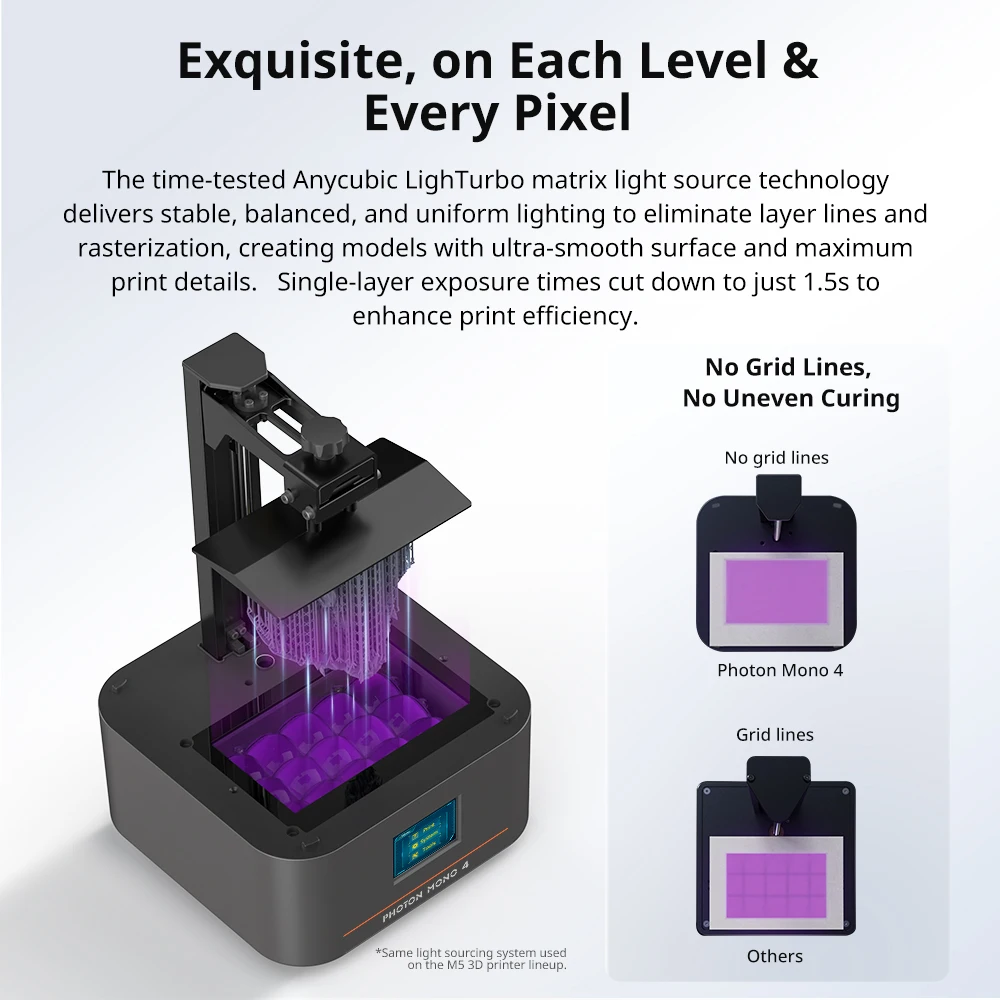

Exquisite, on Each Level & Every Pixel
The time-tested Anycubic LighTurbo matrix light source technology delivers stable, balanced, and uniform lighting to eliminate layer lines and rasterization, creating models with ultra-smooth surfaces and maximum print details. Single-layer exposure times cut down to just 1.5s to enhance print efficiency.

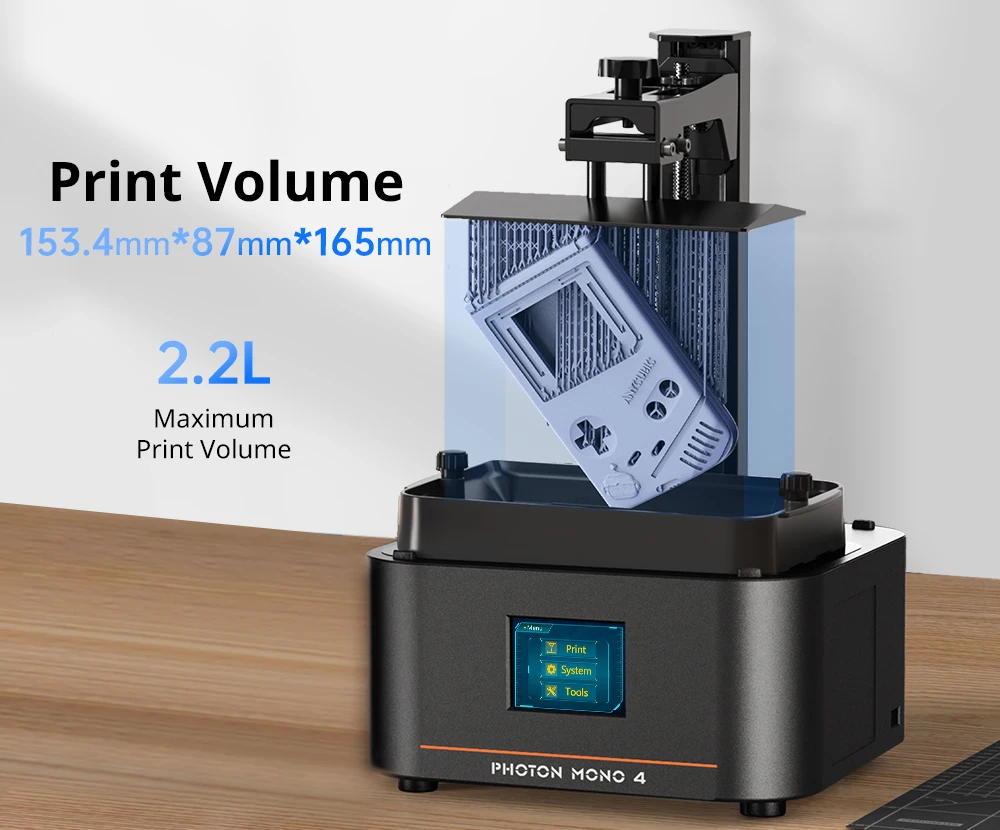

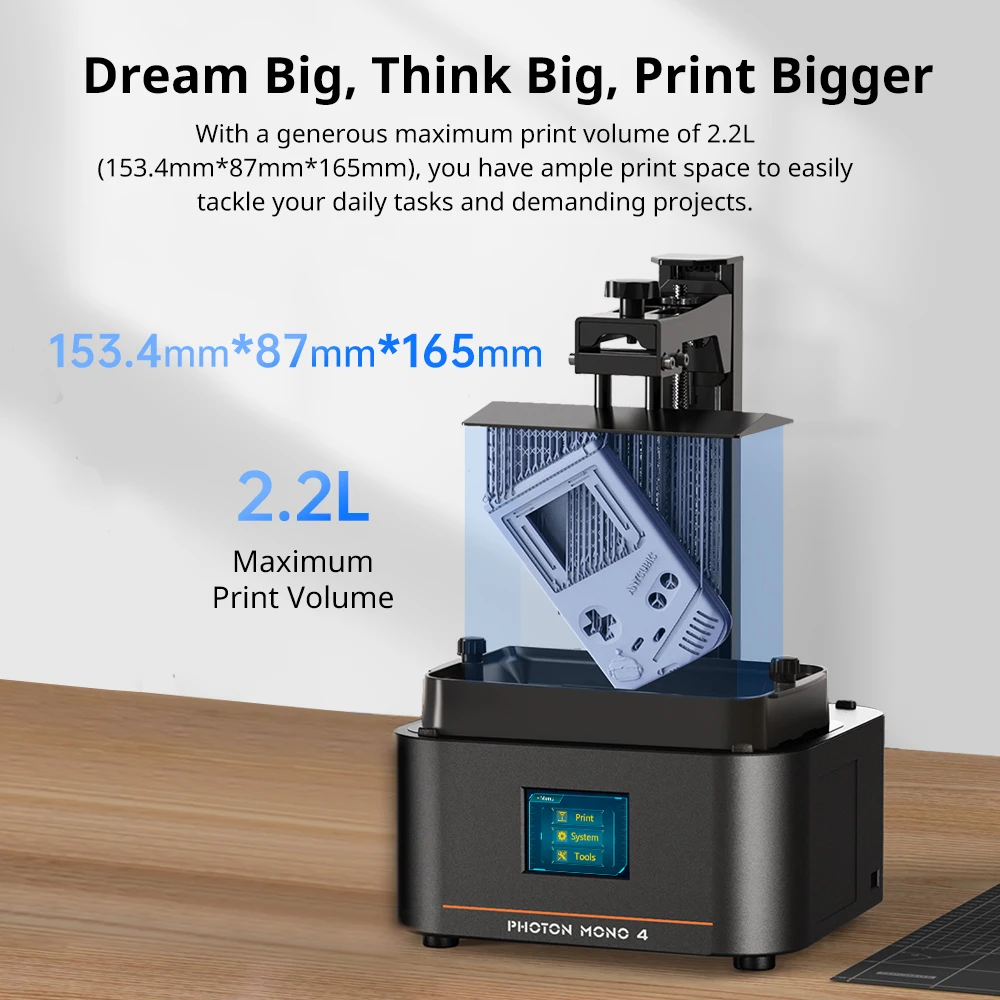

Dream Big, Think Big, Print Bigger
With a generous maximum print volume of 2.2L (153.4mm*87mm*165mm), you have ample print space to easily tackle your daily tasks and demanding projects.
Details about the printer

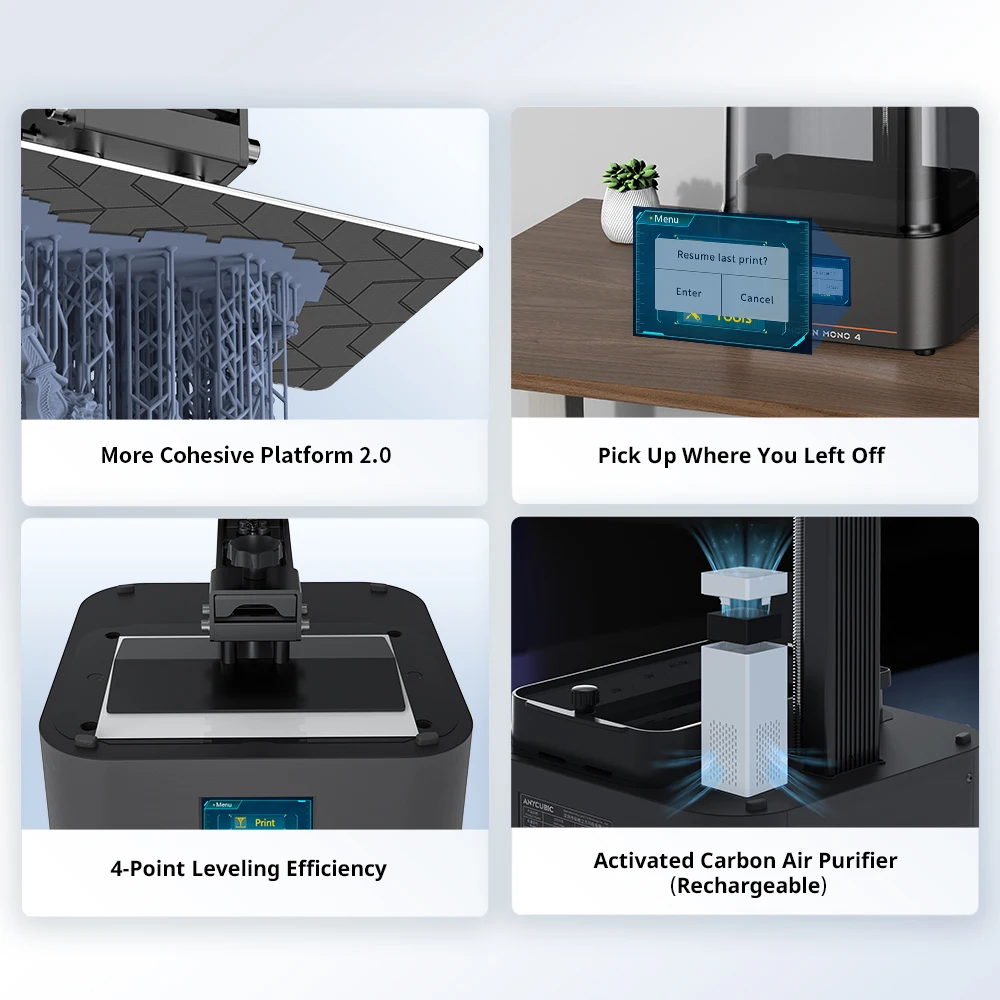

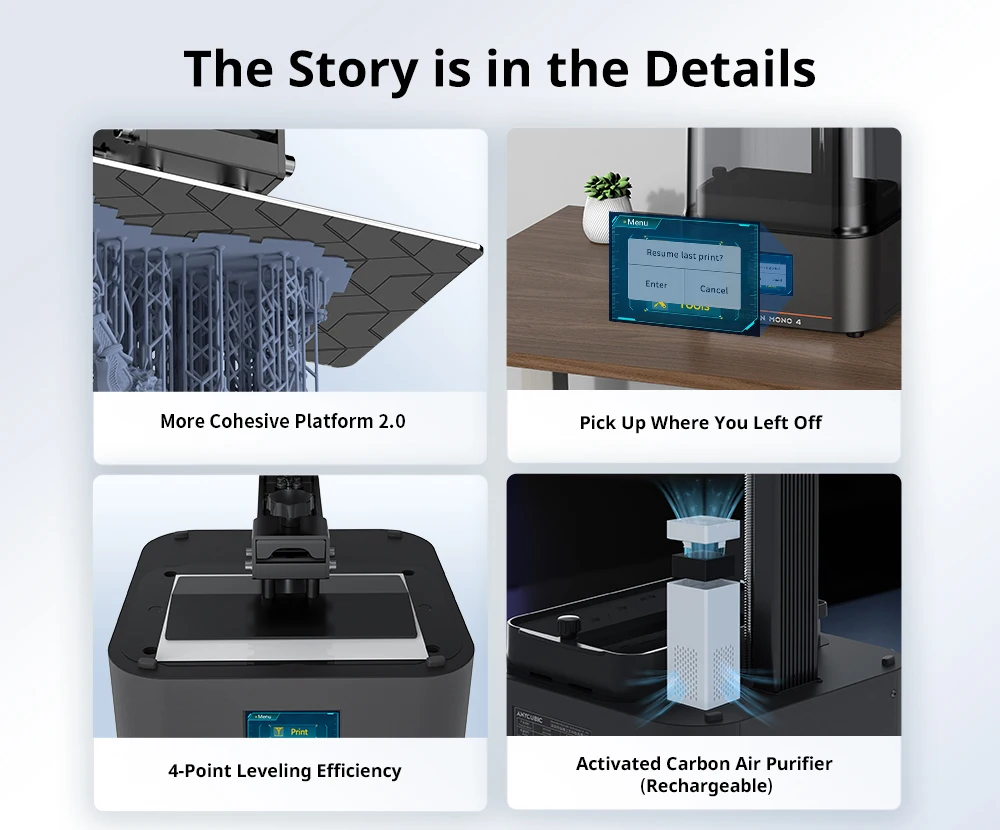

More Cohesive Platform 2.0 + 4-Point Leveling Efficiency + Pick Up Where You Left Off + Activated Carbon Air Purifier

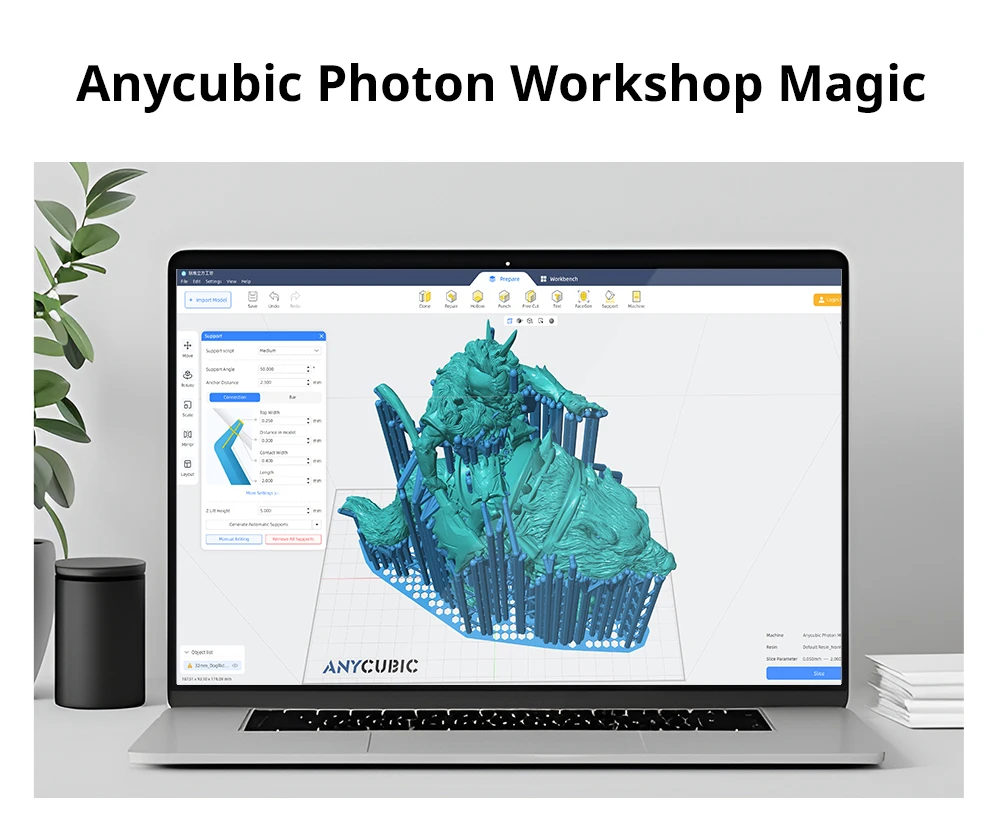

Anycubic Photon Workshop Magic
*Fully Automated Support Generation: Intelligent analysis and optimization of support structures ensure 100% penetration-free models with smaller touchpoints for easier removal post-printing.
*Customizable Support Optimization: Move and edit supports directly for personalized adjustments.
*Smooth Layer Transitions: Anti-aliasing reduces layer lines, making slopes and curves smoother.
Interactive 3D Printing Ecosystem
*Massive Model Resources: Anycubic’s self-operated model library website, Makeronline, provides excellent models from over 3000 designers worldwide.
*Monetizing Creative Value: Users can easily earn gift cards and points by sharing their work or participating in printing theme contests. Experience exchange: Engage with 3D printing enthusiasts worldwide.
*Instant Activation: If you have Anycubic Photon Workshop (vertical dimension slicer software) installed on your computer, simply download the model from Makeronline to one-click launch the slicing software and upload the generated slicing files to the printer through USB to complete printing.

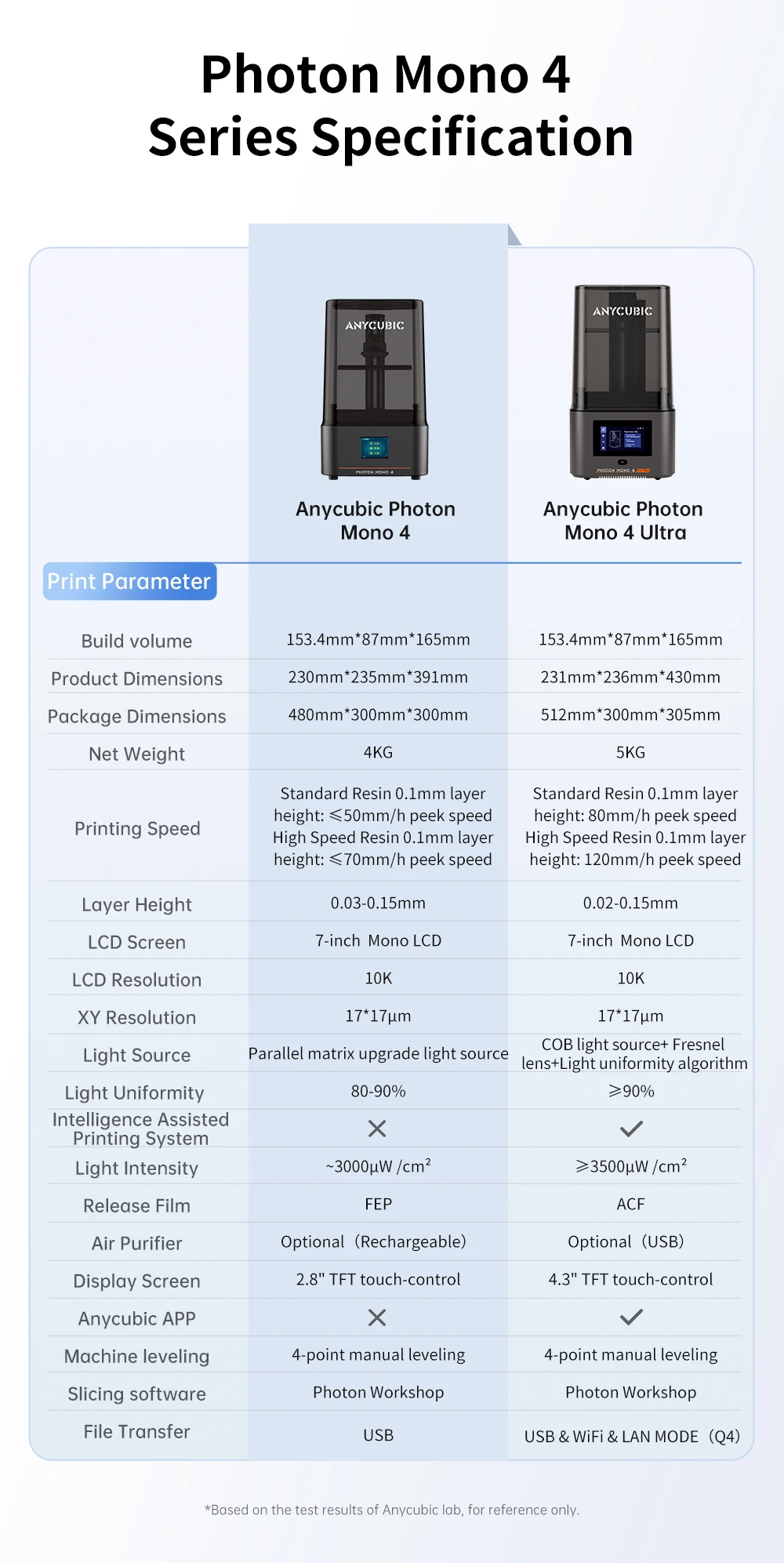

Photon Mono 4 Series Specification

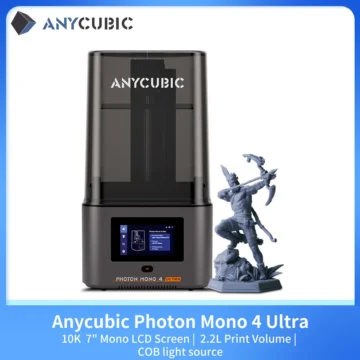

Anycubic Photon Mono 4 & Anycubic Photon Mono 4 Ultra
(*Based on the test results of Anycubic lab, for reference only.)

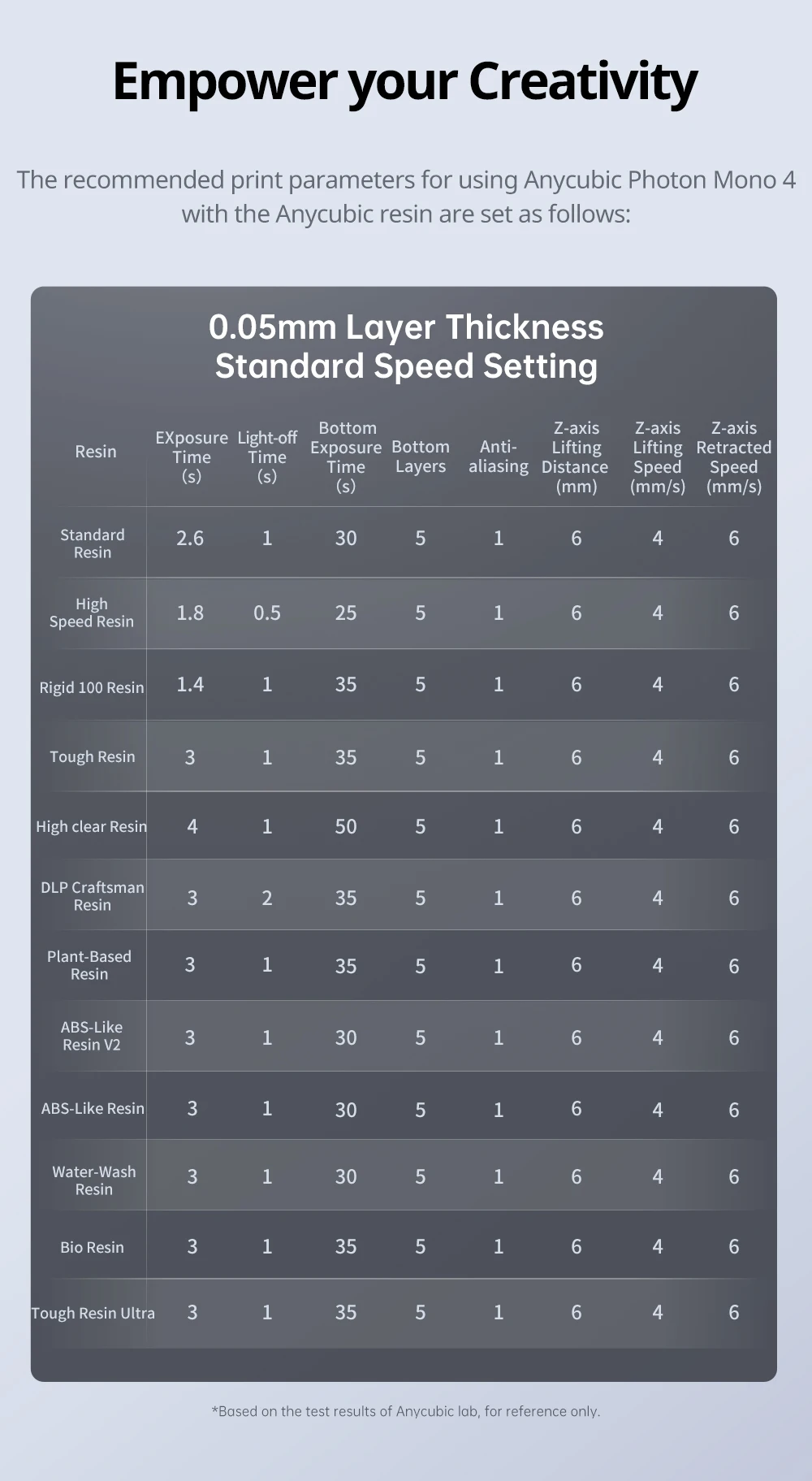

Empower your Creativity
The recommended print parameters for using Anycubic Photon Mono 4 with Anycubic resin are set as follows:
(*Based on the test results of Anycubic lab, for reference only.)

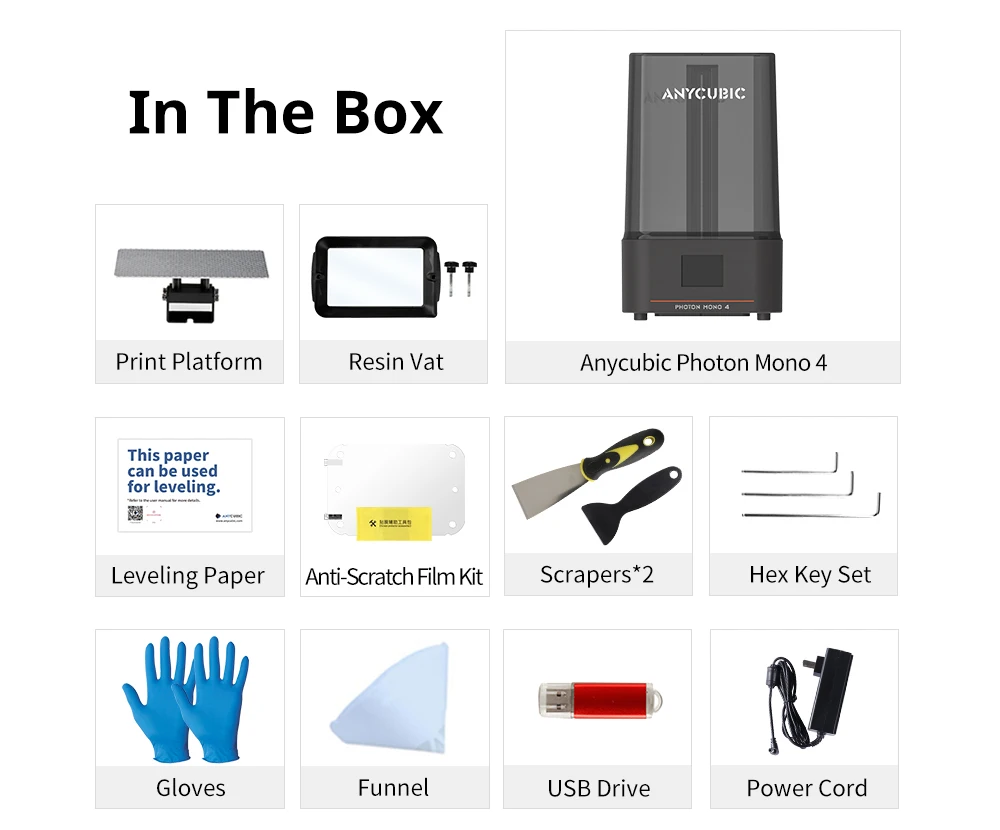

In the Box
FAQ:
Q1: What type of resin is used in conjunction with the machine?
A1: Standard Resin or High-Speed Resin.
Q2: What are the advantages of Mono 4 over Mono 2?
A2: The printing speed of Mono 4 is faster, the accuracy is higher, and the printing effect is better after the function upgrade.
Q3: What is the build volume?
A3: 153.4mm*87mm*165mm
