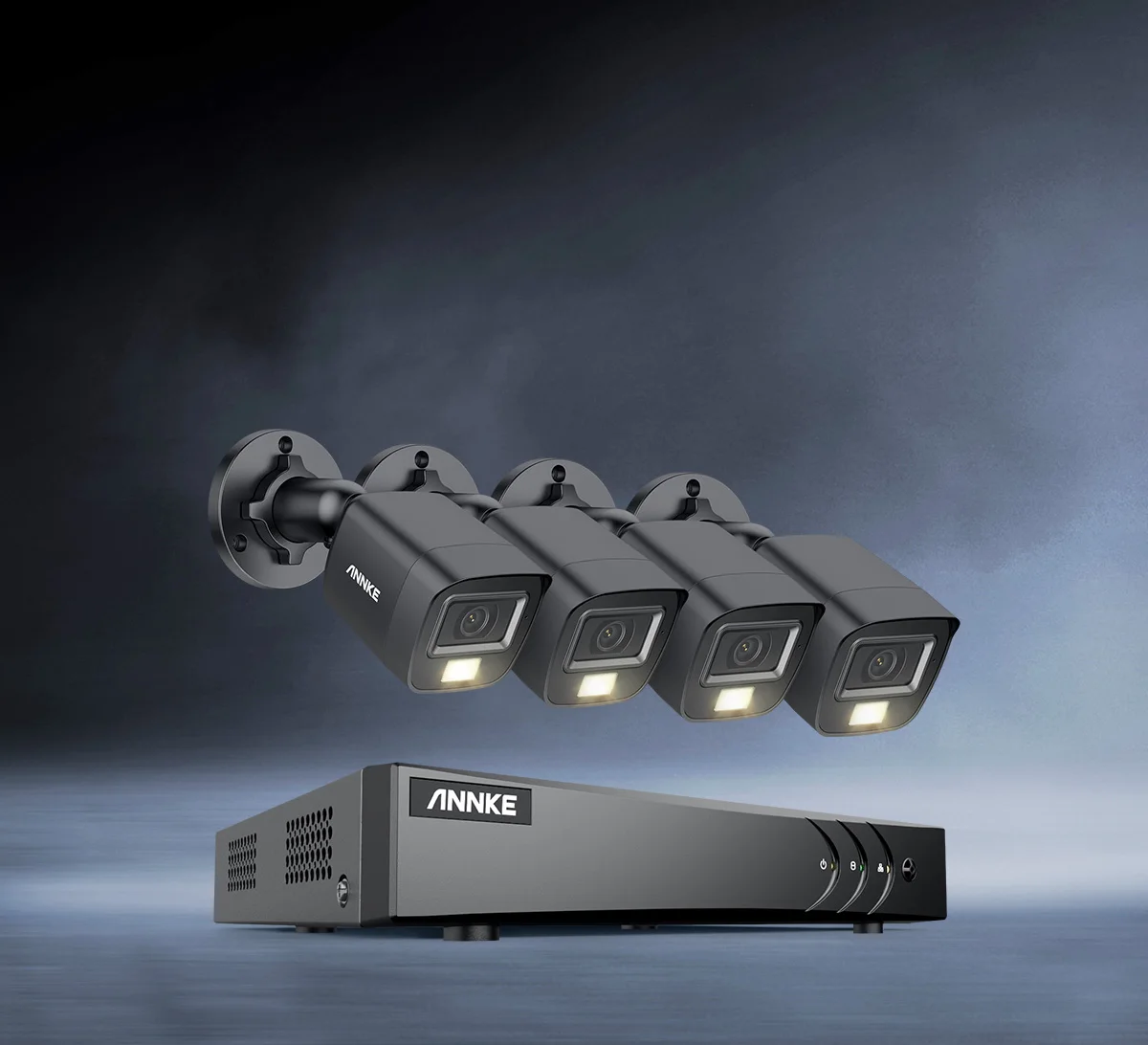

ANNKE 8CH 5MP Dual-Light DVR Security Camera Kit 3K PIR

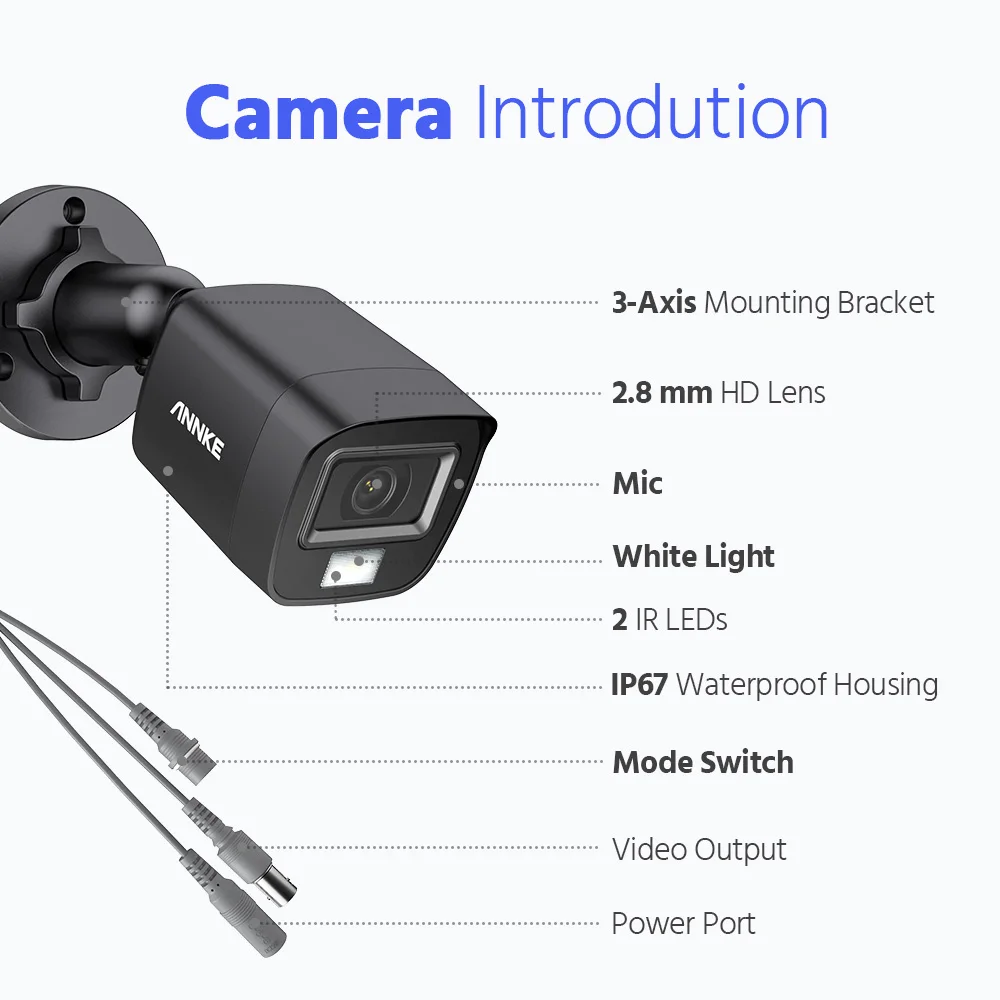

Analog HD Camera

• Camera Attributes:

  • Image Sensor: 3K CMOS Image Sensor
  • Video Resolution: 2960 (H) × 1665 (V)(16:9)
  • Signal System: PAL/NTSC
  • Frame Rate:
    • TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
    • AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
    • CVI: 4 MP@25 fps/30 fps
    • CVBS: PAL/NTSC
  • Lens: 2.8mm
  • Minimum Illumination: Color: 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
  • Angle of View:
    • Horizontal FOV: 107°
    • Vertical FOV: 64°
    • Diagonal FOV: 129°

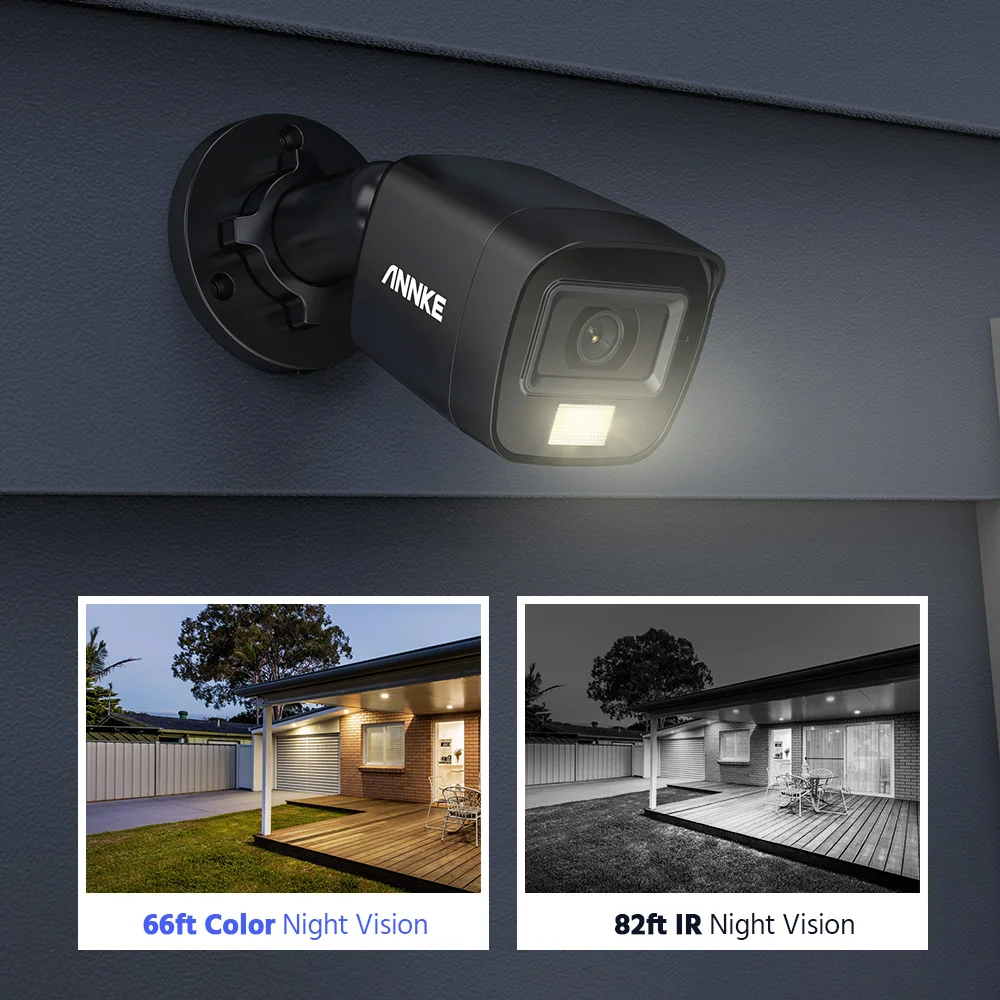

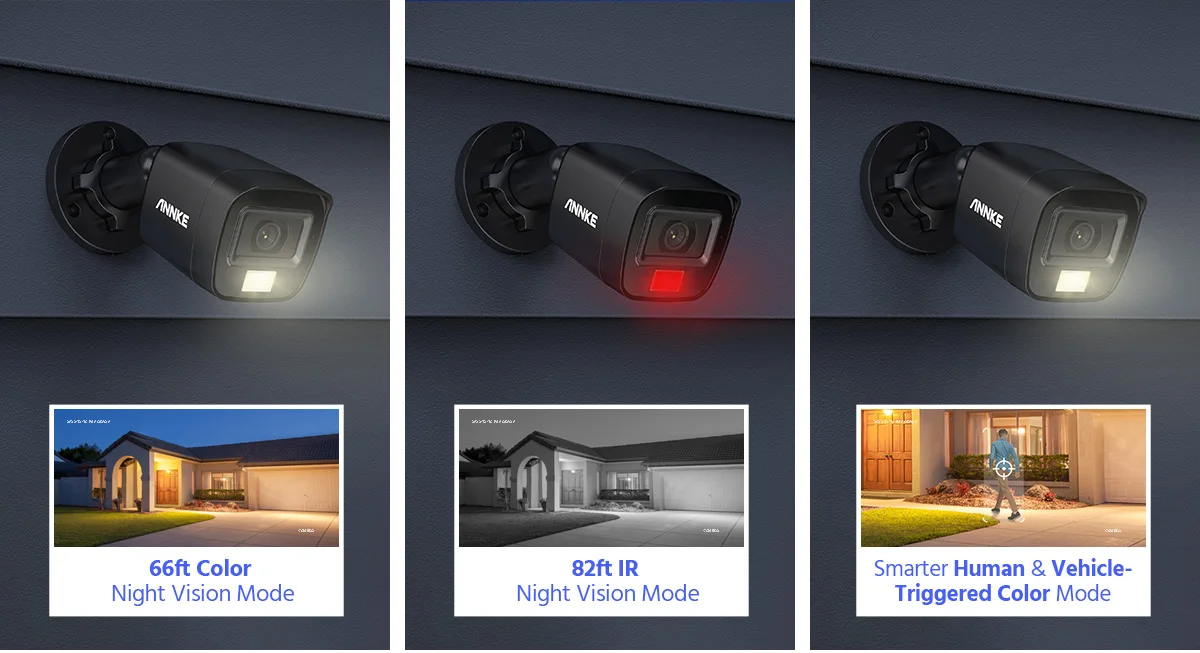

  • Supplement Light Type: 1 White Light & 1 EXIR
  • Supplement Light Range: IR: Up to 30 m, White Light: Up to 20 m
  • Supplement Light Mode: IR light operates normally, switches to white light upon detecting humans or vehicles at night.
  • Wide Dynamic Range: Digital WDR
  • Audio: Built-in mic
  • IR Cut Filter: Yes

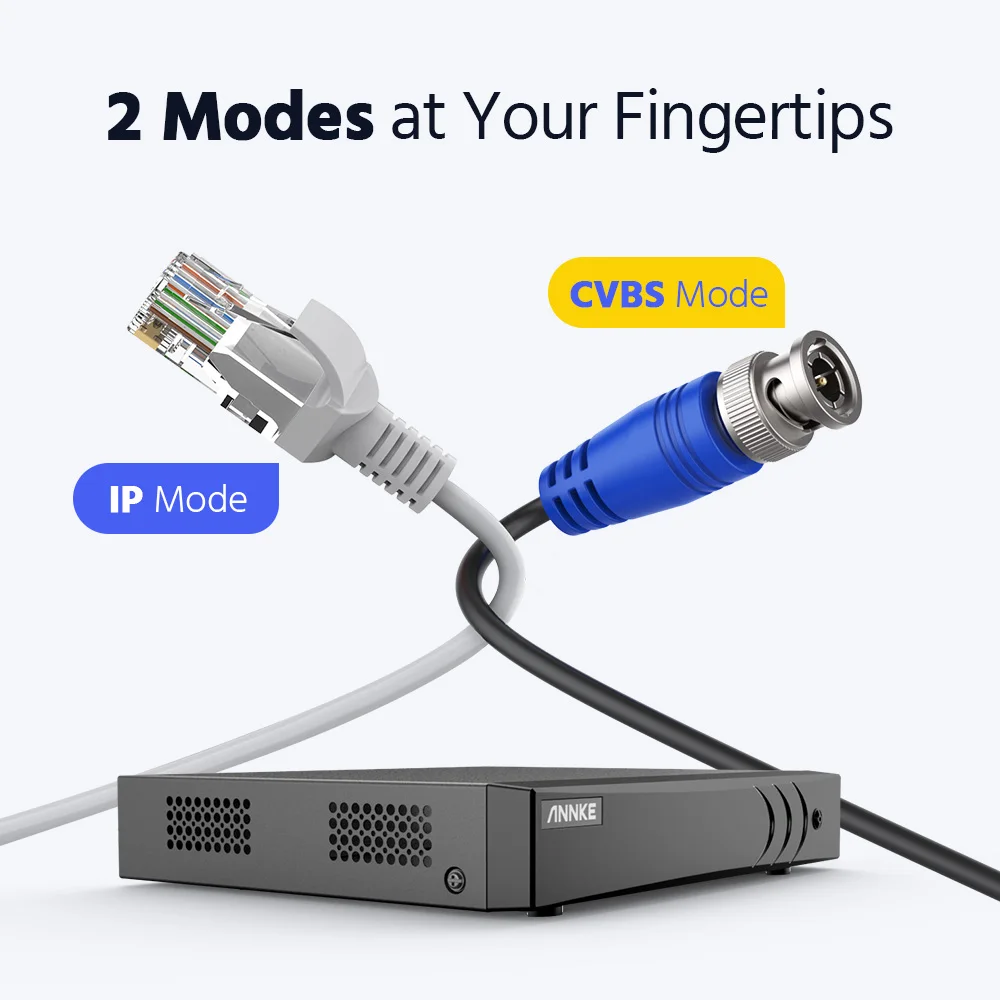

  • Video Output: BNC, switchable TVI/AHD/CVI/CVBS

• General Attributes:

  • Housing: Metal & Plastic
  • Color: White
  • Operating Power: 12 VDC ± 25%
  • Power Consumption: Max. 2.9 W
  • Operating Temperature: -40 °F – 140 °F / -40 °C – 60 °C
  • Indoor/Outdoor Usage: Both

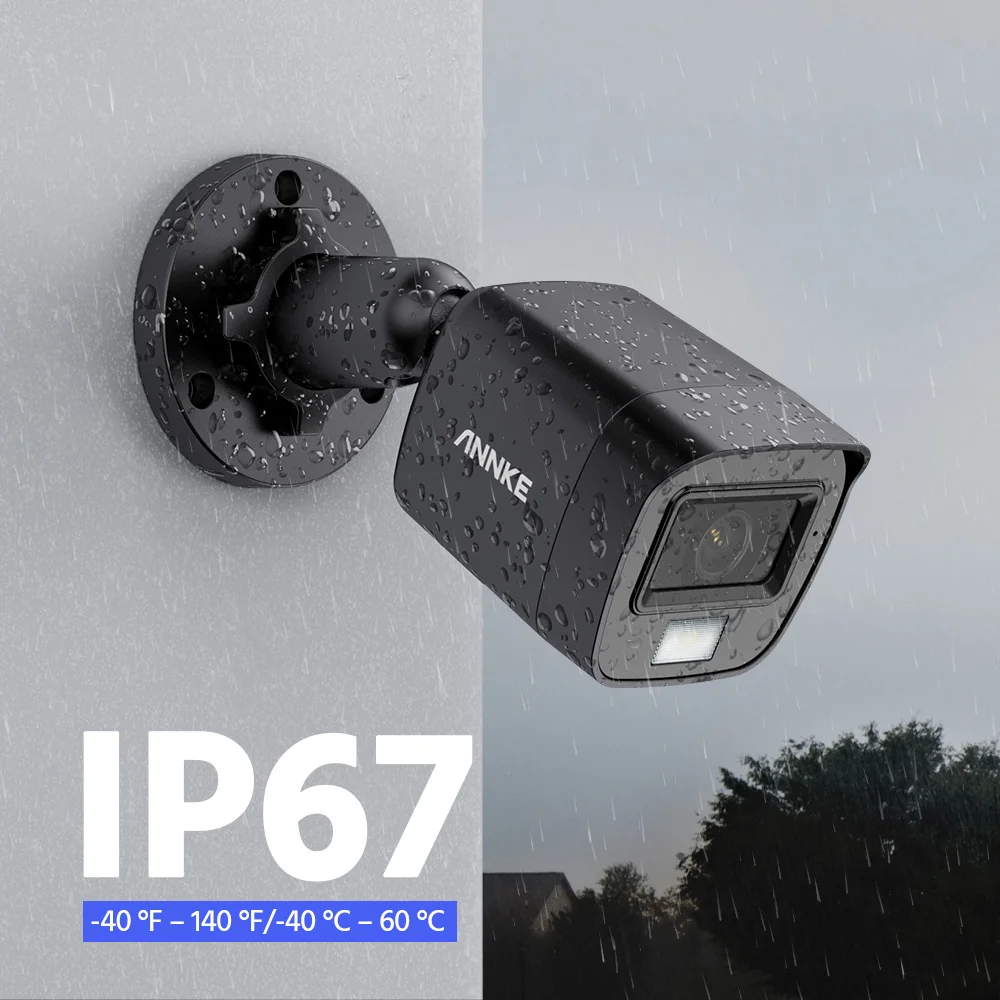

  • Weatherproof Rating: IP67
  • Dimensions: 80 mm × Ø 85.1 mm (3.1″ × Ø 3.4″)
  • Weight: Approx. 300 g

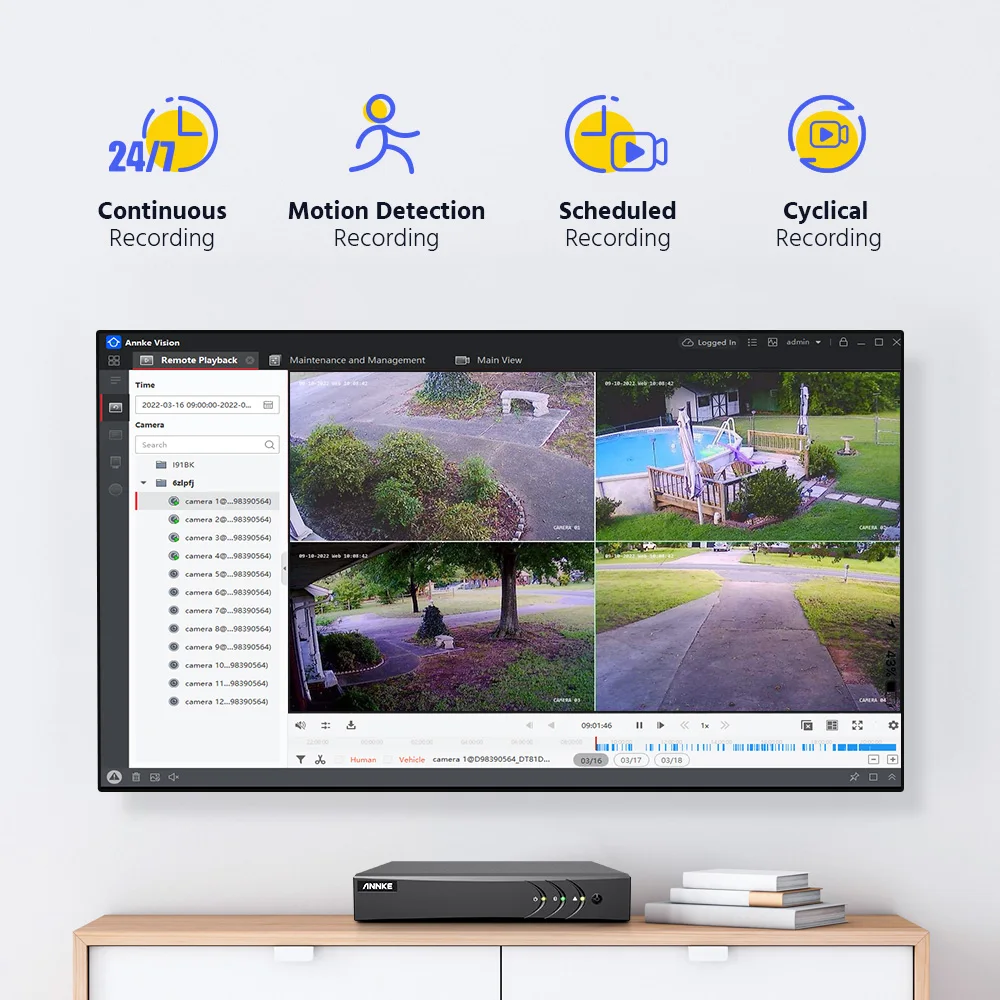

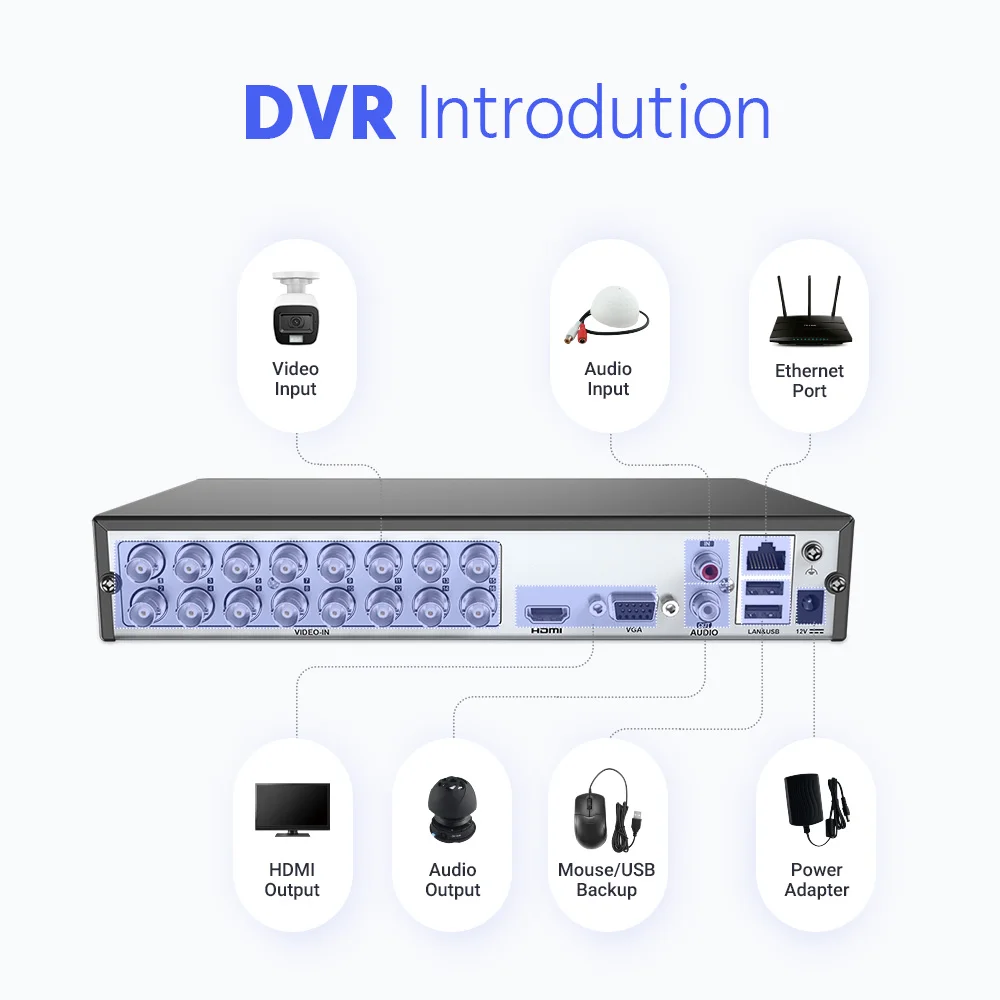

Digital Video Recorder (DVR)

• Video & Audio Attributes:

  • Video Compression: H.264+/H.264/H.265/H.265+
  • Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel with IP enhanced mode on)
  • Video Output: HDMI and VGA Up to 1080P
  • Audio Input: 1-ch RCA, 8-ch via coaxial cable
  • Audio Output: 1-ch RCA
  • Supported Camera Types:
    • HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p
    • AHD Input: 4MP, 1080p, 720P
    • CVI Input: 4MP, 1080p, 720P
    • CVBS Input
    • IP Video Input: 6MP/5MP/4MP/3MP/1080P/720P
  • Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
  • IPC Playback Resolution: Up to 6MP
  • Max Playback Channel: 2-ch
  • Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
  • Motion Detection 2.0: Supports human and vehicle detection on all analog channels to minimize false alarms

• Hard Drive Attributes:

  • HDD Interface: 1 SATA interface
  • HDD Capacity: Up to 10TB

• External Interface Attributes:

  • Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
  • USB: USB2.0x2

• General Attributes:

  • Operating Power: DC12V, ≤ 12W (without HDD)
  • Working Temperature: -14 °F – 131 °F / -10 °C – 55 °C
  • Dimensions: 260 × 222 × 45 mm (10.2″ × 8.7″ × 1.8″)
  • Weight (without HDD): ≤ 1 kg (2.2 lb)
