Description

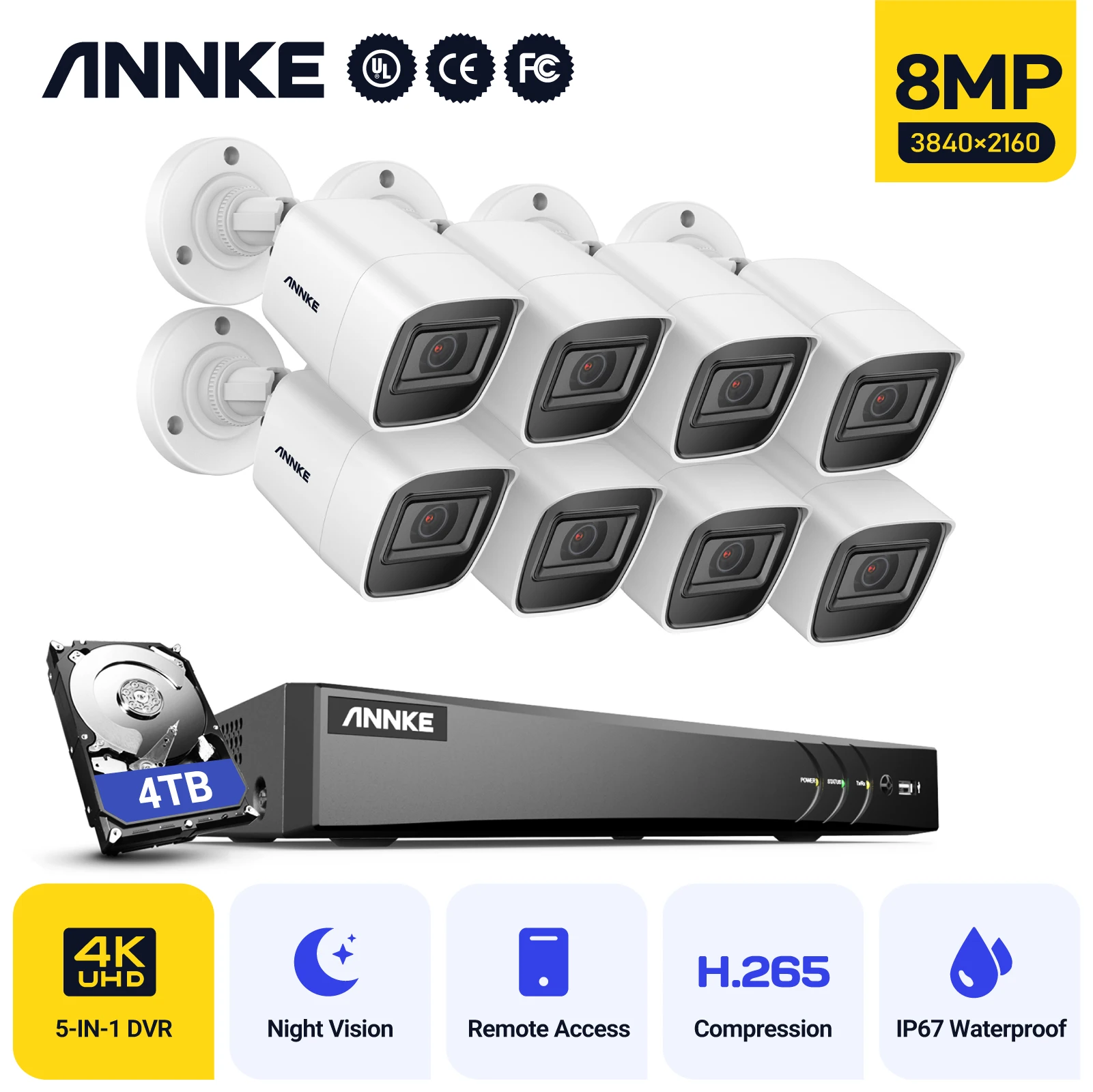

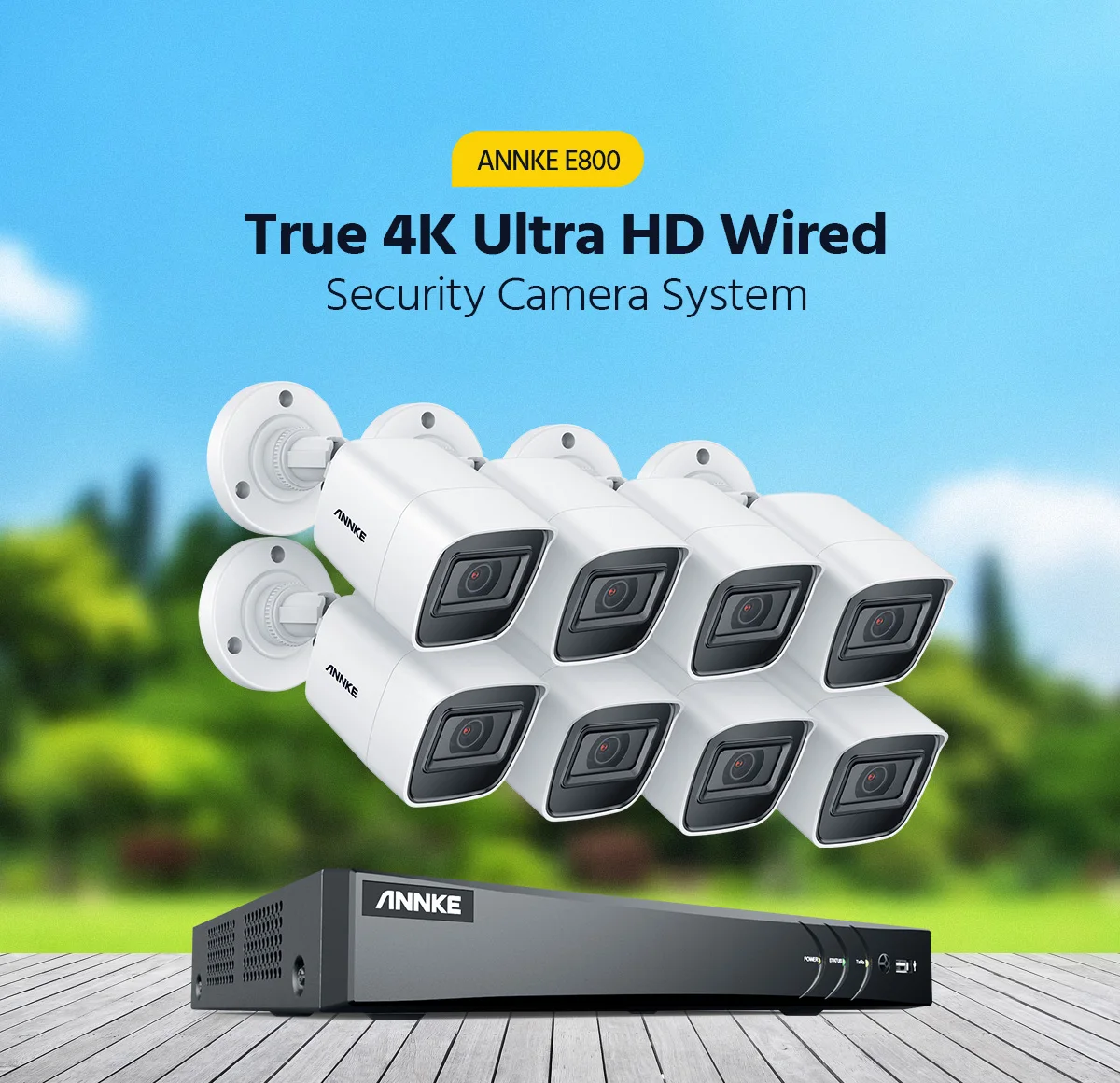

ANNKE 8CH 4K DVR Security Kit 4x8MP IP67 Cameras
DVR Key Features:
- 4K (8MP) high definition live viewing
- 4K (8MP) recording & playback
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- Advanced H.265+ Video Compression
- Audio via coaxial cable
- Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
- Supports iPhone, iPad, Android mobile remote monitoring
Camera Key Features:
- 4K (8MP) high clarity bullet camera
- 2.8mm lens brings everything back to life
- Up to 30m night vision with Smart IR
- Clear day and night vision with auto IR-cut
- IP67 Dust and Waterproof Rating
Note:
- If you don’t purchase a hard disk, you can’t record and review the video.
- If you purchase a package with a hard disk, the hard disk may be placed directly in the DVR or placed separately in the package. If you have any questions, please contact us.
- Our 8CH DVR can connect 8 cameras max, so you can add extra cameras in the future.

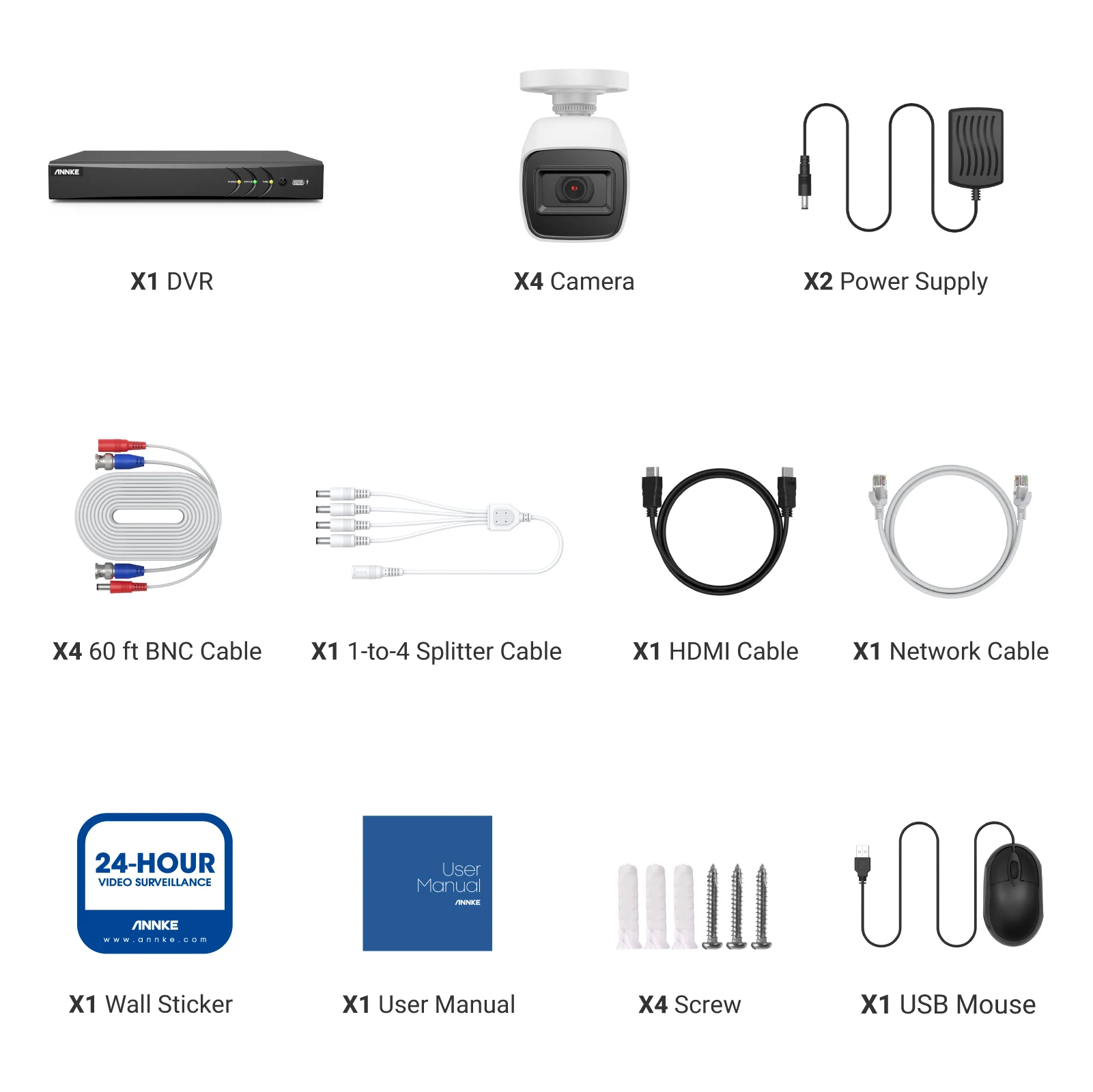

8CH DVR 8PCS Camera
8CH DVR 4PCS Camera
DVR
- Video & Audio

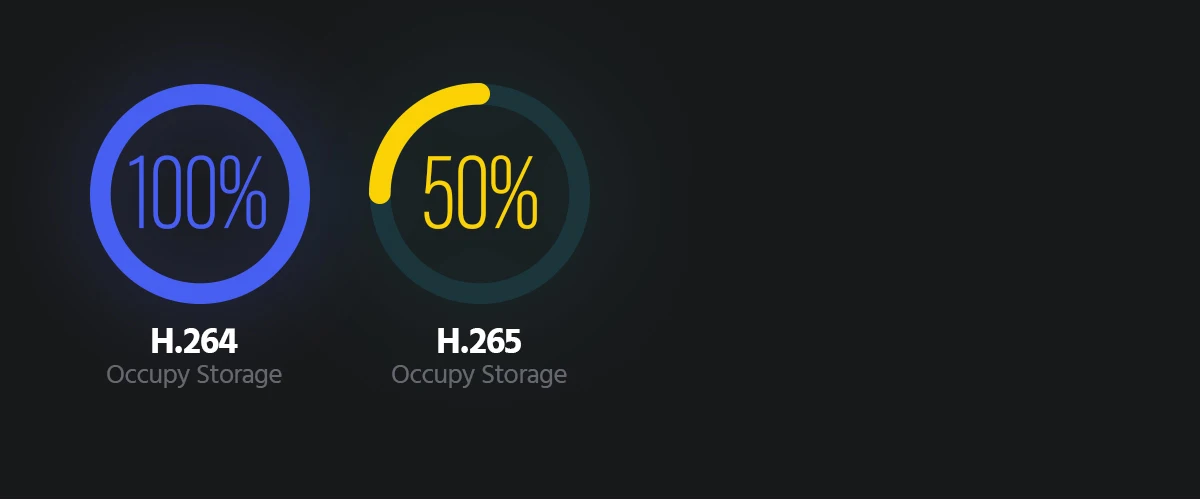

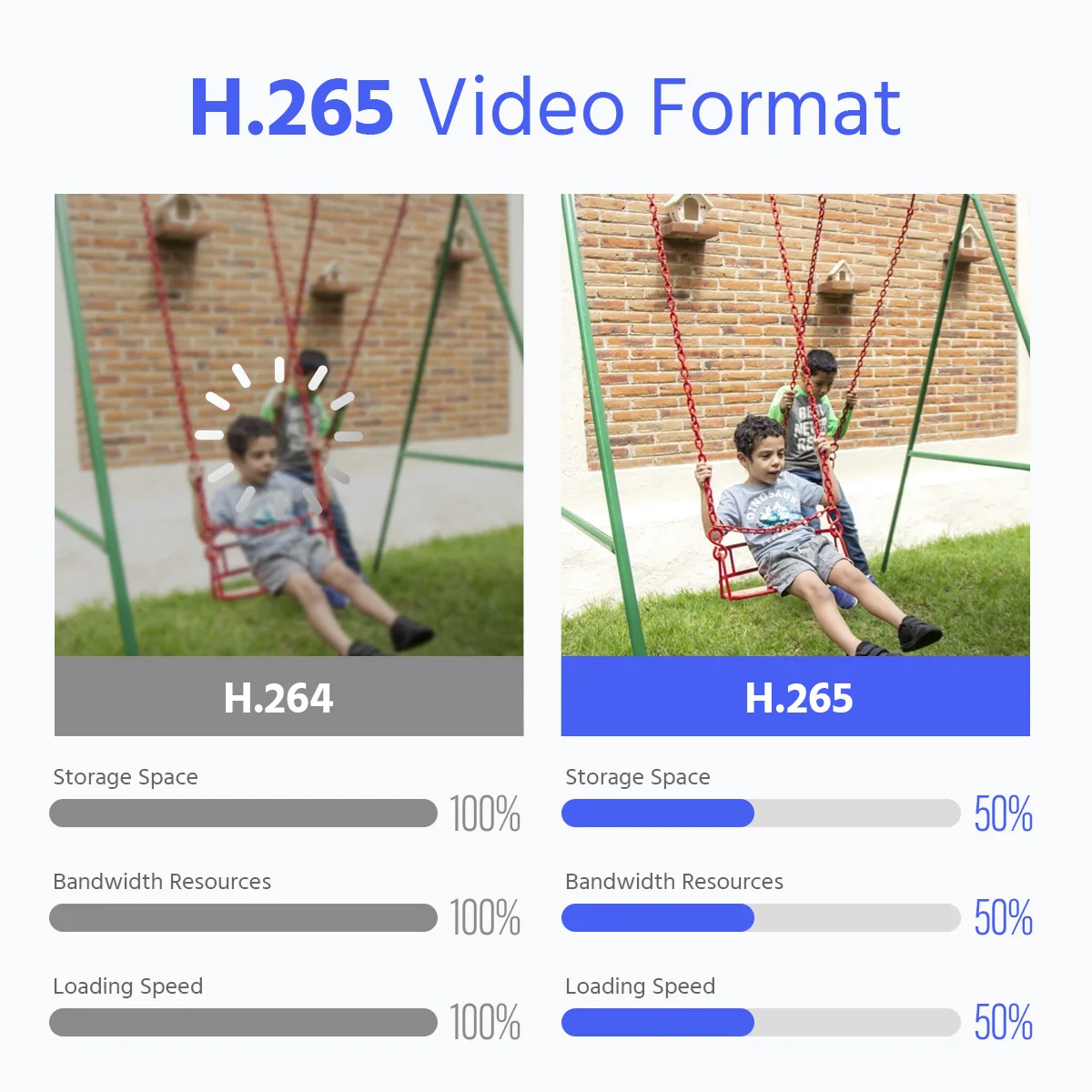

- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

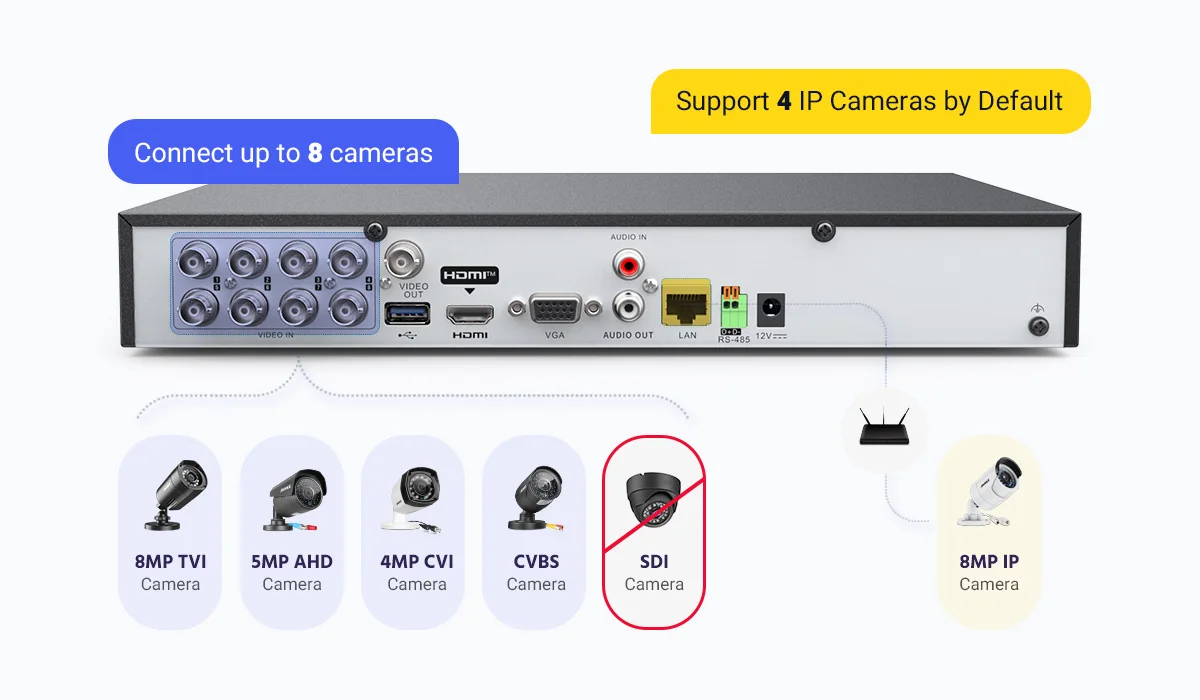

- Video Input: 8CH Analog HD/Analog + 4CH IP (Enhanced IP mode on: 8-ch, each up to 4 Mbps, up to 16-ch)
- Video Output: VGA up to 1080p/60 Hz; HDMI up to 4K (3840 × 2160)/30 Hz
- Audio Input/Output: Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)/8-ch via coaxial cable; Output: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Supported Camera Types
- Support HD TVI, AHD, HD CVI, and CVBS Input in various resolutions and frame rates
- Playback & Recording
- Analog HD Playback Resolution: 4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- IP Camera Input: 4-CH (up to 12-ch)
- IPC Recording Resolution: Up to 8MP
- IPC Playback Resolution: Up to 8MP
- Max Playback Channel: 8CH
- Motion Detection 2.0: Deep learning-based motion detection 2.0, classifying human and vehicle to reduce false alarms
- Smart Event: Line crossing & Intrusion Detection
- ONVIF: Support
- Storage & Interface
- HDD: 1 SATA Interface, Up to 10 TB Capacity
- External Interface: Network Interface RJ45 X1 (10/100 M/1000 M self-adaptive Ethernet interface), RS485, USB 2.0 X1 + USB 3.0 X 1
- General Specs
- Working Temperature: 14 °F – 131 °F / -10 °C – 55 °C
- Dimensions (W X H X D): 315 X 242 X 45 mm
- Weight (Without Hard Disk): ≤2 kg (4.4 lbs.)

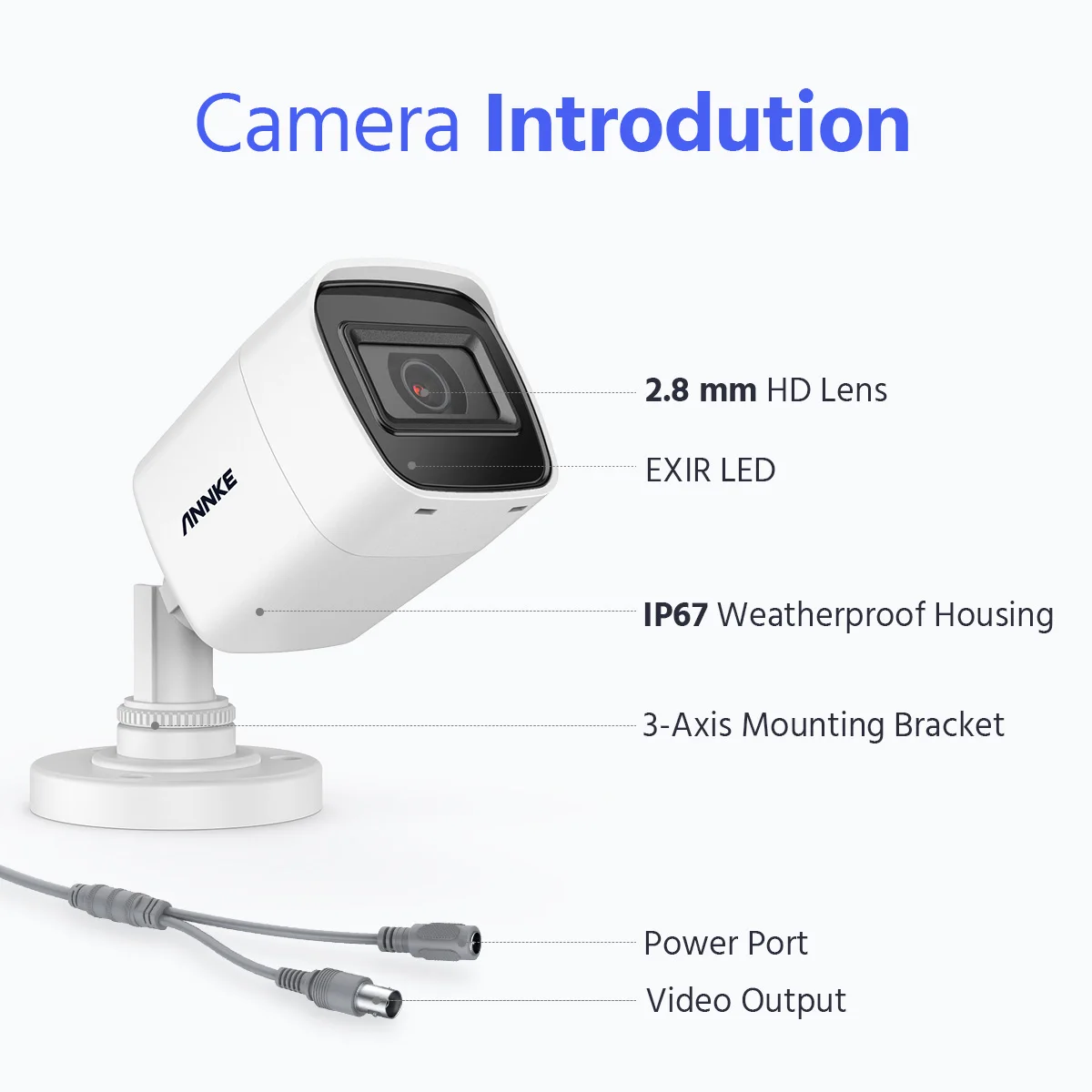

Analog HD Camera
- Image Sensor: 8.29MP Sony STARVIS IMX274 CMOS Image Sensor

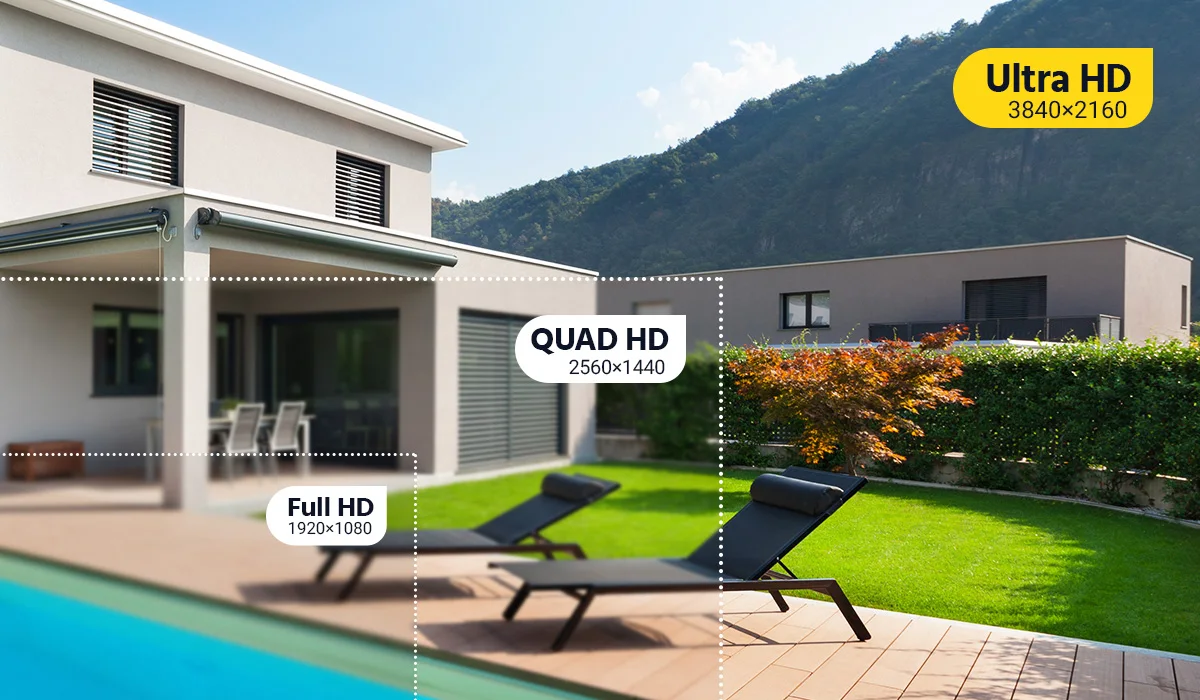

- Video Resolution: 3840(H) X 2160(V)
- Signal System: PAL/NTSC
- Frame Rate: Various frame rates for 8MP, 4MP, and 2MP resolutions
- Lens: 2.8 mm
- Min. Illumination: 0.01 Lux@(F1.2, AGC On), 0 Lux with IR
- Angle of View: 102.2°
- Number of Infrared LEDs: 2
- OSD Menu: Yes
- Night Vision Distance: Up to 100 ft/30 m
- DNR: 2D DNR

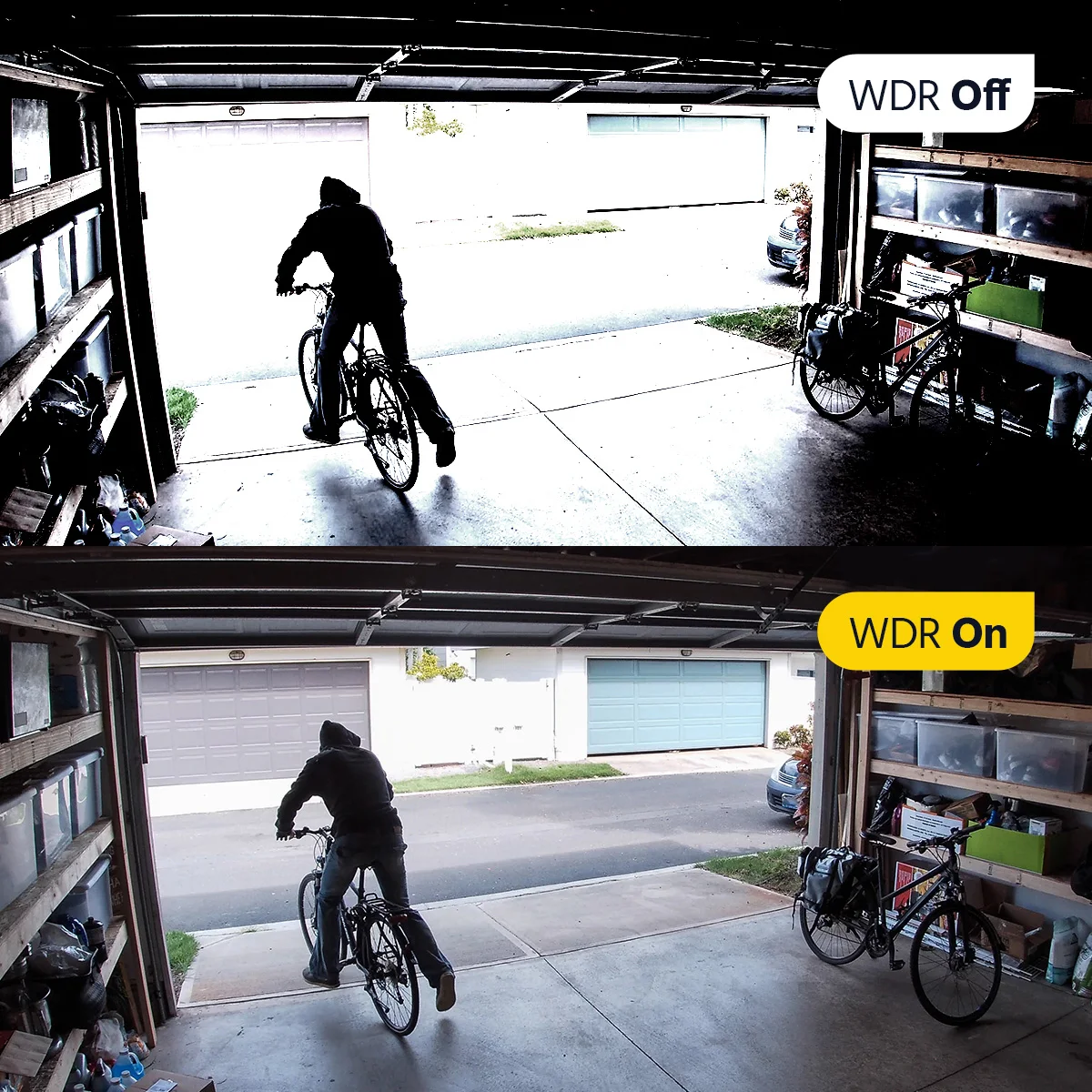

- Wide Dynamic Range: Digital WDR
- IR-Cut Filter: Yes
- Video Output: HD BNC X1
- General
- Housing: Plastic
- Color: White
- Operating Power: DC 12 V
- Operating Temperature: -40 °F – 140 °F / -40 °C – 60 °C
- Indoor/Outdoor: Indoor/Outdoor

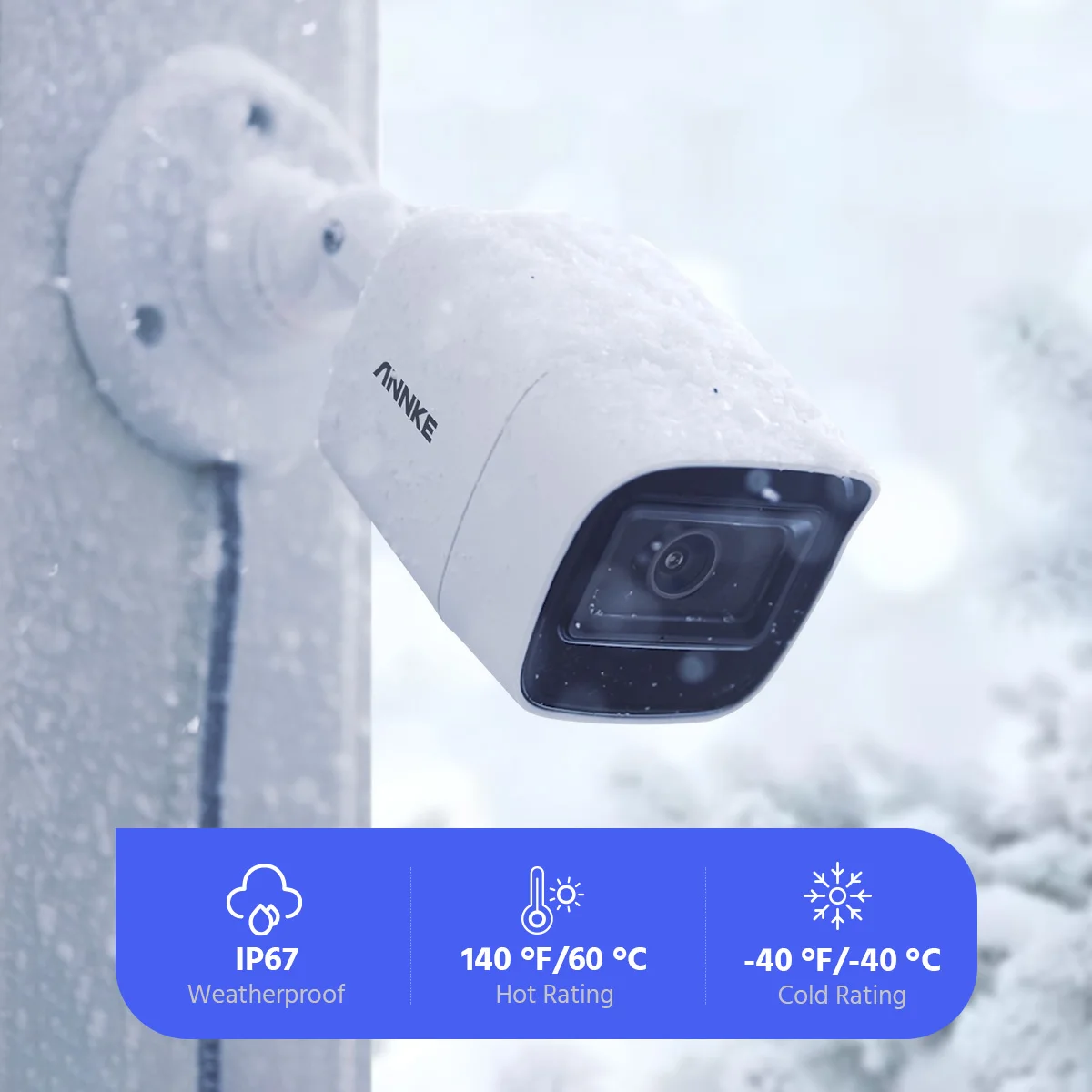

- Weatherproof Rating: IP67
- Dimension (L X W X H): 58 mm X 61 mm X 159.8 mm (2.28″ X 2.40″ X 6.42″)
- Weight: 0.46 lb. / 210 g
