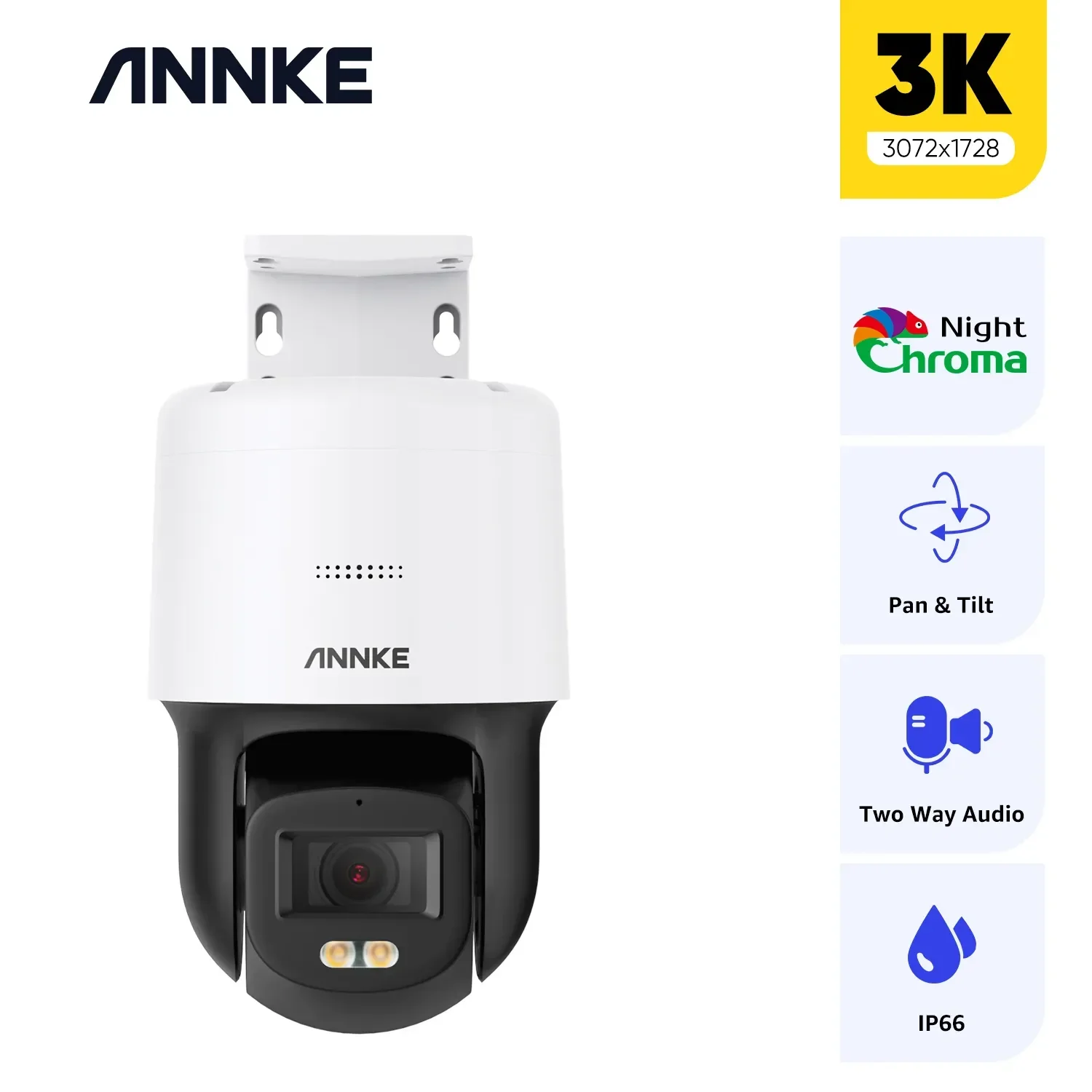

Annke 6MP Full Color Outdoor POE Camera with Audio – 2.8MM Lens

Description

Annke 6MP Full Color Outdoor POE Camera with Audio – 2.8MM Lens

Key Features

• 1/1.8″ Progressive Scan CMOS
• 3K Full Color Network Speed Dome with 16:9 image scale
• Built-in microphone and speaker for real-time audio security
• Built-in memory card slot, supports microSD card, up to 256 GB
• H.265+, H.265, H.264+, H.264
• DWDR, 3D DNR
• IP66

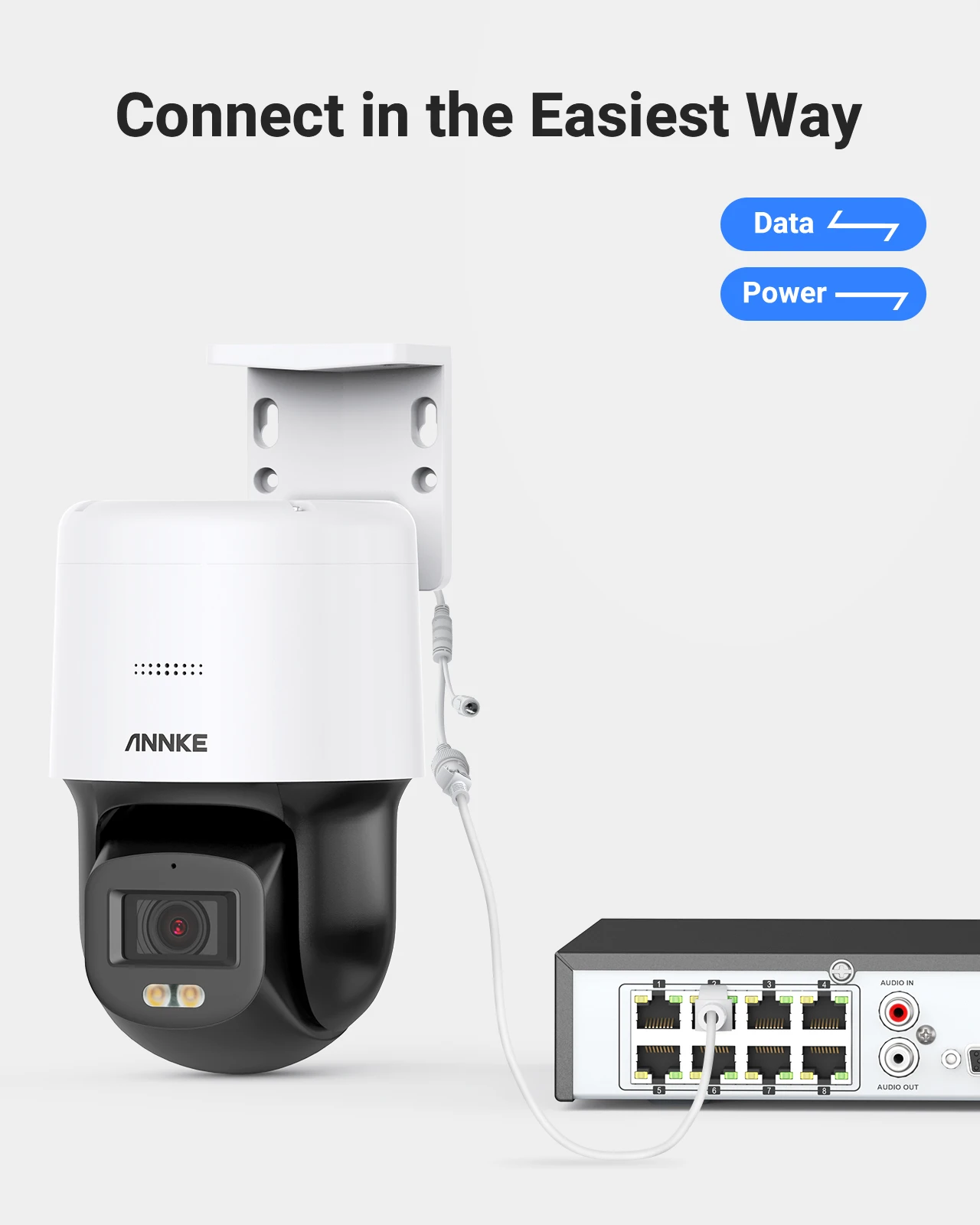

• 12 VDC and PoE (802.3af)

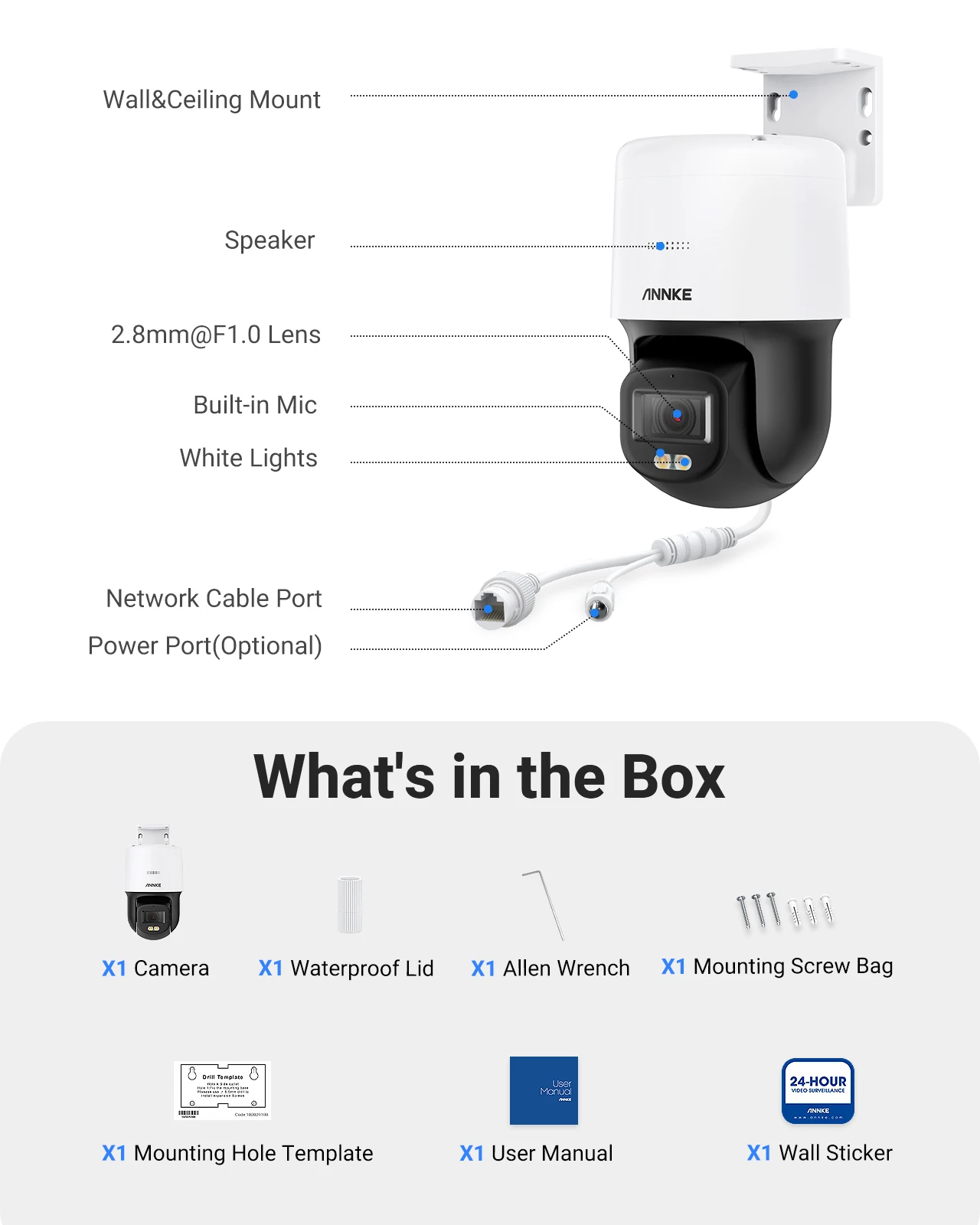

Packaging Contents

• Camera
• Surveillance Sign
• Allen Wrench
• Mounting Hole Template
• Mounting Screw Bag
• Waterproof Lid
• User Manual

IP Camera

Camera

• • Image Sensor: 1/1.8″ Progressive Scan CMOS
  • Max Resolution: 3K (3072×1728), 16:9 picture ratio is more suitable for the most popular display
  • Main Stream:
    • 50 Hz: 20 fps (3072×1728), 25 fps (2560×1440, 1920×1080, 1280×720)
    • 60 Hz: 20 fps (3072×1728), 30 fps (2560×1440, 1920×1080, 1280×720)
  • Substream:
    • 50 Hz: 25 fps (1280×720, 640×480, 640×360)
    • 60 Hz: 30 fps (1280×720, 640×480, 640×360)
  • Video Compression:
    • Main stream: H.265+/H.265/H.264+/H.264
    • Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 Kbps to 8 Mbps
  • Lens: 2.8 mm@F1.0
  • FOV: Horizontal 105.7°, vertical 57.3°, diagonal 124.9°

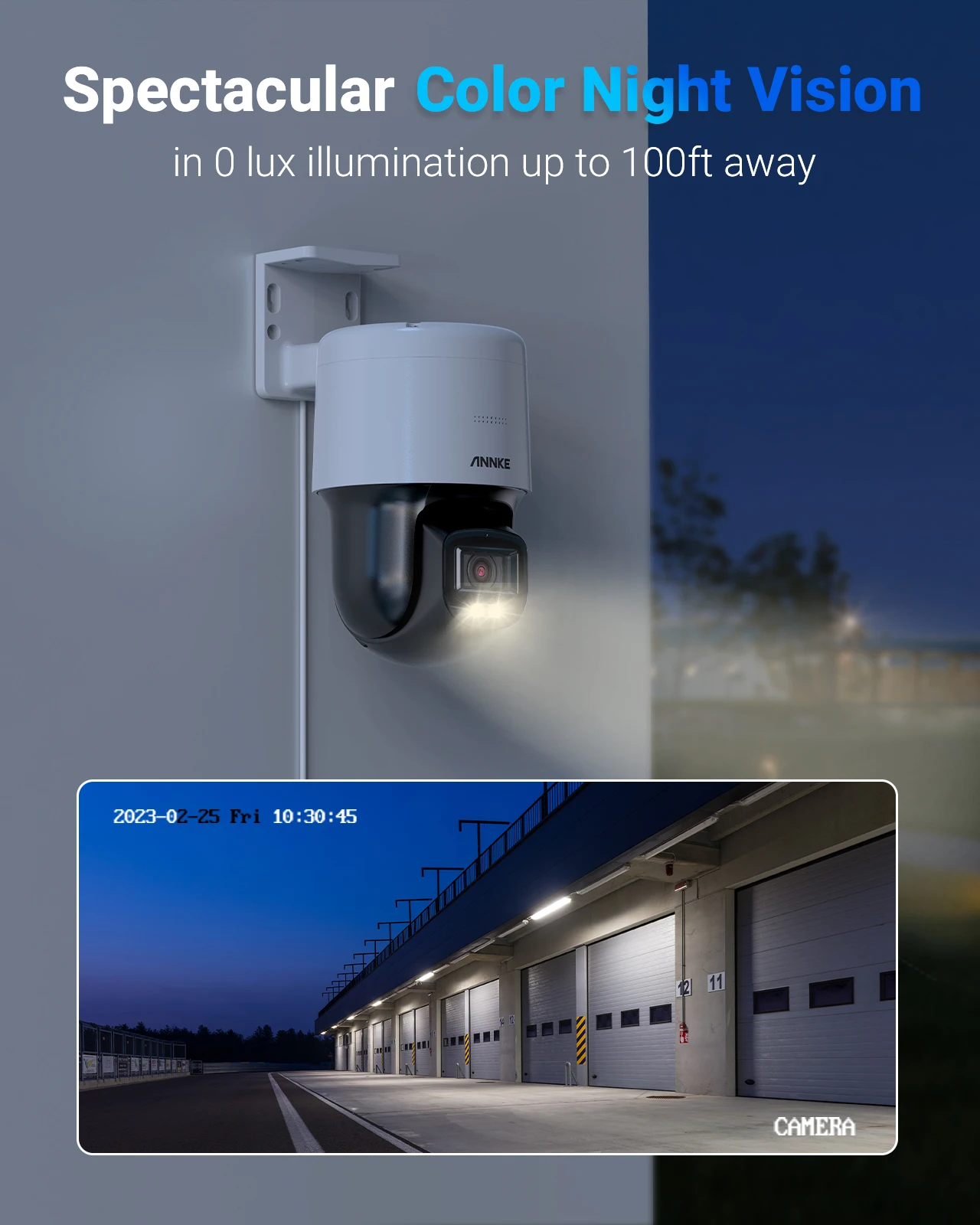

  • Supplement Light: Smart white light, up to 30 m
  • Min. Illumination: 24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light

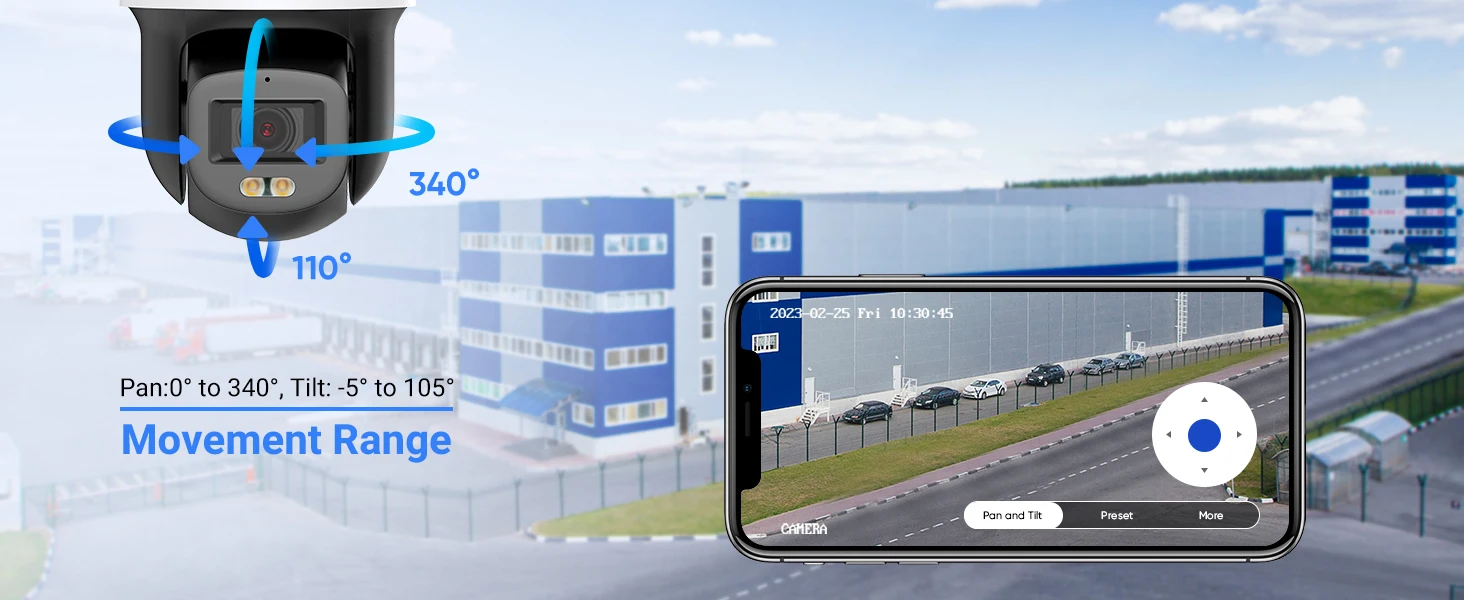

  • Movement Range:
    • Pan: 0° to 340°
    • Tilt: -5° to 105°
  • Pan Speed: Configurable from 4° to 21°/s
  • Tilt Speed: Configurable from 4° to 19°/s
  • Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
  • Audio Bit Rate:
    • 64 Kbps (G.711ulaw/G.711alaw)
    • 16 Kbps (G.722.1)
    • 16 Kbps (G.726)
    • 32 to 160 Kbps (MP2L2)
    • 16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz
  • Environment Noise Filtering: Yes
  • Image Enhancement: 3D DNR, BLC, HLC, WDDR
  • Protocols: IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, FTP
  • API: Open Network Video Interface Version 18.12
  • Audio: Built-in microphone & speaker, support 2-way audio
  • Basic Event: Motion detection, video tampering alarm, exception
  • General Function: Mirror, password protection, watermark

General

• • Material: Plastic
  • Color: White & black
  • Operating Power:
    • 12 VDC ± 25%, 0.75 A, max. 9 W
    • PoE (802.3af), max. 10 W
  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

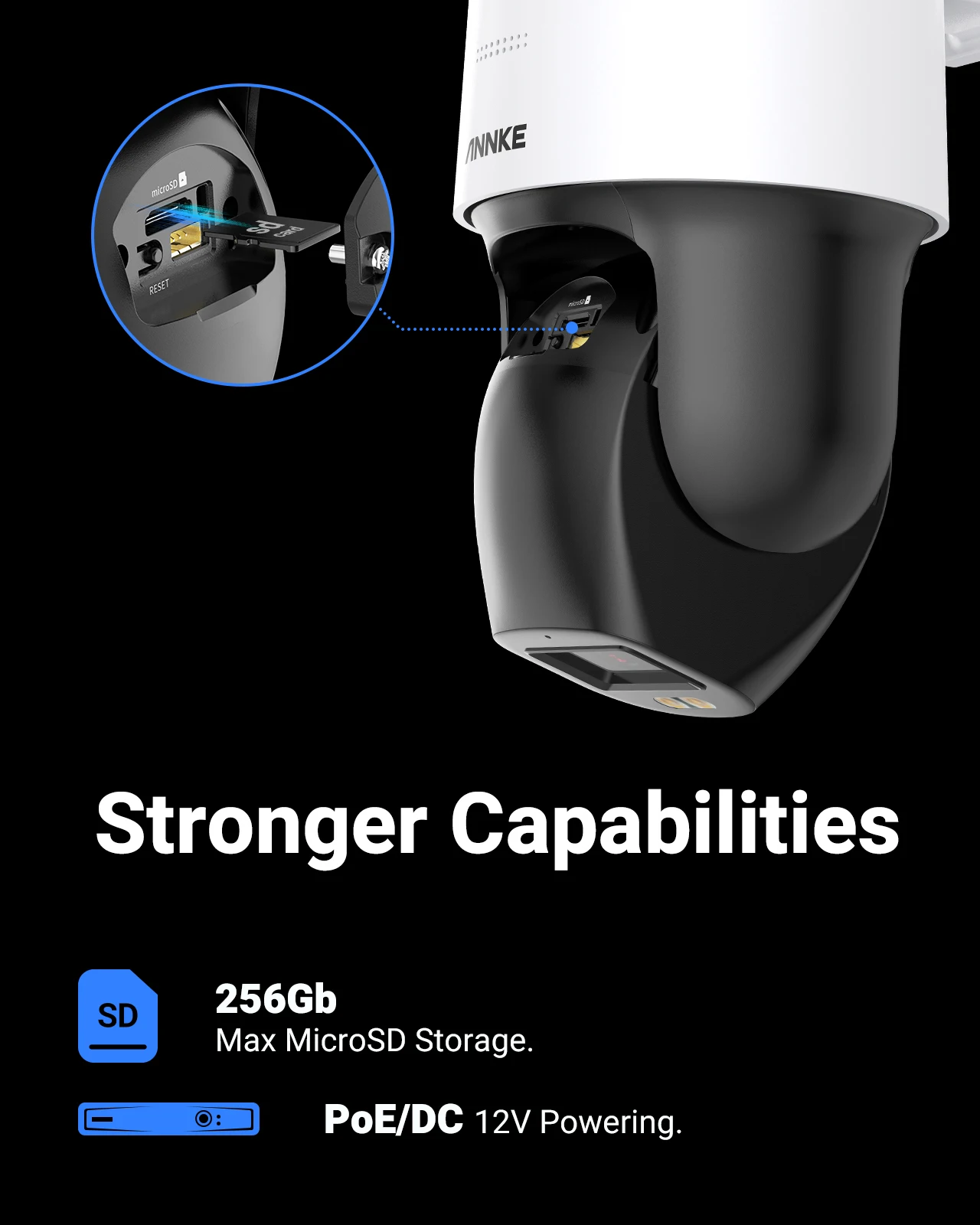

  • Storage: Supports MicroSD Card (up to 256 GB)
  • Operating Temperature: -22° to 122° F (-30° to 50° C)
  • Indoor/Outdoor: Indoor/Outdoor
  • Protection Level: IP66
  • Dimension: 162 mm × 120 mm × 234.2 mm (6.4″ × 4.7″ × 9.2″)
  • Weight: 780 g (1.7 lb.)
