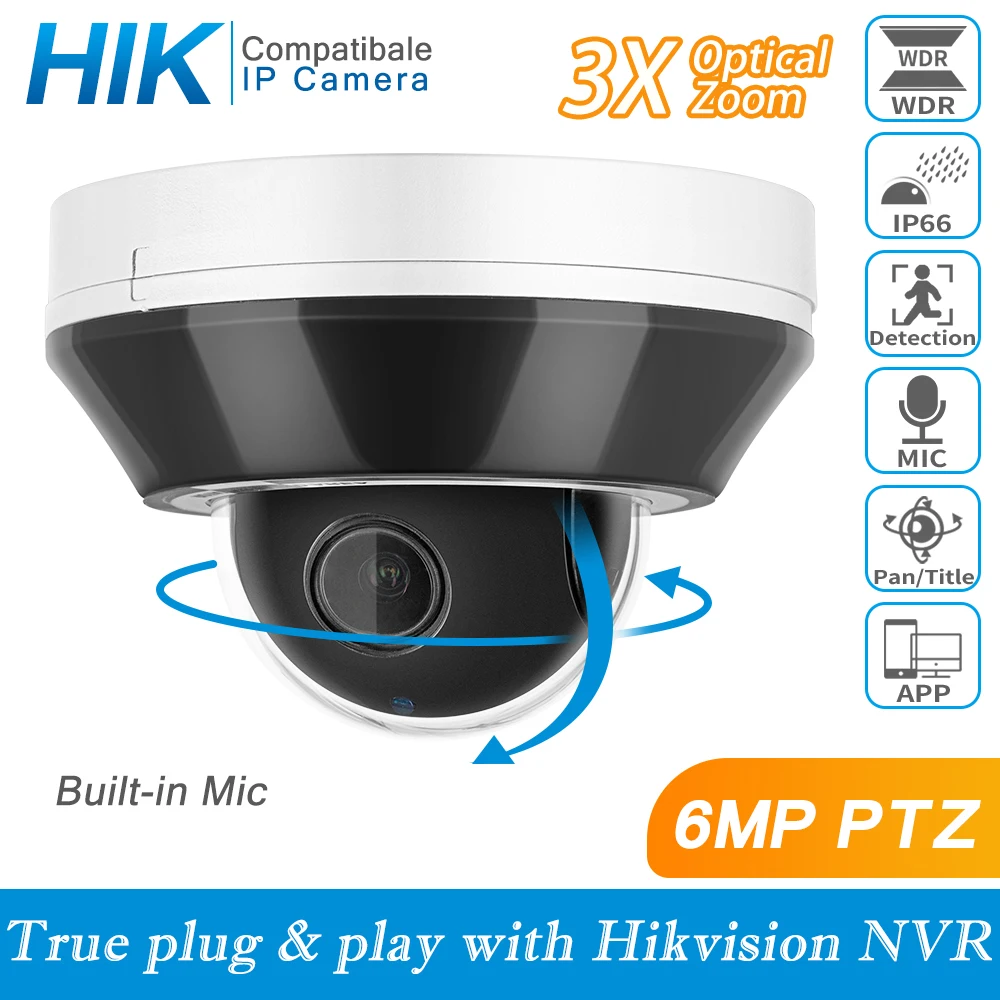

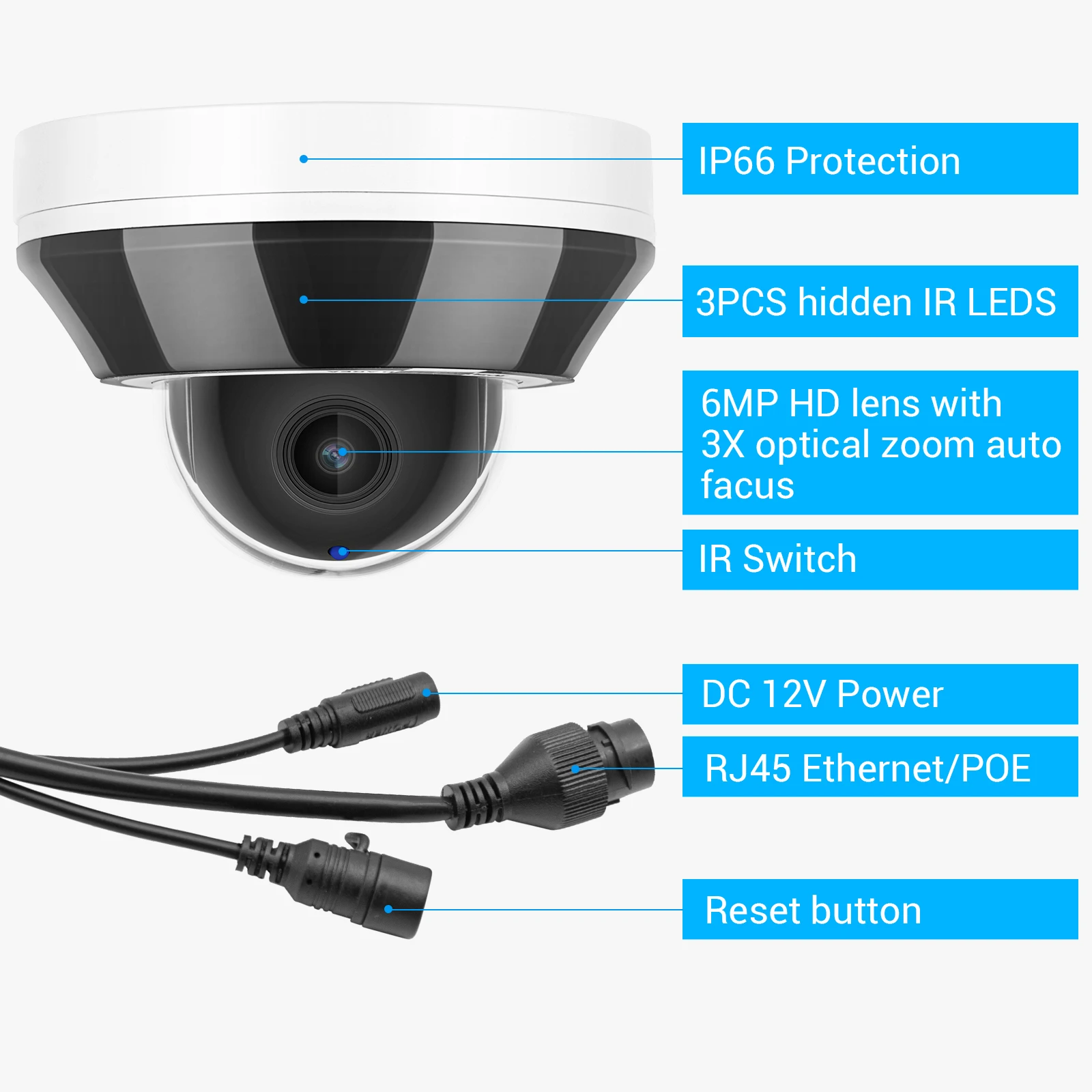

6MP POE PTZ Dome IP Camera with Mic & 3X Zoom IP66
- App: Danale (iOS, Android), supports downloading via QR code. If the camera needs to be added to the NVR, use the NVR app for management.
- Search Tool: SADP / AjDevTools (to modify the default IP address and password).
- Reset Tool: AjDevTools / Internet Explorer.
- Default IP: 192.168.1.110.
- Username: admin.
- Password: 123456.
Notice: This camera is not an original product from the mentioned brand but is compatible with it. It can plug & play with NVRs from the same brand, supports most other brands’ NVRs that support the On-Vif protocol, and works with most security monitor software like Blue Iris, iSpy, VLC, etc.
PTZ-3601-IZ
6MP 3X Human & Vehicle Detection POE PTZ Dome
- Sony low-light CMOS sensor, 1/2.8″
- Resolution: 6MP, 25fps, 3072×2048
- Low illumination: 0.01Lux
- HD motorized AF lens, 2.8-8mm, Network PTZ control, 3X optical zoom
- Features:
- Day/Night
- AWB/MWB
- BLC, HLC
- 2D/3D-DNR
- Shutter, IR-CUT
- D-WDR, Mirror, flip, Defogging
- OSD Overlay styles, Motion Detection, Privacy Mask
- Compatibility: RTSP and compatible with many third-party NVRs
- Media server: Smart 265/264 dual-stream
- Easy-to-use Cloud service
- Security features: User authentication, video data encryption
- Alarm features: Snapshot to Email and FTP
- Remote access through WEB browser (IE, Firefox 32bit ESR), PC Client, Mobile APP
- Lightning protection: 4000V
- Waterproof rating: IP66
- IR Leds: 3 pcs Array, IR distance 20-30 meters
Camera:
- Image Sensor: 1/2.8″ Sony CMOS
- Effective Pixels: 6 megapixels
- Electronic Shutter: AUTO, 1/25s ~ 1/10000s
- Min. Illumination: 0.01Lux@F1.2(AGC ON), 0 Lux with IR on
- Day/Night: Auto/Color/Black & White/Timing
- WDR: Digital WDR
- White Balance: Auto/Manual
- AGC/BLC/HLC: Support
- DNR: 2D/3D DNR
- Other: AGC, Motion Detection, Privacy Mask, Flip, OSD overlay, Human body detection, Vehicle detection
Encode:
- Video Standard: smart264/265
- Video Resolution:
- Main Stream: 25fps@6MP(3072×2048), 25fps@5MP(2592×1944), 4MP(2592×1520), 3MP, 30fps@1080P/720P
- Sub stream: 25fps@D1/VGA/360P/CIF, etc.
- Video Bitrates: 512Kbps – 8Mbps, VBR/CBR
- Audio Standard: G.711-u/G.711-a
- Built-in Mic: Yes
IR Led:
- IR Led: 3 pcs Array IR Led
- IR Distance: 20-30 M
Lens:
- Focal length: 2.8-8mm motorized AF lens
- Zoom: 3x optical zoom
PTZ:
- Pan/Tilt Range: Pan: 0° ~ 350°; Tilt: 0° ~ 90°
- Preset Point: 255
- Manual Control Speed: Pan: 0.5° ~80° /s; Tilt: 0.5° ~60° /s
- Power-off Recovery: Support
Network Services:
- Protocol: HTTP/RTSP/FTP/DST/SMTP/DHCP/NTP/NFS, etc.
- P2P: Yes
- Web: IE, Firefox (32bit esr), etc.
- Media: CMS, Android, IOS
- Compatibility: O-N-V-I-F 17.06
General:
- Network Port: 1-RJ45, 100Mbps, POE optional
- Power Supply: 12 VDC ± 10%
- Power Consumption: < 10 W
- Operating Temp.: -30℃ to (+60)℃, 10%-90%RH
 6MP Resolution Display

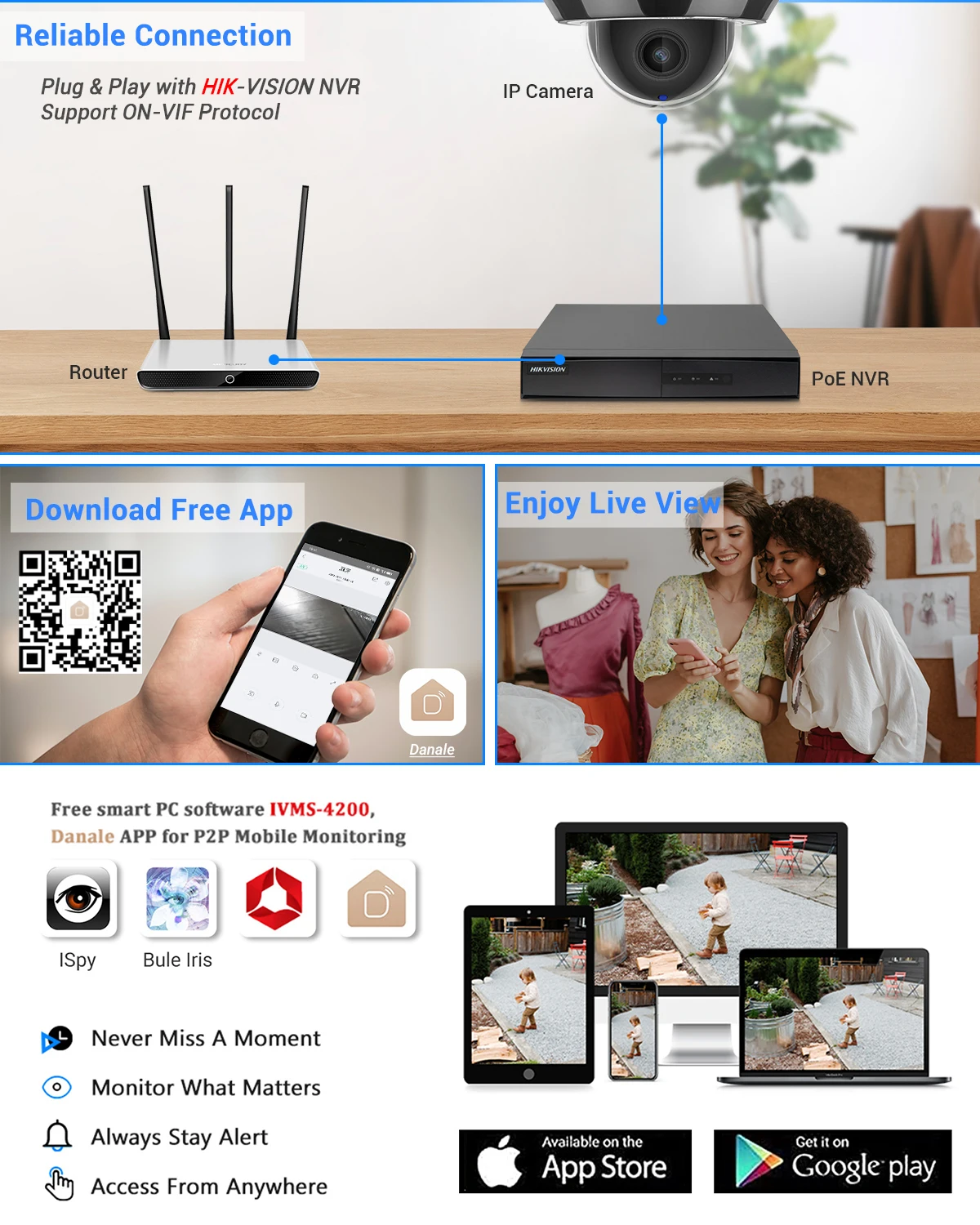

Plug & Play with Hikvision Private Protocol,Compatible with Third Part NVR

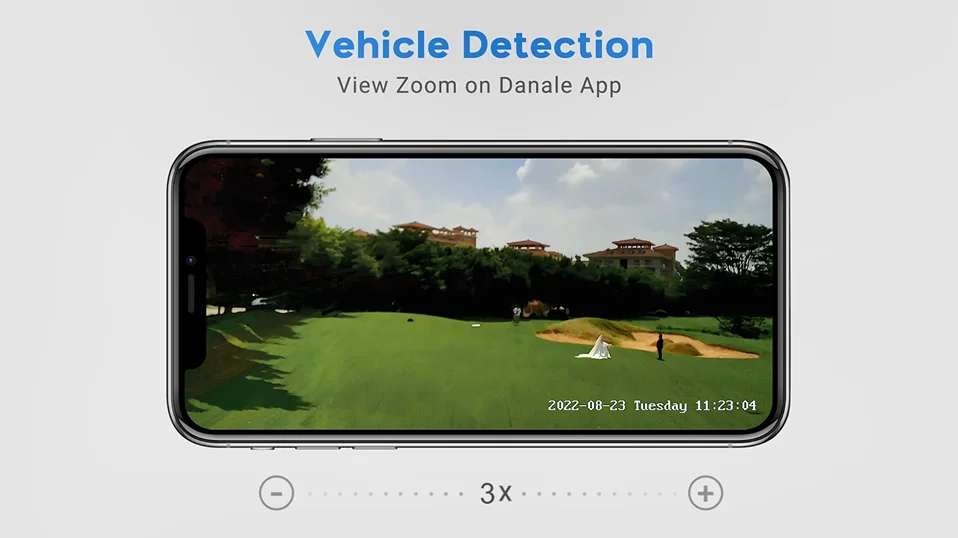

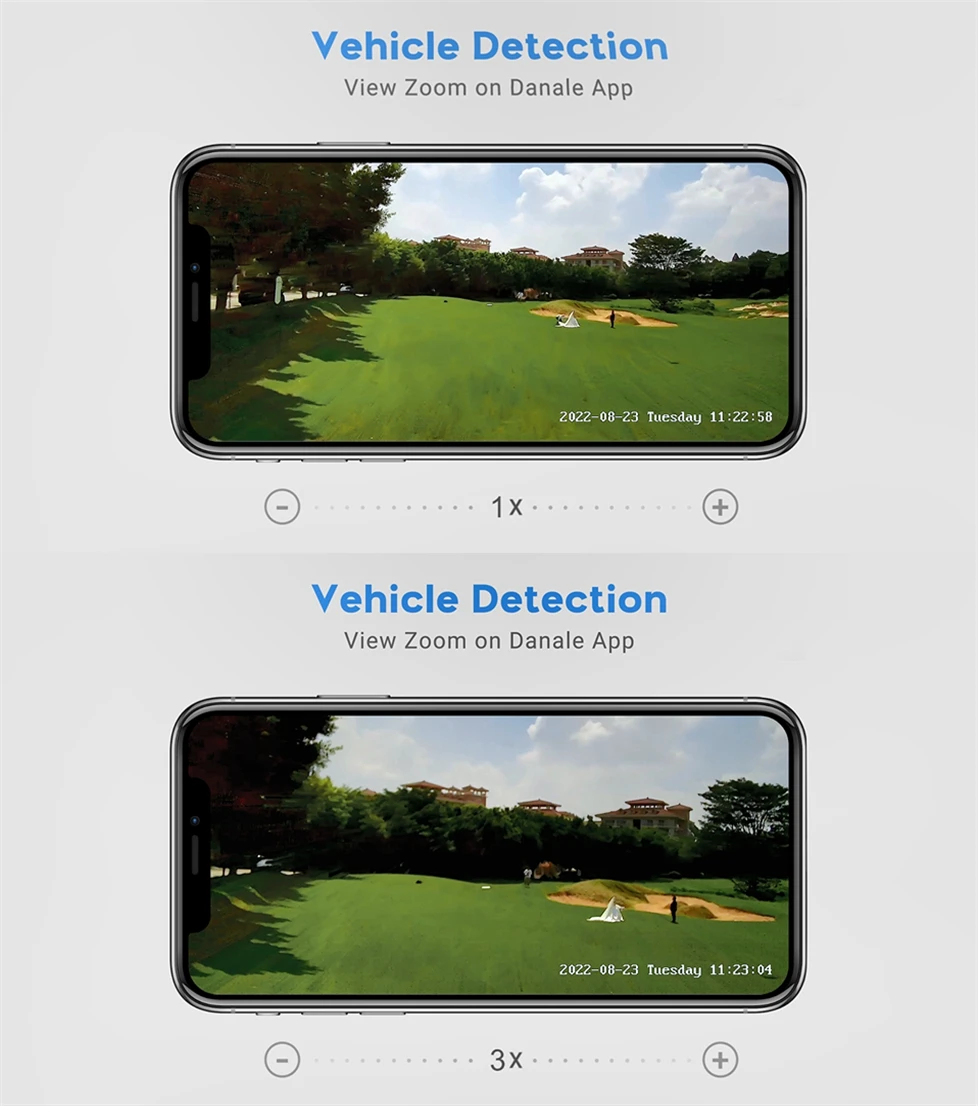

3x Optical Zoom
Pan/Tilt Function
Built-in Mic

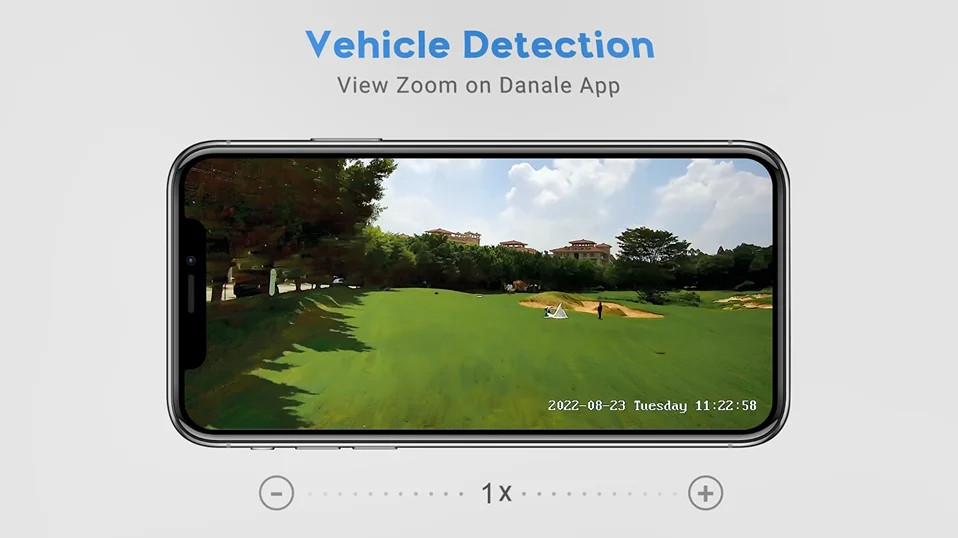

Human body / Vehicle detection

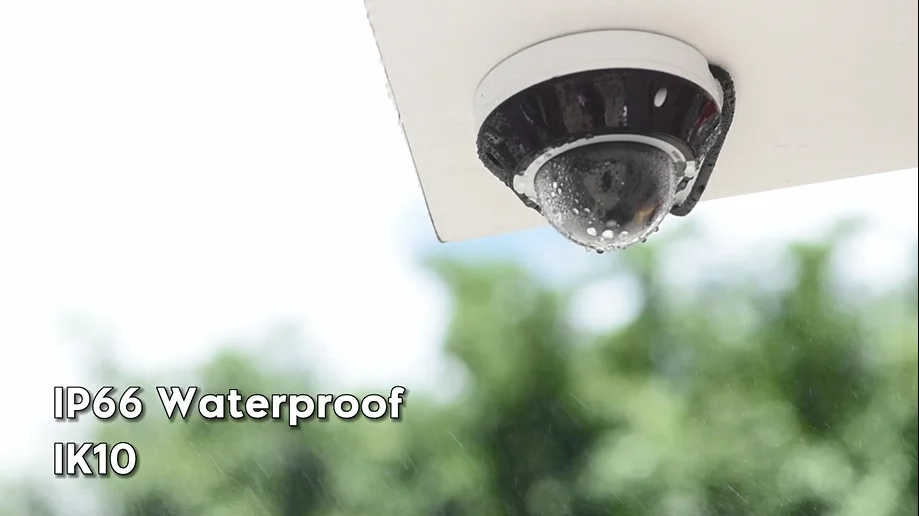

Strong water-proof housing IP66

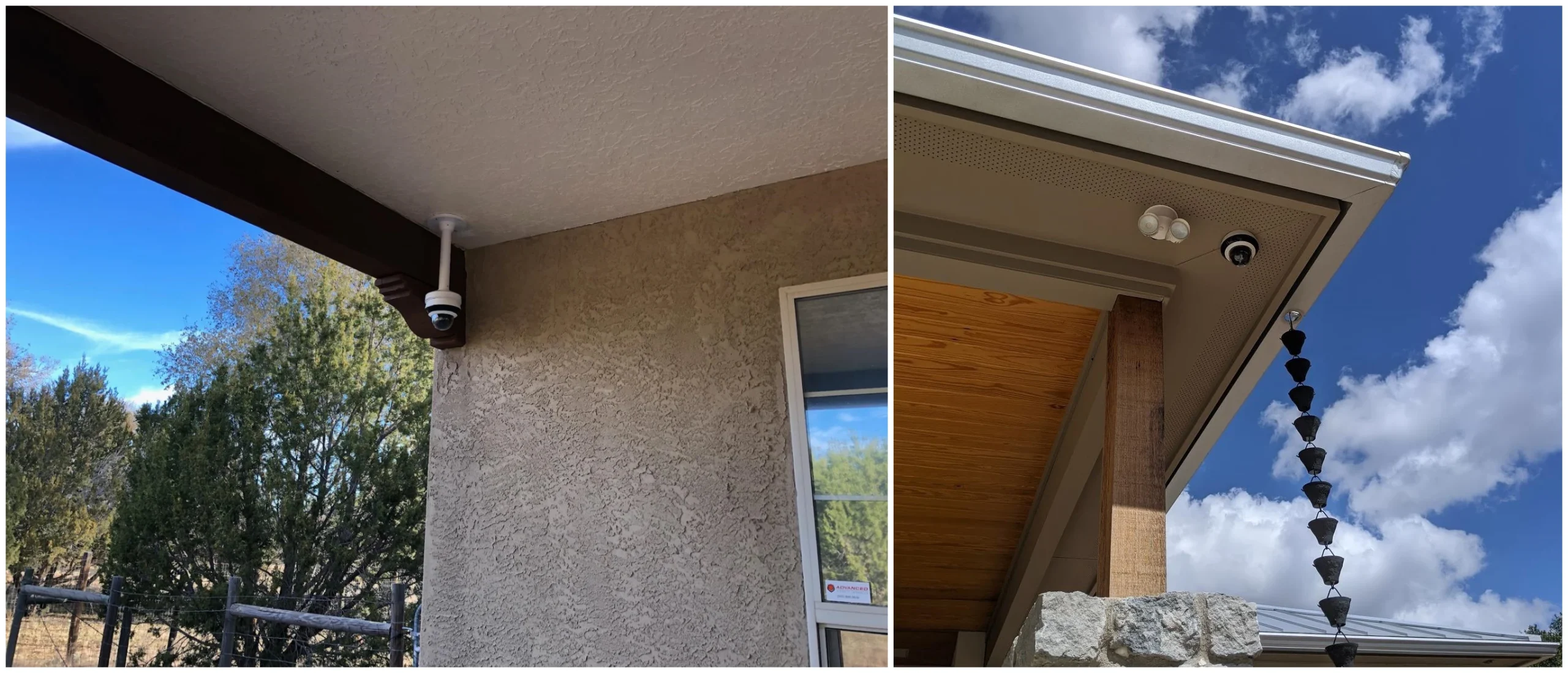

Real Camera View Image
- 6MP POE 3X PTZ Dome IPC *1
- Waterproof accessories *1
- Screw *1 lot
- User guide *1

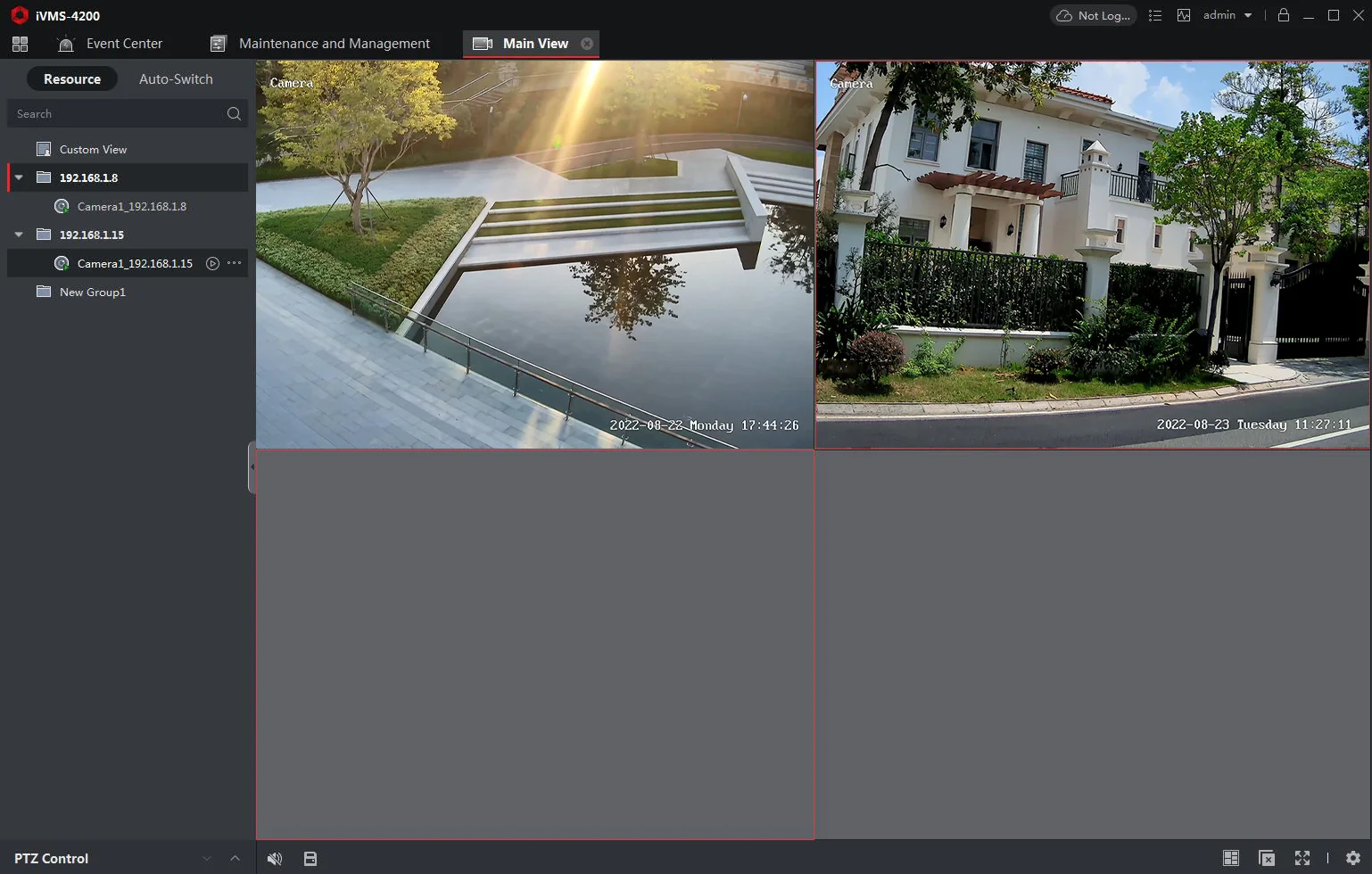

Hikvision Tool – IVMS-4200

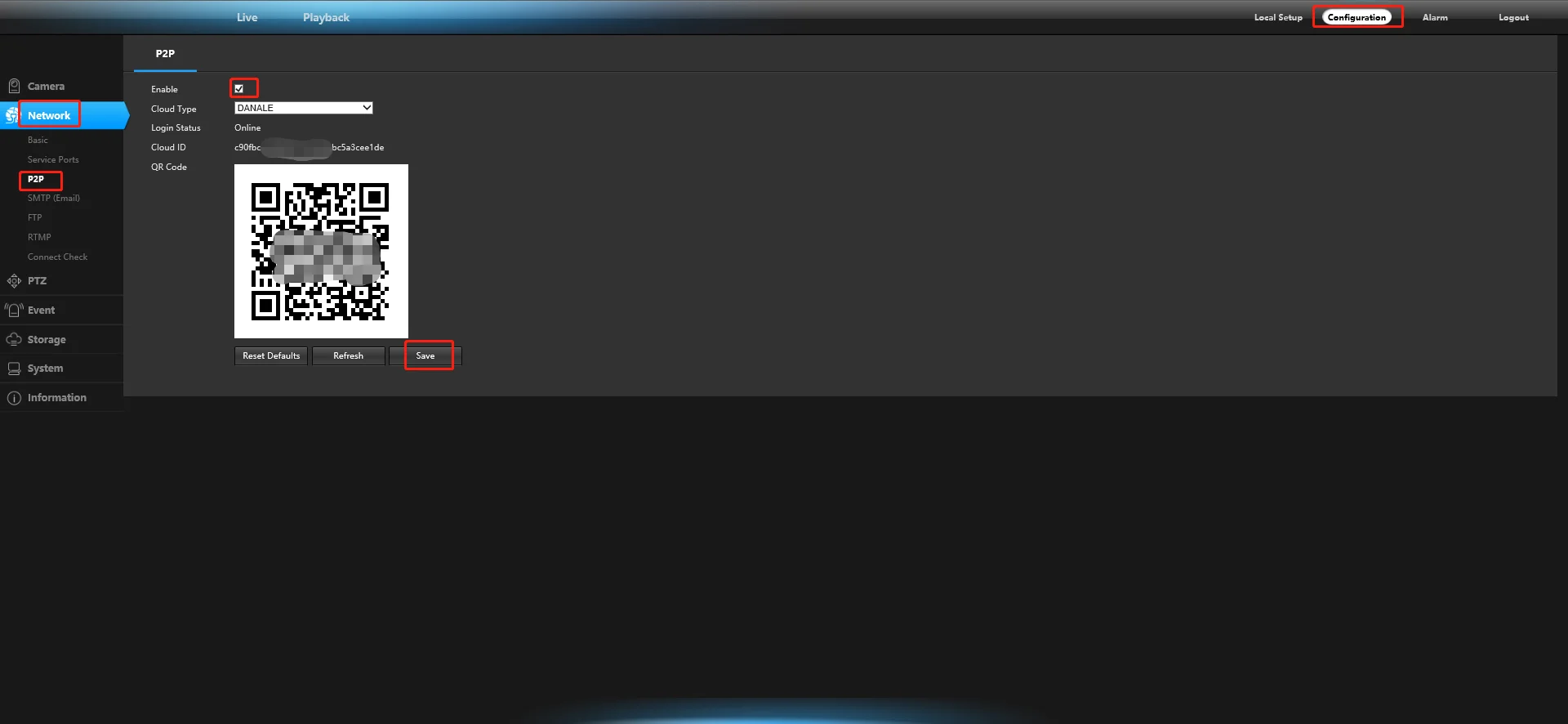

P2P

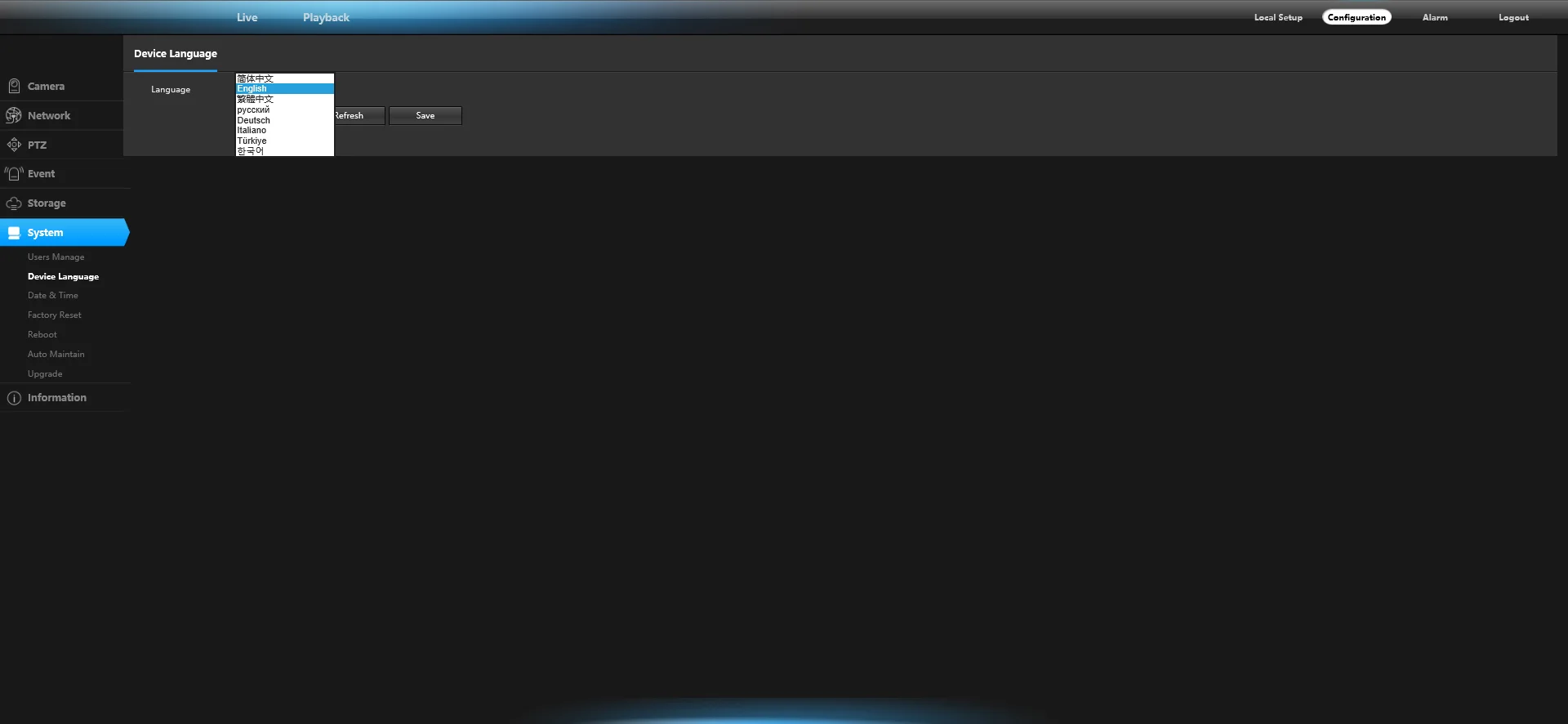

7 Languages

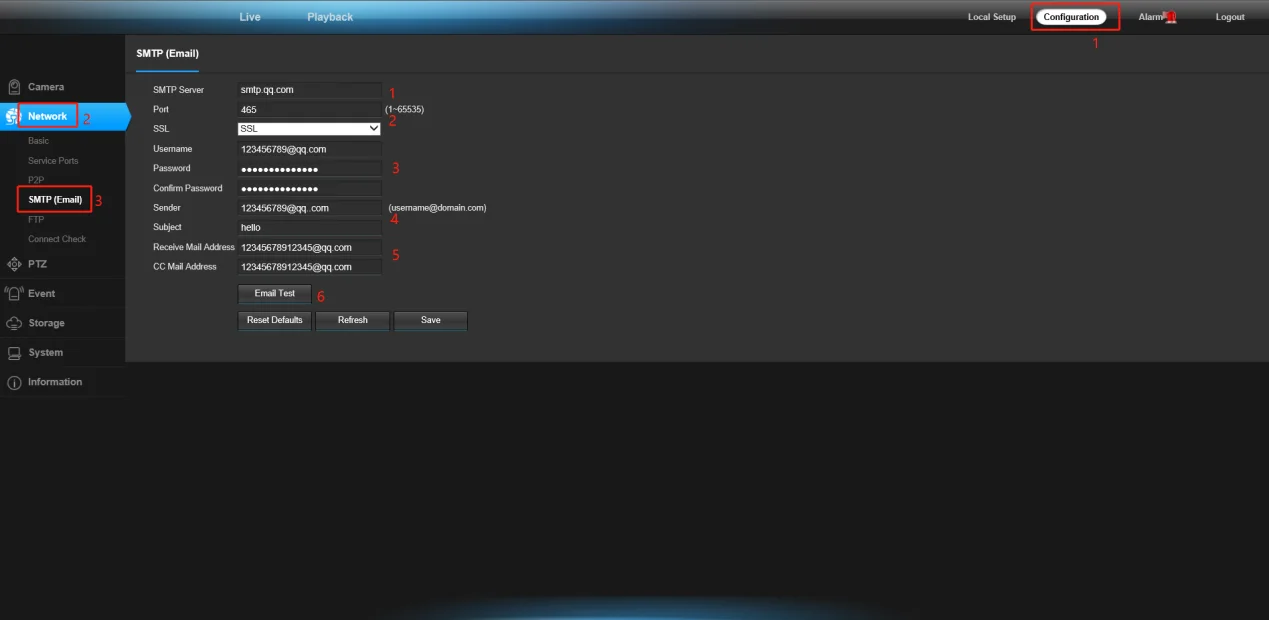

Email Alert
