5MP SANNCE DVR Security Camera Kit with Night Vision

Description

5MP SANNCE DVR Security Camera Kit with Night Vision

Capture All Details in 5MP Full HD

5MP HD resolution and 3.6 mm professional lens enable the home & business security camera to deliver clear, high-quality images. Watch and record crisp HD videos with more details than ever before.

EXIR 2.0 Night Vision

The enhanced EXIR 2.0 technology enables the security camera to shoot sharp night vision footage up to 100 ft away, even in complete darkness. Bring you peace of mind from dusk to dawn.

Digital WDR & DNR

The dynamic range capability enables the outdoor wired camera to cope with complex scenes containing bright and dark objects. With DNR, the camera can shoot sharp images without image noise in darker conditions.

Built-in Mic, pick up audio & ambient sound around

A built-in mic will allow the camera to live stream and record with both video and audio. You may not only see but also hear clearly what is going on or what happened for more excellent proof in need.

Powerful 5-in-1 DVR

SANNCE versatile 8-channel hybrid DVR supports up to 12CH with 8CH 5MP TVI, AHD, CVI, CVBS analog cameras, and 4CH 2MP IP cameras simultaneously, regardless of bullet, turret, dome, and PTZ camera types. You may integrate any kind of security camera you want for 24/7 non-stop recording.

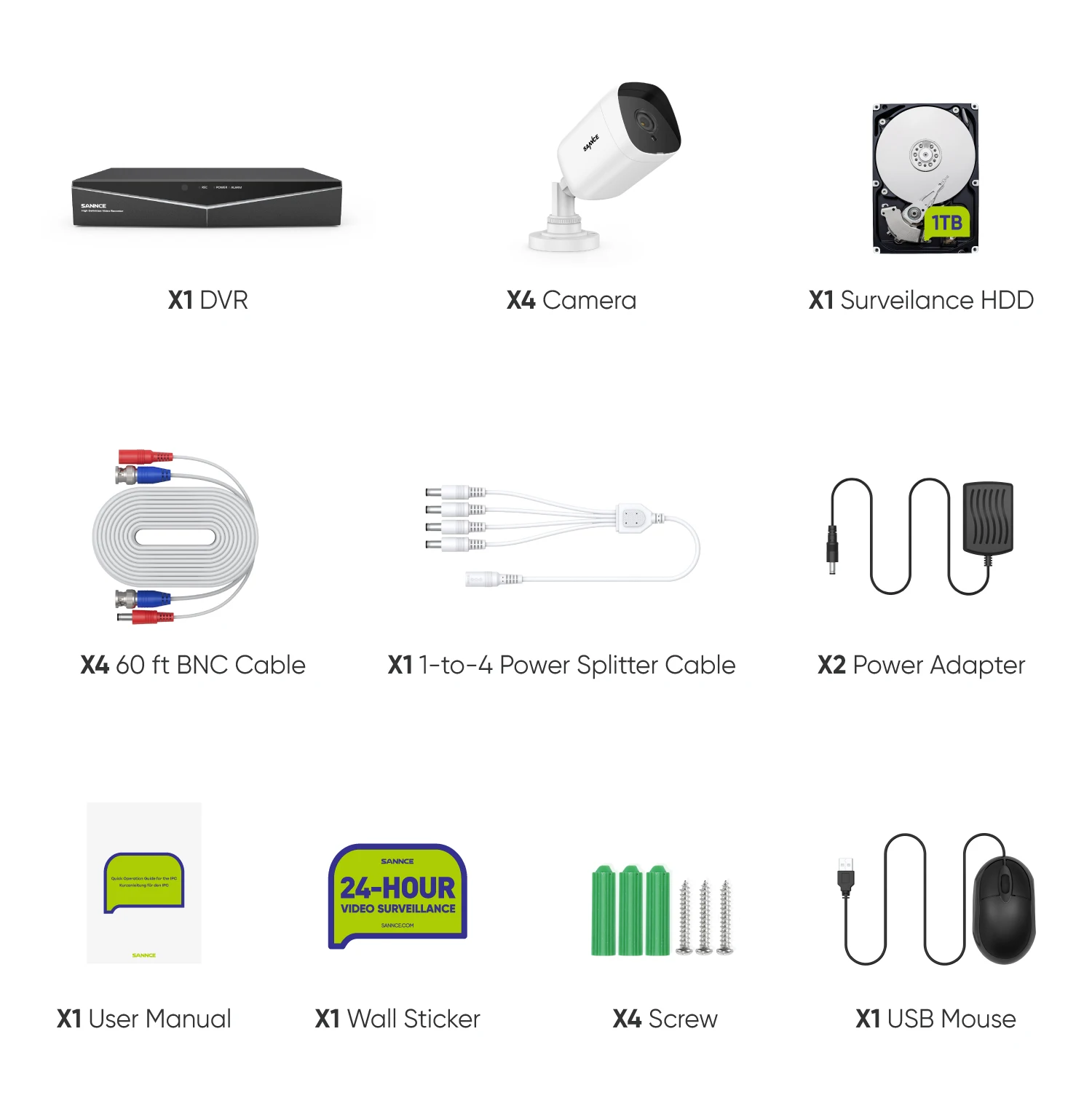

4 PCS KIT

8 PCS KIT

DVR

Video & Audio

• Codec: H.264+
• Video Input: 8*BNC
• HDMI Output: 1*HDMI (MAX:1080P)
• VGA Output: 1*VGA (MAX:1080P)
• Audio I/O: 2/1
• Encode: 8*5MN@15fps
• Decode: 4*5MN@15fps
• Multi-mode:
  • Analog: 8*5MN@15fps
  • Hybrid: 85MN@15fps (analog) + 41080P
  • IP: 161080P; 165MP
• Playback: 4CH (Analog mode)
• Compression: G.711a
• Intercom: Support

Hard Drive

• HDD: 1*SATA interface
• HDD Capacity: Up to 8TB Capacity

Management

• Record Mode: Manual > Motion Detection > Schedule
• Inquire Mode: Inquire by Time/Calendar/Event/Channel
• Storage Mode: SATA HDD
• Backup: Network, USB Storage

External Interface

• Ethernet Port: 1*10/100Mbps Ethernet port, RJ45 port
• Alarm I/O: 0/0
• PTZ Control: 1*RS485, Support for multiple PTZ protocols
• USB Port: 2*USB2.0 ports

General

• Power Supply: 12V/2A
• Consumption: <10W (Without HDD)
• Temperature: 0℃- + 55℃
• Humidity: 10% – 90% RH
• Dimension: 255(L)* 236mm(W)* 44mm(H)
• Weight: Around 1KG

Camera:

• Video Resolution: HD 5MP
• Signal System: PAL/NTSC
• Image Sensor: Progressive Scan CMOS
• Lens: 3.6mm
• Min. Illumination: 0.02Lux@(F1.2 AGC ON), 0Lux with IR on
• Angle of View: 70°
• Number of Infra-Red LEDs: 12
• Night Vision Distance: Up to 100ft/30m
• DNR: DNR
• Wide Dynamic Range: Digital WDR
• IR Cut Filter: Yes
• Audio Output: Built-in MIC, audio transmission by coaxial BNC video cable
• Video Output: HD BNCx1
• Housing: Plastic
• Color: White
• Operating Power: DC12V
• Operating Temperature: -40°F – 140°F / -40°C – 60°C
• Indoor/Outdoor: Indoor/Outdoor
• Weatherproof Rating: IP66
• Dimension (L x W x H): 6.49” x2.36” x 2.36” / 165 x 60 x 60mm
• Weight: 0.33lbs / 150g
