4K Dual Lens 180° Panoramic POE CCTV Camera Outdoor

Description

4K Dual Lens 180° Panoramic POE CCTV Camera Outdoor

I15DX:

Key features:

• • 6 MP Panoramic 180° Fixed Turret Network Camera
  • One image that presents all the scenes covered by the camera
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Audio alarm to warn intruders off
  • White light up to 20 m, IR light up to 30m
  • Water and dust resistant (IP66)
  • Support 256 GB TF storage space
  • Two-way audio

I51DW:

Key features:

• • 6 MP Panoramic 180° Fixed Bullet Network Camera
  • One image that presents all the scenes covered by the camera
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Audio alarm to warn intruders off
  • White light up to 20 m, IR light up to 30m
  • Water and dust resistant (IP66)
  • Support 256 GB TF storage space
  • Two-way audio

I91DX:

Key features:

• • 4K Panoramic 180° Fixed Bullet Network Camera
  • One image that presents all the scenes covered by the camera
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Audio alarm to warn intruders off
  • White light up to 20 m, IR light up to 30m
  • Water and dust resistant (IP66)
  • Support 256 GB TF storage space
  • Two-way audio

I91DW:

Key features:

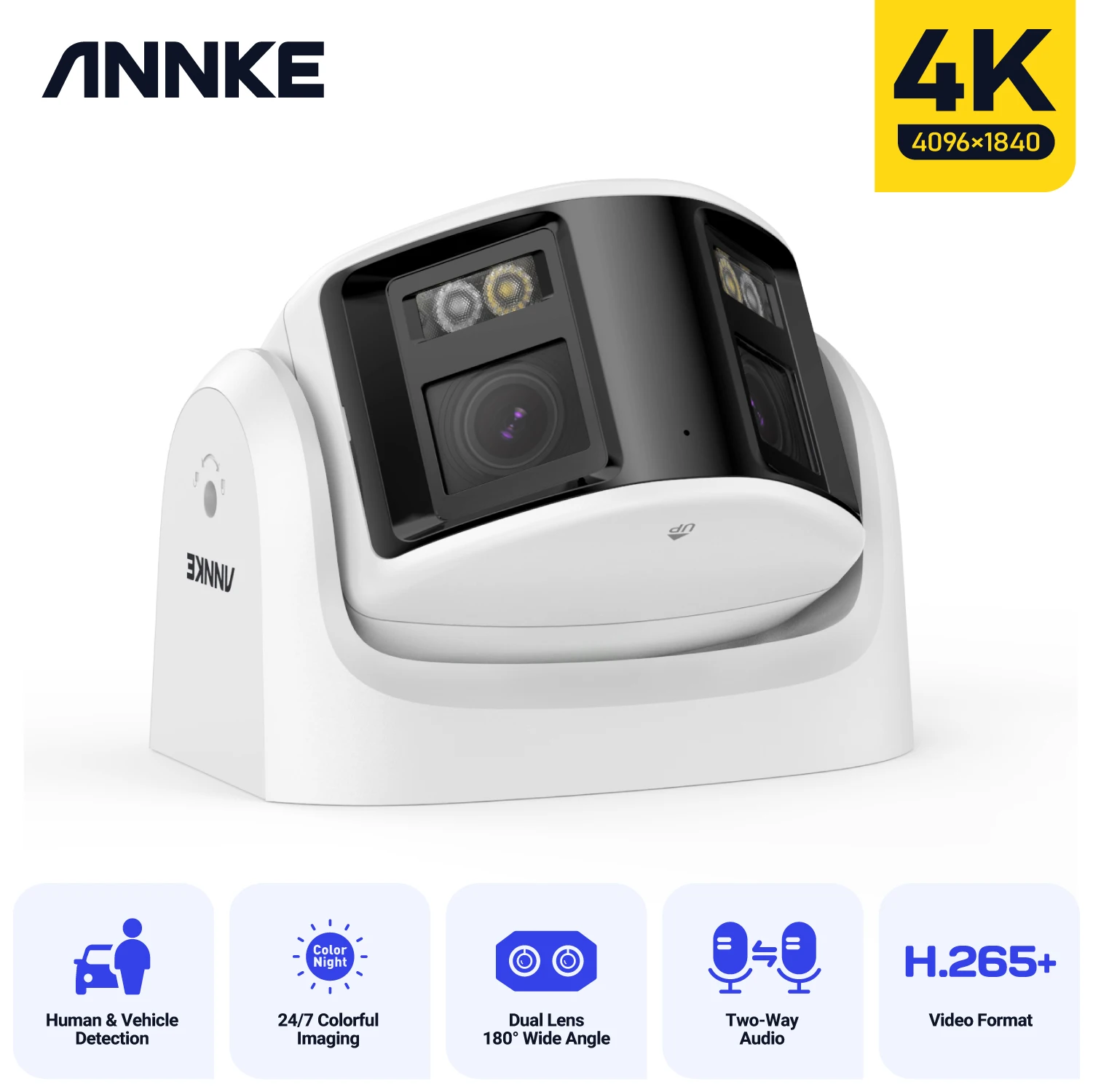

• • 4K Panoramic 180° Fixed Turret Network Camera
  • One image that presents all the scenes covered by the camera
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Audio alarm to warn intruders off
  • White light up to 20 m, IR light up to 30m
  • Water and dust resistant (IP66)
  • Support 256 GB TF storage space
  • Two-way audio

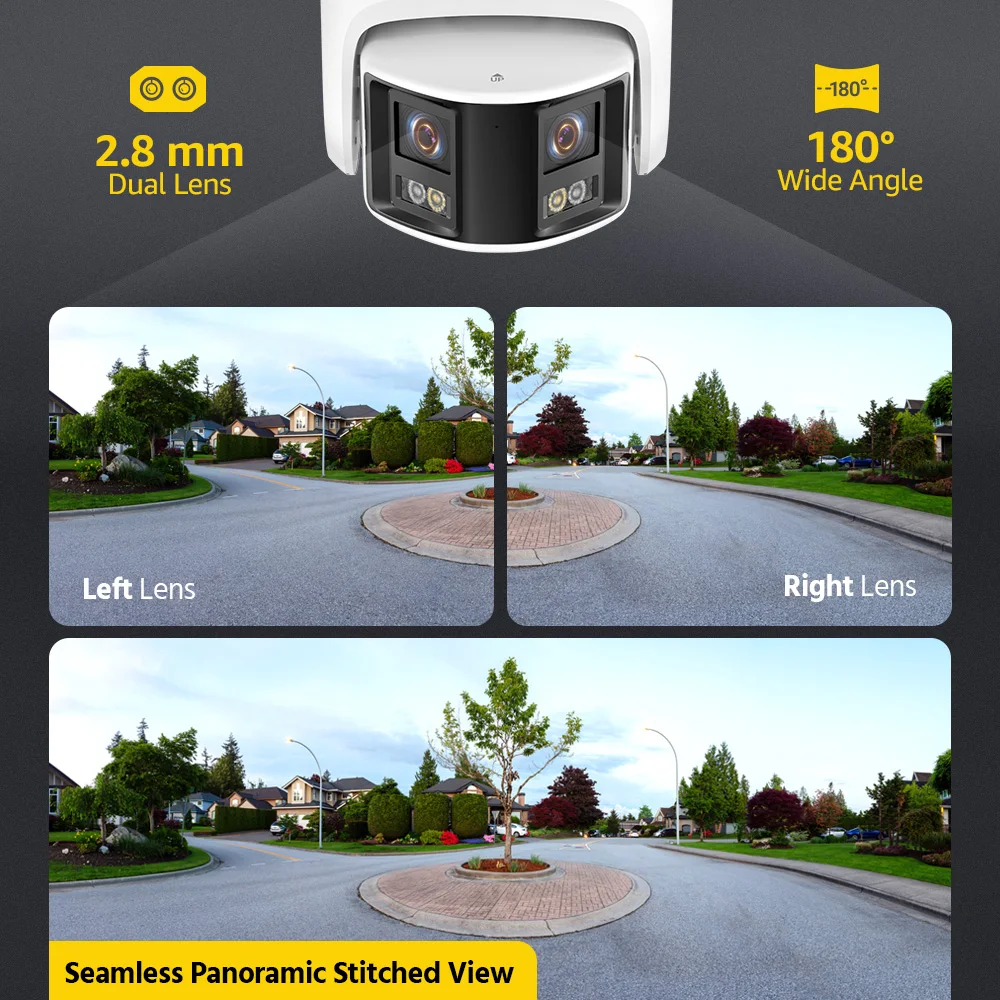

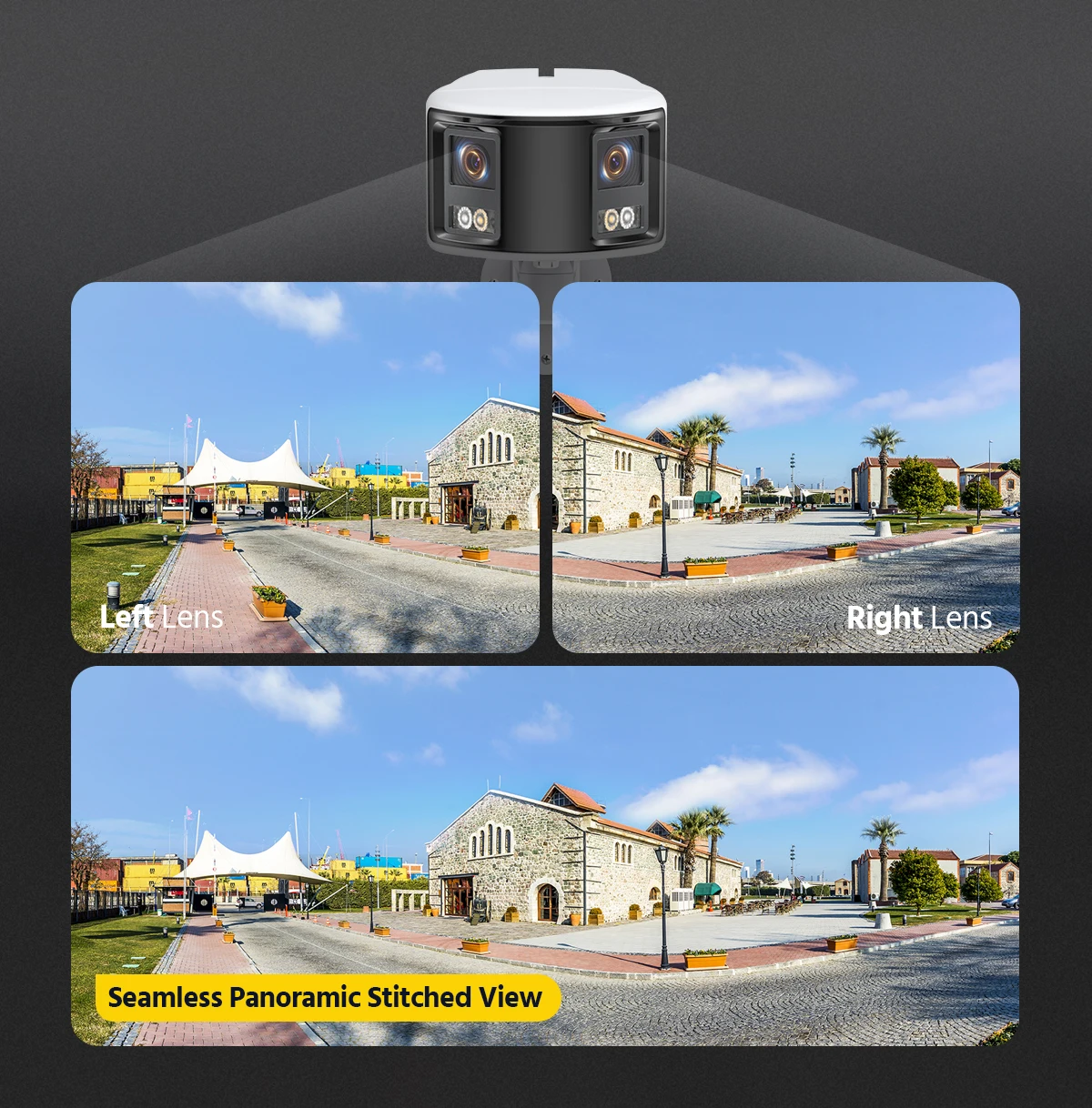

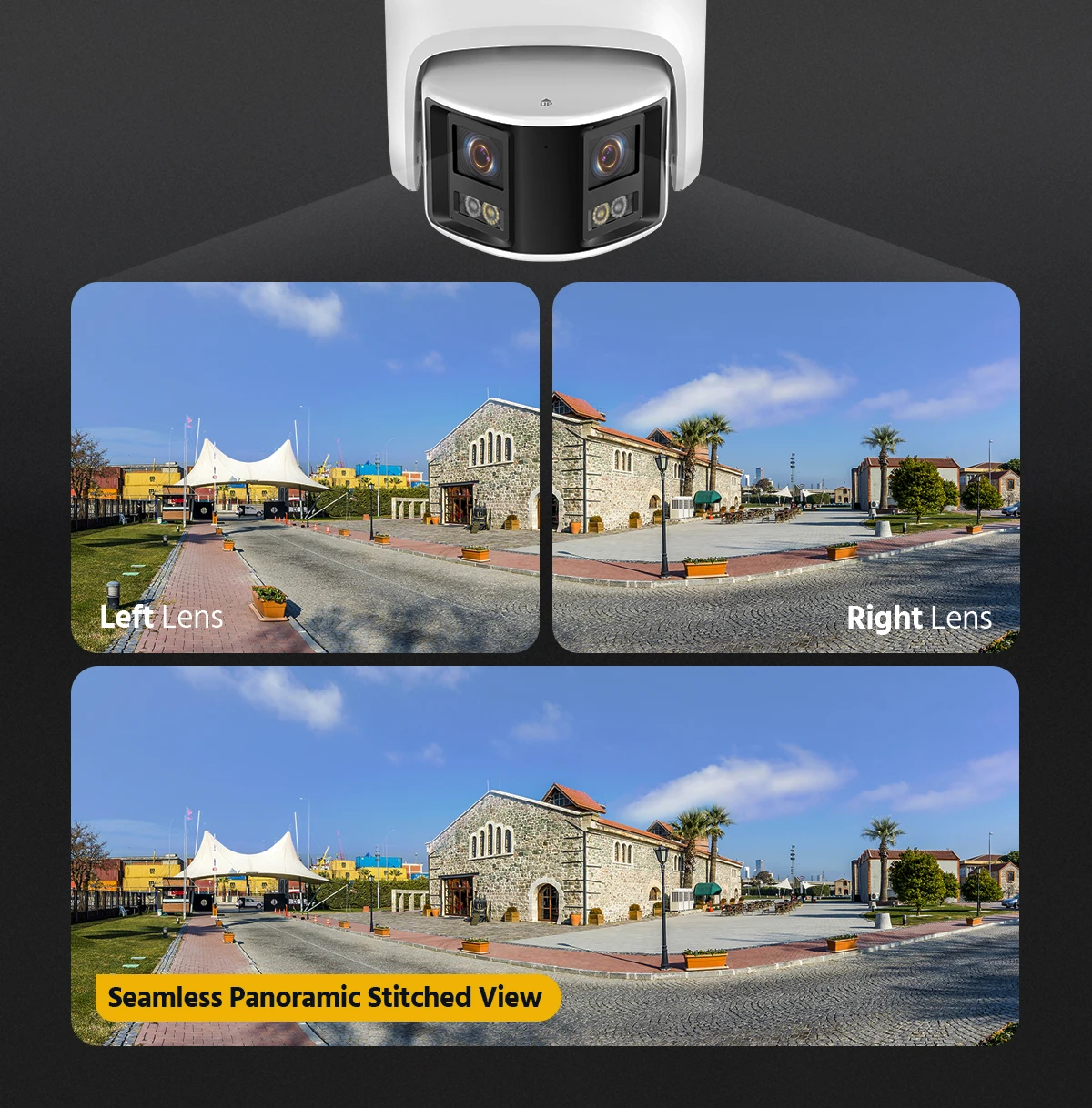

Dual-lens splicing with an ultra-wide viewing angle of 180° and a screen ratio of 20:9 provides ultra-large field of view monitoring with no blind spots. Advanced distortion correction technology pixel-level matching reduces blind spots. Image fusion technology maintains a high degree of consistency in the brightness and color matching of images for a perfect display. Spliced images.

I51DW

I91DX:

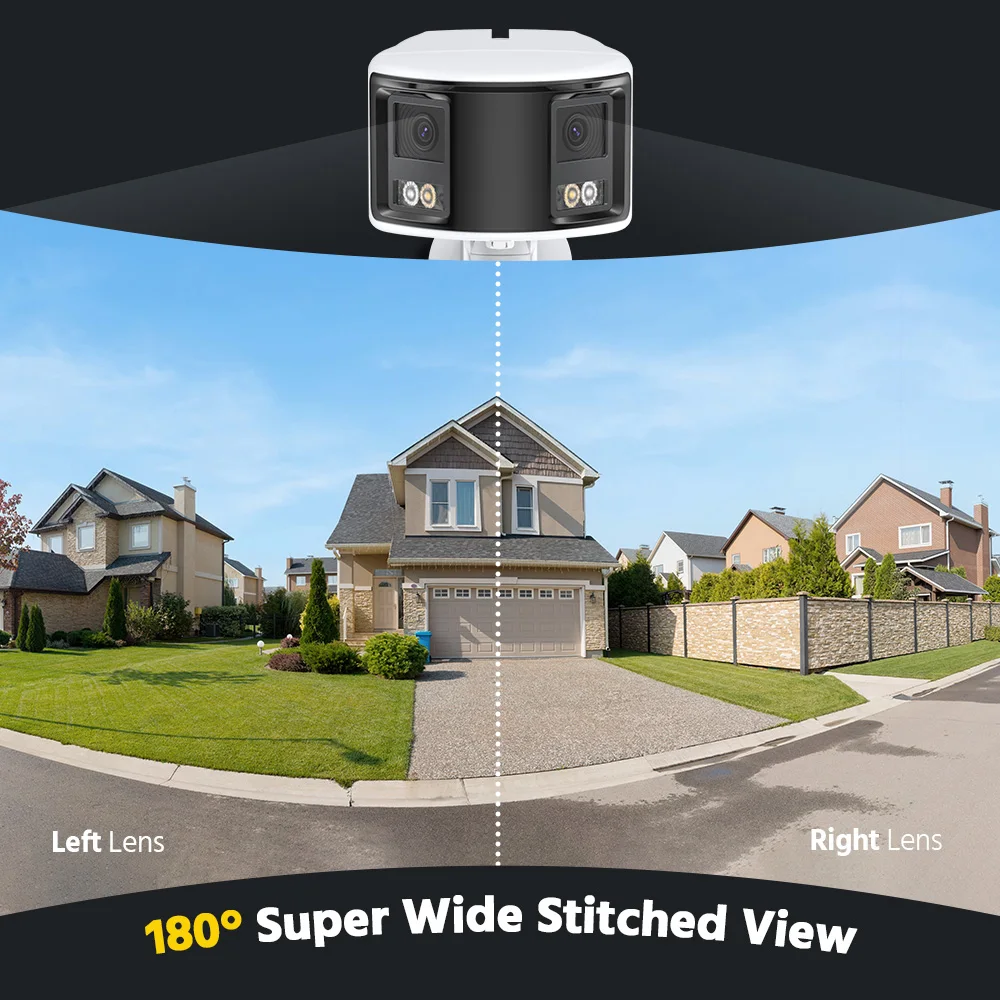

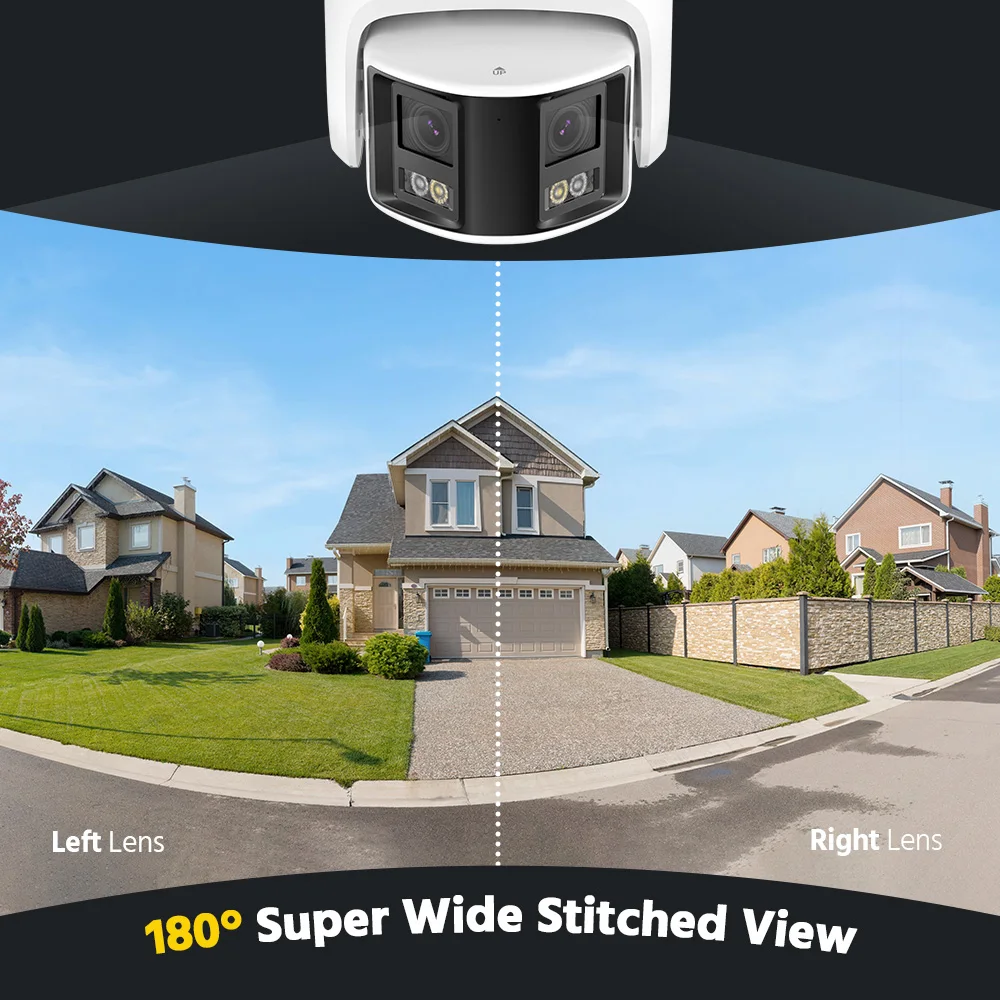

Dual-lens splicing with an ultra-wide viewing angle of 180° and a screen ratio of 20:9 ensures super-wide field of view monitoring without blind spots.

Motion 2.0, human and vehicle detection, deep learning, accuracy 99%,

Supports intelligent detection: line crossing, area intrusion, entering area, leaving area, etc…

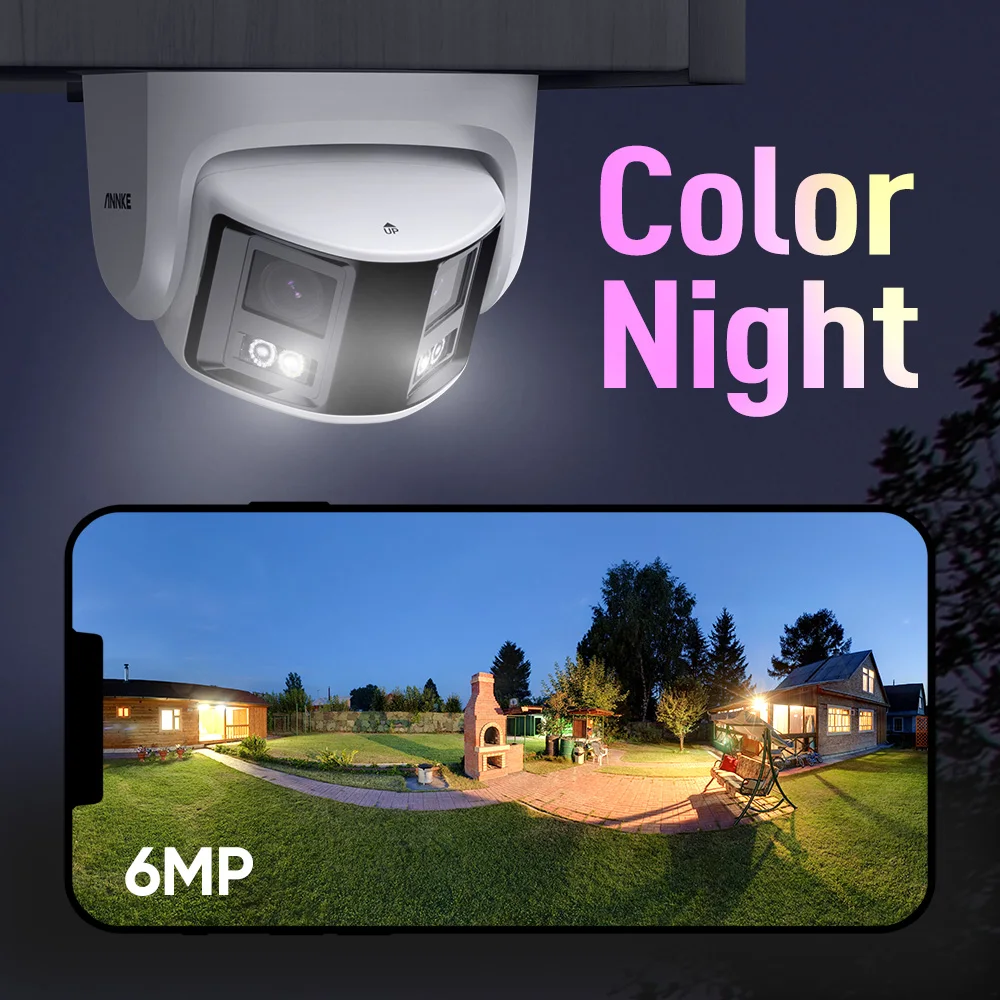

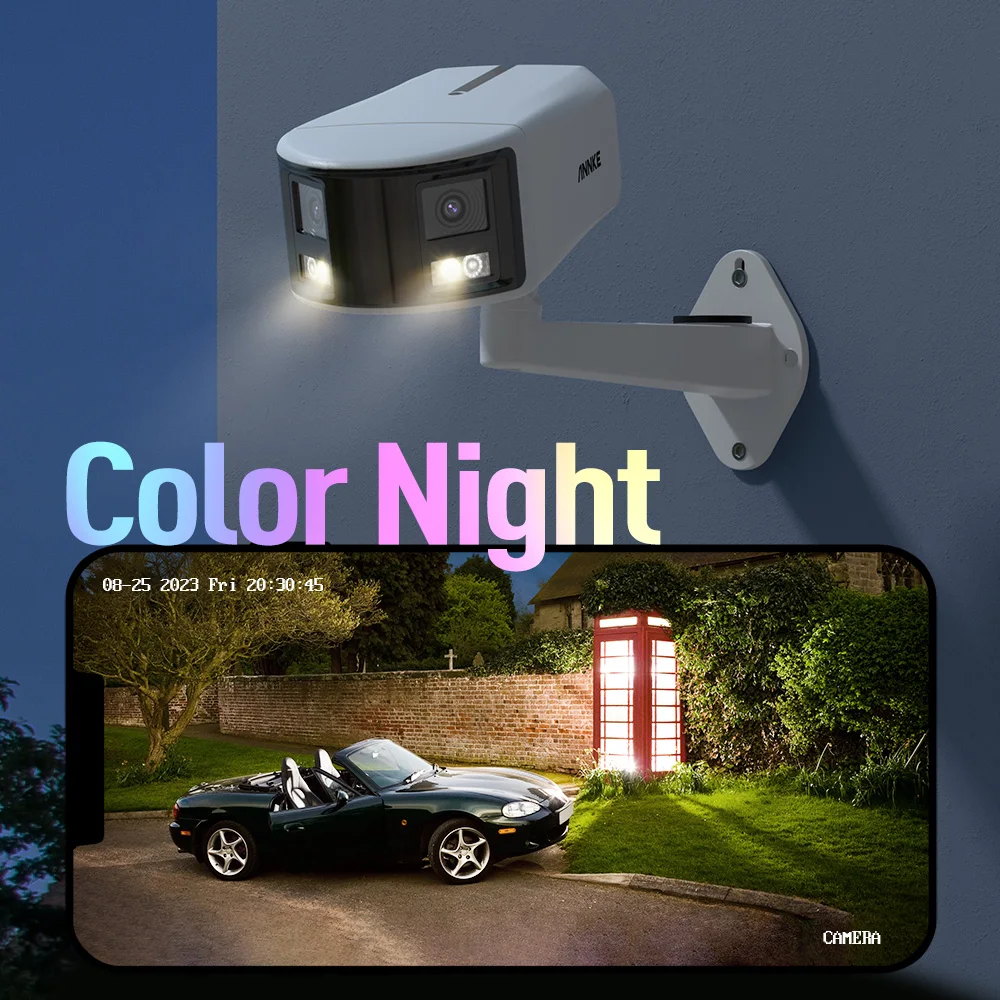

White light full color camera, night vision full color.

Two light modes are available: white light fill light, color night vision at night, fill light 20 meters default mode, you can also choose infrared fill light black and white night vision, fill light 30 meters

Two light modes are available: white light fill light, color night vision at night, fill light 20 meters default mode, you can also choose infrared fill light black and white night vision, fill light 30 meters

I91DW:

IP Camera Specifications

Camera

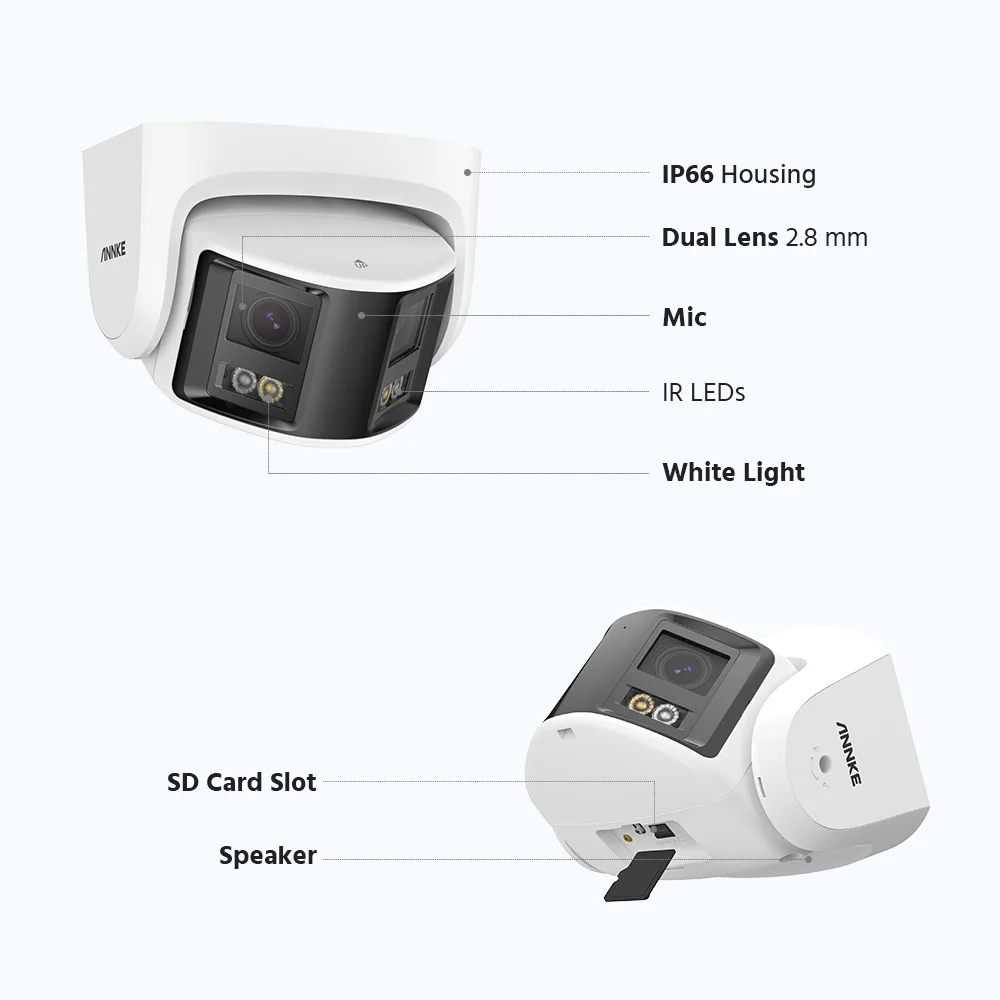

• • • Image Sensor: 2×1/2.5″ Progressive Scan CMOS
    • Main Stream: 50 Hz/60 Hz: 20 fps (3632 × 1632)
    • Sub Stream: 50 Hz/60 Hz: 20 fps (1200 × 536, 960 × 432)
    • Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub Stream: H.265/H.264/MJPEG
    • Video Bit Rate: 32 Kbps to 16 Mbps
    • Built-in Microphone: Yes, supports environmental noise filtering
    • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
    • Built-in Speaker: Yes, maximum sound pressure: 10 cm: 95 dB
    • Lens: Dual lens, 2.8 mm
    • Minimum Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
    • Angle of View: Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10°
    • Supplement Light: White light + IR, Range: White light up to 20 m, IR light up to 30m
    • Image Parameters Switch: Yes
    • Image Enhancement: BLC, HLC, 3D DNR
    • Wide Dynamic Range: 120dB WDR
    • Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, 802.1x, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, Onvif
    • Basic Event: Motion detection (supports human and vehicle detection), video tampering
    • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (supports human and vehicle detection)
    • Audio Alarm: Supports (Parameters adjustable, supports custom audio, can be triggered from APP)

General

• • • Housing: Plastic/Metal&Plastic, White color
    • Operating Power: PoE (802.3af), 12 VDC ± 25%, Ø 5.5 mm coaxial power plug
    • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB, supports NAS, NVR
    • DC12V Output: DC12 V, 100 mA output
    • Audio Input/Output: 1 input (line in), 1 output (line out)
    • Alarm Input/Output: 1 input, 1 output (max. 24 VDC, 1 A)
    • Hardware Reset: Yes
    • Operating Temperature: -22 °F – 140 °F /-30 °C – 60 °C
    • Indoor/Outdoor: Indoor/Outdoor
    • Weatherproof Rating: IP66
    • Dimensions (L x W x H): Various based on model
    • Weight: Approx. 600 g (1.32 lb.)

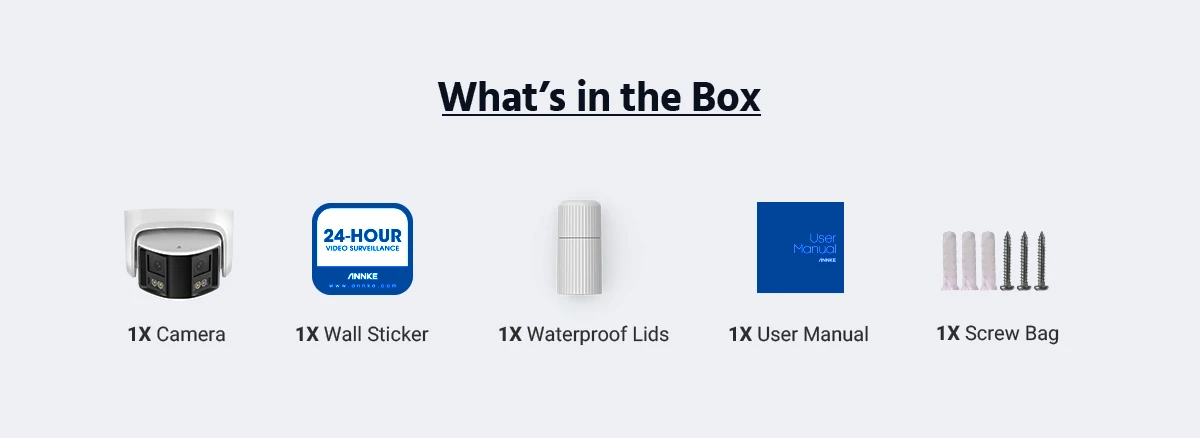

Packaging Contents

• • • IP Camera: 1
    • Metal Bracket: 1
    • Surveillance Sign: 1
    • 1m Network Cable: 1
    • Waterproof Connector: 1
    • Mounting Screws Bag: 1
    • User’s Manual For Camera: 1
