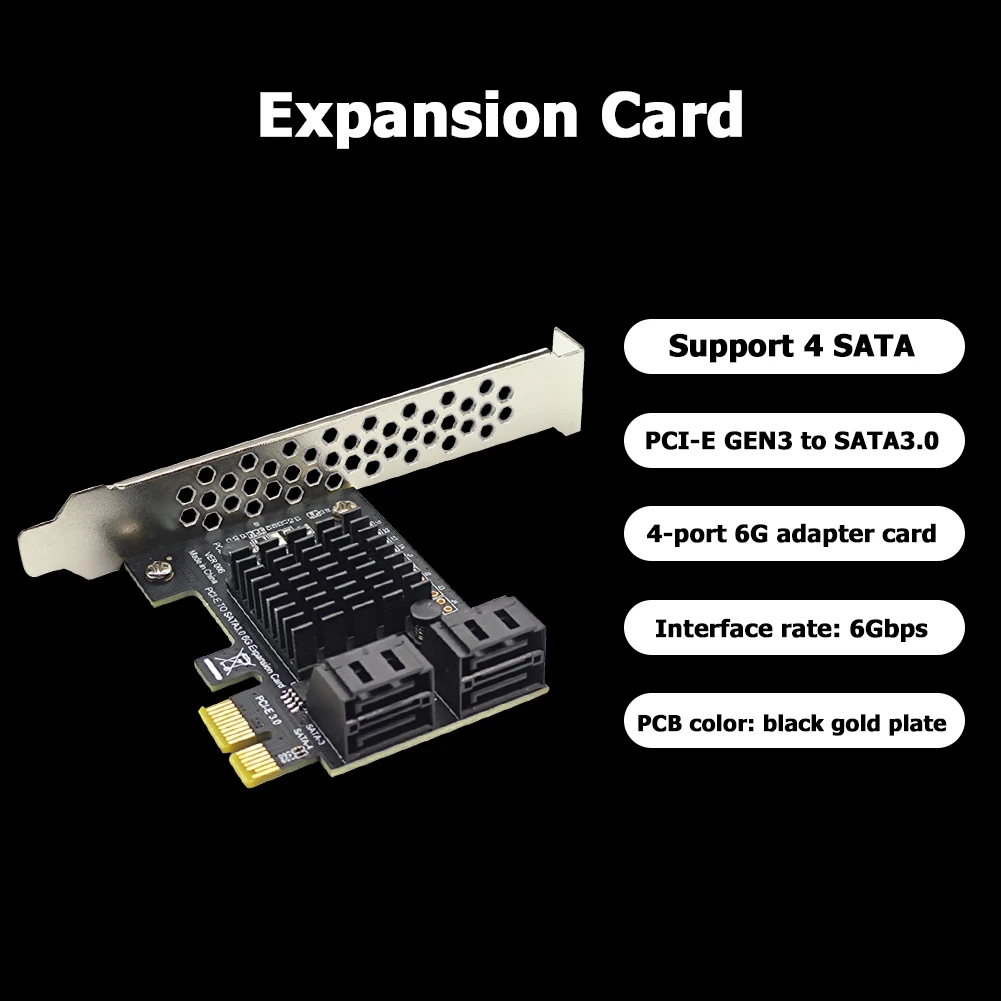

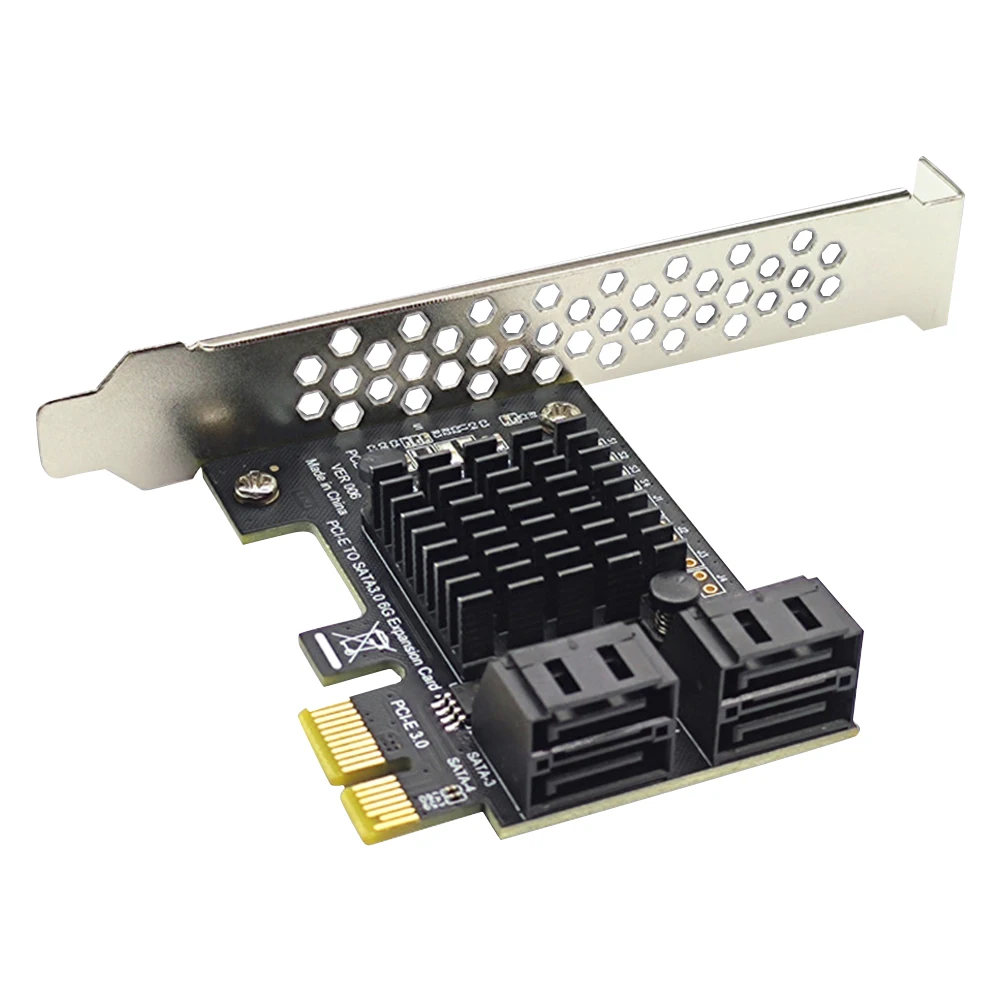

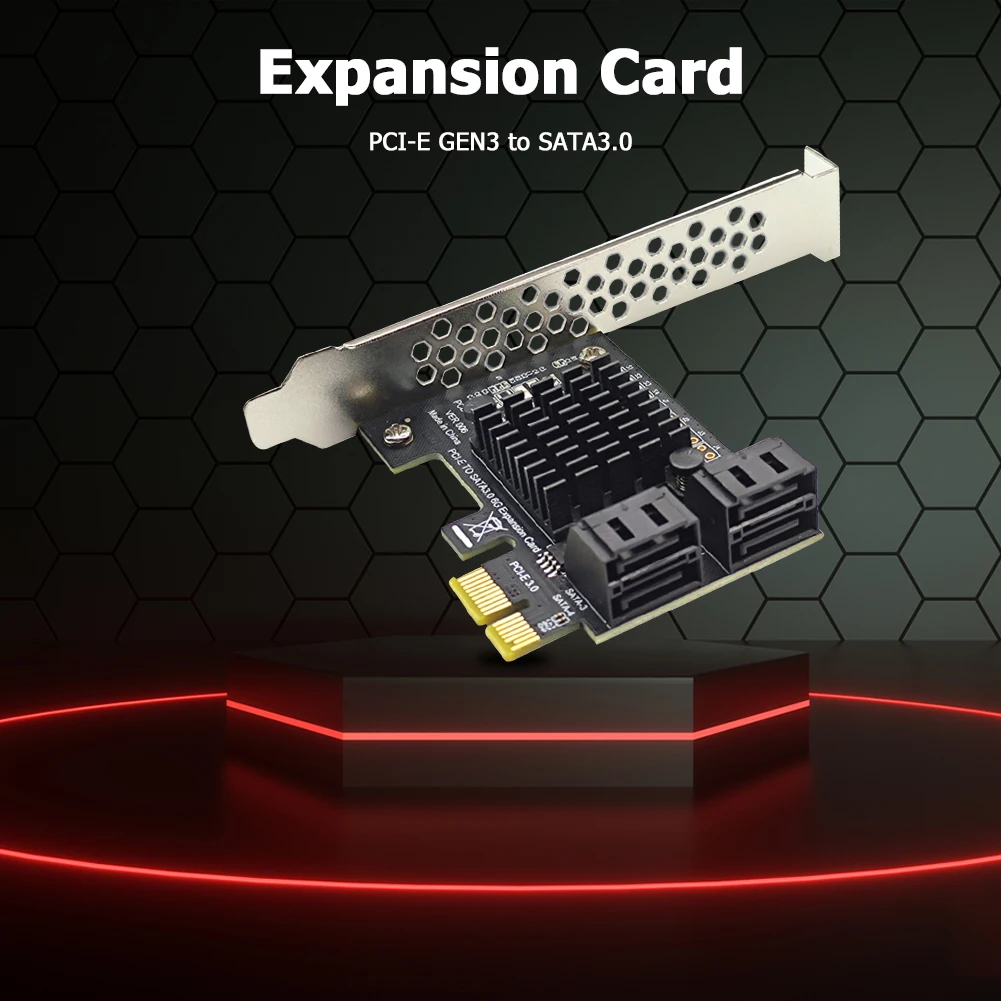

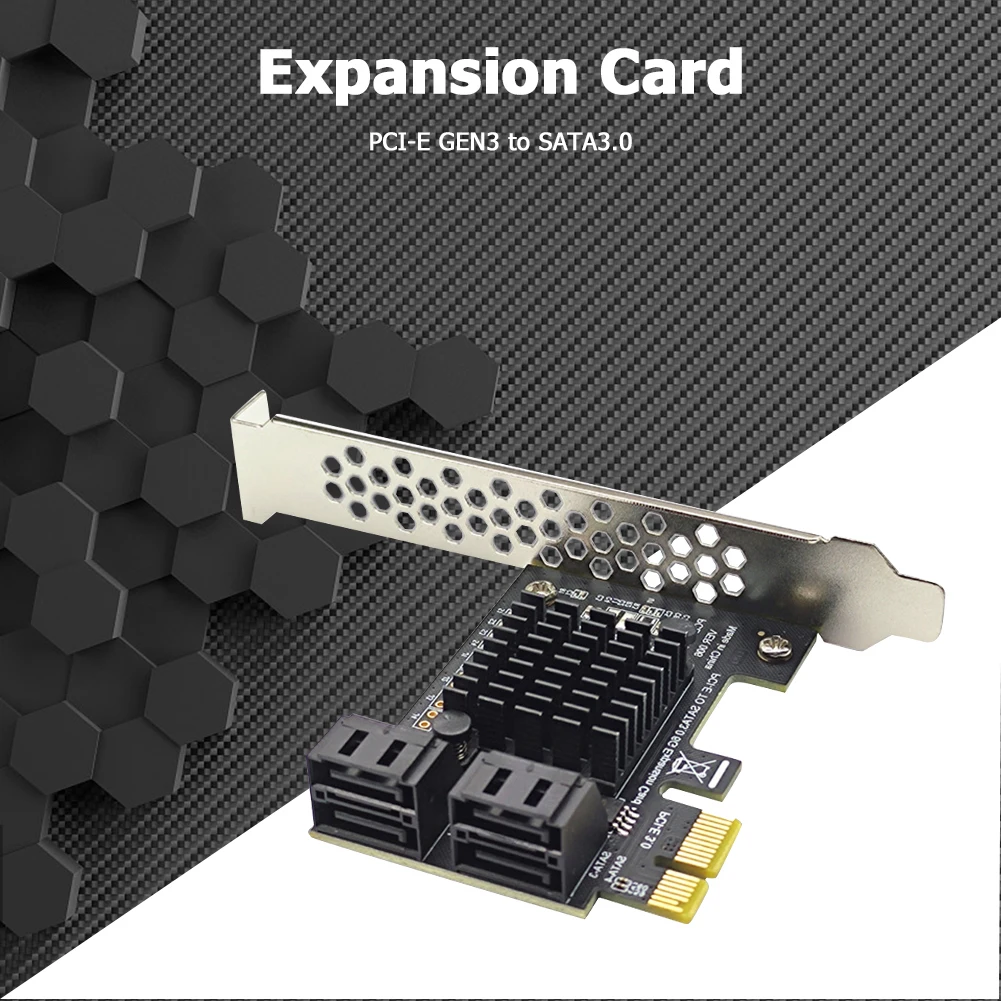

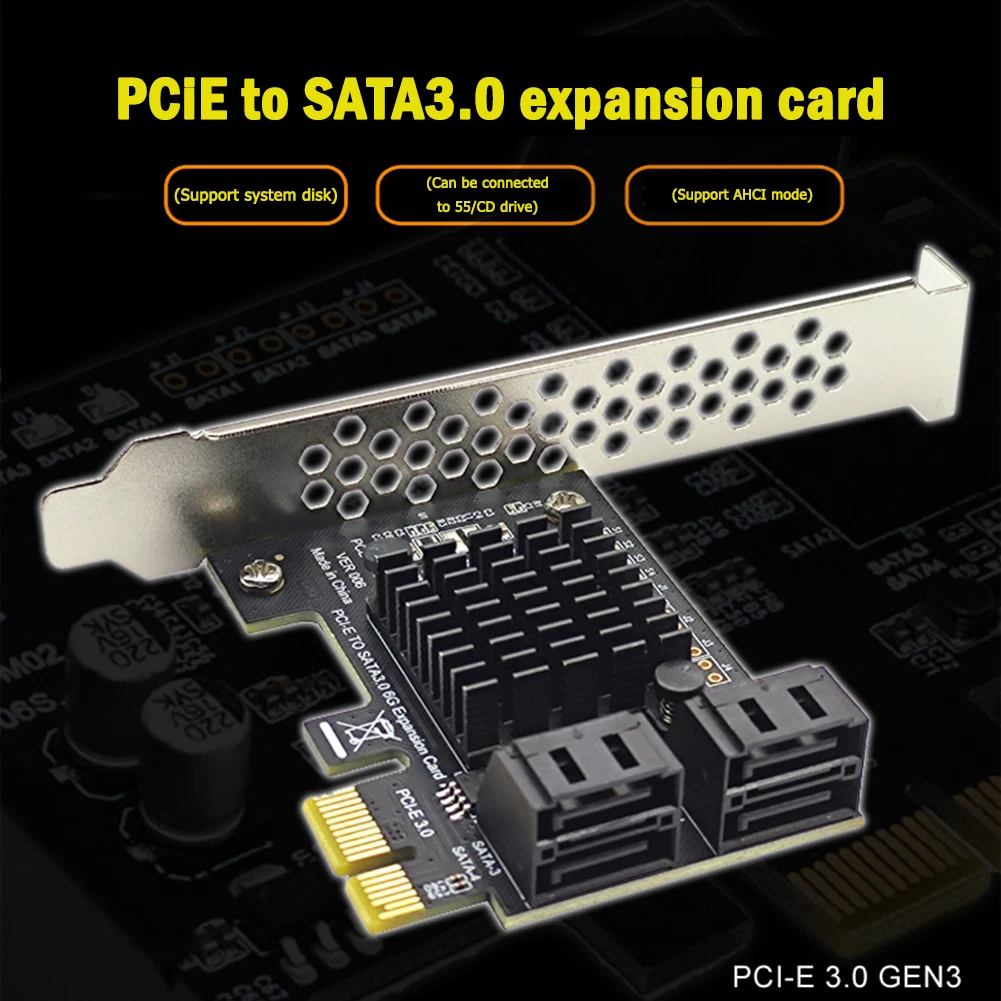

4-Port SATA III PCIe 6 Gbps Expansion Card

4-Port SATA III PCIe 6Gbps Expansion Card

Feature:

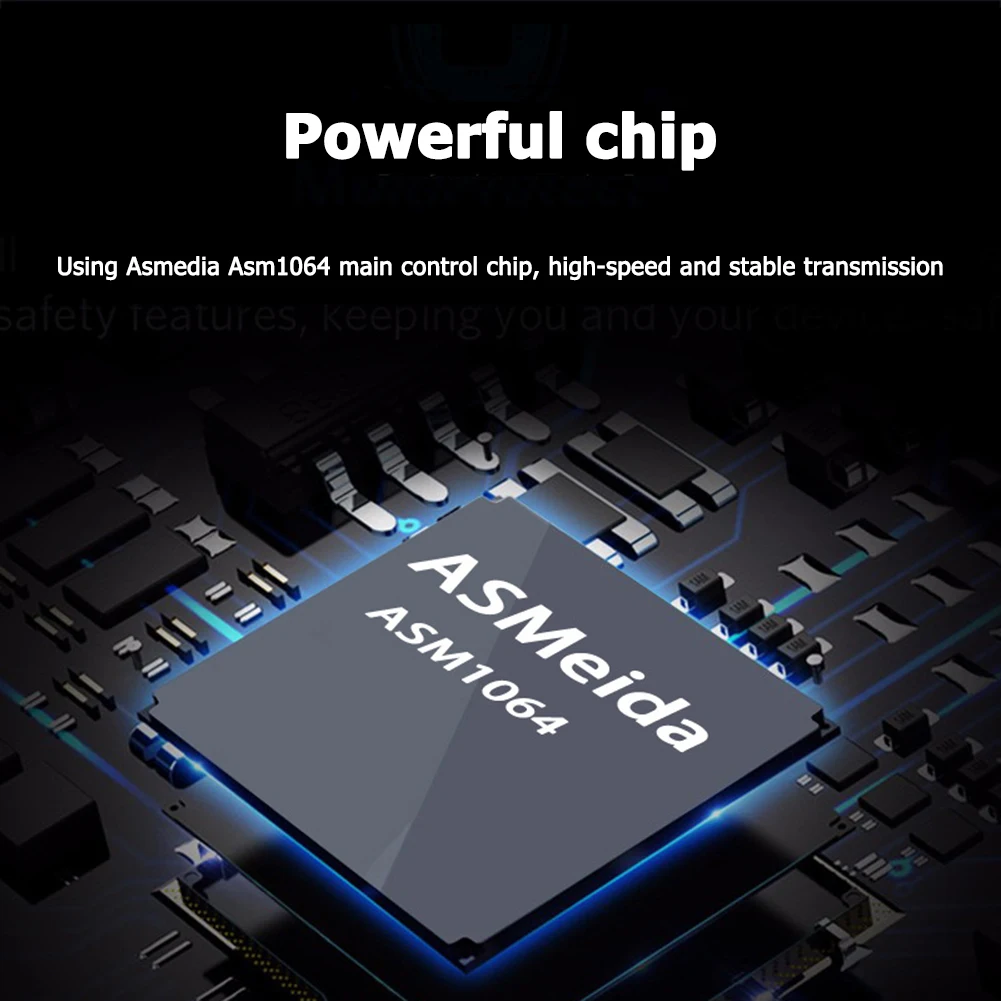

• Uses the ASM1064 main control chip for fast and stable transmission.

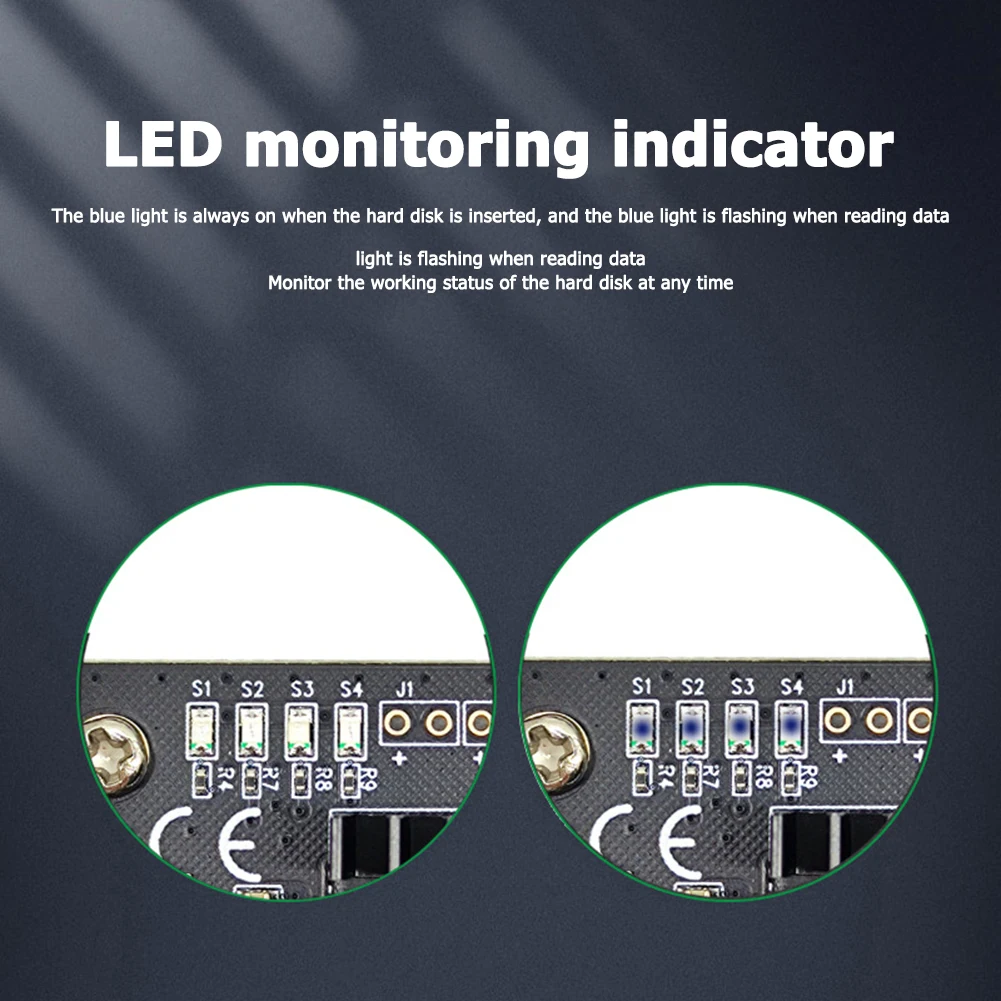

• LED indicator: solid blue when a hard drive is connected; flashes blue during data access, allowing real-time monitoring of hard drive status.
• Supports hot swap; compatible with SATA 6G, 3G, and 1.5G hard drives.
• Complies with Serial ATA 3.0 specification and is backward compatible with SATA 2.0 and 1.0.
• Complies with PCI Express V3.0 specification and is backward compatible with PCI Express V2.0 and V1.0.

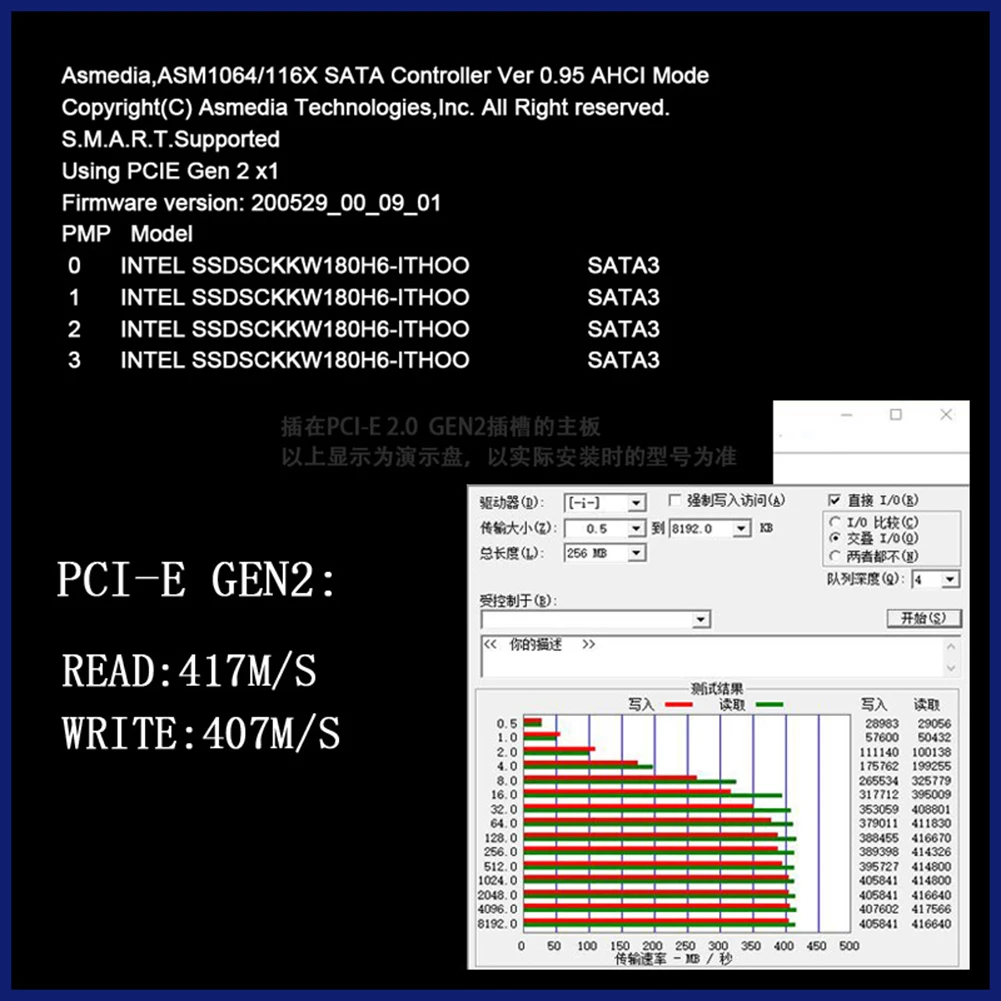

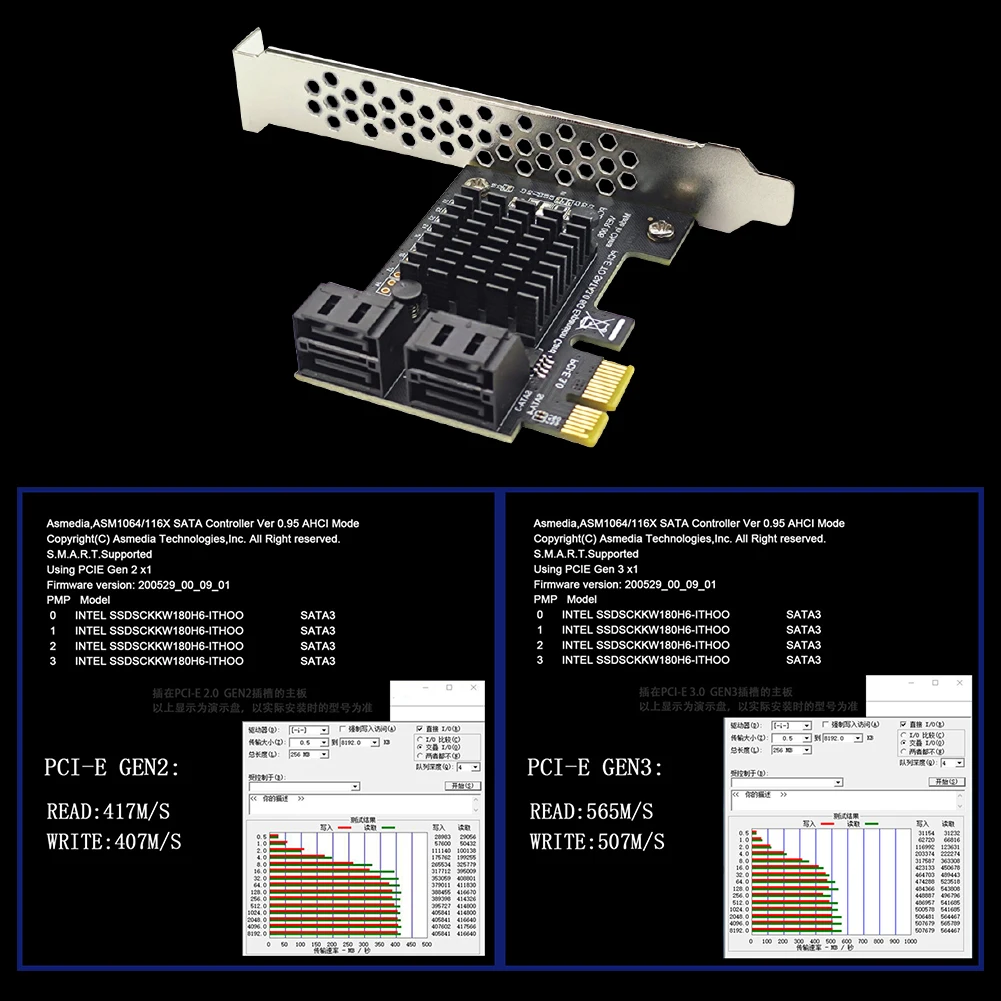

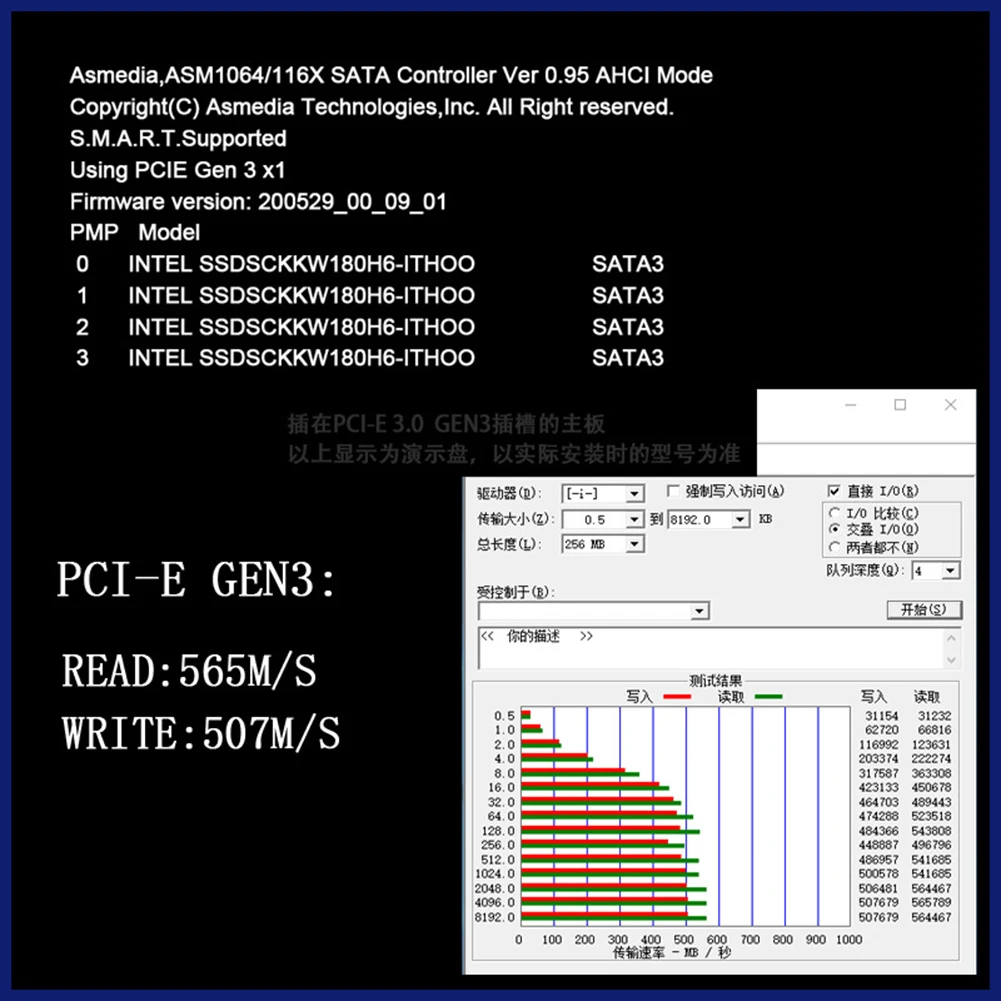

• Supports data transmission speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
• Compatible with Gen 1I, Gen 1X, Gen 2I, Gen 2M, Gen 2X, and Gen 3I.
• Supports 4 SATA connections.
• Supports AHCI 1.0 mode.
• Supports Native Command Queue (NCQ).
• Supports FIS switching or command switching based on the port multiplier.
• Bus interface: PCI Express X1 slot.
• Expansion interface: 4 SATA 3.0 ports.

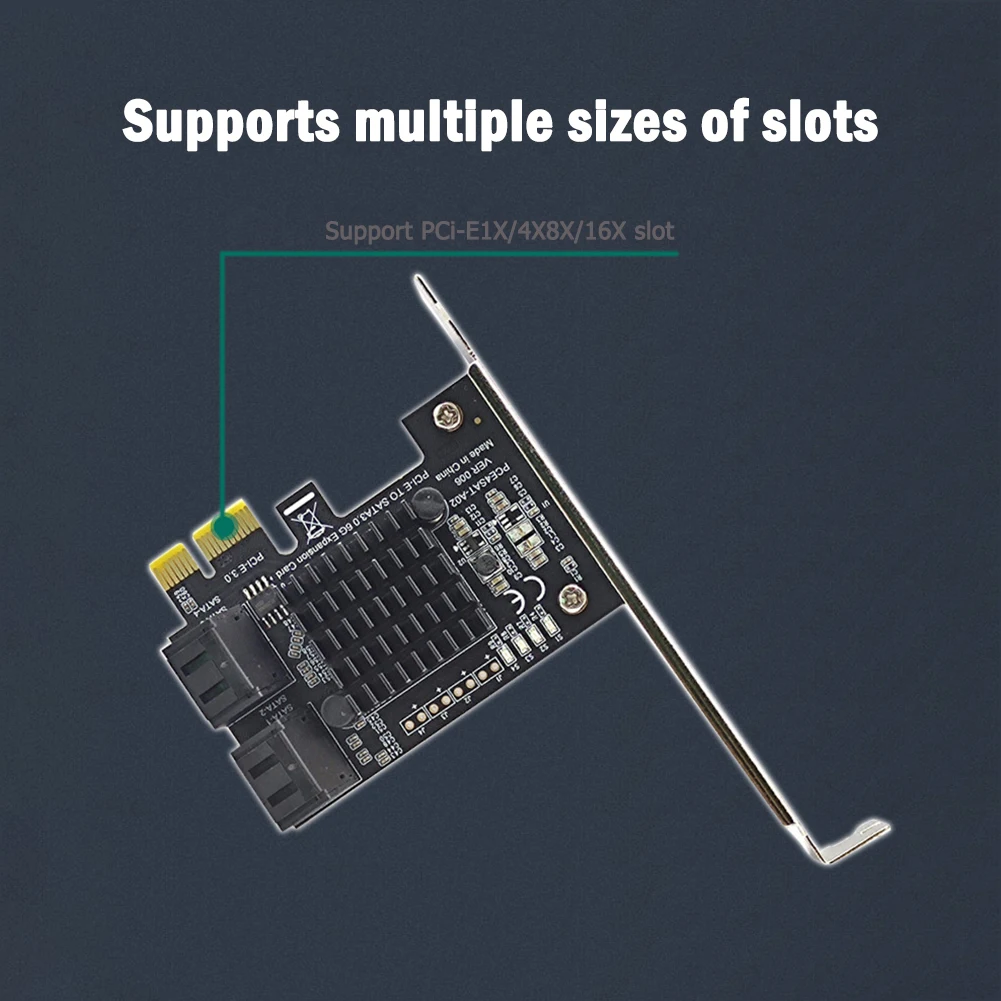

• System requirements: Requires one available PCI Express X1 slot. Also compatible with PCI-E X2, X4, X8, and X16 slots.

Specification:

• Interface: PCI-e 1x (compatible with 1X, 4X, 8X, 16X)

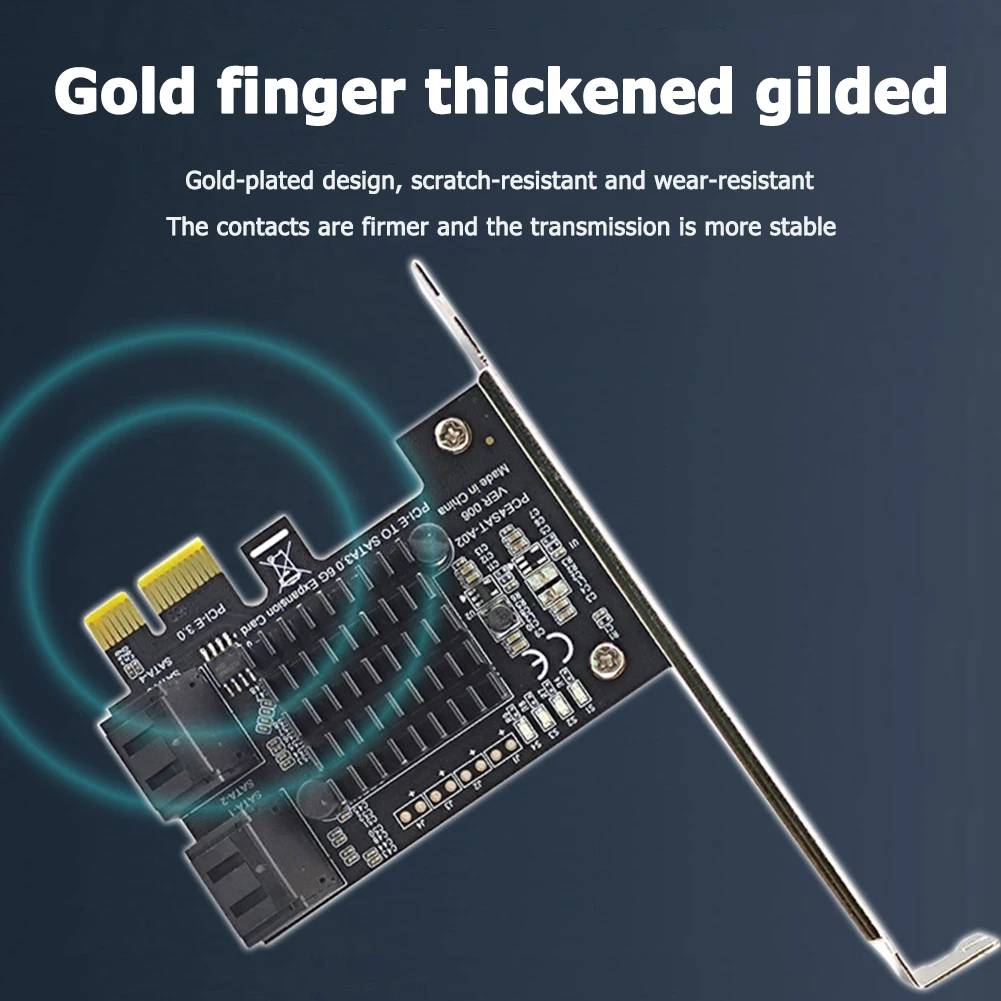

• PCB color: Black with gold plating
• Interface speed: 6 Gbps
• 2U small chassis support with low-profile bracket
• Main control chip: ASM1064
• System support: Windows 8, Windows 10, Linux

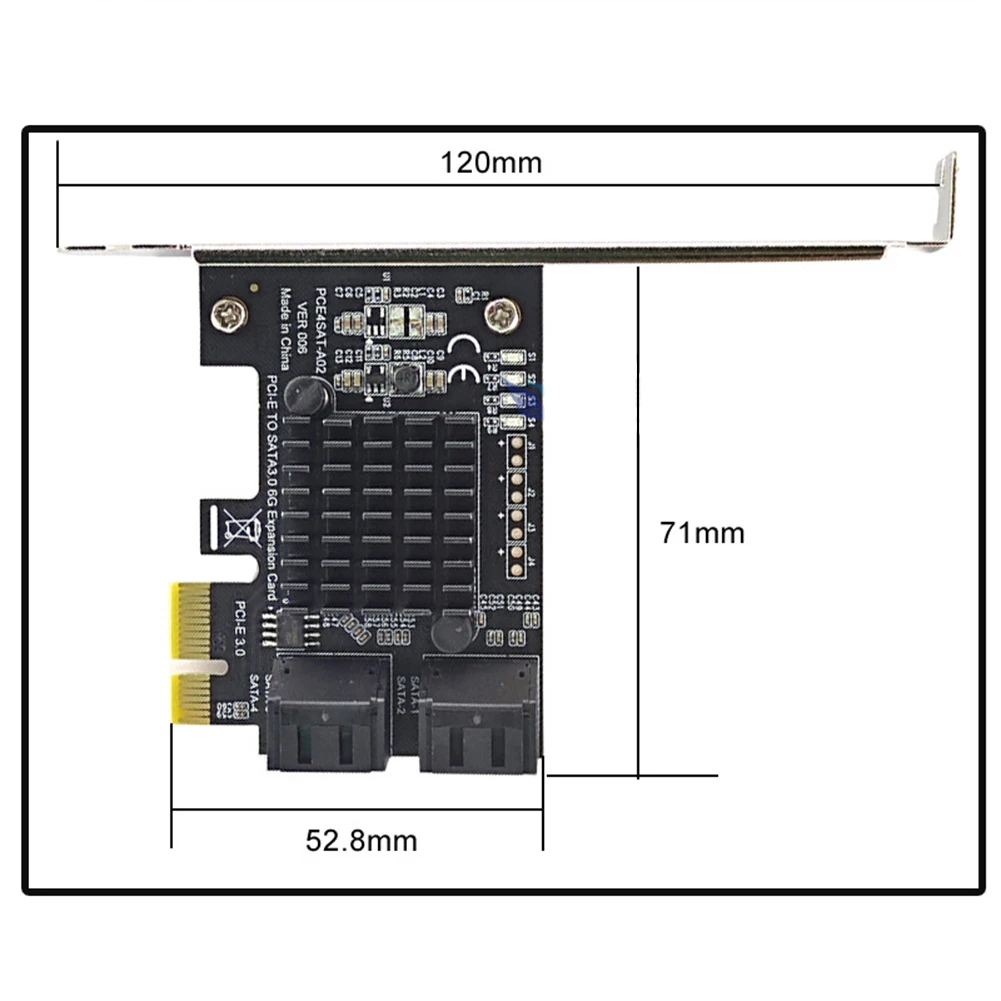

• Product size: 120 × 71 × 53 mm / 4.72 × 2.80 × 2.09 in
• Product weight: 75g
• Package size: 130 × 125 × 26 mm / 5.12 × 4.92 × 1.02 in
• Gross weight: 85g

Note:

• There may be slight size deviations due to manual measurement, different measuring methods, and tools.
• The picture may not reflect the actual color of the item due to lighting, angle, and display differences.

Package Includes:

• 1 x SATA PCIe Card
• 1 x Bracket
