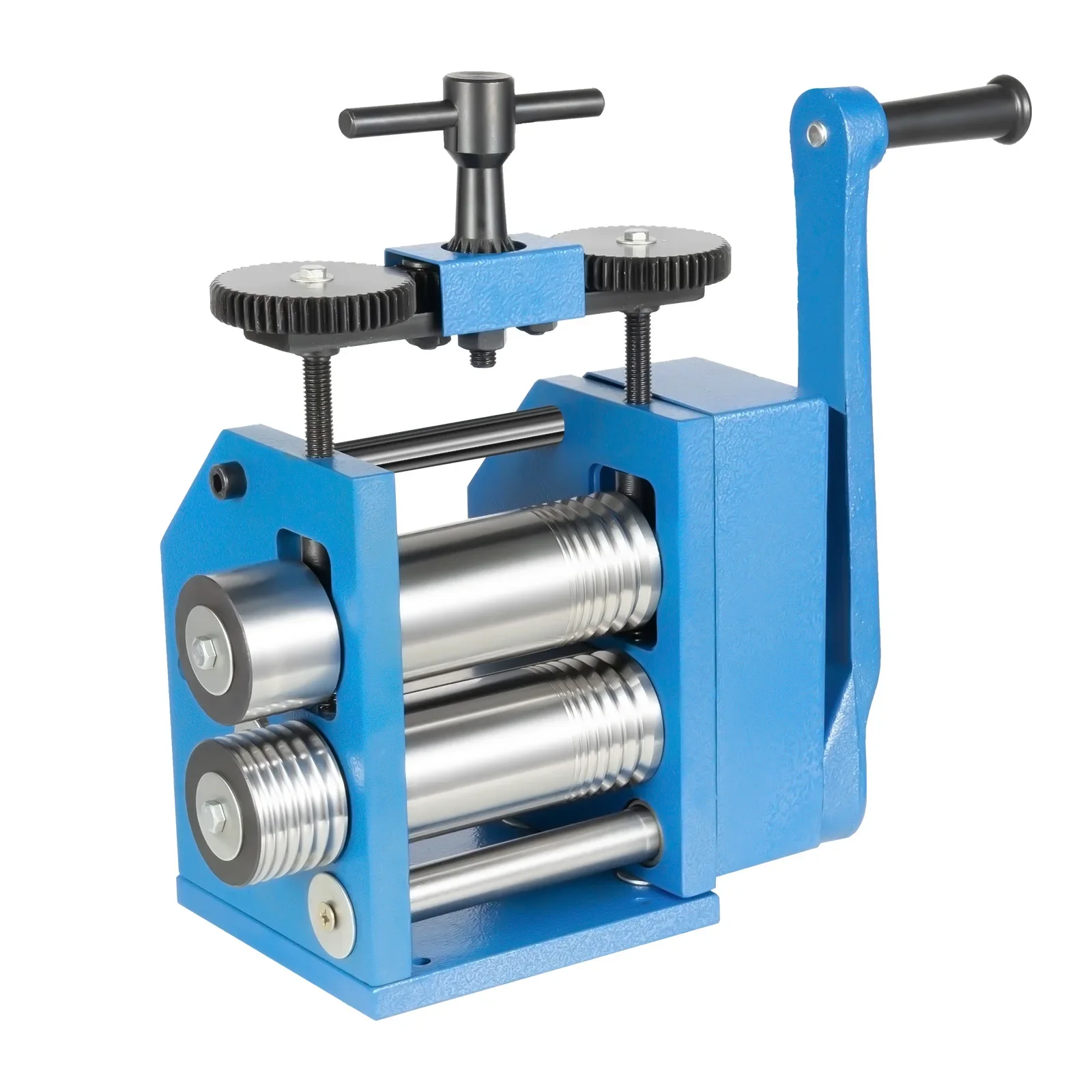

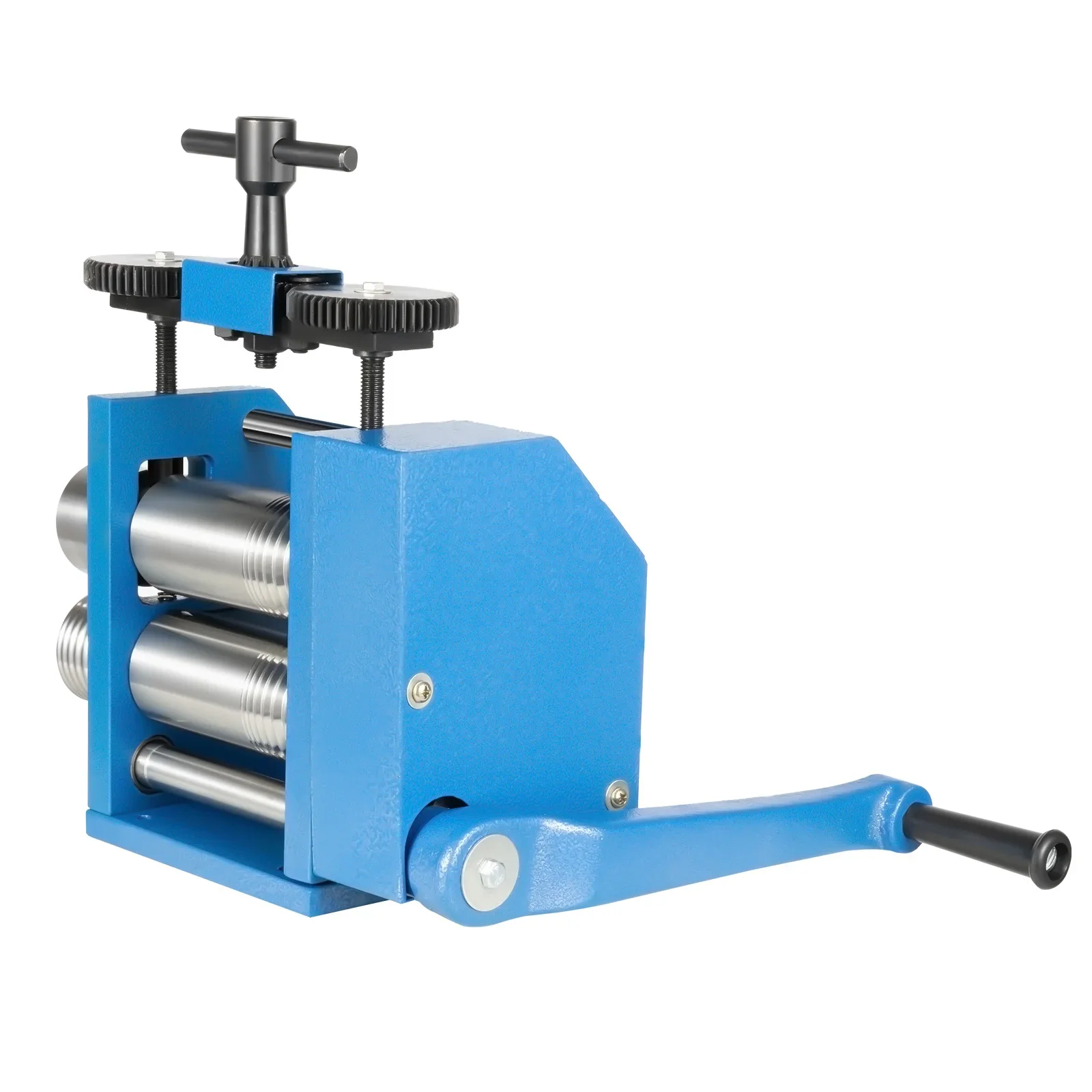

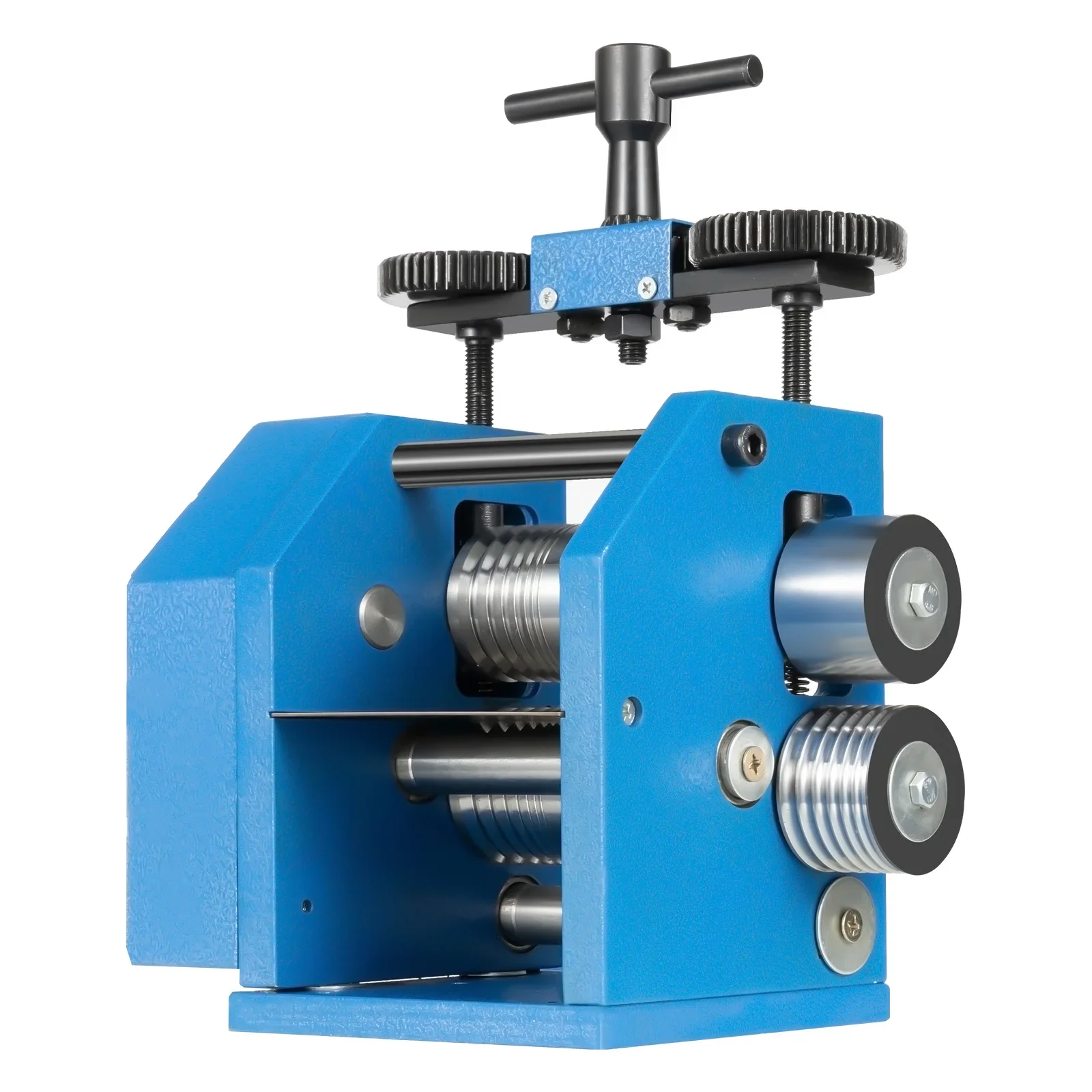

3:1 Gear Jewelry Rolling Mill 72mm Metal Press
Specification
- Color: Blue
- Main material: 40Cr steel, sheet metal, plastic, cast iron
- Treatment: spray paint, hardened heat treatment
- Assembly required: Yes
- Gear ratio: 3:1
- Roller length (sheet): 72 mm / 3 in
- Square grooves length: 35 mm / 1.37 in
- Semicircle grooves length: 33 mm / 1.29 in
- Roller total length: 165 mm / 6.49 in
- Roller diameter: 50 mm / 1.96 in
- Max space between rollers: 9.38 mm / 0.36 in
- Square wire sizes: 1.5 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm
- Semicircle wire sizes: 3 mm, 3.6 mm, 4 mm, 4.5 mm, 5.13 mm, 5.75 mm, 7.7 mm, 9.1 mm, 9.5 mm
- Max sheet width: 72 mm / 3 in
- Hand crank length: 280 mm / 11.02 in
- Gross weight: 18.6 kg / 41 lb
- Net weight: 17.7 kg / 39.02 lb
- Product size: 34 × 14.5 × 28 cm / 13.38 × 5.7 × 11.02 in
- Package size: 35 × 28 × 32 cm / 13.77 × 11.02 × 12.59 in
Package Included
- 1 × jewelry rolling mill machine

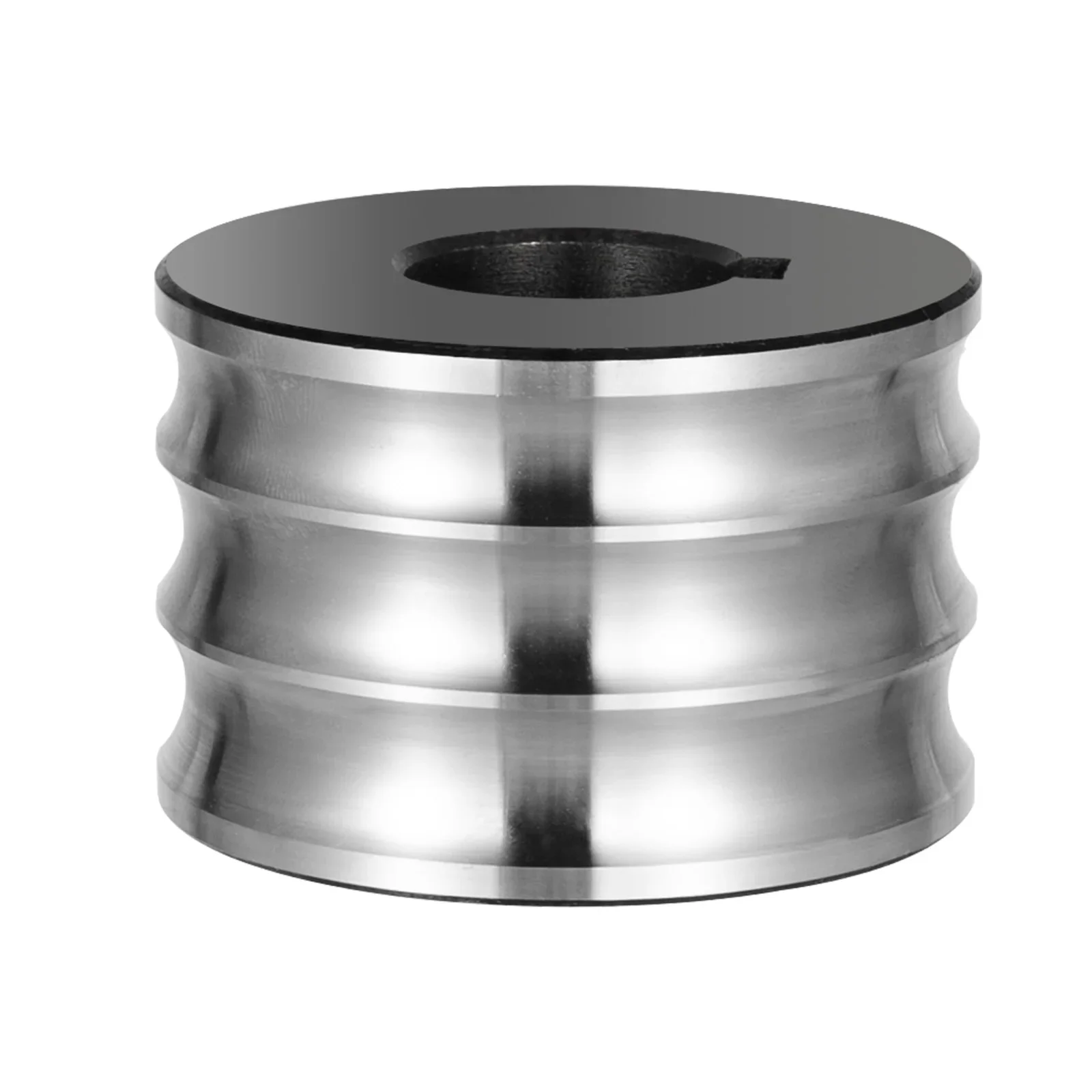

- 1 × replaceable semicircle mold
- All accessories for assembly
Key Features

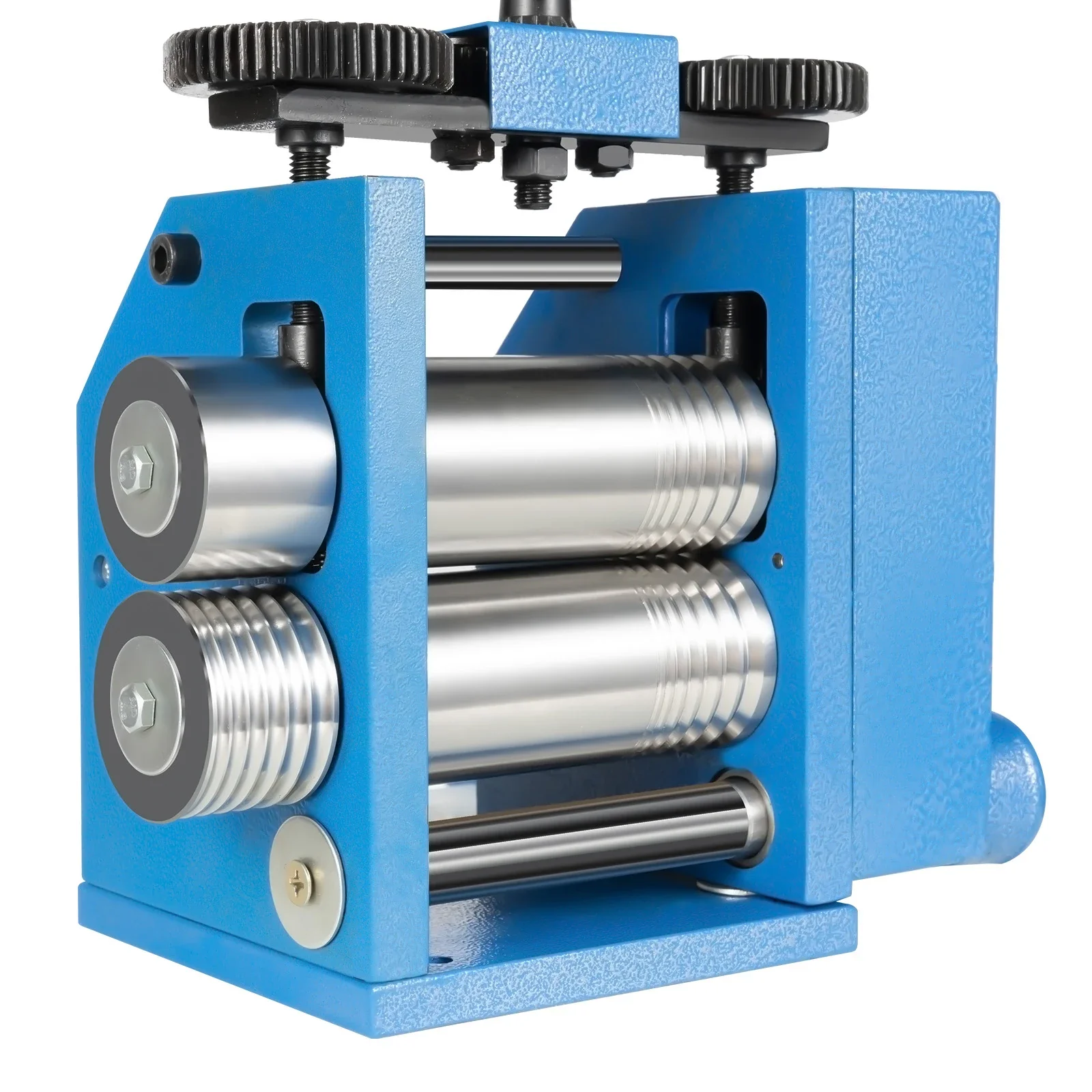

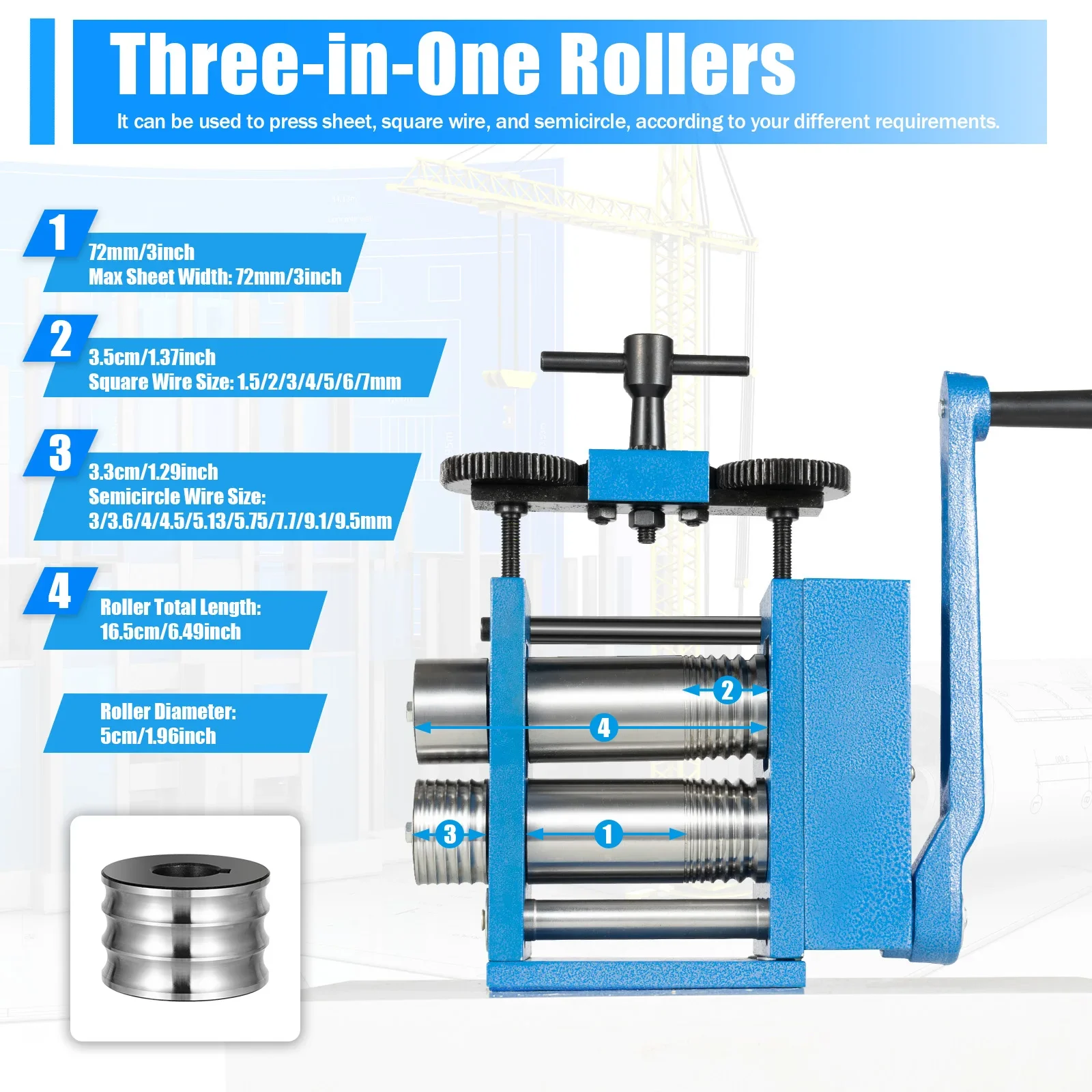

- Three-in-one rollers: press gold, silver, copper, and other malleable metals into sheet, square wire, and half-round shapes.

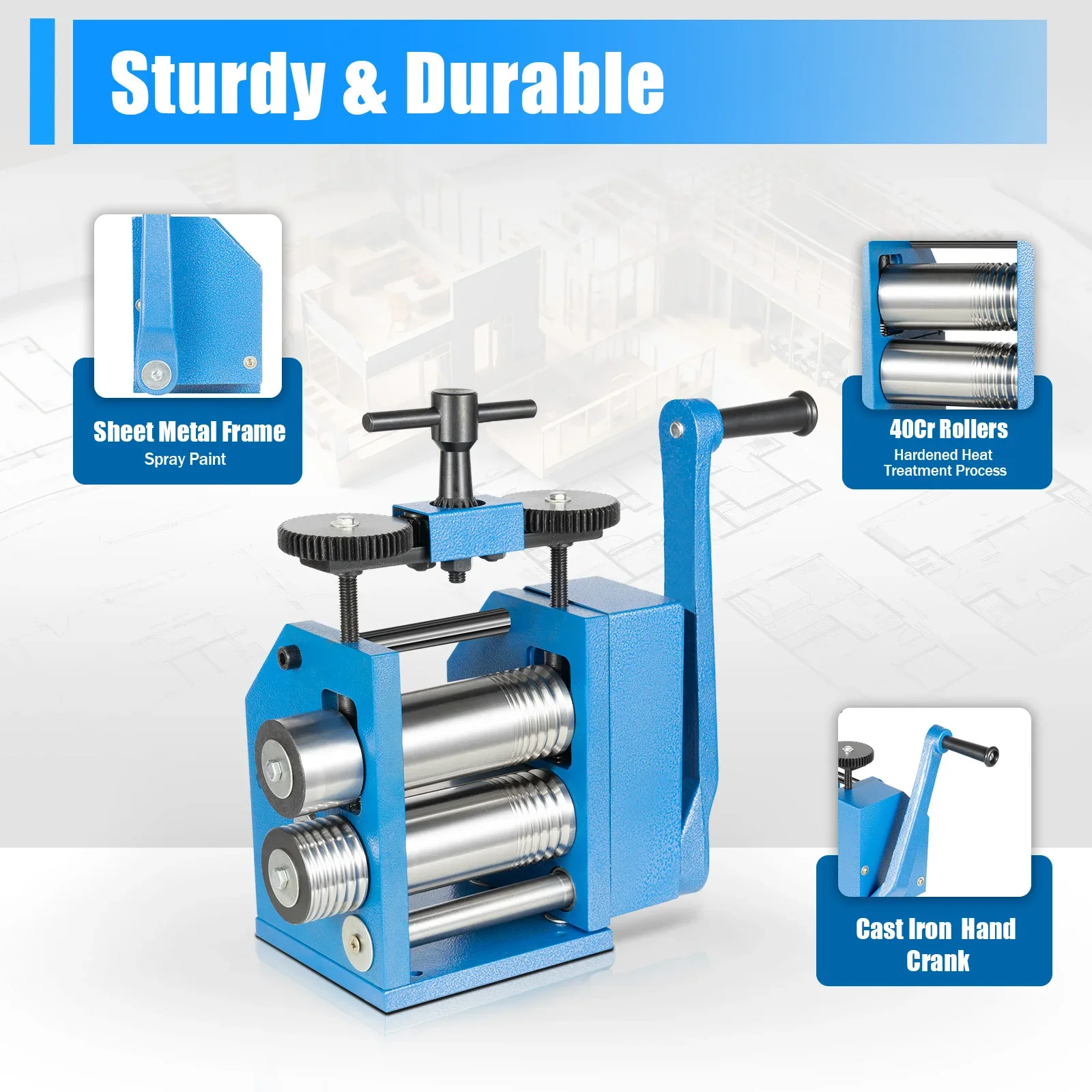

- Sturdy and durable: 40Cr hardened rollers, cast iron hand crank, and painted sheet metal frame resist deformation during long-term use.

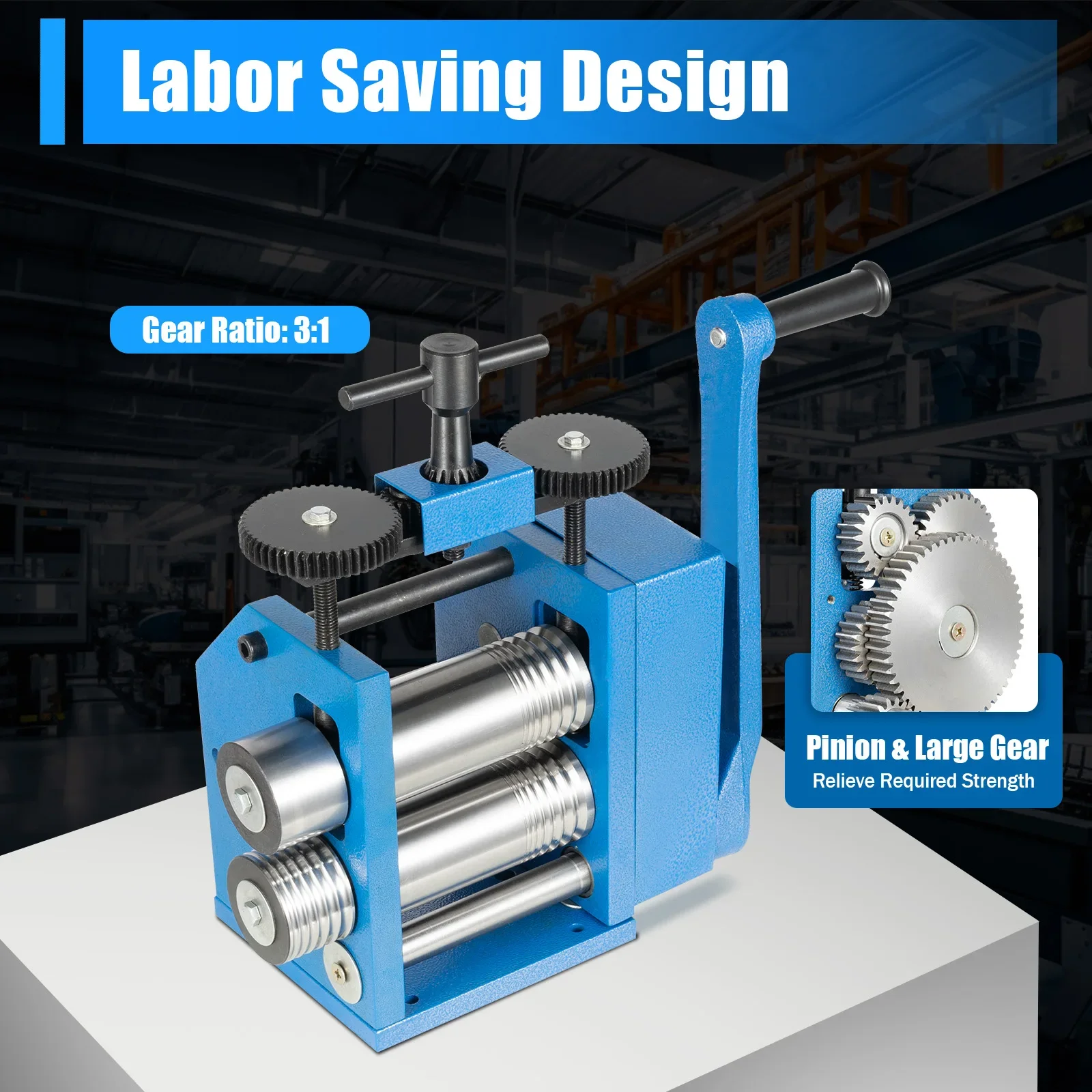

- Labor-saving design: 3:1 gearing; the pinion drives the large gear to reduce operating force.

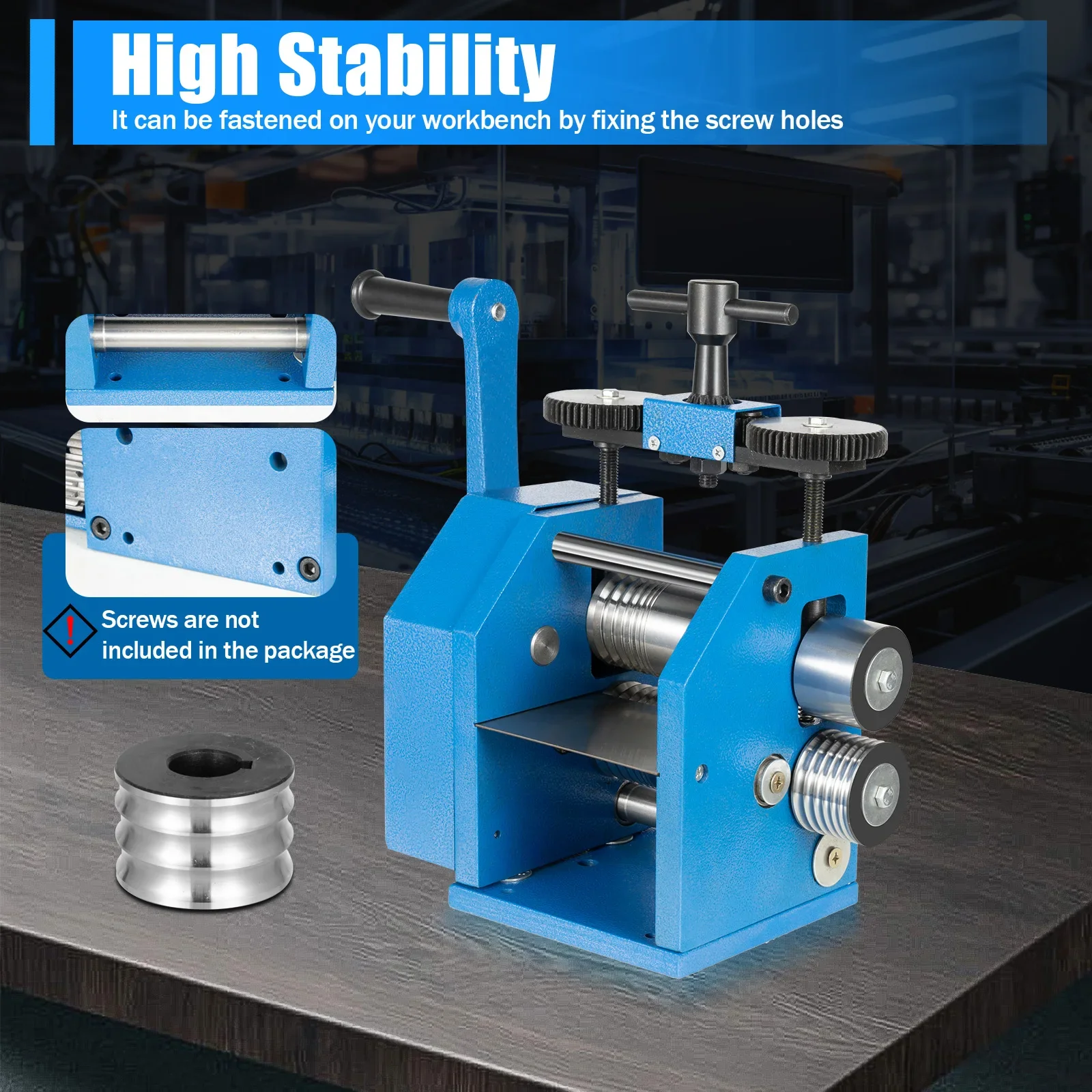

- High stability: base screw holes allow secure mounting to a workbench for steadier operation.

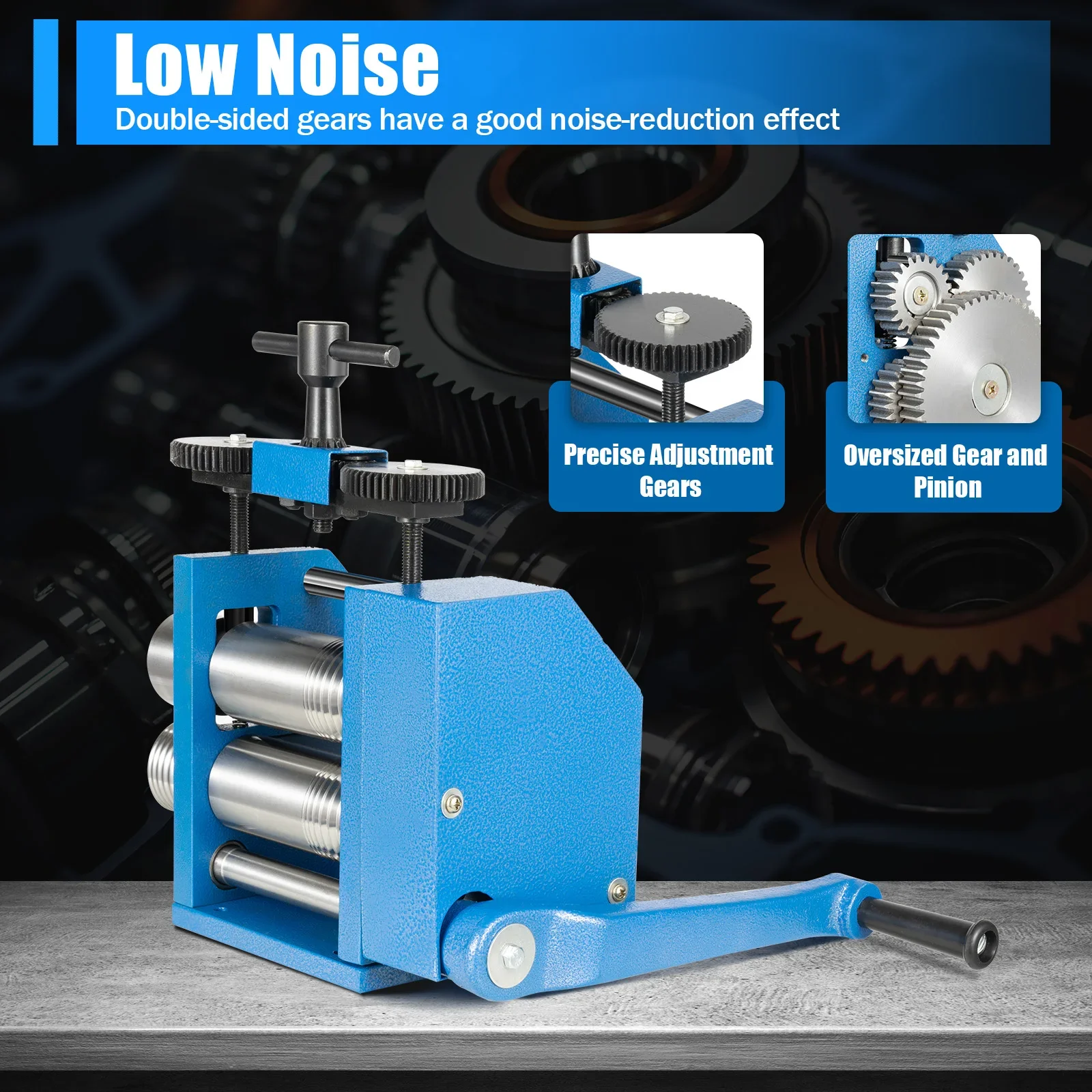

- Low noise: double-sided gears help reduce noise for a quieter workspace.

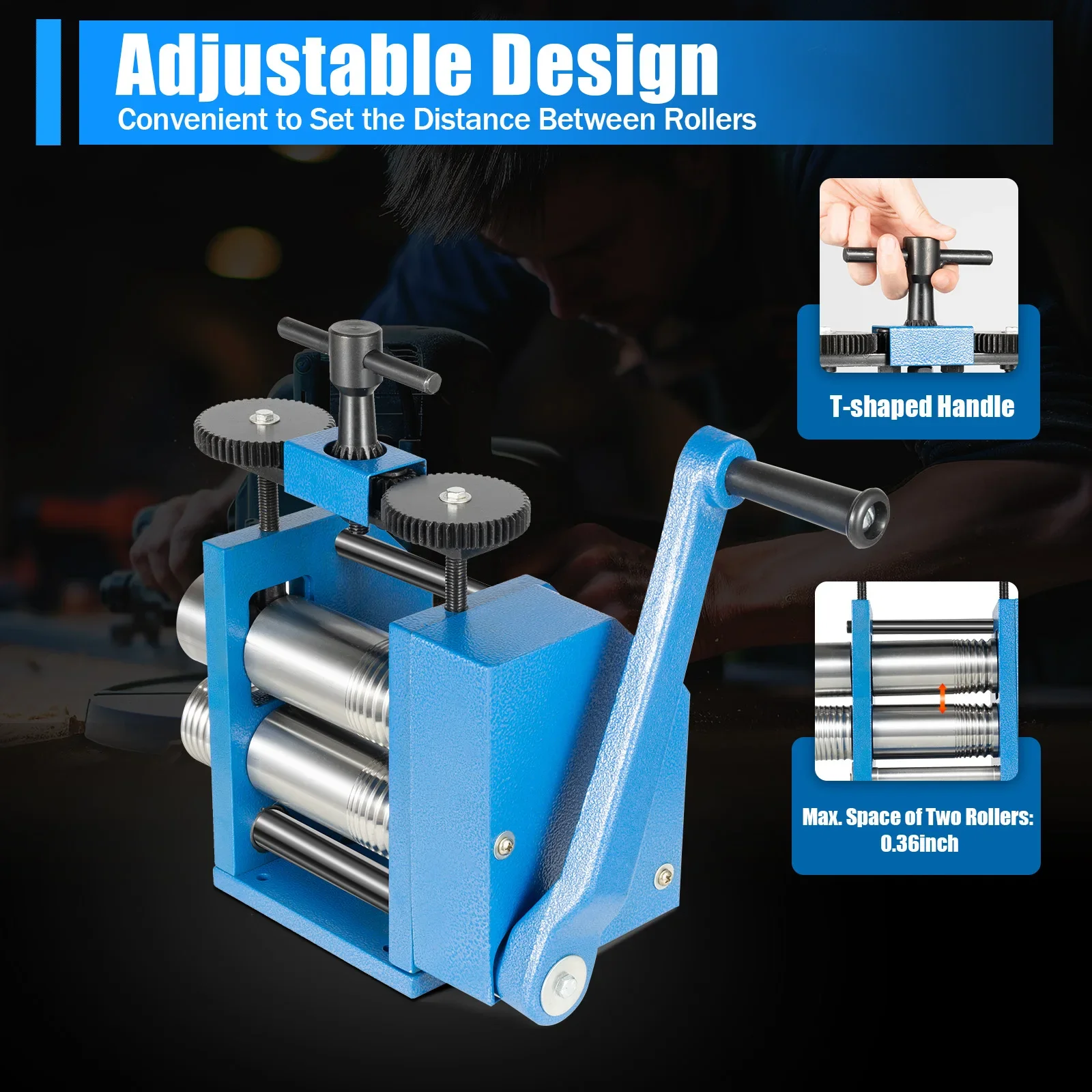

- Adjustable thickness: T-handle precisely sets roller gap up to 0.36 in to fit different tasks.
- Protective packaging: custom foam resists compression and drops during transit.
Details

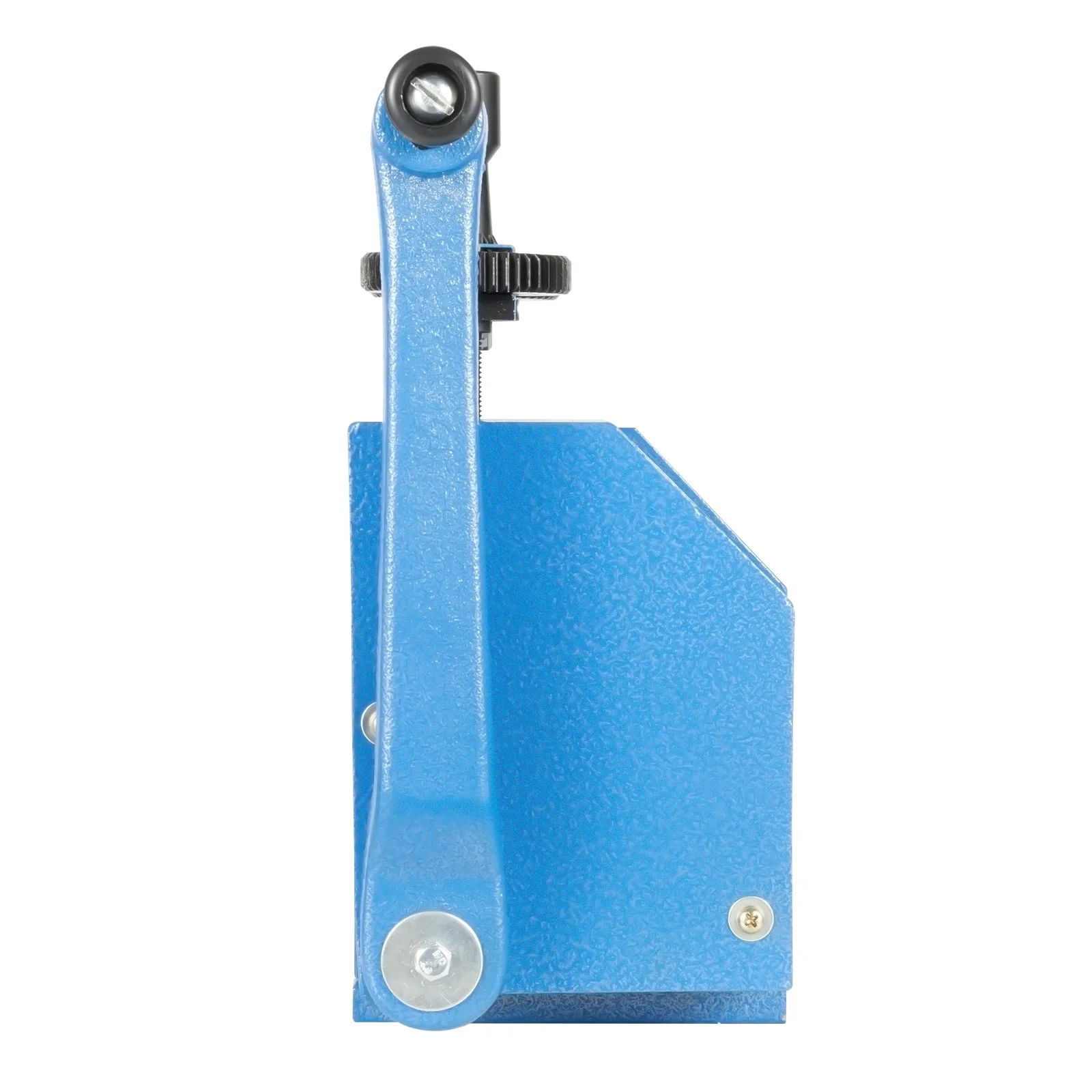

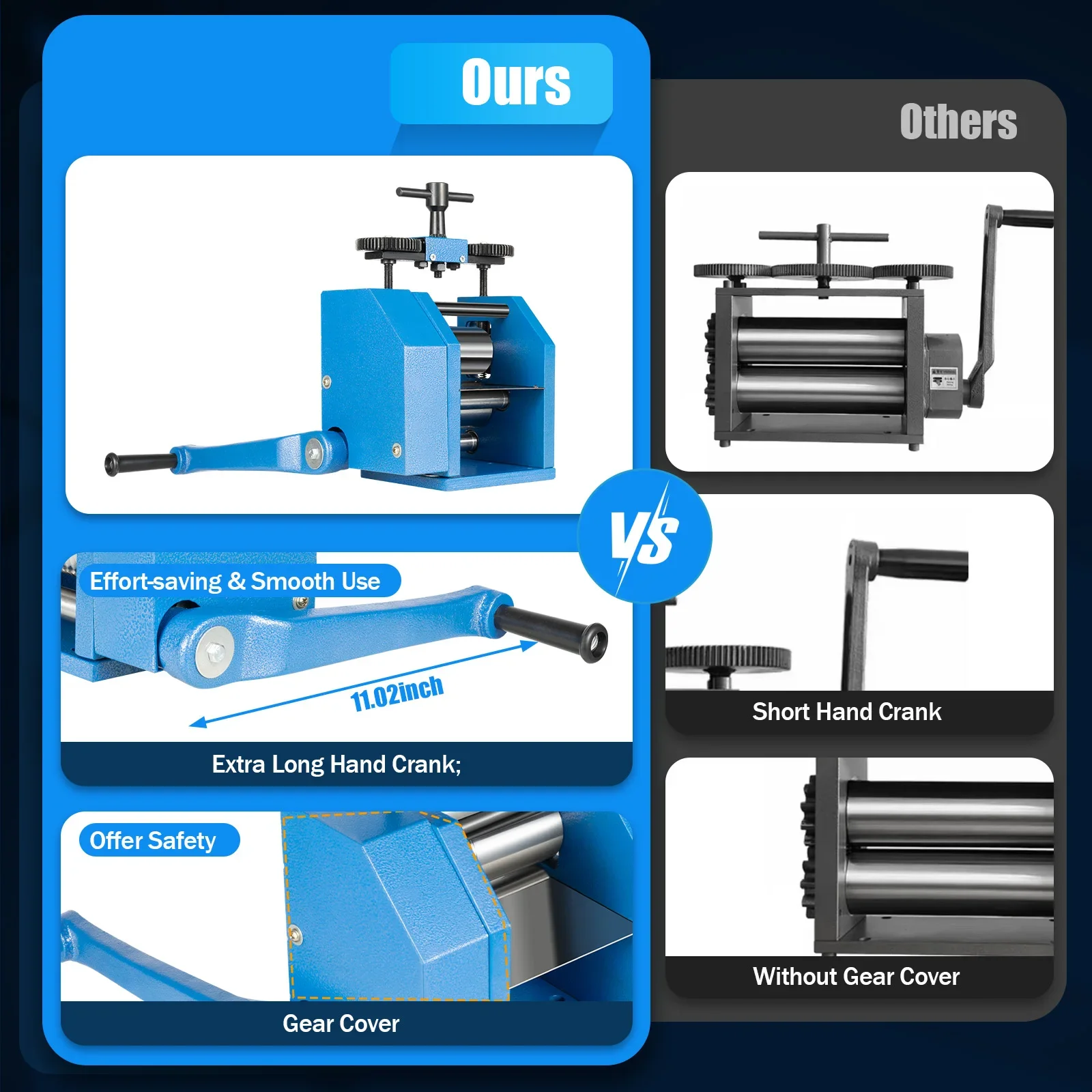

- Extra-long hand crank: cast iron body and durable grip provide smooth, even force.
- Gear cover: sheet metal side cover protects the gears during normal operation.
Application

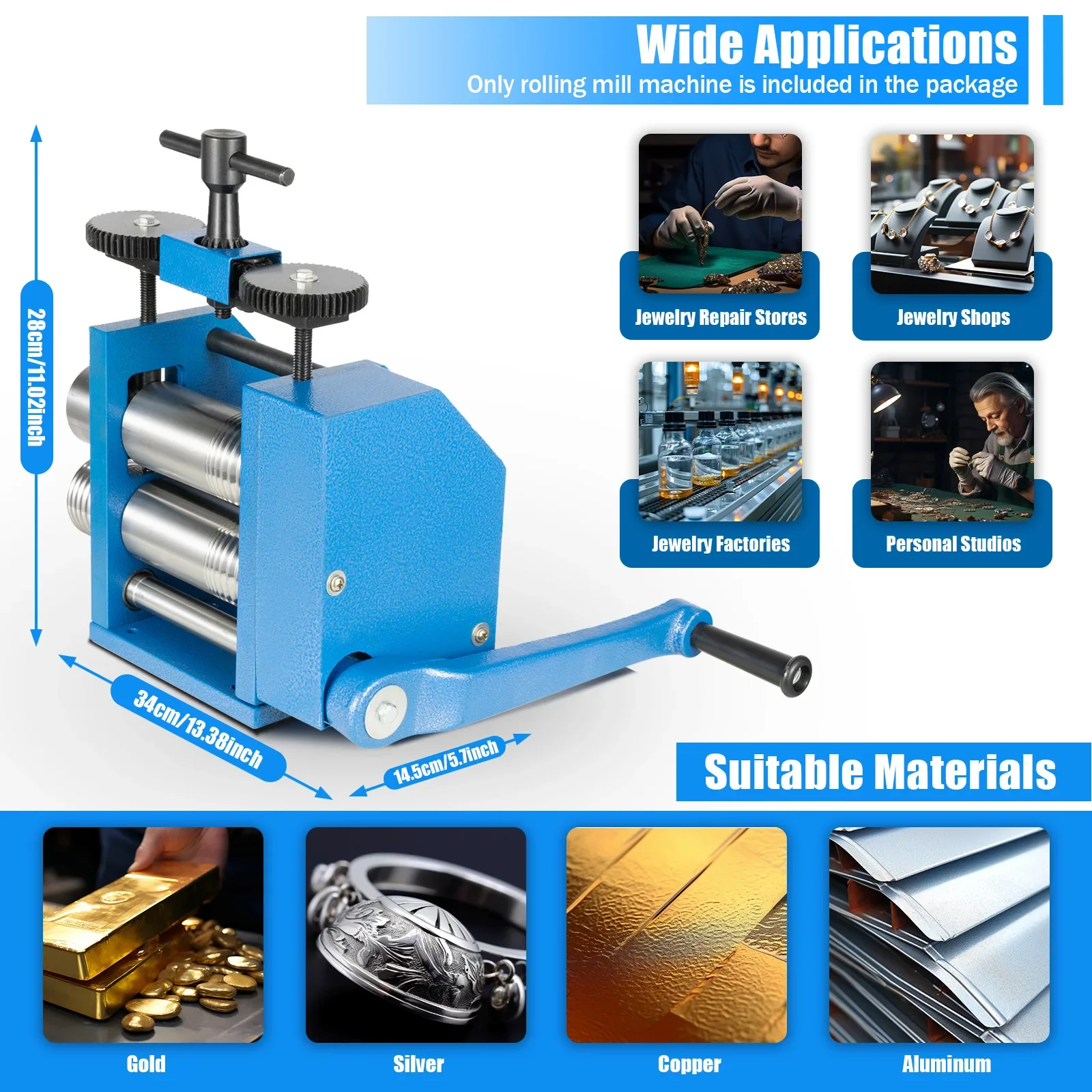

- For jewelry making: converts gold, silver, copper, aluminum, and other malleable metals into thin sheets, square wires, and half-round profiles—ideal for jewelers and craftspeople.
Notes
- Screws are not included.
- Add lubricating oil to the connection ports at both roller ends once or twice daily during use.
- Remove the protective plastic film from the rollers before first use.
- Allow minor color differences due to lighting and a 1–3 cm measurement variance.
