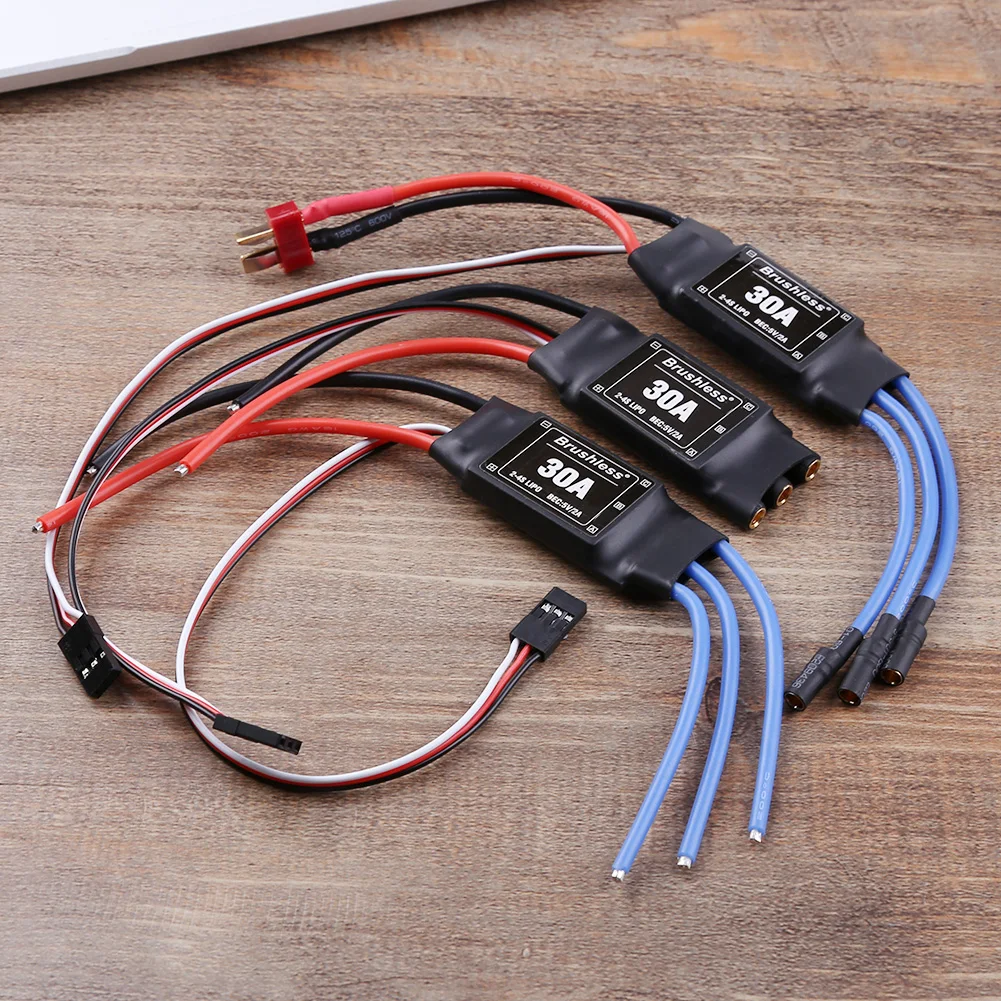

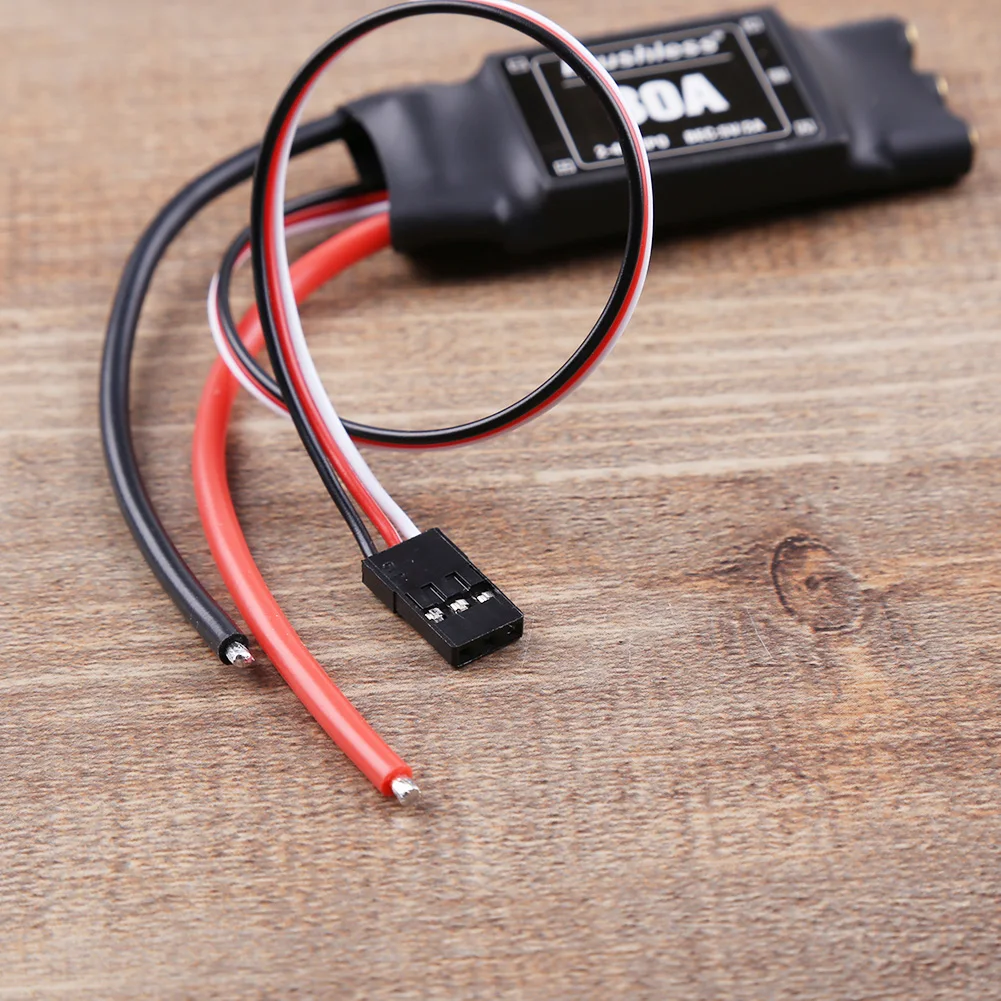

30A XXD Brushless ESC for RC Models

30A XXD Brushless ESC for RC Models

Function:

• Safe Power-On Function: The motor will not start immediately when the power is on, regardless of the throttle’s position. This prevents personal injury.
• Throttle Stroke Calibration Function: Adapts to different remote controls’ throttle strokes, enhancing throttle response linearity for smooth and precise speed control.
• Program Setting Items:
  • Battery Type: Options are Li-xx (Lithium battery) or Ni-xx (Nickel Cadmium or Nickel Metal Hydride), with Li-xx as the default.
  • Low Voltage Protection Mode: Options are power reduction or output shutdown, with power reduction as the default.
  • Low Voltage Protection Threshold: Settings are low, medium, or high, with the default being the cut-off discharge voltage.
  • Startup Mode: Choices are normal, soft, or super soft startup, with normal as the default. The normal start is quick, and suitable for fixed-wing aircraft. Soft and super soft starts are slower, ideal for helicopters, but revert to normal mode if the throttle is re-engaged within 3 seconds.
  • Timing: Settings are low, medium, or high, with medium as the default. Low timing suits most motors, but medium is recommended for motors with more than 6 poles.

Process Features:

• Uses ultra-low impedance, high-capacity electrolytic capacitors at the power input for improved anti-interference.
• Equipped with independent heat sinks on the output MOSFET power tubes to reduce temperature rise and enhance high current capacity.
• Controlled by a single-chip microcomputer.
• Features an independent voltage-stabilizing chip to minimize power supply interference from BEC load changes.

Extreme Use:

• Continuous current: 30A, instant: 35A, 40A for 10 seconds.

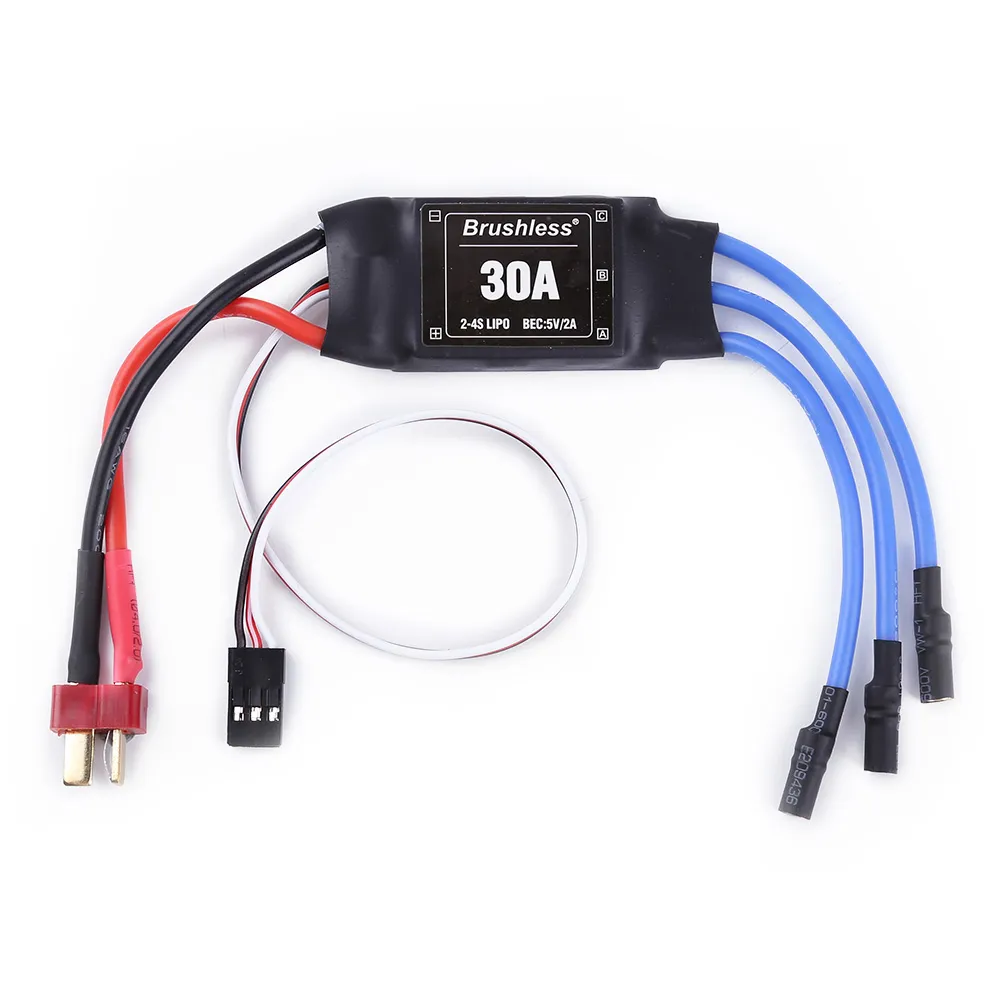

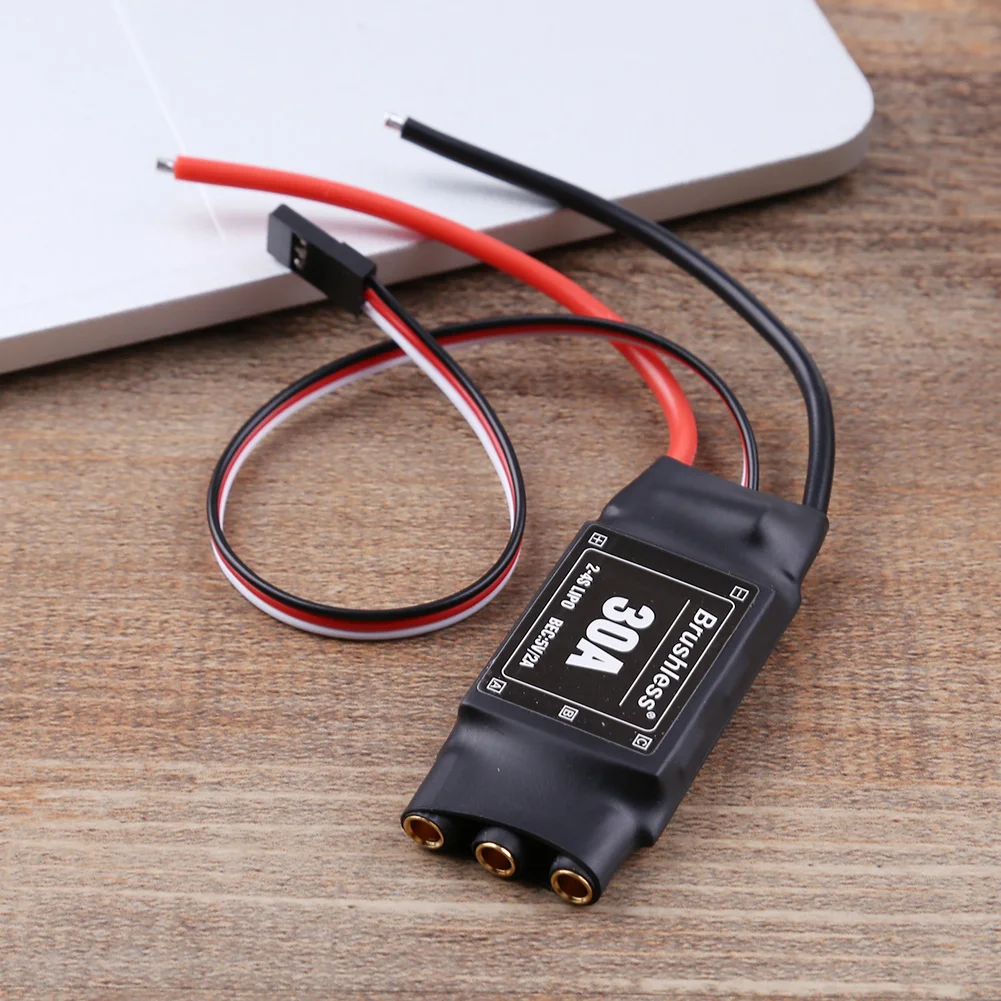

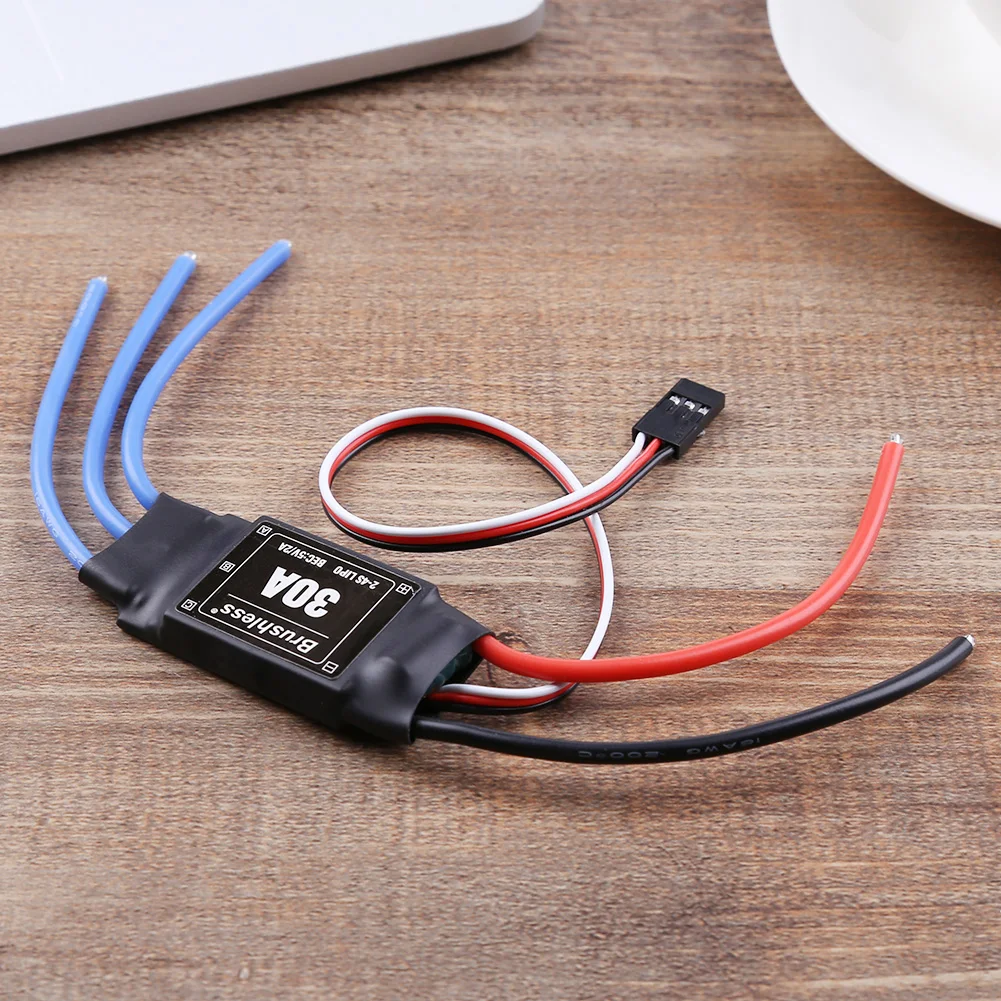

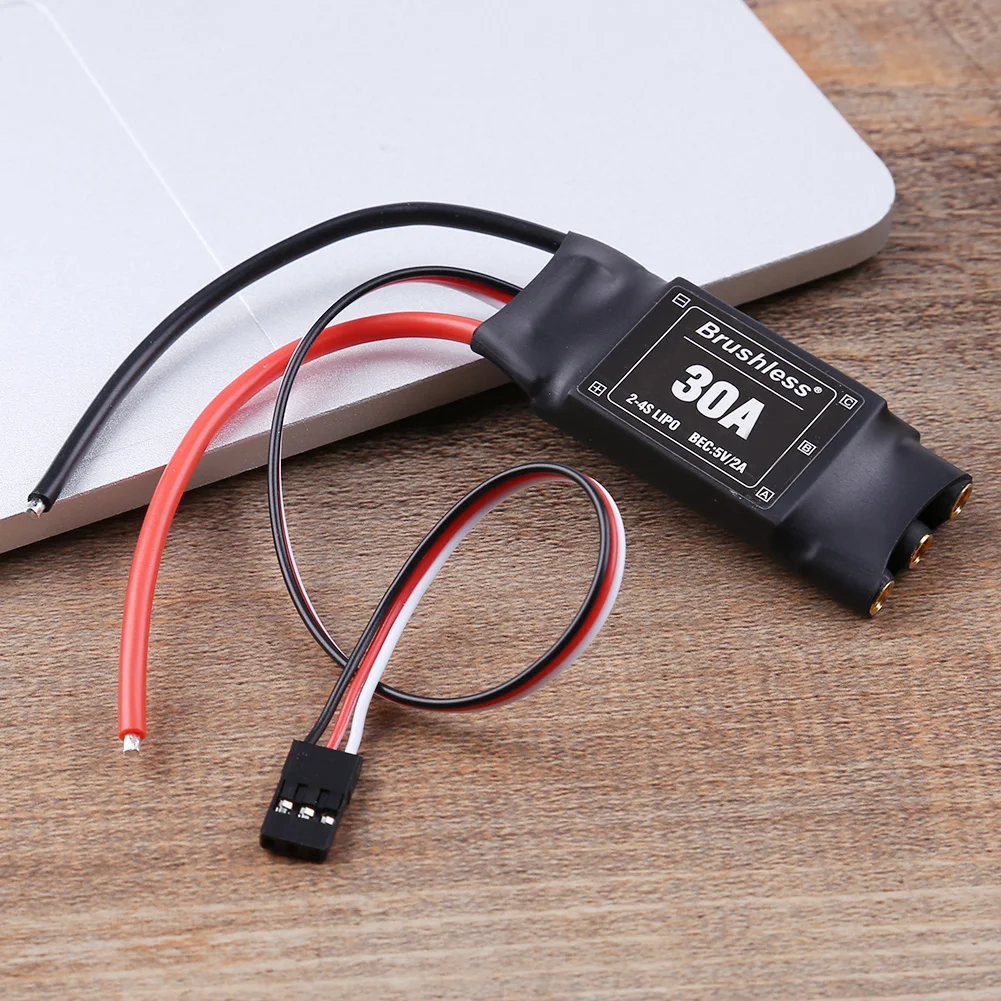

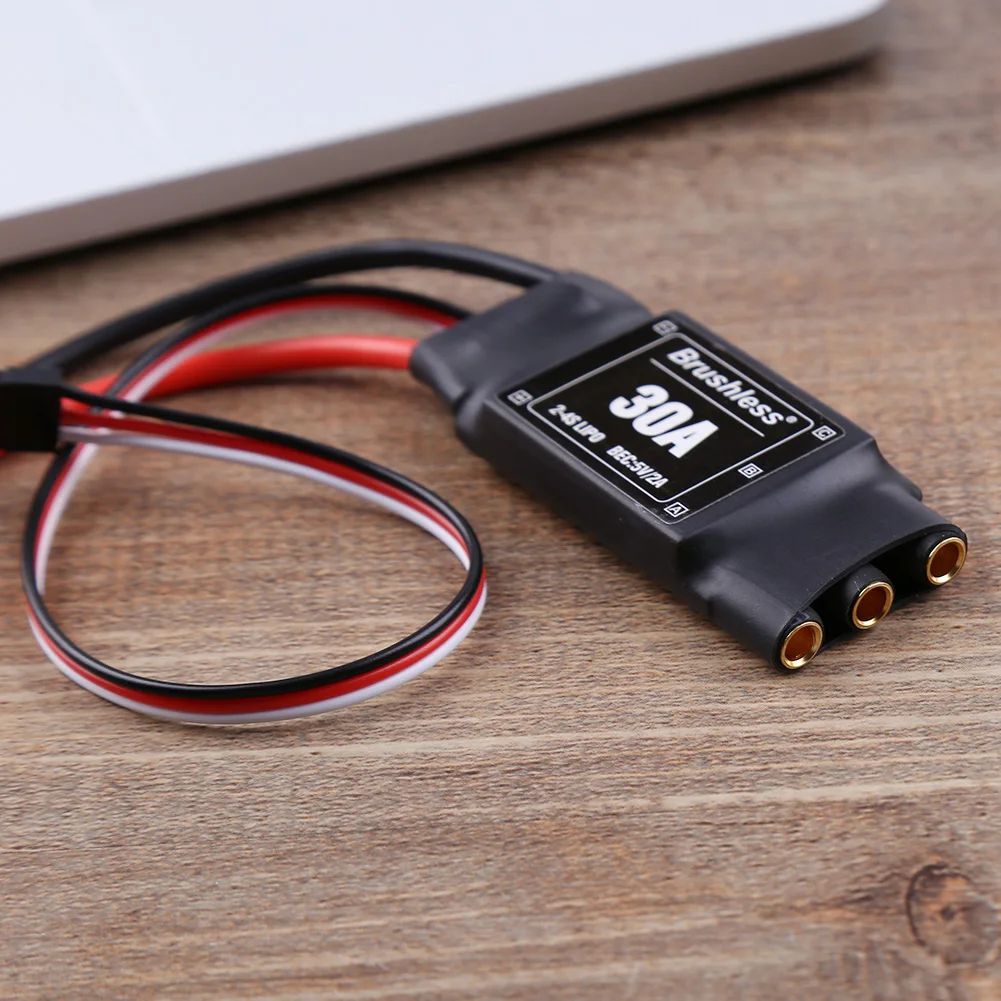

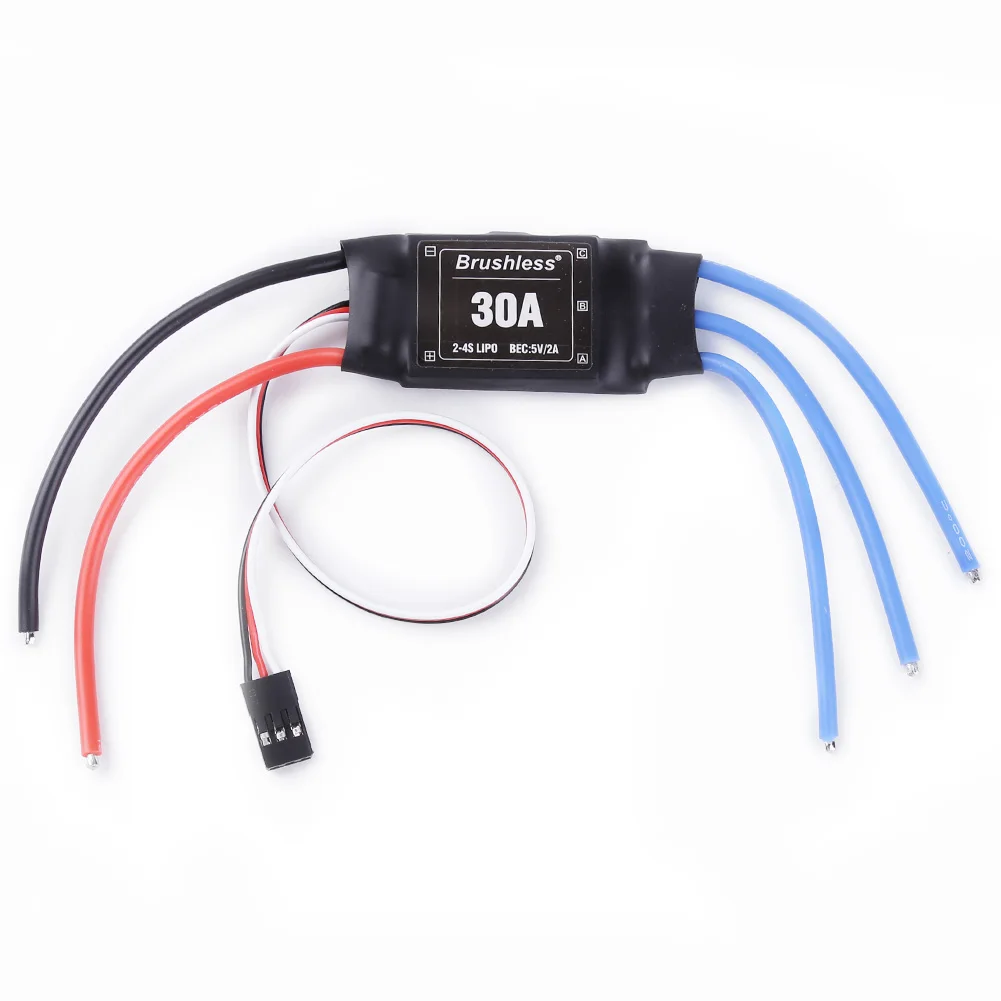

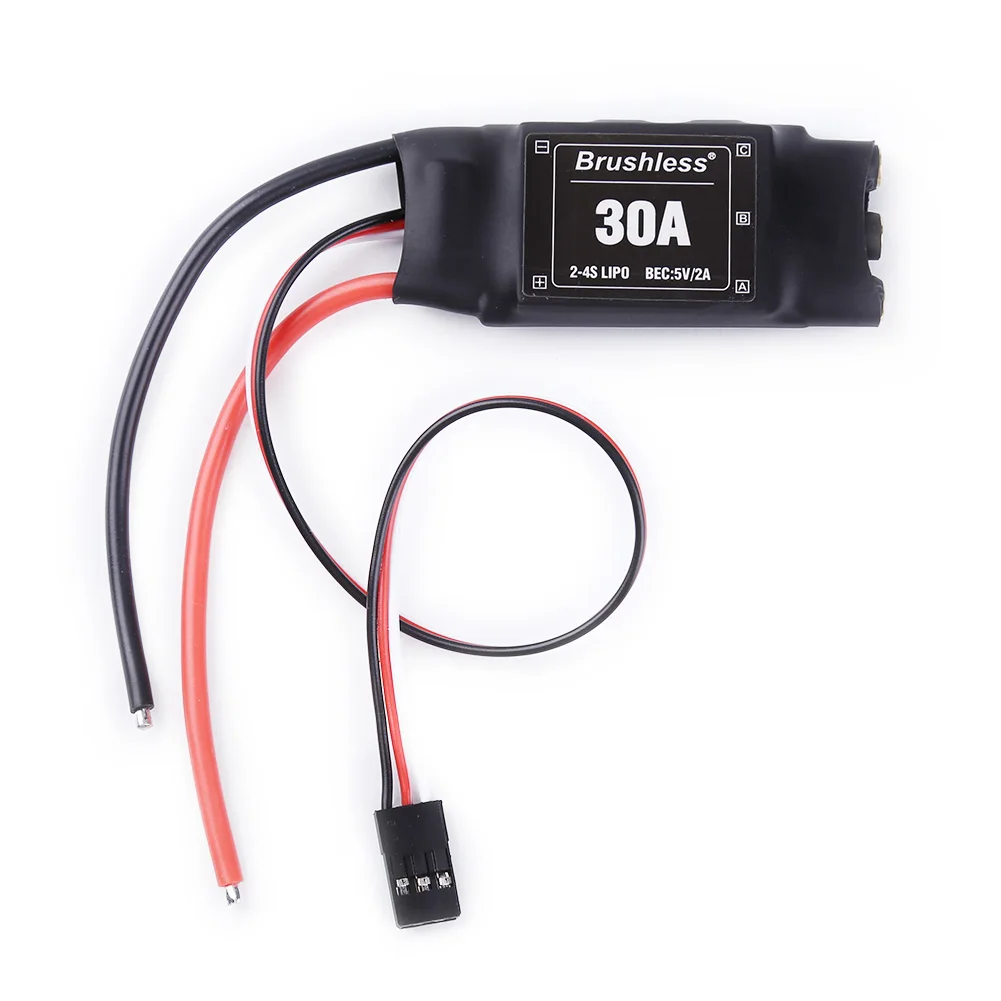

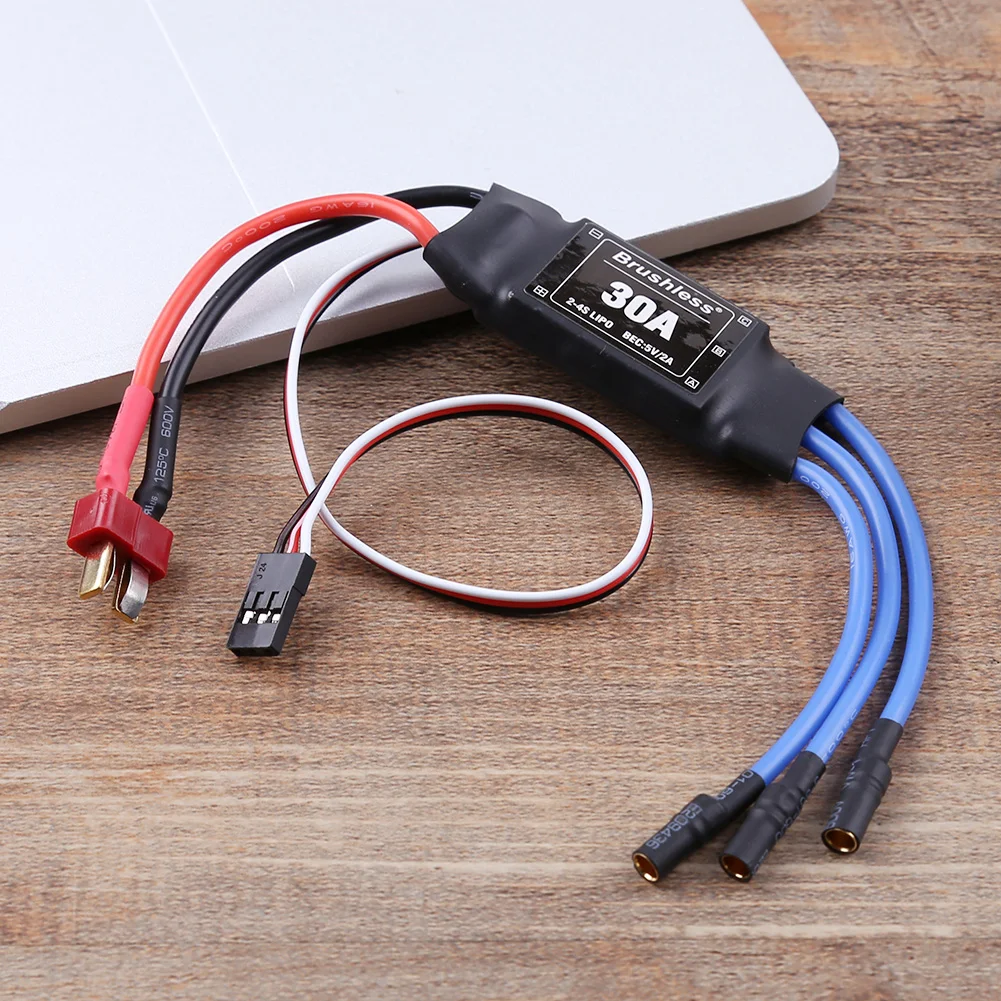

• Types: (1) Without Plug (2) Welded T plug (3) Gold Plug
• Size/Weight: 45 X 24 X 11mm / 1.77 X 0.94 X 0.43 inches, 25g (including cable)
• Voltage Range: 4V-16V
• Battery Quantity: 2-4LIPO (4LIPO does not allow BEC output)
• BEC Output: 2A continuous, 3A instant
• For 2LIPO: Supports 4-5 miniature steering engines
• For 3LIPO: Supports 3-4 miniature steering engines

Protective Functions:

• Automatic voltage selection for 2-3LIPO (6V/9V) and NIMH (0.8V per section).
• Safety features for startup, temperature (110 degrees Celsius limit), and signal loss.

Performance Description:

• Maximum speed limits: 210,000 rpm for 2 poles, 35,000 rpm for 12 poles, 42,000 rpm for 14 poles.
• 8KHz PWM control with a speed control curve.
• Automatic throttle adaptation for various remote controls.
• Separate power supply for the MCU, enhancing stability.

Setting Method:

• Turn on the transmitter and set the throttle to the highest position.
• Connect the receiver and motor.
• Turn on the ESC power. Listen for specific sounds indicating different protection modes and make selections accordingly.

Brake:

• The default setting is no brake. The brake function can be set to engage when the throttle is closed and can be deactivated if desired.
• Factory parameter reset is available for troubleshooting.

Notes:

• The actual color of the item might slightly differ from the pictures due to monitor and light variations.
• Please allow a 1-3mm measurement deviation due to manual measurement.

Package Contents: 1 X XXD 30A ESC
