30A Brushless ESC Speed Controller

Description

30A Brushless ESC Speed Controller

Function:

• Safe Power-On Function: The motor will not start immediately when the power is turned on, regardless of the throttle position, to prevent personal injury.
• Throttle Stroke Calibration Function: Adapts to different remote controls’ throttle strokes, enhancing throttle response linearity for smooth and precise speed control.

Program Setting Items:

• Battery Type: Options are Li-xx (Lithium battery) or Ni-xx (Nickel-Cadmium or Nickel-Metal Hydride), with the default set to Li-xx (Lithium battery).
• Low Voltage Protection Mode: Options are to reduce power or turn off the output, with the default being power reduction.
• Low Voltage Protection Threshold: Settings are low, medium, or high, with the default being the cut-off discharge voltage.
• Startup Mode: Choices are normal, soft, or super soft startup, with the default being normal. Normal is suitable for fixed-wing aircraft, and soft and super soft are for helicopters.
• Timing: Options are low, medium, or high, with the default being medium. Low timing is generally more versatile, but medium or high can be used depending on the motor type.

Process Features:

• Power Input Terminal: Uses ultra-low impedance, large-capacity electrolytic capacitors for enhanced anti-interference.
• Output MOSFET Power Tube: Equipped with an independent heat sink to reduce temperature rise and improve high current working capacity.
• Control: Utilizes single-chip control.
• Single-Chip Microcomputer: Features an independent voltage-stabilizing chip to minimize power supply interference and improve stability.

Extreme Use:

• Continuous Current: 30A, with instant peaks of 35A and 40A for 10 seconds.

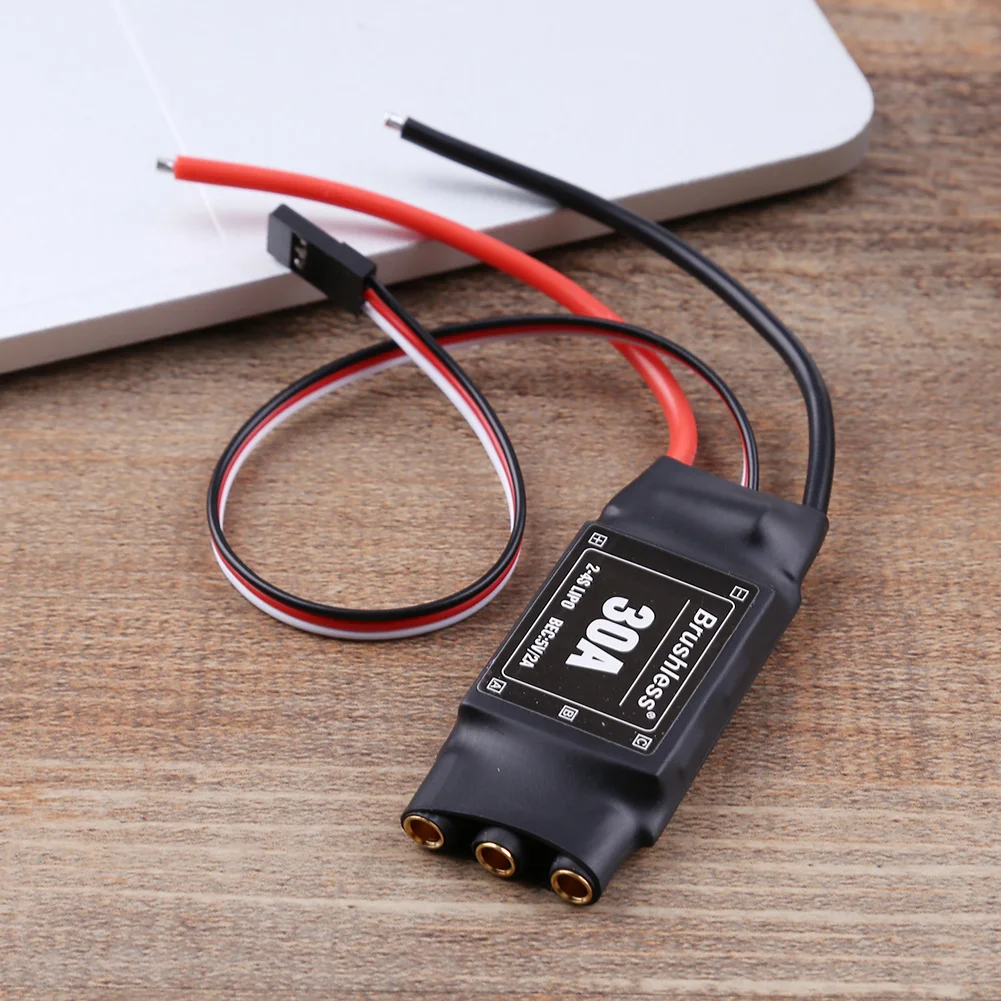

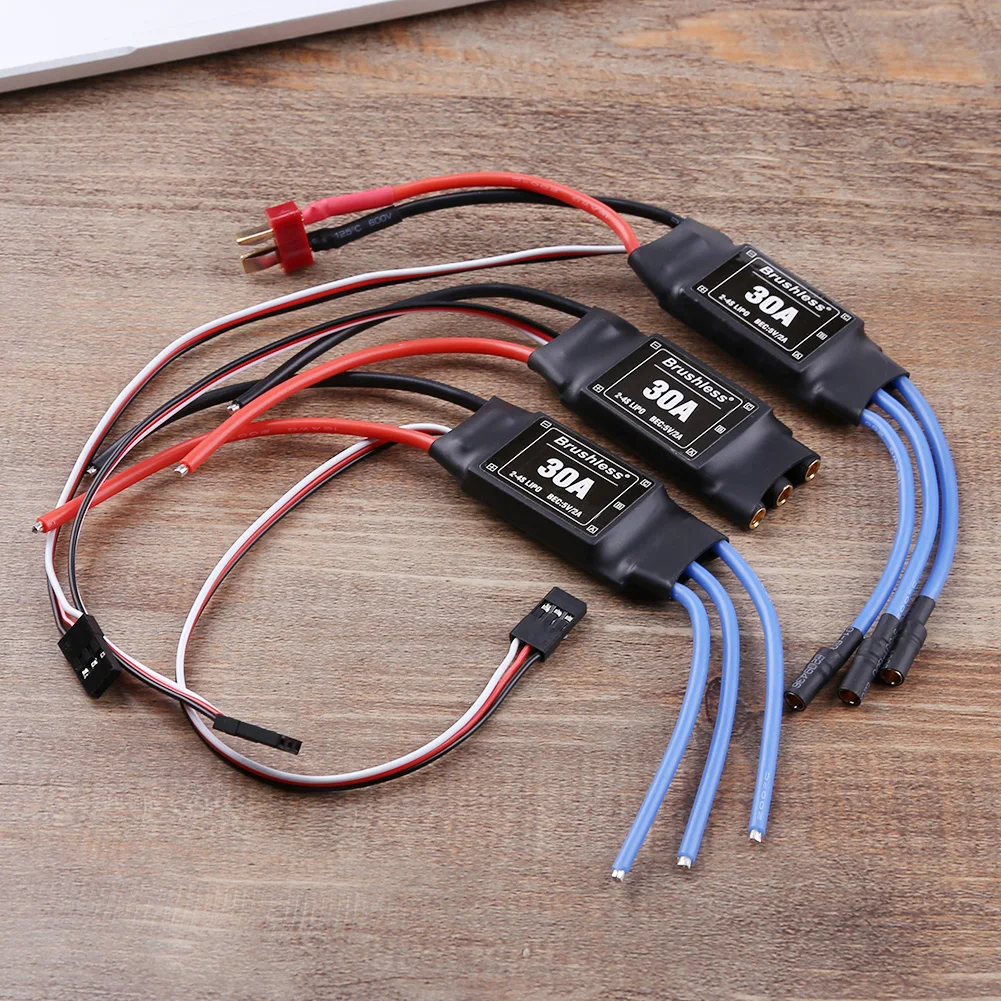

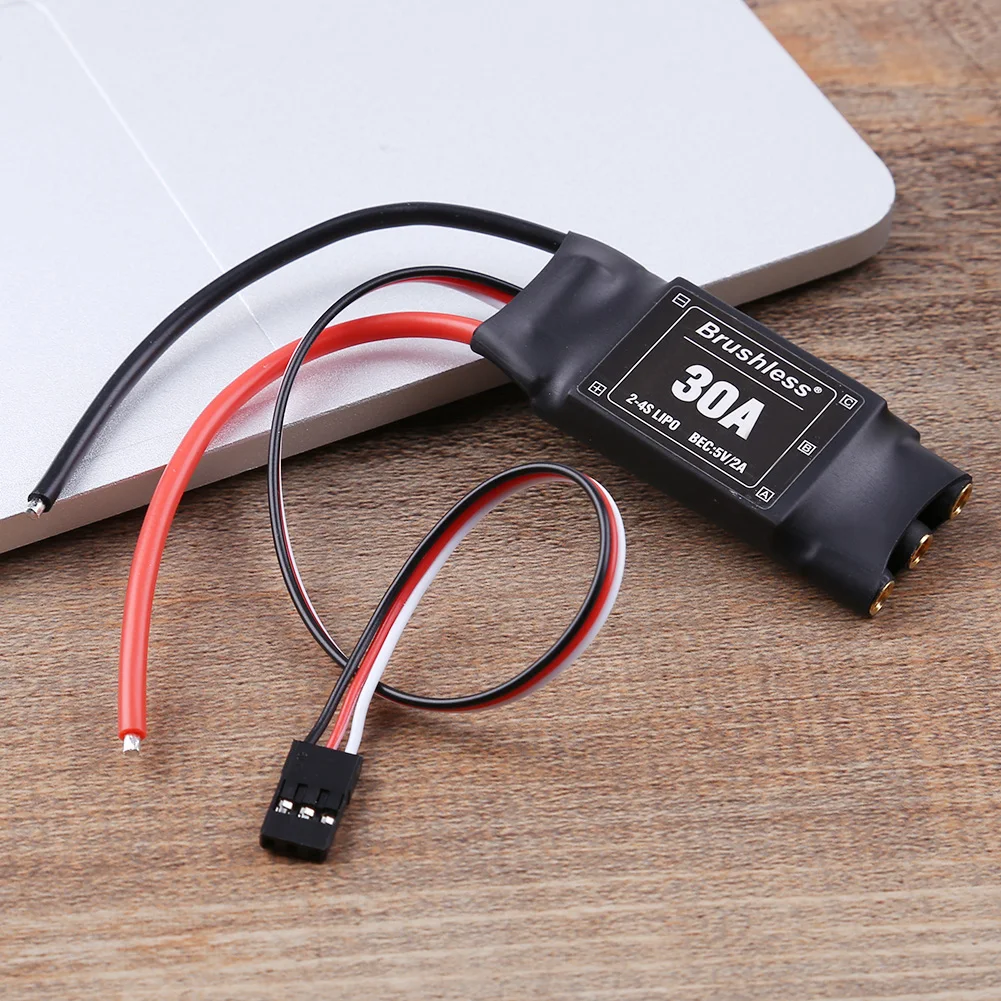

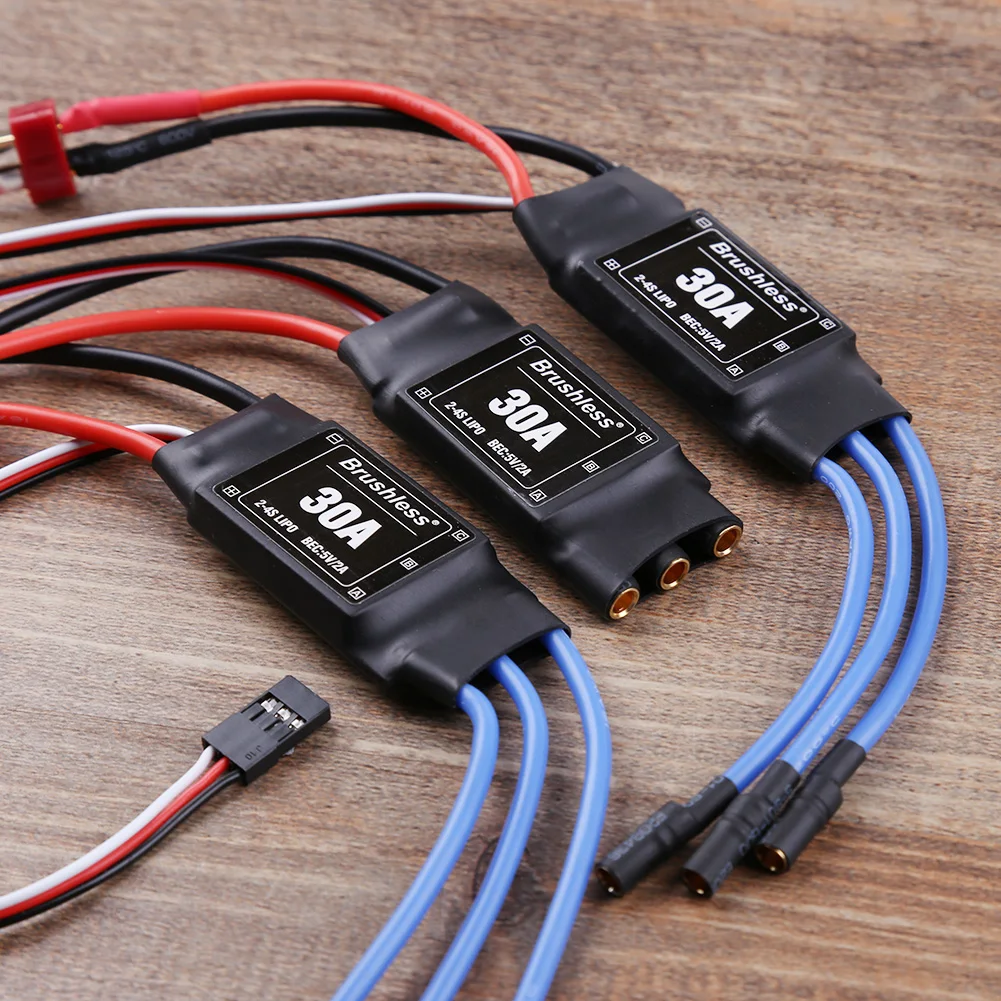

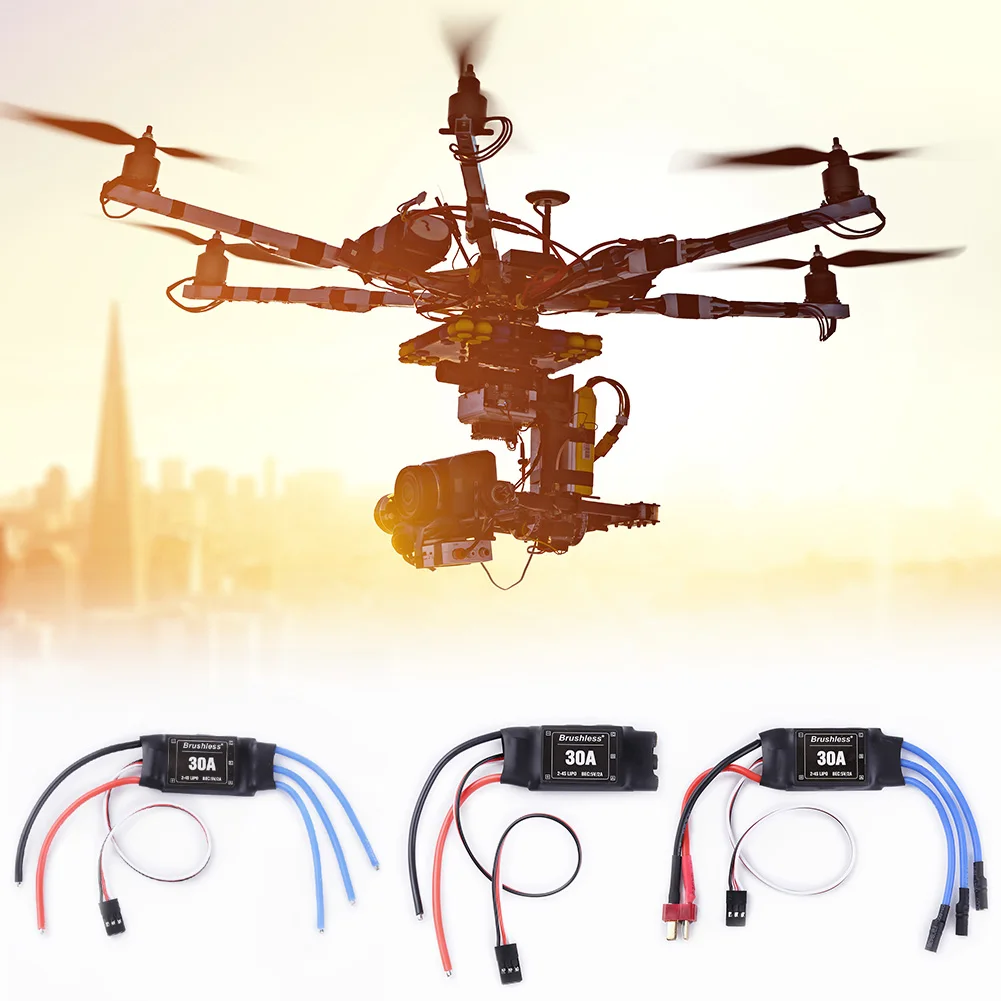

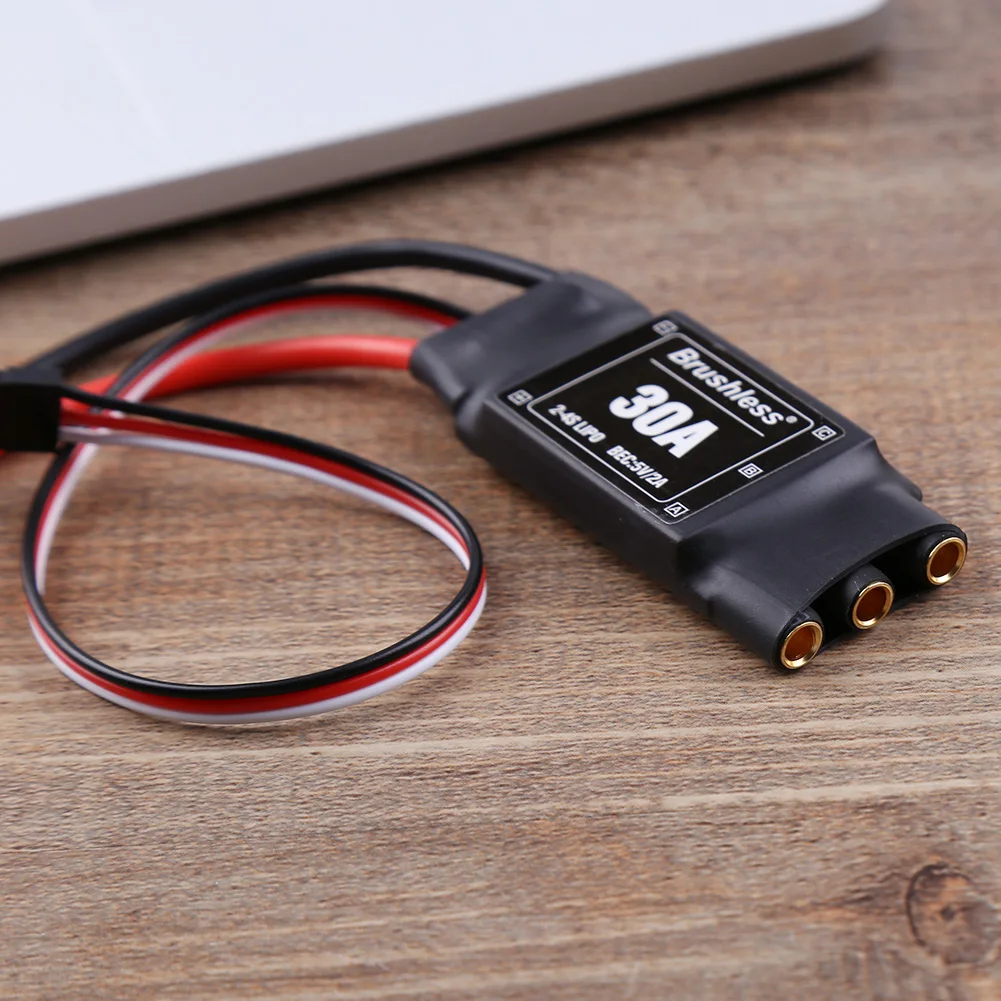

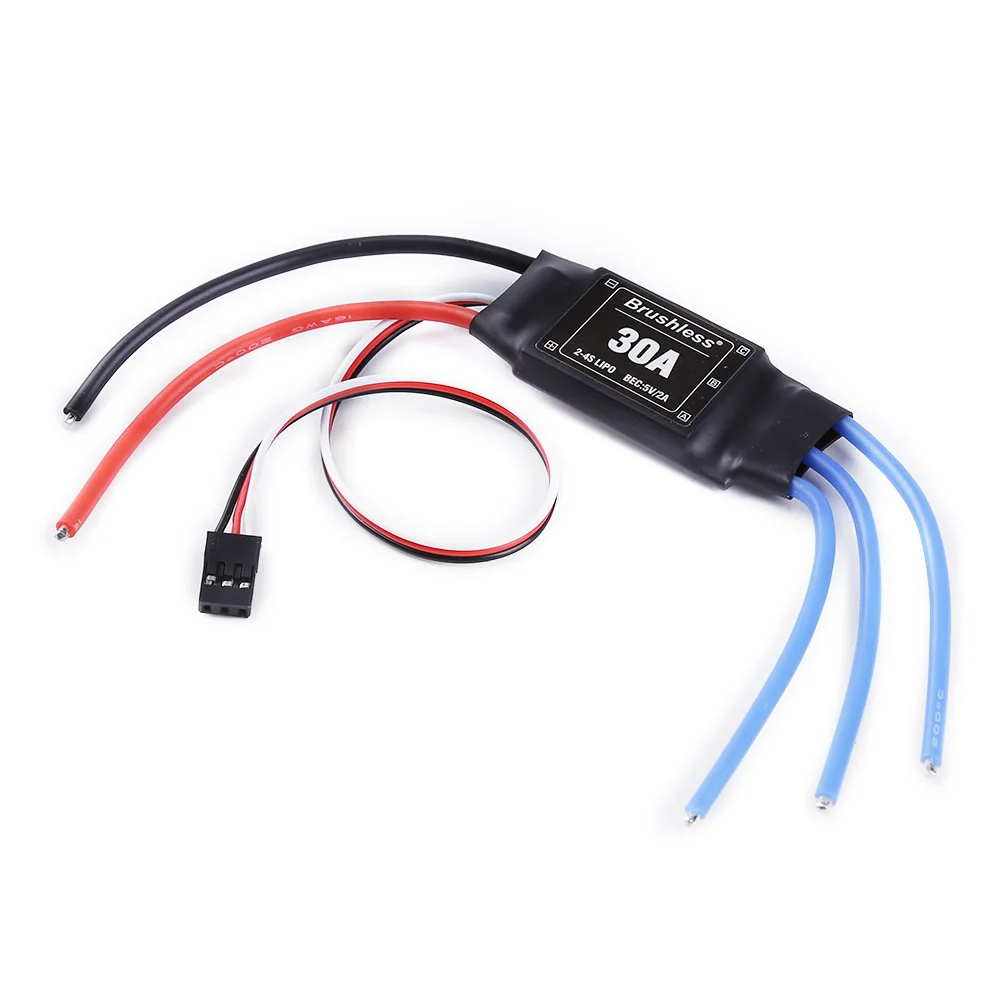

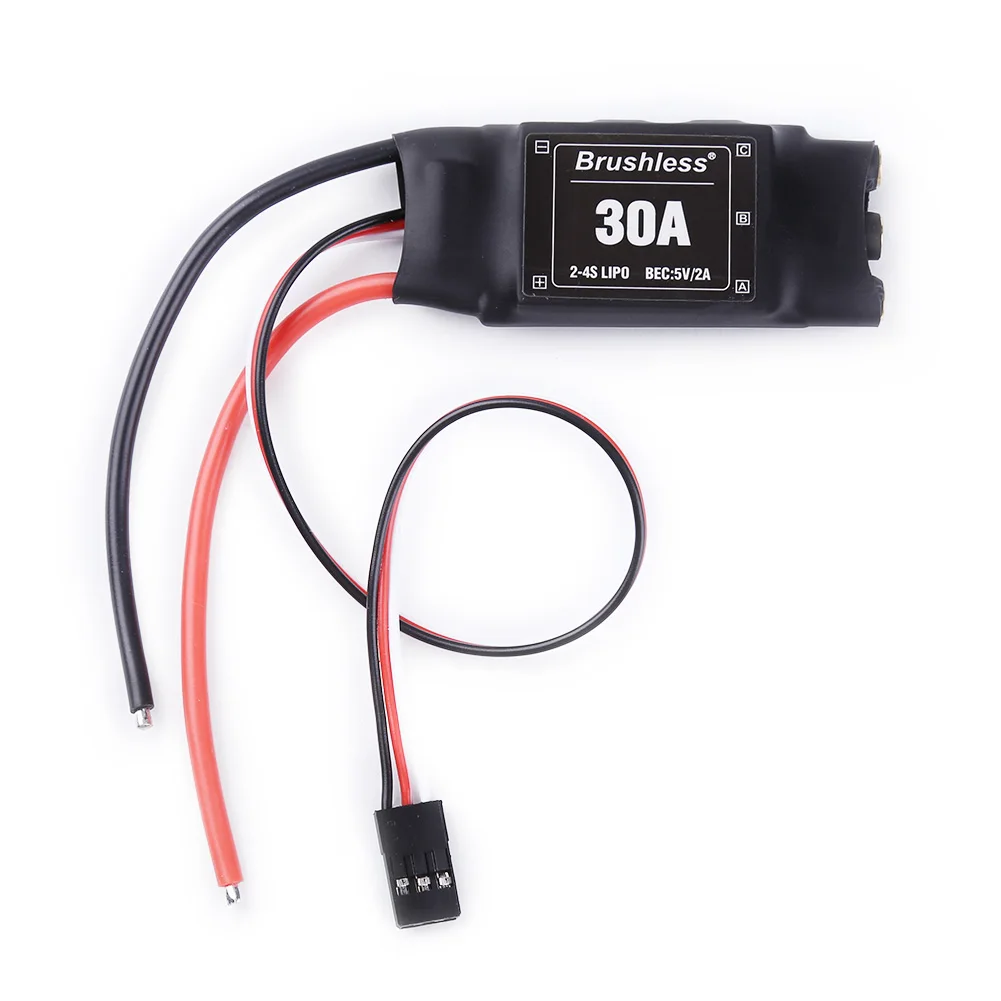

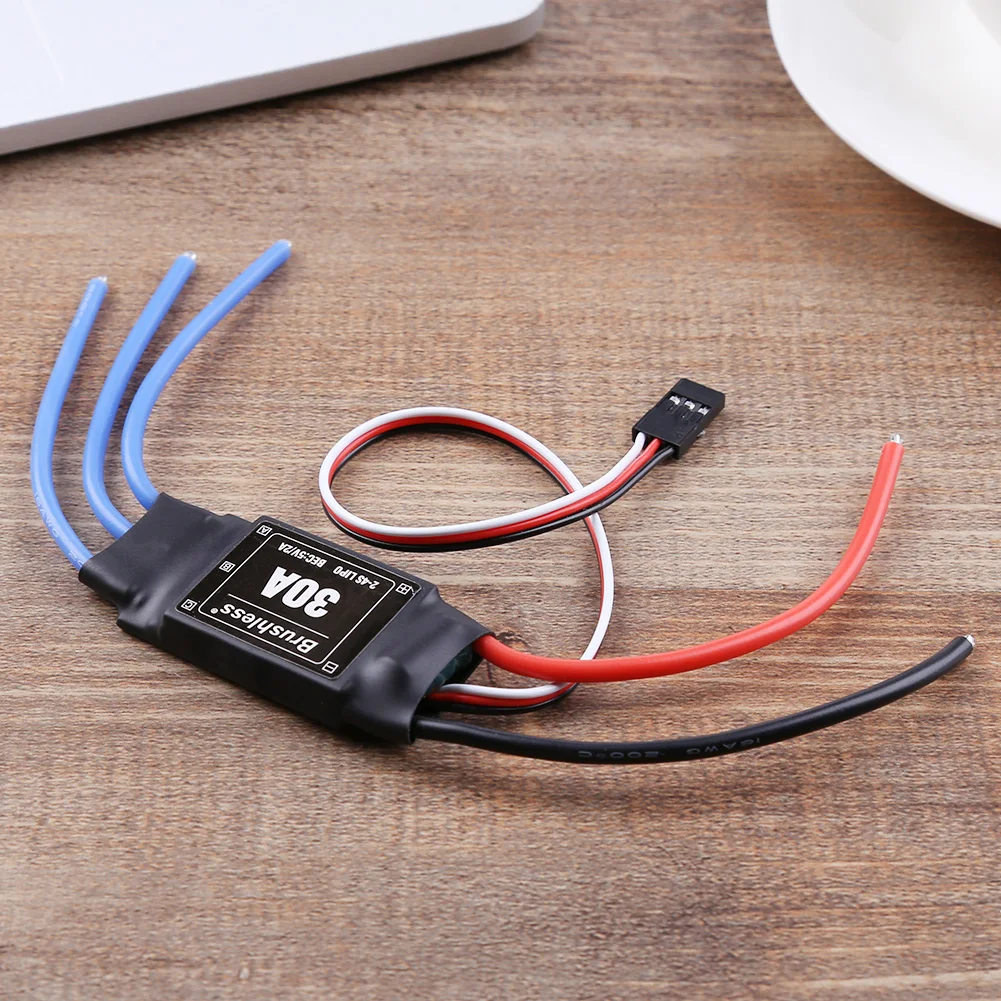

• Types: (1) Without Plug (2) Welded T plug (3) Gold Plug
• Size/Weight: 45 X 24 X 11mm / 1.77 X 0.94 X 0.43 inches, 25g (including cable)
• Voltage Range: 4V-16V
• Batteries Quantity: Supports 2-4LIPO (4LIPO does not allow BEC output)
• BEC Output: 2A continuous, 3A instant
• Protective Functions: Includes automatic selection for 2-3LIPO with respective protection voltages of 6V/9V, NIMH with each section at 0.8V, and safeguards against incorrect throttle position, overheating, and loss of control.

Performance Description:

• Speed Limits: Up to 210,000 rpm for 2 poles, 35,000 rpm for 12 poles, and 42,000 rpm for 14 poles.
• Control: 8KHz PWM control with a speed control curve and automatic throttle adaptation for various remote controls.
• BEC Feature: Separates power supply for the MCU, enhancing stability.

Setting Method:

• Turn on the transmitter and set the throttle to the highest position.
• Connect the receiver and motor.
• Turn on the ESC power supply and follow the audio cues for settings.
• Select the desired setting by adjusting the throttle position as prompted by the audio cues.

Brake Setting:

• The factory setting is without a brake. You can set the brake operation as needed, and it can be canceled by repeating the brake setting operation.

Factory Parameter Reset:

• If there are changes in acceleration, steering, or throttle curve, a factory parameter reset can be performed to regain maximum performance.

Notes:

• The actual color of the item might slightly differ from the pictures due to monitor and light differences.
• Please allow a 1-3mm deviation in measurements due to manual measurement.

Included in Package:

• 1 X XXD 30A ESC
