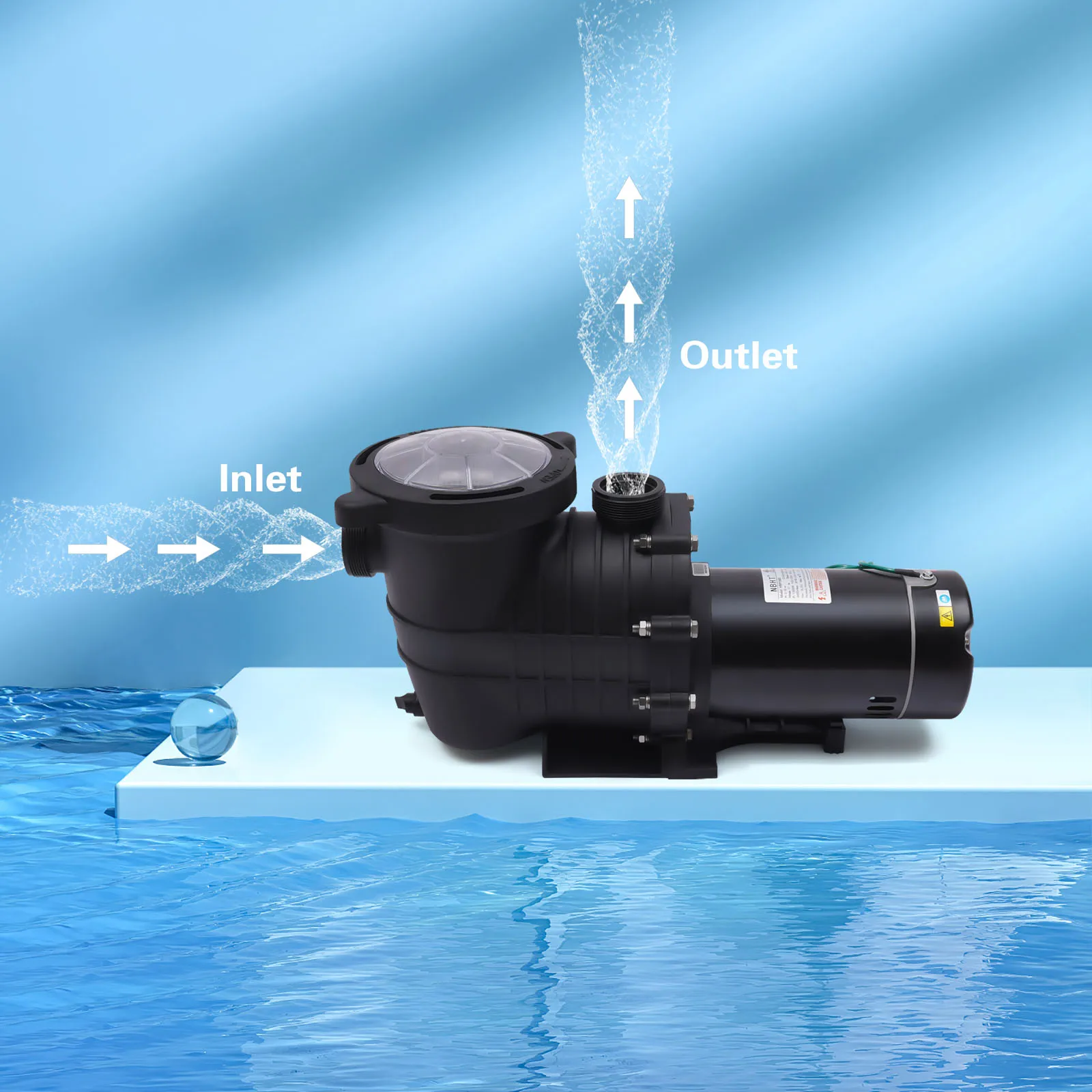

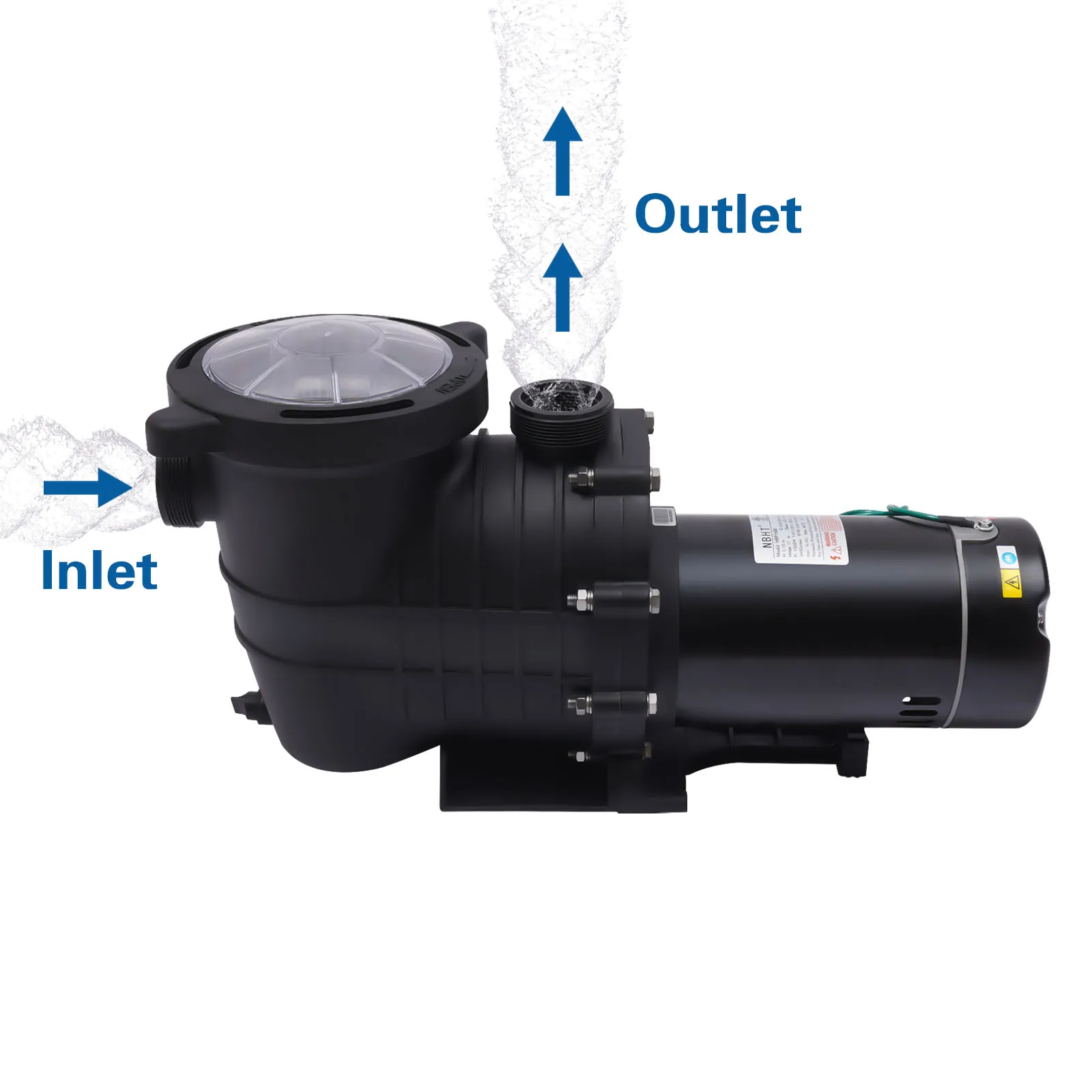

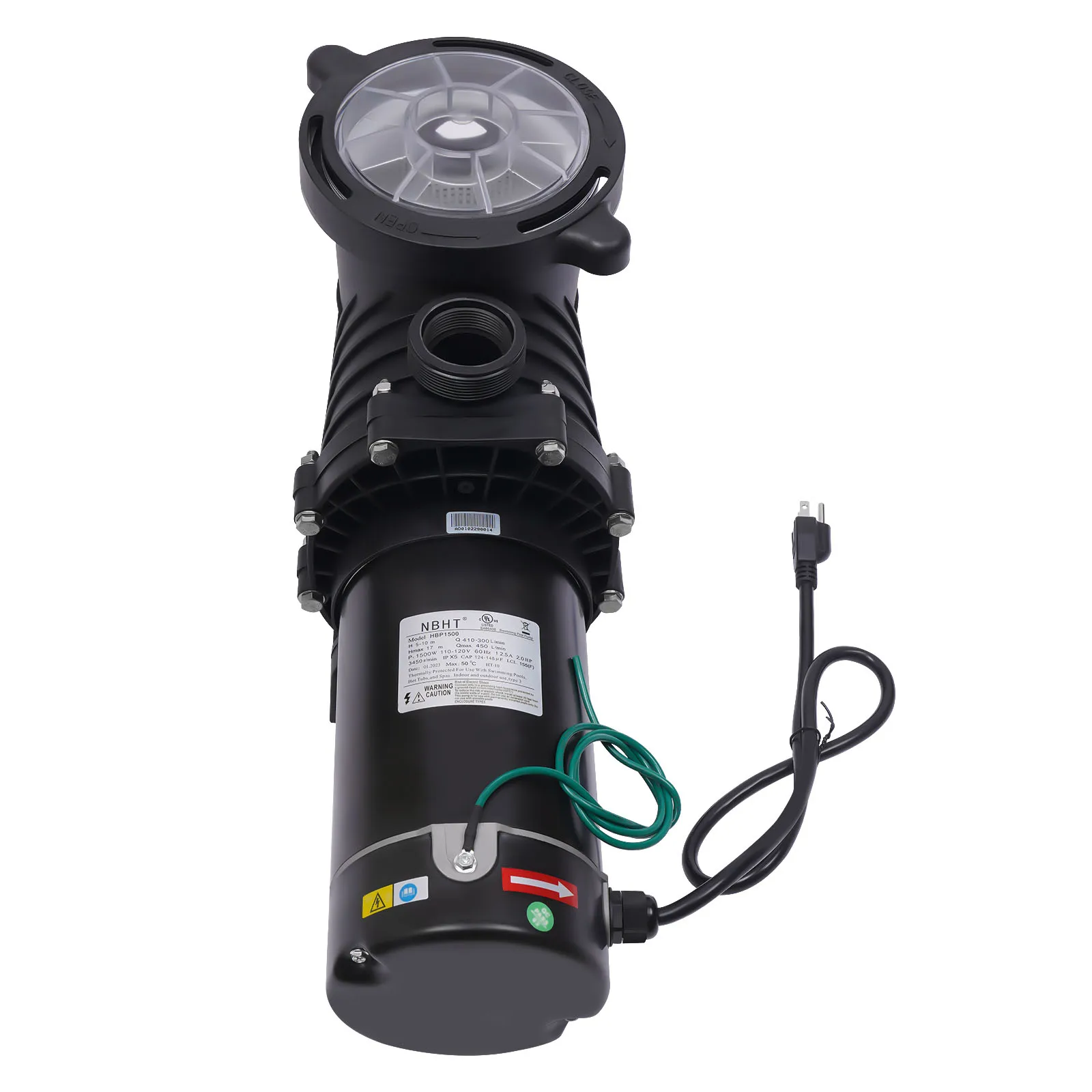

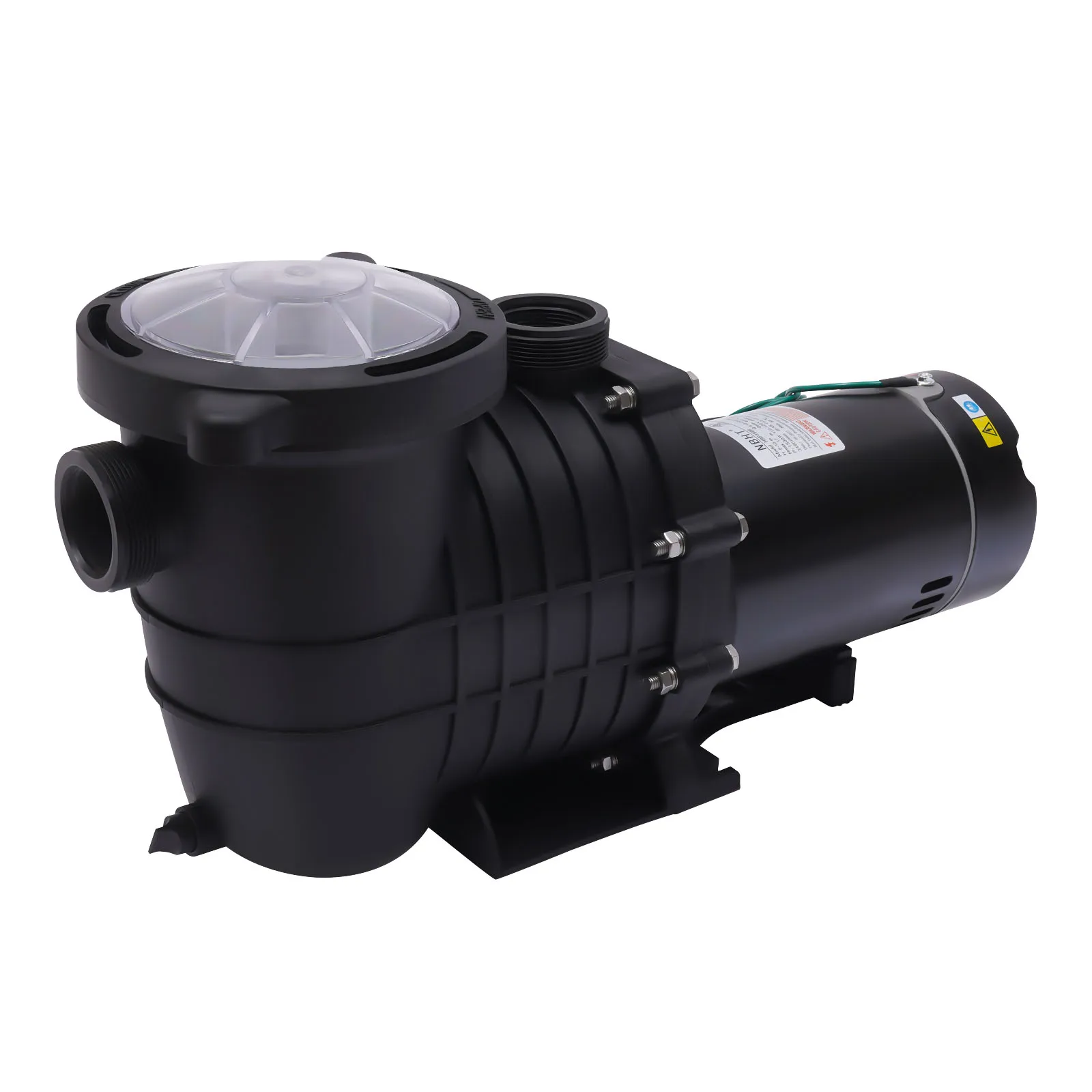

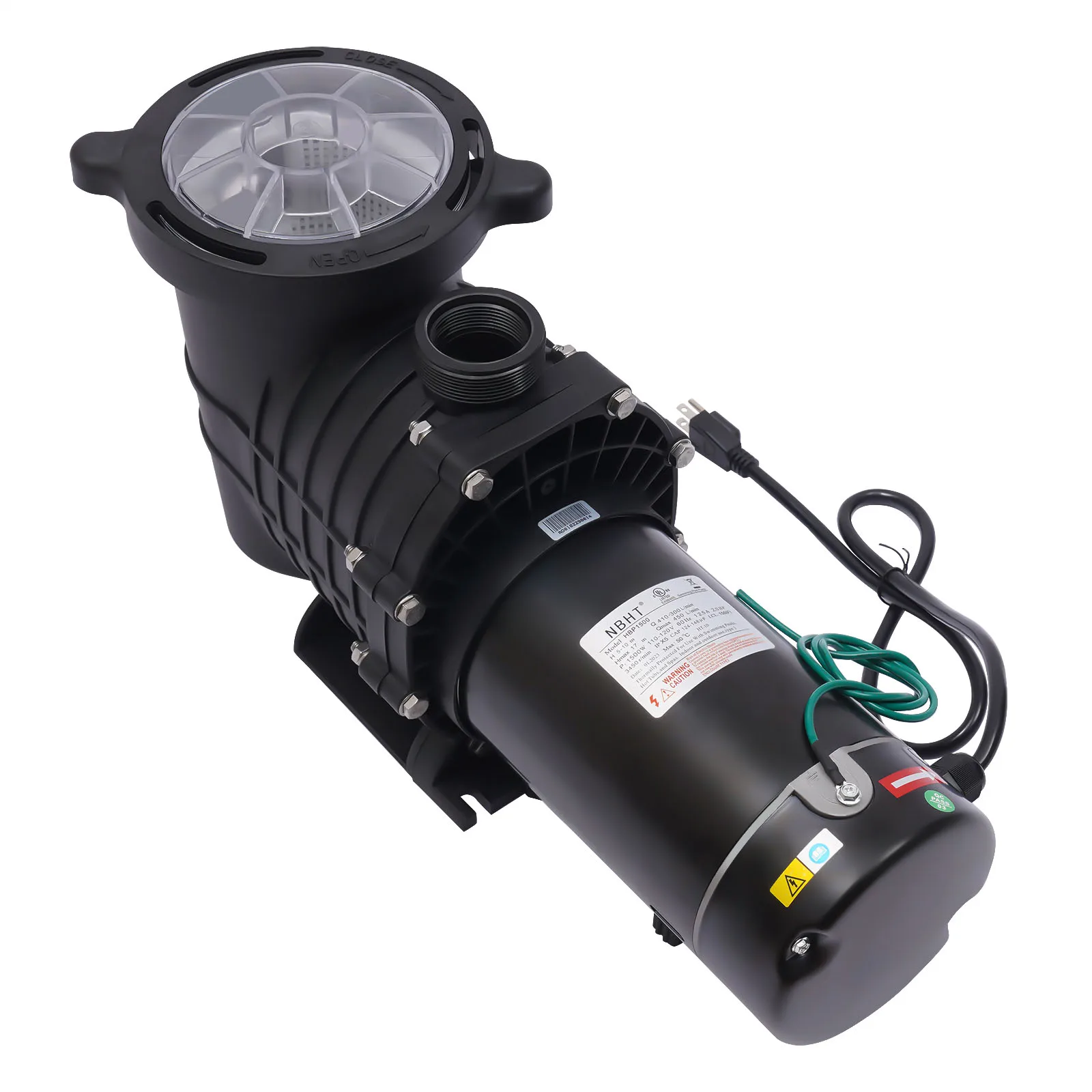

2.0HP Electric Pool Pump with Filter Basket
Description

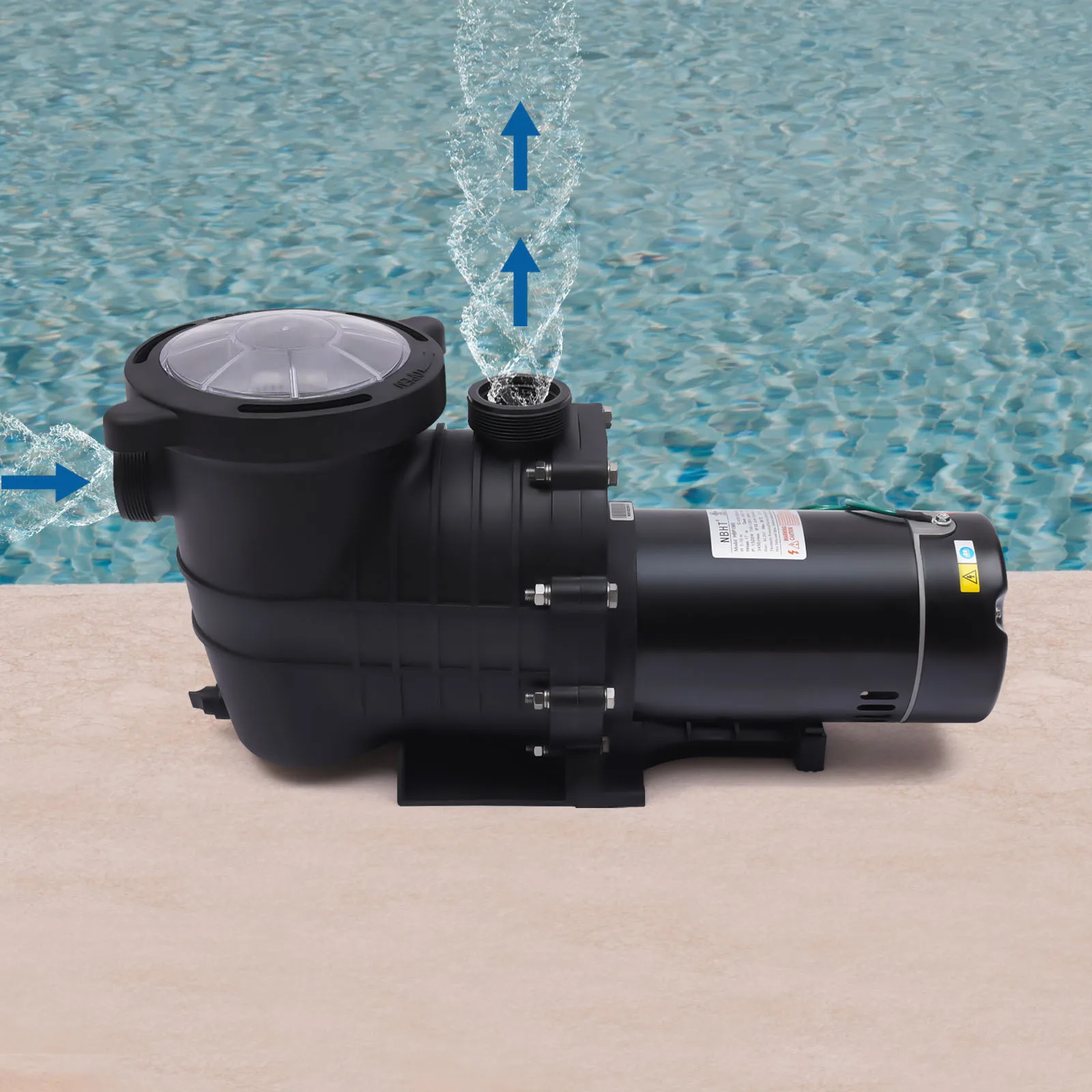

The 2HP swimming pool pump is a reliable tool that helps maintain water quality, allowing you to swim comfortably during the summer. With a reinforced polypropylene shell and a copper motor that delivers high suction power and optimal flow, it efficiently filters circulating water. This pump is suitable for various swimming pools, hot tubs, and spas, offering a pleasant swimming experience.
Key Features
- High Efficiency: The 1500W pure copper motor with 2HP, a high rotation speed of 3450r/min, an efficient impeller, and airflow ventilation allow the pump to achieve a high flow rate (118.8 GPM), ensuring quick and smooth filtration while conserving energy.
- High Safety: UL certification, thermal overload protection, and pressure protection enhance safety. F-class insulation and IP X5 protection allow for long-term use in water.
- Strong and Durable: The iron motor shell and PP pump shell, combined with integrated molding and electroplating, provide resistance to wear, corrosion, heat, and impact, making it hard to deform.
- Consistent Performance: Additional running capacitors reduce motor temperature and energy consumption, extending service life.
- Low Noise: The motor produces less than 75dB of noise, offering a quiet environment that protects your hearing.
- Simple Installation: Comes with 1/2″ NPT American standard internal thread connectors and useful accessories for easy setup.
Details

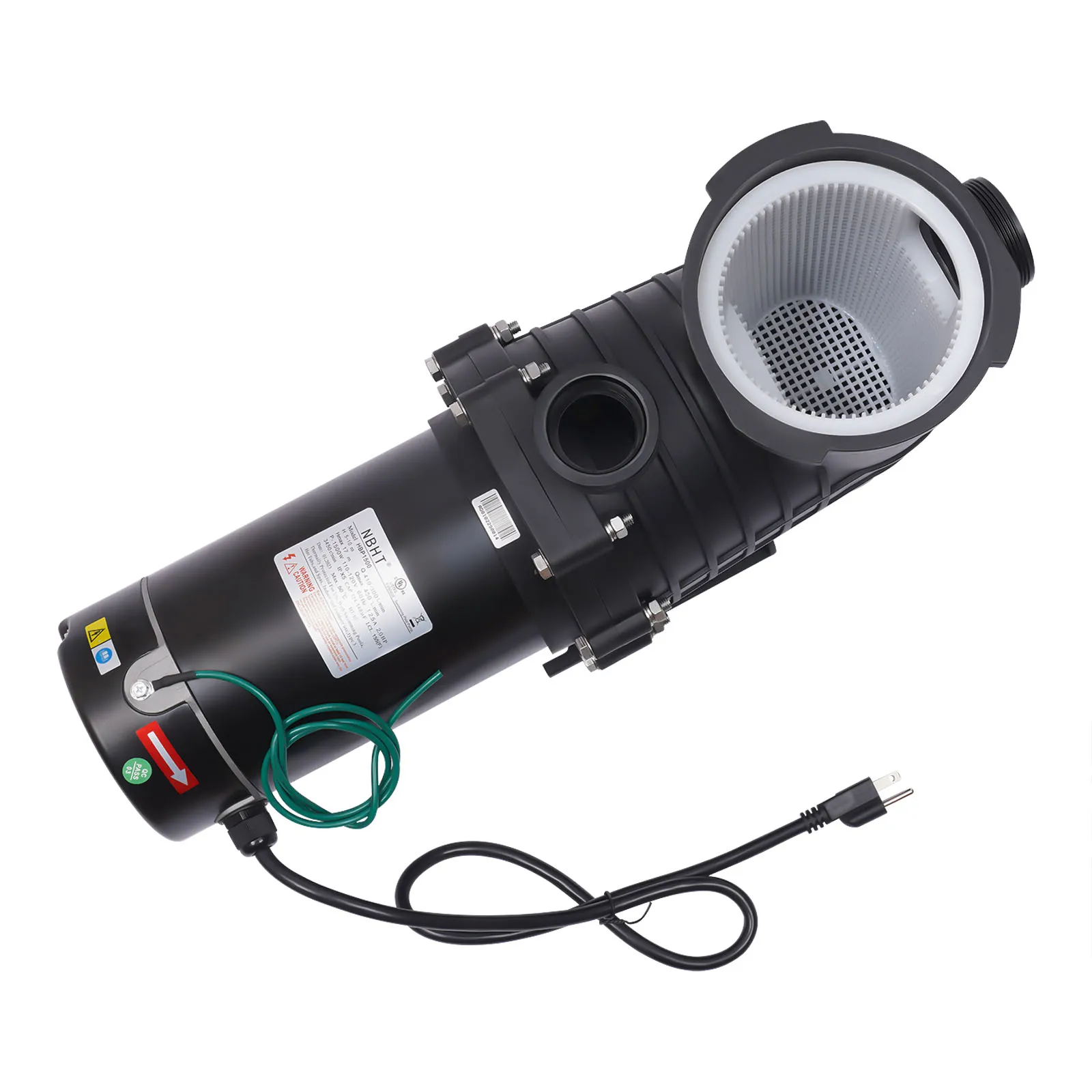

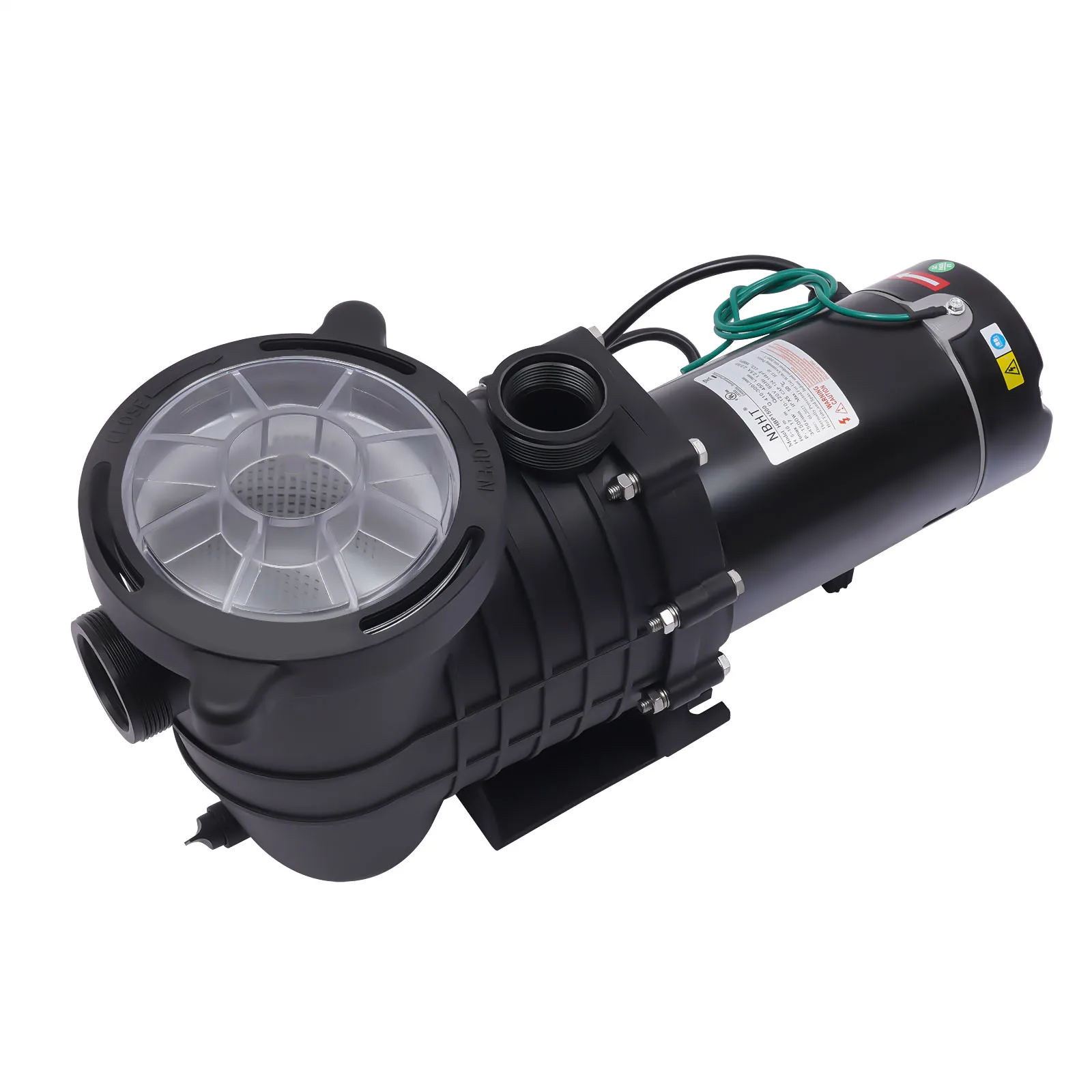

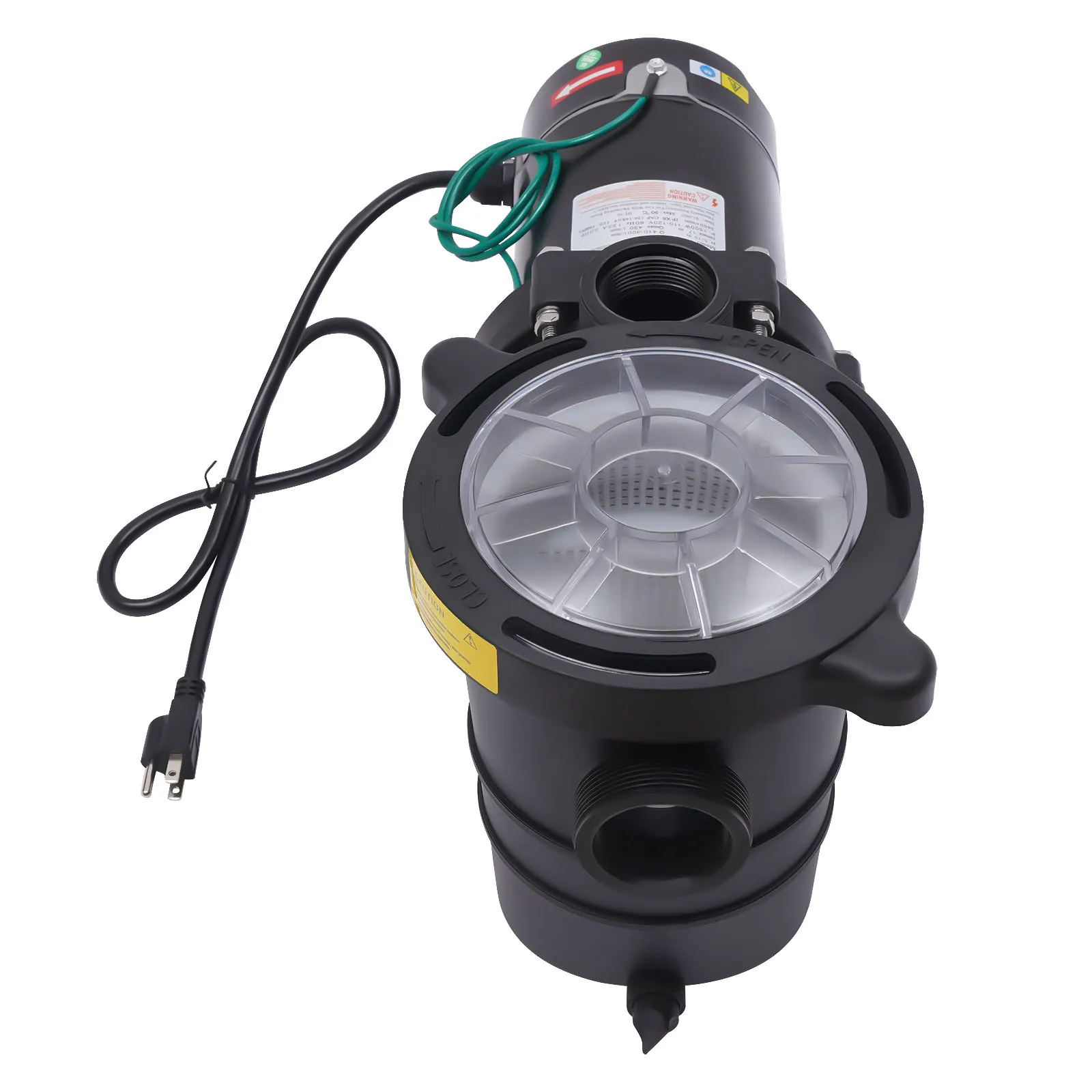

- Filter Basket with Clear Cover: The large filter basket makes it easy to remove leaves, debris, hair, and lint. The clear, lockable cover shows when cleaning is needed and ensures safe closure.
- O-shaped Sealing Ring: This heat-resistant ring between the basket and filter pipe strengthens the seal and prevents water leakage during operation.
- Drain Plug: Simply open the drain plug at the bottom to empty water, preventing accumulation in winter and easing maintenance.
Application

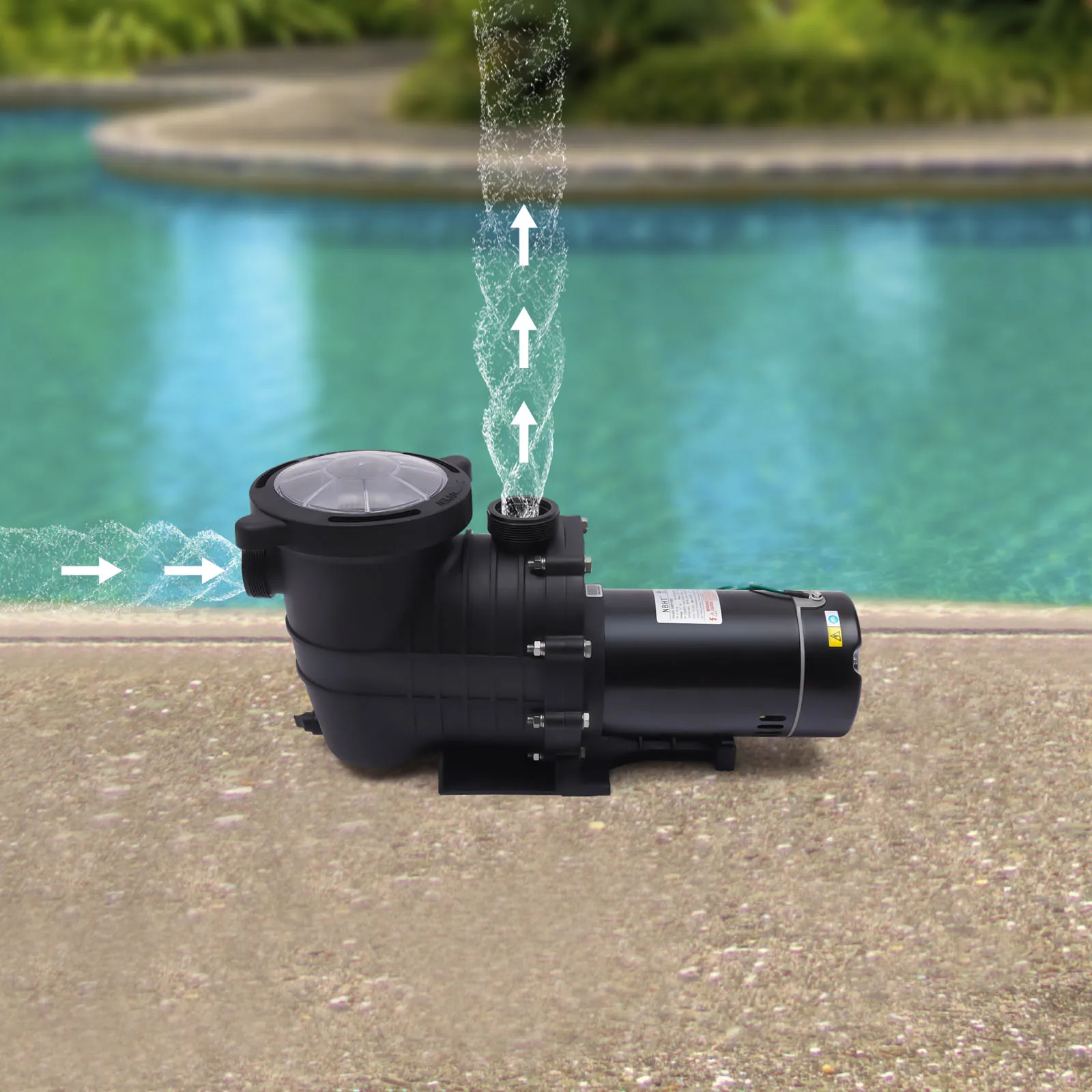

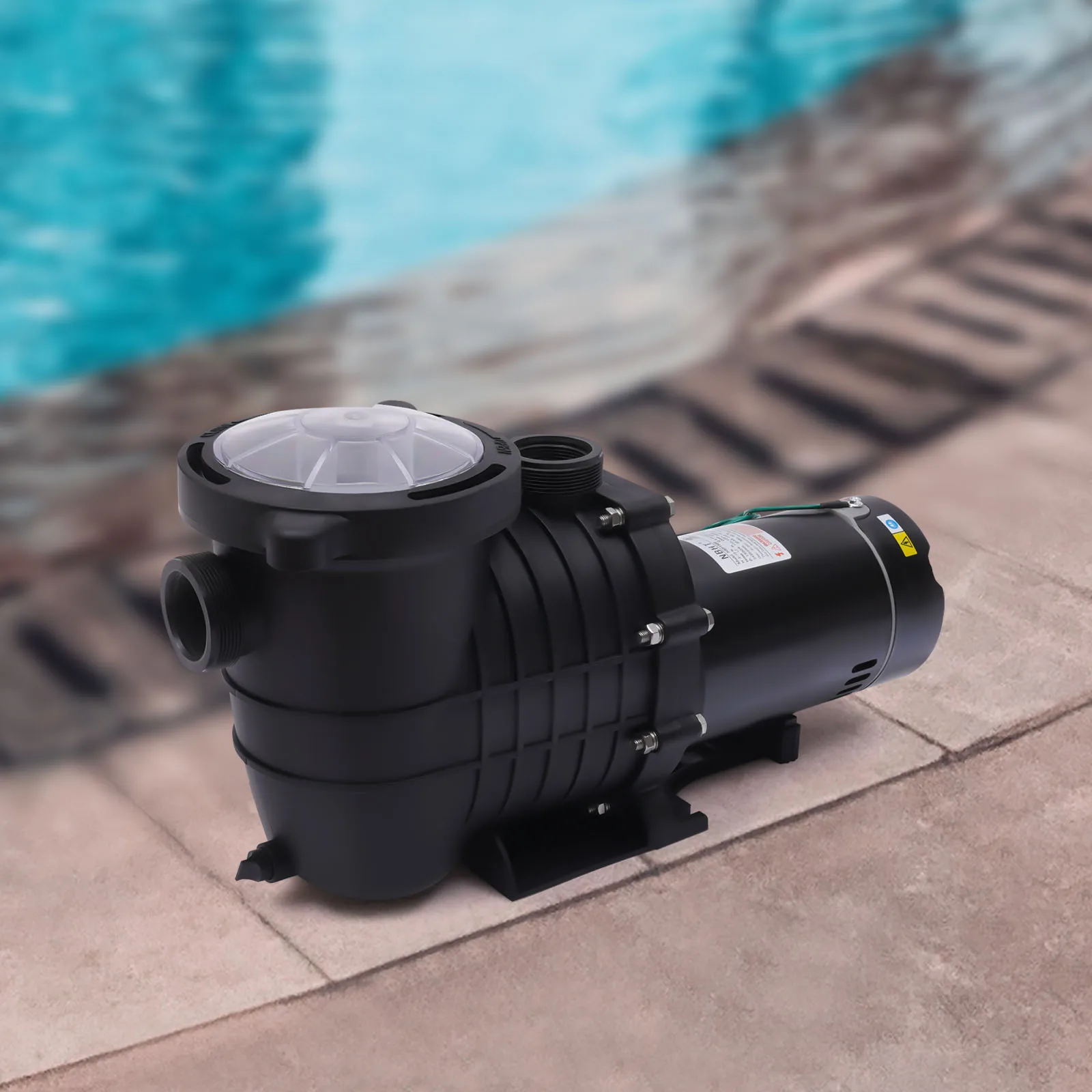

This pump is ideal for in-ground and above-ground pools, hot tubs, and spas. It is also widely used for water circulation in hotels, restaurants, aquaculture, hydro massage baths, spas, jets, rinses, filtration systems, water treatment facilities, and decorative pools.

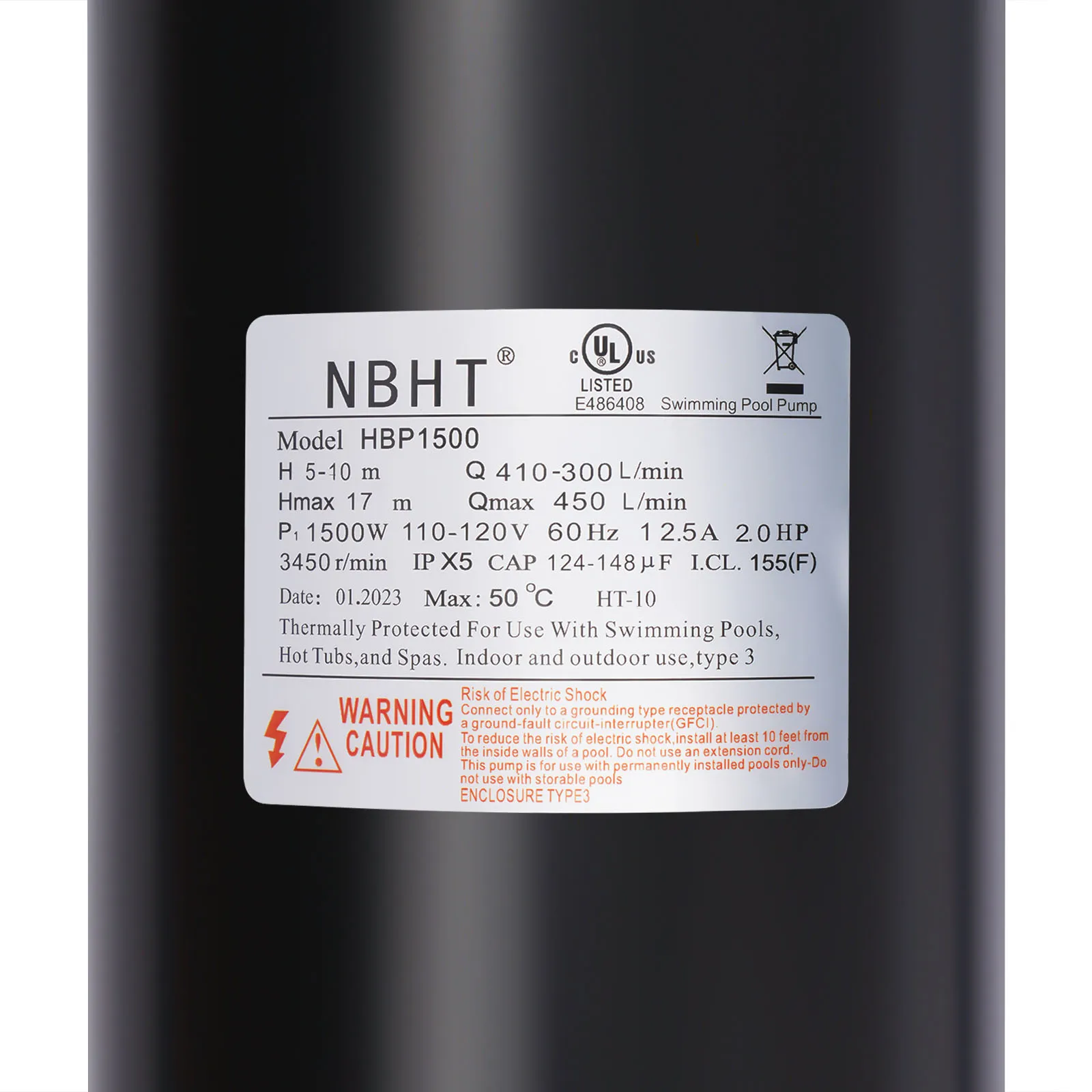

Specification
- Pump Model: HBP1500
- Motor Model: HT-10
- Color: Black
- Material: Iron, Polypropylene
- Processes: Injection Molding, Electroplating
- Style: Modern
- Power Source: Corded Electric

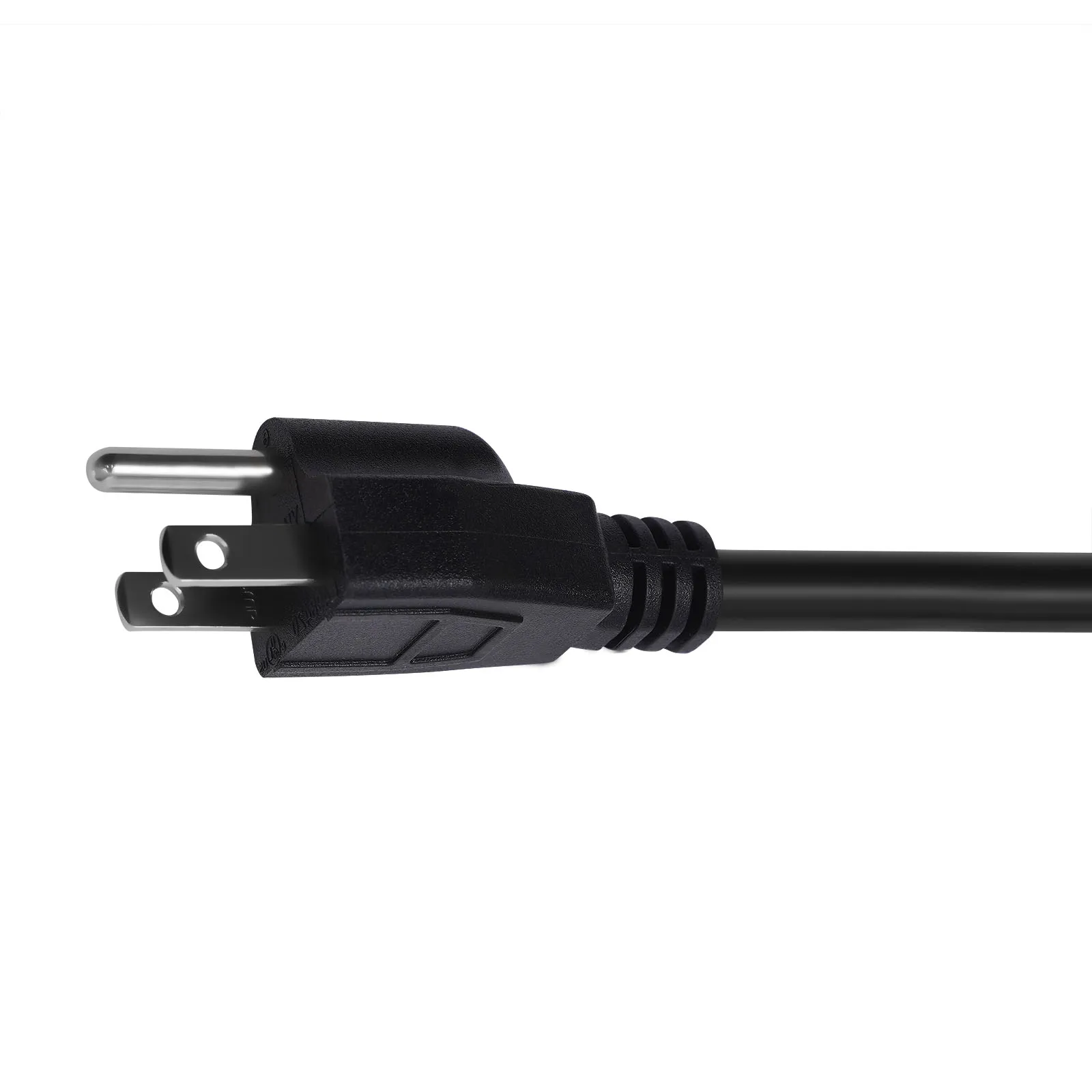

- Plug: US Standard
- Motor Type: Single-speed Pure Copper Motor
- Noise: <75dB
- Voltage: 110-120V, 60Hz
- Power: 1500W, 2HP
- Current: 12.5A
- Flow: 410-300L/min, 108.3-79GPM
- Maximum Flow: 450L/min, 118.8GPM
- Head: 5-10m / 16.4-32.8ft
- Maximum Head: 17m / 55.77ft
- Rotation Speed: 3450r/min
- CAP: 124-148μF
- Insulation Class: 155(F)
- Protection Grade: IP X5
- Suitable Temperature: Max 50℃ / 122℉
- Inner Coupling: 1/2″ NPT
- Connector Diameter: 48.5mm / 2 inch
- Cord Length: 95cm / 37.4 inch
- Net Weight: 13kg / 28.66 lbs
- Gross Weight: 13.3kg / 29.3 lbs

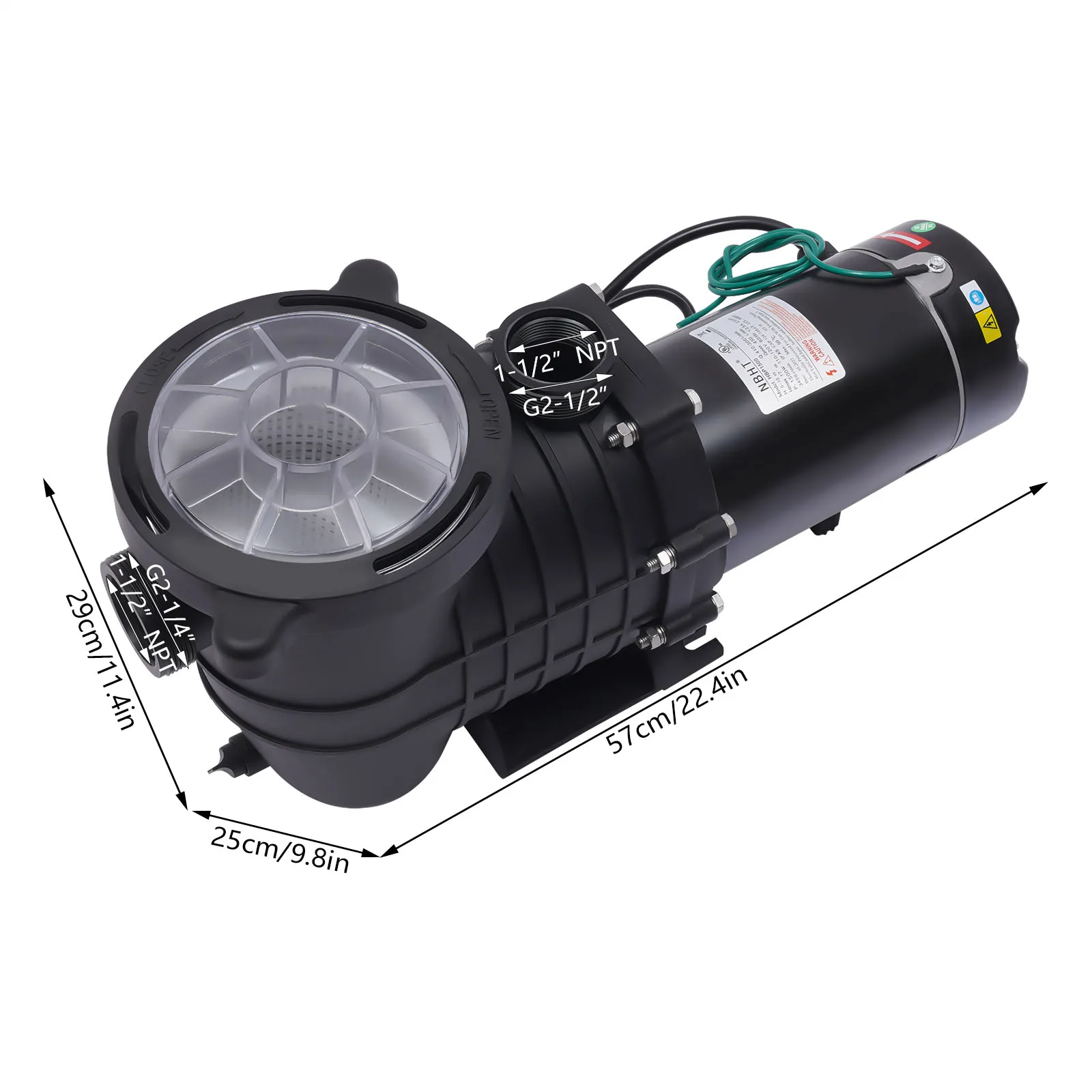

- Package Size: 62*24*35cm / 24*9.45*13 inch

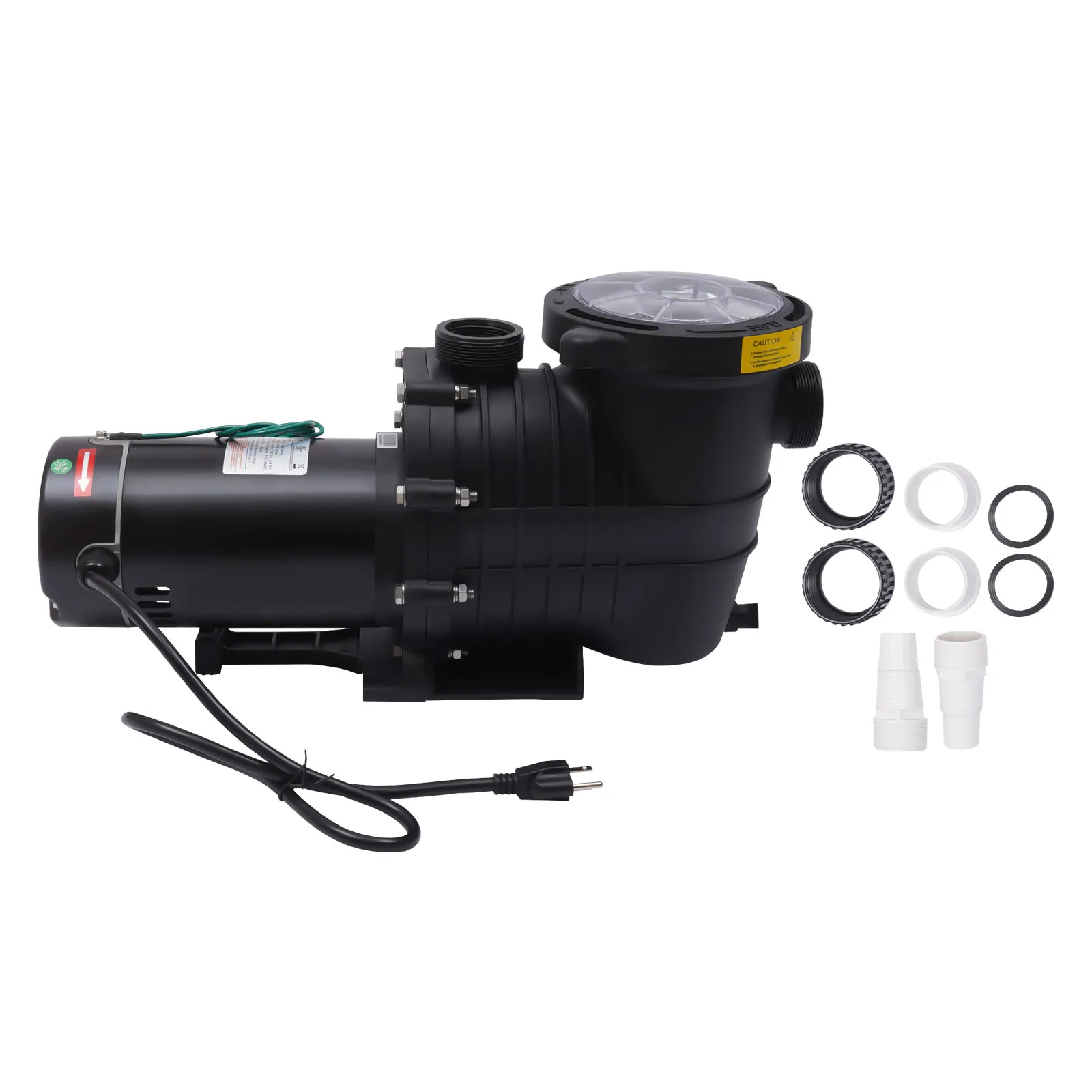

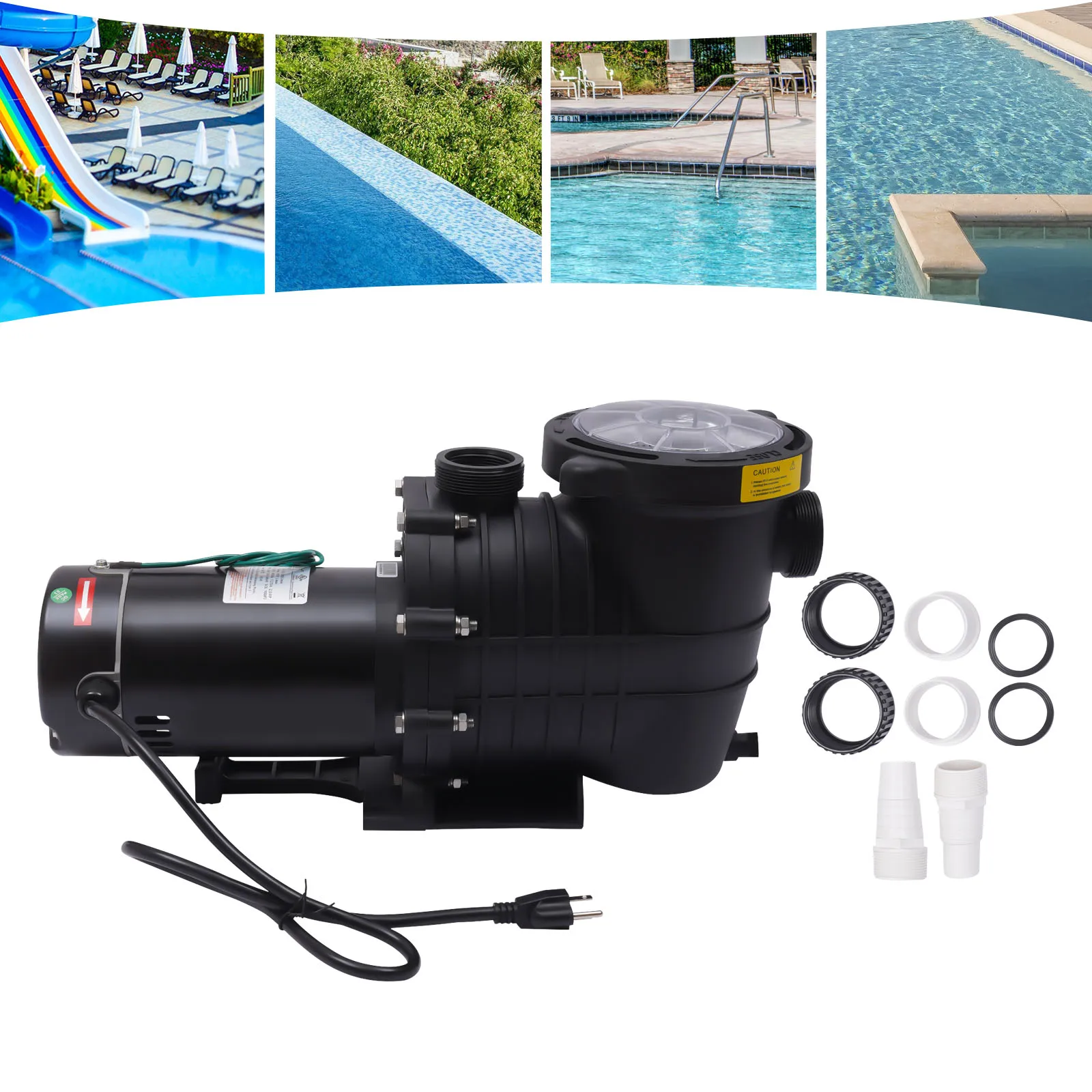

Package Includes
- 1 × Pool Pump
- 1 × English Manual

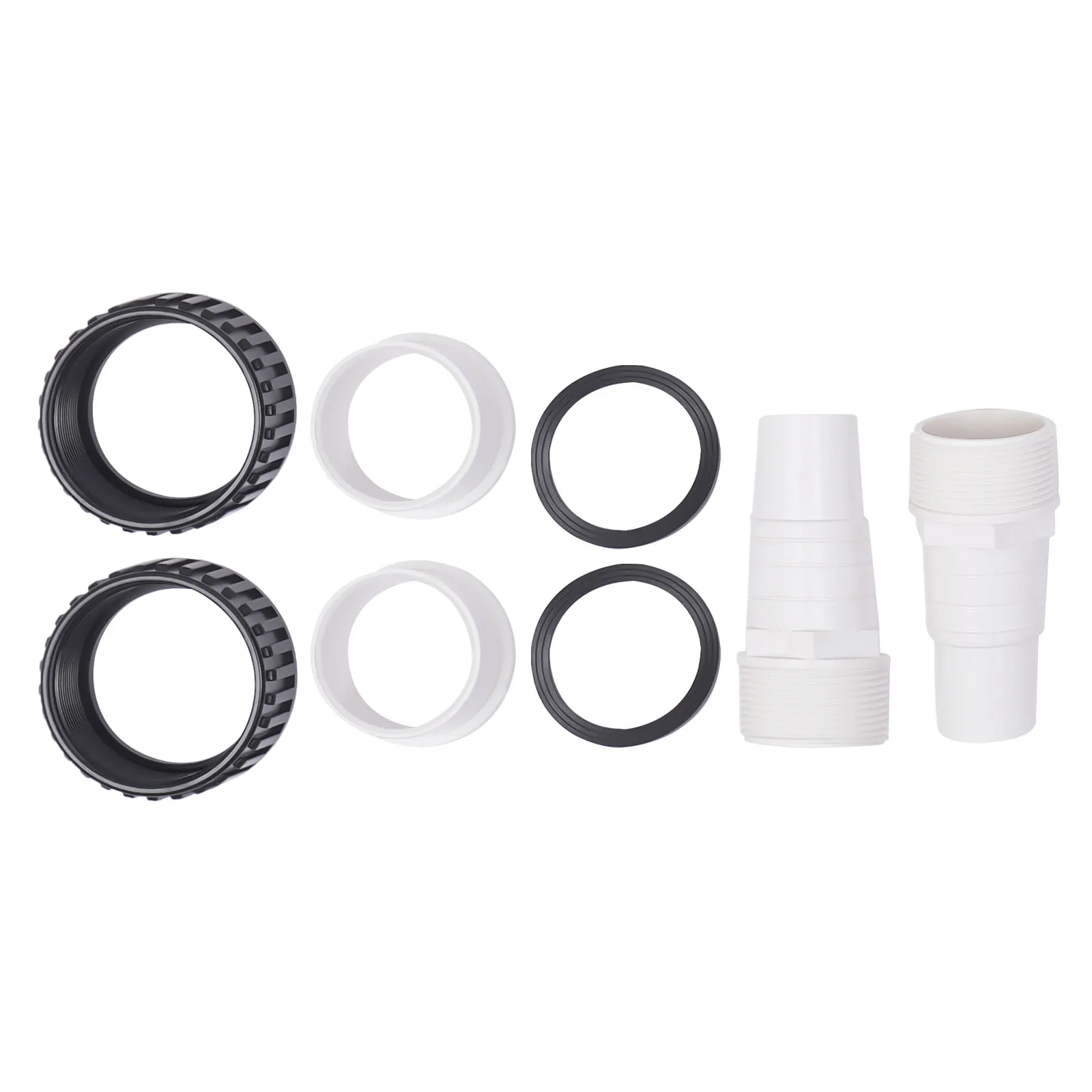

- Other Accessories for Assembly
Notes
- This pump is for use with permanently installed pools only. Do not use it with storable pools.
- Fill the pump with water before use to prevent overheating and damage to mechanical seals and impellers.
- Installation and repairs should be done by qualified professionals. All wiring must be completed by licensed electricians in compliance with local regulations.
- To reduce the risk of electric shock, install at least 10ft from pool walls and avoid using extension cords. Connect to a grounding-type outlet with GFCI protection.
- Do not cut the power cord without authorization. Protect all electrical components from the weather.
- If the pool has a salt generator, it should be the last component before the water returns to the pool.
- Color differences may occur due to lighting during photography. Manual measurement may cause a 1-3cm error.
