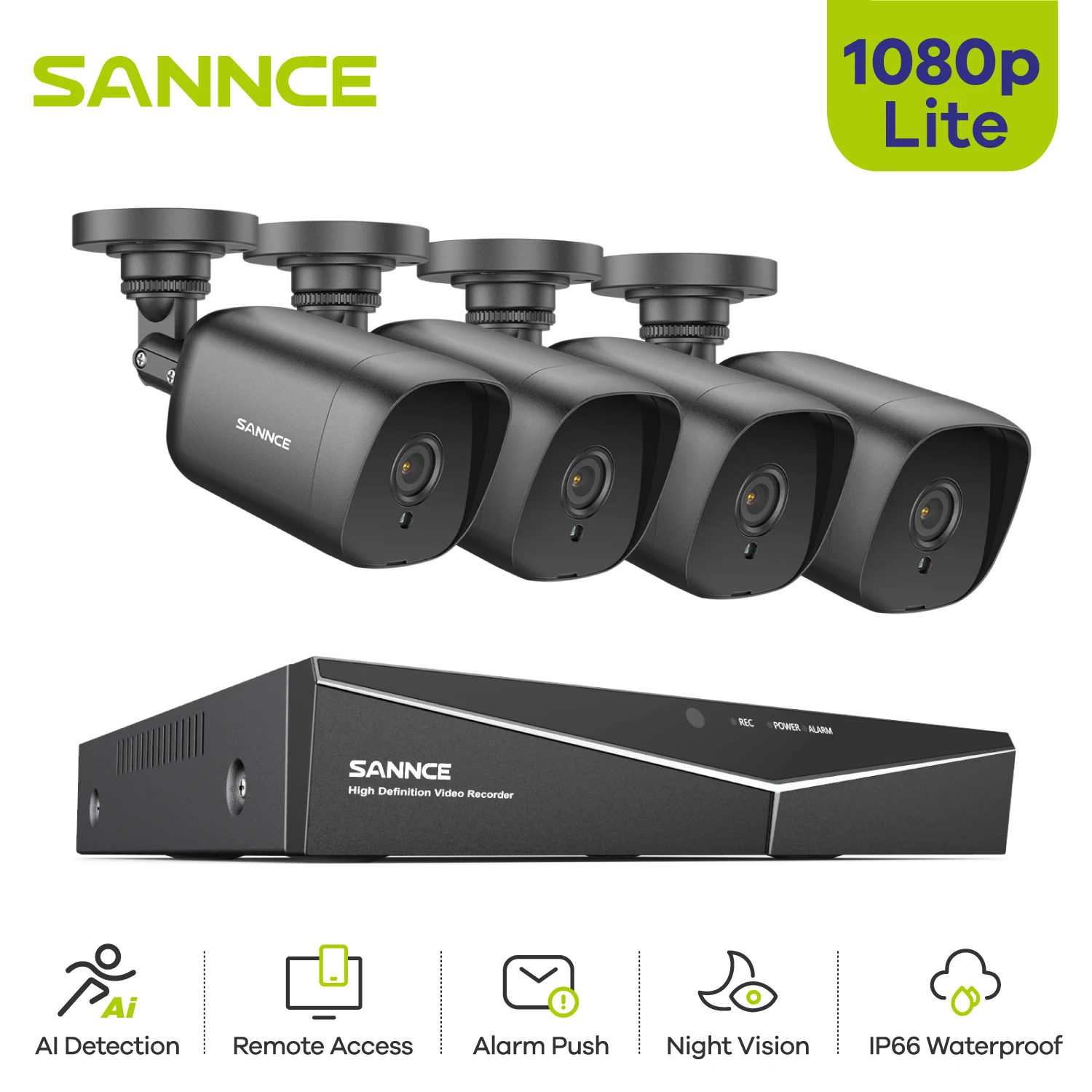

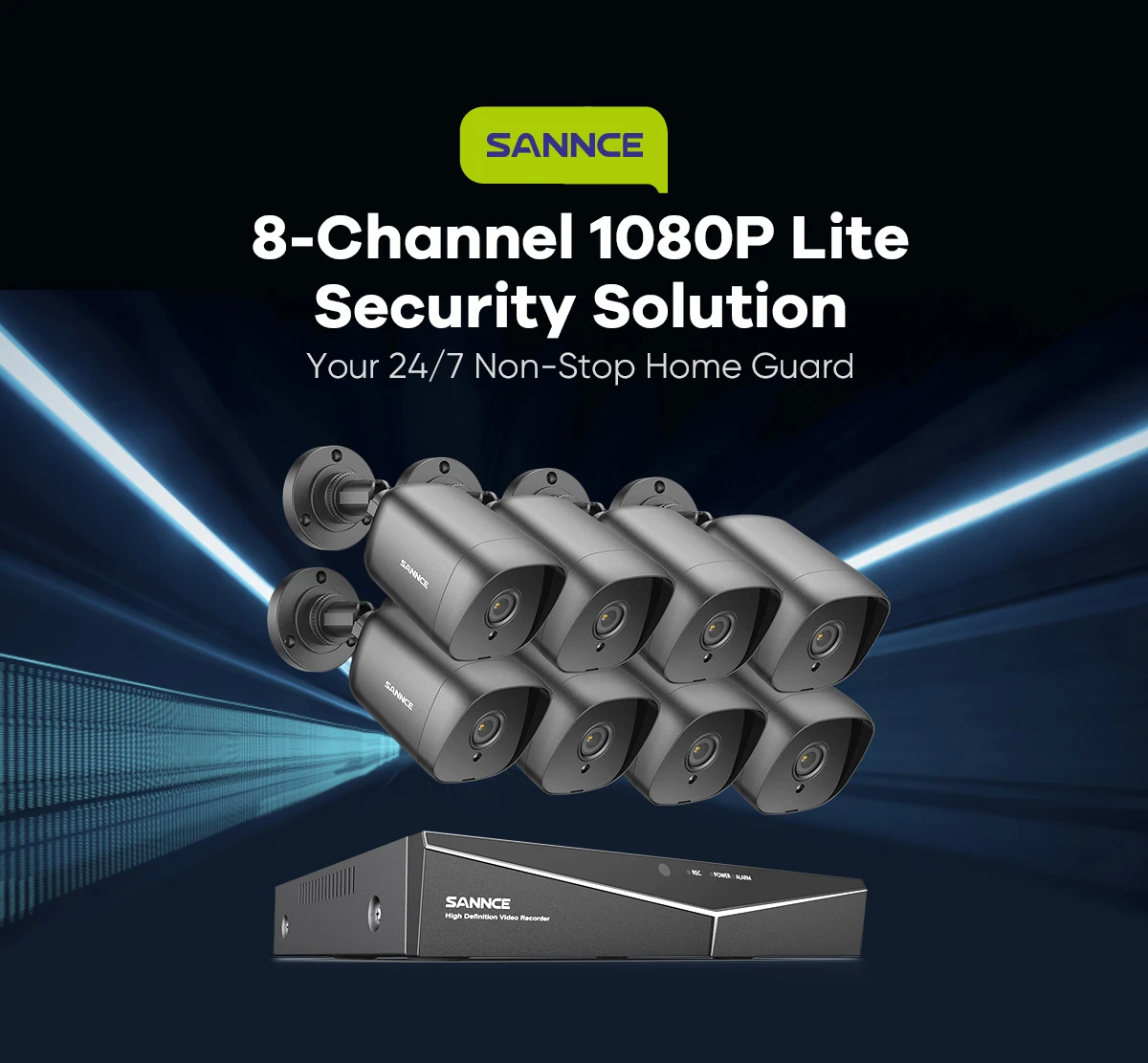

1080N 8CH SANNCE DVR Security Kit with Night Vision

1080N 8CH SANNCE DVR Security Kit with Night Vision

HD Camera Key Features:

• TVI 1080P high clarity bullet camera
• Up to 30m night vision with 12pcs infrared LEDs
• 3.6mm lens brings everything back to life
• Clear day and night vision with auto infrared-cut
• IP66 Dust and Waterproof Rating

DVR Key Features:

• Supports 8CH 1080N resolution encoding

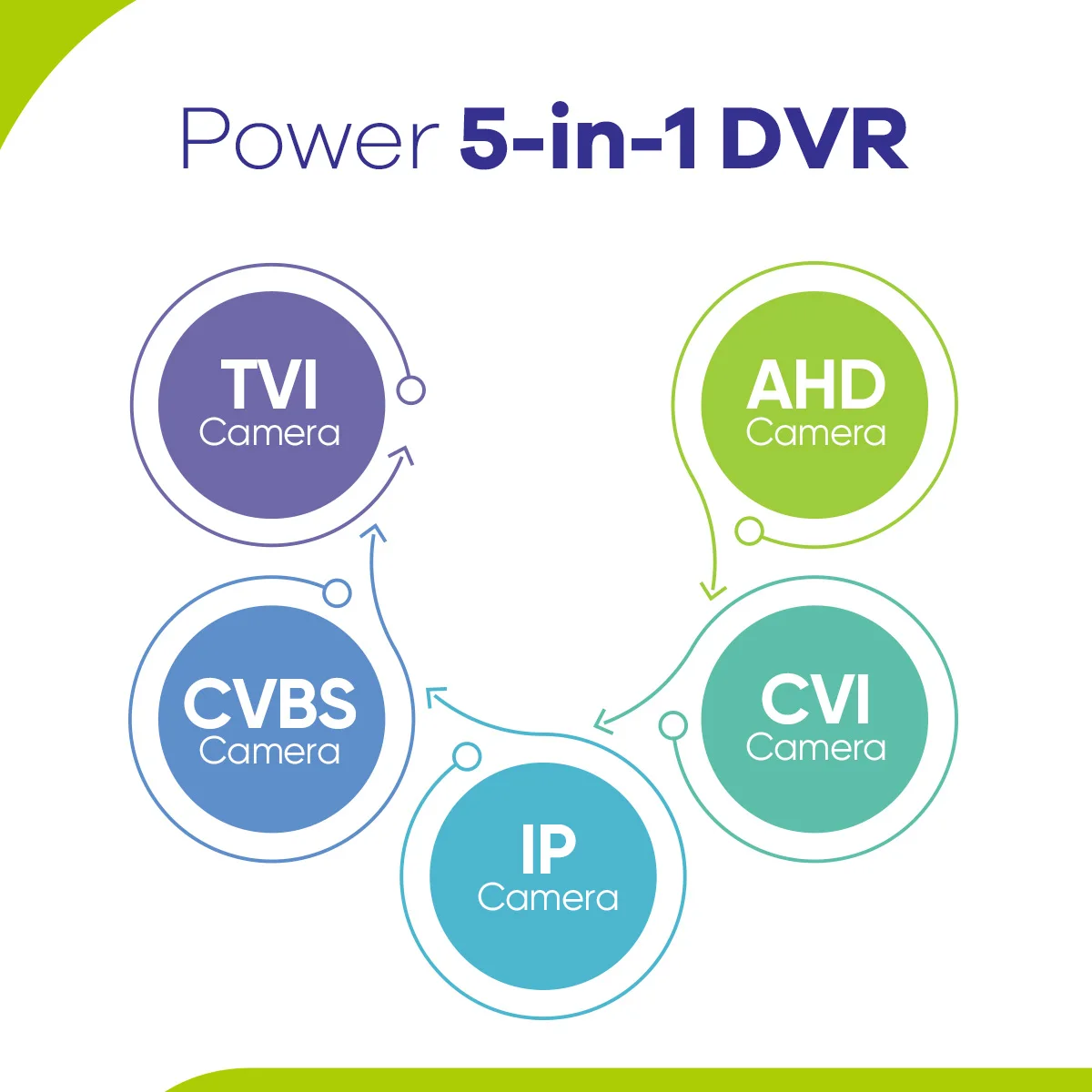

• Supports AHD, TVI, CVI, CVBS, IP video input
• HDMI/VGA simultaneous video output
• 1 SATA (Up to 8TB)
• 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port
• Automatic networking support, easy equipment addition
• Supports alarm information push to phone
• Supports remote access, supports ARSP
• Mobile phone remote monitoring (iOS, Android)
• Supports multi-browser access, VMS PC client

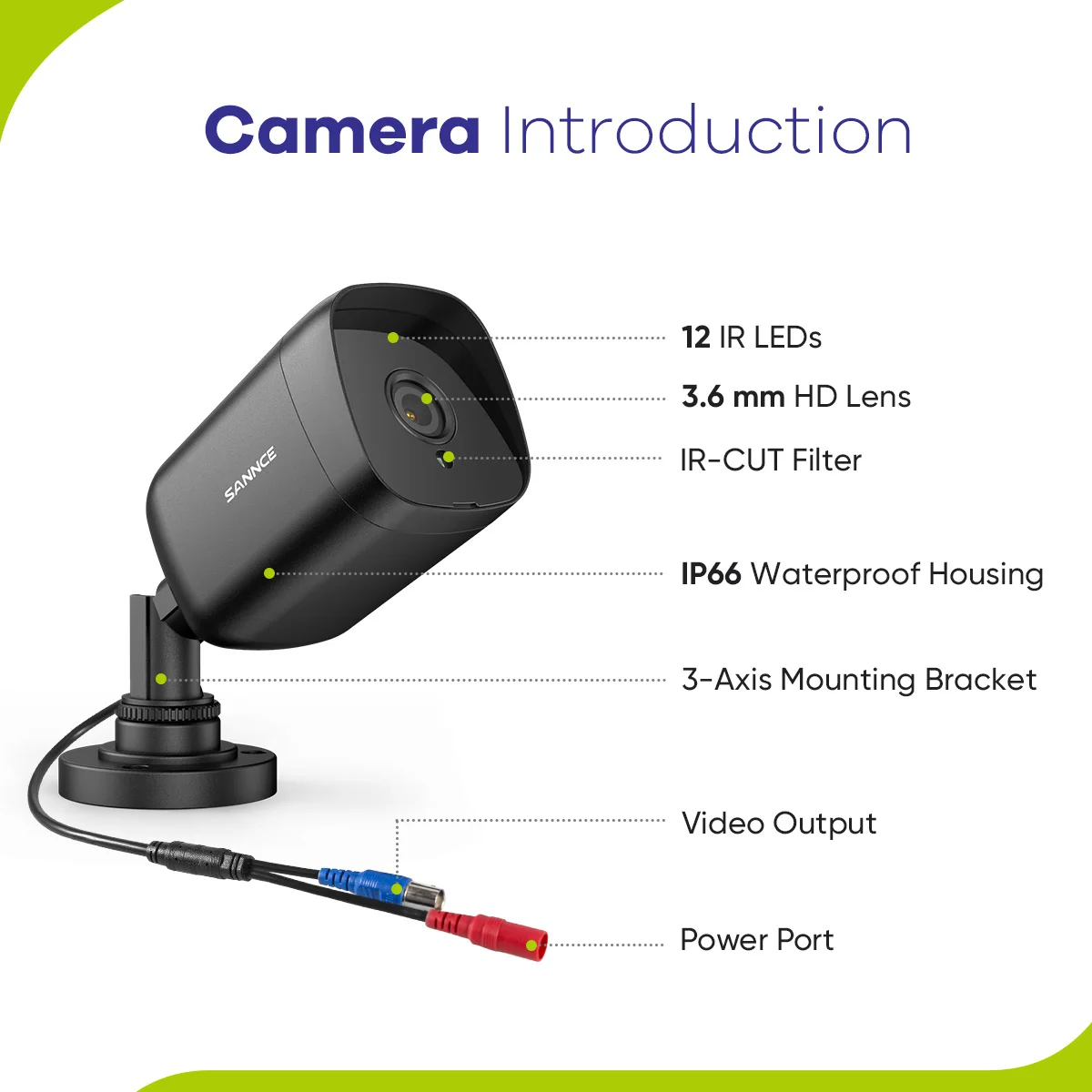

HD Camera

• Camera:
  • Video Resolution: HD 1080P
  • Signal system: PAL/NTSC
  • Image sensor: Progressive Scan CMOS
  • Lens: 3.6mm
  • Min.Illumination: 0.02Lux@(F1.2 AGC ON), 0Lux with IR on
  • Angle of View: 70°
  • Number of Infra-Red LEDs: 12
  • Night Vision Distance: Up to 100ft/30m
  • DNR: DNR
  • Wide Dynamic Range: Digital WDR
  • IR Cut Filter: Yes
  • Video Output: HD BNCx1
• General:
  • Housing: Plastic
  • Color: Black
  • Operating Power: DC12V
  • Operating Temperature: -40 °F – 140 °F /-40 °C – 60 °C
  • Indoor/Outdoor: Indoor/Outdoor
  • Weatherproof Rating: IP66
  • Dimension (L x W x H): 6.49” x2.36” x 2.36” / 165 x 60 x 60mm
  • Weight: 0.33lbs / 150g

DVR

• Video & Audio:

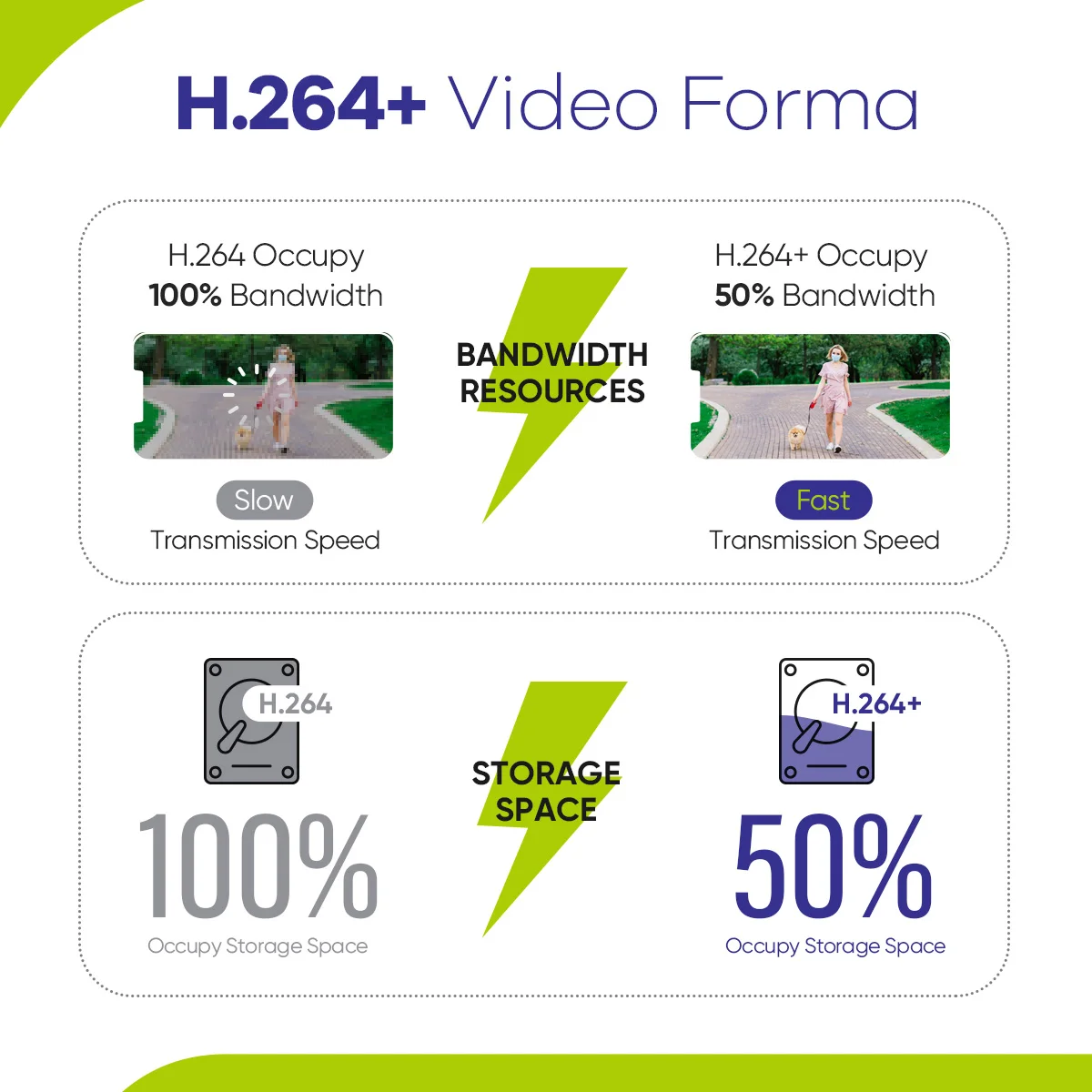

  • Codec: H.264+
  • Video input: 8*BNC
  • HDMI output: 1*HDMI (MAX:1080P)
  • VGA output: 1*VGA (MAX:1080P)
  • Audio I/O: 1/1
  • Encode: 8*1080N@15fps
  • Decode: 4*1080N@15fps
  • Multi-mode options:
    • Analog: 8*1080N@15fps; 4*5M-N(21fps)
    • Hybrid: 8*1080N@15fps(analog) + 2*1080P
    • IP: 16*1080P; 16*5MP
  • Playback: 4CH (Analog mode)
  • Compression: G.711a
  • Intercom: Support
• Hard Drive:
  • HDD: 1*SATA interface
  • HDD Capacity: Up to 8TB Capacity
• Management:
  • Record mode: Manual > Motion detection > Schedule
  • Inquire mode: Inquire by Time/Calendar/Event/Channel
  • Storage mode: SATA HDD
  • Backup: Network, USB storage
• External Interface:
  • Ethernet port: 1*10/100Mbps Ethernet port, RJ45 port
  • USB Port: 2*USB2.0 ports
• General:
  • Power supply: 12V/2A
  • Consumption: <10W (Without HDD)
  • Temperature: 0℃- + 55℃
  • Humidity: 10% -90% RH
  • Dimension: 255(L)* 236mm(W)* 44mm(H)
  • Weight: Around 1KG
