Mini PCI-E LPC Laptop POST Analyzer Card
This 3-in-1 laptop diagnostic test card is a practical tool for notebook motherboard repair and troubleshooting. It supports Mini PCI, Mini PCI-E, and LPC bus interfaces, giving technicians and repair users a convenient way to check supported laptop boards during diagnostics. The card only needs to be connected to one supported interface while in use, so the other two interfaces do not need to be connected at the same time.

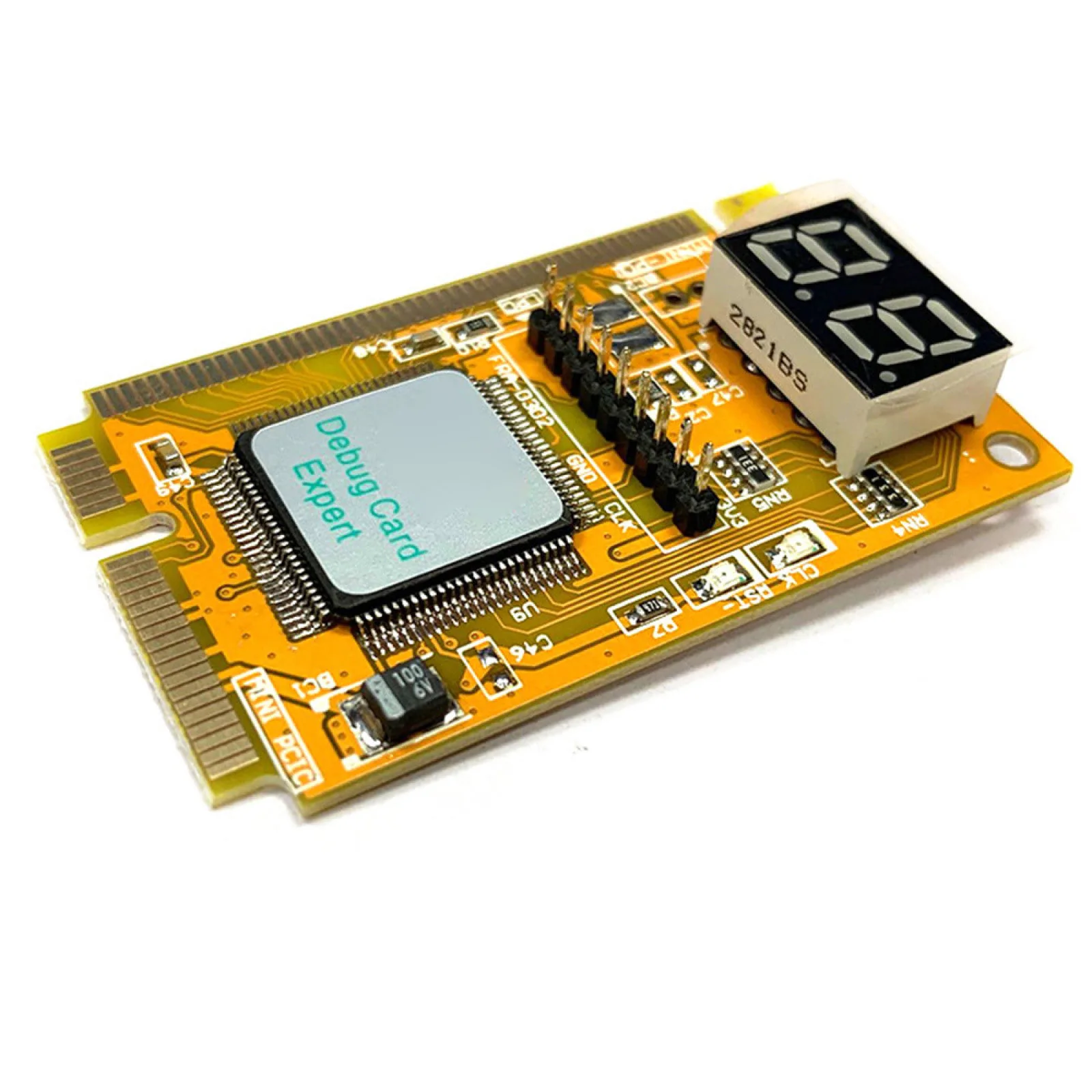

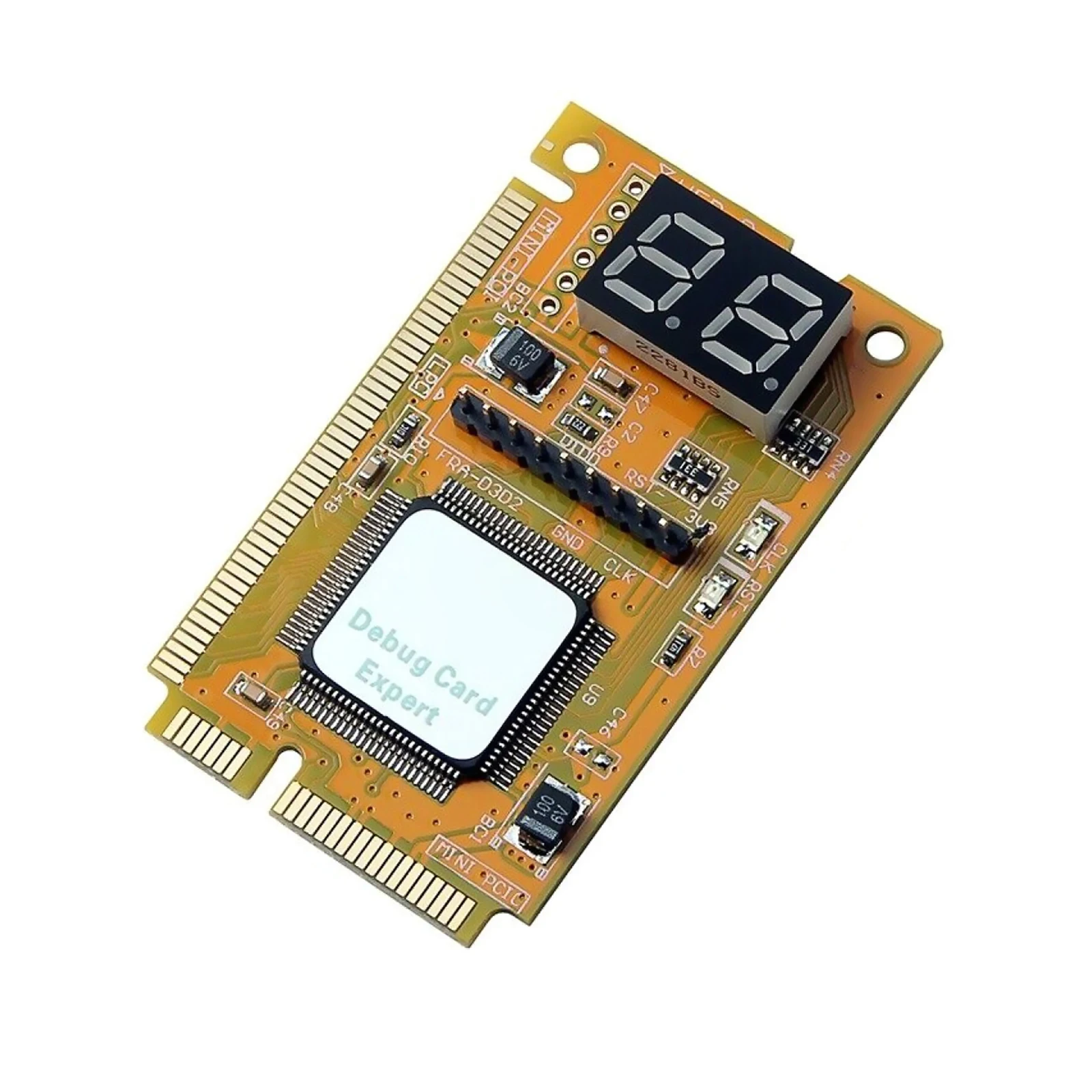

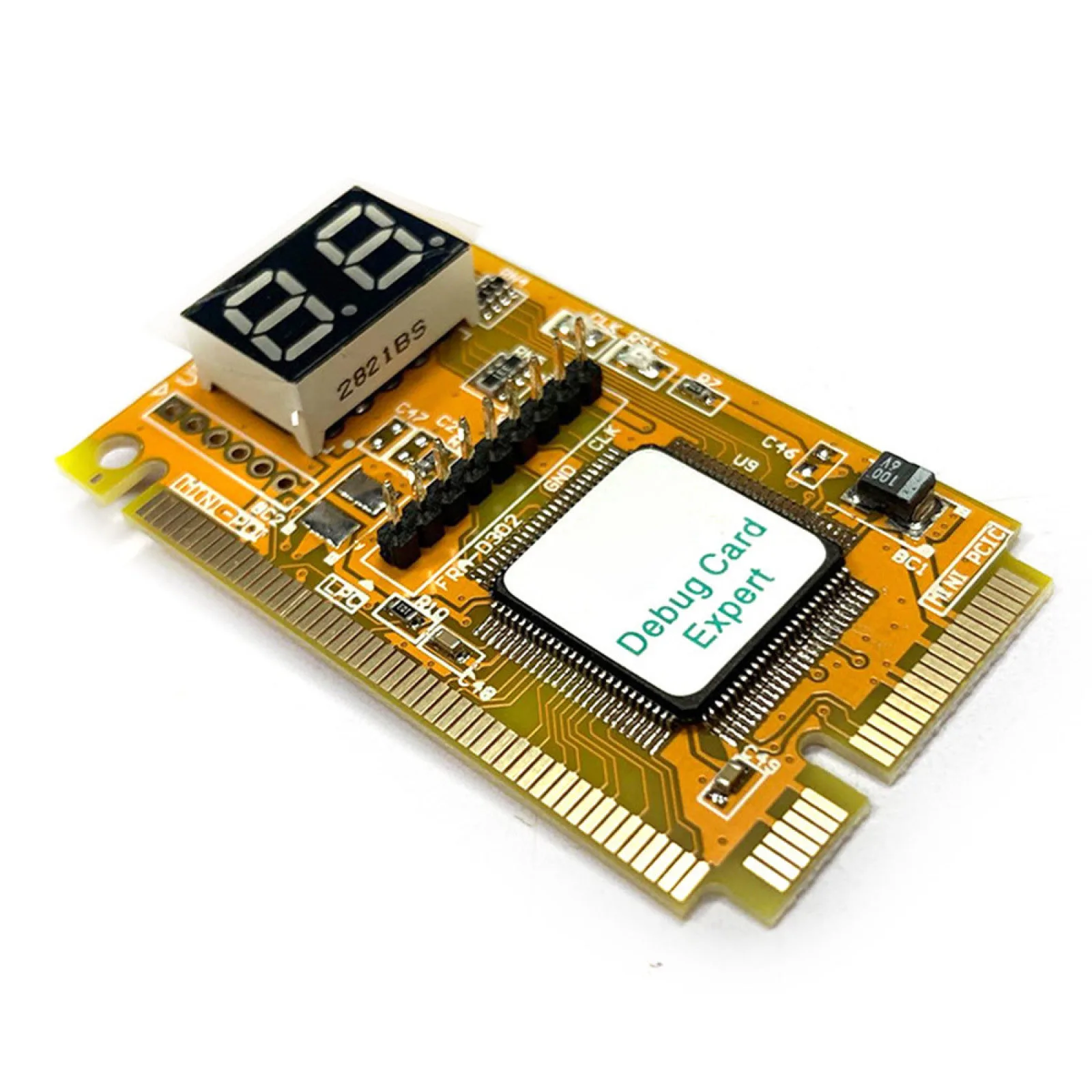

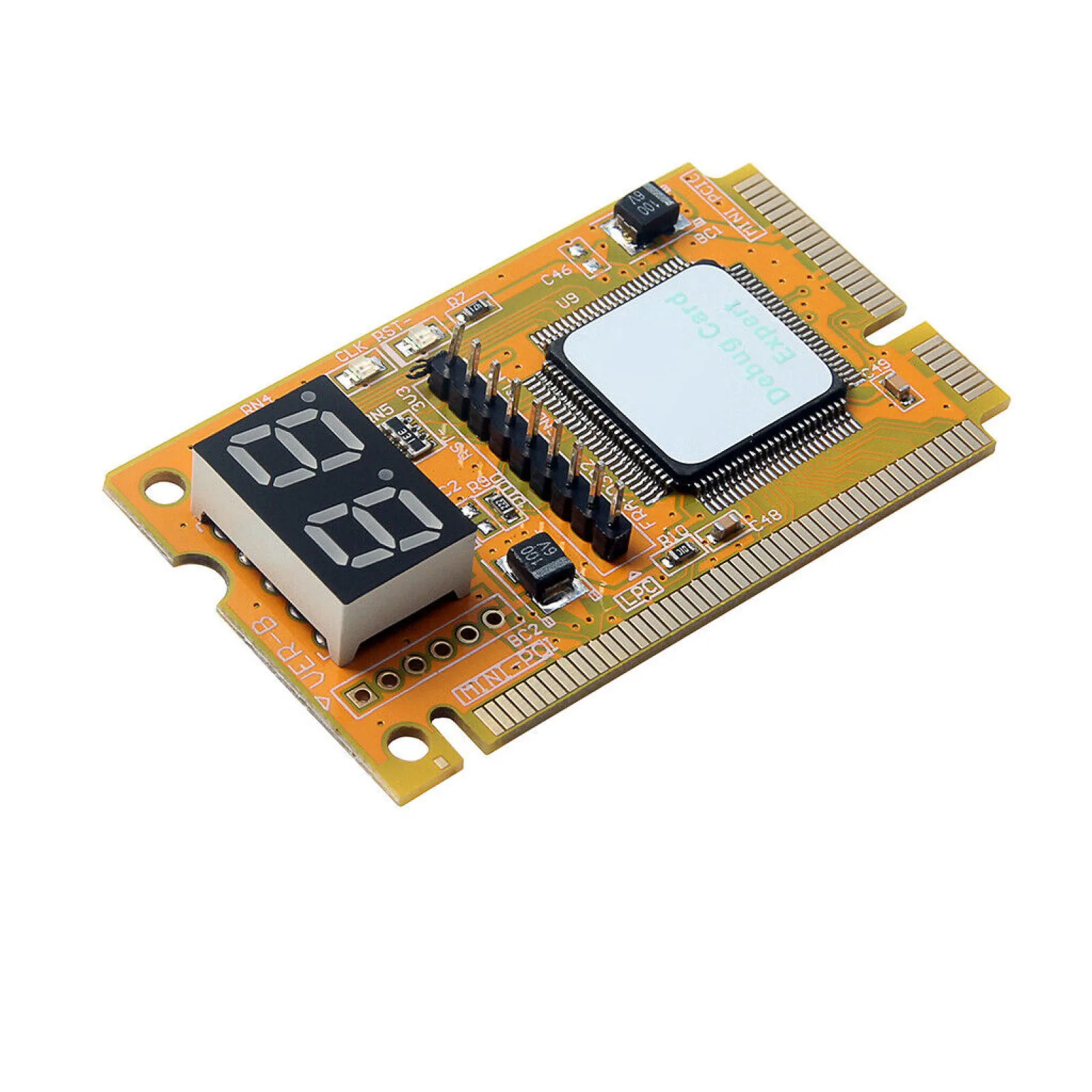

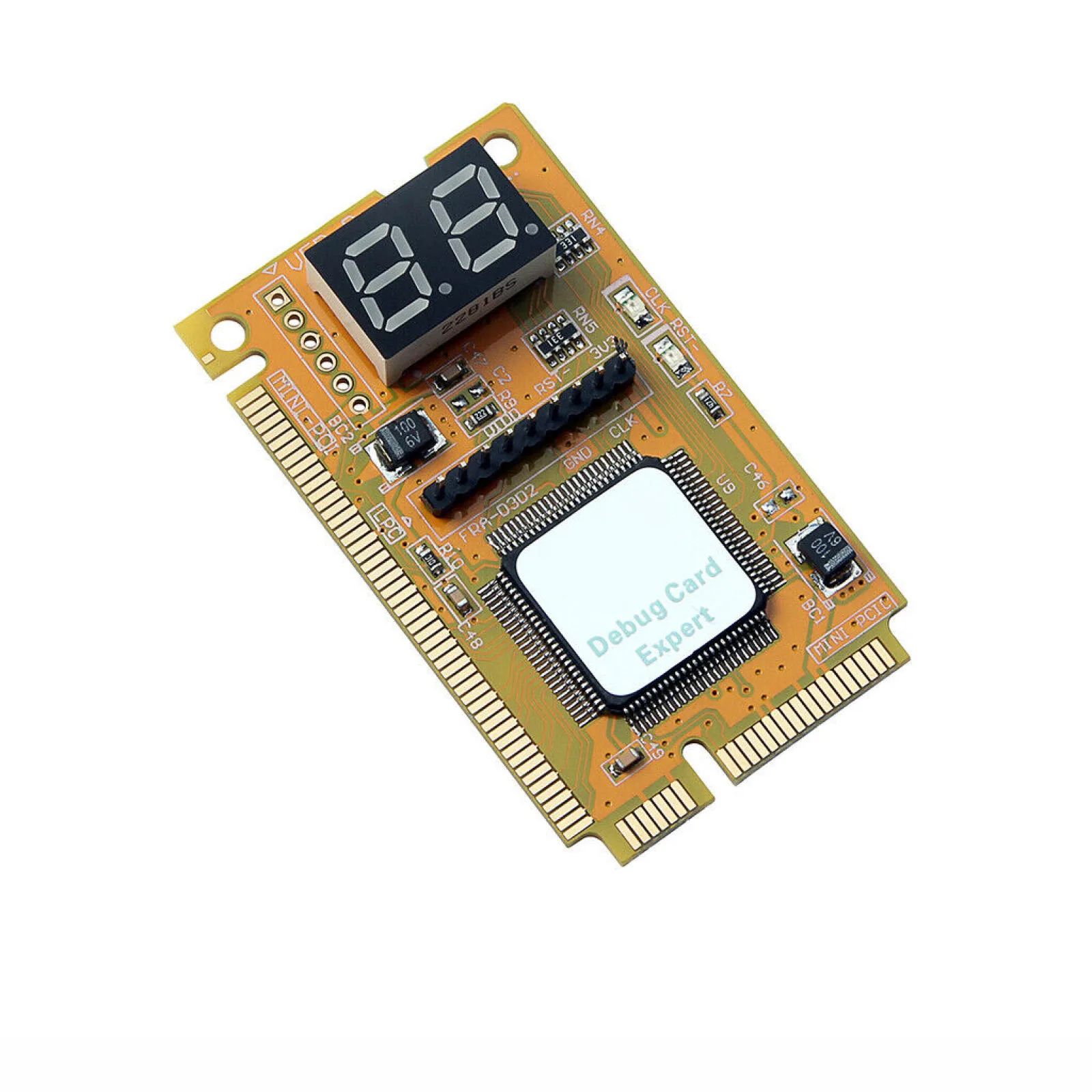

Built for stability and ease of use, this notebook debug card features a dedicated main chip that processes Mini PCI, Mini PCI-E, and LPC signals efficiently. Two seven-segment digital display tubes show diagnostic results clearly, helping make troubleshooting faster and easier during maintenance work. It is a useful repair accessory for identifying motherboard status and fault codes on compatible laptops.

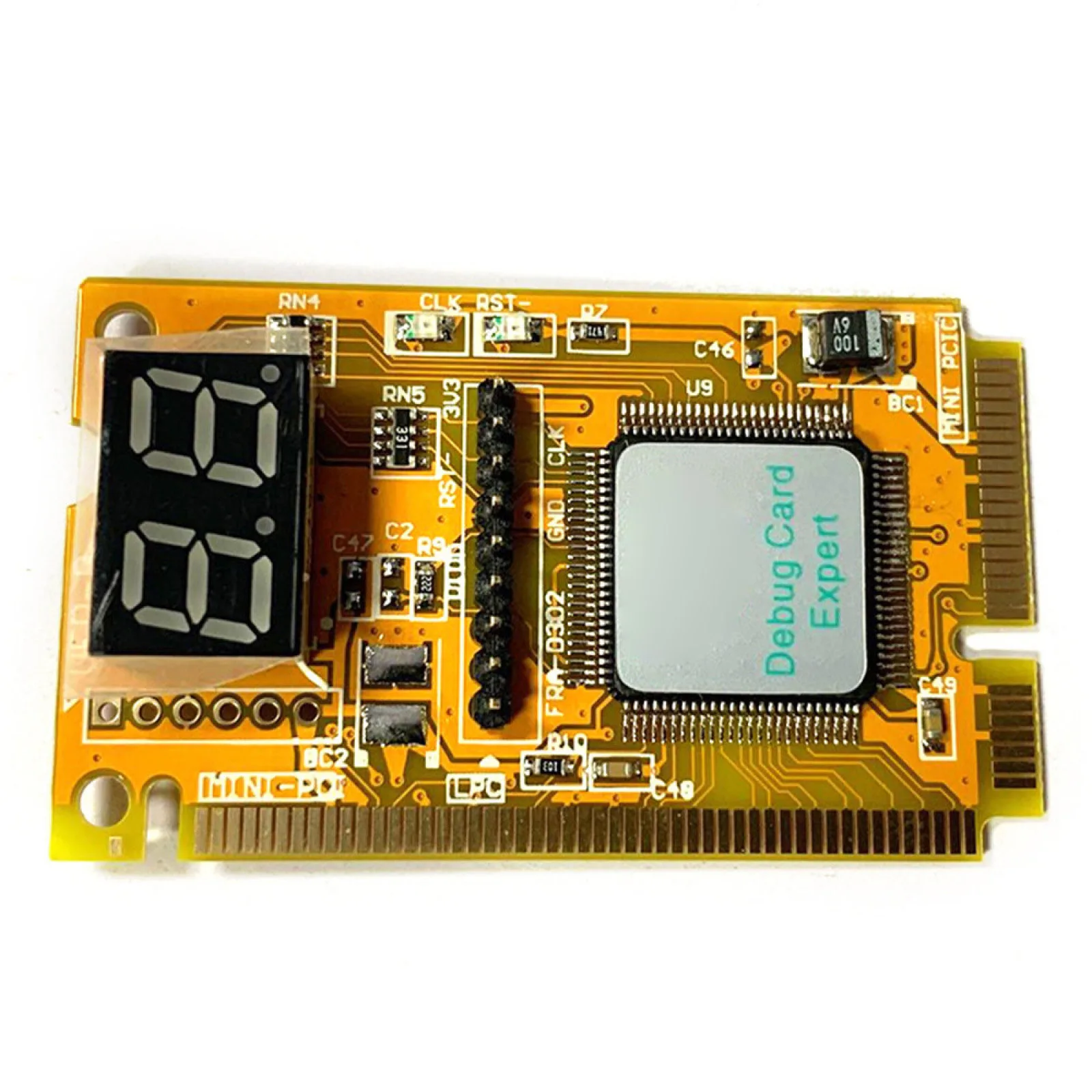

The Mini PCI interface is used to connect the test card to the Mini PCI slot on the notebook motherboard. The Mini PCI-E interface is used to connect the card to the Mini PCI-E slot on the notebook motherboard. The LPC interface is used to connect the card to the LPC interface on the notebook motherboard. There is also a factory test interface on the board, but this interface is for factory testing only and should not be used by customers.
Please note that not all Mini PCI-E ports on notebook motherboards can run code, so compatibility may vary depending on the laptop model and motherboard design.
Features:
- Supports Mini PCI, Mini PCI-E, and LPC bus interfaces
- Only one interface connection is needed during operation
- Dedicated main chip for signal processing
- Two seven-segment digital tubes display diagnostic codes
- Stable and easy to use for laptop motherboard testing
- Ideal for notebook computer repair and maintenance
Package Includes:
- 1 x 3-in-1 Laptop Test Card
