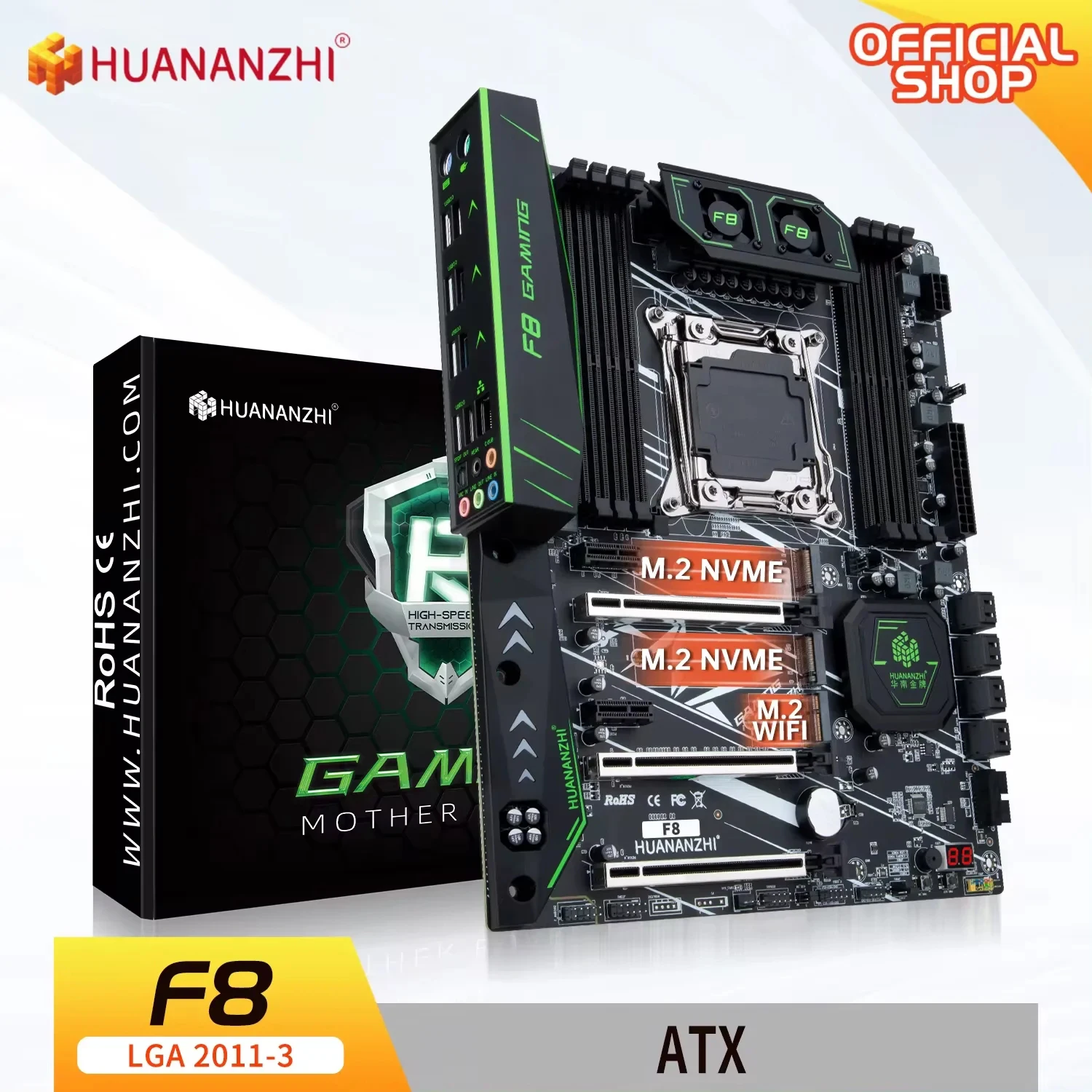

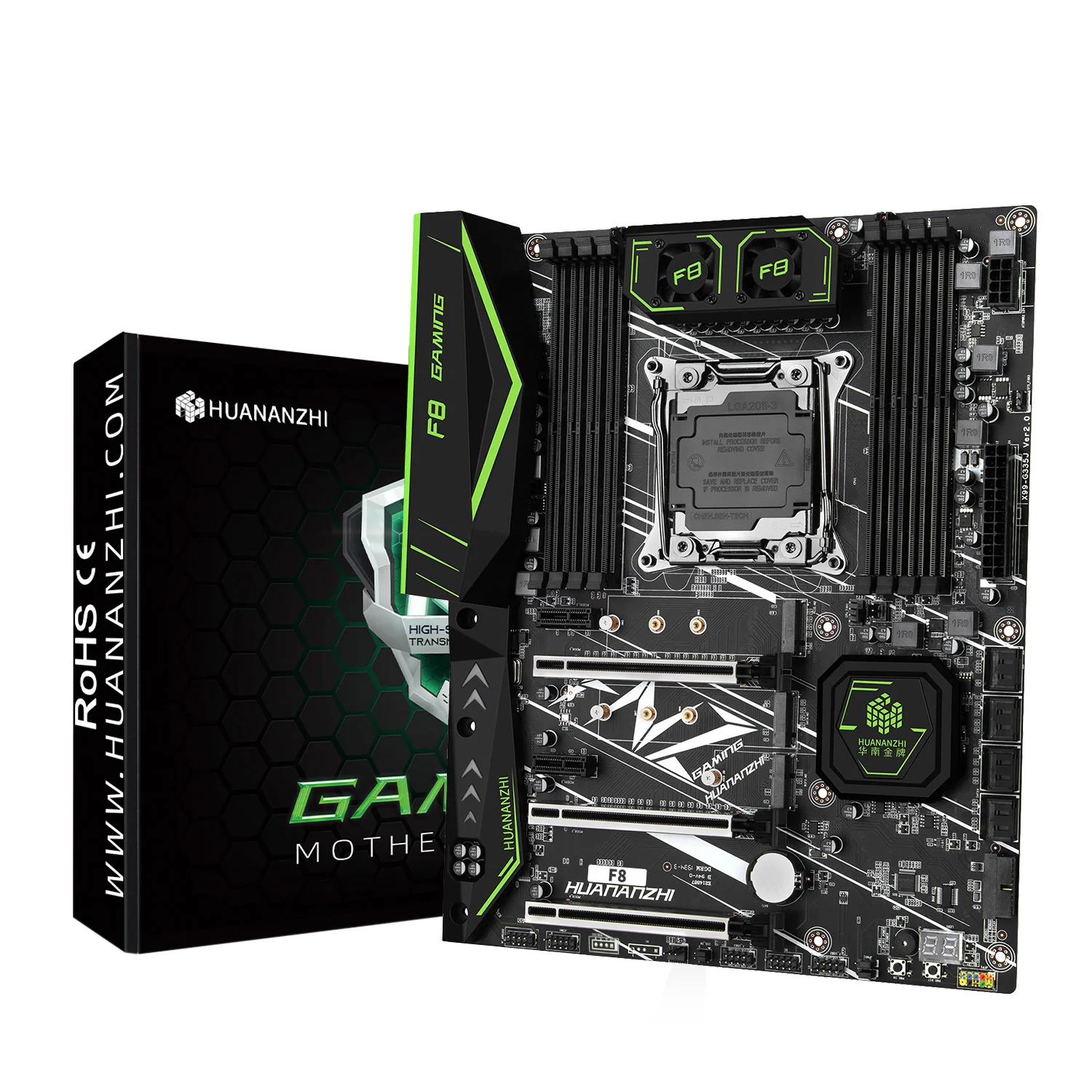

HUANANZHI X99 F8 Xeon DDR4 NVMe Motherboard

HUANANZHI X99 F8 Xeon DDR4 NVMe Motherboard

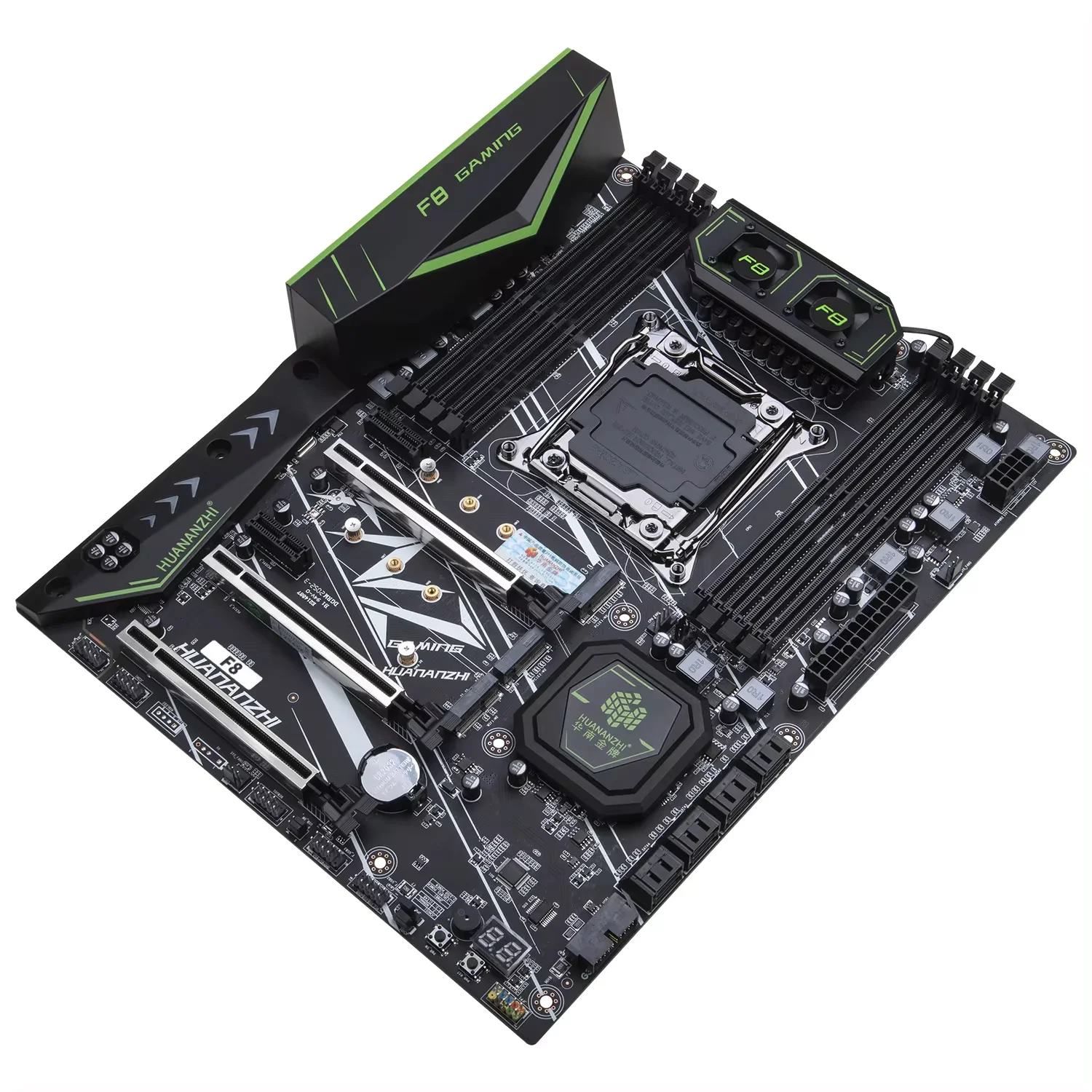

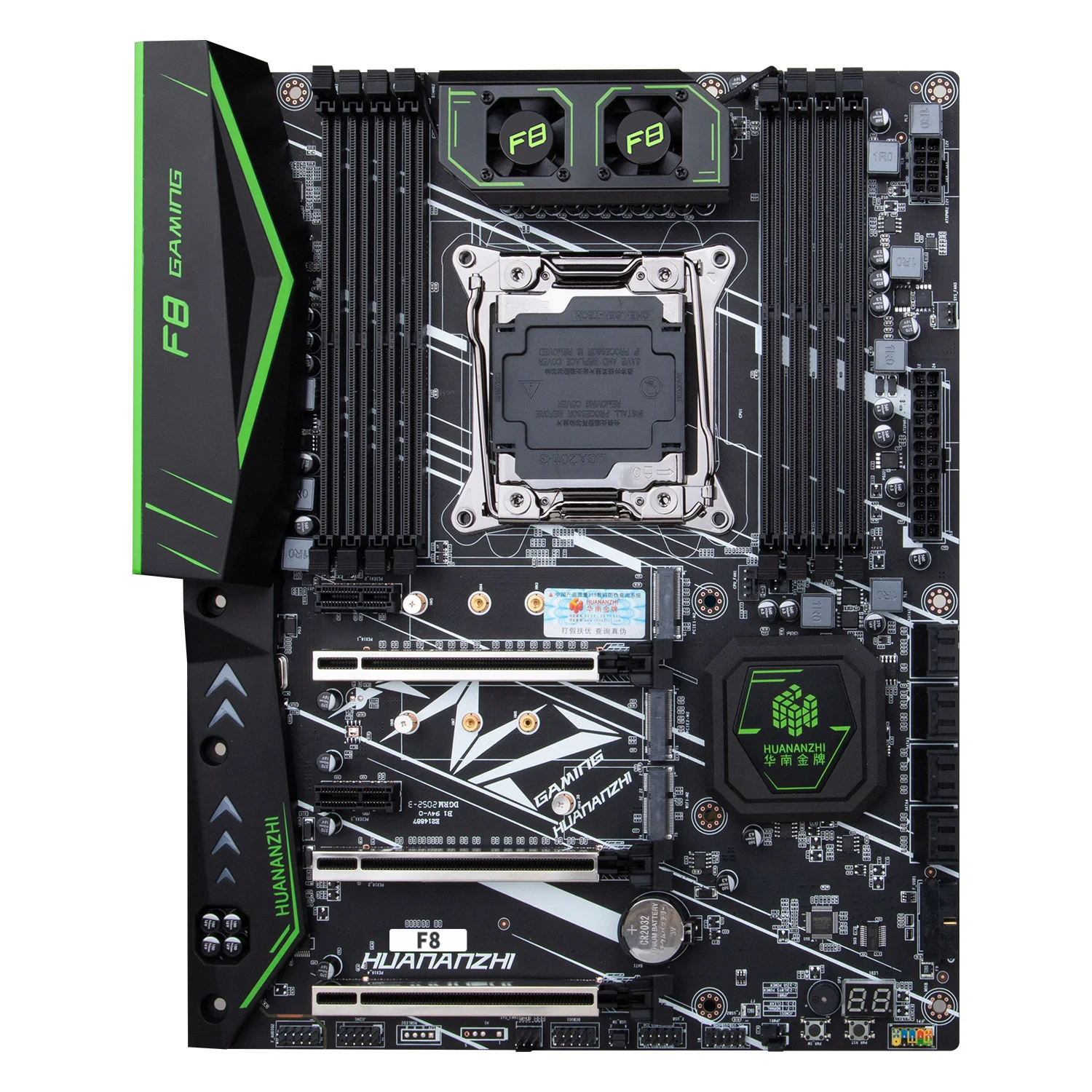

Build a powerful workstation or performance desktop with the HUANANZHI F8 ATX motherboard. Designed to support Intel 2011-3 processors, this board offers strong expansion options, quad-channel DDR4 memory support, multiple storage connections, and dual M.2 NVMe slots for fast and flexible system builds. Its full-size ATX layout gives you room for high-performance components while keeping the platform practical for productivity, multitasking, and demanding desktop use.

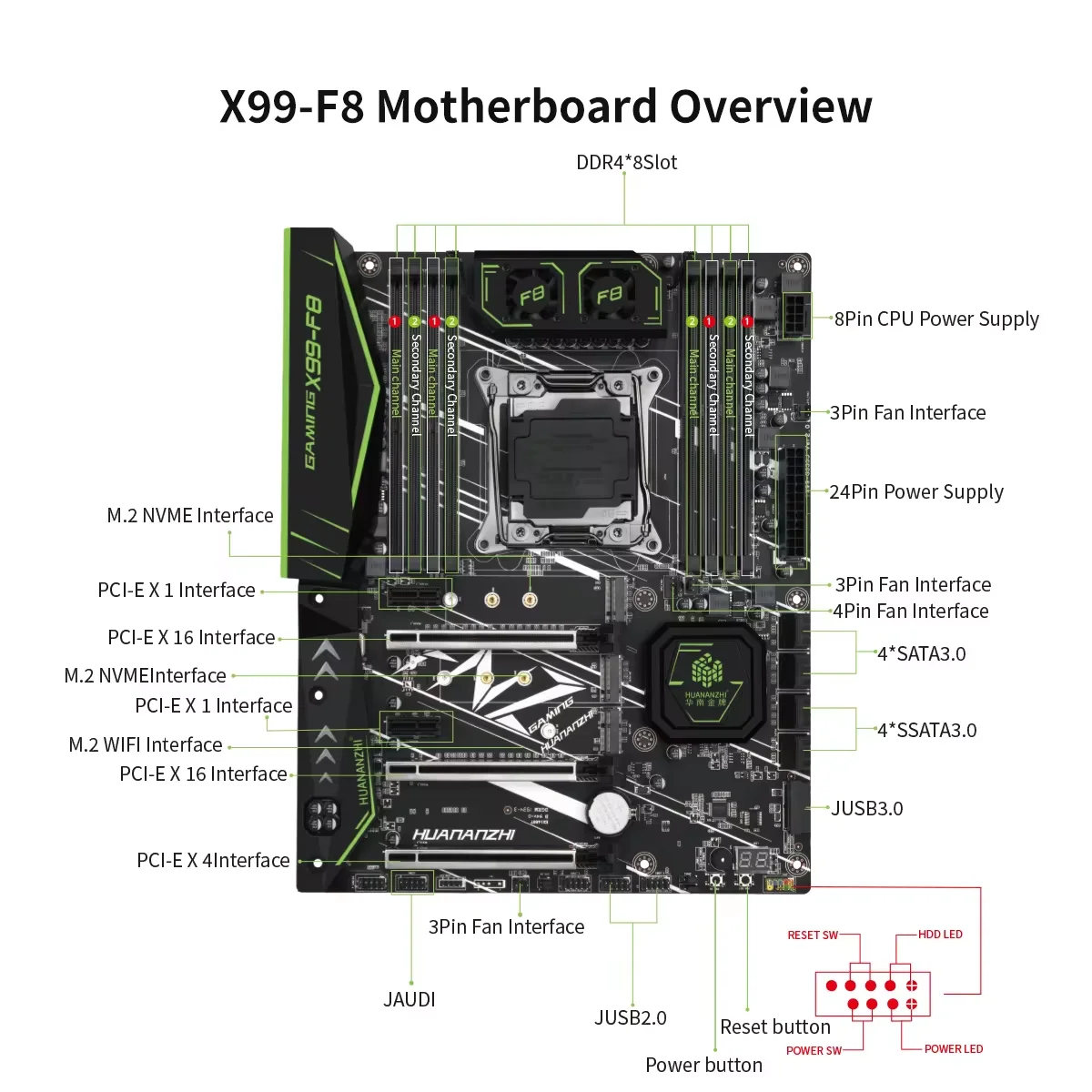

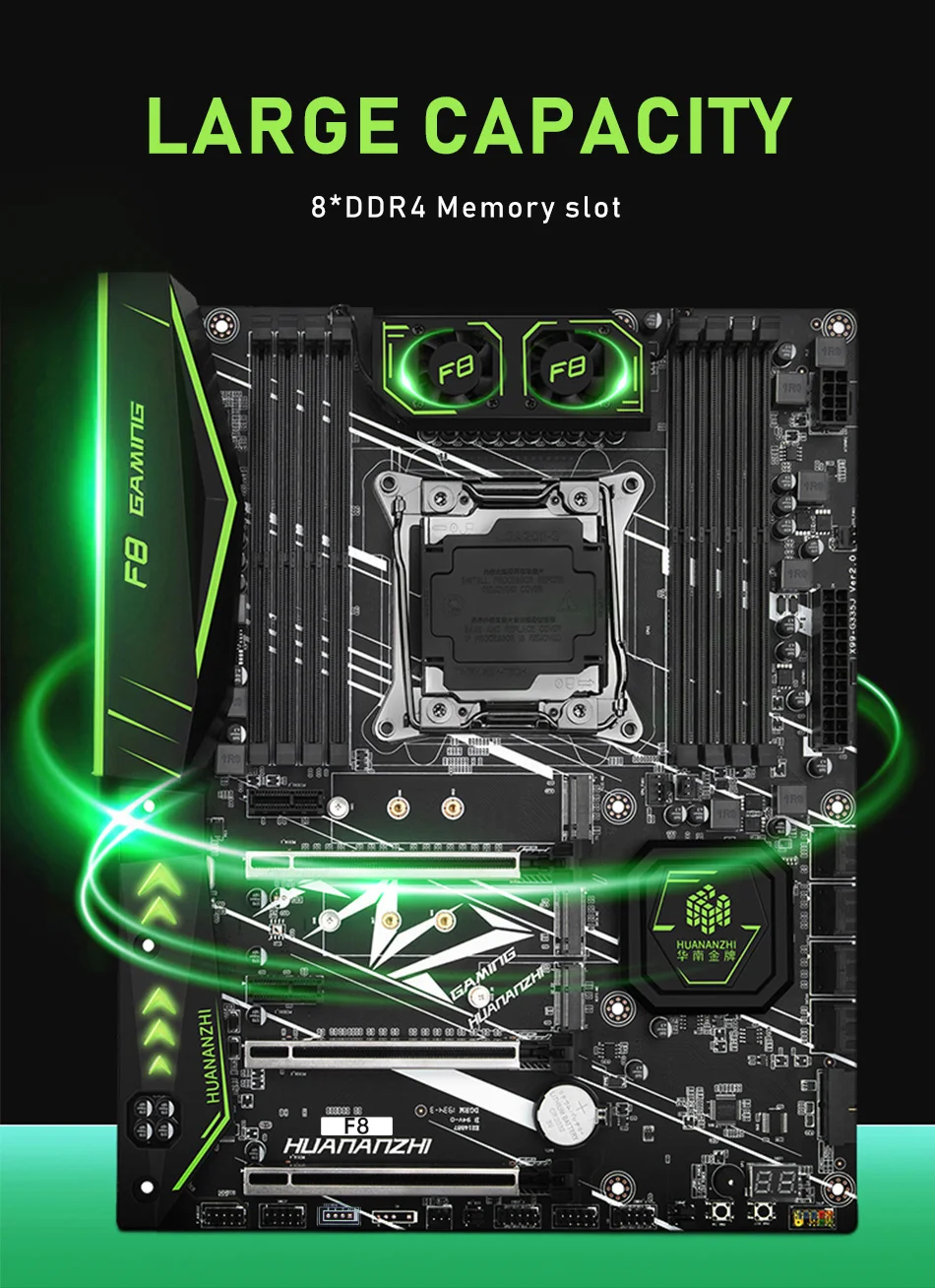

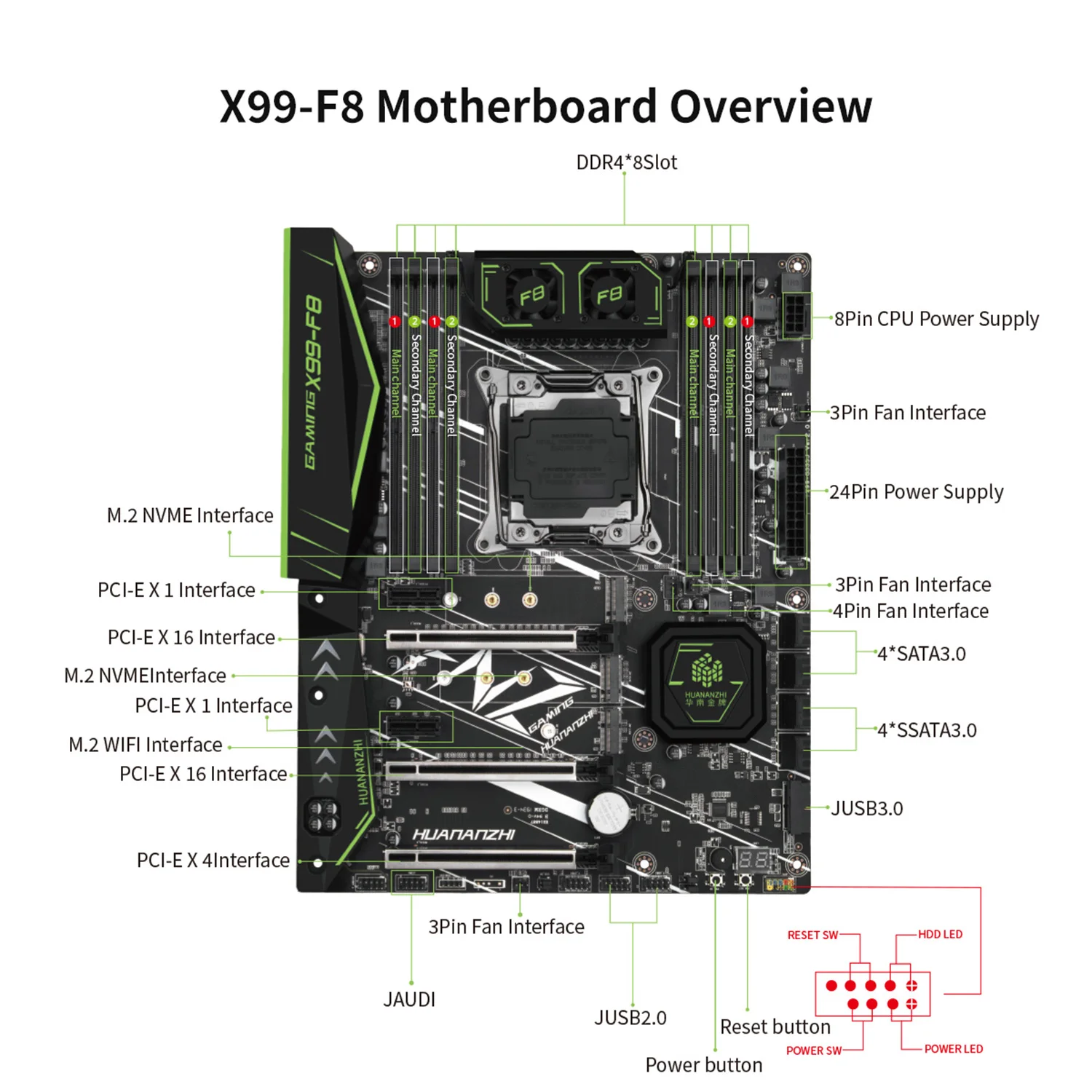

The HUANANZHI F8 features 8 DDR4 memory slots with support for up to 256GB total capacity using 8 x 32GB modules. It supports four-channel DDR4 memory at 1866, 2133, and 2400MHz, making it a solid choice for users who need strong memory performance for heavier workloads. With 2 PCI Express 3.0 x16 slots, additional PCI Express slots, 2 M.2 NVMe slots, and 1 M.2 WiFi slot, this motherboard gives you the flexibility to expand storage, networking, and graphics based on your setup needs.

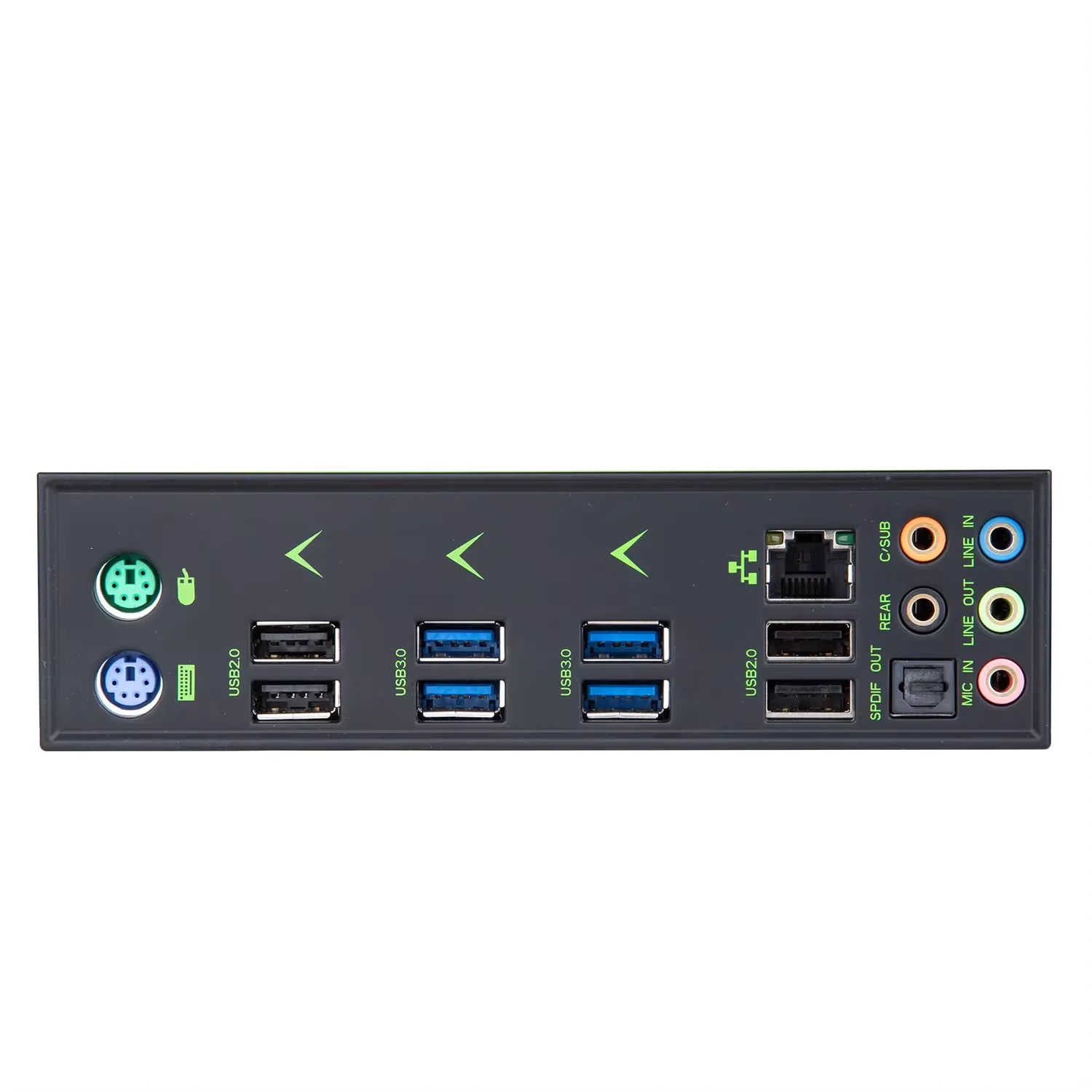

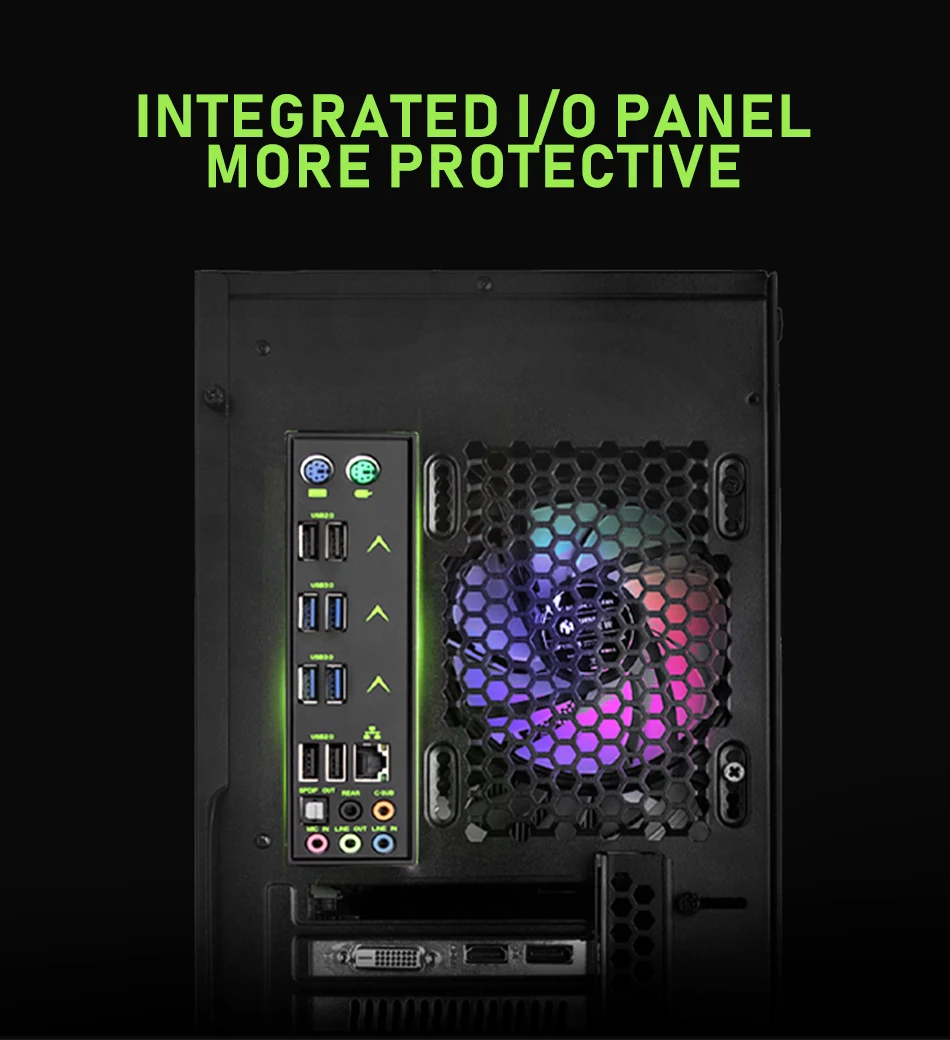

For storage and connectivity, this board includes 6 SATA 3.0 ports and 2 SATA 3.0 ports, along with rear and internal USB connectivity for modern peripherals. Rear I/O includes PS/2, USB 2.0, USB 3.0, Gigabit Ethernet, 6 x 3.5mm audio ports, and digital optical audio. Internal headers include front USB 2.0, front USB 3.0, and front audio output. The board also includes 7.1 channel audio, Gigabit Ethernet, 4 fan headers, a 24-pin plus 8-pin power interface, and a 10-layer PCB with 6-phase power design.

Specifications:

• Model: HUANANZHI F8
• CPU socket: Intel 2011-3
• Chipset: C612 or compatible chipset shipped from available stock
• Form factor: ATX
• Dimensions: 300 x 244mm
• Memory slots: 8 x DDR4
• Maximum memory: 256GB
• Memory support: Quad-channel DDR4 1866/2133/2400MHz
• Storage: 6 x SATA 3.0 and 2 x SSATA 3.0
• Expansion slots: 2 x PCI Express 3.0 x16, 2 x PCI Express x1, 1 x PCI Express x4

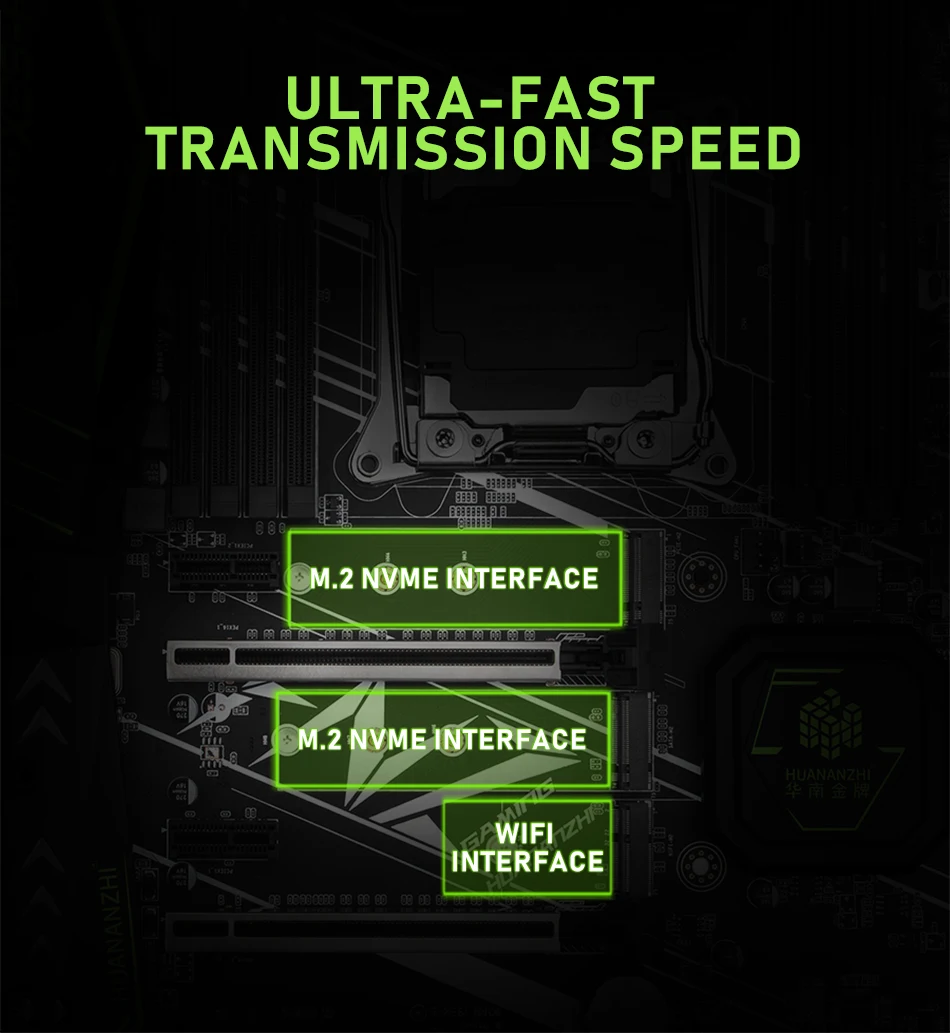

• M.2 slots: 2 x M.2 NVMe and 1 x M.2 WiFi
• Network: Gigabit Ethernet
• Audio: 7.1 channel audio with digital optical output
• Power interface: 24-pin plus 8-pin
• Fan headers: 4
• PCB: 10-layer PCB with 6-phase power supply
• RGB support: Not supported

Important Notes:

• A power supply of at least 500W is recommended
• Please confirm CPU, RAM, SSD, and accessory compatibility before purchase
• The CMOS battery shown in product photos may be removed before shipping due to shipping restrictions
• Product photos are for reference and may vary slightly from available stock
