BIGTREETECH SFS V2.0 Smart Filament Sensor

BIGTREETECH SFS V2.0 Smart Filament Sensor

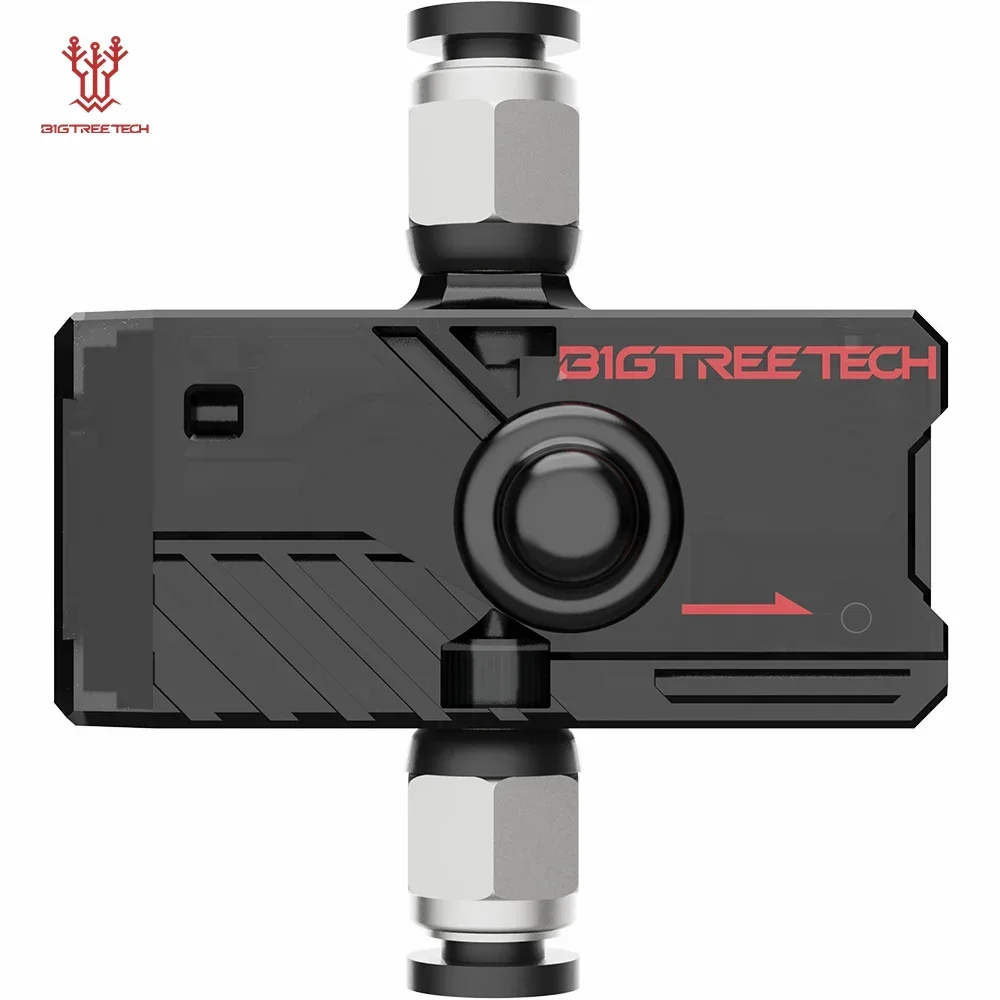

SFS V2.0

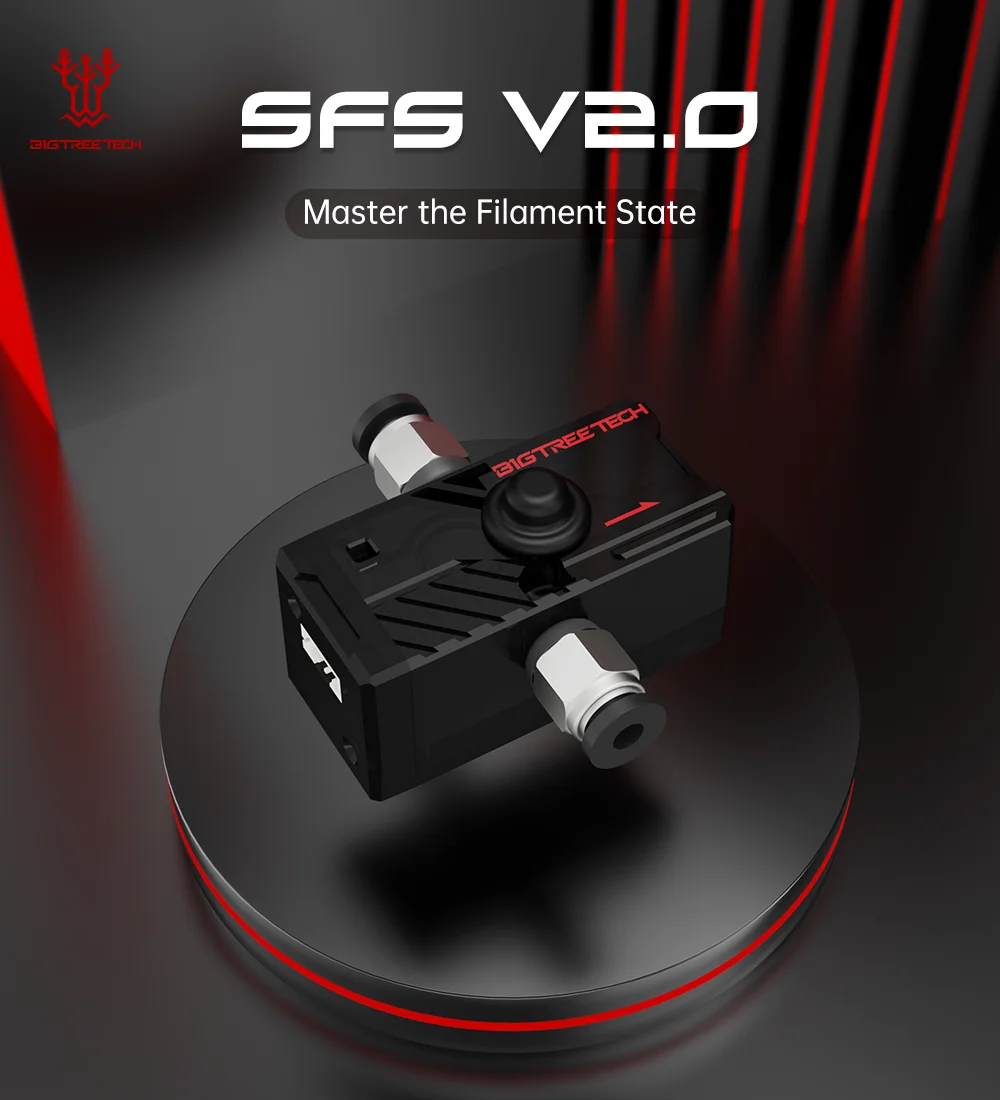

Master the Filament State

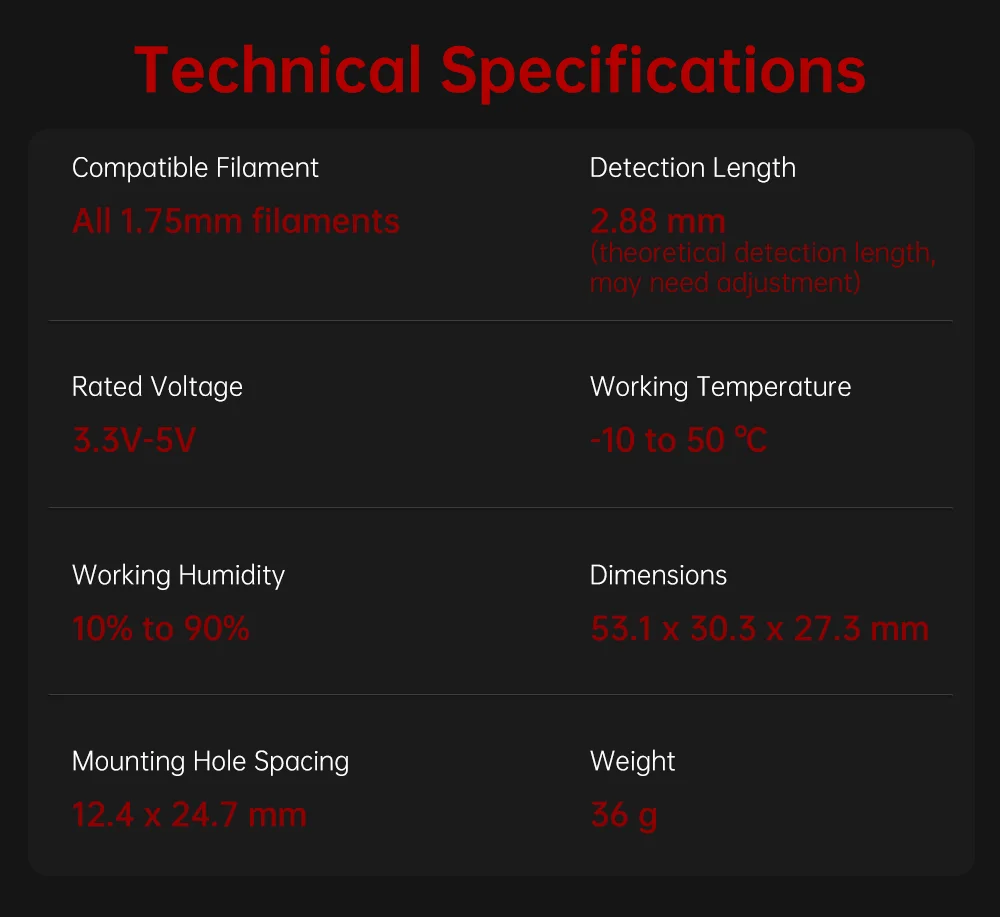

Specifications

Compatible Filament: All 1.75mm filaments

Detection Length: 2.88 mm (theoretical detection length, may need adjustment)

Rated Voltage: 3.3V-5V

Working Temperature: -10 to 50 ℃

Working Humidity: 10% to 90%

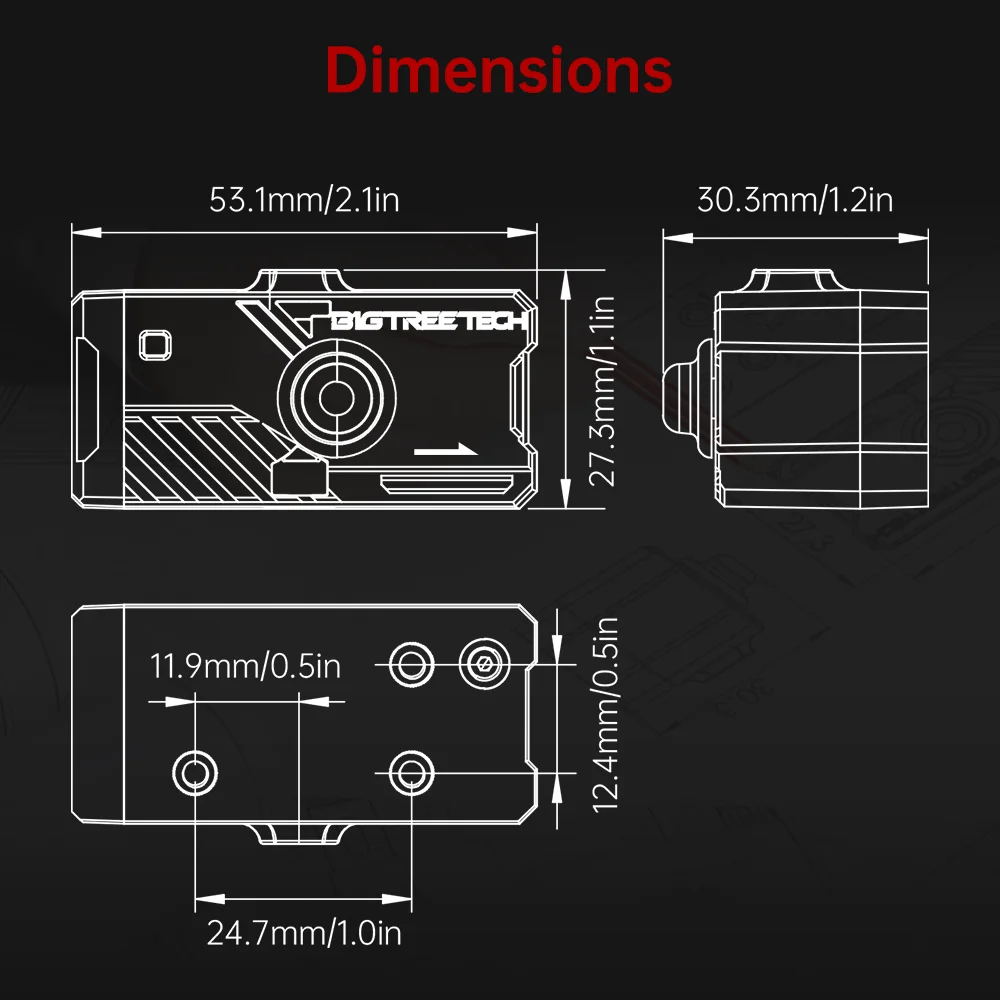

Dimensions: 53.1 x 30.3 x 27.3 mm

Mounting Hole Spacing: 12.4 x 24.7 mm

Weight: 36 g

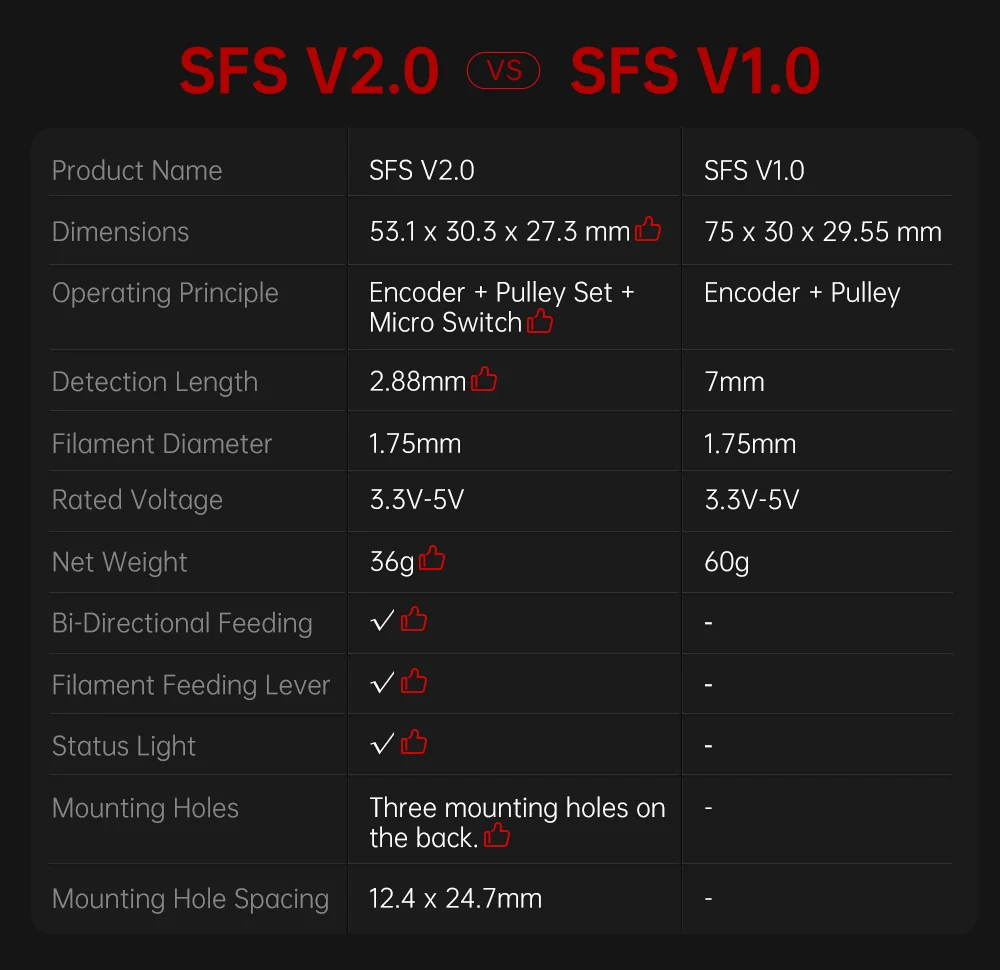

Operating Principle: Encoder + Pulley Set + Micro Switch

Bi-Directional Feeding: YES

Filament Feeding Lever: YES

Status Light: YES

Mounting Holes: Three mounting holes on the back

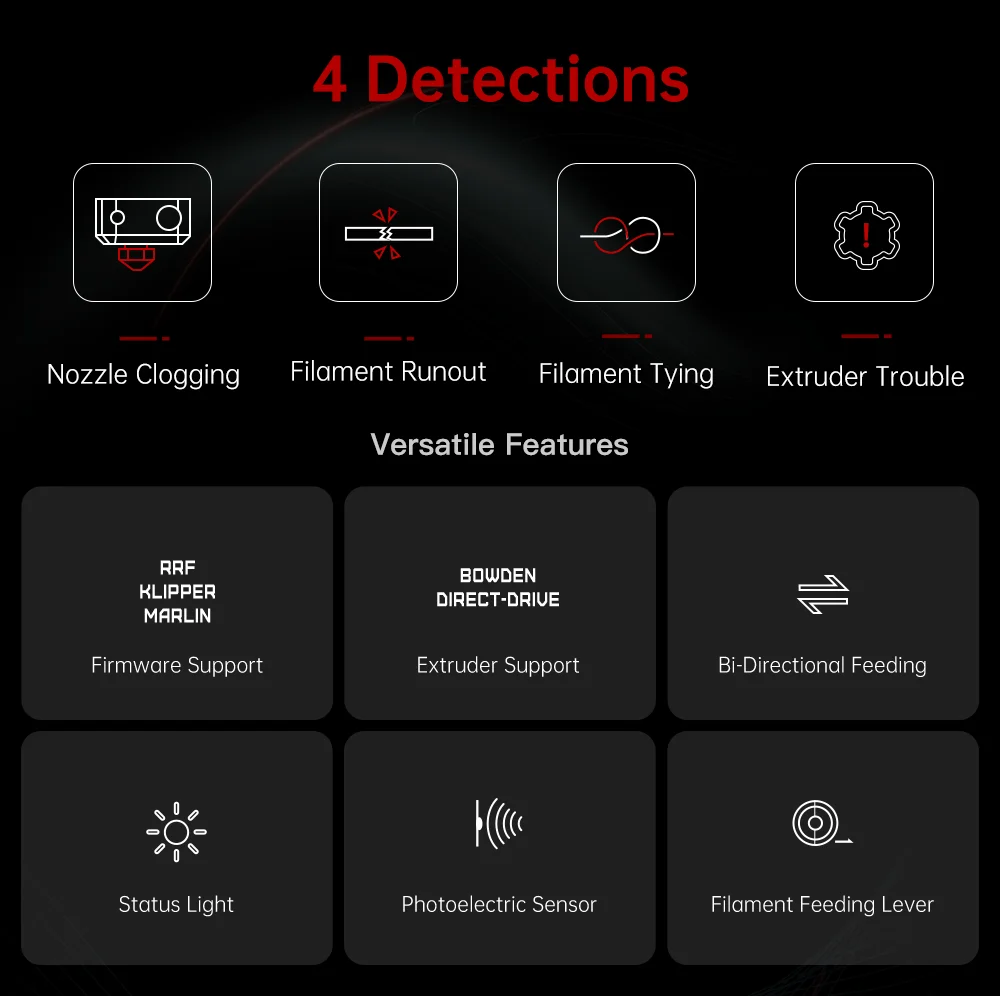

4 Detections

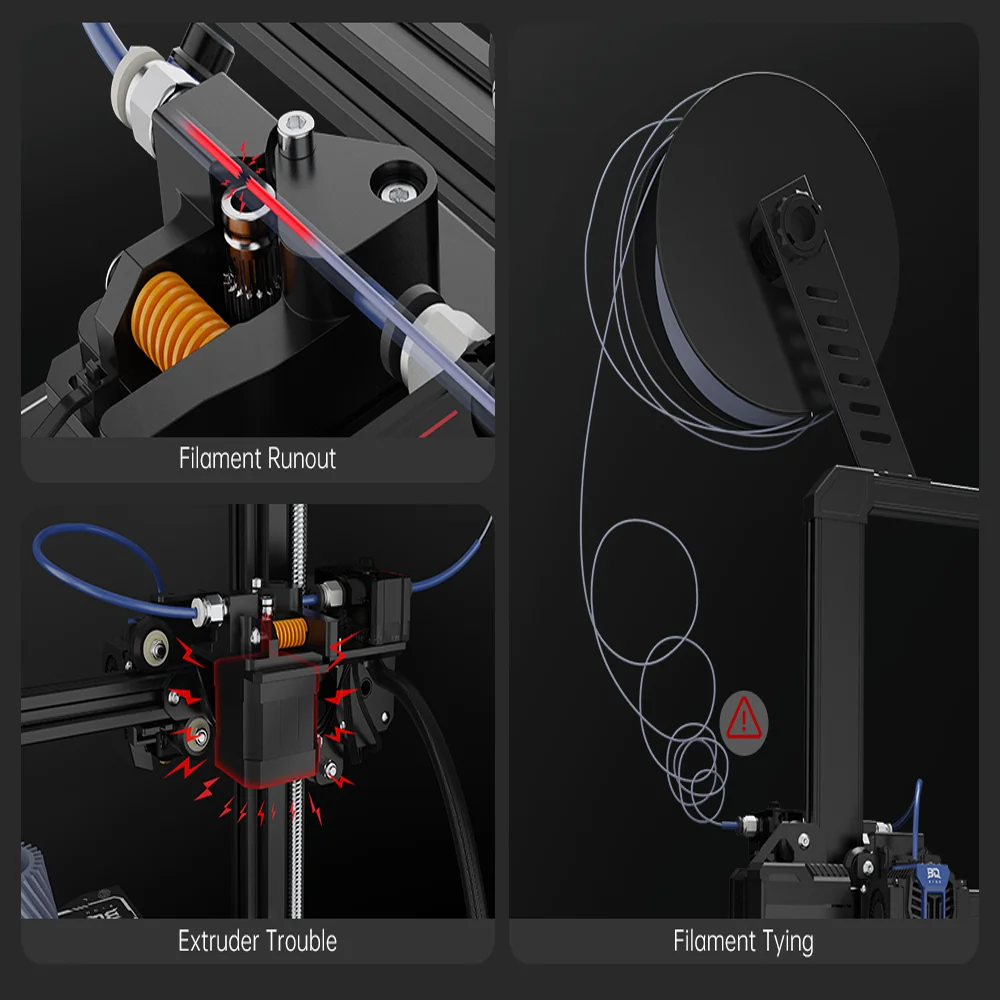

• Nozzle Clogging
• Filament Runout
• Filament Tying
• Extruder Trouble

Versatile Features

• Firmware Support: RRF, Klipper, Marlin
• Extruder Support: Bowden Direct-Drive
• Bi-directional Feeding
• Status Light
• Photoelectric Sensor
• Filament Feeding Lever

Detecting More than Just Runout

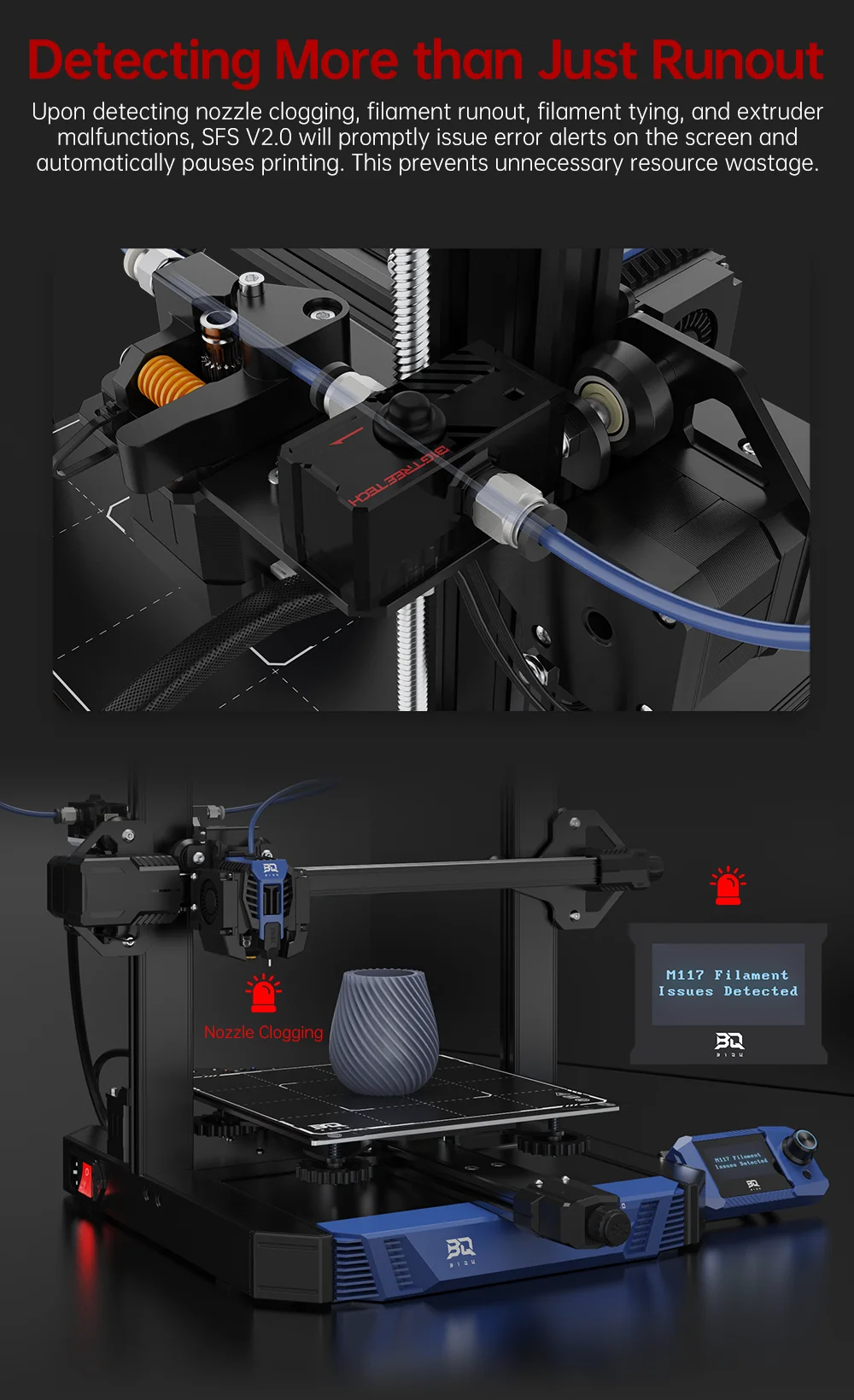

Upon detecting nozzle clogging, filament runout, filament tying, and extruder malfunctions, SFS V2.0 will promptly issue error alerts on the screen and automatically pause printing. This prevents unnecessary resource wastage.

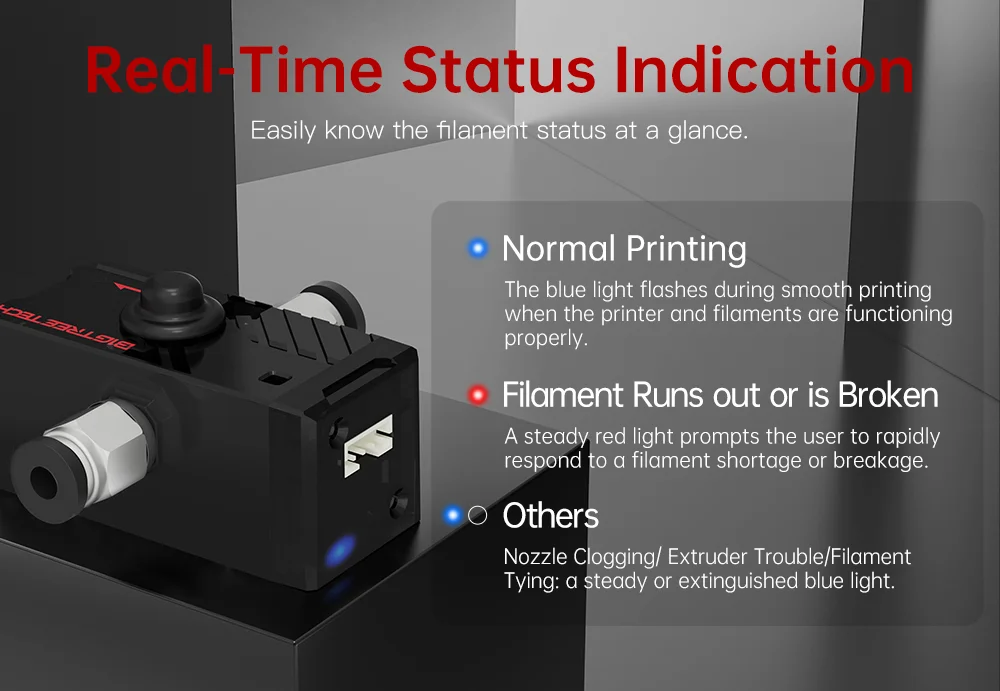

Real-Time Status Indication: Easily know the filament status at a glance

• Normal Printing: The blue light flashes during smooth printing when the printer and filaments are functioning properly.
• Filament Runs out or is Broken: A steady red light prompts the user to rapidly respond to a filament shortage or breakage.
• Others: Nozzle Clogging/Extruder Trouble/Filament Tying – A steady or extinguished blue light.

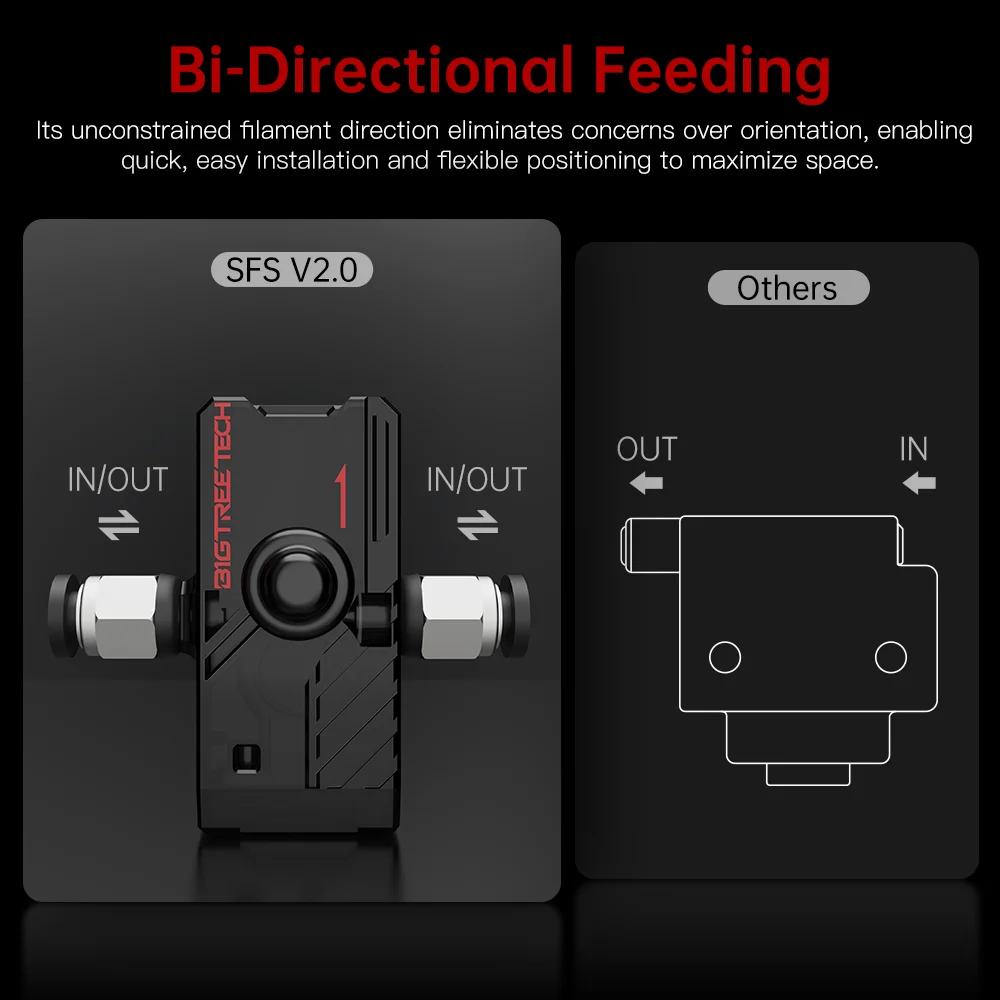

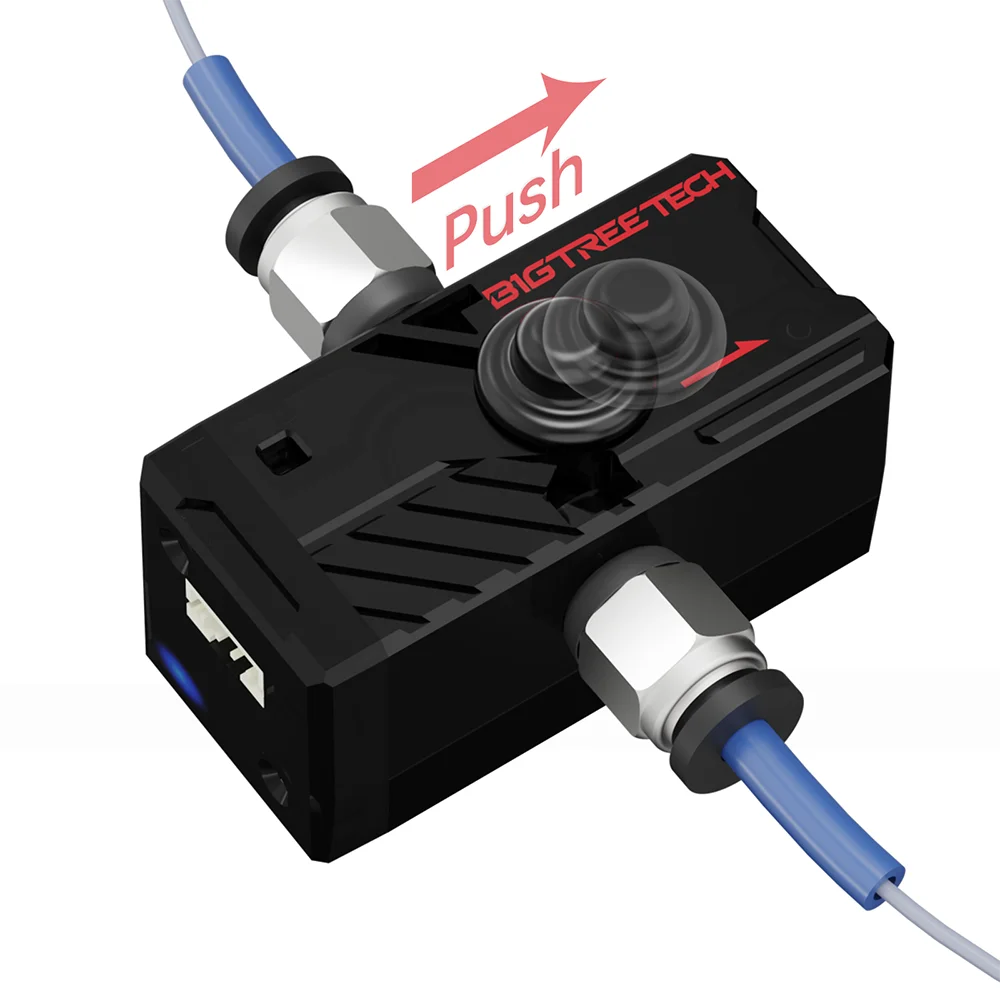

Bi-Directional Feeding

Its unconstrained filament direction eliminates concerns over orientation, enabling quick, easy installation and flexible positioning to maximize space.

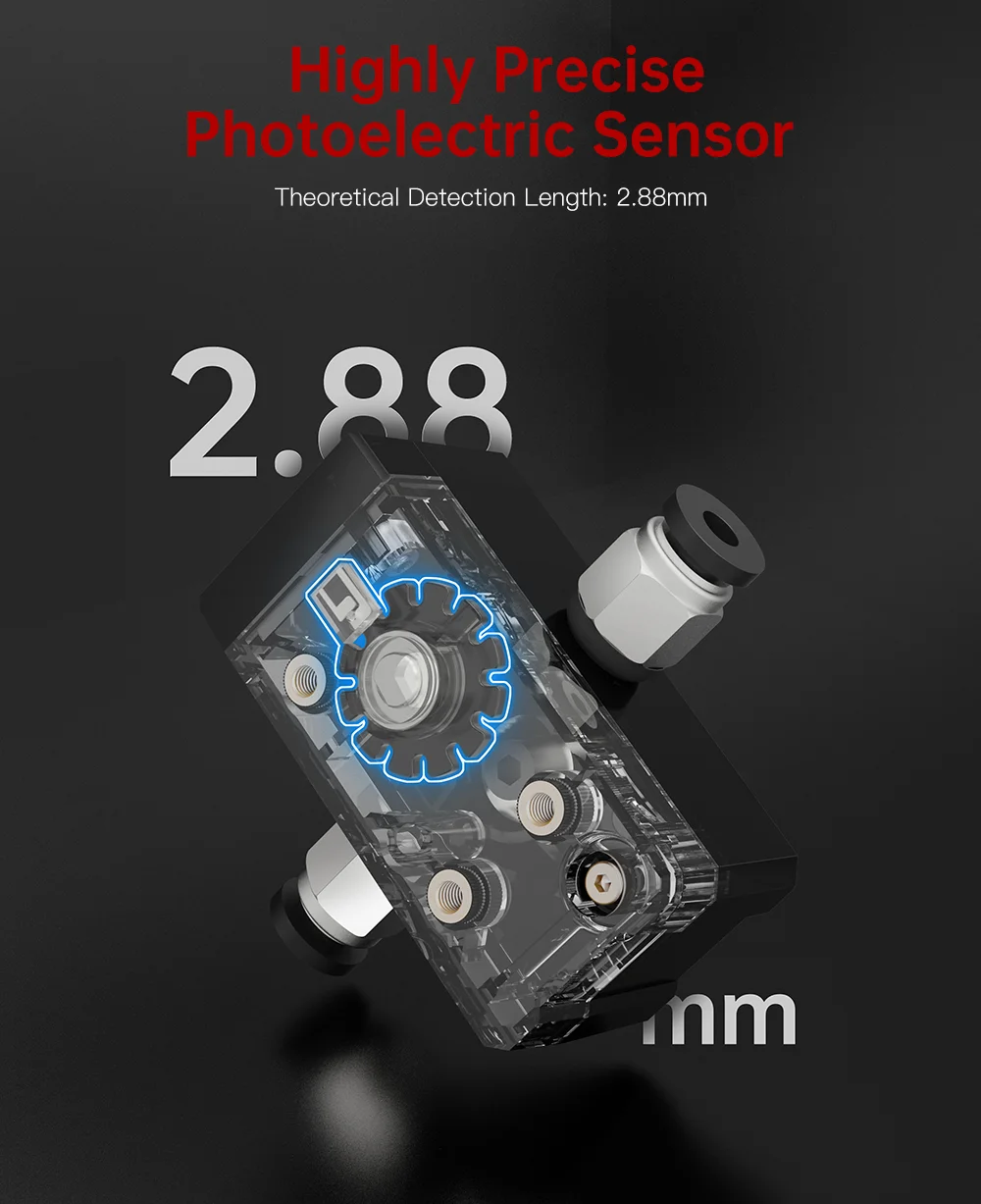

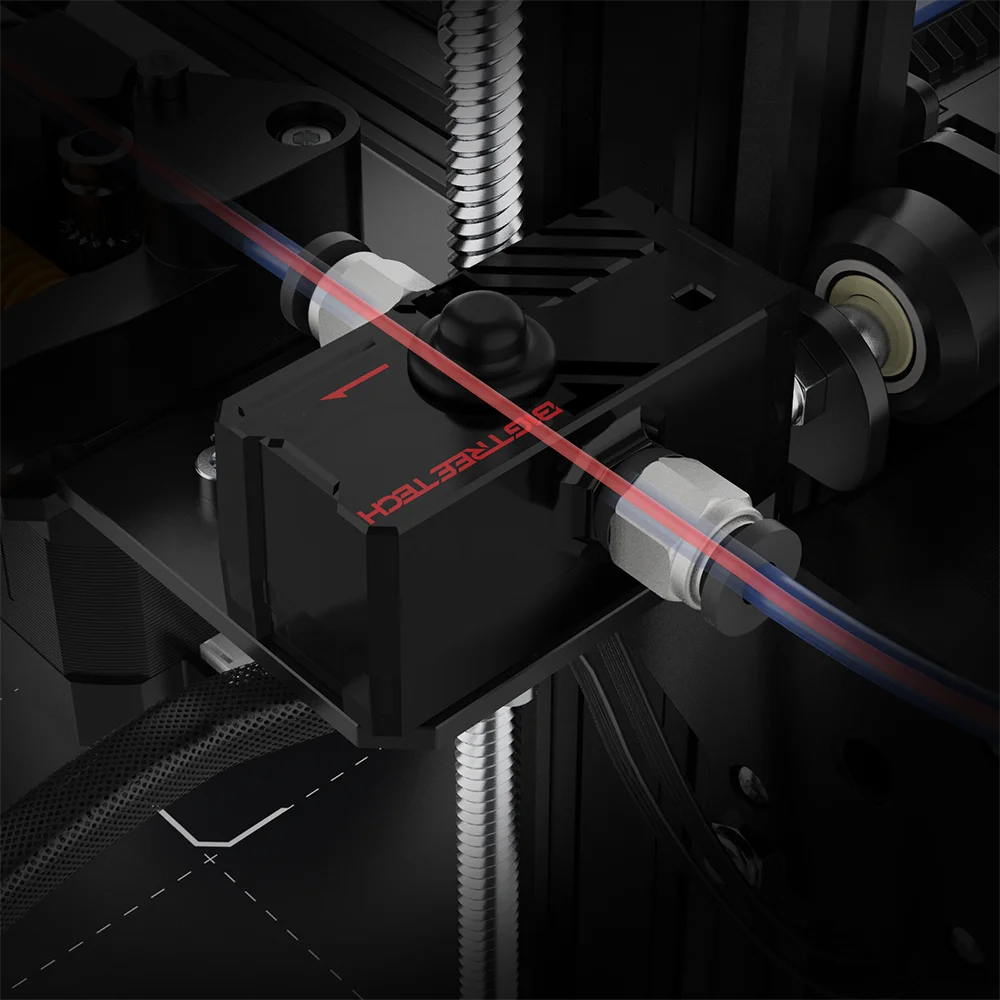

Highly Precise Photoelectric Sensor

Theoretical Detection Length: 2.88mm

Lighter and Smaller: Enhances installation ease and space use without overburdening direct-drive extruders, preserving printing speed and accuracy.

SFS V2.0 weighs 36g, 40% less than V1.0 and 35.95% smaller. The 36g excludes the Bowden tube connectors.

Wide Compatibility: Supports any motherboard with available I/O ports (Endstop, Filament detection, BLTouch, Induction sensor, etc)

Unique and Cool: Merges cool aesthetics with utility, enhancing your 3D printing experience.

SFS: https://github.com/bigtreetech/smart-filament-detection-module

M8P: https://github.com/bigtreetech/Manta-M8P

Octopus Pro: https://github.com/bigtreetech/BIGTREETECH-OCTOPUS-Pro

SKR MINI E3 V3.0: https://github.com/bigtreetech/BIGTREETECH-SKR-mini-E3

BTT PI: https://github.com/bigtreetech/BTT-Pi

EBB SB2209/2240CAN: https://github.com/bigtreetech/EBB

TFT35 E3 V3.0: https://github.com/bigtreetech/BTT-TFT35-E3-V3.0

TFT35 SPI: https://github.com/bigtreetech/TFT35-SPI

MicroProbe: https://github.com/bigtreetech/MicroProbe

CB1: https://github.com/bigtreetech/CB1

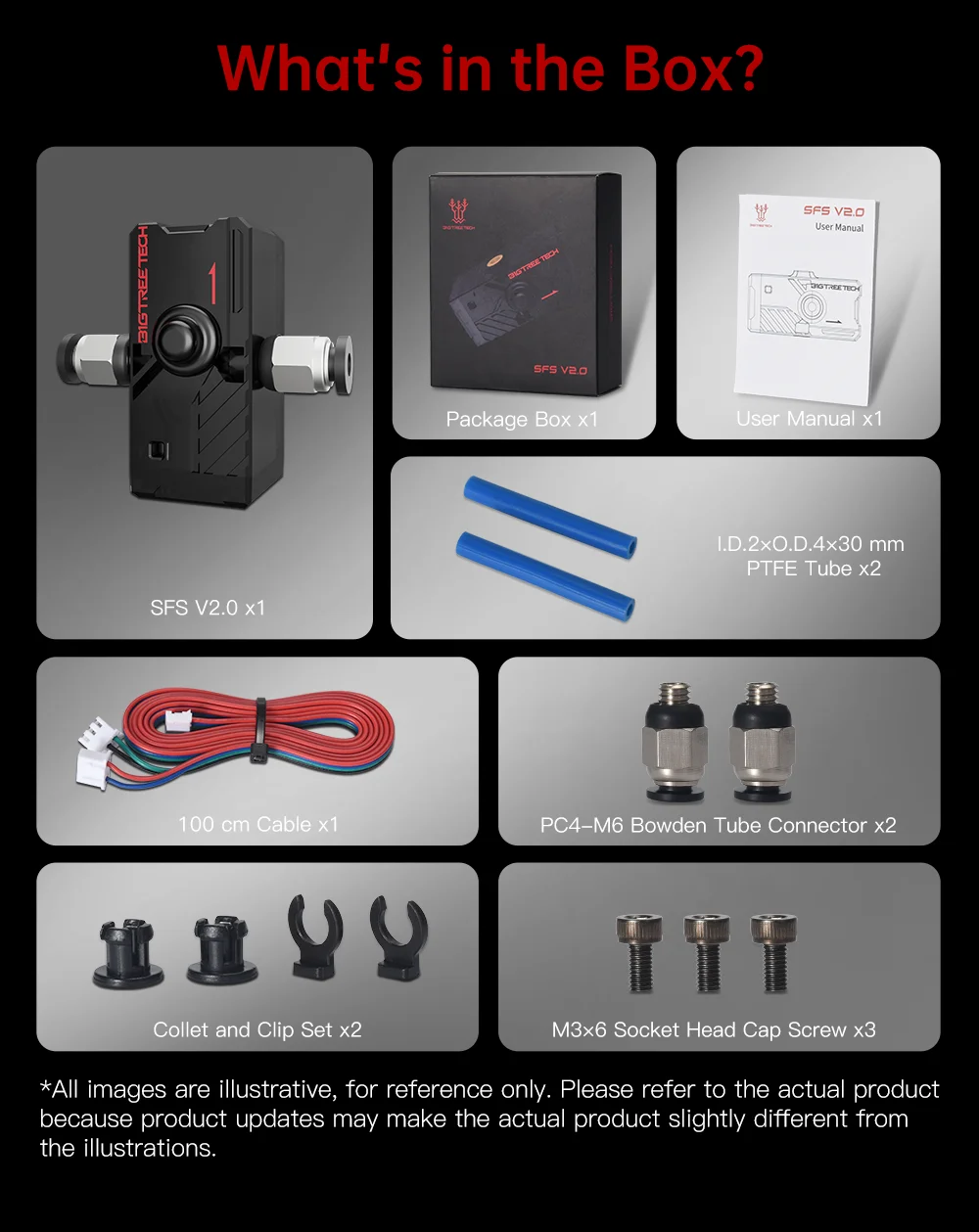

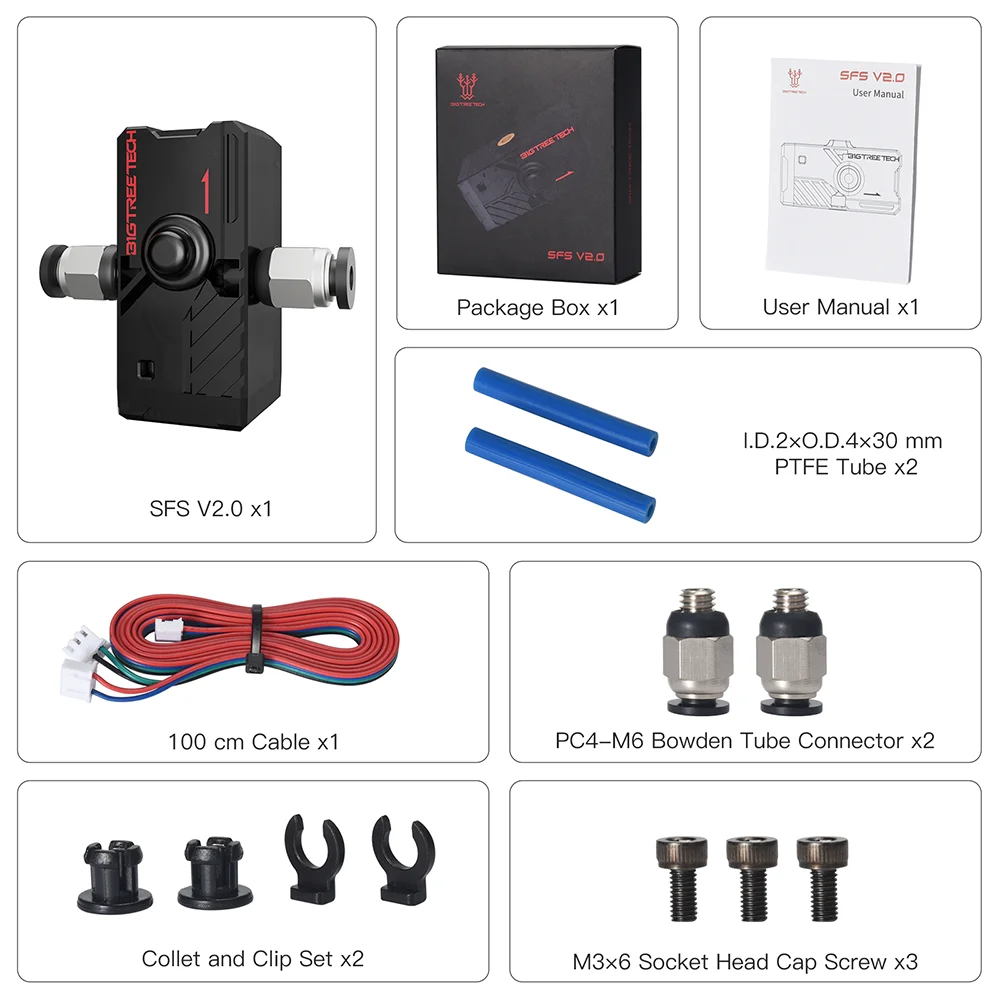

• Ender3 printer upgrade set 1
  • Silent printing filament detection, original replacement touch screen
  • SFS V2.0 + SKR MINI E3 V2.0/V3.0 + TFT35 E3 V3.0
• Ender3 printer upgrade set 2
  • Silent printing filament detection, Cost performance can be achieved using Klipper Screen
  • SFS V2.0 + SKR MINI E3 V2.0/3.0 + BTT Pi + TFT35 SPI
• Voron2.4 printer upgrade set 1
  • Quickly deploy Klipper Screen that supports consumables detection
  • SFS V2.0 + Octopus Pro + BTT Pi + HDMI5/7
• Voron2.4 printer upgrade set 2
  • The cost-effective Klipper integrated motherboard provides a consumables detection function for easy wiring
  • SFS V2.0 + M8P + CB1 + HDMI5/7
