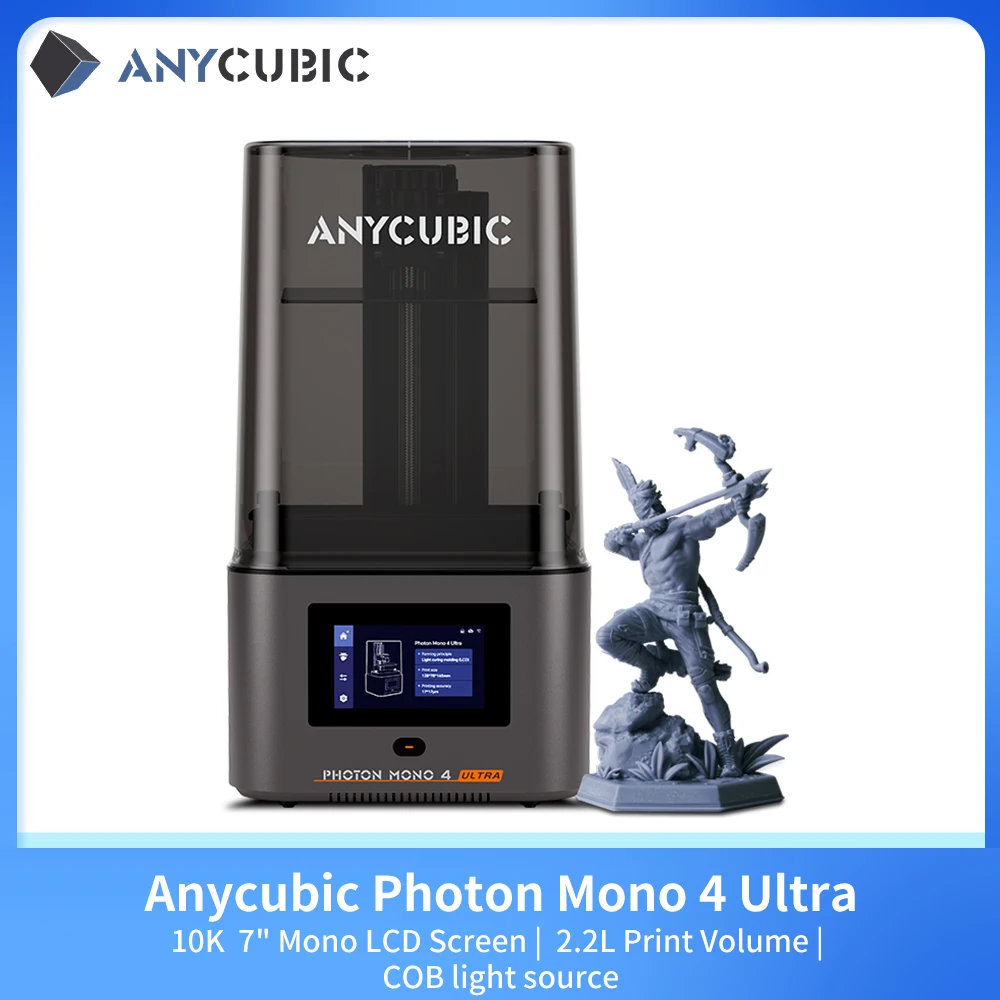

ANYCUBIC Photon Mono 4 Ultra 3D Printer

ANYCUBIC Photon Mono 4 Ultra 3D Printer

Warm Reminder:

• The Photon Mono 4 Ultra 3D printer is an updated version of the Photon Mono X 6Ks 3D printer.
• For Russian users, a special offer: buy a Photon Mono 4 Ultra 3D printer and get 1kg of random resin for free.

ANYCUBIC Photon Mono 4 Ultra V2

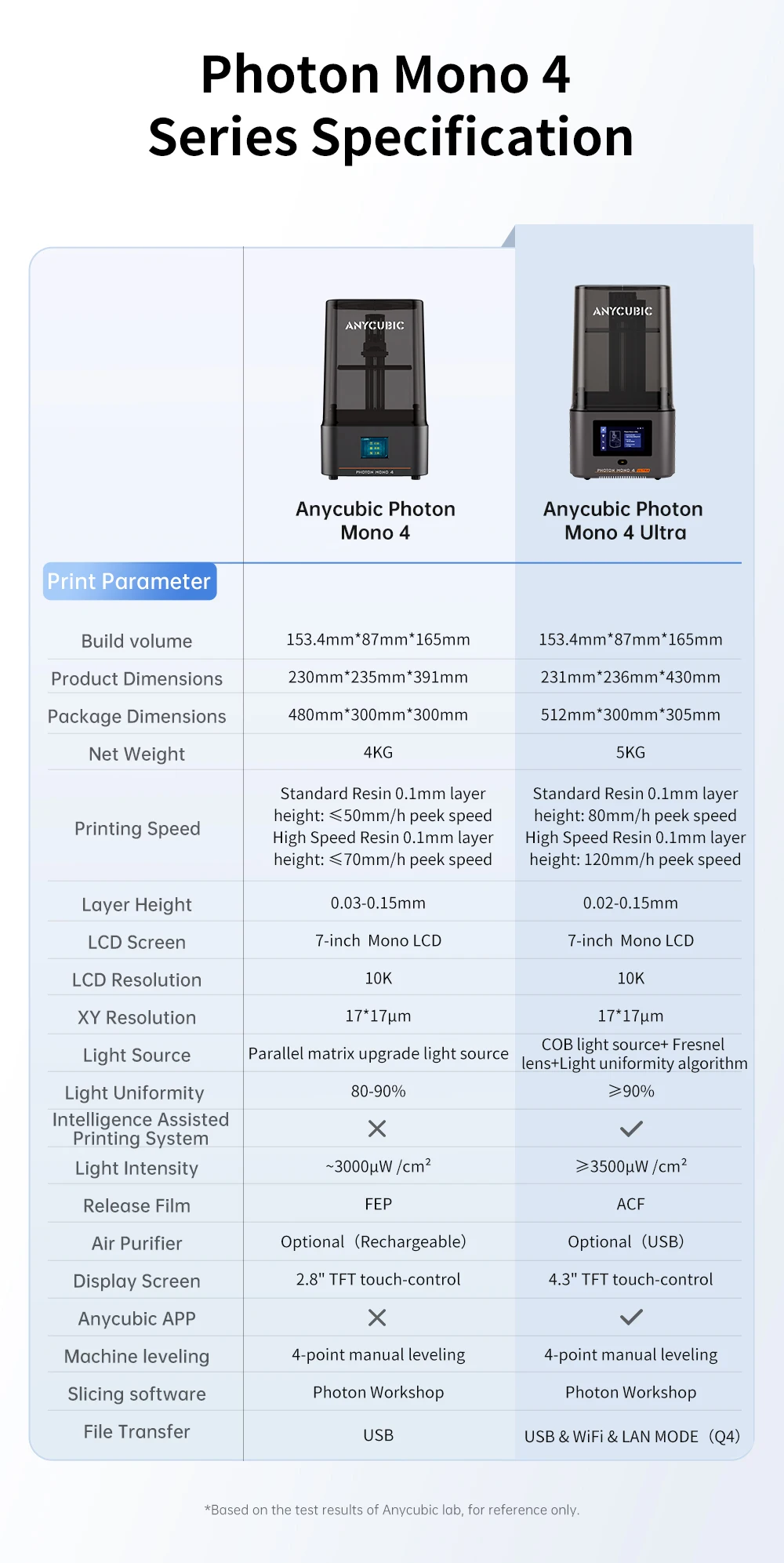

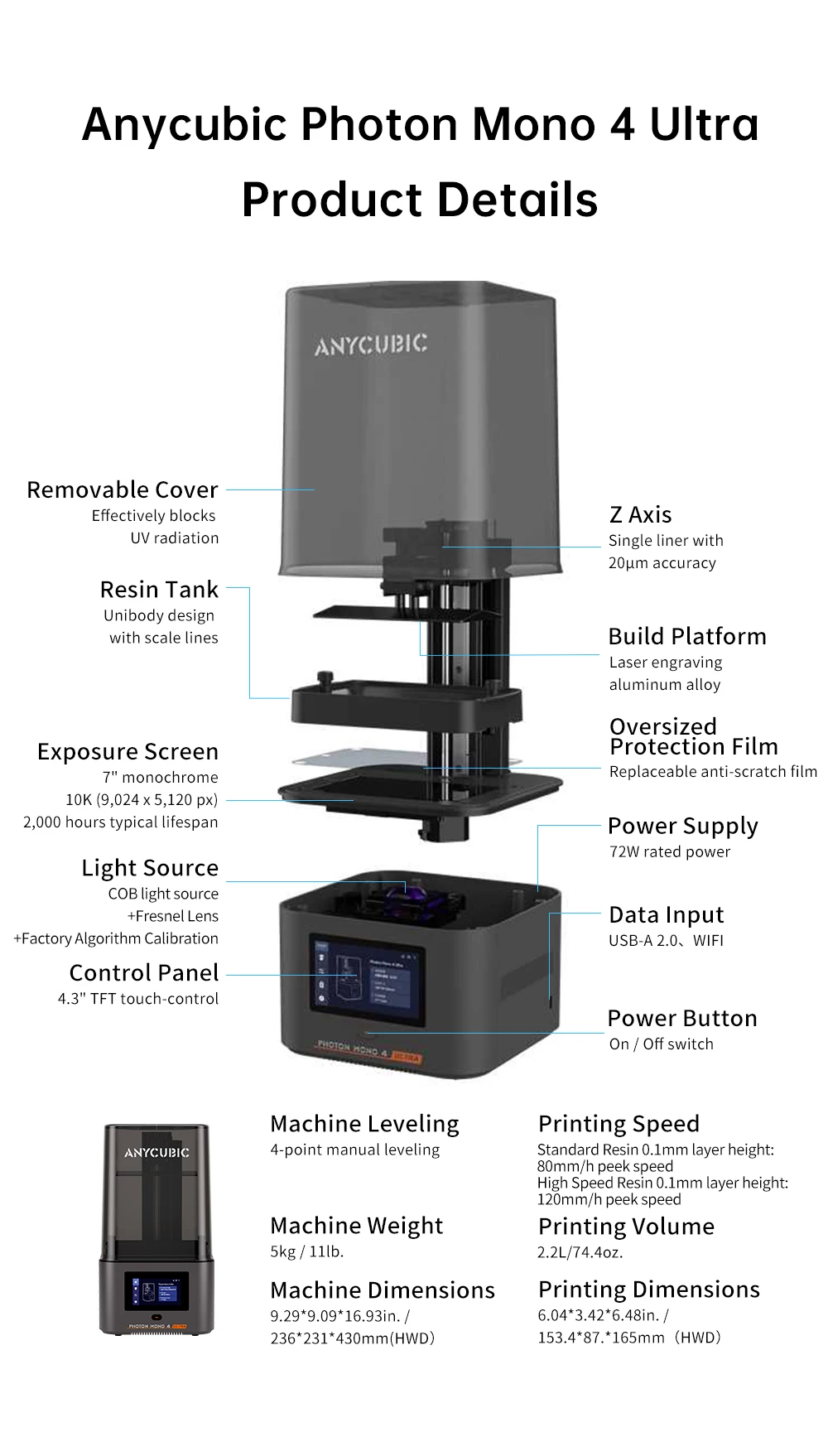

Technical Specifications:

• Printing Speed 1: 80mm/h peak speed (Standard Resin 0.1mm layer height)
• Printing Speed 2: 120mm/h peak speed (High Speed Resin 0.1mm layer height)
• Printing Dimensions: 6.04*3.42*6.48in. / 153.4*87.*165mm (HWD)
• Product Dimensions: 236 mm*231 mm*430 mm / 9.29*9.09*16.93in. (HWD)
• Machine Weight: 5 kg / 11lb.
• Maximum Print Volume: 2.2L / 74.4oz.

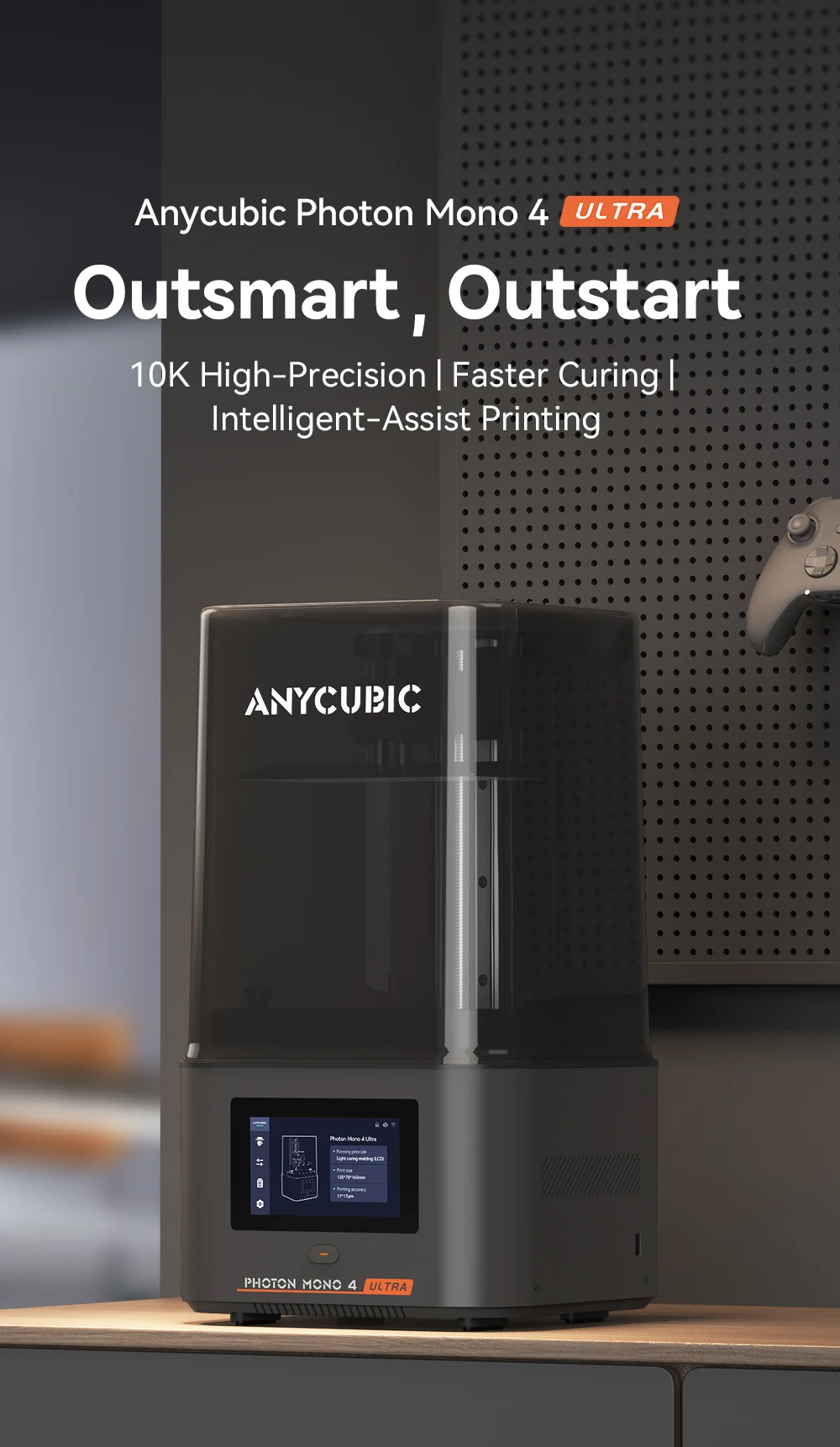

Outsmart, Outstart

10K High-Precision | Faster Curing | Intelligent-Assist Printing

Consistent, Even on All Layers

With the Light Uniformity Algorithm, each device undergoes rigorous screen energy calibration, achieving a light uniformity rate of >=90%. The algorithms adjust energy points outside the dynamic range, precisely controlling curing light energy. This reduces dimensional errors in each printed layer, ensuring consistent printing.

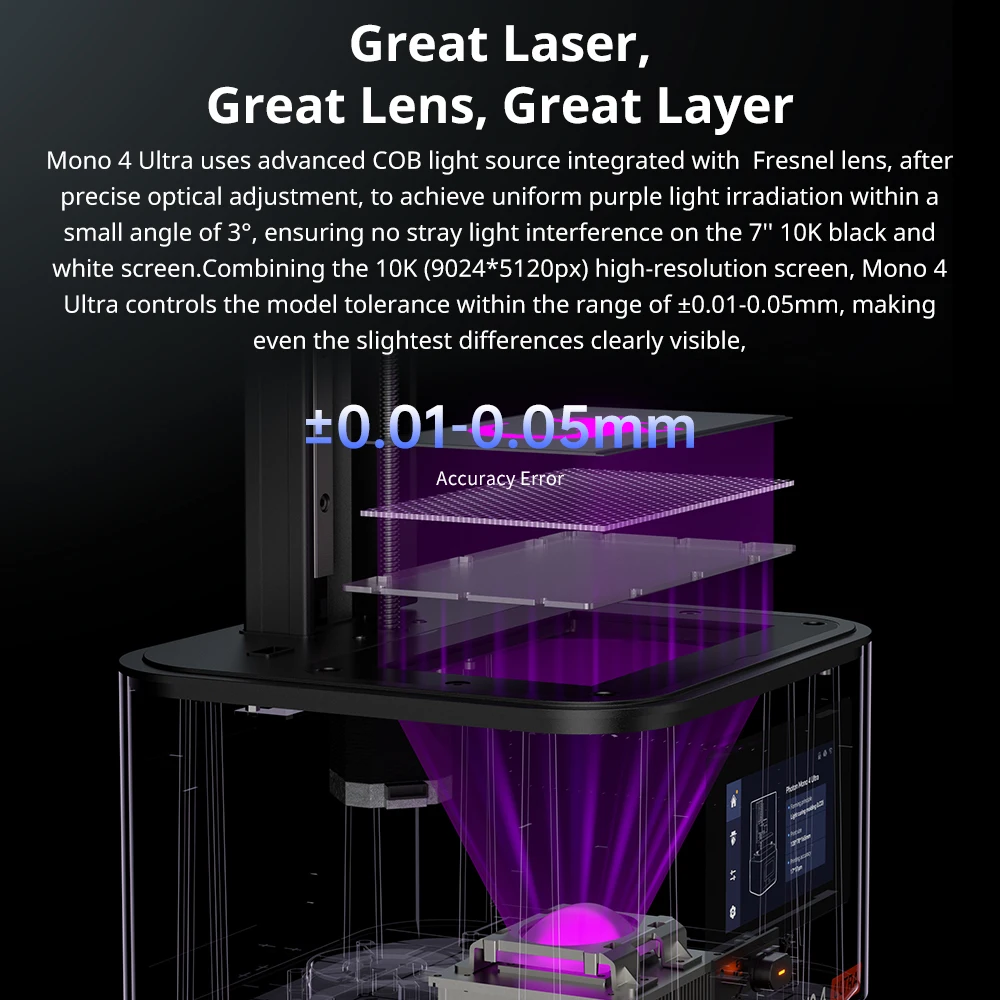

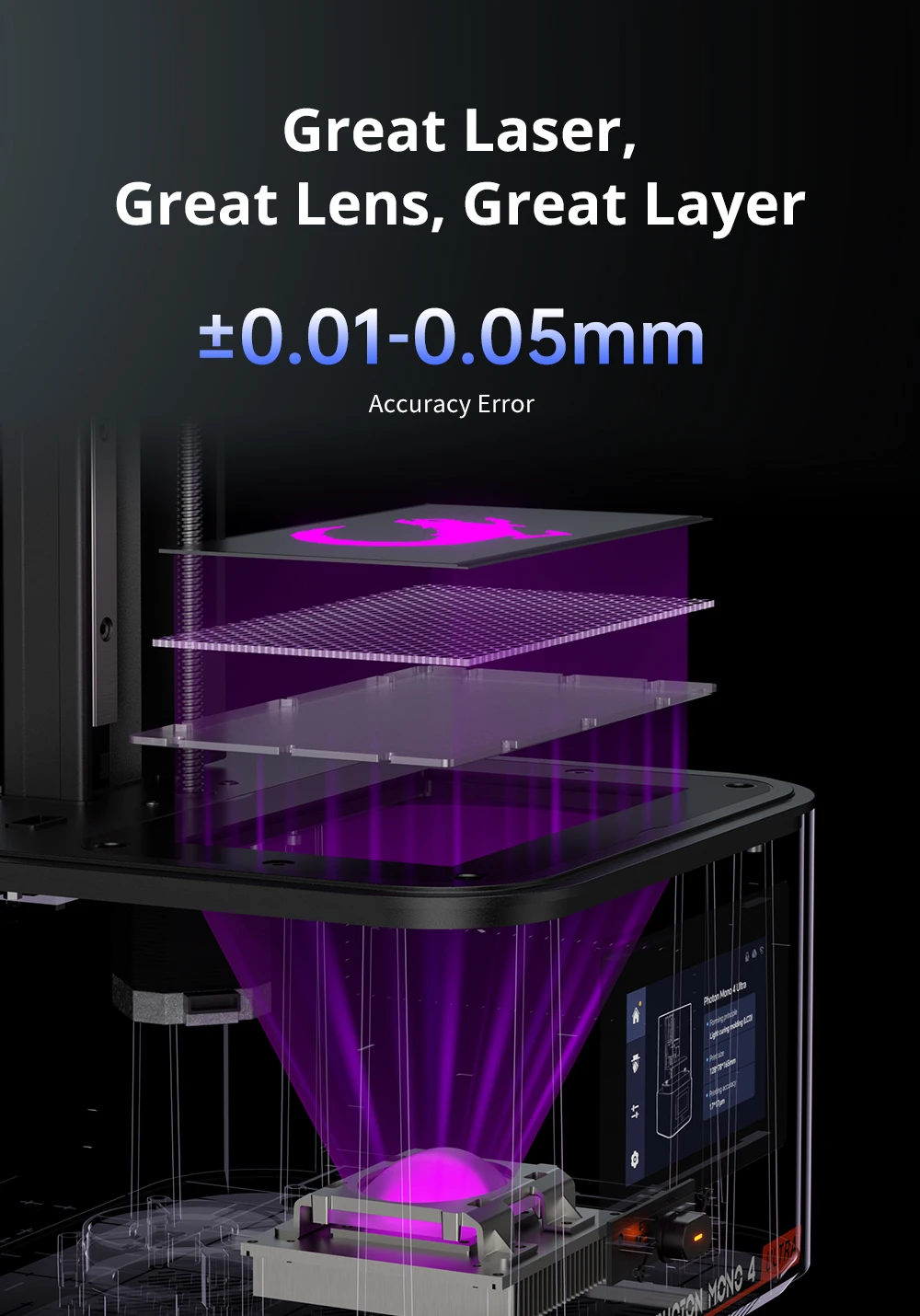

Great Laser, Great Lens, Great Layer

The Mono 4 Ultra uses an advanced COB light source integrated with a Fresnel lens. After precise optical adjustment, it achieves uniform purple light irradiation within a small angle of 3°, ensuring no stray light interference on the 7″ 10K black and white screen. Combining the 10K (9024x5120px) high-resolution screen, the Mono 4 Ultra controls the model tolerance within the range of 0.01-0.05mm, making even the slightest differences visible and ensuring that every detail of the model is accurately carved.

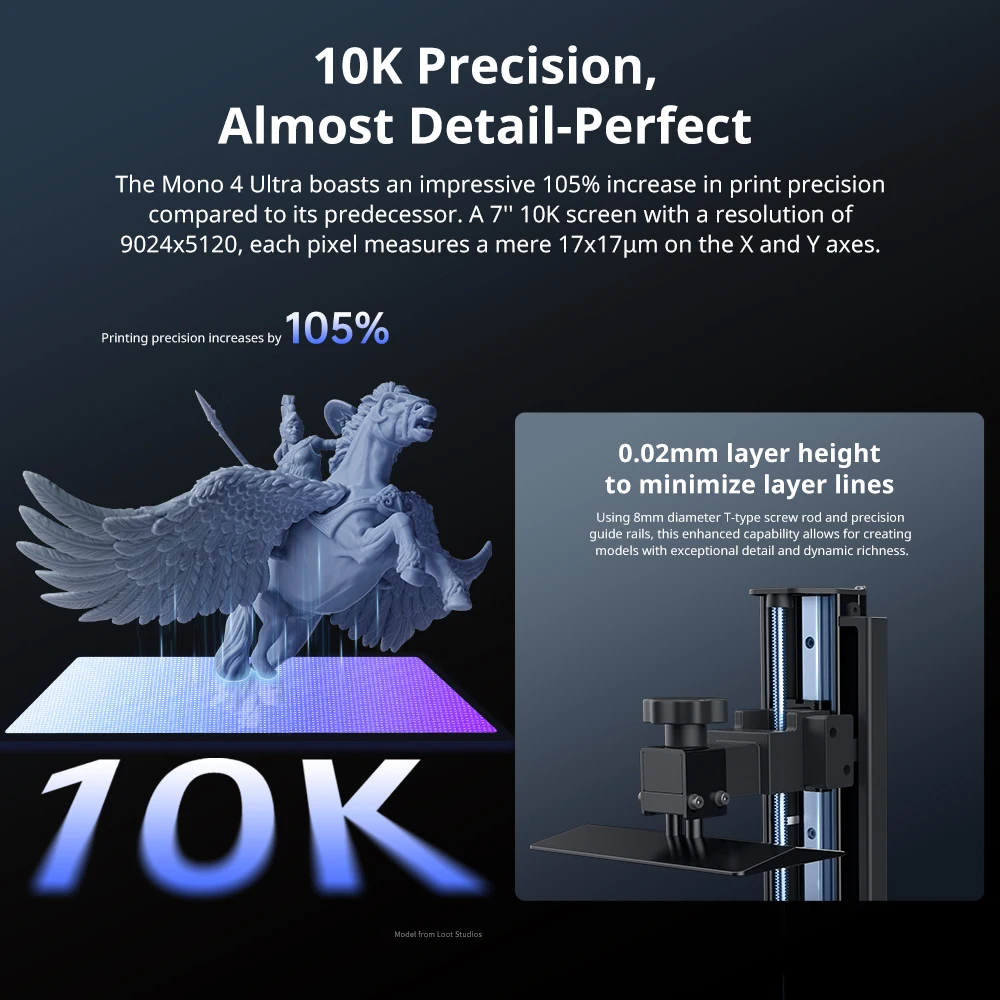

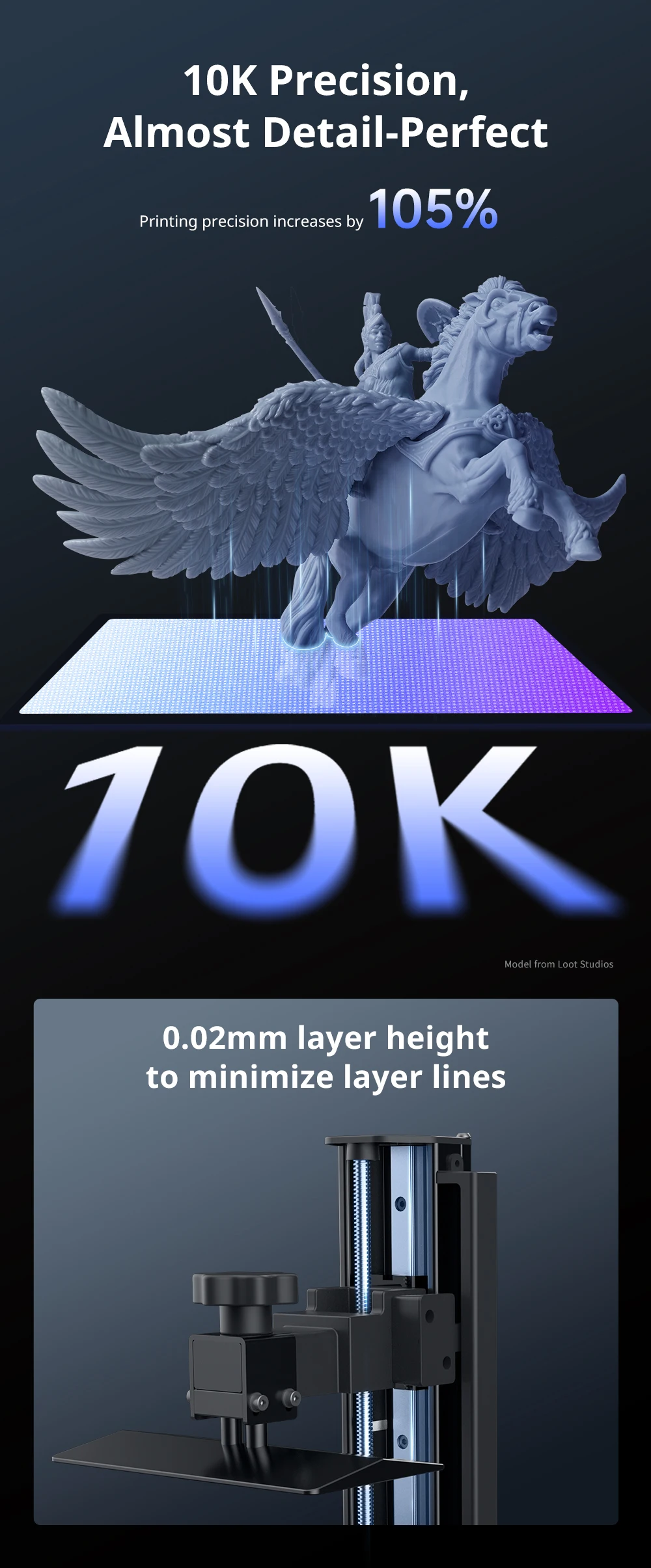

10K Precision, Almost Detail-Perfect

The Mono 4 Ultra boasts an impressive 105% increase in print precision compared to its predecessor. A 7″ 10K screen with a resolution of 9024×5120, each pixel measures a mere 17×17µm on the X and Y axes.

0.02mm layer height to minimize layer lines. Using an 8mm diameter T-type screw rod and precision guide rails, this enhanced capability allows for creating models with exceptional detail and dynamic richness.

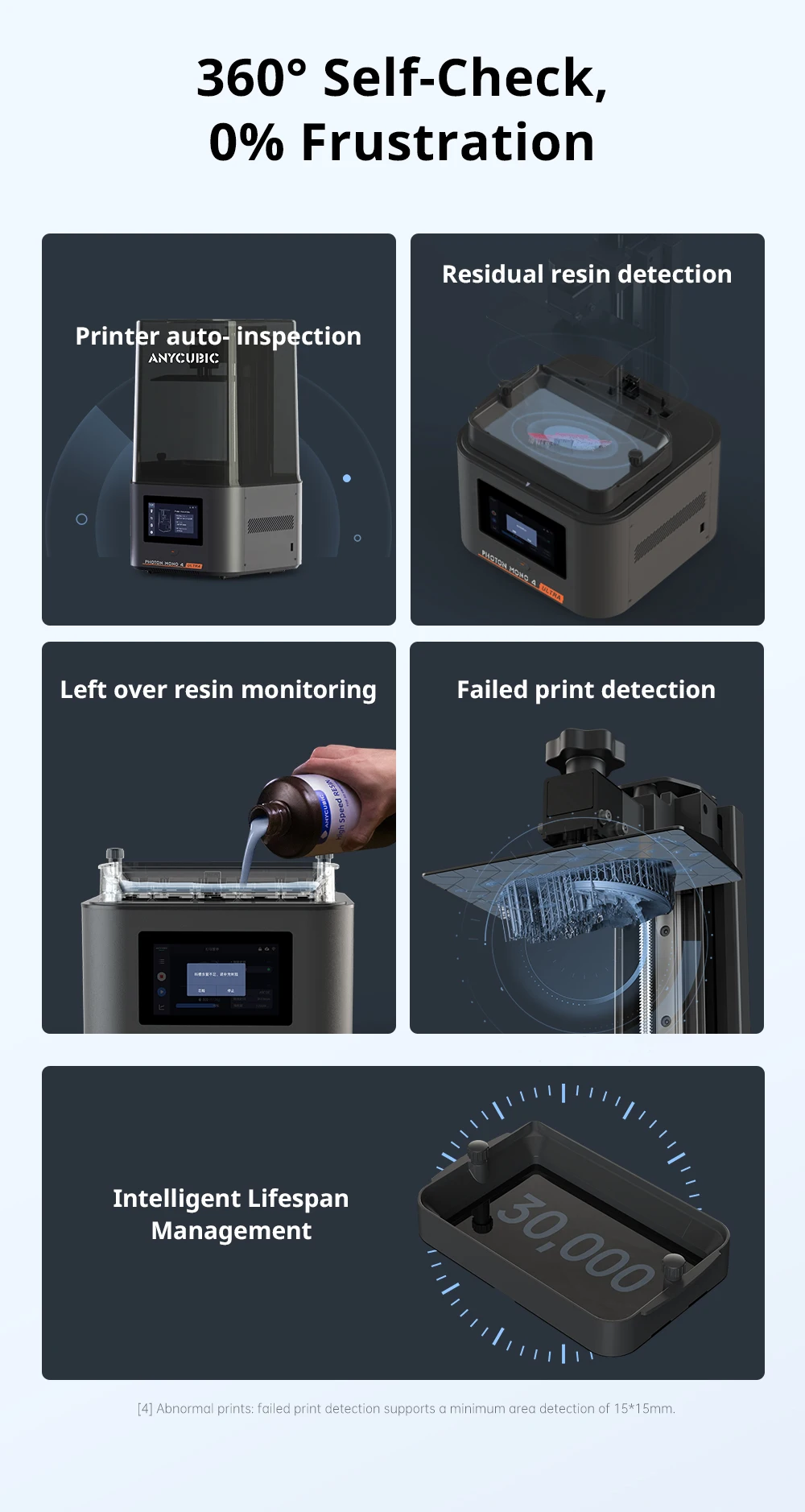

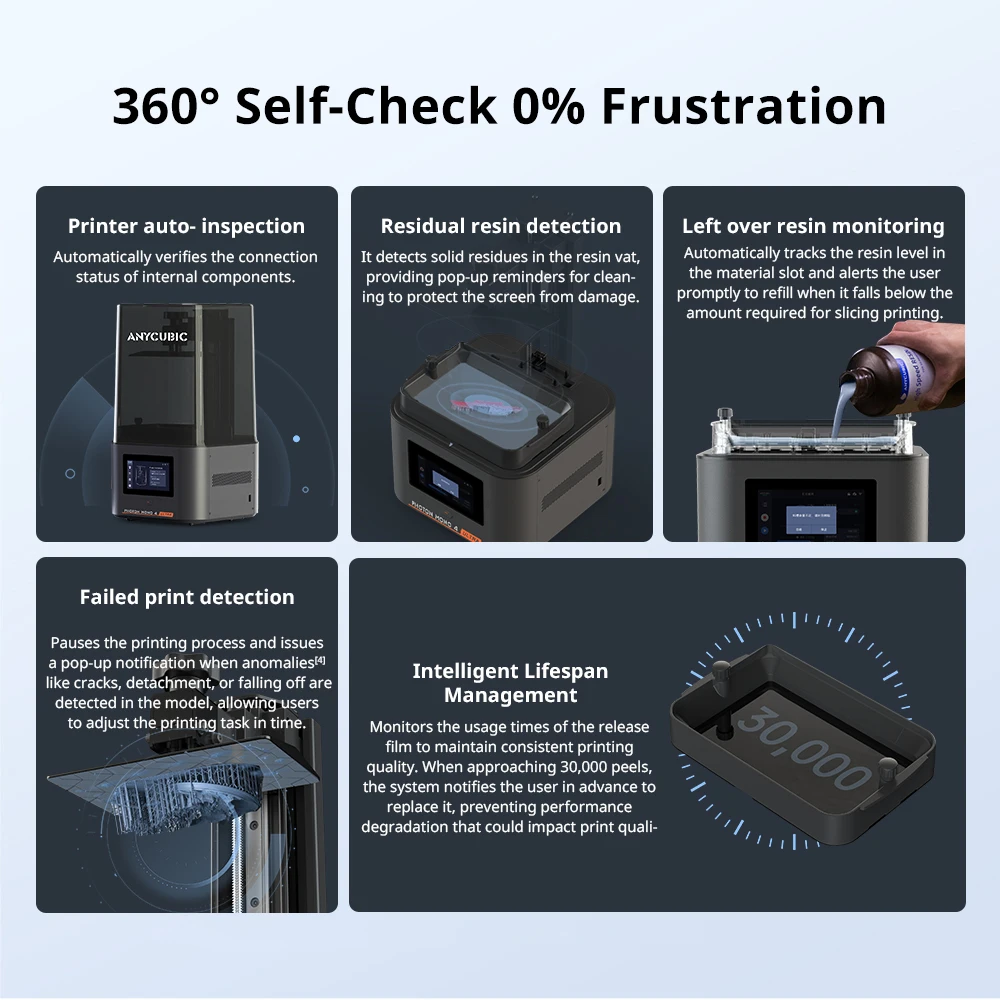

360° Self-Check. 0% Frustration

• Printer auto-inspection
• Residual resin detection
• Leftover resin monitoring
• Failed print detection
• Intelligent Lifespan Management

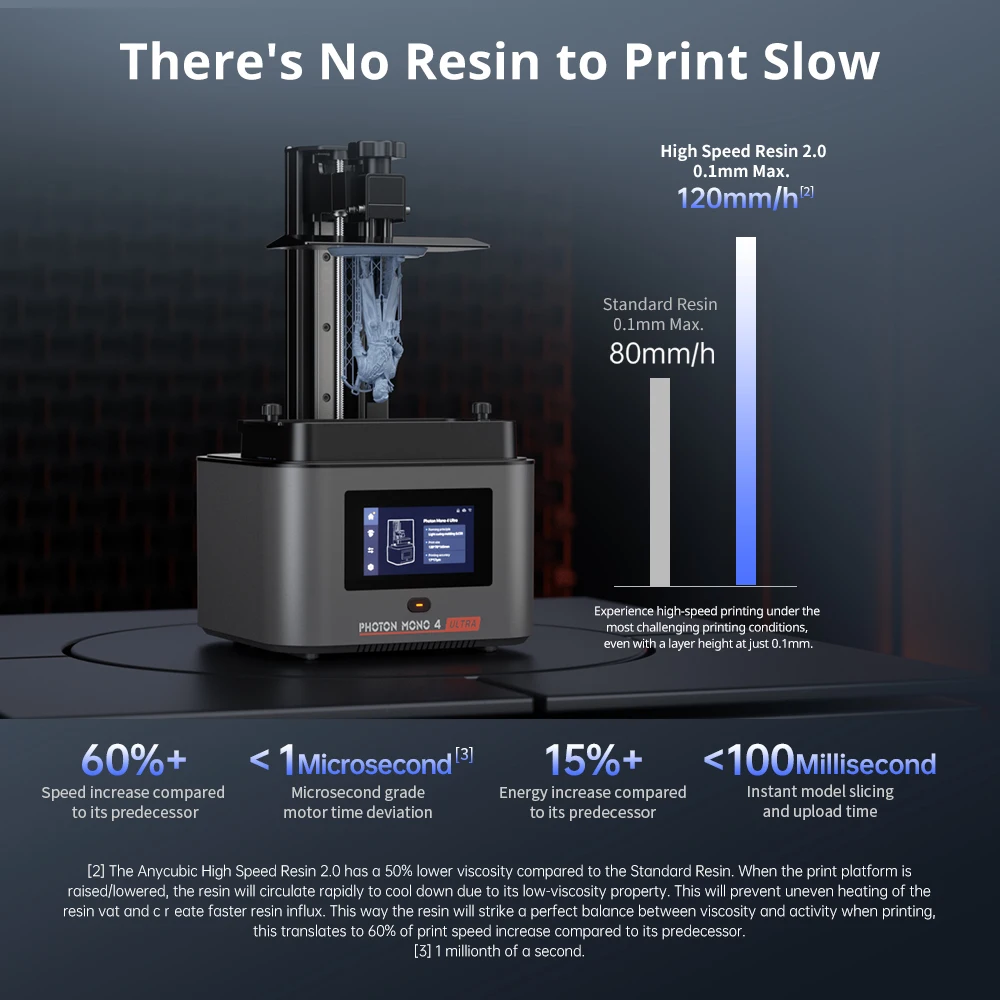

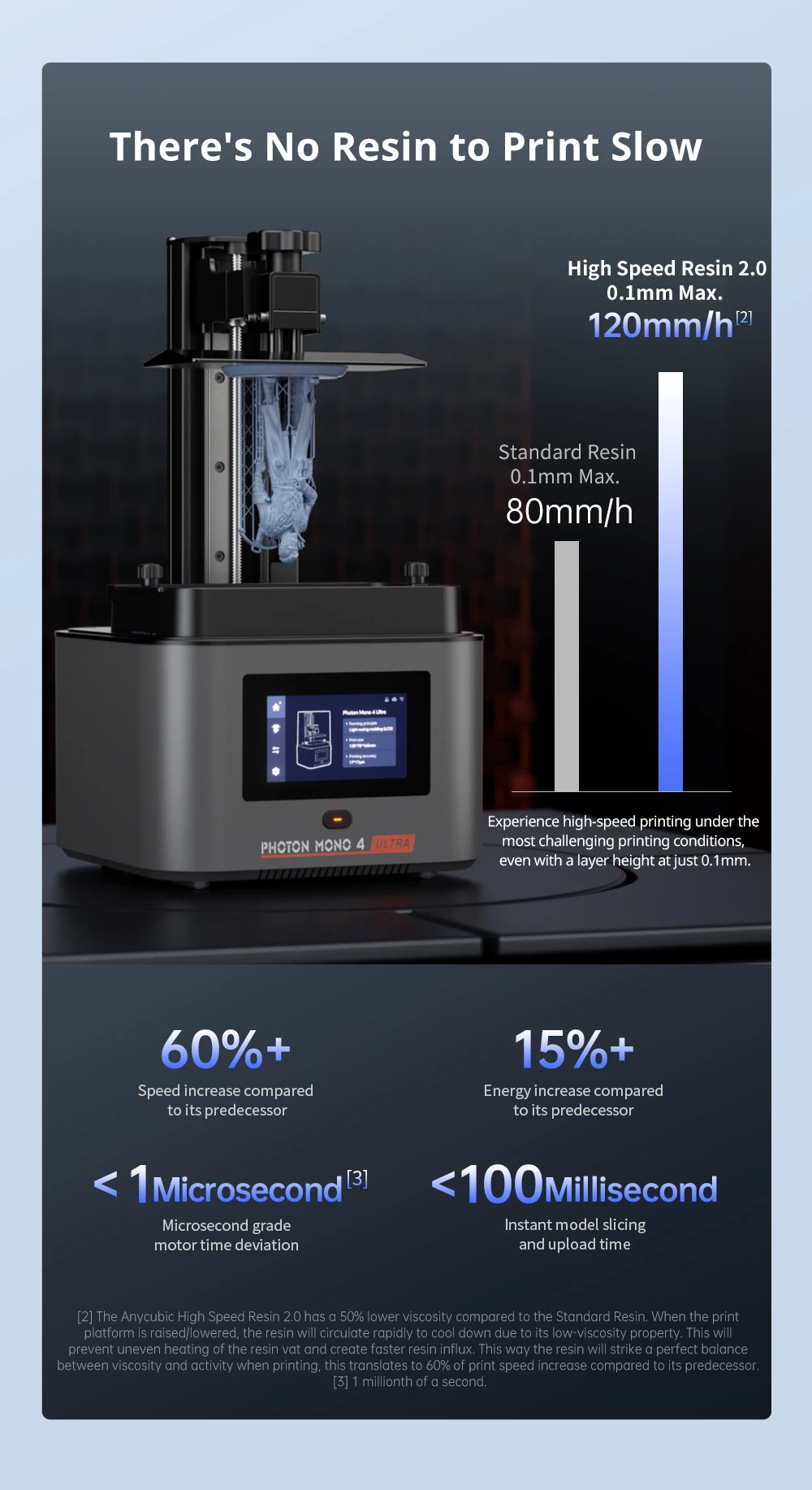

There’s No Resin to Print Slow

High Speed Resin 2.0: 0.1mm Max 120mm/h

Standard Resin: 0.1mm Max 80mm/h

Experience high-speed printing under the most challenging printing conditions, even with a layer height of just 0.1mm.

Interactive 3D Printing Ecosystem

• Massive model resources: Anycubic’s self-operated model library website, Makeronline, provides excellent models from over 3000 designers worldwide.
• Monetizing creative value: Users can easily earn gift cards and points by sharing their work or participating in printing theme contests.
• Experience exchange: Engage with 3D printing enthusiasts worldwide.
• Instant activation: If you have Anycubic Photon Workshop (vertical dimension slicer software) installed on your computer, simply download the model from Makeronline to one-click launch the slicing software. Then, generate the slicing file and export it to the associated printer to complete the printing process.

The Anycubic App

Multi-device sync-up: Whether it’s the website, slicing software, or printer, simply log in with the same account to easily achieve seamless cross-platform connectivity.

Cloud printing: Download the Anycubic App to directly access the Makeronline online model library on your smartphone, initiating print tasks through the cloud. Additionally, a cloud printing parameter library is available, recommending optimal print parameters based on various resins.

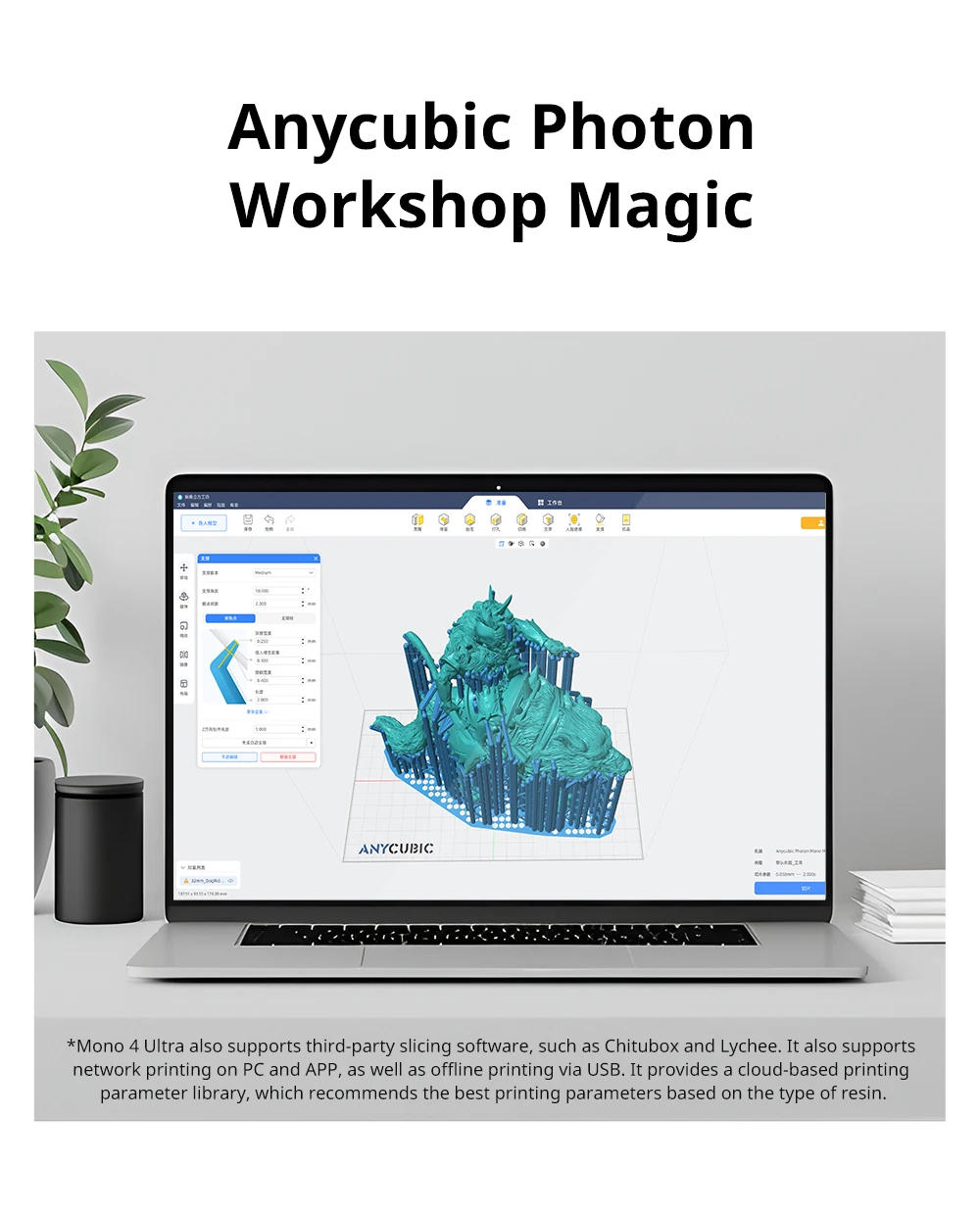

Anycubic Photon Workshop Magic

• Fully Automated Support Generation: Intelligent analysis and optimization of support structures ensure 100% penetration-free models with smaller touchpoints for easier removal post-printing.
• Customizable Support Optimization: Move and edit supports directly for personalized adjustments.
• Smooth Layer Transitions: Anti-aliasing reduces layer lines, making slopes and curves smoother.
• Remote operation: You can slice on the software side, initiate remote printing tasks, and view the printing progress and related information in real time.
