67W GaN USB-C 3-Port Fast Charger

67W GaN USB-C 3-Port Fast Charger

Product Information:

• Model: AC-255MUS
• Color: Black
• Dimensions: 63 x 38 x 31 mm
• Weight: 105.2 g
• Input: 100V-240V~50/60Hz

Single Port Output:

• USB-C1: 5.0V⎓3.0A 15.0W, 9.0V⎓3.0A 27.0W, 15.0V⎓3A 45.0W, or 20.0V⎓3.35A 67.0W. PPS 3.3-11V5A max 55W. The PPS with a 45W power reduction is 3.3-11V3A.
• USB-C2: 5.0V⎓3.0A 15.0W, 9.0V⎓3.0A 27.0W, 15.0V⎓3A 45.0W, or 20.0V⎓3.35A 67.0W. PPS 3.3-11V5A max 55 W.
• USB-A: 5.0V⎓3.0A 15.0W, 9.0V⎓2.0A 18.0W, 12.0V⎓1.5A 18.0W, or 10.0V⎓2.25A 22.5W max.

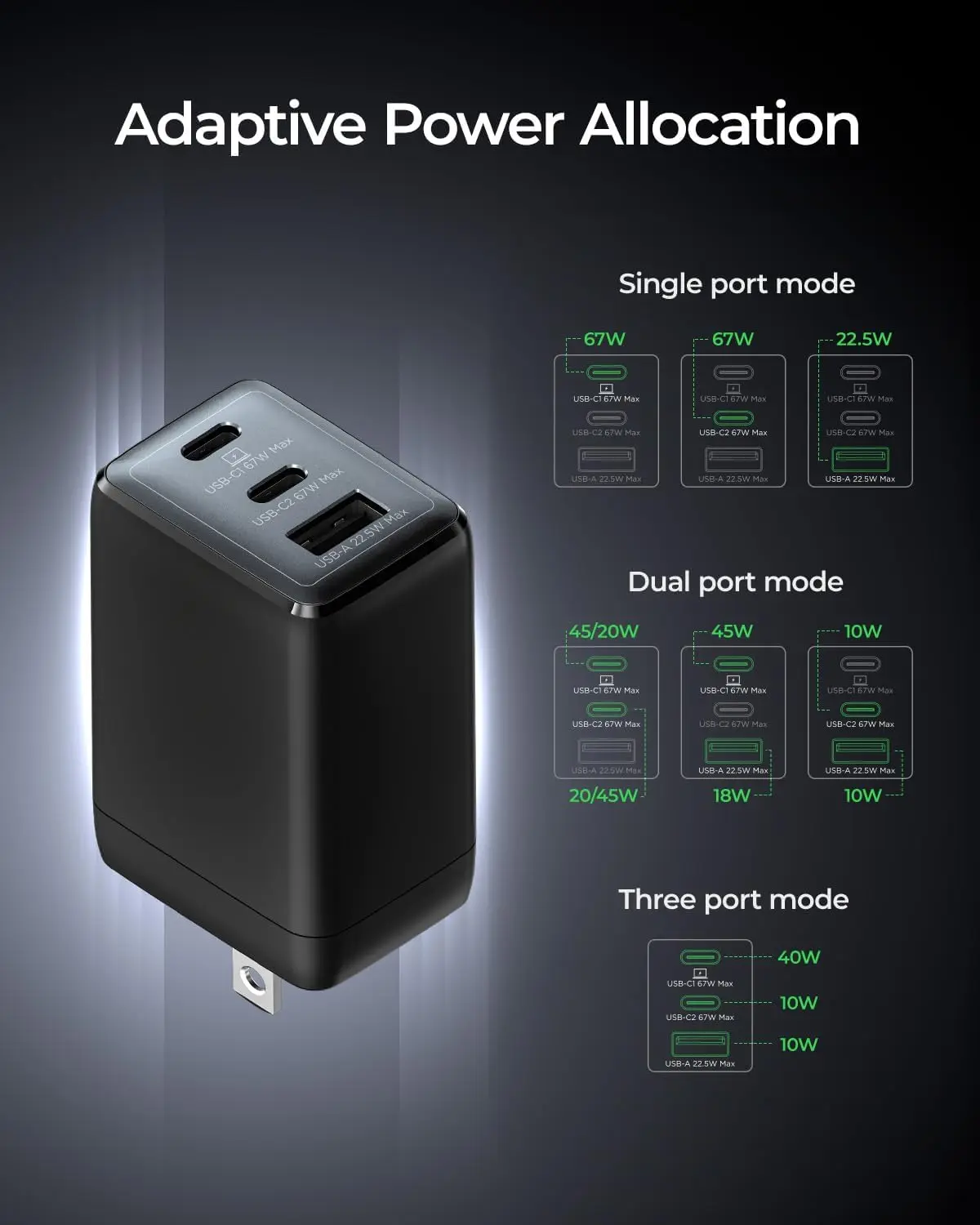

Mixed Output:

2 Ports Output:

• USB-C1 + USB-C2: 45W + 20W (20V2.25A PD3.0 / 11V3A PPS + 9V2.22A PD3.0)
• USB-C1 + USB-A: 45W + 18W (20V2.25A PD3.0 / 11V3A PPS + 9V2A QC 18W)
• USB-C2 + USB-A: 5V2A + 5V2A

At an ambient temperature of 25℃ with 110V/240V input, 45W + 20W full load continuous output for 25 to 30 minutes triggers the 75℃ over-temperature protection function, then switches to 30W + 20W continuous output.

3 Ports Output:

• USB-C1 + USB-C2 + USB-A: 40W + 10W + 10W (5V3A, 9V3A, 15V2.67A, 20V2A PD3.0 / 11V3A max PPS + 5V2A + 5V2A)

At an ambient temperature of 25℃ with 110V/240V input, the 40W + 10W + 10W full load continuous output will trigger the 75℃ over-temperature protection function after 25 to 30 minutes, switching to 30W + 7.5W + 7.5W continuous output.

Single Port Fast Charging Protocols:

• USB-C1: 67W max supported protocols: PPS, PD3.0, QC3.0, QC2.0, SCP, FCP, Apple 2.4A, SAMSUNG 2.0A, BC1.2
• USB-C2: 67W max supported protocols: PPS, PD3.0, QC3.0, QC2.0, SCP, FCP, Apple 2.4A, SAMSUNG 2.0A, BC1.2
• USB-A: 22.5W max supported protocols: SCP 22.5W, QC3.0, QC2.0, Apple 2.4A, SAMSUNG 2.0A, BC1.2

100W Hyper-Fast Charging:

Connect a single device to get a 100W max charge, enough to power up a 14-inch MacBook Pro (M3 Pro) to 50% in 30 minutes. When you connect three devices at the same time, power is distributed efficiently between ports for balanced charging.

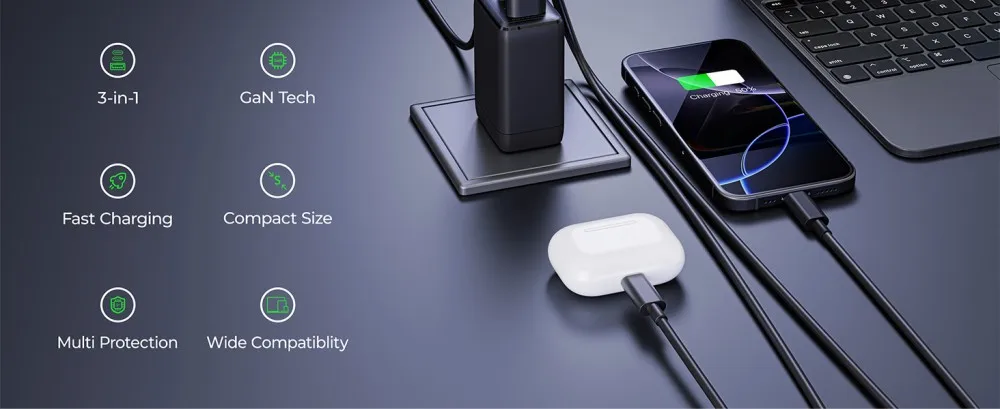

3-in-1 Fast Charger:

Featuring 2 USB-C ports and 1 USB-A port, this wall charger delivers up to 100W total output for charging up to three devices at once. It is suitable for phones, tablets, and laptops.

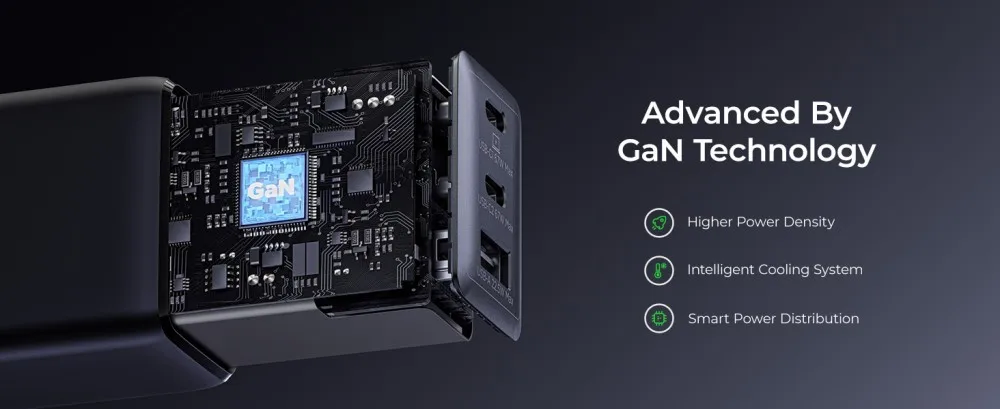

GaN III CoolTech and Certified Safety:

Built with Gallium Nitride III technology and thermal safeguards, this charger is designed to run cooler than traditional chargers. It also includes protection features such as voltage and current monitoring, short-circuit protection, overload auto-shutdown, and a flame-retardant casing.

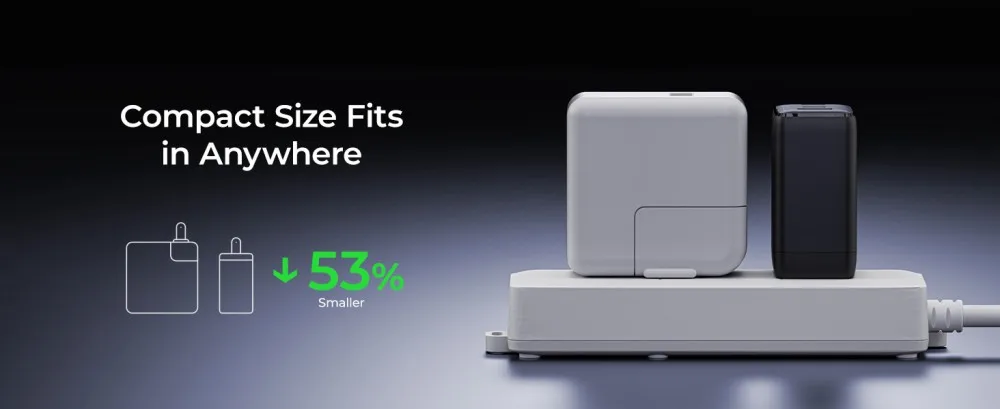

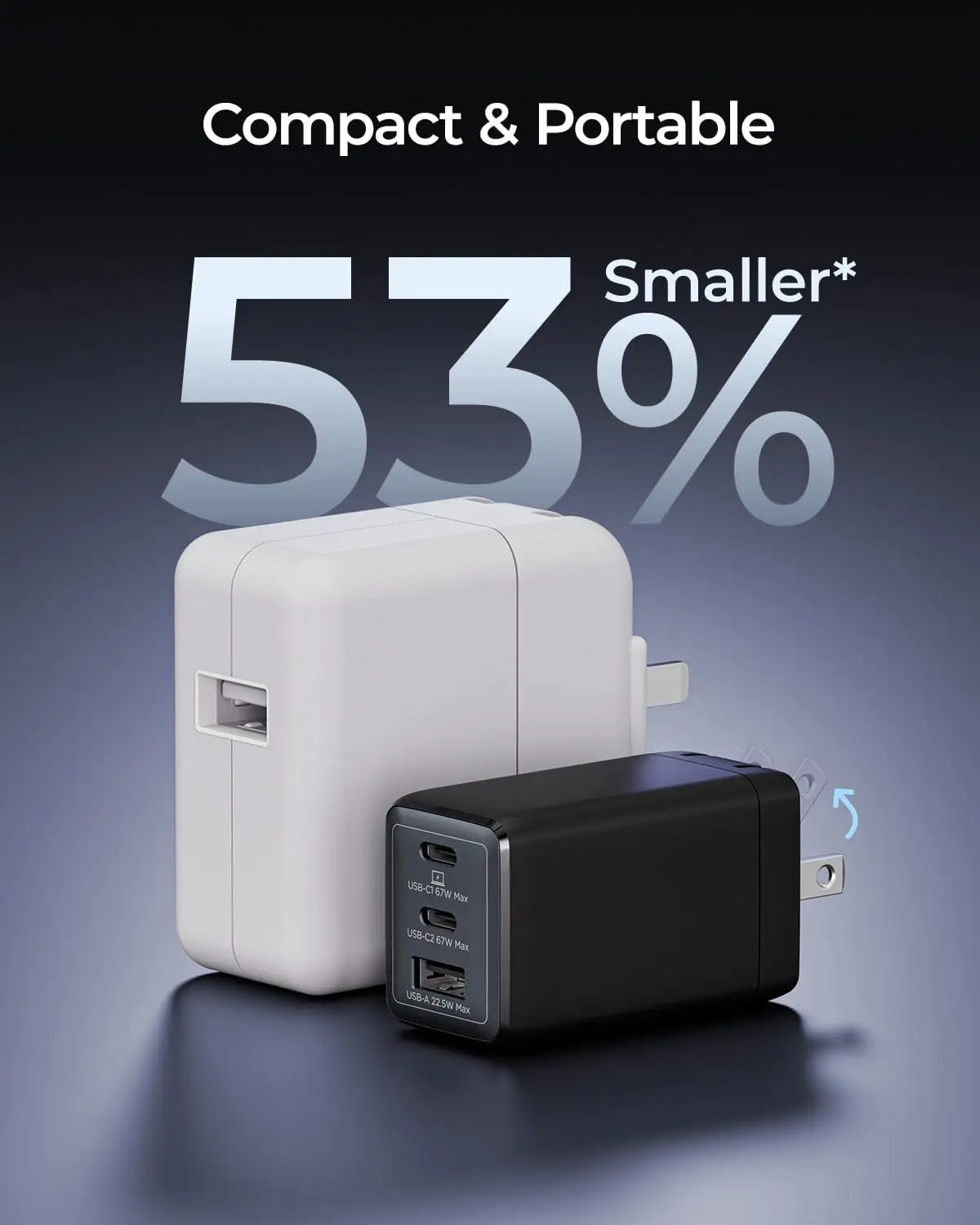

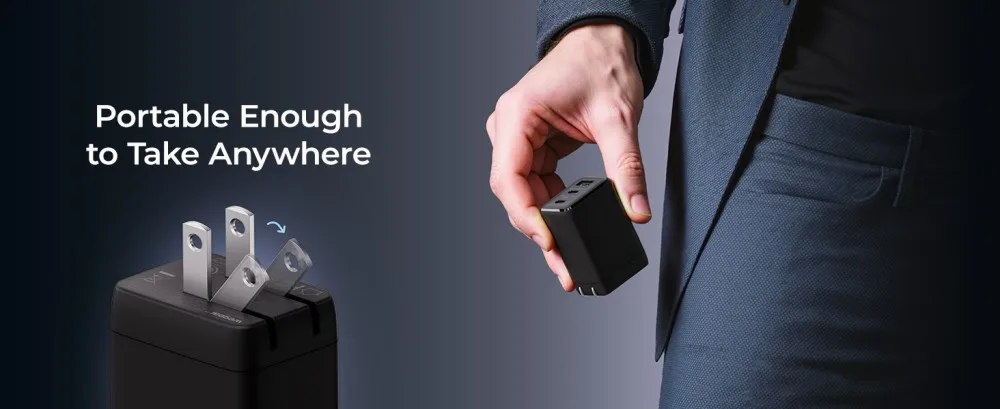

Compact and Foldable Design:

This charger features a compact body and a foldable plug for easier storage and travel.

Wide Compatibility:

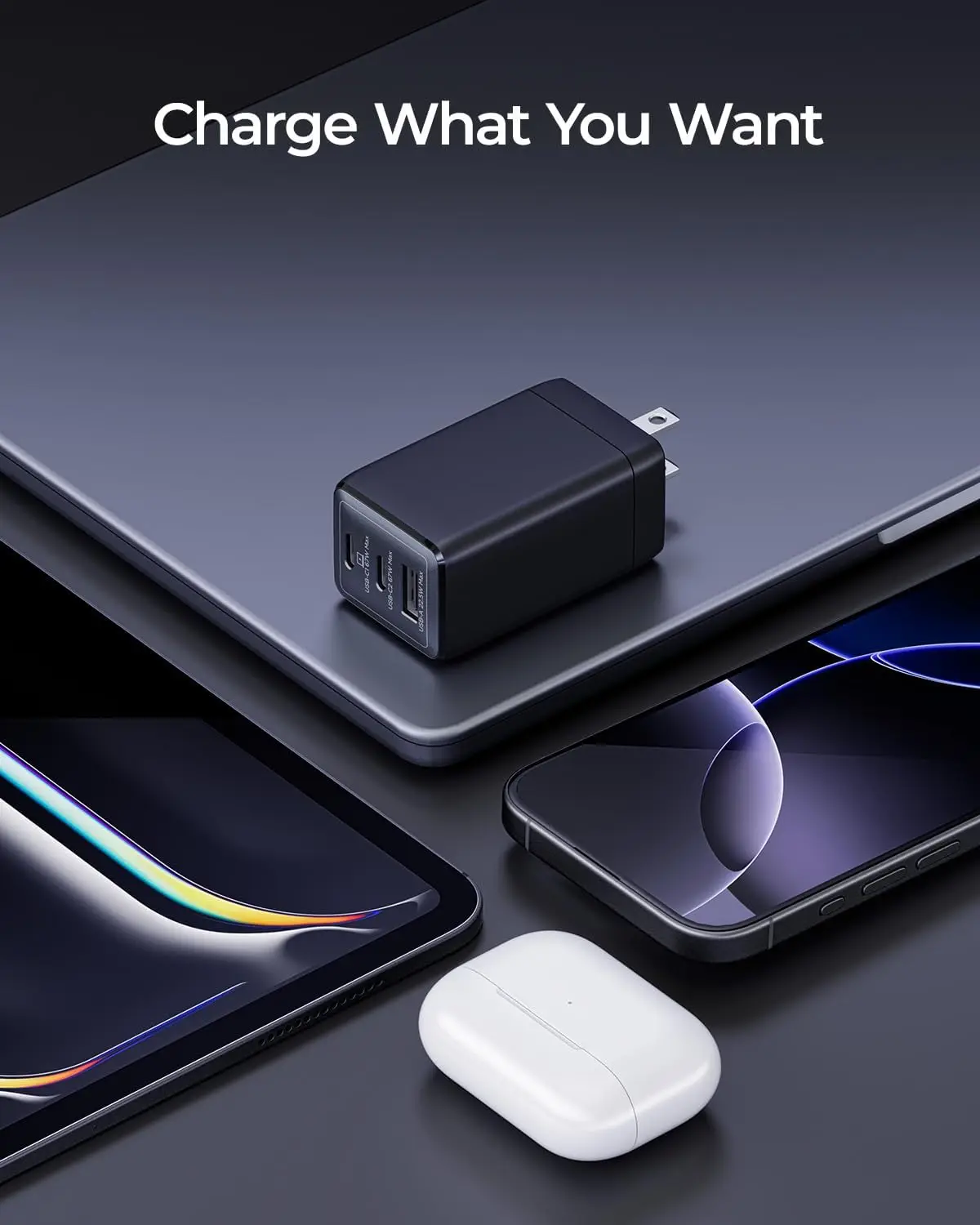

Compatible with MacBook, iPhone 8 through 16 Series, Galaxy S10 through S24 Series, MagSafe, iPad Pro, Google Pixel 7 Pro, 6a, 5, Nintendo Switch, Steam Deck, and more. USB-C cable not included.
