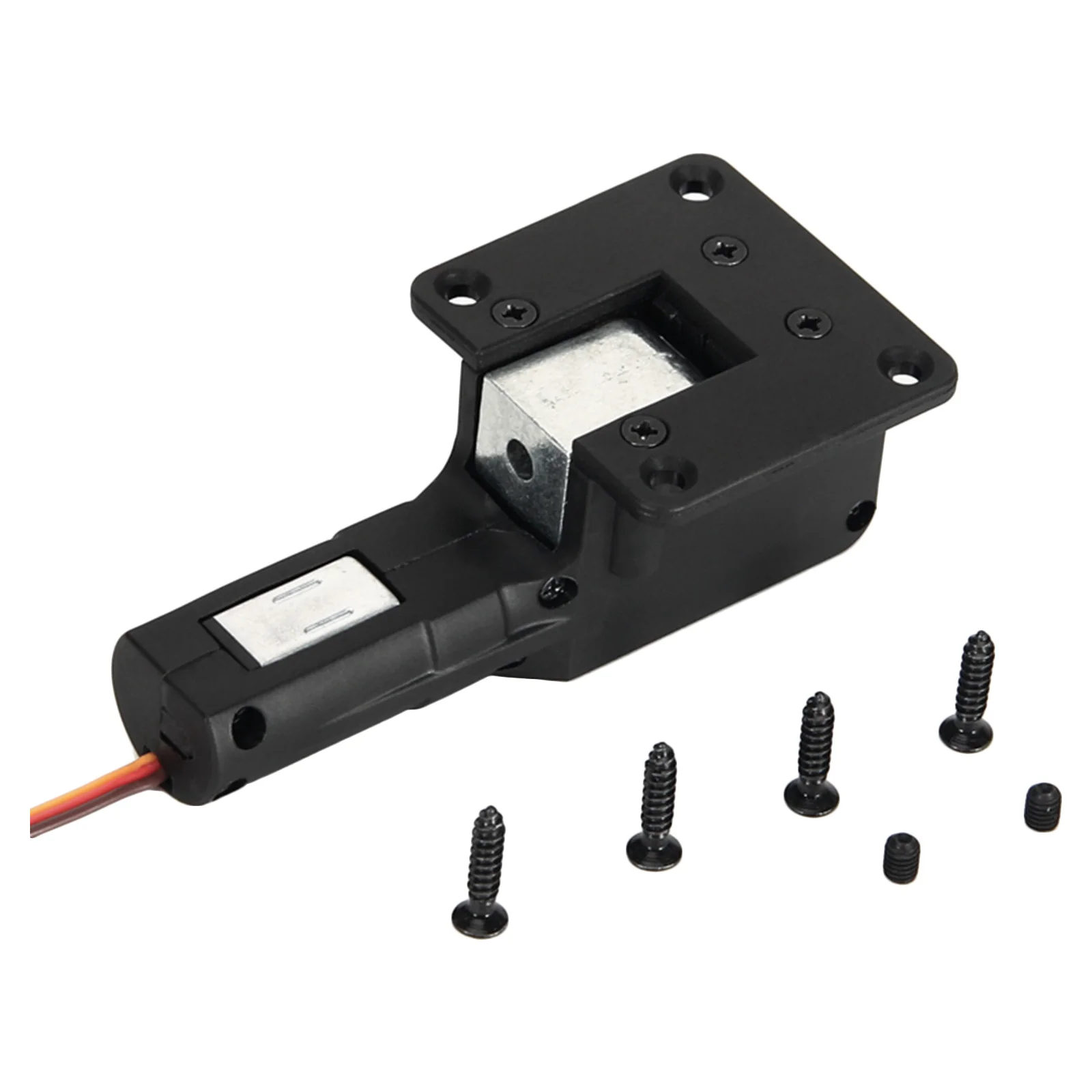

RC Helicopter Electric Landing Gear

Description

RC Helicopter Electric Landing Gear

Features:

• Micro PCB integrated motor with built-in overcurrent protection, ideal for fixed-wing aircraft.
• Advanced current protection design to prevent circuit overload and burnout.
• Dual shock absorption design to ensure full protection of the gears.

Specifications:

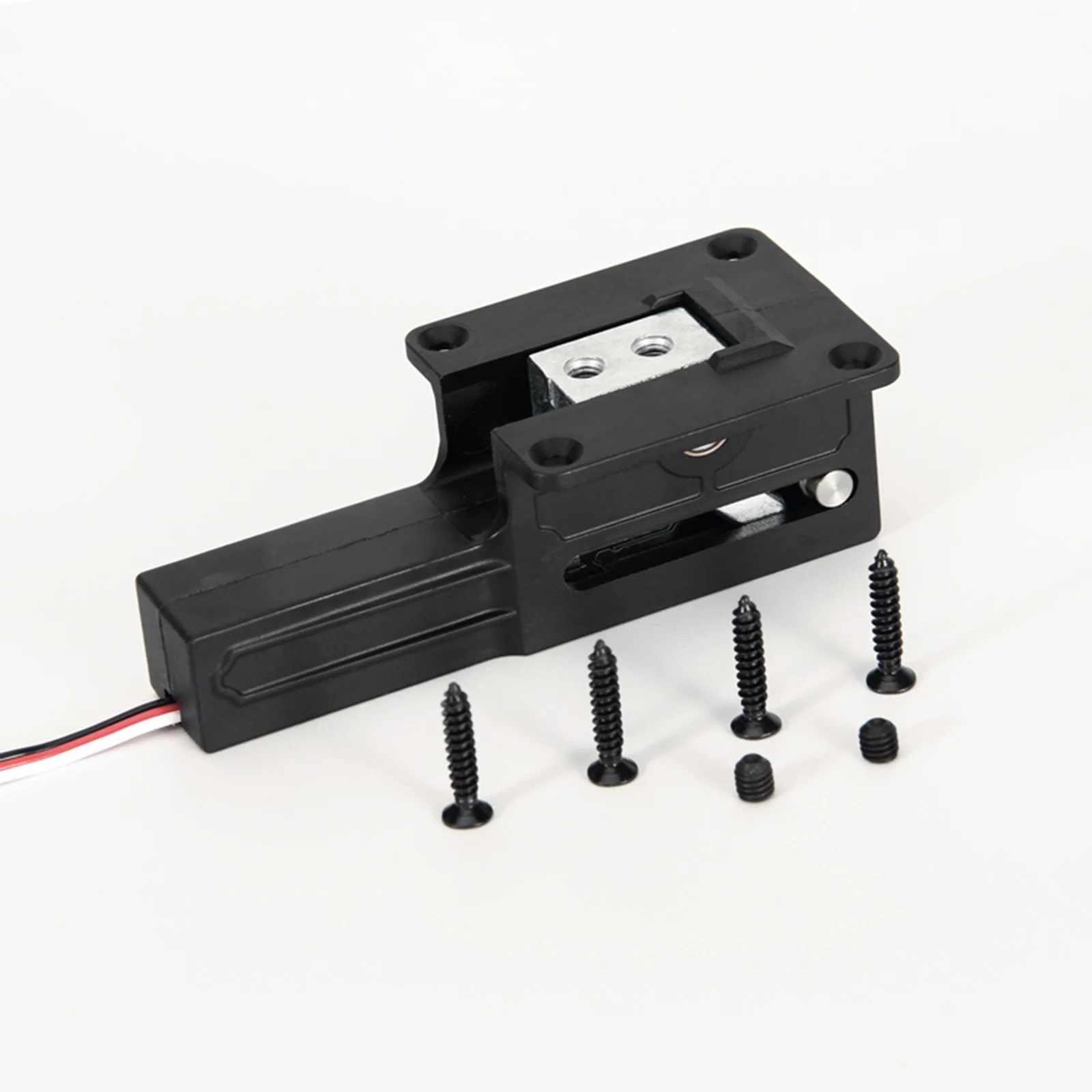

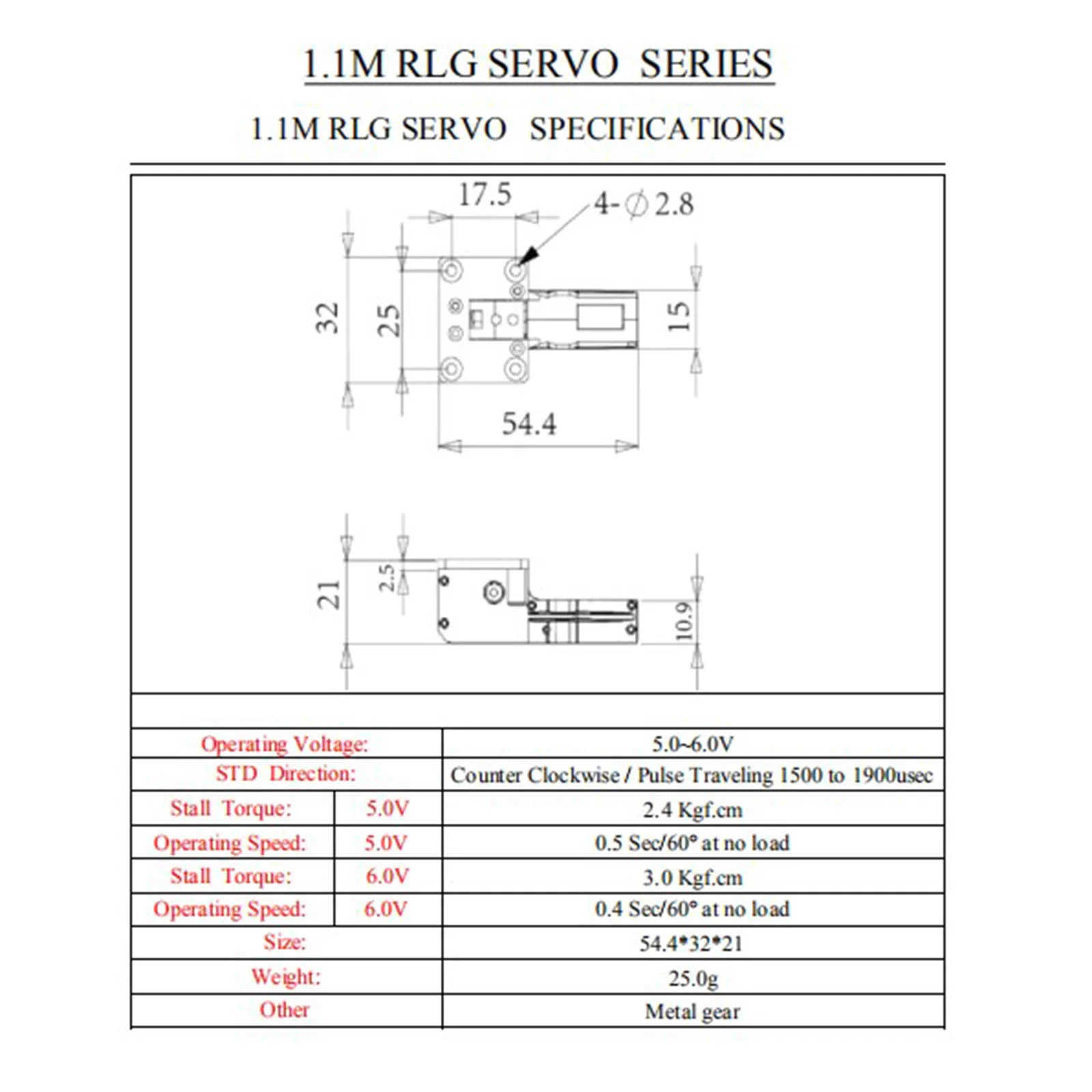

RLG1: 1.1m Electronic Retractable Landing Gear

• Operating Voltage: 4.8V-6.0V (can be directly connected to the remote control receiver for power)
• No-load Current: 100 mA (5V)
• Hanging Weight: 215g
• Length: 11cm (4.33 inches) (Length refers to the distance from the steel wire to the steel claw)
• Torque: 2.4Kg.cm
• Weight: 25g
• Operating Environment: -20° to 60° Celsius
• Operating Angle: 90°
• Signal Line: JR universal plug
• Size: 55.4x32x21mm (2.18×1.26×0.83 inches)

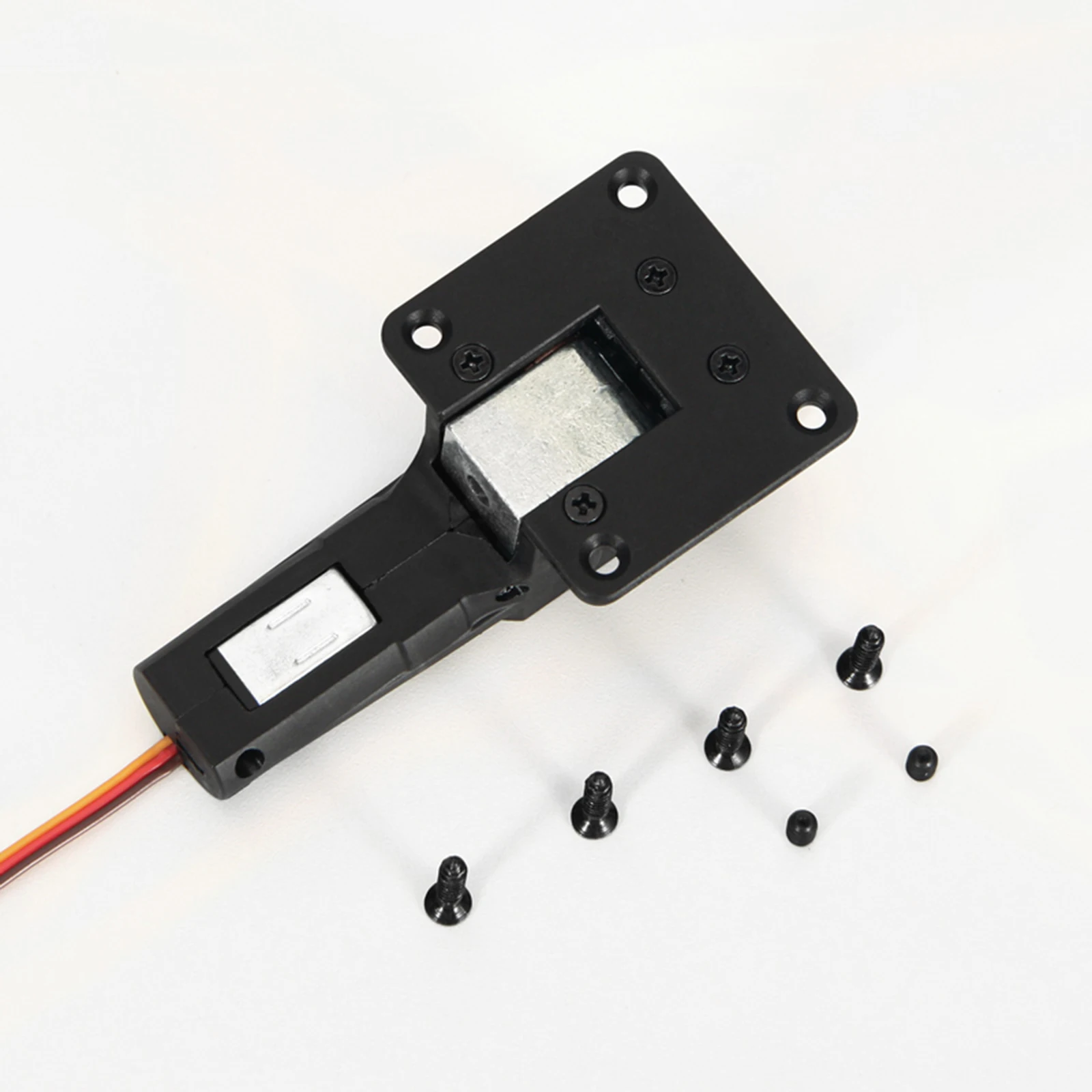

RLG2: 1.2m Electronic Retractable Landing Gear

• Operating Voltage: 4.8V-6.0V (can be directly connected to the remote control receiver for power)
• No-load Current: 150 mA (5V)
• Hanging Weight: 162g
• Length: 15.5cm (6.1 inches) (Length refers to the distance from the steel wire to the steel claw)
• Torque: 2.5Kg.cm
• Weight: 40g
• Operating Environment: -20° to 60° Celsius
• Operating Angle: 90°
• Signal Line: JR universal plug
• Dimensions: 67.3x43x35mm (2.65×1.69×1.38 inches)

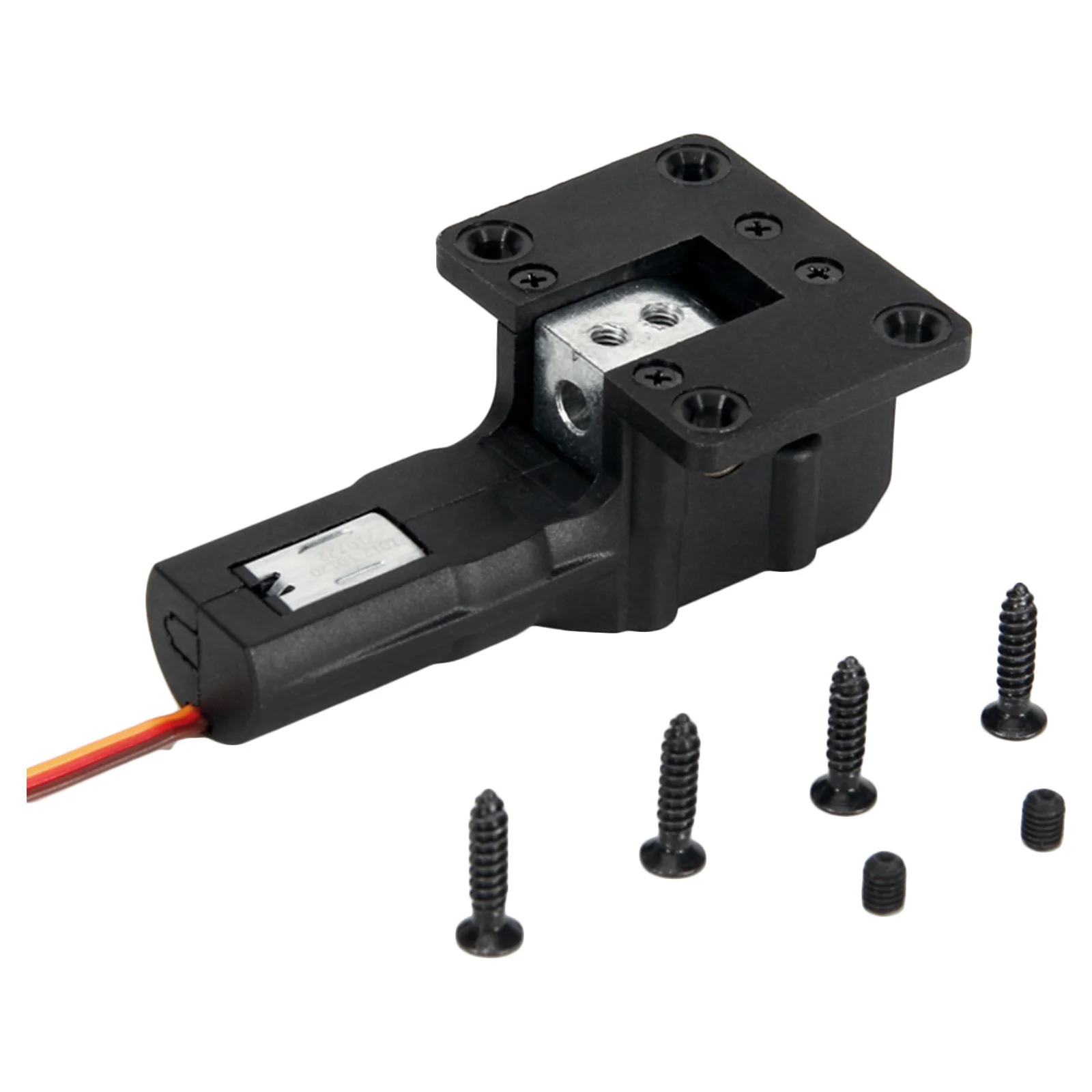

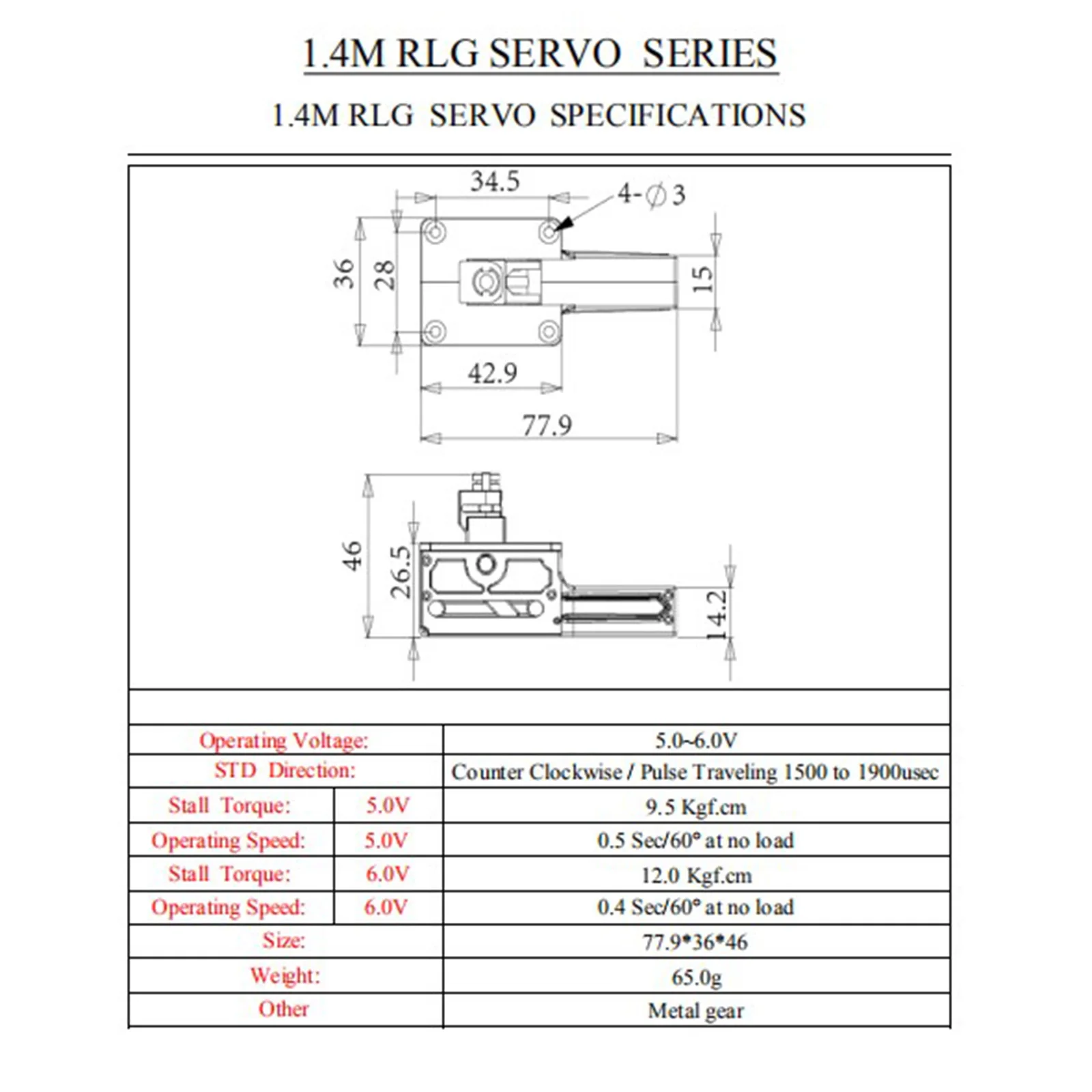

RLG3: 1.4m Electronic Retractable Landing Gear

• Operating Voltage: 4.8V-6.0V (can be directly connected to the remote control receiver for power)
• No-load Current: 200 mA (5V)
• Hanging Weight: 680g
• Length: 14cm (5.51 inches) (Length refers to the distance from the steel wire to the steel claw)
• Torque: 9.5Kg.cm
• Weight: 65g
• Operating Environment: -20° to 60° Celsius
• Operating Angle: 90°
• Signal Line: JR universal plug
• Dimensions: 77.9x46x36mm (3.07×1.81×1.42 inches)

Note:

• The actual color of the item may slightly vary from the pictures due to different monitors and light effects.
• Please allow a 1-2cm deviation in measurements due to manual measurement.

Product Name: Bcato Steering Servo Metal Electric Retractable Landing Gear with JR Plug for RC Fixed-wing Airplane Aircraft DIY Parts Kits

Included in Package:

• 1 set of Remote Control Accessories (repeated four times)
